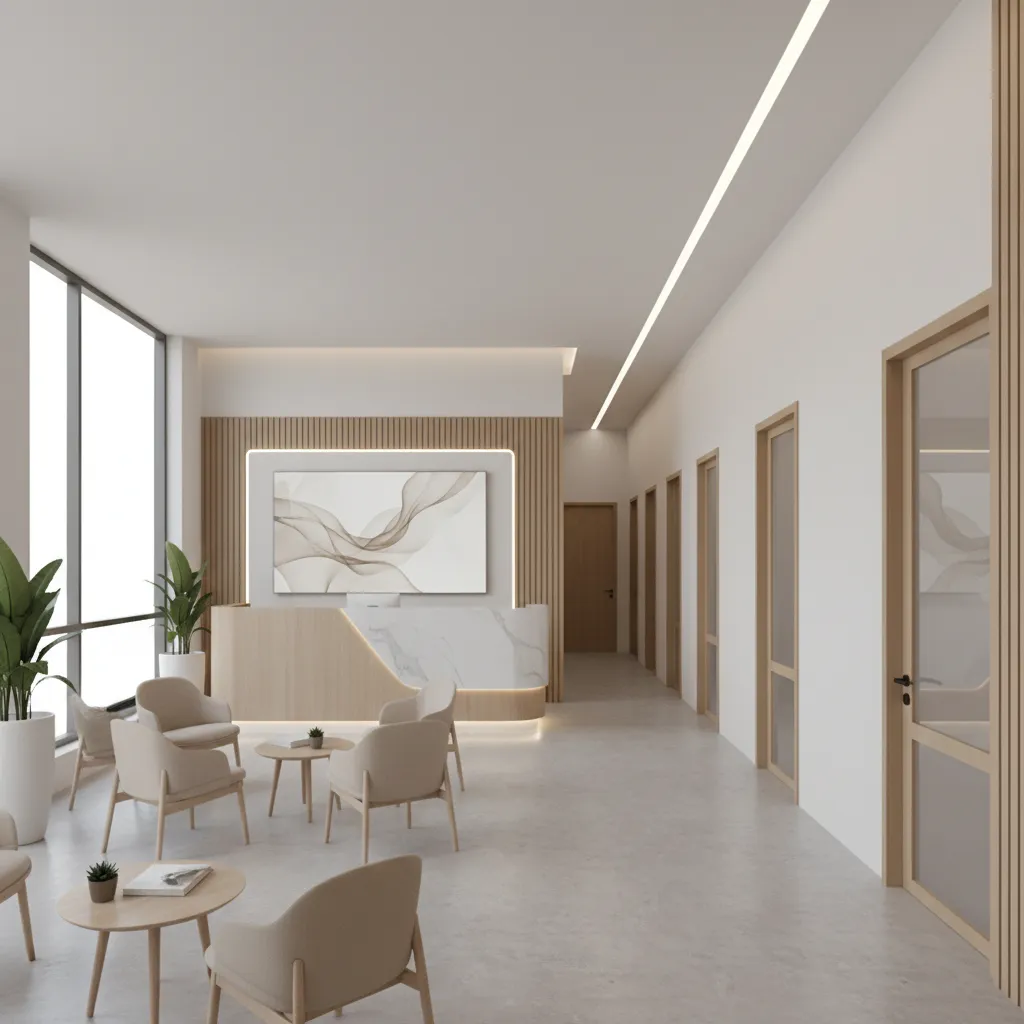

How to Optimize Patient Flow in a 1500 sq ft Eye Clinic: Practical layout strategies that reduce waiting time and improve efficiency in small ophthalmology clinics

Direct Answer

Optimizing patient flow in a 1500 sq ft eye clinic requires separating diagnostic zones from consultation rooms, minimizing cross‑traffic, and placing reception as a central routing point. A well‑planned ophthalmology clinic workflow reduces patient waiting time, shortens staff walking distance, and allows multiple doctors to work efficiently within limited space.

The most effective layouts create a clear journey: check‑in → pretest → exam → consultation → checkout, with each zone positioned to prevent backtracking.

Quick Takeaways

1. Separate diagnostic testing from exam rooms to avoid congestion.
2. Place reception where staff can visually control patient movement.
3. Design one-directional patient flow whenever possible.
4. Cluster exam rooms near diagnostic equipment to shorten transitions.
5. Reduce staff walking distance to improve clinic throughput.

Introduction

In more than a decade of designing healthcare interiors, the biggest operational mistake I see in small practices is assuming that equipment placement alone defines efficiency. It doesn’t. The real challenge is patient flow.

A 1500 sq ft eye clinic has just enough space to operate efficiently—but only if circulation paths are carefully planned. When the layout is wrong, patients stack up in hallways, technicians walk back and forth between rooms, and doctors spend valuable time waiting for the next patient.

Many clinic owners I work with initially focus on maximizing the number of exam rooms. In practice, that rarely solves the real bottleneck. What actually improves performance is designing a workflow where patients move smoothly through each stage of care.

If you're mapping the circulation paths before construction, using a visual planning workflow like mapping patient movement across treatment zones in a clinic layoutcan make inefficiencies obvious before they become expensive problems.

In this guide, I’ll break down how to optimize ophthalmology clinic workflow in a 1500 sq ft footprint based on patterns that consistently perform well in real practices.

save pin

Understanding Patient Flow in Eye Clinics

Key Insight: Eye clinic patient flow works best when diagnostic steps happen before the doctor visit, not during it.

Unlike many medical specialties, ophthalmology relies heavily on diagnostic equipment—autorefractors, OCT machines, visual field analyzers, and retinal imaging systems. When these tools are scattered or placed inside exam rooms, the workflow slows dramatically.

In efficient clinics, technicians perform most diagnostic work before the patient enters the exam room.

Typical efficient ophthalmology workflow:

1. Check‑in at reception
2. Pre‑testing and imaging
3. Exam room consultation
4. Optional diagnostic confirmation
5. Checkout and scheduling

The American Academy of Ophthalmology often emphasizes that pretesting improves clinic throughput because physicians can immediately interpret results rather than waiting for technicians during appointments.

Design implication: the pretest area should sit between reception and exam rooms—not at the back of the clinic.

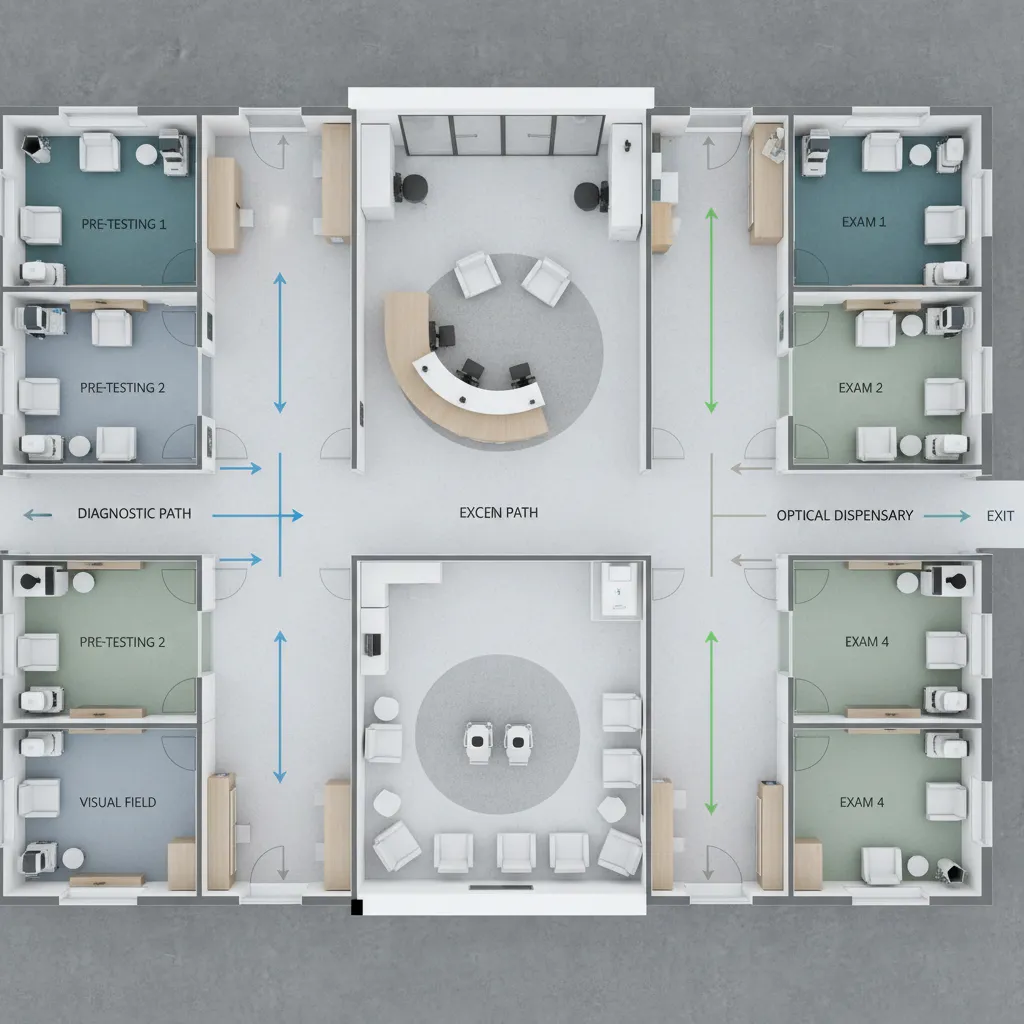

Ideal Patient Journey in a 1500 sq ft Clinic

Key Insight: The most efficient small clinics follow a loop layout rather than a dead‑end corridor.

A loop circulation pattern prevents patients from walking back through crowded waiting areas after each step. It also allows staff to guide patients forward through the clinic rather than sending them backward.

Typical spatial sequence for a 1500 sq ft clinic:

1. Front zone: reception and waiting
2. Mid zone: pretesting and imaging
3. Rear zone: exam rooms and consultation
4. Exit zone: optical or checkout

One mistake I see often is putting diagnostic equipment at the far end of the building. That forces technicians to escort patients across the clinic repeatedly.

A better solution is clustering testing equipment in a central diagnostic hub that feeds multiple exam rooms.

save pin

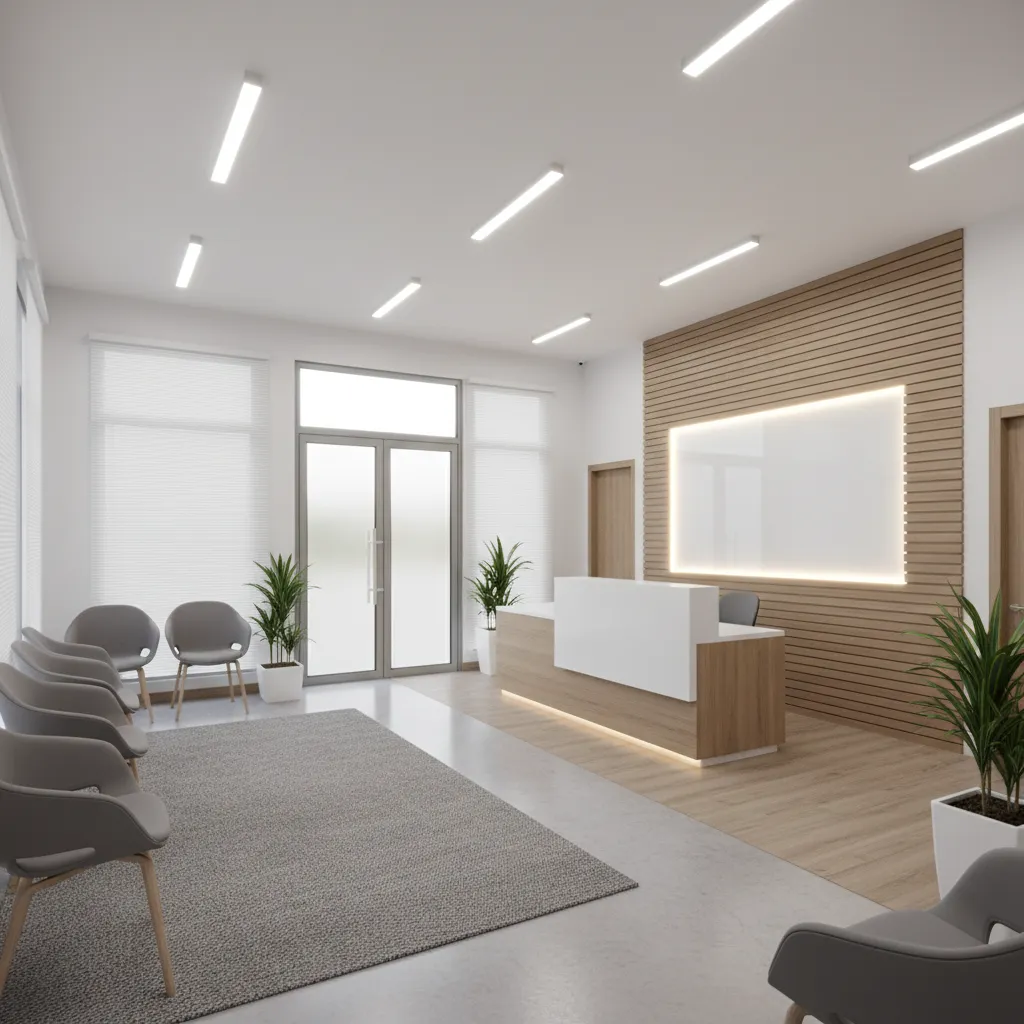

Strategic Placement of Reception and Waiting Areas

Key Insight: Reception should control circulation, not just handle check‑ins.

Reception is the command center of patient flow. When placed correctly, staff can visually monitor waiting patients, guide them to testing areas, and coordinate with technicians.

Effective reception placement strategies:

1. Locate reception directly facing the clinic entrance
2. Provide clear sightlines to testing corridors
3. Avoid blocking circulation with waiting furniture
4. Keep the waiting area near—but not inside—the patient flow path

In several clinics I redesigned, simply repositioning reception reduced perceived wait times because staff could quickly call the next patient instead of searching the waiting area.

If you are still sketching layout concepts, a quick digital workflow like visualizing reception and waiting area placement inside a clinic floor plan helps identify congestion points early.

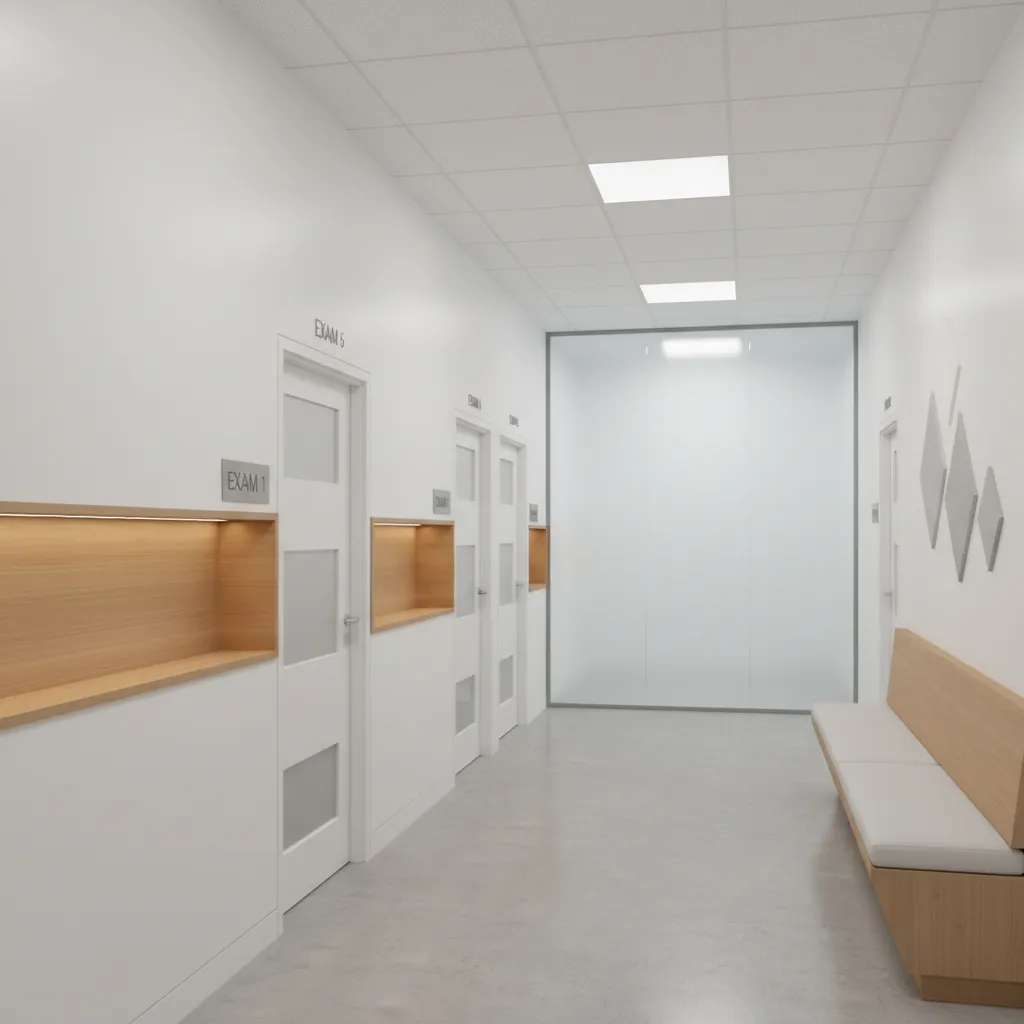

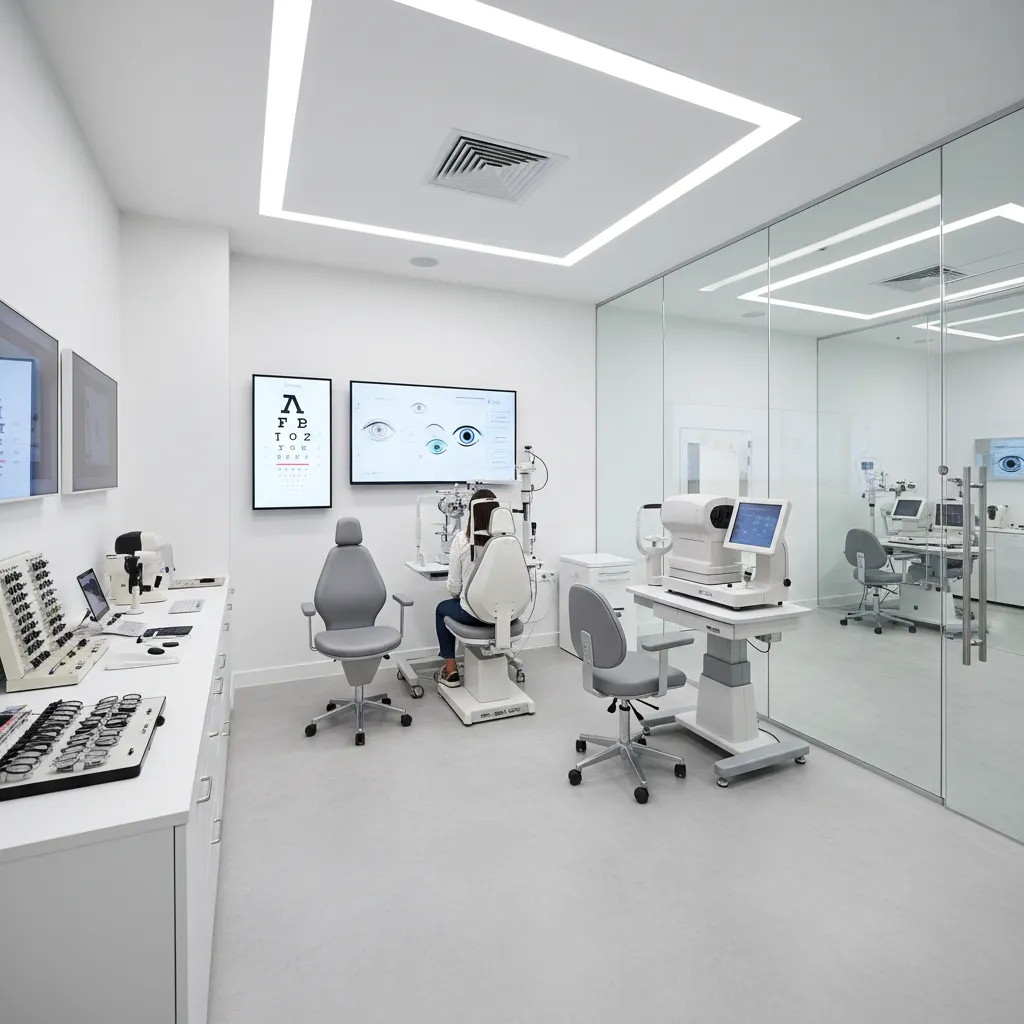

Exam Room and Diagnostic Zone Optimization

Key Insight: Exam rooms should be clustered around shared diagnostic equipment.

In a 1500 sq ft clinic, space efficiency comes from sharing resources rather than duplicating them.

Recommended exam room strategy:

1. 2–3 exam rooms per doctor
2. Shared imaging and diagnostic room
3. Short corridor linking exam rooms to testing area

Typical size guidelines:

1. Exam room: 90–110 sq ft
2. Pretest room: 120–160 sq ft
3. Imaging room: 120–150 sq ft

When diagnostic equipment is centralized, technicians can move faster while doctors remain in exam rooms seeing patients continuously.

save pin

Reducing Staff Movement and Bottlenecks

Key Insight: Staff walking distance is one of the most overlooked efficiency killers in clinic design.

In workflow audits I’ve conducted, technicians sometimes walk more than two miles during a busy clinic day simply because rooms were placed poorly.

Hidden design mistakes that create bottlenecks:

1. Long hallways between testing and exam rooms
2. Diagnostic equipment split across multiple rooms
3. Exam rooms located on both sides of a crowded corridor
4. Checkout located behind reception

Solutions that consistently work:

1. Create a compact diagnostic cluster
2. Place exam rooms within 10–15 feet of testing areas
3. Use separate staff circulation paths when possible

Answer Box

The most efficient 1500 sq ft eye clinic layouts minimize backtracking by creating a clear sequence: reception, pretesting, exam rooms, and checkout. Centralizing diagnostic equipment and reducing staff walking distance dramatically improves clinic workflow.

Workflow Optimization Tips for Multi Doctor Clinics

Key Insight: Multi‑doctor clinics work best when exam rooms act as flexible resources rather than being assigned to one physician.

In small clinics with two doctors, assigning fixed rooms often creates idle space. Flexible room usage keeps patient flow moving.

Best practices for multi‑doctor workflow:

1. Create a shared pool of exam rooms
2. Centralize diagnostic equipment for all doctors
3. Allow technicians to rotate patients between rooms
4. Keep doctor offices outside patient circulation paths

During planning, testing different layout scenarios using a tool for simulating clinic layouts in a 3D floor plan environmentcan reveal workflow conflicts before construction begins.

One surprising insight from several ophthalmology projects: reducing exam rooms from four to three sometimes improves efficiency because the diagnostic area becomes the true throughput driver.

save pin

Final Summary

1. Efficient patient flow depends on layout more than room count.
2. Centralized diagnostic zones improve ophthalmology clinic workflow.
3. Loop circulation prevents patient backtracking.
4. Reducing staff walking distance increases daily patient capacity.
5. Flexible exam room usage works best for multi‑doctor clinics.

FAQ

What is the ideal patient flow for a small eye clinic?

The most efficient sequence is reception → pretesting → exam room → consultation → checkout. This order allows doctors to review diagnostic data during the exam.

How many exam rooms should a 1500 sq ft eye clinic have?

Most clinics operate efficiently with three to four exam rooms, depending on diagnostic space and staffing levels.

Why is patient flow important in eye clinic design?

Poor patient flow increases waiting times and staff fatigue. A well‑designed ophthalmology clinic workflow allows technicians and doctors to work continuously without delays.

Where should diagnostic equipment be placed in an eye clinic?

Diagnostic equipment should be located between reception and exam rooms to allow technicians to complete testing before the doctor visit.

What causes bottlenecks in small ophthalmology clinics?

Common causes include scattered diagnostic equipment, long corridors, and exam rooms placed too far from testing areas.

How do you improve efficiency in eye clinic layout?

Cluster diagnostic rooms, shorten walking distances, and design one‑directional circulation to optimize ophthalmology clinic workflow.

Can a 1500 sq ft clinic support multiple doctors?

Yes. With shared exam rooms and centralized diagnostics, two doctors can operate efficiently within a 1500 sq ft layout.

What is the biggest layout mistake in small eye clinics?

Overbuilding exam rooms while under‑allocating space for diagnostics and pretesting areas.
