How to Optimize Recessed Lighting Layout for Dining Room Ambience: A practical guide to spacing, placement, and brightness that creates balanced dining room lighting without glare or dark zones.

Direct Answer

The best recessed lighting layout for a dining room focuses on balanced spacing, controlled brightness, and correct positioning around the dining table. Lights should typically be spaced 4–6 feet apart and placed about 2–3 feet away from walls or the table edge to avoid glare and shadows while creating even ambient light.

Quick Takeaways

1. Most dining rooms work best with recessed lights spaced 4–6 feet apart.
2. Avoid placing fixtures directly above diners' heads to prevent glare.
3. Use wider beam angles for ambient light and tighter beams for table focus.
4. Dimmers dramatically improve dining room atmosphere.
5. Poor spacing often causes uneven lighting more than fixture quality does.

Introduction

After designing lighting plans for dozens of dining spaces—from compact city apartments to large open‑concept homes—I’ve noticed the same issue again and again: homeowners install recessed lights, but the room still feels flat, harsh, or oddly shadowy.

The problem usually isn’t the fixture. It’s the layout.

A poorly planned recessed lighting layout in a dining room can create glare on the table, dark corners, or a strange "spotlight" effect over diners. On the other hand, when spacing and beam control are done correctly, recessed lights can create a calm, balanced ambience that feels almost invisible.

If you're planning a redesign or testing layout ideas before installing fixtures, it helps to visualize the lighting relative to your furniture. Many homeowners experiment with layouts using a visual dining room layout planner that shows furniture and lighting alignmentbefore finalizing ceiling positions.

In this guide, I’ll walk through the layout decisions that actually affect dining room ambience—spacing, beam spread, brightness, and placement around the table—plus a few common mistakes I see even in professionally built homes.

save pin

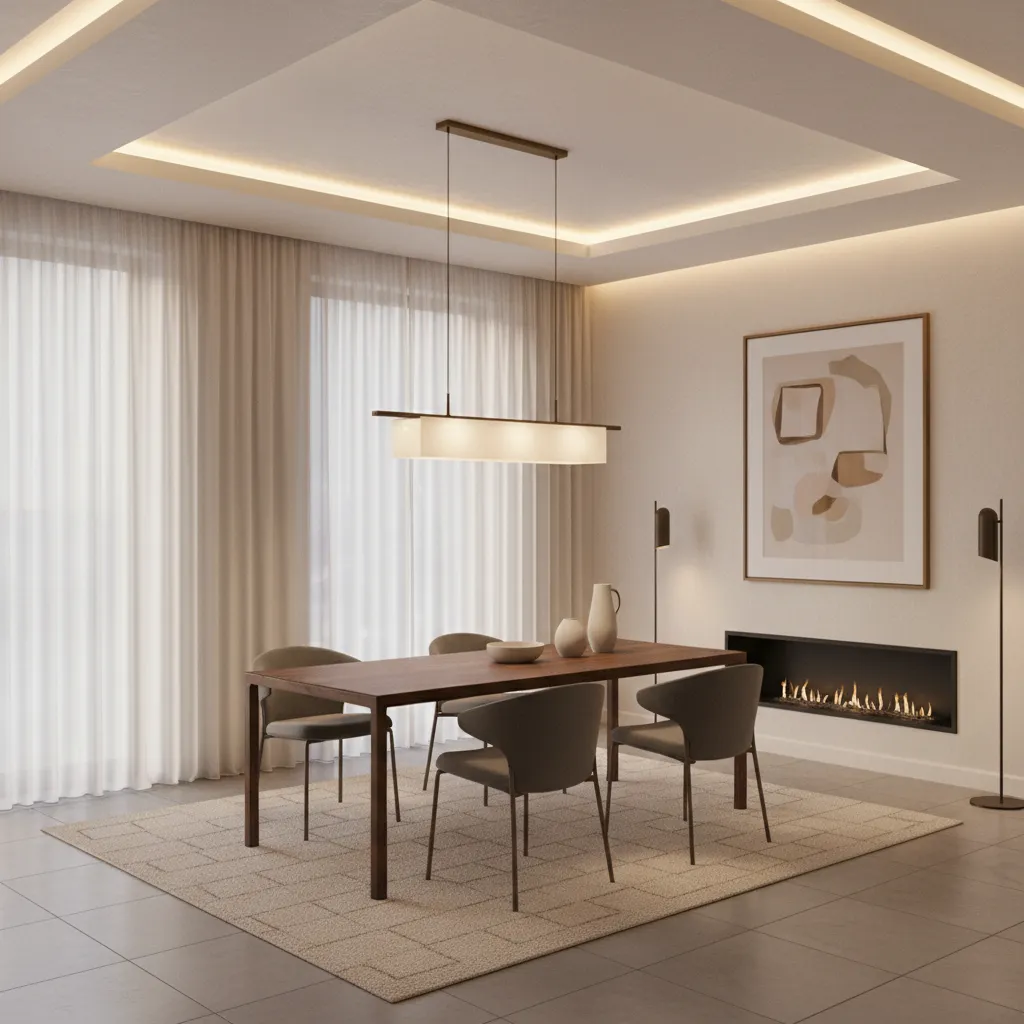

Why Recessed Lighting Layout Matters in Dining Rooms

Key Insight: Dining room ambience is controlled more by light placement than by fixture style.

Many homeowners assume ambience comes from decorative fixtures like chandeliers. In reality, recessed lighting often determines whether the room feels balanced or uncomfortable.

Dining rooms have a unique lighting challenge: the focal object—the dining table—sits directly below eye level. If lights are placed incorrectly, the beam hits faces instead of the table surface.

In projects I’ve worked on, three layout goals usually define successful dining room lighting:

1. Even ambient light across the room
2. Soft emphasis on the dining table
3. No glare in seated eye lines

Professional lighting designers often follow a layered approach recommended by the Illuminating Engineering Society (IES): ambient lighting, task lighting, and accent lighting working together.

Recessed fixtures usually serve as the ambient layer, which means their spacing must distribute light evenly without creating hot spots.

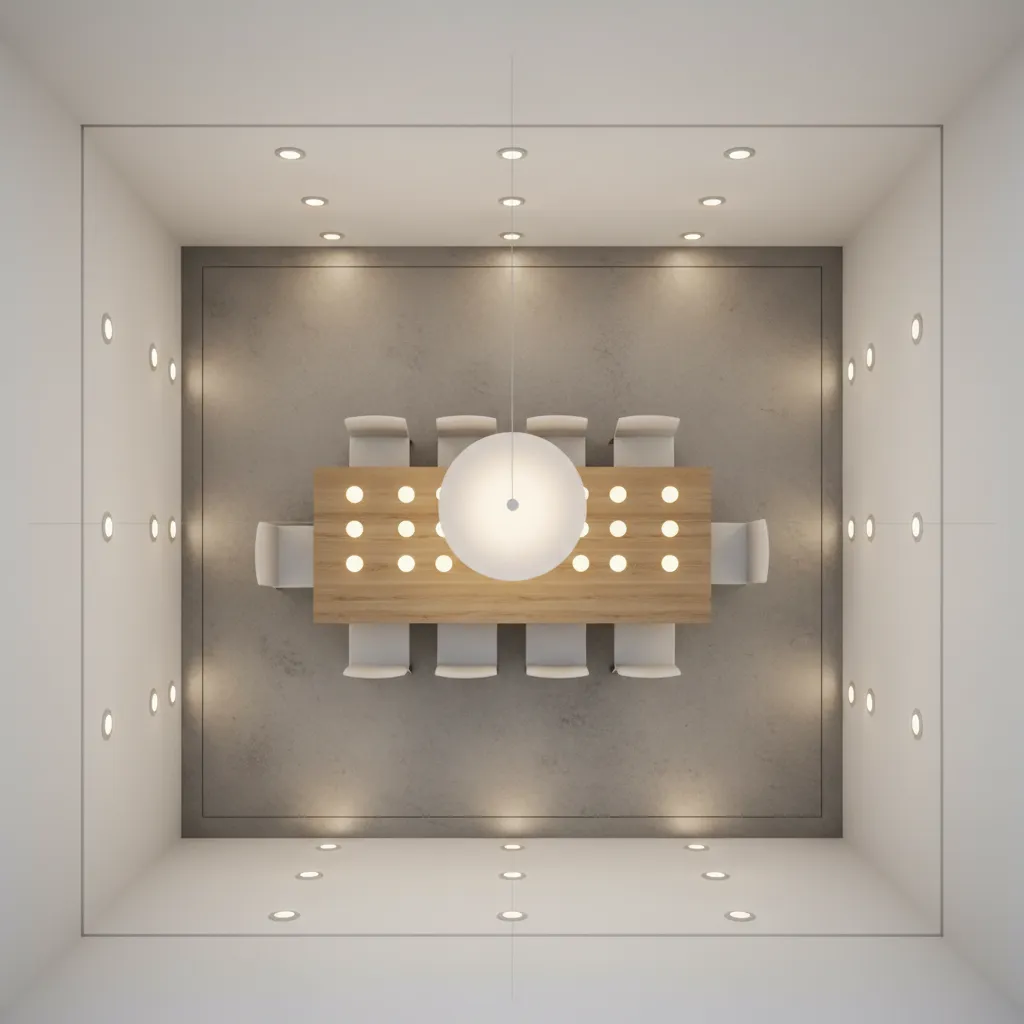

Ideal Spacing Between Recessed Lights

Key Insight: In most dining rooms, recessed lights should be spaced roughly half the ceiling height apart.

A simple rule I use during design planning is this:

1. 8 ft ceiling → lights about 4 ft apart
2. 9 ft ceiling → lights about 4.5 ft apart
3. 10 ft ceiling → lights about 5 ft apart

This "half‑height spacing rule" keeps light distribution consistent without overlapping beams excessively.

But dining rooms introduce another constraint: furniture placement.

Instead of perfectly symmetrical grids, I often offset fixtures slightly so beams land near the table edges rather than the center of seats.

Typical spacing approach for dining rooms:

1. 4–6 ft between recessed lights
2. 2–3 ft from walls
3. Lights aligned with table perimeter rather than centerline

When homeowners want to preview spacing visually, I usually recommend testing layouts in a free floor plan creator that lets you test ceiling light positionsbefore construction. It helps reveal uneven coverage early.

save pin

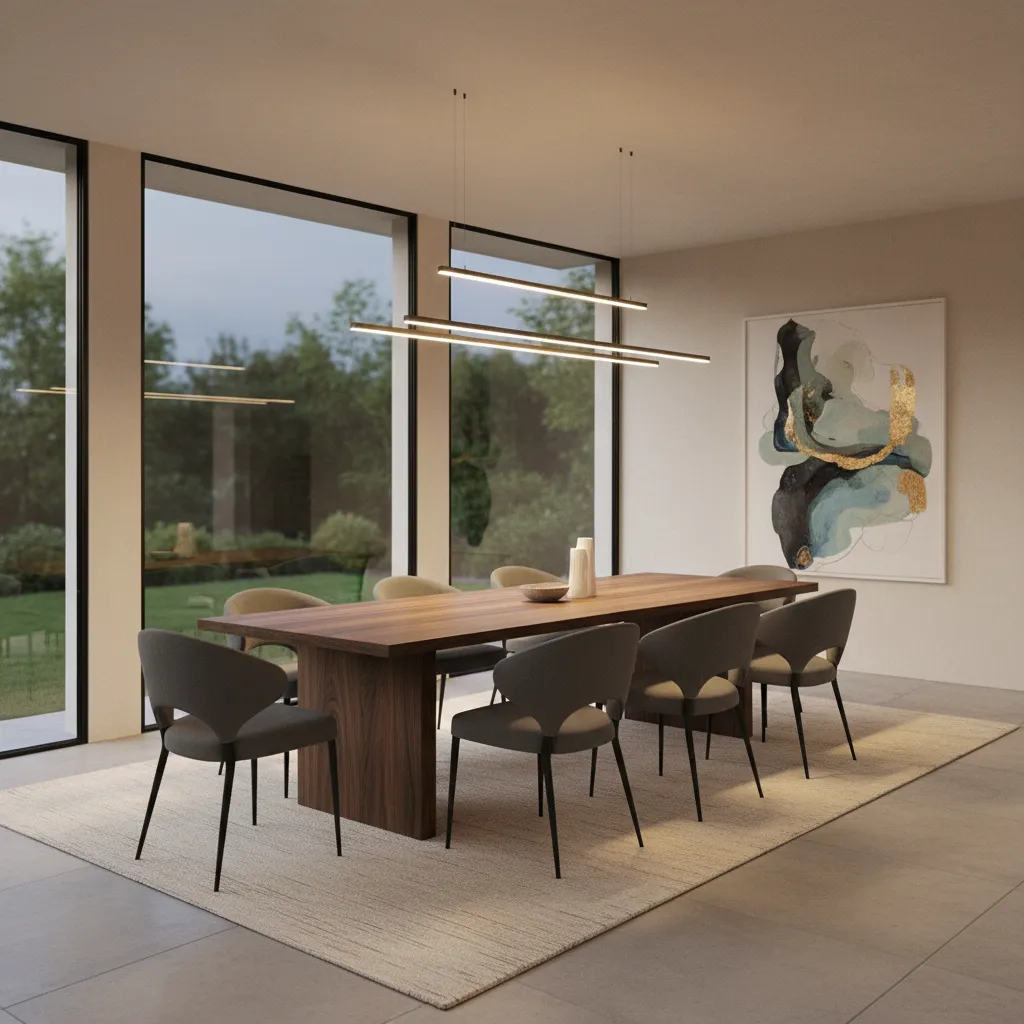

Positioning Lights Around the Dining Table

Key Insight: The best recessed lighting layout avoids placing fixtures directly above diners.

One of the most common layout mistakes is centering recessed lights over chairs. That creates harsh downward beams hitting people’s faces.

Instead, professionals typically position lights slightly outside the table footprint.

Recommended placement pattern:

1. Two lights aligned along the long sides of the table
2. Lights placed about 12–24 inches outside table edges
3. Beams angled or spread toward the tabletop

This approach creates a soft pool of light on the table surface while keeping diners comfortable.

For rectangular tables, the layout often looks like this:

1. Small rooms: 4 recessed lights
2. Medium rooms: 6 recessed lights
3. Large rooms: 8 recessed lights

Instead of a rigid grid, the goal is balanced coverage around the dining zone.

save pin

Choosing Beam Angles and Brightness Levels

Key Insight: Beam spread affects ambience as much as spacing.

Two recessed lights with identical wattage can produce completely different atmospheres depending on beam angle.

Common beam angle guidelines:

1. Wide beam (60°–90°): soft ambient lighting
2. Medium beam (40°–60°): balanced general lighting
3. Narrow beam (20°–40°): focused accent lighting

For dining rooms, I usually recommend medium to wide beams. Narrow beams often create visible spotlight circles on the table.

Brightness guidelines used in many residential lighting plans:

1. 600–800 lumens per recessed fixture
2. Warm color temperature: 2700K–3000K
3. CRI above 90 for natural food colors

These ranges align with residential lighting recommendations from organizations like the American Lighting Association.

Using Dimmer Switches for Mood Control

Key Insight: Dimmers transform recessed lighting from functional to atmospheric.

Without dimmers, recessed lights often feel too bright for evening meals.

In most of my dining room projects, dimming reduces light output by 30–60% during dinners.

Benefits of dimmers:

1. Adjust brightness for different occasions
2. Create a restaurant‑like evening atmosphere
3. Reduce glare on reflective table surfaces
4. Extend LED lifespan

For layered lighting setups—like recessed lights plus a chandelier—I often place them on separate dimmer controls.

Common Layout Mistakes That Cause Lighting Problems

Key Insight: Most dining room lighting problems come from layout mistakes, not insufficient fixtures.

After reviewing many lighting plans during renovations, a few errors appear repeatedly.

Most common recessed lighting layout mistakes:

1. Lights centered over chairs
2. Fixtures spaced too far apart
3. Grid layouts that ignore furniture placement
4. Overly narrow beam angles
5. Too many lights in small rooms

One hidden issue many homeowners overlook is how lighting interacts with room geometry. Open‑concept layouts, ceiling beams, and wall finishes can all change how light spreads.

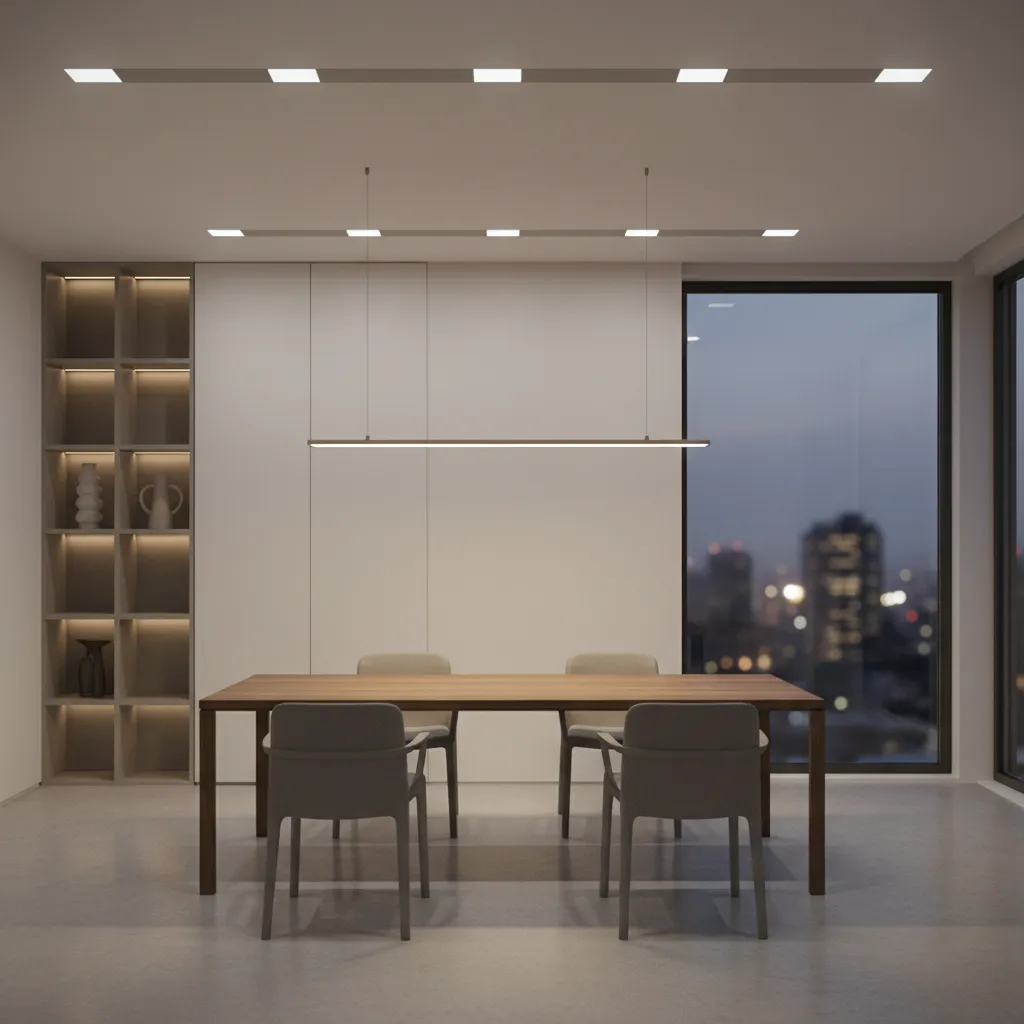

When testing new layouts in renovations, I often generate previews using a photorealistic home lighting render that shows shadow distribution. Seeing the shadows before installation prevents expensive rewiring later.

save pin

Answer Box

The most effective recessed lighting layout for dining rooms places fixtures 4–6 feet apart and positions them slightly outside the dining table edges. Medium beam angles, warm color temperatures, and dimmer controls create balanced ambience without glare.

Final Summary

1. Spacing recessed lights about half the ceiling height keeps illumination even.
2. Position fixtures outside the dining table footprint to avoid glare.
3. Medium or wide beam angles produce softer ambience.
4. Dimmers dramatically improve dining room lighting flexibility.
5. Most lighting issues come from layout—not fixture quality.

FAQ

How far apart should recessed lights be in a dining room?

Most dining rooms work best with lights spaced 4–6 feet apart, depending on ceiling height and fixture brightness.

Should recessed lights be centered over a dining table?

No. Lights should usually sit slightly outside the table edges to prevent glare on diners' faces.

How many recessed lights does a dining room need?

Small rooms may need four lights, medium rooms six, and large spaces eight or more depending on ceiling height.

What beam angle is best for dining room recessed lighting?

Medium or wide beam angles between 40° and 90° create even ambient light without spotlight effects.

What color temperature works best for dining rooms?

Warm white lighting between 2700K and 3000K creates a comfortable dining atmosphere.

Can recessed lighting replace a chandelier?

It can, but most designers still combine recessed lighting with a central fixture for better layering.

How do you optimize recessed lighting dining room ambience?

Use proper spacing, warm color temperatures, dimmers, and avoid placing fixtures directly above diners.

What causes uneven lighting in dining rooms?

Poor spacing, narrow beam angles, and fixtures positioned directly above seating often cause uneven lighting.
