How to Optimize Roof Layouts Using Online Design Tools: Practical methods architects and homeowners use to improve roof drainage, structure, and material efficiency with digital planning tools

Direct Answer

Optimizing roof layouts with online design tools means digitally adjusting slope, drainage paths, geometry, and usable surface area before construction begins. Modern roof planning tools allow designers to simulate water flow, test structural changes, and minimize material waste in minutes. When used correctly, these tools can significantly improve roof performance while reducing construction costs.

Quick Takeaways

1. Digital roof design tools help identify drainage issues before construction begins.
2. Testing multiple roof geometries online prevents structural inefficiencies.
3. Optimized roof layouts can reduce roofing material waste significantly.
4. Proper digital planning improves solar panel placement and usable roof area.
5. Online simulations allow quick comparison of different roof slope scenarios.

Introduction

In many residential projects I've worked on over the past decade, roof design is often treated as a structural afterthought. But once construction begins, fixing a poorly planned roof layout becomes expensive fast. That's why more architects and homeowners are turning to digital tools to optimize roof layouts before a single beam is installed.

When using an online roof planner, you can quickly experiment with slope angles, ridge positions, drainage routes, and roof geometry. The difference between a good roof and a problematic one often comes down to small layout decisions that are almost impossible to visualize on paper.

Many designers start with interactive planners that allow them to sketch structural layouts and test roof configurations in minutes. If you're experimenting with early layout concepts, you can see practical examples of this workflow in this guide that shows how designers build accurate digital layouts before structural planning begins.

In this article, I'll walk through the optimization techniques I regularly use when reviewing roof plans—especially when digital tools allow rapid testing of drainage behavior, structural load distribution, and usable surface area.

save pin

What Roof Layout Optimization Means in Digital Design

Key Insight: Roof layout optimization is about balancing drainage, structural stability, and usable surface area—not just creating a visually balanced roof shape.

Many homeowners assume roof design is mainly aesthetic, but the real goal is performance. A roof must guide water efficiently, distribute loads correctly, and allow maintenance access.

Digital tools make these trade‑offs visible instantly. For example, adjusting a ridge line by just 12–18 inches can significantly change how water flows toward gutters.

Key elements designers optimize digitally:

1. Roof slope angles
2. Ridge and valley placement
3. Drainage direction
4. Load distribution across rafters
5. Usable roof surface area

One commonly overlooked issue is valley congestion. When multiple roof sections intersect poorly, water accumulates at junctions, which increases long‑term leak risk.

According to guidance from the National Roofing Contractors Association (NRCA), most roof failures originate at transitions like valleys, flashing joints, and drainage points—not on large open surfaces.

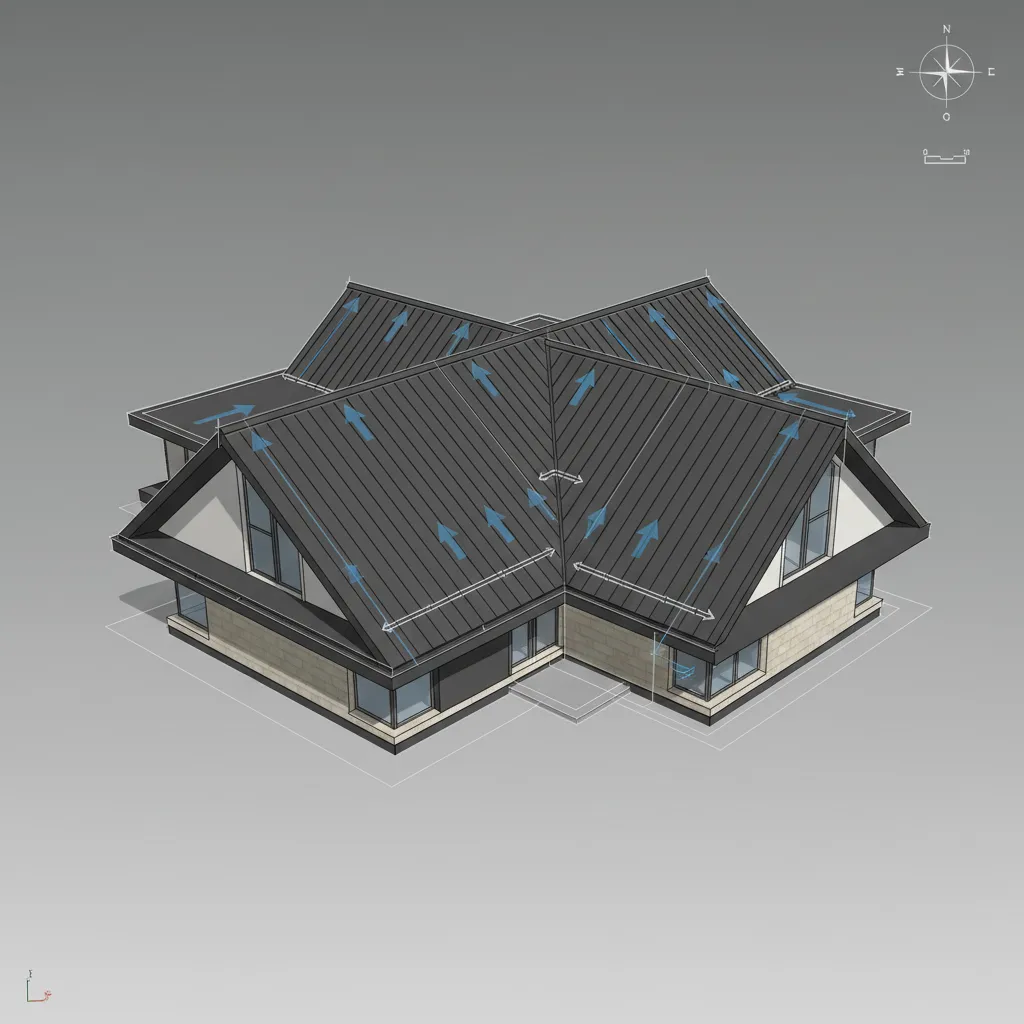

Using Online Tools to Improve Roof Slope and Drainage

Key Insight: Digital roof tools allow designers to simulate water movement and identify drainage problems before construction.

Drainage planning is one of the most valuable benefits of digital roof modeling. Instead of estimating slopes manually, you can visualize how water flows across every plane.

Common drainage problems detected during digital planning:

1. Flat spots that collect standing water
2. Valleys directing water toward walls
3. Insufficient slope for certain roofing materials
4. Overloaded gutter zones

Typical residential roof slopes used for drainage:

1. Low slope roofs: 2:12 – 4:12
2. Standard residential roofs: 4:12 – 9:12
3. Steep roofs: 9:12+

Testing these slopes digitally allows designers to quickly compare performance outcomes and ensure that water exits the roof as efficiently as possible.

save pin

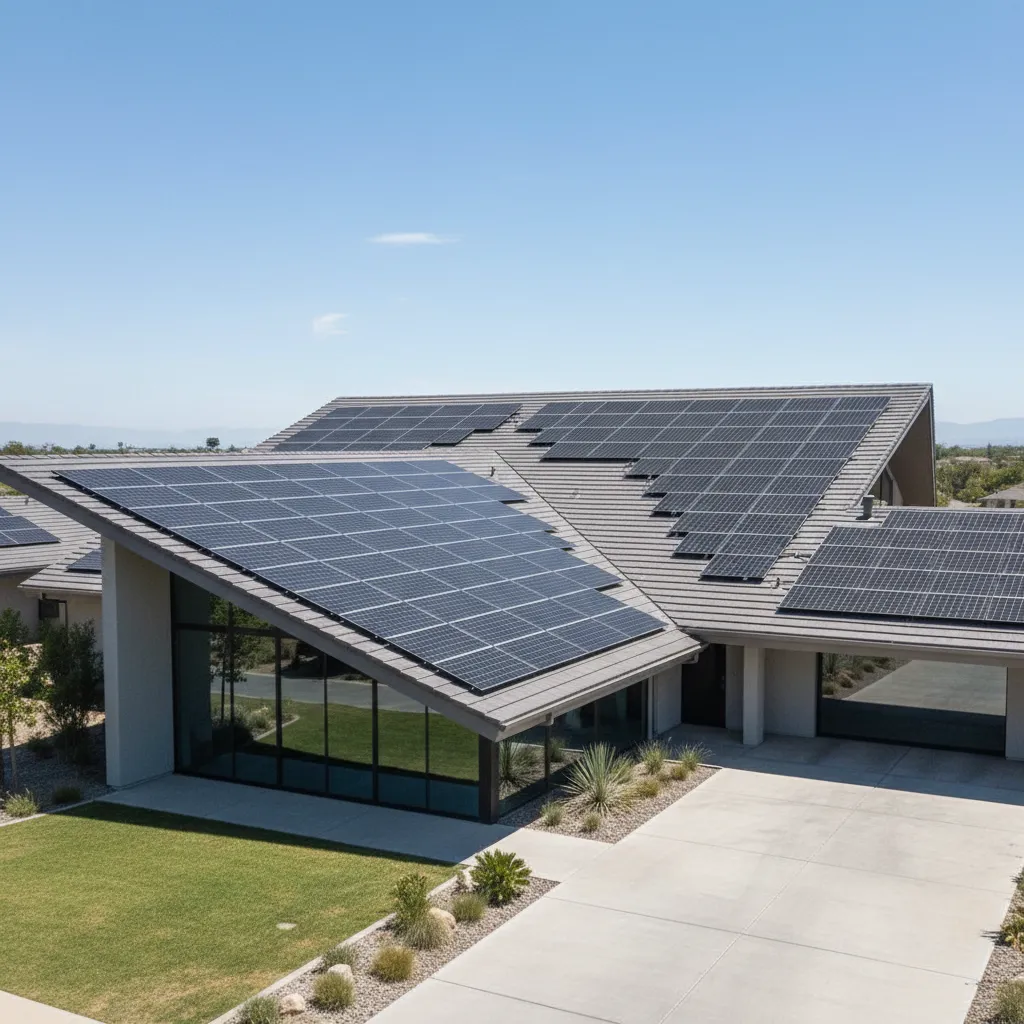

Optimizing Roof Area for Solar Panels and Equipment

Key Insight: Efficient roof layouts maximize uninterrupted surface area for solar panels, HVAC systems, and maintenance access.

As solar installations become more common, roof optimization increasingly focuses on usable surface area. A roof filled with small segments, dormers, and intersecting planes may look interesting but often performs poorly for energy installations.

When optimizing roofs for solar readiness, designers prioritize:

1. Large uninterrupted roof planes
2. South‑facing surfaces when possible
3. Minimal shading from dormers or chimneys
4. Consistent slope angles

Digital modeling tools help measure available panel zones and identify obstructions early. In several residential projects I've reviewed, simply rotating the ridge orientation increased solar capacity by more than 20%.

If you're testing layout variations that affect equipment placement, tools that allow you to visualize structural layouts in 3D planning environmentscan make these trade‑offs much easier to understand.

save pin

Reducing Material Waste Through Digital Planning

Key Insight: Digitally optimized roof geometry reduces material waste by minimizing unnecessary cuts and complex intersections.

Roof waste usually happens when geometry becomes too fragmented. Every additional valley, hip, or angle increases cutting waste for shingles or metal panels.

Typical causes of material waste:

1. Irregular roof planes
2. Multiple valley intersections
3. Unbalanced roof symmetry
4. Small leftover roof sections

Digital planning tools help designers compare alternative layouts quickly. A simplified roof geometry often reduces material waste by 10–15% compared to complex multi‑plane designs.

Another hidden cost appears in labor. Complex roofs require more flashing work, more joints, and more installation time.

save pin

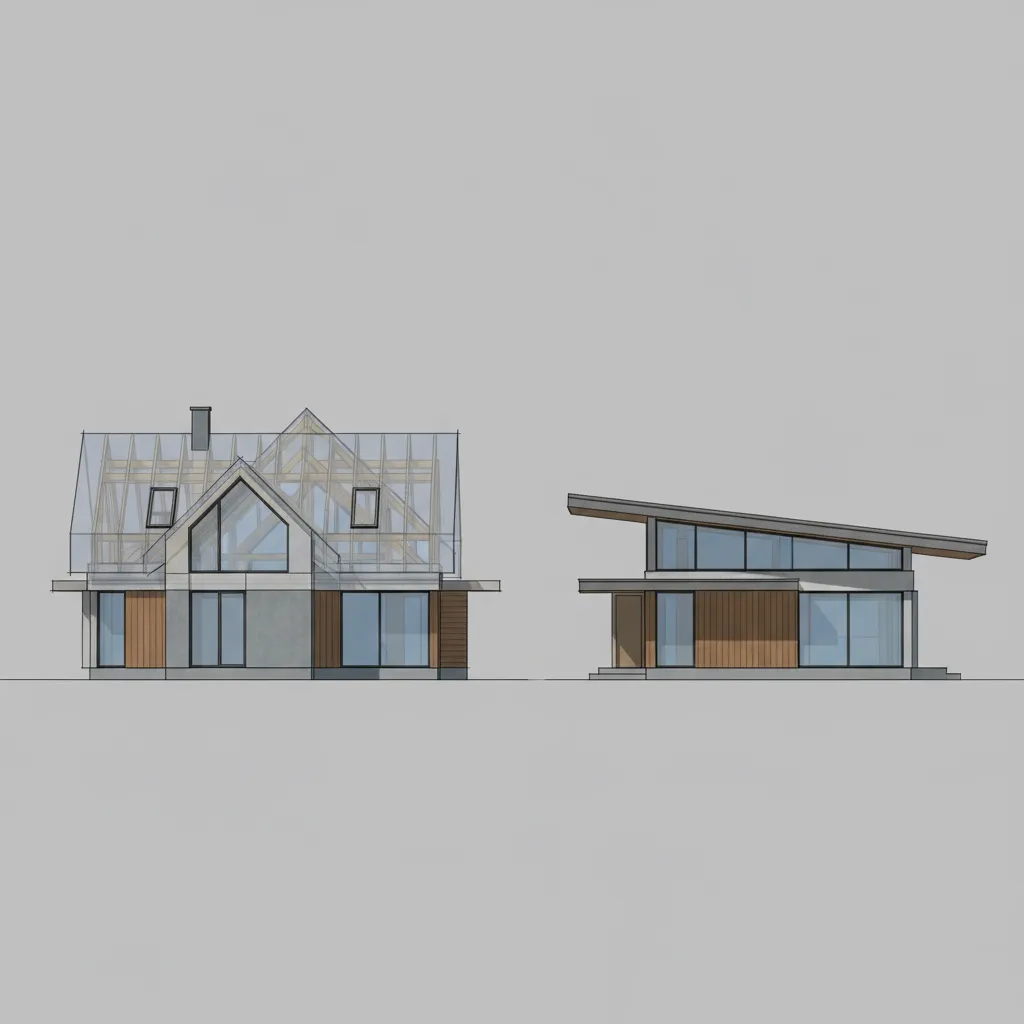

Adjusting Roof Geometry for Structural Efficiency

Key Insight: Efficient roof layouts align structural loads with the building's supporting walls and framing system.

A roof that looks symmetrical from above can still create structural inefficiencies if loads aren't distributed properly.

Digital design tools allow quick checks for:

1. Span lengths between supports
2. Load transfer through rafters and beams
3. Balanced weight distribution
4. Ridge alignment with structural walls

In my experience reviewing residential roof plans, one frequent mistake is placing ridges or valleys directly over unsupported spans. Digital layout tools highlight these issues instantly.

Answer Box

The most effective way to optimize a roof layout is to test slope angles, drainage routes, and geometry variations using digital design tools. These simulations reveal structural problems, drainage risks, and wasted space long before construction begins.

Testing Multiple Roof Layout Scenarios Quickly

Key Insight: The biggest advantage of online roof tools is the ability to compare multiple design scenarios within minutes.

Before digital modeling, architects often committed to a roof concept early because testing alternatives was time‑consuming. Today, layout comparisons take minutes.

Typical scenario tests include:

1. Changing ridge orientation
2. Adjusting slope ratios
3. Eliminating unnecessary valleys
4. Combining roof planes
5. Testing alternative drainage routes

Some designers also render full roof structures to evaluate visual balance alongside performance. For example, tools that allow you to generate realistic architectural renderings of home exteriors help confirm whether a simplified roof still looks architecturally balanced.

Final Summary

1. Roof optimization focuses on drainage, structure, and usable surface area.
2. Digital tools quickly reveal hidden roof design problems.
3. Simpler roof geometry usually improves durability and reduces cost.
4. Testing multiple layouts leads to better long‑term roof performance.
5. Digital planning improves solar readiness and structural efficiency.

FAQ

1. What does it mean to optimize a roof layout?

It means adjusting roof slope, geometry, drainage paths, and usable surface area to improve performance, reduce leaks, and minimize material waste.

2. Can online tools really improve roof drainage design?

Yes. Many digital roof planning tools simulate slope and water flow, allowing designers to identify drainage problems before construction begins.

3. What slope is best for residential roofs?

Most residential roofs use slopes between 4:12 and 9:12. The optimal slope depends on climate, roofing material, and architectural style.

4. How do digital tools help optimize roof layouts?

They allow designers to test slope angles, ridge placement, and geometry variations quickly, helping optimize roof layout performance.

5. Can roof layout affect solar panel installation?

Yes. Larger uninterrupted roof planes allow more solar panels and improve energy production efficiency.

6. Does complex roof design increase construction cost?

Usually yes. More valleys and intersections increase material waste, labor time, and flashing work.

7. What is the most common roof layout mistake?

Poor valley placement that directs water toward walls or creates drainage congestion.

8. Are digital roof planning tools suitable for homeowners?

Yes. Many platforms now allow homeowners to experiment with roof layouts before hiring contractors.
