How to Optimize Seating Capacity in Small Chapel Floor Plans: Practical layout strategies that increase seating while preserving comfort, visibility, and smooth circulation

Direct Answer

Optimizing seating capacity in small chapel floor plans requires balancing density with visibility, circulation, and comfort. The most effective layouts use compact pew spacing, carefully planned aisles, and unobstructed sightlines while maintaining accessibility standards. Smart seating layouts can increase capacity by 15–30% without expanding the building footprint.

Quick Takeaways

1. Shorter pew rows often improve capacity more than longer rows.
2. Aisle placement affects circulation more than total aisle width.
3. Clear sightlines prevent overcrowding in the front rows.
4. Flexible seating allows small chapels to adapt to different events.
5. Accessibility planning should be integrated early in the layout.

Introduction

Designing efficient small chapel floor plans is something I’ve dealt with on dozens of worship space projects over the past decade. The challenge is always the same: maximize seating without making the room feel cramped, uncomfortable, or poorly organized.

Most people assume capacity is limited purely by square footage. In reality, layout decisions have a much bigger impact. I’ve seen two chapels with identical dimensions differ by more than 40 seats simply because of aisle placement and seating configuration.

If you're sketching layouts or testing different configurations, it helps to visualize seating early with a simple tool for creating worship space layouts and seating zones. Seeing how rows interact with circulation paths often reveals wasted space that isn't obvious on paper.

In this guide, I’ll break down the strategies I use to optimize chapel seating capacity while still preserving the calm, respectful atmosphere a worship space needs.

save pin

Understanding Seating Capacity Limits in Small Chapels

Key Insight: Seating capacity is determined more by circulation and spacing standards than by the raw room size.

Many small chapel designs fail because planners start with chairs instead of movement. Congregants need to enter, exit, kneel, and circulate without bottlenecks. Ignoring these factors often leads to layouts that technically fit more seats but function poorly.

Typical spatial benchmarks used in worship design include:

1. Pew seat width: 20–24 inches per person
2. Row spacing: 36–40 inches for traditional seating
3. Main aisle width: 48–72 inches
4. Side aisles: 36–48 inches

These guidelines come from widely adopted church design standards and accessibility requirements. Designers who compress rows too tightly usually discover that congregants struggle to move, especially during services with frequent standing and sitting.

In several renovation projects I worked on, simply correcting row spacing actually increased seating capacity because it improved flow and allowed additional rows near the entrance.

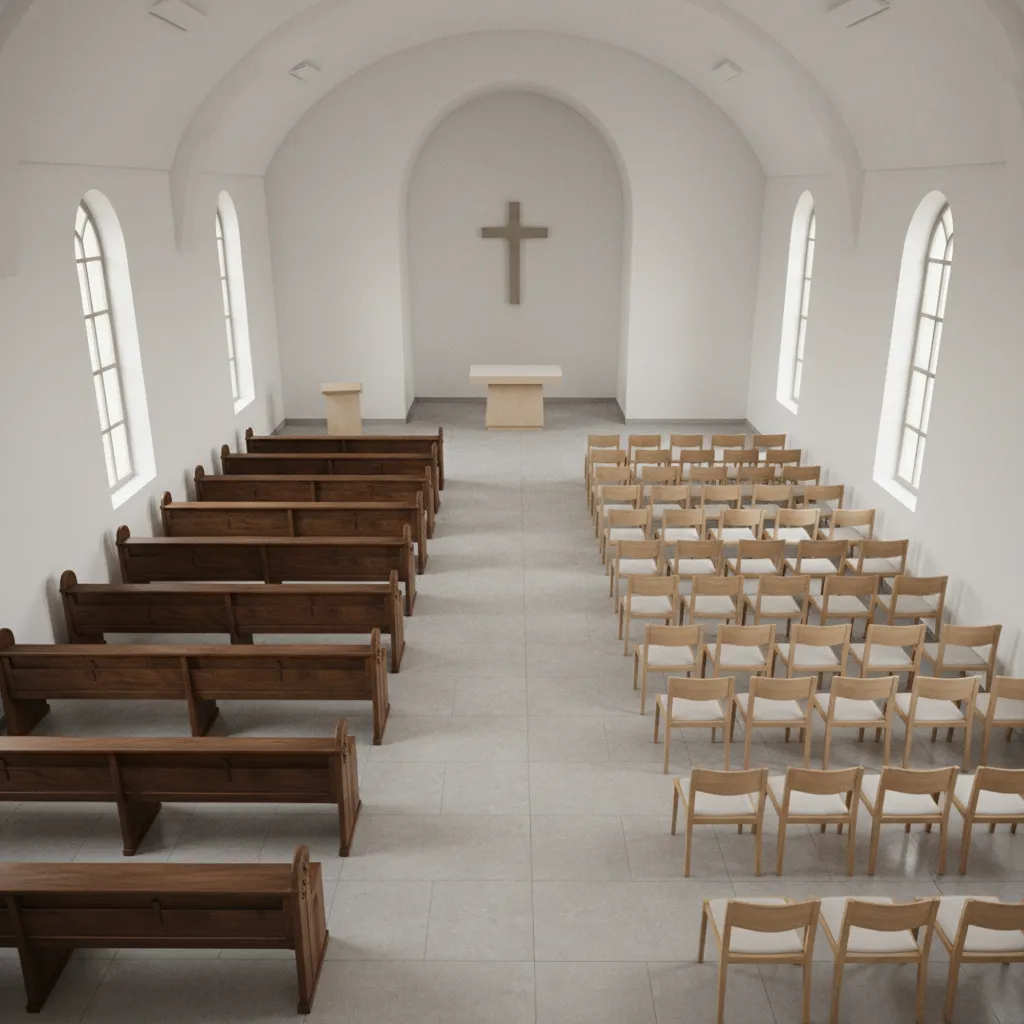

Pew Layout vs Individual Seating Arrangements

Key Insight: Pews maximize density, but individual chairs offer flexibility that can improve real-world seating efficiency.

Traditional pews are extremely space-efficient because they eliminate gaps between seats. However, they also lock the layout permanently in place.

Here’s a comparison I often walk clients through:

1. PewsHighest seating density
2. Clean visual alignment
3. Limited flexibility for events
4. Individual chairsFlexible configurations
5. Easier accessibility adjustments
6. Slightly lower density

One overlooked strategy is using shorter pew segments instead of long continuous rows. Shorter sections improve entry access and reduce the need for wide aisles.

save pin

Aisle Width and Circulation Planning

Key Insight: Strategic aisle placement improves seating efficiency more than simply reducing aisle width.

Many small chapel layouts waste space by placing oversized center aisles without considering traffic patterns.

In most compact chapels, these aisle strategies work better:

1. One central aisle with narrow side aisles
2. Offset center aisle for asymmetric seating blocks
3. Rear circulation aisle for late arrivals

Testing circulation routes visually makes these inefficiencies obvious. I often recommend experimenting with layouts using a visual planner that shows seating density and walking paths. Seeing how people move through the space helps identify wasted square footage between rows and aisles.

Fire safety codes and accessibility standards should always guide final aisle widths, especially in public assembly spaces.

Improving Sightlines Without Expanding Space

Key Insight: Sightlines determine usable seating zones more than the total room depth.

When sightlines are poor, the back rows feel disconnected from the service. As a result, those seats often remain empty even when technically available.

Effective sightline improvements include:

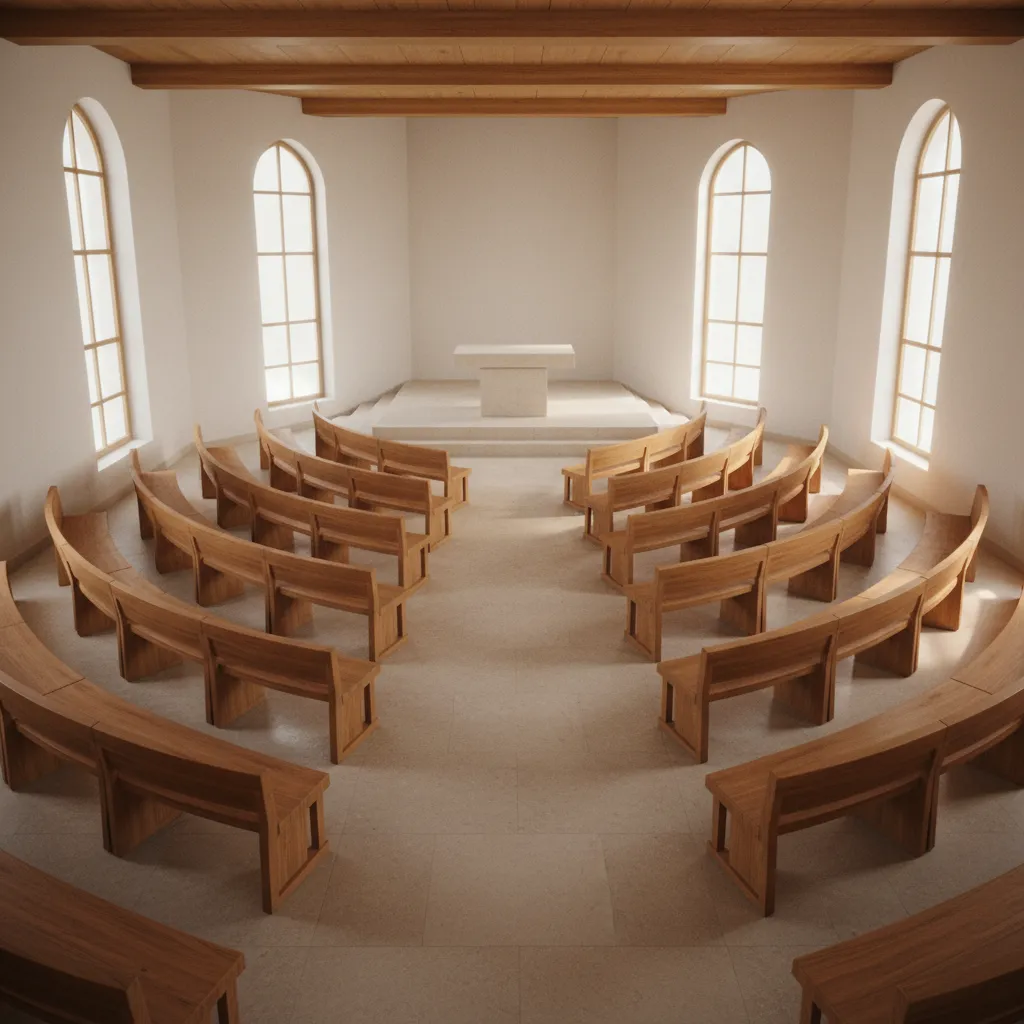

1. Slightly fanning seating rows toward the altar
2. Reducing column or furniture obstructions
3. Elevating the altar platform by 6–12 inches
4. Limiting decorative elements blocking views

Architectural research on worship spaces consistently shows that fan-shaped seating arrangements improve engagement in compact chapels.

save pin

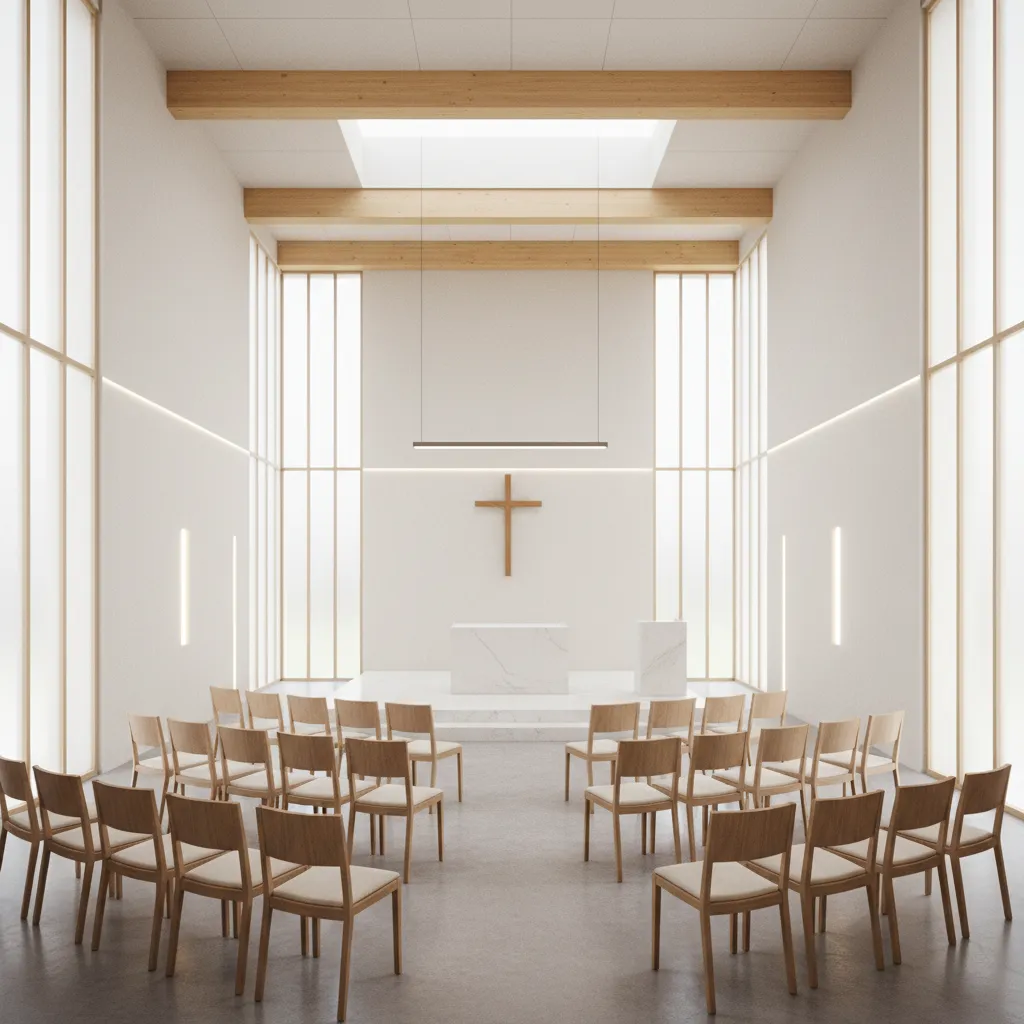

Flexible Seating Strategies for Small Congregations

Key Insight: Flexibility often increases effective capacity because spaces can adapt to different service sizes.

Small congregations rarely use maximum seating every week. Designing for flexibility can make the space feel comfortable at both low and high attendance.

Useful flexible strategies include:

1. Stackable seating for overflow events
2. Removable center rows for ceremonies
3. Convertible aisle space for wheelchairs
4. Movable front seating for choir or musicians

These approaches allow the same chapel to support weddings, memorial services, weekly worship, and community events.

save pin

Answer Box

The most efficient small chapel floor plans combine compact seating rows, well-positioned aisles, and unobstructed sightlines. Smart layouts can increase seating capacity significantly without expanding the building footprint or sacrificing comfort.

Balancing Comfort, Capacity, and Accessibility

Key Insight: The best chapel layouts balance capacity with human comfort and accessibility compliance.

One of the most common mistakes I see is maximizing seats at the expense of accessibility. Modern chapel designs should integrate accessible seating areas naturally rather than adding them as afterthoughts.

Important considerations include:

1. Wheelchair spaces integrated within seating rows
2. Clear access routes from entrances
3. Proper turning radius for mobility devices
4. Consistent aisle alignment for easy navigation

Testing layouts digitally can help visualize these requirements before construction. Many designers now experiment with configurations using interactive room layout tools for testing seating arrangements and accessibility clearances.

Final Summary

1. Small chapel seating capacity depends heavily on layout strategy.
2. Pew segmentation often increases efficiency and circulation.
3. Strategic aisle placement prevents wasted floor space.
4. Clear sightlines improve the usability of back rows.
5. Flexible seating supports changing congregation sizes.

FAQ

How many seats fit in a small chapel?

Most small chapels seat 50–150 people depending on layout efficiency, aisle spacing, and seating type.

What is the standard width for chapel aisles?

Main aisles are usually 48–72 inches wide, while side aisles range from 36–48 inches depending on local codes.

What is the best seating layout for a small chapel?

A central aisle with balanced seating blocks often works best for small chapel floor plans because it improves visibility and circulation.

Are chairs or pews better for maximizing seating?

Pews generally allow higher seating density, but chairs offer more flexibility for different events.

How much space should be between chapel seating rows?

Most layouts use 36–40 inches between rows to allow comfortable movement.

Can curved seating increase chapel capacity?

Slightly angled or fan-shaped seating can improve sightlines and sometimes allow additional seats in wider rooms.

How do you optimize chapel seating layout?

Optimizing chapel seating layout requires balancing row spacing, aisle placement, and sightlines while maintaining accessibility.

What design mistakes reduce chapel seating capacity?

Oversized aisles, poorly aligned rows, and blocked sightlines often reduce usable seating in small chapels.

References

1. Architectural Graphic Standards – Worship Space Planning
2. International Building Code Assembly Seating Guidelines
3. Church Design Handbook – Worship Facility Planning
