How to Optimize Text on 3D Models for 3D Printing: Practical design rules that make 3D printed text readable, durable, and easy for printers to produce

Direct Answer

To optimize text on 3D models for 3D printing, designers should increase letter thickness, avoid complex fonts, and use sufficient depth or height for embossing or engraving. Most reliable prints use simple fonts, letters at least 0.4–0.6 mm thick, and text depth around 0.6–1 mm depending on printer resolution.

Good text optimization prevents failed prints, improves readability, and ensures the letters survive post‑processing such as sanding or painting.

Quick Takeaways

1. Use simple sans‑serif fonts because thin decorative details often disappear during printing.
2. Letters should typically be at least 0.4–0.6 mm thick for most FDM printers.
3. Embossed text generally prints more reliably than engraved text.
4. Text depth or height around 0.6–1 mm improves readability after finishing.
5. Always preview text visibility before exporting the STL file.

Introduction

Adding labels, branding, or instructions directly into a model is common in 3D printing. But optimizing text on 3D models for 3D printing is where many designs fail. I’ve seen beautifully designed models produce unreadable lettering simply because the characters were too thin or too shallow for the printer.

After working on product prototypes, tool tags, and custom parts for more than a decade, one pattern shows up again and again: text problems rarely appear in the design software. They show up on the print bed. Letters merge, disappear, or snap off during cleanup.

If you're still experimenting with layout placement, it helps to first understand how spatial layouts translate from digital models to printable geometry, because positioning and surface curvature often affect text readability.

In this guide, I’ll break down the practical rules I use in real projects to ensure text prints clearly the first time. These are not theoretical tips—they come from fixing failed prints and redesigning parts for actual printers.

save pin

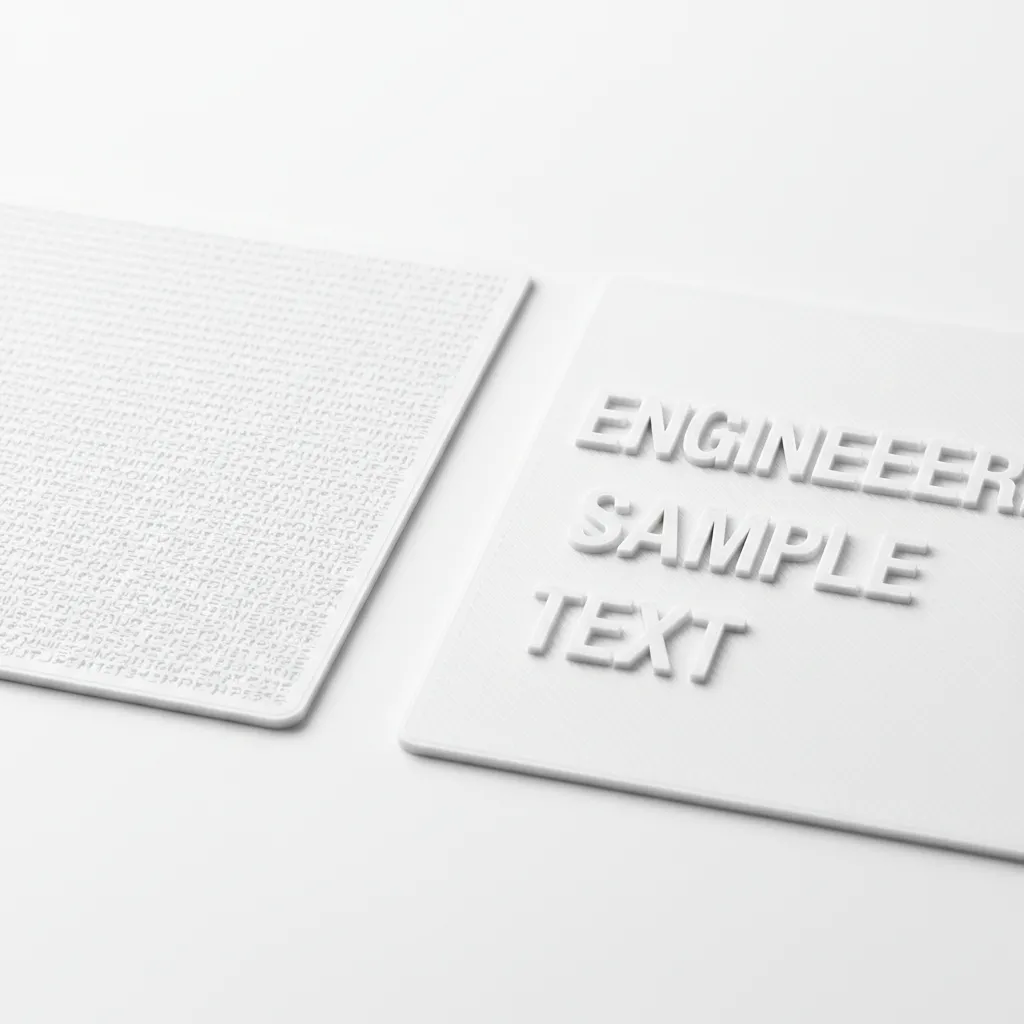

Minimum Text Size for Reliable 3D Printing

Key Insight: Text size matters more than font choice—letters below your printer’s resolution will simply disappear.

For most FDM printers using a 0.4 mm nozzle, extremely small text is unreliable. Even if the slicer displays it, the printer may not reproduce it accurately.

Typical minimum guidelines I recommend:

1. Letter height: 3–5 mm for consistent readability
2. Stroke thickness: at least 0.4–0.6 mm
3. Spacing between letters: 0.2–0.4 mm minimum

These values come directly from how extrusion widths behave. If the slicer cannot place a full extrusion line inside a letter stroke, it either merges shapes or skips the detail entirely.

Industrial design guidelines used by companies like Stratasys also recommend designing text at least two extrusion widths thick for predictable results.

Best Font Types for Printable 3D Text

Key Insight: Simple fonts with consistent stroke width produce the most readable 3D printed text.

Decorative fonts often look great on screen but fail in physical printing because they include thin serifs, tapering strokes, or tiny gaps.

The most reliable categories are:

1. Sans‑serif fonts (Arial, Helvetica, Roboto)
2. Rounded geometric fonts
3. Monoline fonts with uniform stroke width

Fonts that often cause problems include:

1. Script or handwritten styles
2. Serif fonts with thin terminals
3. Condensed fonts with narrow spacing

In production projects, I often slightly bold the font before extruding the text. Increasing stroke thickness by just 10–15% can dramatically improve print reliability.

save pin

Optimizing Text Depth and Thickness

Key Insight: Text depth determines whether letters remain visible after printing and finishing.

Many beginners use extremely shallow text—sometimes only 0.2 mm deep. That might technically print, but sanding or primer will erase it.

Recommended depth ranges:

1. Embossed text height: 0.8–1.2 mm
2. Engraved text depth: 0.6–1 mm
3. Minimum letter stroke thickness: 0.5 mm

A hidden issue I see often is surface curvature. Text placed on curved surfaces can lose depth on one side of the letter. When working with curved panels or enclosures, I sometimes increase depth by 20–30% to compensate.

If you're experimenting with layout structures or surface positioning, tools designed for spatial modeling—like those used when designers build scaled digital layouts before fabrication—can help visualize how geometry affects detail visibility.

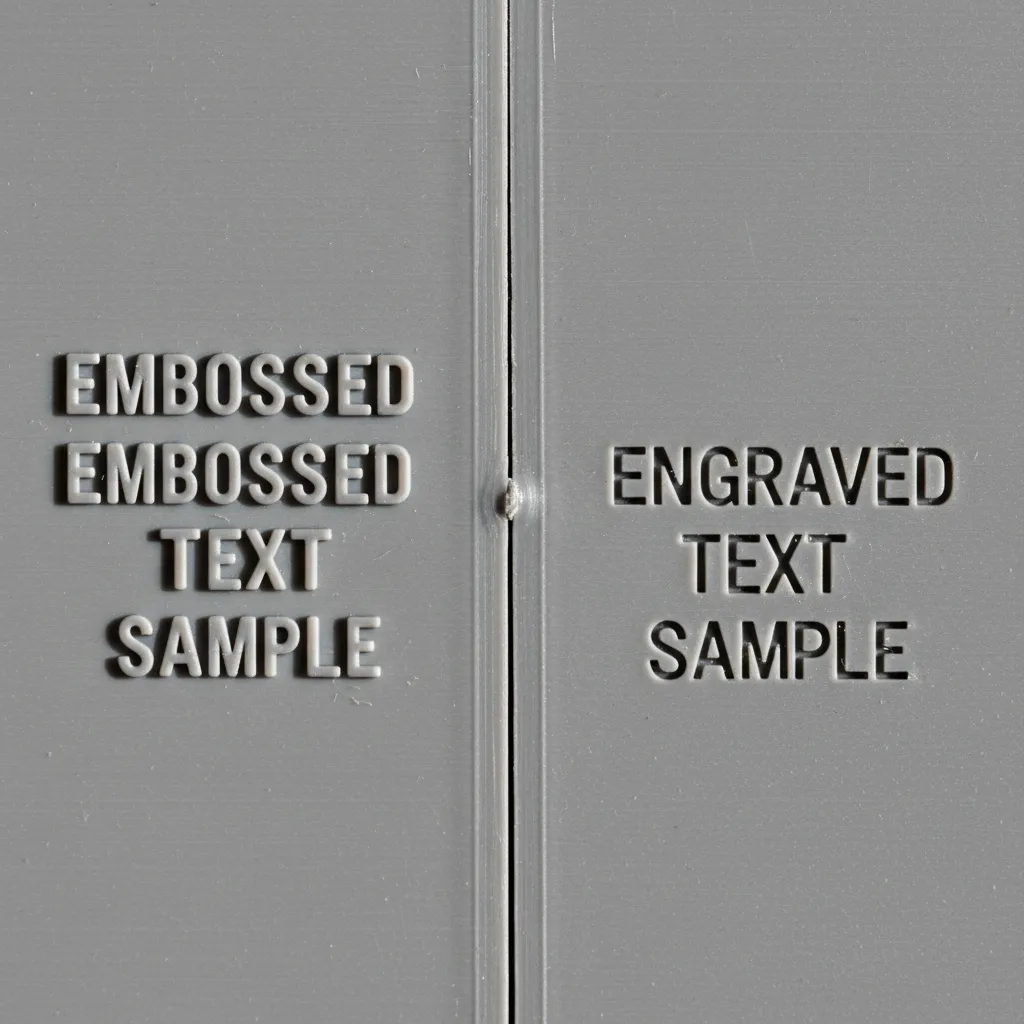

Raised vs Engraved Text for Print Readability

Key Insight: Raised text is usually easier to print and read than engraved text.

Both approaches work, but they behave differently during printing.

Embossed (Raised) Text

1. Easier for FDM printers
2. Better shadow and contrast
3. Less prone to slicing errors

Engraved Text

1. More subtle appearance
2. Better for painted parts
3. Requires deeper cuts to stay visible

In functional parts such as tool holders or equipment labels, I almost always choose embossed text because it survives wear better.

save pin

Preventing Print Failures Caused by Thin Letters

Key Insight: Thin strokes and tiny gaps are the most common reason 3D printed text fails.

Even if letters appear intact in the model, the slicer may simplify them when generating toolpaths.

Common failure points include:

1. Thin segments inside letters like A, R, or e
2. Sharp interior corners
3. Very tight letter spacing
4. Extremely small punctuation marks

A practical test I use is zooming into the slicer preview. If a letter shows fewer than two extrusion lines, it’s likely to fail.

Professional fabrication teams often redesign lettering as custom vector shapes instead of relying purely on font outlines.

Testing Text Visibility Before Printing

Key Insight: The safest way to optimize text on 3D models for 3D printing is to simulate the print before exporting.

Before committing to a full print, I usually run a quick validation workflow:

1. Slice the model at final layer height.
2. Zoom into text layers in preview mode.
3. Check extrusion paths for each letter.
4. Print a small sample section if possible.

This takes only a few minutes but saves hours of reprinting.

Design visualization tools that allow you to preview realistic 3D renderings of modeled spaces and surfaces can also help identify readability problems before exporting the model.

Answer Box

The most reliable way to optimize text on 3D models for 3D printing is to use simple fonts, maintain letter strokes above 0.5 mm, and add at least 0.6–1 mm depth or height. Raised text generally prints more consistently than engraved text.

Final Summary

1. Use simple fonts with consistent stroke thickness.
2. Letters should typically be at least 3–5 mm tall.
3. Stroke thickness below 0.4 mm often fails on FDM printers.
4. Embossed text usually prints clearer than engraved text.
5. Always verify letters in slicer preview before printing.

FAQ

What is the best text size for 3D printing models?

Most reliable prints use letters at least 3–5 mm tall with stroke thickness above 0.4–0.6 mm.

How deep should engraved text be for 3D printing?

Engraved text should usually be 0.6–1 mm deep to remain visible after sanding or painting.

What is the best font for 3D printed text?

Sans‑serif fonts such as Arial, Helvetica, or Roboto work best because their strokes are uniform and easier for printers to reproduce.

Why does my 3D printed text look blurry?

This often happens when letters are thinner than the printer’s extrusion width or when layer height is too large.

Is embossed text better than engraved text for 3D printing?

In most cases yes. Embossed text prints more reliably and remains readable even with minor surface imperfections.

What is the minimum letter thickness for 3D printing?

A safe minimum is about 0.5 mm stroke thickness for most desktop FDM printers.

How do I make readable text on 3D prints?

Use simple fonts, increase letter height, and ensure sufficient depth or height when extruding the text.

Can resin printers print smaller text?

Yes. Resin printers have higher resolution and can often print readable text around 1–2 mm tall.
