How to Optimize Wall Colors for Better Floor Plan Presentation: Simple color decisions that make floor plans clearer, more professional, and easier for clients to understand

Direct Answer

Optimizing wall colors in a floor plan presentation means using limited, high‑contrast, and neutral palettes that clarify structure rather than decorate the drawing. The best wall colors for floor plan presentation highlight room boundaries, guide visual flow, and keep the layout readable on screens, PDFs, and printed sheets.

In most professional projects, designers rely on soft neutral walls, slightly darker outlines, and controlled accent colors to separate functional areas without overwhelming the viewer.

Quick Takeaways

1. Use neutral wall colors so the layout remains the visual focus.
2. Contrast between walls, floors, and labels improves floor plan readability.
3. Limit color palettes to three or four tones for professional presentations.
4. Soft gray walls often export better than pure black outlines.
5. Consistent color coding helps clients understand zoning instantly.

Introduction

After reviewing hundreds of client presentations, I've noticed that many otherwise well-designed layouts fail to communicate clearly because of one surprisingly small decision: wall color. Optimizing wall colors for better floor plan presentation isn't about making drawings look prettier. It's about making them easier to read.

In design meetings, clients rarely analyze dimensions first. Their brain scans shapes, contrast, and color hierarchy. If walls blend into floors or if colors compete for attention, the plan feels confusing—even when the layout is excellent.

In several residential projects I worked on in Los Angeles, simply adjusting wall contrast improved client comprehension dramatically. When we refined color hierarchy, homeowners immediately understood circulation paths and room divisions.

If you're preparing presentation materials, using a step‑by‑step workflow for generating clear floor plan layoutshelps ensure wall colors translate well across exports and presentations.

In this guide I'll break down how professional designers optimize colors in floor plan design, which mistakes weaken presentations, and how small adjustments can dramatically improve floor plan visualization with color.

save pin

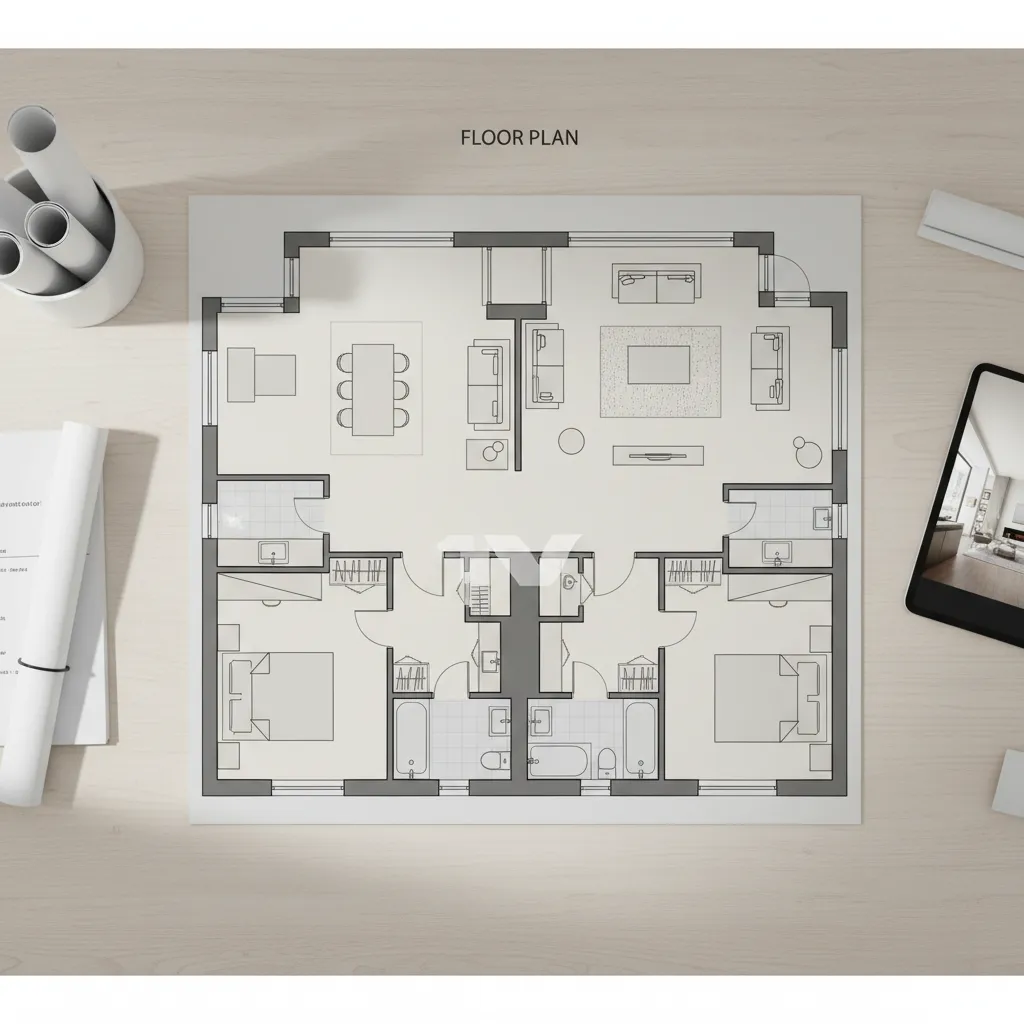

Why Wall Color Matters in Floor Plan Visualization

Key Insight: Wall color establishes visual hierarchy, which determines how quickly someone understands a floor plan.

Architectural drawings aren't just technical documents—they're communication tools. When wall colors are poorly chosen, viewers struggle to distinguish boundaries between rooms, circulation areas, and structural elements.

In professional floor plan color strategy, walls act as the primary structural indicator. If they blend with flooring or background tones, the entire plan loses definition.

From a cognitive perspective, the human brain processes contrast before detail. That means viewers first recognize shapes, edges, and tonal differences before reading labels or measurements.

Common wall color strategies used in professional presentations include:

1. Light gray walls with darker outlines
2. Soft neutral walls with subtle shadowing
3. Color-coded walls for zoning (commercial projects)
4. Muted tones to avoid visual fatigue

The American Institute of Architects frequently recommends maintaining strong line hierarchy in drawings—wall visibility is a major part of that principle.

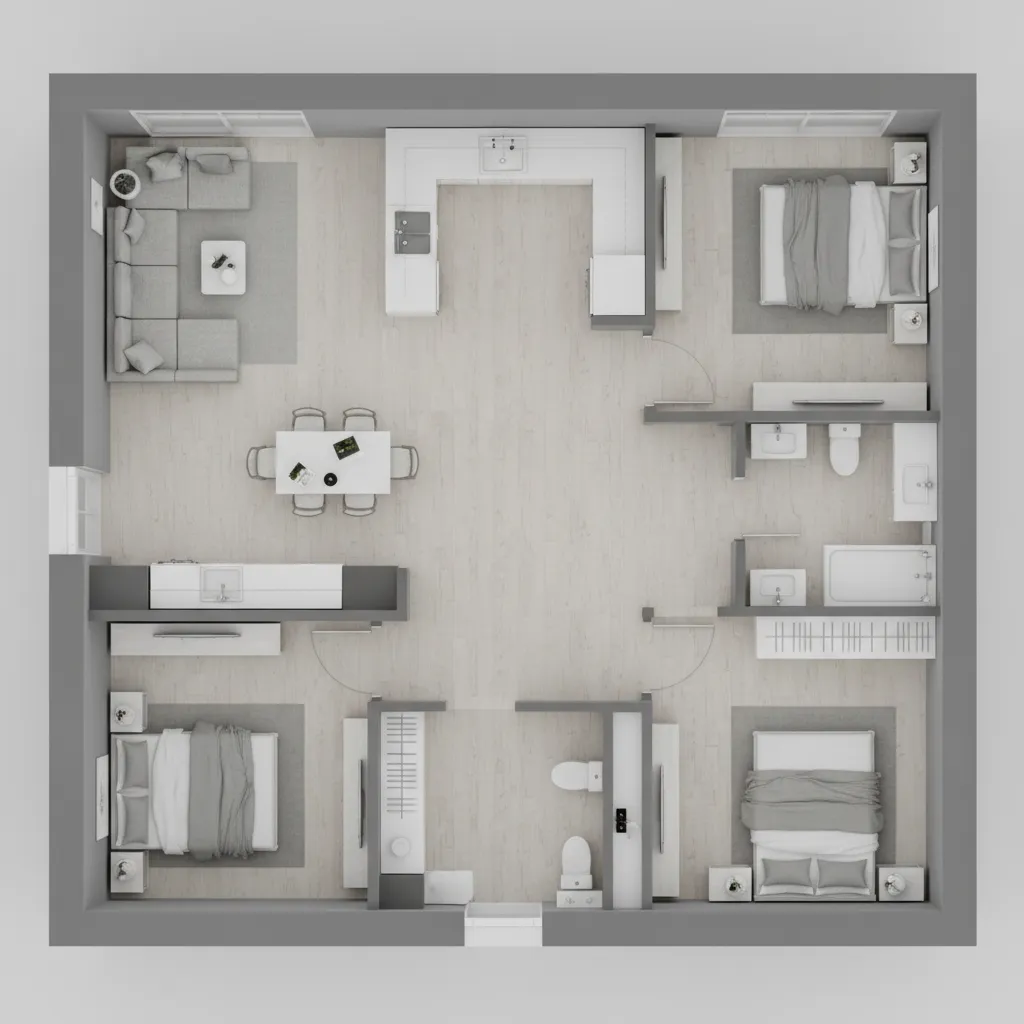

Choosing Colors That Improve Layout Clarity

Key Insight: The best wall colors improve spatial clarity without competing with furniture, labels, or room highlights.

A mistake I see often is designers treating floor plans like illustrations. In reality, floor plan visualization should reduce visual noise.

The most effective palettes usually follow a simple hierarchy:

1. Walls: light neutral tones (light gray, soft beige)
2. Flooring: slightly warmer or darker base color
3. Furniture: subtle contrast but not dominant
4. Accents: limited highlight colors for key spaces

Some of the best wall colors for floor plan presentation include:

1. #E6E6E6 soft architectural gray
2. #F2EFEA warm neutral plaster tone
3. #DADADA light concrete gray
4. #EFEFEF clean drafting gray

Why not pure white walls? Because white often disappears when exported to PDF or viewed on bright monitors. A subtle gray maintains edge visibility.

save pin

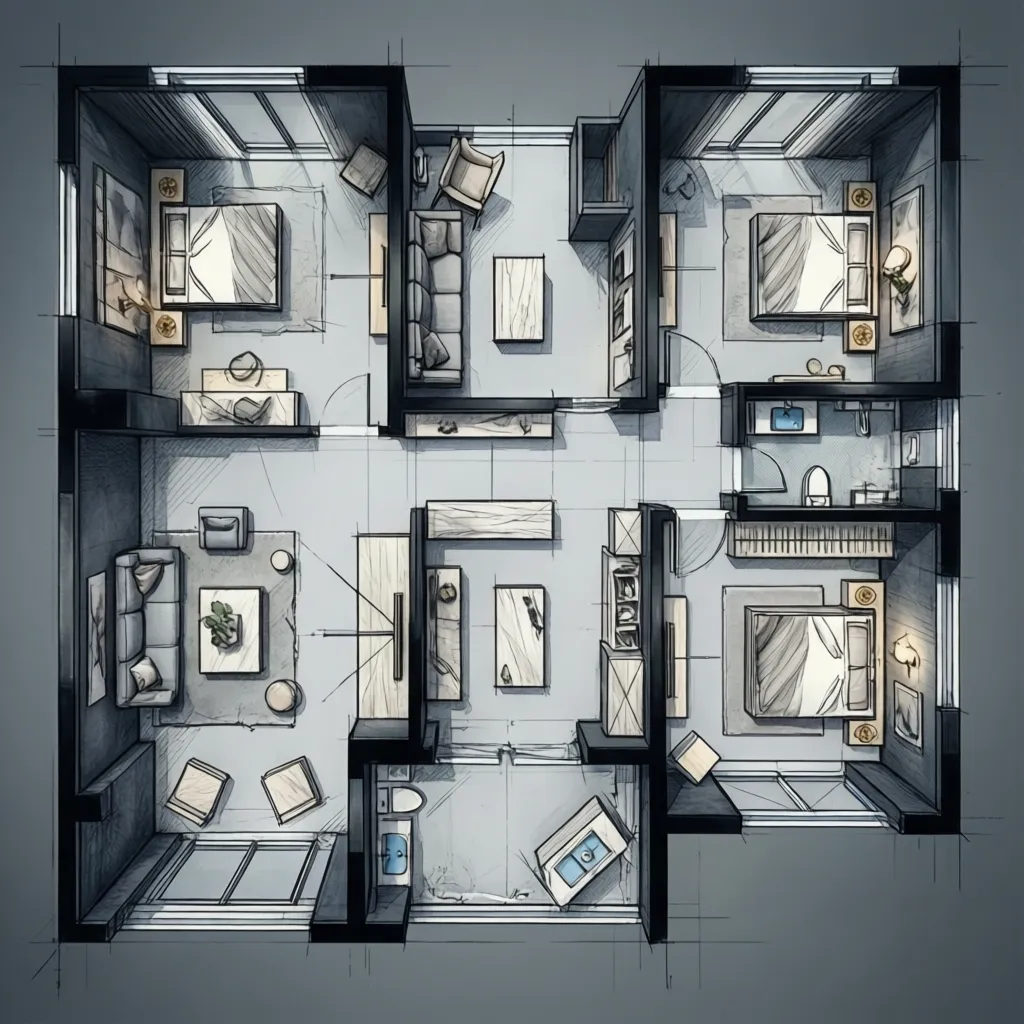

Using Contrast to Highlight Structural Elements

Key Insight: Strategic contrast makes structural components readable even when viewers glance at the plan for only a few seconds.

Professional architects often differentiate structural elements through contrast instead of color variety.

Effective contrast techniques include:

1. Darker wall outlines than interior fill
2. Thicker structural wall lines
3. Slight shadow effects for depth
4. Muted background grids

In presentation drawings, I often use a two‑tone wall system:

1. Interior wall fill: light gray
2. Wall boundary lines: medium charcoal

This subtle contrast dramatically improves readability when exported from digital planners or when shown on large screens.

If you're visualizing layouts in three dimensions, using a visual workflow for turning floor layouts into detailed 3D scenesalso helps test whether wall colors remain clear from multiple viewing angles.

save pin

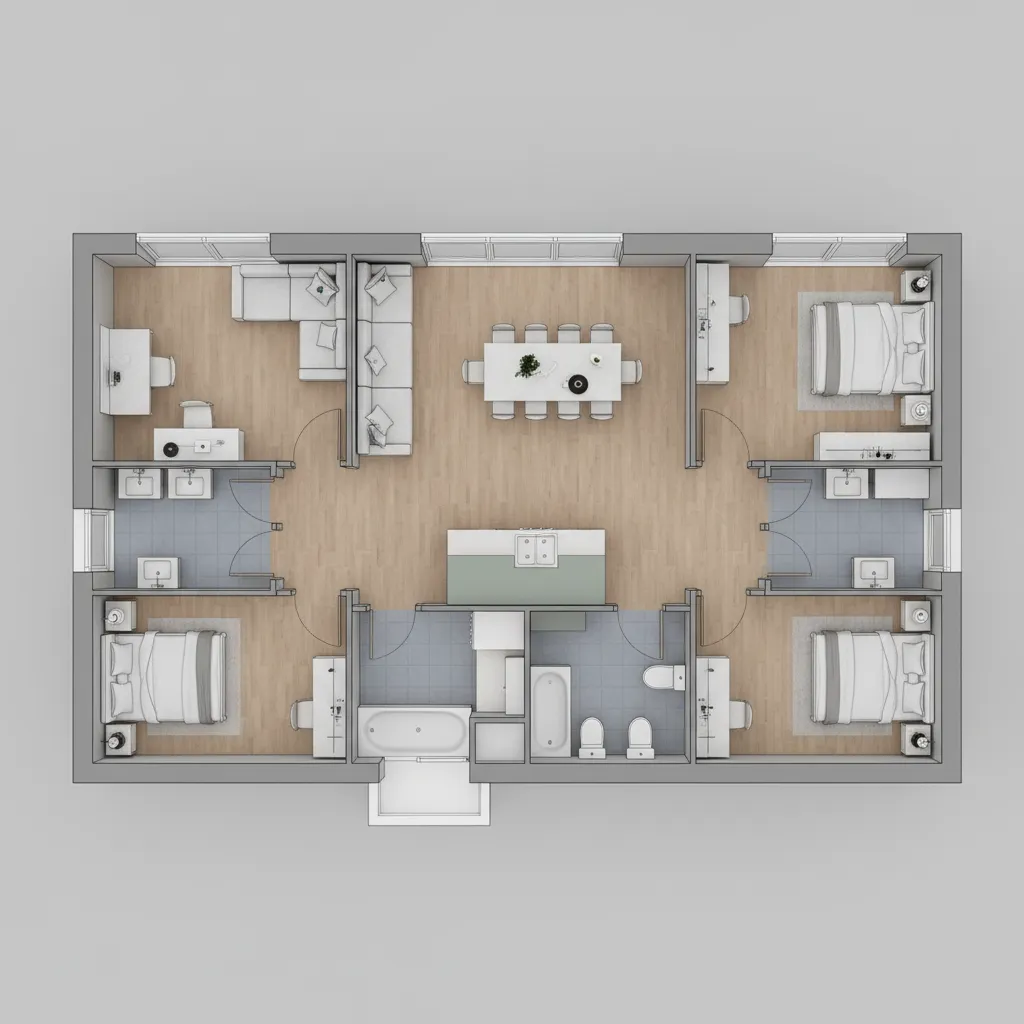

Color Schemes for Client Presentations

Key Insight: Client presentations benefit from restrained color schemes that emphasize function rather than decoration.

One hidden mistake in many architectural floor plans is over-coloring. Designers add colors for bedrooms, kitchens, living rooms, circulation zones, and more—until the plan starts looking like a diagram instead of a design.

A better approach is limiting the palette to functional categories:

1. Neutral walls
2. Light flooring
3. Single accent color for key rooms
4. Optional zoning colors for large layouts

Example presentation palette:

1. Walls: soft gray
2. Floors: warm oak tone
3. Bathrooms: muted blue
4. Kitchens: subtle sage green

This keeps the plan visually calm while still communicating room types.

Avoiding Overuse of Colors in Floor Plans

Key Insight: Too many colors weaken spatial hierarchy and reduce the professional quality of a floor plan.

In several design audits I've done for real estate marketing teams, the biggest visual issue wasn't poor layout—it was excessive color use.

Typical problems include:

1. Bright colors competing with structural lines
2. Different shades used for every room
3. Heavy saturation that distracts from geometry
4. Walls blending into background textures

A strong professional floor plan color strategy usually follows a simple rule:

1. Primary neutral color (walls)
2. Secondary base tone (floors)
3. One accent color
4. Optional secondary accent

Anything beyond that often creates visual clutter.

Answer Box

The most effective wall colors for floor plan presentation are neutral tones with clear contrast against floors and outlines. Limiting palettes to three or four colors keeps layouts readable while still highlighting key spaces.

Exporting Floor Plans with Accurate Colors

Key Insight: Wall colors that look perfect in editing software may shift when exported, printed, or viewed on different screens.

This issue is surprisingly common in digital design workflows. Colors that appear balanced on a designer's monitor may appear washed out on a projector or too dark in PDFs.

Before finalizing presentations, I recommend testing exports in three formats:

1. High‑resolution PNG
2. PDF presentation sheets
3. Screen display or projector mode

If your presentation includes rendered perspectives, pairing the plan with a complete walkthrough of realistic home rendering visualscan help clients connect the technical drawing with the finished design.

save pin

Final Summary

1. Neutral wall tones improve floor plan readability.
2. Contrast between walls and floors clarifies spatial structure.
3. Limit floor plan palettes to three or four colors.
4. Soft gray walls export more reliably than pure white.
5. Testing exports ensures colors stay accurate in presentations.

FAQ

What are the best wall colors for floor plan presentation?

Soft neutrals such as light gray, pale beige, or muted concrete tones work best. They maintain contrast while keeping the layout clean.

How can color improve floor plan visualization?

Color helps separate rooms, emphasize structure, and guide the viewer's eye through the layout without relying only on labels.

Should walls be darker than floors in floor plans?

Usually no. Walls should be slightly darker than the background but lighter than outlines to maintain visual hierarchy.

How many colors should a professional floor plan use?

Most professional presentations use three to four colors maximum to avoid visual clutter.

Why do my floor plan colors look different after exporting?

Color shifts often occur due to screen calibration, export formats, or compression in PDFs and images.

Is white a good wall color for floor plans?

Pure white can disappear against white backgrounds. Light gray tones usually provide better structure visibility.

How do architects highlight walls in floor plan layouts?

They use thicker outlines, subtle fill colors, and strong contrast with floor materials.

What is a professional floor plan color strategy?

A clear hierarchy: neutral walls, subtle flooring, minimal accent colors, and strong structural outlines.

References

American Institute of Architects – Architectural Drawing Standards

Francis D.K. Ching – Architectural Graphics

Autodesk University – Visual Communication in Architectural Drawings
