How to Optimize Waterproof Gypsum Board Installation for Maximum Moisture Resistance: Professional installation techniques that significantly improve durability, sealing performance, and long‑term moisture protection in wet environments

Direct Answer

To optimize waterproof gypsum board installation for maximum moisture resistance, contractors must control three factors: sealing all joints and penetrations, preventing moisture pathways behind the wall, and integrating the board with proper membranes and ventilation. Even high‑quality waterproof gypsum board can fail if fasteners, edges, or airflow design are overlooked.

In real projects, most moisture damage happens not through the panel surface, but through poorly sealed seams and hidden condensation inside the wall assembly.

Quick Takeaways

1. Most waterproof drywall failures happen at seams, edges, and penetrations—not the board surface.
2. Use corrosion‑resistant fasteners and compatible joint compounds designed for moisture environments.
3. Seal edges and transitions with waterproof tape or liquid membrane systems.
4. Ventilation and airflow design are just as important as the wall material itself.
5. Regular inspection prevents small moisture problems from becoming structural damage.

Introduction

After working on residential bathrooms, rental renovations, and a few hospitality projects over the past decade, I've learned something most installation guides barely mention: installing waterproof gypsum board correctly is less about the board itself and more about the system around it.

Many installers assume moisture‑resistant drywall automatically solves humidity problems. In reality, I've seen brand‑new bathrooms develop mold behind perfectly good boards simply because seams weren't sealed or ventilation wasn't considered.

Before starting installation, I often recommend visualizing the entire wall layout using tools like a interactive layout planning workflow for residential interiors. When you can see where plumbing, corners, and airflow paths exist, it's much easier to prevent moisture traps during installation.

This guide focuses on professional techniques that improve moisture resistance beyond standard instructions—things experienced installers pay attention to but typical tutorials skip.

save pin

Understanding Moisture Pathways in Wall Systems

Key Insight: Moisture damage rarely penetrates the board face; it travels through seams, fasteners, framing cavities, and condensation inside the wall.

One of the biggest misconceptions I see on job sites is the idea that waterproof gypsum board alone stops moisture. In practice, water almost always finds its way through structural weak points.

Common moisture entry paths include:

1. Unsealed vertical joints between panels
2. Cut edges around plumbing penetrations
3. Fastener holes without proper compound coverage
4. Condensation forming inside poorly ventilated wall cavities
5. Capillary water movement from adjacent flooring materials

Building Science Corporation research shows that air leakage pathways are responsible for a large portion of hidden wall moisture issues. That means even minor gaps can allow humid air to condense inside the assembly.

Professional installers treat waterproof drywall as one layer of a moisture control system—not the final barrier.

Choosing the Right Fasteners and Joint Compounds

Key Insight: Incorrect fasteners or incompatible joint compounds can compromise moisture resistance even when the board itself is waterproof.

I've inspected several failed installations where the gypsum board was rated for wet areas, but the screws had already begun corroding within two years.

Recommended hardware choices:

1. Hot‑dipped galvanized drywall screws
2. Stainless steel fasteners for high humidity zones
3. Moisture‑resistant joint compound
4. Alkali‑resistant fiberglass mesh tape

Key installation steps contractors often overlook:

1. Drive screws slightly recessed without breaking the board surface.
2. Fully coat fastener heads with joint compound.
3. Apply mesh tape before the compound fully dries.
4. Finish with waterproof finishing compound layers.

The Gypsum Association recommends corrosion‑resistant fasteners specifically for high humidity assemblies to prevent structural degradation over time.

save pin

Sealing Joints and Edges for Better Water Resistance

Key Insight: The quality of joint sealing determines whether waterproof drywall performs like a moisture barrier or simply decorative wallboard.

From my experience, joint treatment is the single most underestimated step in waterproof gypsum board installation.

Professional sealing workflow:

1. Pre‑fill gaps wider than 3 mm with setting compound.
2. Apply fiberglass mesh tape along all seams.
3. Embed tape with moisture‑resistant compound.
4. Add two finishing layers extending beyond the seam.
5. Seal exposed edges using waterproof primer or membrane.

A common hidden mistake is leaving cut edges untreated—especially around niches or plumbing. These exposed gypsum cores absorb moisture faster than the board surface.

In wet rooms, I usually apply a liquid waterproof membrane over joints and corners before tiling.

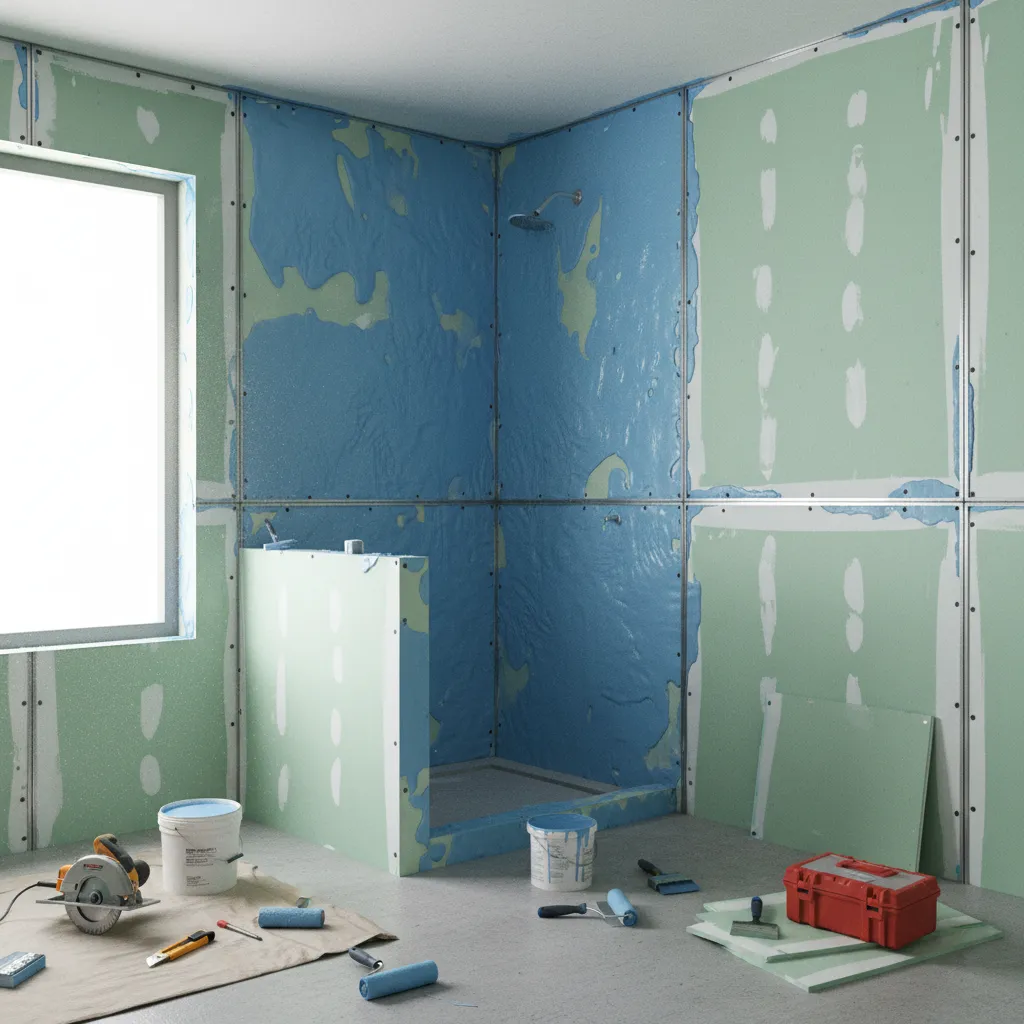

Combining Waterproof Gypsum Board with Membranes

Key Insight: Waterproof gypsum board works best as part of a layered moisture protection system rather than a standalone solution.

In modern bathroom construction, installers increasingly combine moisture‑resistant drywall with surface waterproofing membranes.

This layered approach typically includes:

1. Waterproof gypsum board substrate
2. Liquid or sheet waterproof membrane
3. Tile adhesive or finishing surface
4. Ventilated cavity or vapor barrier behind framing

This approach is especially important when designing complex wet zones. For example, when planning shower layouts or vanity walls using a visual bathroom layout planning system for wet area design, it becomes easier to identify where extra membrane protection is required.

Industry guidance from TCNA (Tile Council of North America) consistently recommends secondary waterproofing layers in direct water exposure areas.

save pin

Ventilation and Structural Design Considerations

Key Insight: Even perfectly installed waterproof drywall can fail if humidity remains trapped in the room.

Moisture resistance is as much about airflow as it is about materials.

Ventilation strategies that significantly extend wall lifespan:

1. Dedicated bathroom exhaust fans vented outdoors
2. Continuous ventilation in high‑humidity climates
3. Spacing drywall slightly above flooring to prevent wicking
4. Using moisture‑resistant framing insulation

ASHRAE guidelines suggest that bathrooms should achieve at least 50 CFM intermittent ventilation to reduce humidity accumulation.

Ignoring airflow design is one of the most common reasons mold appears behind otherwise moisture‑resistant walls.

Answer Box

The most effective way to improve moisture resistance in waterproof gypsum board installation is sealing seams thoroughly, using corrosion‑resistant hardware, and integrating ventilation and waterproof membranes. Most failures occur from installation gaps rather than board material limitations.

save pin

Long-Term Maintenance Strategies

Key Insight: Regular inspection and minor repairs dramatically extend the lifespan of waterproof gypsum installations.

In residential projects I revisit years later, the installations that still perform well are the ones where homeowners were taught basic maintenance habits.

Recommended maintenance checklist:

1. Inspect caulking around fixtures every 12 months
2. Repair cracked grout or tile joints immediately
3. Check ventilation fan performance regularly
4. Monitor wall discoloration near plumbing lines

Design planning can also reduce future moisture risks. Using a smart workflow for planning moisture‑safe interior layouts allows designers to position plumbing walls and wet zones more strategically.

Small preventative steps often save thousands in future wall replacement costs.

Final Summary

1. Waterproof gypsum board performs best as part of a complete moisture control system.
2. Most failures originate from poorly sealed joints and penetrations.
3. Membranes and ventilation dramatically improve durability.
4. Correct fasteners and compounds prevent long‑term structural damage.
5. Routine inspections help catch early moisture problems.

FAQ

1. Can waterproof gypsum board be used inside showers?

It can be used behind waterproof membranes, but direct water exposure typically requires additional waterproofing layers.

2. What is the best way to install moisture resistant drywall?

The best way to install moisture resistant drywall is sealing all joints, using corrosion‑resistant fasteners, and integrating waterproof membranes in wet zones.

3. Do I still need a vapor barrier with waterproof gypsum board?

In many climates, yes. Vapor barriers help control condensation within wall cavities.

4. How do you seal joints in waterproof drywall?

Use fiberglass mesh tape, moisture‑resistant joint compound, and optionally apply a liquid waterproof membrane over seams.

5. Is waterproof gypsum board mold proof?

No material is completely mold proof. Proper ventilation and sealing are required to prevent mold growth.

6. What screws should be used for waterproof drywall?

Hot‑dipped galvanized or stainless steel drywall screws are recommended for moisture‑prone environments.

7. How long does waterproof gypsum board last?

With proper installation and ventilation, it can last decades without moisture damage.

8. How do you prevent water penetration during drywall installation?

Prevent water penetration drywall installation issues by sealing seams, protecting edges, and integrating membranes around wet zones.

References

1. Gypsum Association Installation Guidelines
2. Building Science Corporation Moisture Control Research
3. Tile Council of North America Handbook
4. ASHRAE Ventilation Standards
