How to Optimize Your Roof Design Using Free Online Tools: Practical methods homeowners use to improve roof accuracy, pitch planning, and material decisions with free digital design tools

Direct Answer

To optimize your roof design using free online tools, start by defining your roof layout, verify measurements and pitch, model the structure in 3D, and test different materials before finalizing the plan. Digital tools help homeowners visualize structural relationships and catch layout mistakes before construction begins.

When used correctly, these tools improve roof planning accuracy, make contractor discussions clearer, and reduce the risk of costly design revisions.

Quick Takeaways

1. Start with accurate home dimensions before designing the roof.
2. 3D visualization helps identify drainage and slope issues early.
3. Testing roofing materials digitally avoids expensive aesthetic mistakes.
4. Clear roof models make contractor consultations more productive.
5. Most online tools fail when measurements are guessed instead of verified.

Introduction

After working on residential design projects for more than a decade, I’ve noticed something interesting: most roof design problems don’t happen during construction. They happen during planning.

Today, homeowners increasingly use free online platforms to optimize roof design using online tools before talking to contractors. The idea is great, but many people unknowingly create inaccurate layouts, unrealistic roof pitches, or visualizations that look good on screen but fail structurally.

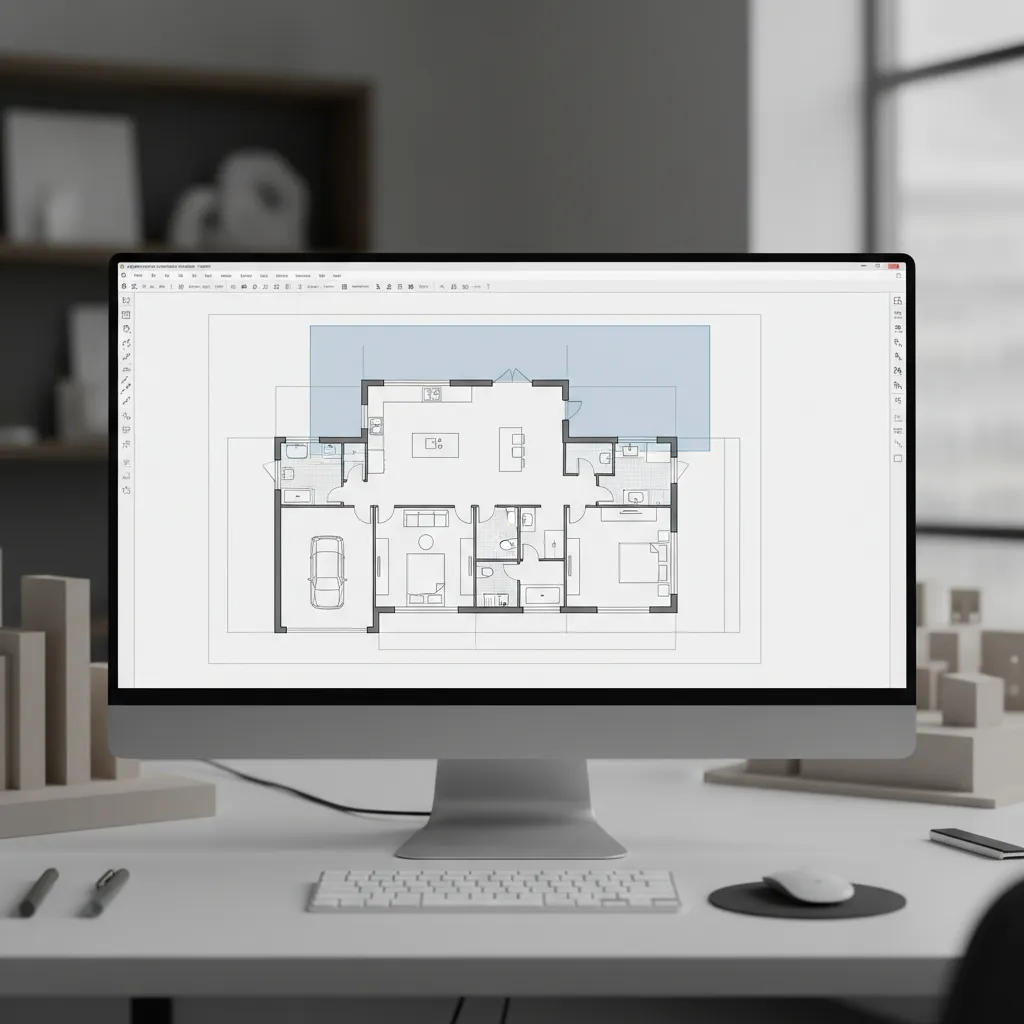

One of the easiest ways to start correctly is by mapping your home’s structure with a digital planner that allows you to create a measurable house layout before designing the roof structure. Getting this base plan right dramatically improves the accuracy of everything that follows.

In this guide, I’ll walk through the same workflow I recommend to clients who want to experiment with roof concepts themselves before hiring a professional.

save pin

Planning Your Roof Layout Before Using a Design Tool

Key Insight: The biggest optimization step happens before opening a roof design tool—your base layout must be accurate.

Many homeowners jump straight into roof visualization. In practice, professionals always start with the footprint of the building.

Without a precise layout, roof ridges, valleys, and slopes become guesses rather than calculated elements.

What to define first:

1. Total building footprint dimensions
2. Load‑bearing wall positions
3. Overhang distances
4. Drainage direction
5. Major roof intersections

In residential projects, even a 3–4 inch error in the base layout can distort roof pitch calculations. The American Institute of Architects frequently emphasizes that roof geometry depends heavily on the building envelope, not just stylistic choice.

Choosing the Right Roof Style for Your Home

Key Insight: The best roof style is determined by climate, structure, and maintenance costs—not just appearance.

Online tools make it easy to switch between roof types instantly, which is extremely helpful for early optimization.

Common roof styles you can test digitally:

1. Gable roof
2. Hip roof
3. Shed roof
4. Mansard roof
5. Flat roof

However, one hidden issue many guides ignore is maintenance complexity. For example, hip roofs distribute wind loads better but require more framing materials and labor. In snowy climates, gable roofs often outperform visually complex designs because snow slides off more easily.

Testing several styles in digital form helps you evaluate both appearance and structural simplicity.

save pin

Optimizing Measurements and Roof Pitch

Key Insight: Roof pitch accuracy determines drainage, structural stability, and material compatibility.

One of the most useful optimization features in digital planning tools is slope control. Yet this is also where many DIY plans fail.

Typical residential pitch ranges:

1. Low slope: 2:12 – 4:12
2. Standard slope: 4:12 – 9:12
3. Steep slope: 9:12 and above

Optimization tips I often recommend:

1. Use satellite measurements or existing house plans for base dimensions
2. Test multiple slope options before committing
3. Check drainage direction toward gutters
4. Avoid overly complex valley intersections

According to the National Roofing Contractors Association, improper slope design is one of the most common causes of early roof failure.

Improving Visual Accuracy with 3D Roof Models

Key Insight: 3D visualization reveals spatial problems that 2D roof drawings often hide.

This is where modern planning tools become surprisingly powerful. When a roof model is rendered in 3D, you can immediately see ridge height differences, awkward intersections, and unrealistic proportions.

Many homeowners experiment with digital models by first building the home structure using tools that allow you to visualize the entire house layout in an interactive 3D planning environment. Once the building shell exists, adjusting roof shapes becomes much easier.

3D models help detect:

1. Uneven roof heights
2. Drainage conflicts
3. Oversized overhangs
4. Unbalanced roof massing

Architects often say that a roof should "look structurally believable." If something feels visually awkward in 3D, it often indicates a structural inefficiency.

save pin

Testing Different Roofing Materials in Design Tools

Key Insight: Material testing prevents aesthetic mismatches and reveals hidden cost implications.

One advantage of digital tools is rapid material experimentation. Instead of guessing how shingles, metal, or tiles might look, you can preview them instantly.

Common roofing materials to test:

1. Asphalt shingles
2. Metal panels
3. Clay tiles
4. Composite shingles
5. Wood shakes

However, visual appearance is only one factor.

Hidden considerations often overlooked:

1. Material weight and structural load
2. Heat reflection properties
3. Maintenance frequency
4. Long‑term replacement costs

For example, clay tiles look beautiful but can weigh two to three times more than asphalt shingles, which may require structural reinforcement.

Preparing Your Design for Contractor Discussions

Key Insight: A clear digital roof model dramatically improves communication with contractors.

Contractors frequently spend time interpreting rough sketches from homeowners. When you bring a visual roof model instead, discussions become faster and far more precise.

Before presenting your design:

1. Export roof angles and measurements
2. Show drainage directions
3. Include material assumptions
4. Highlight any design questions

Some homeowners also generate realistic visualizations that help communicate their idea more clearly by using platforms that can turn a simple house model into a realistic exterior visualization.

This doesn't replace professional roof engineering, but it dramatically shortens the early planning phase.

save pin

Answer Box

The most effective way to optimize roof design using online tools is to start with accurate building dimensions, simulate multiple roof styles, test pitch ranges, and validate the design using 3D visualization before choosing materials.

Digital tools work best when they support decision‑making, not when they replace professional structural review.

Final Summary

1. Accurate building dimensions are the foundation of a good roof design.
2. 3D models reveal structural problems early.
3. Roof pitch strongly affects drainage and durability.
4. Material testing prevents costly aesthetic mistakes.
5. Clear visual models improve contractor communication.

FAQ

1. Can I design a roof accurately using free online tools?

Yes, you can create a fairly accurate concept design. However, final structural calculations should still be verified by a contractor or structural engineer.

2. What is the best way to plan roof pitch digitally?

Use a design tool that allows slope adjustment and measurement verification. Testing multiple pitch ranges helps identify the most practical drainage solution.

3. Do roof design tools calculate structural loads?

Most free tools focus on visualization rather than engineering calculations. Structural load analysis usually requires professional software.

4. Why does my roof look different in 3D than in 2D?

2D plans hide vertical relationships. A 3D model exposes height differences, slope inconsistencies, and awkward intersections.

5. How do contractors use my digital roof model?

They often use it as a visual reference for discussions, measurements, and material planning before producing final construction drawings.

6. What roof pitch works best for residential homes?

Most homes use pitches between 4:12 and 9:12 because they balance drainage efficiency and construction cost.

7. Can online tools help improve roof visualization?

Yes. Many tools allow realistic rendering and material previews, which helps homeowners improve roof visualization using free tools.

8. What mistakes should I avoid when designing a roof online?

Common mistakes include guessing measurements, ignoring drainage direction, creating overly complex valleys, and choosing materials without considering structural weight.
