How to Plan a Cinema Hall Interior Step by Step Design Decisions: A practical workflow for designing cinema interiors from concept planning to final layout decisions

Direct Answer

Planning a cinema hall interior requires a structured sequence of decisions that move from audience capacity and screen size to seating layout, acoustics, lighting, and final construction checks. The most effective workflow starts with defining viewing geometry and capacity, then aligns seating spacing, sound treatment, and materials around that geometry. When these decisions are made in the correct order, the result is a cinema space that delivers clear sightlines, balanced sound, and comfortable audience flow.

Quick Takeaways

1. Start cinema design with audience capacity and viewing distance, not decoration.
2. Screen size determines the entire room geometry including seating rows.
3. Row spacing and seat elevation affect both comfort and sightlines.
4. Acoustics, lighting, and materials must be designed together early.
5. A final design checklist prevents costly construction mistakes.

Introduction

After working on multiple entertainment and small theater projects over the past decade, I’ve noticed a common mistake when people approach cinema hall design. They jump straight into finishes, seats, or lighting fixtures before the core spatial decisions are made.

The reality is that cinema hall interior planning is mostly about geometry and sequencing decisions correctly. Screen size affects viewing distance. Viewing distance affects seating rows. Seating rows affect acoustics, lighting, and circulation. When one piece shifts, everything else follows.

If you’re planning a small movie theater, private screening room, or commercial cinema, the process becomes much easier when you treat it like a step‑by‑step system rather than isolated design choices. Many designers now begin early planning with digital layout studies such as this interactive cinema room layout planning approachto test seating geometry before construction decisions are locked in.

In this guide I’ll walk through the same workflow I use when planning cinema interiors with clients—from defining capacity all the way to the final construction checklist.

save pin

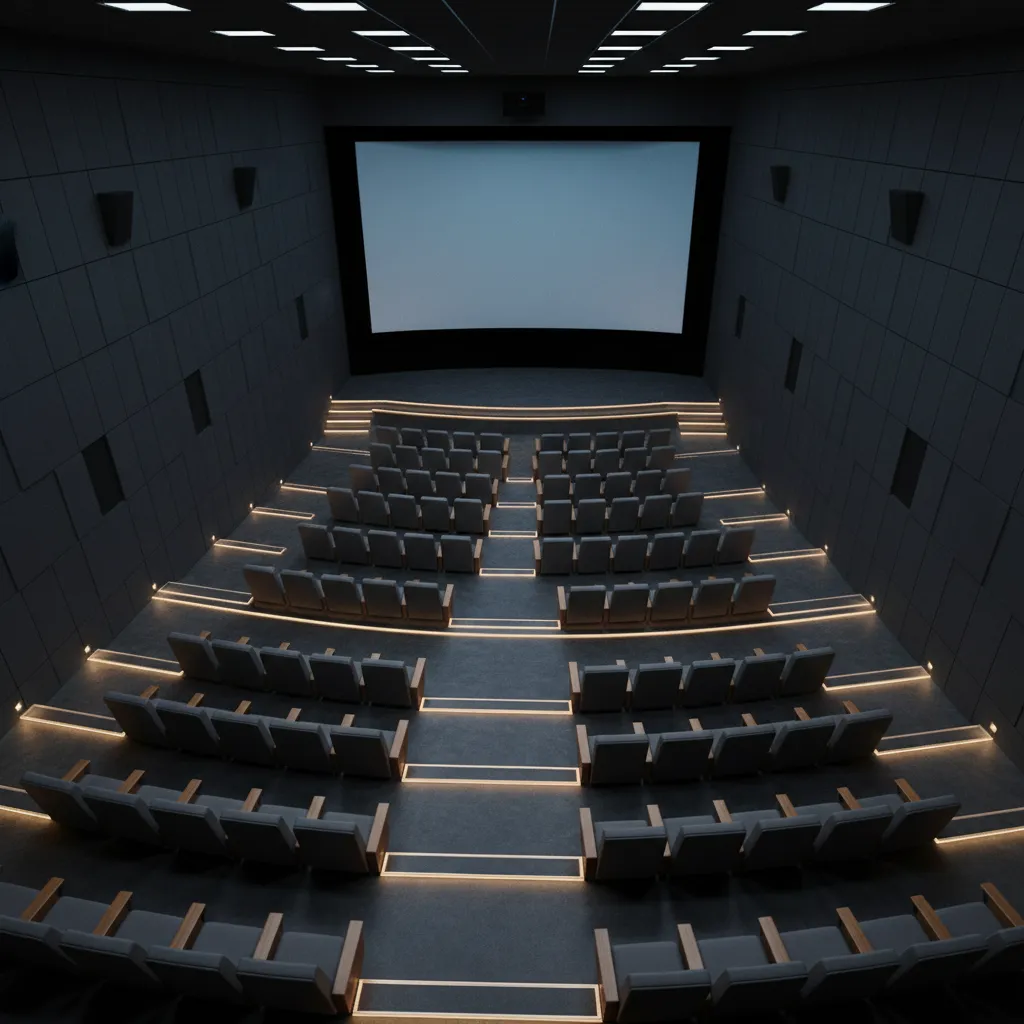

Define the Purpose and Capacity of the Cinema Hall

Key Insight: The intended audience capacity determines almost every spatial decision in cinema design.

Before thinking about screens or speakers, you must define how the room will actually be used. A private home theater for eight people follows completely different planning rules than a 120‑seat community cinema.

In professional design projects, we typically establish three early metrics:

1. Total number of seats
2. Target viewing distance range
3. Expected circulation space

Typical planning guidelines used in theater design:

1. Minimum seat width: 20–24 inches
2. Row spacing: 36–48 inches
3. Main aisle width: 48–60 inches

Industry references from organizations such as SMPTE (Society of Motion Picture and Television Engineers) also recommend maintaining consistent viewing angles to avoid distortion for side seats.

Many designers underestimate circulation. In reality, aisles, exits, and wheelchair access can consume 20–30% of the total floor area.

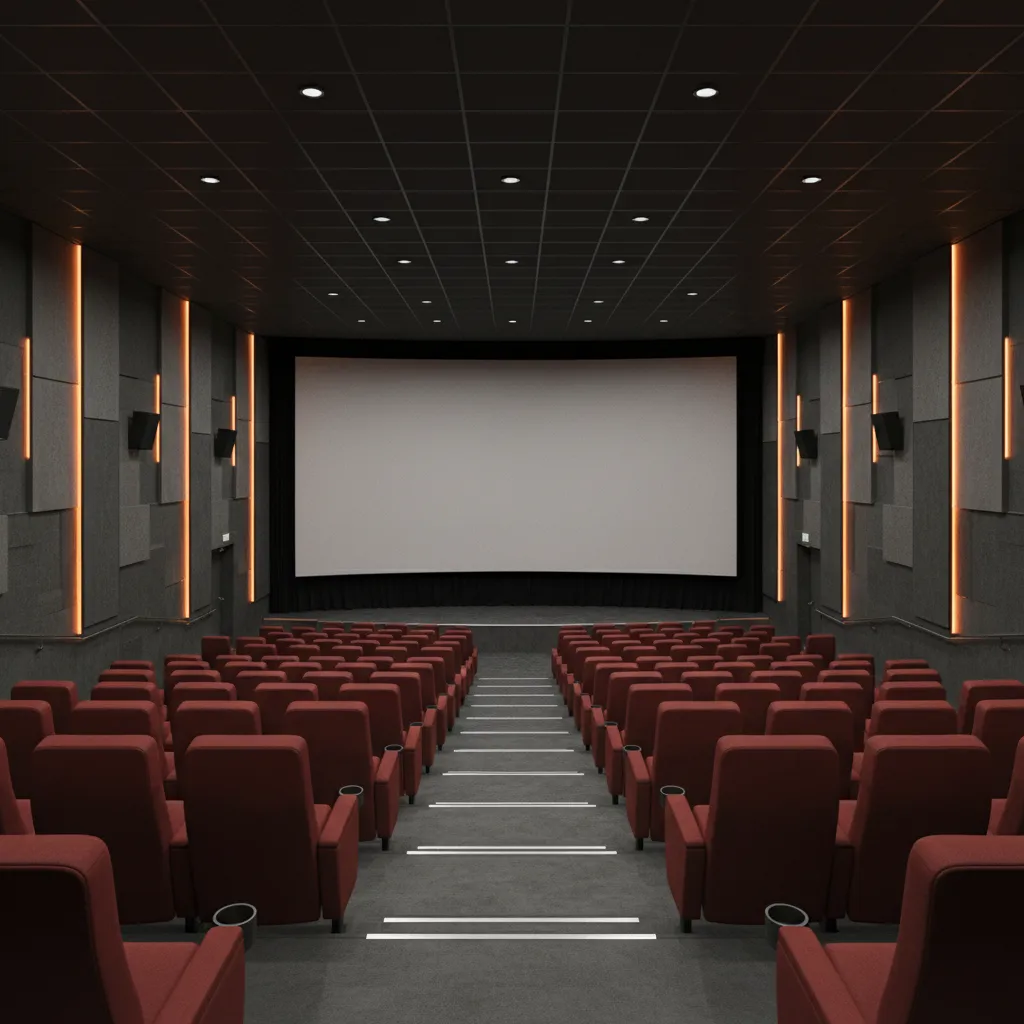

Choosing the Right Screen Size and Placement

Key Insight: Screen size should be calculated from the farthest viewing distance, not from wall dimensions.

This is where many cinema interiors go wrong. Designers often select a screen that simply "fits the wall," but that can create poor viewing angles or uncomfortable head movement.

A better method uses viewing angle recommendations from cinema engineering standards.

Common screen planning guidelines:

1. Recommended viewing angle: 36° horizontal
2. Maximum comfortable viewing angle: 50°
3. Front row distance: roughly 1.5× screen width
4. Back row distance: 3–4× screen width

Placement considerations include:

1. Screen bottom typically 24–36 inches above floor
2. Speaker placement behind or beside screen
3. Projection or LED wall equipment clearance

In early design stages, I usually model several layout options using tools similar to this

save pin

3D movie theater seating layout simulation to check sightlines across different row configurations.

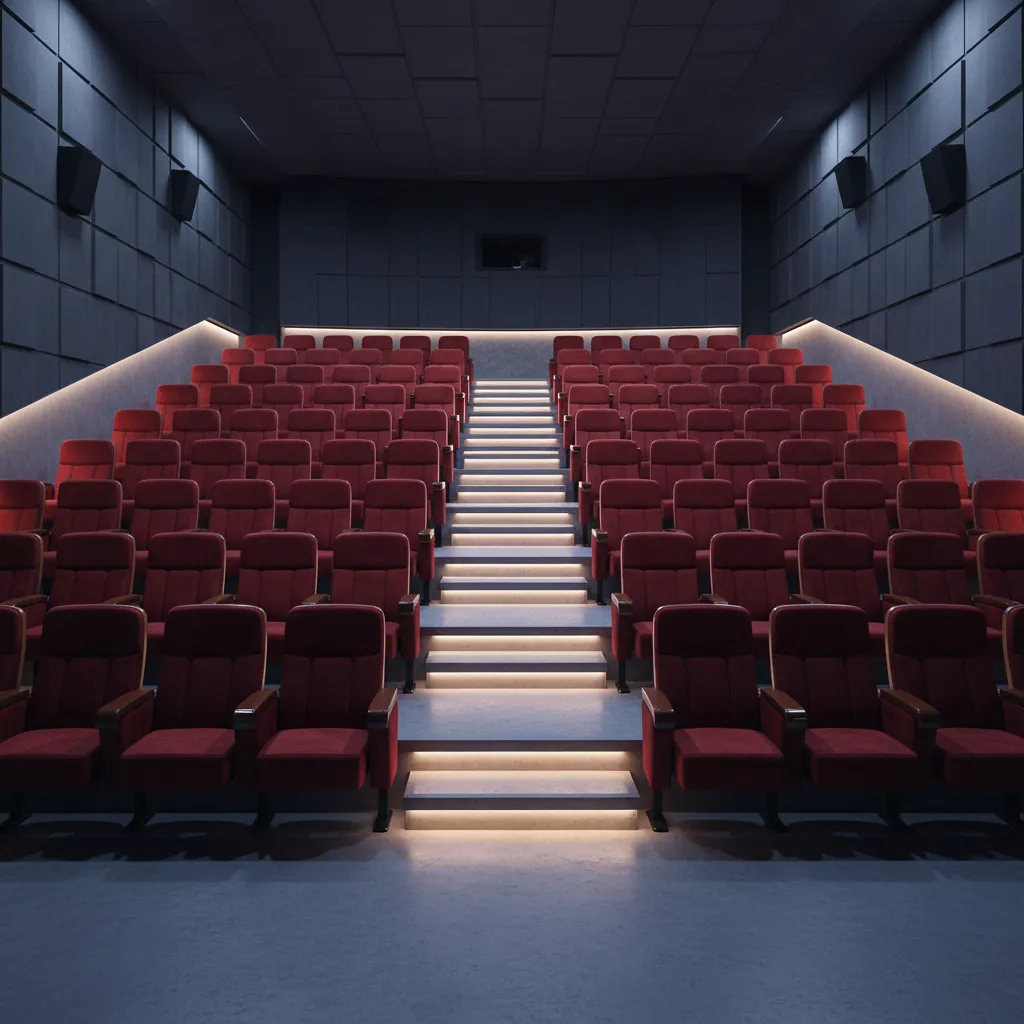

Selecting Seating Layout and Row Spacing

Key Insight: Good seating layout is about sightlines first and capacity second.

A cinema can technically fit more seats, but if viewers cannot see the screen comfortably, the design fails.

The most common seating layouts include:

1. Flat floor seating
2. Stadium stepped seating
3. Hybrid staggered platforms

Typical row spacing recommendations:

1. Standard seating: 36–40 inches
2. Luxury recliner seating: 60–72 inches
3. VIP lounge seating: up to 84 inches

One mistake I see frequently is ignoring seat stagger. If seats align directly behind each other, viewers end up looking around heads rather than between them.

Professional theaters stagger seating by half a seat width to maintain clear sightlines.

save pin

Answer Box

The most effective cinema interior planning process starts with capacity and screen geometry, then builds seating layout, acoustics, lighting, and materials around that structure. When these decisions are made in the right order, the design avoids costly layout changes during construction.

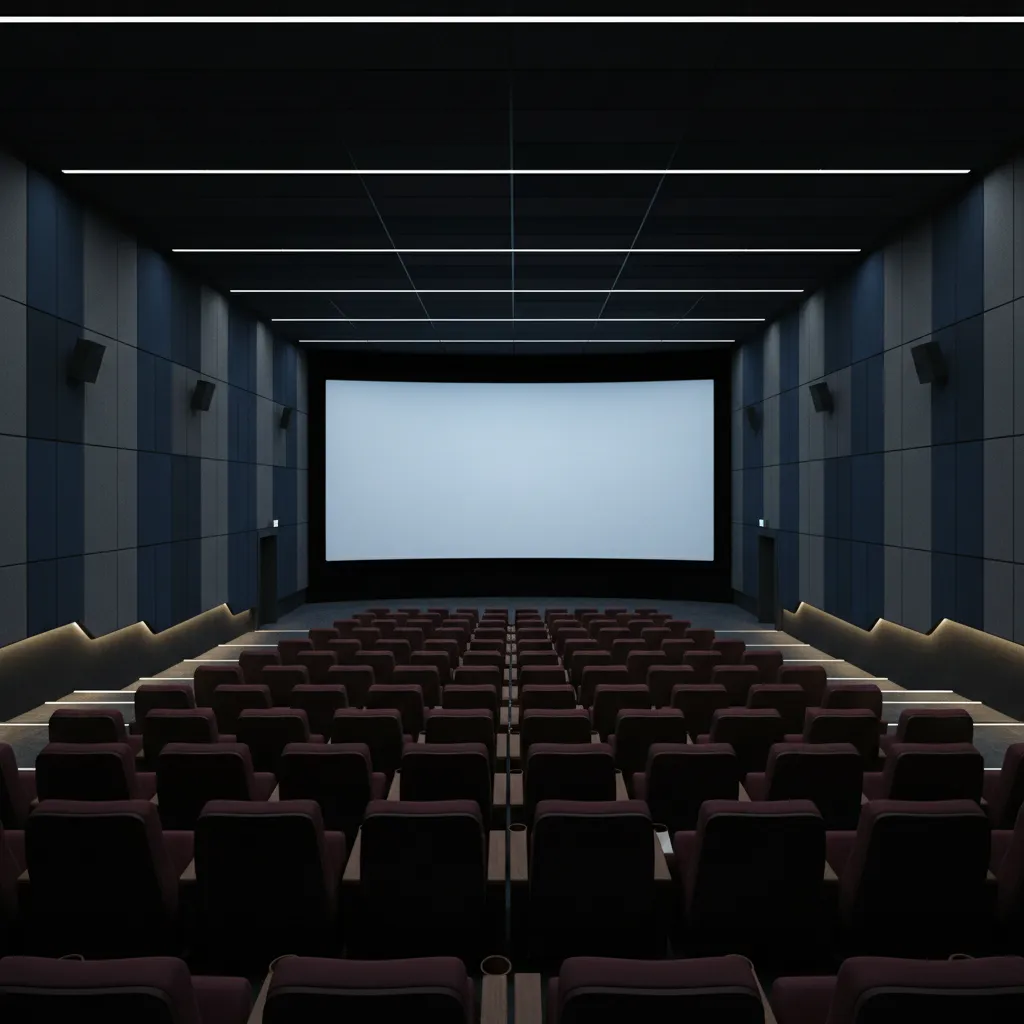

Planning Lighting, Acoustics, and Materials Together

Key Insight: Lighting design and acoustic materials must be planned simultaneously to avoid sound reflection problems.

Cinema spaces require very controlled sound environments. Hard surfaces reflect sound, while soft materials absorb it.

Key acoustic materials often used:

1. Acoustic wall panels
2. Fabric‑wrapped insulation
3. Perforated wood panels
4. Acoustic ceiling clouds

Lighting strategy usually combines:

1. Indirect LED strip lighting
2. Step lights for aisles
3. Dimmable ceiling lighting
4. Emergency pathway lighting

According to cinema engineering recommendations from Dolby and THX theater guidelines, reflective surfaces near speakers should be minimized to prevent echo and frequency distortion.

save pin

Budget Planning for Cinema Interior Design

Key Insight: Seating, acoustic treatment, and projection systems typically consume over 70% of the cinema interior budget.

Many people assume construction or decoration will be the biggest cost, but in cinema design the technical equipment dominates the budget.

Typical budget allocation in small theaters:

1. Seating systems: 30–40%
2. Projection or LED screen: 20–30%
3. Audio system: 15–20%
4. Acoustic materials: 10–15%
5. Lighting and finishes: 5–10%

A hidden cost many clients overlook is structural reinforcement. Stadium seating platforms and heavy projection equipment may require additional structural support.

Final Design Checklist Before Construction

Key Insight: A detailed pre‑construction checklist prevents layout conflicts that are expensive to fix later.

Before approving construction drawings, I usually verify the following items with the project team.

Cinema interior pre‑construction checklist:

1. Screen size aligned with viewing distance
2. Sightline verification for every seating row
3. Speaker placement coordinated with walls
4. Lighting zones mapped to control system
5. Emergency exits and aisle lighting approved
6. Acoustic wall panel locations finalized

At this stage many teams also create a final visualization using tools similar to this realistic cinema interior rendering workflow to confirm the atmosphere before construction begins.

Final Summary

1. Cinema hall design begins with capacity and viewing geometry.
2. Screen size should be determined by viewing distance.
3. Seating layout must prioritize sightlines and comfort.
4. Acoustics and lighting must be planned together.
5. A final checklist prevents expensive construction errors.

FAQ

How do you design a cinema hall step by step?

Start with audience capacity, determine screen size, design seating layout, plan acoustics and lighting, finalize materials, then review a full construction checklist.

What is the best seating layout for a cinema?

Stadium seating usually provides the best sightlines because each row is elevated above the one in front.

How far should seats be from the cinema screen?

The front row is typically about 1.5 times the screen width, while the back row is around 3–4 times the screen width.

What is the standard row spacing in cinemas?

Standard seating rows range from 36 to 48 inches. Luxury recliner seating requires significantly more spacing.

How important is acoustics in cinema hall design?

Acoustics are critical. Poor acoustic treatment can cause echo, distorted dialogue, and uneven sound distribution.

Can a small room be converted into a cinema hall?

Yes. With careful cinema interior planning, small rooms can function well as private theaters using optimized seating layouts and acoustic panels.

What materials are best for cinema walls?

Fabric acoustic panels, perforated wood panels, and sound‑absorbing insulation are commonly used.

What is included in a cinema hall design checklist?

Screen size verification, seating layout, acoustic placement, lighting design, emergency exits, and equipment installation planning.

References

SMPTE Motion Picture Standards

Dolby Cinema Technical Design Guides

THX Theater Certification Guidelines
