How to Prevent Cabinet Doors Blocking a Top Loading Washer: Smart cabinet spacing and design choices that let your washer lid open fully in compact laundry rooms

Direct Answer

Cabinet doors block a top loading washer when there isn’t enough vertical clearance for the washer lid to open fully. In most homes, you need at least 18–24 inches of clear space above the washer top to avoid interference. Adjusting cabinet height, using shallow storage, or switching to lift up cabinet doors usually solves the problem.

Quick Takeaways

1. Most top loading washers need 18–24 inches of clearance above the lid.
2. Standard kitchen cabinet heights often sit too low for laundry machines.
3. Shallow cabinets reduce lid collision without sacrificing storage.
4. Lift up cabinet doors work better than swing doors above washers.
5. Minor height adjustments can fix washer lid clearance without a full remodel.

Introduction

If you've ever installed cabinets above a laundry machine, you’ve probably run into the classic problem: the top loading washer lid hits the cabinets before it opens fully. I’ve seen this in dozens of renovation projects, especially in small laundry rooms where every inch matters.

The issue usually comes down to cabinet clearance for a top load washer lid. Many installers follow standard kitchen cabinet measurements, but laundry appliances behave differently. Washer lids tilt backward and need vertical swing space that cabinets often block.

Before planning cabinetry, I usually map the appliance zone using a visual room layout tool for planning tight laundry spaces. It quickly reveals whether upper cabinets will collide with the lid before construction even starts.

In this guide, I’ll walk through the clearance rules I use in real projects, the design mistakes I see most often, and several practical fixes that work whether you're planning a remodel or dealing with cabinets that are already installed.

save pin

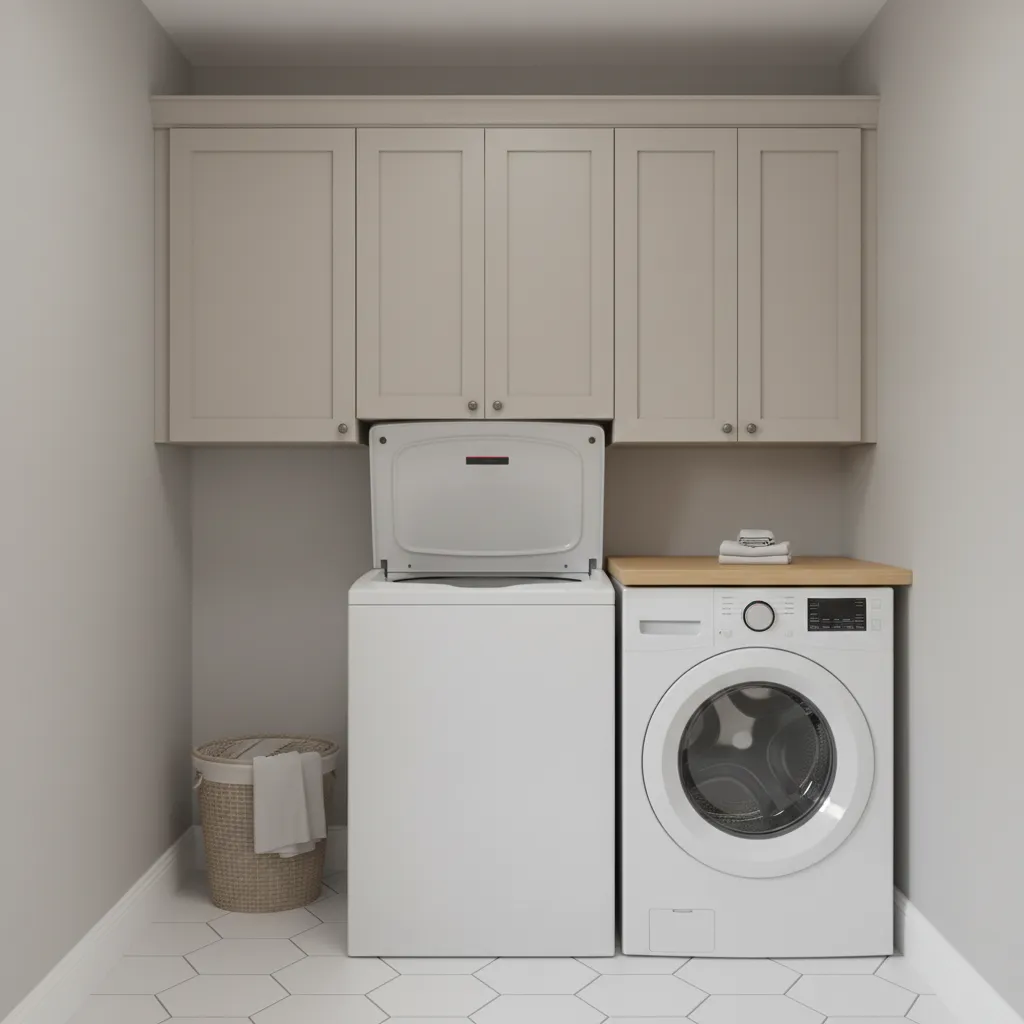

Why Top Loading Washer Lids Often Hit Cabinets

Key Insight: The main reason washer lids hit cabinets is that many laundry rooms are designed using kitchen cabinet standards instead of appliance clearance requirements.

In kitchen design, upper cabinets typically sit about 18 inches above the countertop. But washers aren’t countertops, and their lids move upward and backward when opened.

Most modern top loading washers have lids that tilt between 70° and 90°. That means the hinge motion needs both vertical and rear clearance.

Common causes I see during design consultations include:

1. Cabinets installed at standard kitchen height
2. Deep upper cabinets extending too far forward
3. Decorative cabinet doors with thick frames
4. Washer upgrades that are taller than the previous unit

According to appliance specification sheets from manufacturers like Whirlpool and GE, lid clearance requirements vary but frequently exceed typical cabinet spacing in compact laundry rooms.

Minimum Clearance Needed Above a Top Load Washer

Key Insight: A safe design rule is to leave at least 20 inches of open space above a top loading washer to ensure the lid opens fully.

Different washer models vary slightly, but most follow similar vertical clearance ranges.

1. Compact top loaders: 16–18 inches clearance
2. Standard washers: 18–22 inches clearance
3. Large capacity washers: 22–24 inches clearance

From a design standpoint, I rarely go below 20 inches. Anything tighter starts creating usability problems when users remove bulky laundry loads.

If you're planning cabinetry from scratch, mapping the space with a simple floor plan layout generator for laundry roomshelps visualize lid movement before cabinets are finalized.

save pin

Common Cabinet Design Mistakes in Small Laundry Rooms

Key Insight: The biggest mistake isn’t cabinet height alone—it’s cabinet depth combined with door swing.

In tight laundry spaces, installers often prioritize storage volume over usability. That creates cabinets that technically fit but interfere with the washer lid.

Here are design mistakes I frequently encounter during renovations:

1. Deep overhead cabinets: Standard 12 inch depth pushes doors directly into the washer lid path.
2. Swing-out cabinet doors: These collide with raised washer lids.
3. Stacked cabinetry: Multiple cabinet rows reduce clearance flexibility.
4. Appliance upgrades ignored: New washers are often taller than older models.

One hidden issue homeowners rarely anticipate is service access. Technicians often need the lid fully open to repair components. Cabinets installed too low can make basic maintenance difficult.

save pin

Answer Box

To prevent cabinet doors from blocking a top loading washer, maintain at least 18–24 inches of clearance above the washer and avoid deep cabinets directly overhead. Shallow cabinets, lift up doors, or open shelving are the most reliable design solutions.

Solutions Shallow Cabinets Lift Up Doors and Open Shelving

Key Insight: The most effective solution is reducing cabinet depth rather than removing storage entirely.

In real projects, I usually solve washer clearance issues with one of three cabinet strategies.

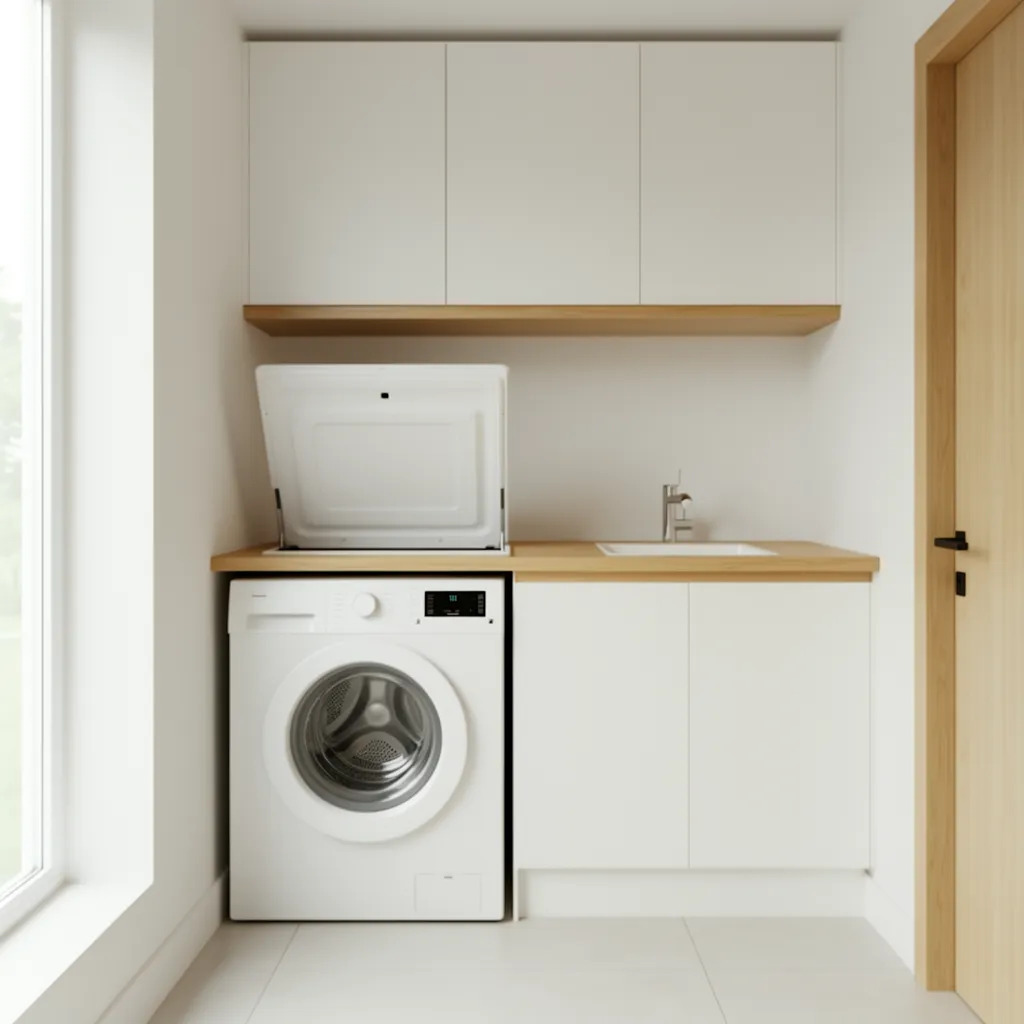

1. Shallow cabinets (8–10 inches deep)
2. These hold detergent and cleaning supplies while staying outside the lid swing path.

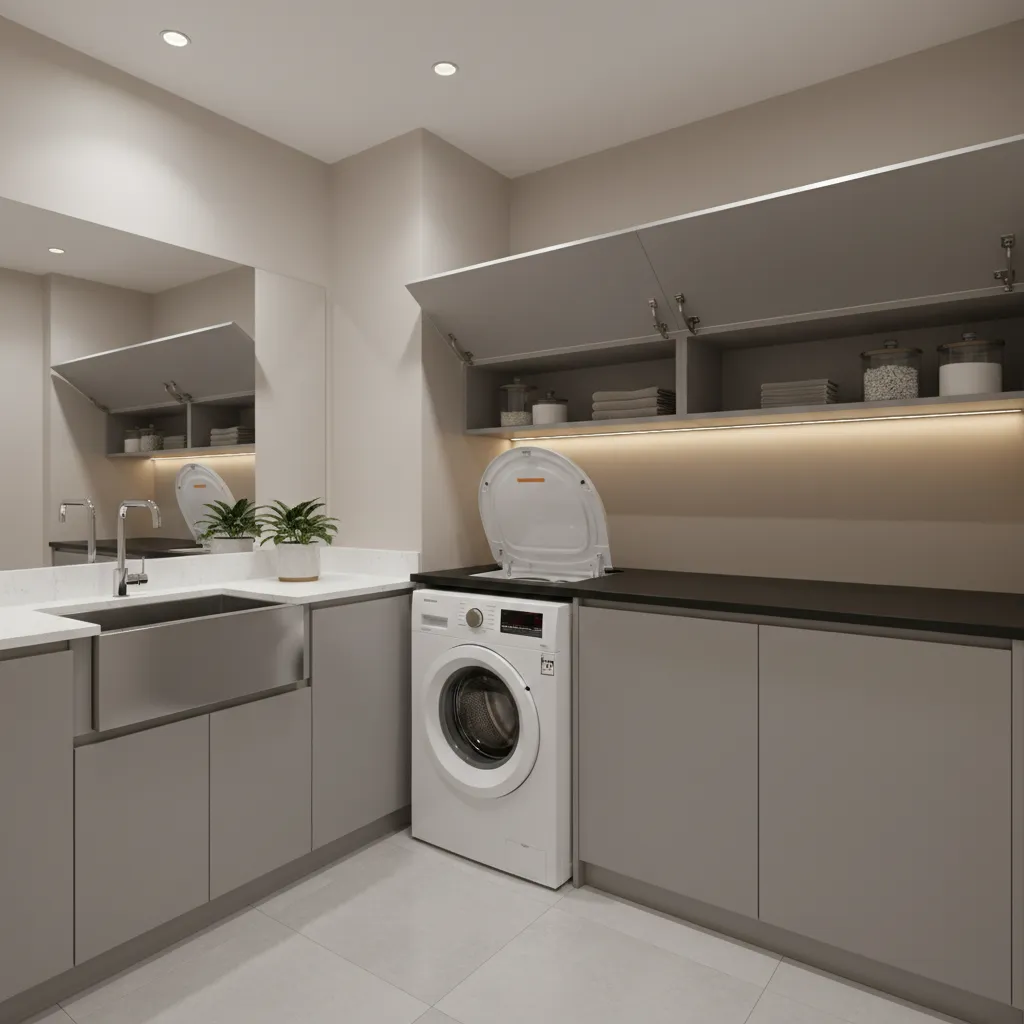

3. Lift up cabinet doors
4. Vertical lift mechanisms eliminate door swing conflicts above washers.
5. Open shelving
6. Floating shelves provide storage without blocking appliance movement.

European style lift up doors are especially useful in compact laundry rooms because they keep the door panel above the working area.

Adjusting Cabinet Height Without Remodeling the Entire Room

Key Insight: In many cases, raising cabinets just 2–3 inches solves the washer lid interference problem.

Homeowners often assume they need to replace all cabinetry. In reality, small adjustments can fix the clearance.

Options I commonly recommend include:

1. Raising existing cabinets with new wall mounting brackets
2. Replacing doors with sliding or lift panels
3. Removing the cabinet bottom trim to gain extra clearance
4. Installing a shallow filler panel below cabinets

Visualizing these changes using a 3D interior preview for planning laundry storage changeshelps homeowners see how small height adjustments affect the entire room layout.

save pin

Quick Fixes for Existing Laundry Room Cabinets

Key Insight: Even if cabinets are already installed, several quick modifications can stop the washer lid from hitting them.

In renovation projects where full cabinet replacement isn’t practical, I often recommend these fixes:

1. Remove cabinet doors entirely and keep the shelves
2. Replace swing doors with sliding panels
3. Add lid limit hinges to control washer lid angle
4. Install a countertop bridge above the washer instead of cabinets

These changes usually cost far less than reinstalling cabinetry and still restore full washer usability.

Final Summary

1. Top loading washers typically need 18–24 inches of clearance above the lid.
2. Cabinet depth often causes more problems than cabinet height.
3. Shallow cabinets and lift up doors solve most clearance conflicts.
4. Small cabinet height adjustments can fix washer lid interference.
5. Existing cabinets can often be modified without full replacement.

FAQ

How much clearance does a top loading washer lid need?

Most manufacturers recommend at least 18–24 inches of clearance above the washer to allow the lid to open fully.

Why does my washer lid hit the cabinets?

Cabinets are usually installed using kitchen measurements. A top loading washer lid needs extra swing space that standard cabinets don’t allow.

Can I install cabinets above a top loading washer?

Yes, but they should be mounted higher than typical kitchen cabinets or designed with shallow depth.

What cabinet depth works best above washers?

Cabinets between 8–10 inches deep work best because they stay outside the washer lid swing path.

Do all top loading washers have the same lid clearance?

No. Large capacity washers usually require more vertical space than compact models.

Can cabinet doors be modified instead of moving cabinets?

Yes. Lift up doors, sliding panels, or removing doors entirely are common solutions.

Is 15 inches enough space above a washer?

Usually not. Most top loading washer cabinet clearance guidelines recommend at least 18 inches.

What is the easiest fix for a washer lid hitting cabinets?

Removing cabinet doors or replacing them with lift up panels is usually the fastest solution.
