How to Prevent Jacuzzi Bath Installation Leaks During a Remodel: Practical waterproofing, sealing, and testing strategies designers use to stop costly Jacuzzi tub leaks before they start.

Direct Answer

The most effective way to prevent Jacuzzi bath installation leaks is proper waterproofing, accurate drain alignment, high‑quality sealants around jets and edges, and full leak testing before closing walls or flooring. Most failures happen not because of the tub itself, but because installers skip waterproof layers or rush the testing phase.

When every connection, joint, and access panel is sealed and tested before finishing the remodel, long‑term water damage risks drop dramatically.

Quick Takeaways

1. Most Jacuzzi leaks come from drain alignment errors or poorly sealed jet fittings.
2. Waterproofing behind the tub is more important than surface caulking.
3. Leak testing should run 30–60 minutes before any walls are closed.
4. Access panels are essential for future maintenance and leak detection.
5. Professional installers test both the plumbing and the jet system separately.

Introduction

In more than a decade of bathroom remodel projects, one of the most expensive mistakes I’ve seen is a Jacuzzi bath installation leak discovered months after the renovation is finished. The damage rarely shows up immediately. Instead, it slowly builds behind tile walls or beneath flooring until the repair cost becomes several times higher than the original installation.

The frustrating part is that most of these problems are preventable. Jacuzzi tubs themselves are usually well engineered. The real risk comes from rushed installation, skipped waterproofing steps, or poor sealing around jets and plumbing connections.

When planning a remodel, visualizing the layout and plumbing access early can dramatically reduce installation mistakes. Many designers start by mapping the tub placement and plumbing routes using tools like planning a functional bathroom layout before installing a whirlpool tub, which helps catch clearance and plumbing conflicts before construction begins.

Below are the practical strategies I recommend to homeowners and contractors to prevent Jacuzzi tub leaks from day one.

save pin

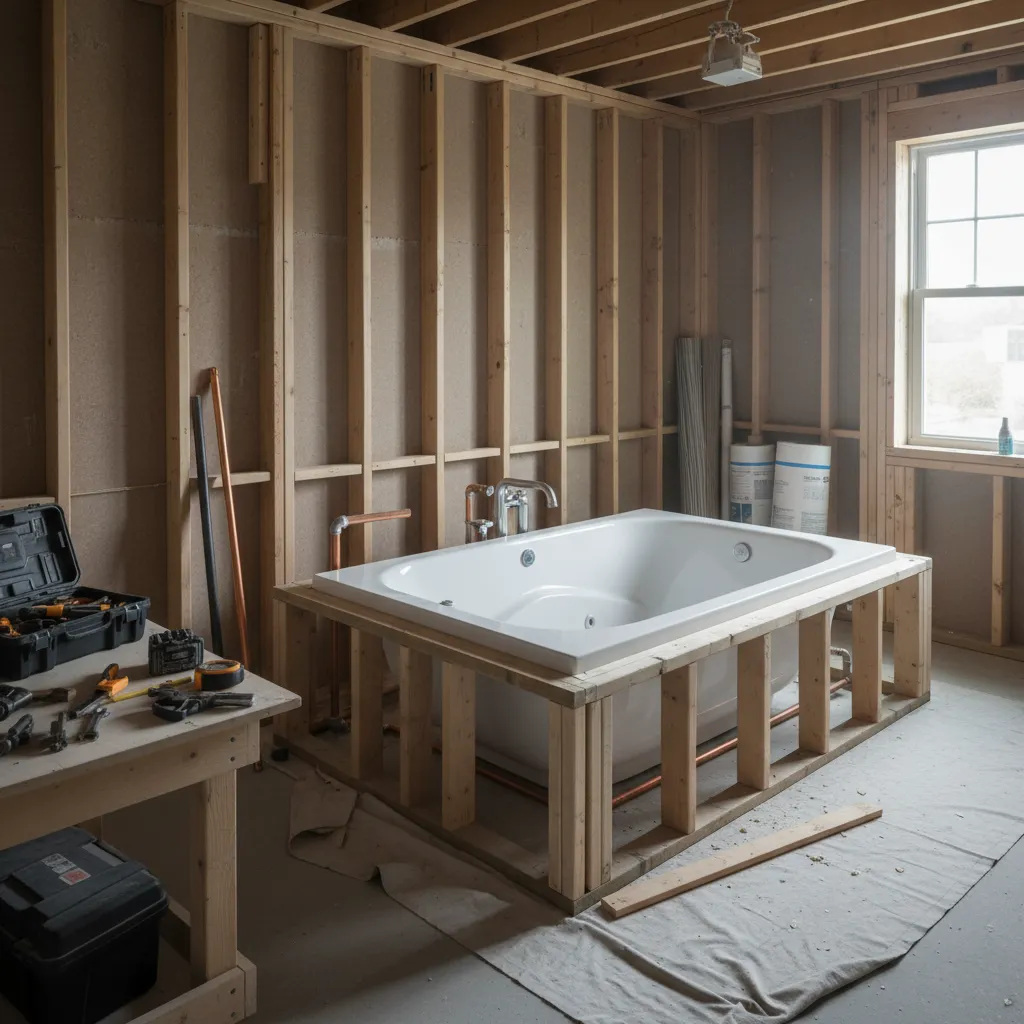

Why Jacuzzi Bath Installations Commonly Develop Leaks

Key Insight: Jacuzzi tubs rarely leak from the shell itself; installation errors around plumbing and sealing are the real culprit.

After inspecting dozens of remodels with water damage, the patterns are surprisingly consistent. Installers focus on fitting the tub into the space but overlook the surrounding waterproofing system.

Common leak sources include:

1. Misaligned drain connections
2. Poorly sealed jet housings
3. Missing waterproof backer boards
4. Improperly installed overflow drains
5. No access panel for maintenance

Another hidden issue is structural movement. Large whirlpool tubs can weigh over 1,000 pounds when filled with water and occupants. If the subfloor flexes, the seal around the drain slowly weakens.

According to the National Kitchen & Bath Association (NKBA), plumbing connection errors are among the top causes of post‑remodel bathroom water damage.

Choosing the Right Waterproofing Materials

Key Insight: Surface caulking alone cannot stop leaks—proper waterproofing behind the tub is essential.

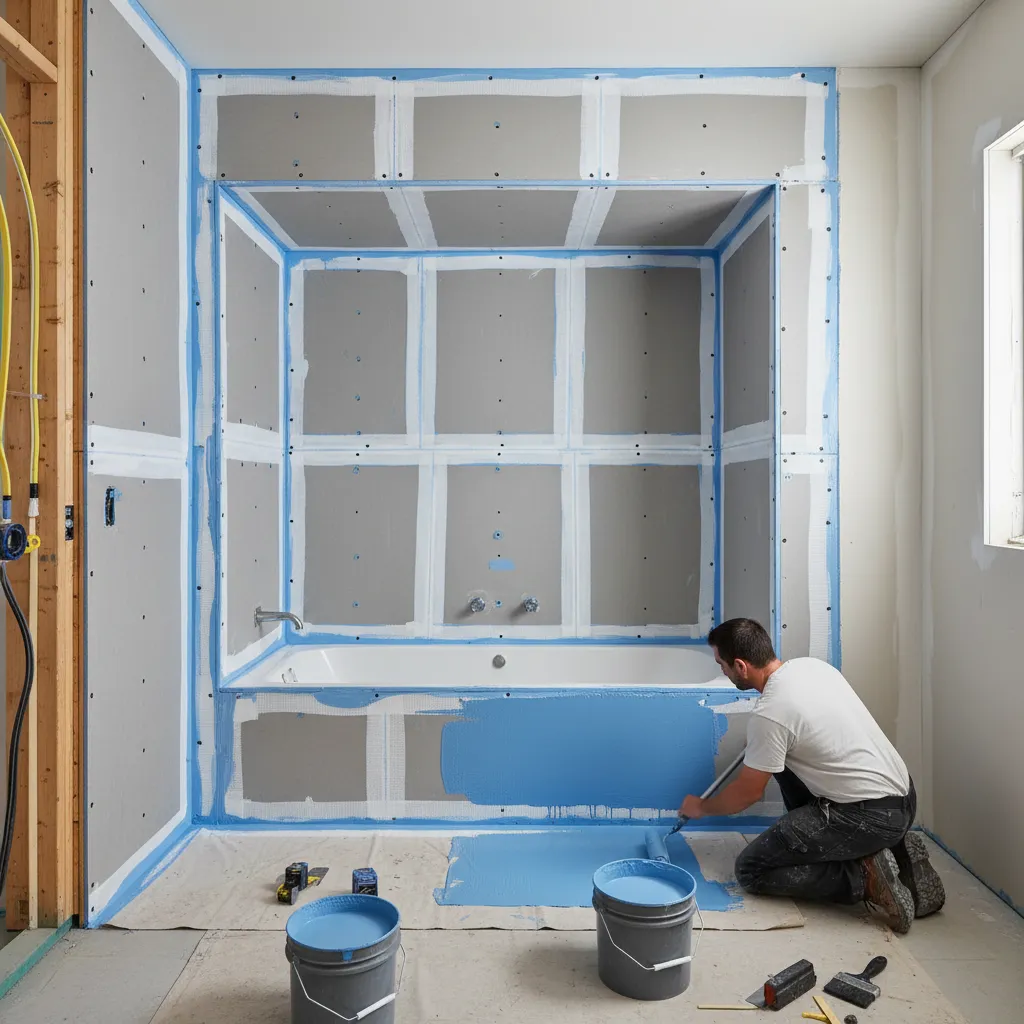

One of the most overlooked steps in Jacuzzi bathtub leak prevention is the waterproof barrier behind the walls and deck.

Professional installers typically use a layered system:

1. Cement backer board instead of drywall
2. Liquid waterproofing membrane or sheet membrane
3. Waterproof sealing tape at all seams
4. Silicone expansion joints where tub meets wall

Homeowners often assume tile itself is waterproof. It isn’t. Tile and grout allow moisture penetration, which is why the waterproof layer behind the finish materials matters far more.

In high‑end remodels, designers sometimes simulate water exposure zones in advance using tools for visualizing the entire bathroom in a realistic 3D environment, which helps identify splash zones and sealing points before installation begins.

save pin

Proper Drain and Overflow Installation Methods

Key Insight: The drain assembly is the single most critical leak point in a Jacuzzi tub installation.

The drain and overflow system handles both water drainage and overflow protection. If either connection is slightly misaligned, leaks may occur under the tub where they remain invisible.

Best‑practice installation steps:

1. Dry‑fit the tub and confirm drain alignment.
2. Apply plumber’s putty under the drain flange.
3. Hand‑tighten connections before wrench tightening.
4. Use rubber gaskets exactly as specified by the manufacturer.
5. Fill and drain the tub repeatedly during testing.

A mistake I see frequently is overtightening the drain assembly. This can distort the gasket and actually create a slow leak.

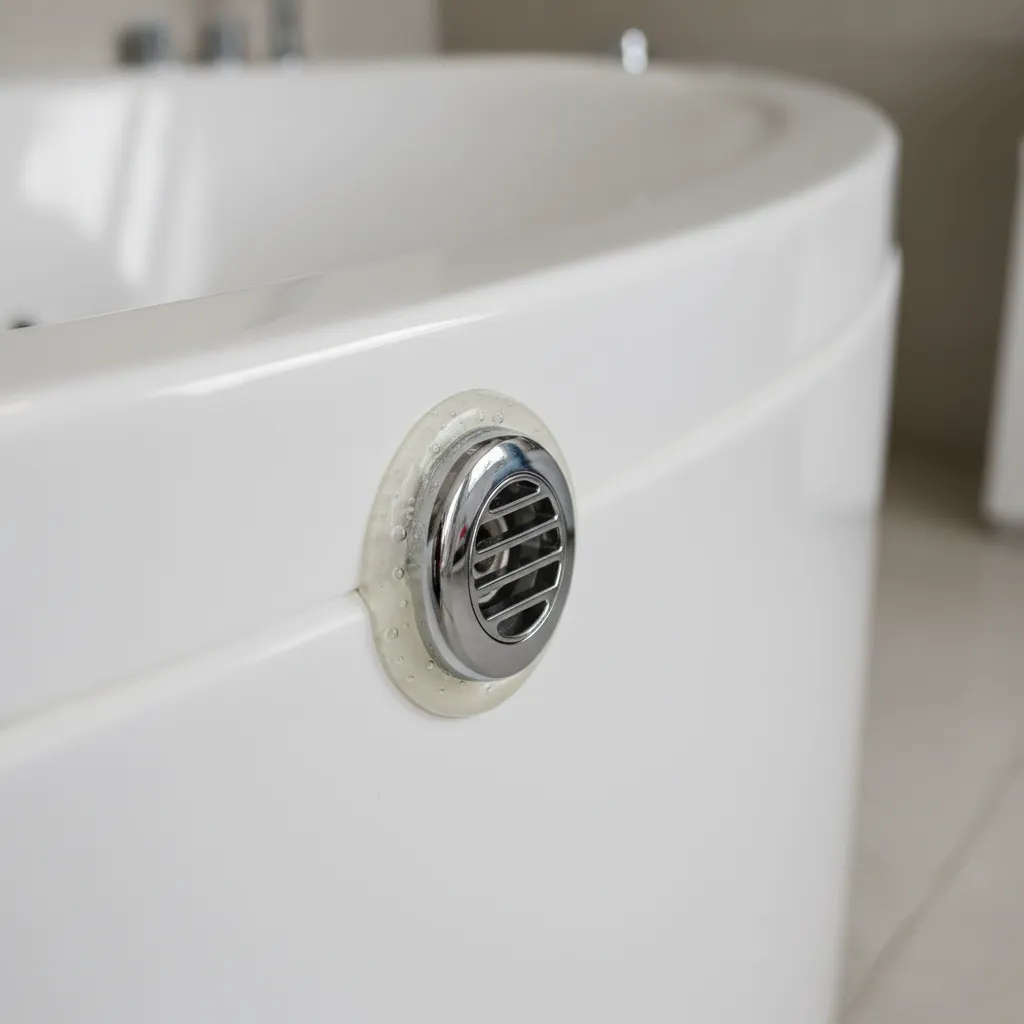

Sealing Jets, Edges, and Access Panels Correctly

Key Insight: Whirlpool jet housings and tub edges require flexible sealants that can handle vibration and movement.

Unlike standard bathtubs, Jacuzzi systems include pumps, jets, and plumbing loops. These components create vibration, which gradually stresses rigid sealants.

Professional installers usually rely on:

1. 100% silicone bathroom sealant
2. Flexible polyurethane sealants
3. Manufacturer‑specified jet gaskets

Areas that must always be sealed include:

1. Tub‑to‑deck joint
2. Jet housings
3. Overflow cover
4. Access panel edges

Access panels deserve special attention. Many remodels seal them permanently for aesthetic reasons, but this makes future maintenance almost impossible.

save pin

Answer Box

The safest way to prevent Jacuzzi tub leaks is combining structural support, proper waterproofing membranes, flexible sealants, and thorough leak testing before closing the remodel. Most failures occur when installers skip testing or rely only on surface caulking.

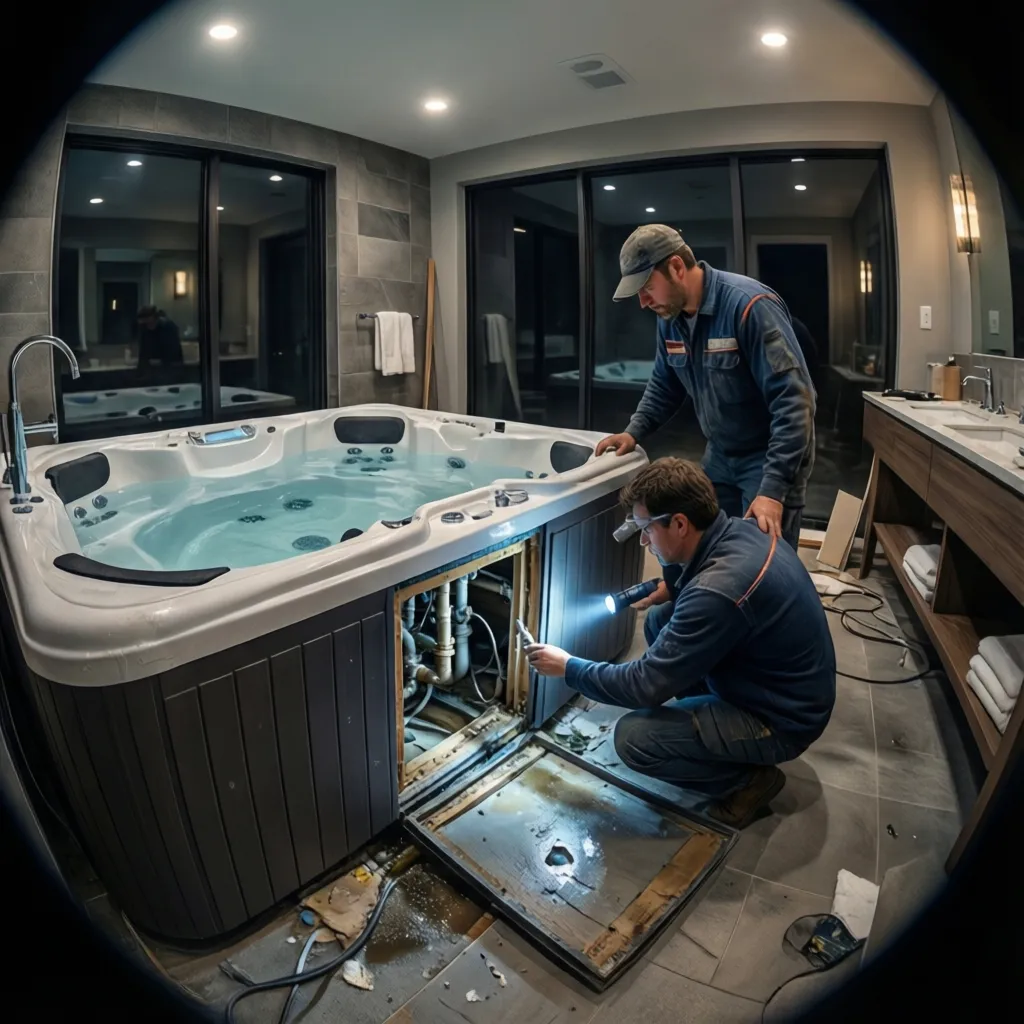

Testing for Leaks Before Finalizing the Remodel

Key Insight: Leak testing should happen before tile, panels, or cabinetry are permanently installed.

This step is often skipped during fast remodel schedules, but it’s the easiest way to catch problems early.

Standard leak testing procedure:

1. Fill the tub completely with water
2. Run the whirlpool jets for 30–60 minutes
3. Inspect all plumbing connections underneath
4. Check surrounding walls and floor for moisture
5. Drain the tub and inspect the drain assembly

Contractors often use moisture meters or paper towels under connections to detect even tiny drips.

Long-Term Leak Prevention Maintenance Tips

Key Insight: Preventing water damage from whirlpool tubs continues long after installation.

Even perfectly installed tubs can develop leaks if maintenance is ignored.

Recommended maintenance routine:

1. Inspect access panel plumbing every 6 months
2. Replace worn silicone seals every few years
3. Clean jets to prevent mineral buildup
4. Check pump vibration mounts

Planning access space around the tub during the design phase also makes maintenance far easier. When layouts are mapped using tools for creating accurate bathroom floor plans before construction, it becomes easier to reserve the clearance needed for service panels.

save pin

Final Summary

1. Most Jacuzzi bath leaks originate from installation mistakes, not tub defects.
2. Drain alignment and waterproof membranes are the most critical protections.
3. Flexible sealants work better than rigid materials around jets and edges.
4. Leak testing before finishing the remodel prevents expensive repairs.
5. Regular maintenance inspections help prevent long‑term water damage.

FAQ

1. How do you prevent Jacuzzi tub leaks during installation?

Use proper waterproof membranes, correctly align the drain system, seal jets with silicone, and run a full leak test before finishing the remodel.

2. What causes most whirlpool tub leaks?

Most leaks come from poorly sealed drains, loose jet fittings, or missing waterproof barriers behind tile walls.

3. How long should you test a bathtub for leaks after installation?

Professionals typically run the tub and jets for 30–60 minutes while checking all plumbing connections underneath.

4. Do Jacuzzi tubs require special waterproofing?

Yes. Because of splashing and vibration from jets, whirlpool tubs require stronger waterproofing and flexible sealants.

5. Can a Jacuzzi tub leak behind the wall?

Yes. Small plumbing leaks often occur behind walls or beneath the tub deck, which is why access panels are essential.

6. What sealant is best for Jacuzzi tub installation?

100% silicone bathroom sealant is typically recommended because it remains flexible and waterproof.

7. How often should you inspect a whirlpool tub for leaks?

Checking plumbing connections and seals every 6–12 months helps catch small issues before they cause damage.

8. Are Jacuzzi tubs more prone to leaks than regular bathtubs?

They can be, because jet plumbing adds complexity, but proper installation greatly reduces the risk.
