How to Prototype a 3D Model Effectively: A practical workflow designers use to turn rough ideas into reliable 3D model prototypes faster and with fewer costly revisions

Direct Answer

The most effective way to prototype a 3D model is to start with low‑detail geometry, validate proportions and function early, then progressively refine detail only after testing form, scale, and usability. This staged approach prevents wasted time rebuilding complex models that fail basic design constraints.

Quick Takeaways

1. Start with rough block models before adding detail.
2. Validate scale and proportions early using real measurements.
3. Test function and movement before surface refinement.
4. Iterate quickly using modular geometry.
5. Only finalize materials and textures after the structure works.

Introduction

After working on residential interiors and product visualization projects for more than a decade, I've noticed one pattern: most beginners spend too much time polishing a model before they know if the design actually works. When prototyping a 3D model effectively, speed and validation matter far more than visual perfection.

In professional studios, a prototype is not meant to look finished. Its purpose is to answer questions quickly: Does the proportion feel right? Will the mechanism fit? Is the layout practical? When you treat a prototype as a decision tool rather than a beauty render, your workflow becomes dramatically faster.

Below is the workflow I use across many projects when building early 3D model prototypes.

save pin

Why Most 3D Model Prototypes Fail Early

Key Insight: Most prototypes fail because designers jump straight into detail before validating structure.

I see this constantly in early portfolios and even junior studio work. Someone spends hours sculpting surfaces, beveling edges, and adding materials, only to realize the scale or function is wrong.

The hidden issue is psychological: detailed modeling feels productive. But in reality it locks you into decisions too early.

Common early mistakes:

1. Modeling high‑poly geometry before confirming proportions
2. Ignoring real world measurements
3. Building a full scene before testing the main object
4. Using complex topology instead of simple primitives

In most professional pipelines, the first prototype stage uses extremely simple shapes. Think cubes, cylinders, and planes. The goal is speed, not beauty.

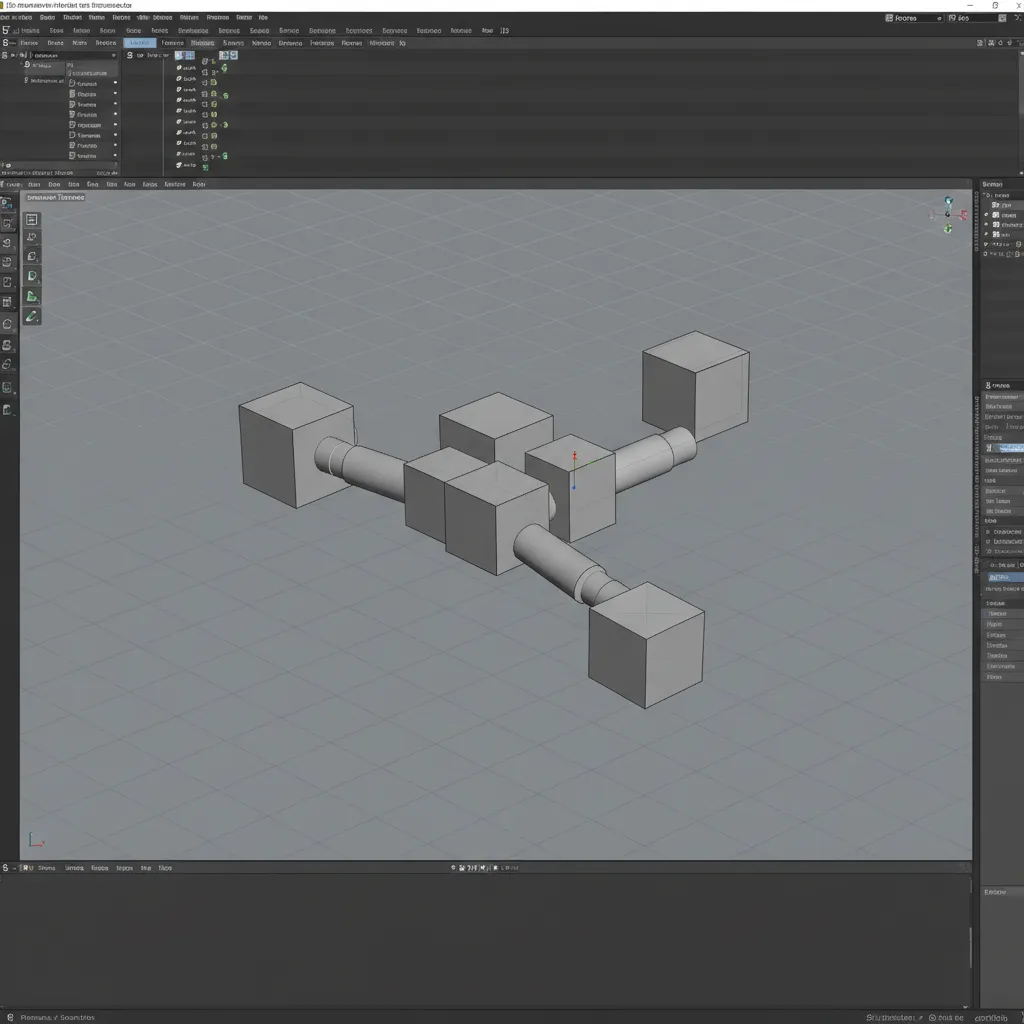

What Is the Fastest Way to Prototype a 3D Model

Key Insight: The fastest method is block modeling using primitive shapes and rough proportions.

Block modeling is the backbone of efficient 3D prototyping. Instead of building details immediately, you construct the object's main volumes first.

Typical block modeling workflow:

1. Create primitive shapes representing the main volumes
2. Adjust scale using real measurements
3. Position components to check proportions
4. Test camera angles or real-world context
5. Refine geometry only after approval

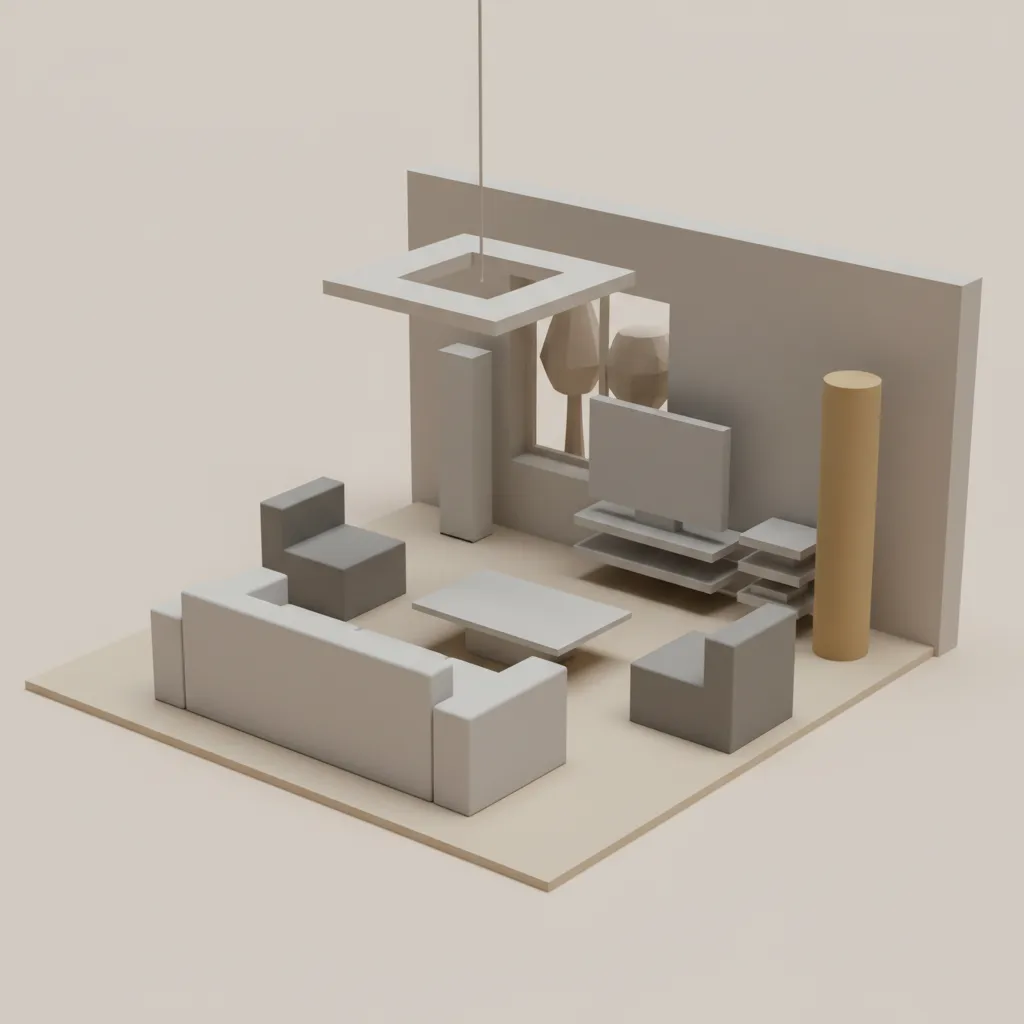

In architectural visualization and interior planning, this approach saves enormous time. On a recent living room layout project, we validated the furniture arrangement using nothing but grey blocks before modeling a single detailed asset.

save pin

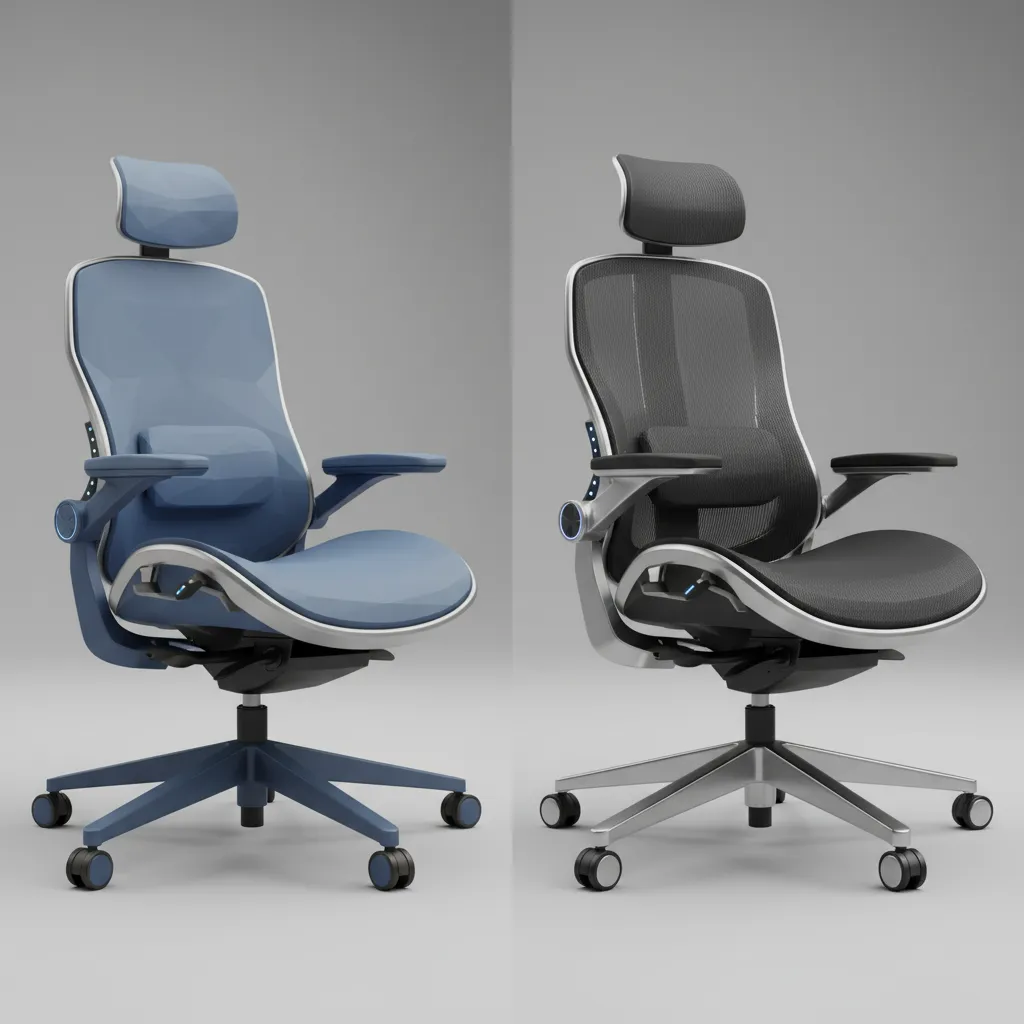

How Detailed Should a Prototype 3D Model Be

Key Insight: A prototype only needs enough detail to answer design questions.

One overlooked truth in 3D modeling is that prototypes are decision tools, not final products. Over‑detailing early models often slows down iteration.

A practical rule I often share with junior designers:

1. Stage 1: Volume prototype (basic shapes)
2. Stage 2: Structural prototype (major components)
3. Stage 3: Functional prototype (moving parts or usability)
4. Stage 4: Visual refinement

This staged workflow mirrors how many product design teams operate. Industrial designers frequently test multiple rough digital models before committing to a final direction.

save pin

Should You Use Physical References When Prototyping

Key Insight: Accurate references dramatically improve prototype reliability.

One habit I picked up early in my design career was referencing real measurements whenever possible. Digital models that ignore real world dimensions often feel "off" even if they look correct on screen.

Useful reference sources include:

1. Manufacturer specification sheets
2. Architectural drawings
3. Product dimension databases
4. Photogrammetry scans

When prototyping furniture or interior layouts, using real dimensions immediately reveals whether spacing, ergonomics, or clearance works.

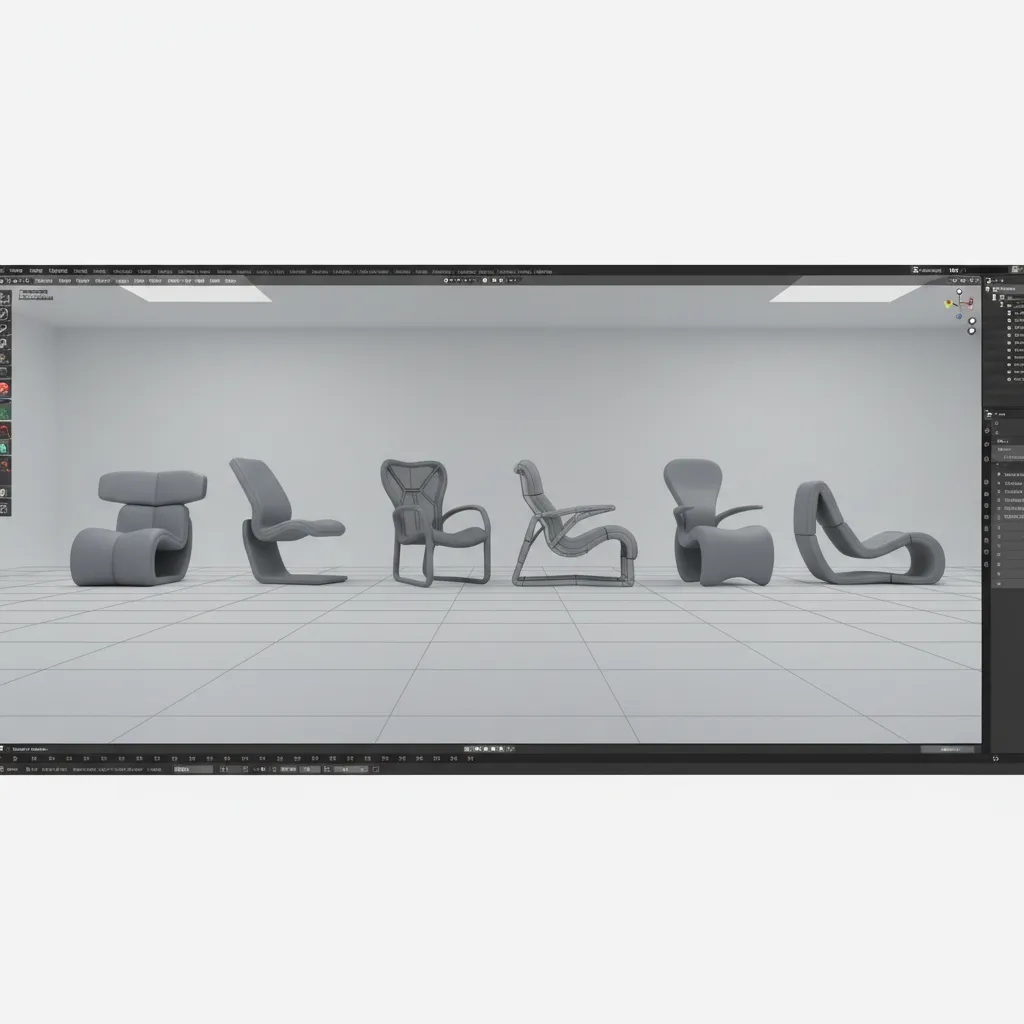

How Professionals Iterate 3D Model Prototypes Quickly

Key Insight: Fast iteration relies on modular modeling and version control.

In studio environments, prototypes rarely exist as a single file. Instead, designers create modular components that can be reused and rearranged.

Professional iteration tactics:

1. Save multiple version files during exploration
2. Keep components as separate objects
3. Use instancing instead of duplicates
4. Test variations quickly with simple materials

On larger visualization projects, this method allows teams to test layout variations within minutes instead of rebuilding entire models.

save pin

Hidden Cost Many Designers Ignore During Prototyping

Key Insight: Overly complex topology early in the process creates expensive rework later.

This is something many tutorials never mention. When topology becomes too complex early on, even small design changes require hours of cleanup.

Symptoms of premature complexity:

1. Dense meshes before proportions are finalized
2. Heavy subdivision surfaces
3. Unnecessary bevels and edge loops
4. Large polygon counts in prototype files

Experienced modelers stay intentionally rough until design approval happens. Only then does topology refinement begin.

Answer Box

The most effective 3D model prototyping workflow starts with simple block shapes, validates scale and function quickly, and only adds complexity once the design works. This staged approach reduces rework and speeds up iteration.

Final Summary

1. Prototype using simple geometry first.
2. Validate scale and function early.
3. Avoid high polygon detail during early stages.
4. Iterate quickly using modular components.
5. Add visual polish only after design approval.

FAQ

What is a 3D model prototype?

A 3D model prototype is an early version of a model used to test shape, scale, and function before creating a fully detailed final design.

How detailed should a 3D model prototype be?

Only detailed enough to validate design decisions. Early prototypes usually use simple shapes and minimal geometry.

What software is best for prototyping a 3D model?

Tools like Blender, Fusion 360, SketchUp, and Maya are commonly used for rapid 3D model prototyping.

Why is block modeling useful for prototyping?

Block modeling allows designers to test proportions quickly without spending time on complex details.

Can beginners prototype a 3D model effectively?

Yes. Starting with primitive shapes and focusing on proportions helps beginners prototype a 3D model effectively.

What is the biggest mistake in 3D prototyping?

Adding detailed geometry before confirming proportions and function.

How long should a prototype take to build?

Many early prototypes take minutes to a few hours depending on complexity.

Do professionals use multiple prototypes?

Yes. Designers often build several prototype versions to test different concepts before committing to one direction.
