How to Reinforce a Toilet Flange to Prevent Future Breaks: Practical reinforcement methods professional installers use to keep a repaired closet flange strong for years.

Direct Answer

To reinforce a toilet flange and prevent future breaks, secure the flange firmly to the subfloor, use a stainless steel repair ring, install corrosion‑resistant screws, and ensure the flange sits slightly above the finished floor. Most flange failures happen because of poor anchoring or incorrect height rather than weak materials.

When reinforcement is done correctly, the load from the toilet transfers into the subfloor instead of stressing the flange itself.

Quick Takeaways

1. A stainless steel repair ring is the most reliable way to reinforce a damaged toilet flange.
2. The flange must be securely anchored to the subfloor, not just the finished flooring.
3. Proper flange height should sit about 1/4 inch above the finished floor.
4. Corrosion‑resistant screws prevent loosening and long‑term structural failure.
5. Most repeat flange breaks come from movement under the toilet base.

Introduction

Over the years I’ve worked on dozens of bathroom renovation projects where a "simple" toilet flange repair failed again a year later. The reason almost always comes down to the same issue: the flange was repaired but never reinforced.

A toilet flange is not just a connector between the drain pipe and the toilet. It also stabilizes the toilet and distributes weight into the floor structure. When that support system is weak, the flange eventually cracks again.

Many homeowners focus only on replacing the broken part, but long‑lasting repairs depend on reinforcement. The approach is similar to structural planning in interiors: the visible fixture only works when the foundation underneath is solid. I often see similar layout planning principles when people design spaces with tools like this interactive floor plan creation workflow for remodeling projects, where structure and placement matter more than surface finishes.

In this guide, I’ll walk through the reinforcement techniques plumbers and remodelers use to prevent repeat flange failures—and the small installation details that make a repair last decades instead of months.

save pin

Why Closet Flanges Break Over Time

Key Insight: Most closet flange failures happen because the toilet shifts over time, not because the flange material itself is weak.

In my experience, flange cracks usually trace back to movement. When the toilet rocks even slightly, every sit‑down creates leverage against the flange bolts.

Common causes include:

1. Loose mounting screws in the subfloor
2. Flange installed below finished floor level
3. Corroded bolts or anchors
4. Improper wax ring compression
5. Soft or damaged subflooring

Professional plumbers often reference plumbing code guidelines that require the flange to sit above the finished floor surface. When it sits too low, the toilet relies on bolt tension rather than floor support.

Over time that tension transfers stress directly into the flange ring, which leads to cracking.

What Are the Best Reinforcement Methods for a Repaired Flange?

Key Insight: The strongest flange repairs combine mechanical reinforcement with correct installation height.

From project experience, three reinforcement strategies consistently outperform basic repairs.

Reliable reinforcement methods:

1. Installing a stainless steel repair ring over the existing flange
2. Securing the flange with long structural screws into the subfloor
3. Adding a flange spacer if the floor height changed
4. Replacing weak bolts with brass or stainless hardware

A mistake many DIY guides miss is that reinforcement must tie into the floor structure. Screwing only into tile or vinyl flooring doesn’t provide real support.

If you visualize the bathroom layout during renovations—similar to how designers plan fixture placement using a bathroom layout planning environment for fixture positioning—the flange should always anchor into the structural layer of the floor.

save pin

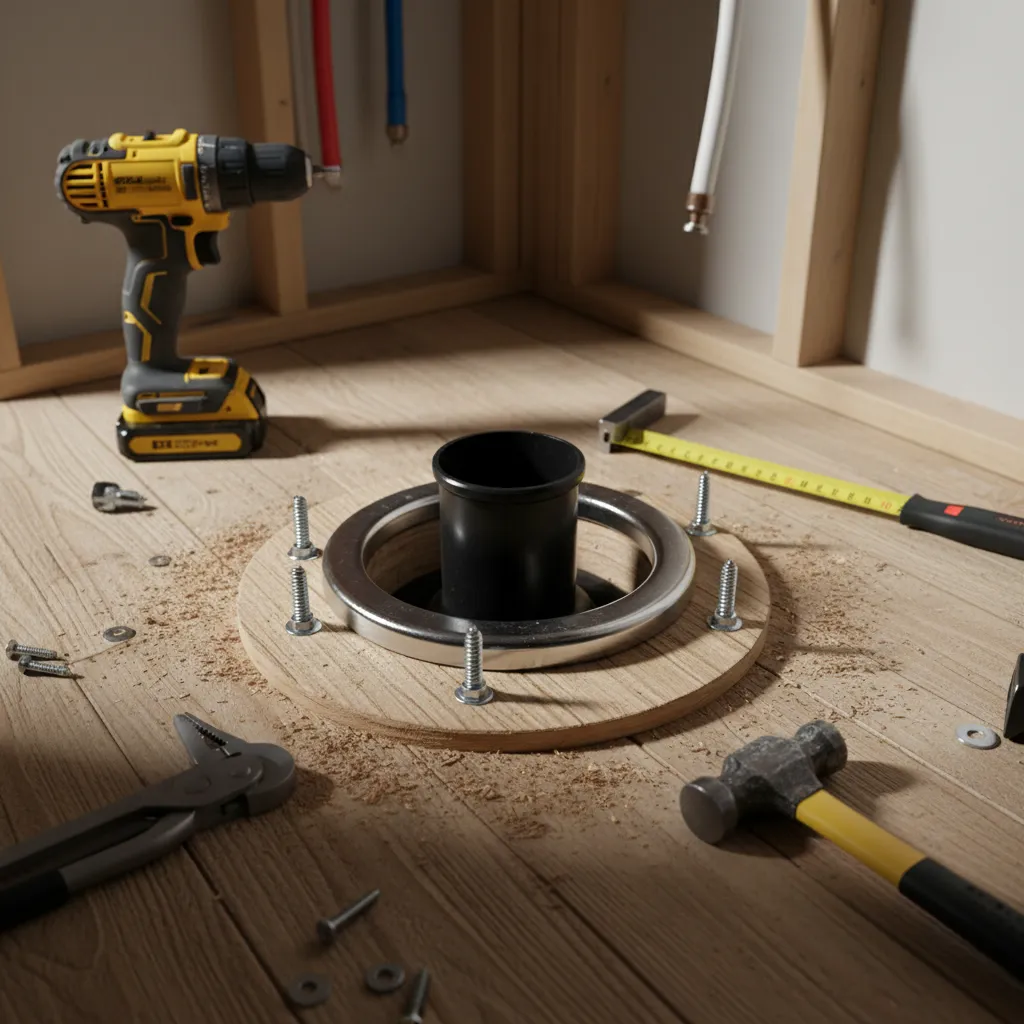

Using Stainless Steel Repair Rings for Strength

Key Insight: Stainless steel repair rings distribute load across the entire flange and prevent stress concentration at cracked sections.

When a flange breaks around the bolt slots, the damaged plastic or cast iron can’t hold pressure anymore. A repair ring works like a reinforcement collar.

How a repair ring improves strength:

1. Spreads the toilet load across a wider metal surface
2. Provides new bolt slots independent of the damaged flange
3. Resists corrosion and bending
4. Allows secure anchoring to the floor

In renovation projects I’ve supervised, stainless steel rings dramatically reduce repeat failures compared with plastic repair kits.

The metal ring effectively becomes the structural flange while the old flange only maintains the pipe connection.

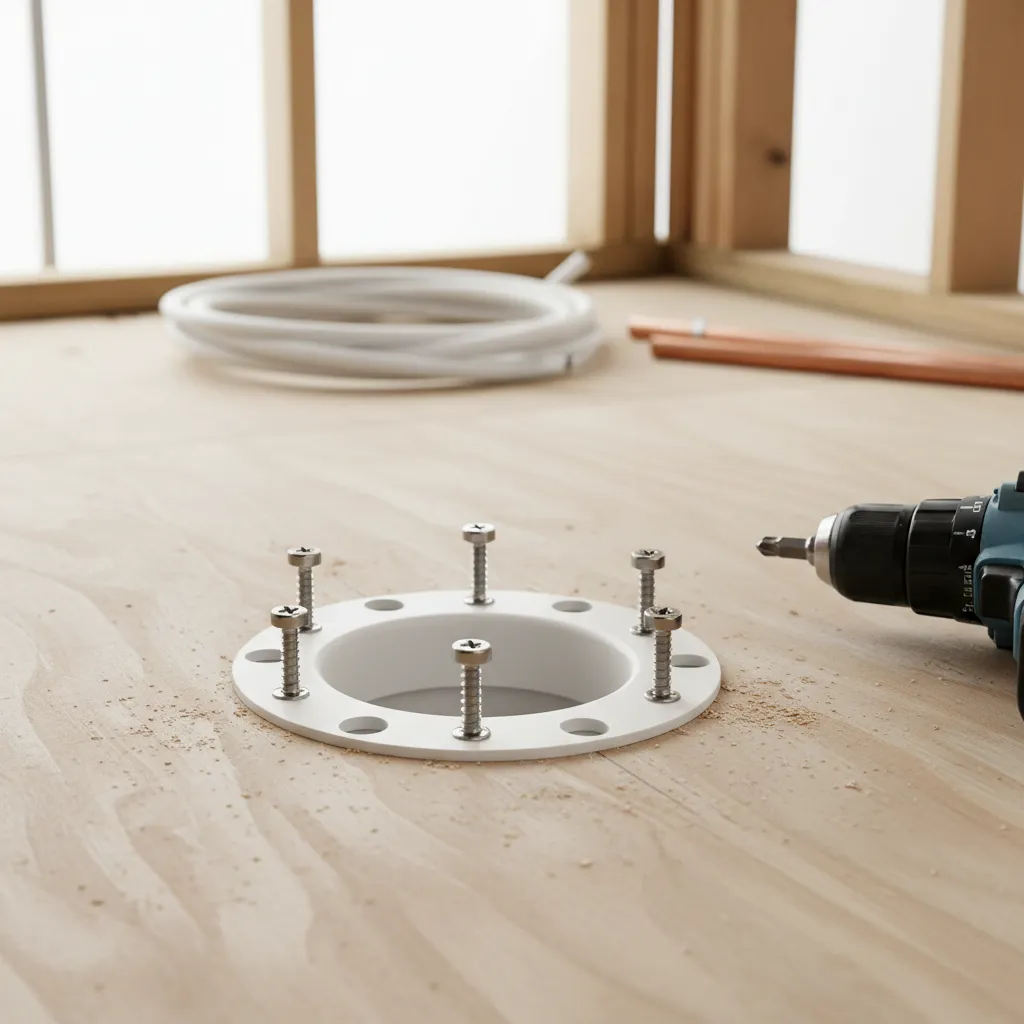

How Should You Anchor the Flange Securely to the Subfloor?

Key Insight: The flange should always be screwed directly into the subfloor framing layer, not just the finished flooring.

Anchoring is where most installations go wrong.

Correct anchoring steps:

1. Locate the solid subfloor beneath tile or vinyl.
2. Use corrosion‑resistant structural screws.
3. Install at least four evenly spaced screws.
4. Pre‑drill holes to prevent cracking brittle flanges.

Typical screw choices include:

1. #12 stainless steel wood screws
2. Brass screws for corrosion resistance
3. Concrete anchors when installed into slab floors

Securing the flange tightly removes the small movements that eventually crack the ring.

save pin

What Is the Correct Flange Height Above the Finished Floor?

Key Insight: The ideal toilet flange height is about 1/4 inch above the finished floor surface.

This detail alone prevents many repeat repairs.

If the flange sits too low, installers often stack extra wax rings to compensate. That might seal temporarily, but it allows the toilet to shift.

Correct height setup:

1. Top of flange sits slightly above tile or finished flooring
2. Wax ring compresses evenly when toilet is installed
3. Toilet base rests firmly on the floor

If flooring was added after the original installation, flange spacers or extension kits can restore proper height.

Which Bolts and Fasteners Last the Longest?

Key Insight: Brass or stainless steel closet bolts significantly outlast plated steel hardware.

Hardware quality is a small detail that affects long‑term durability.

Recommended fasteners:

1. Solid brass closet bolts
2. Stainless steel mounting screws
3. Heavy‑duty stainless repair rings

Cheaper zinc‑plated bolts often corrode within a few years, especially in humid bathrooms.

When bolts weaken, the toilet begins to shift again, restarting the failure cycle.

save pin

Maintenance Tips to Extend Flange Life

Key Insight: Preventing toilet movement is the most important long‑term maintenance step.

Even a perfectly reinforced flange can fail if the toilet is allowed to rock.

Simple maintenance checks:

1. Check bolt tightness once a year
2. Replace worn wax rings if leaks appear
3. Fix soft flooring around the toilet base
4. Use plastic shims if the toilet base rocks

During larger remodeling projects, visualizing fixture placement early can help avoid structural conflicts. Many renovation teams map this during planning using tools similar to a 3D bathroom layout visualization for renovation planning to ensure plumbing and structural elements align.

Answer Box

The most reliable way to reinforce a toilet flange is installing a stainless steel repair ring, anchoring it into the subfloor with corrosion‑resistant screws, and ensuring the flange height sits above the finished floor. These three factors eliminate movement—the main cause of flange failure.

Final Summary

1. Most flange failures are caused by toilet movement.
2. Stainless steel repair rings provide the strongest reinforcement.
3. The flange should sit slightly above the finished floor.
4. Secure anchoring into the subfloor prevents structural stress.
5. Corrosion‑resistant hardware improves long‑term durability.

FAQ

1. How do you reinforce a toilet flange?

Install a stainless steel repair ring, anchor it securely to the subfloor, and use corrosion‑resistant bolts. This method strengthens the repaired toilet flange and prevents future cracks.

2. Why does a toilet flange keep breaking?

Most repeat breaks happen when the toilet moves slightly during use. Movement transfers stress into the flange until the bolt slots crack.

3. Can you repair a broken closet flange without replacing it?

Yes. A stainless steel repair ring can reinforce a damaged flange while keeping the existing drain connection intact.

4. What screws are best for securing a toilet flange?

#12 stainless steel or brass wood screws work best because they resist corrosion and maintain strong grip in the subfloor.

5. How high should a toilet flange be above the floor?

The top of the flange should sit about 1/4 inch above the finished floor to ensure proper wax ring compression.

6. How do you prevent a toilet flange from breaking again?

Reinforce the flange with a repair ring, anchor it to the subfloor, and make sure the toilet sits solidly on the floor.

7. Can a loose toilet damage the flange?

Yes. A rocking toilet repeatedly stresses the flange bolts and eventually cracks the ring.

8. What is the longest lasting toilet flange repair method?

A stainless steel repair ring combined with proper anchoring and correct flange height is widely considered the most durable toilet flange repair method.

References

1. International Plumbing Code (IPC) installation guidelines
2. Plumbing Manufacturers International installation standards
3. Professional plumber field installation practices
