How to Reinforce an Existing Roof Before Adding a Dormer: Understand structural limits, framing upgrades, and load paths before cutting into your roof for a dormer addition.

Direct Answer

Reinforcing an existing roof before adding a dormer usually involves strengthening rafters, installing structural headers, and redistributing roof loads with beams or sistered framing. Because a dormer removes part of the roof structure, the surrounding framing must carry new loads safely. In most cases, this means reinforcing rafters and adding properly sized headers that transfer weight to load‑bearing walls.

Quick Takeaways

1. Dormers remove part of the roof structure, which changes how loads travel through rafters and walls.
2. Most dormer openings require structural headers and reinforced rafters.
3. Sistering rafters is one of the most common reinforcement methods.
4. Improper reinforcement can cause roof sagging, drywall cracking, or long‑term structural damage.
5. Engineering review is recommended before cutting any roof framing.

Introduction

Adding a dormer can completely transform an attic or upper floor, but the structural reality behind it is often underestimated. I’ve worked with homeowners who assumed a dormer was just a roofing project, only to discover that reinforcing roof framing was the real challenge.

The core question is simple: can your roof support a dormer? In many houses, especially those built before modern structural standards, the existing rafters were designed only for the original roof load. Once you cut into that system to add a dormer, the load path changes dramatically.

One of the easiest ways to understand how dormers affect roof structure is by first visualizing the layout of the roof framing. If you want a quick way to picture how structural openings interact with framing layouts, this guide showing how homeowners map structural layouts before remodelinghelps illustrate the concept clearly.

In this guide, I’ll walk through the structural logic behind dormer reinforcement, common mistakes I’ve seen in real projects, and how builders strengthen existing roofs before cutting openings.

save pin

Why Structural Reinforcement Is Often Required for Dormers

Key Insight: A dormer interrupts the continuous roof structure, forcing surrounding framing to carry loads that the removed rafters once supported.

When a dormer is built, several rafters are usually cut to create the opening. Those rafters previously carried roof loads from ridge to wall plate. Once they are removed, that load must be redirected.

This is why reinforcement is almost always required.

Typical structural changes include:

1. Installing headers across the dormer opening
2. Doubling or sistering adjacent rafters
3. Adding support beams or posts
4. Redistributing loads to load‑bearing walls

The International Residential Code (IRC) requires that any cut structural members be replaced with equivalent load‑carrying framing. In practice, that means the dormer opening behaves similarly to a window opening in a wall—it needs headers and properly supported framing.

A mistake I’ve seen repeatedly is assuming roof sheathing or dormer framing will compensate for removed rafters. It won’t. Without proper reinforcement, roof sagging can appear within a few seasons.

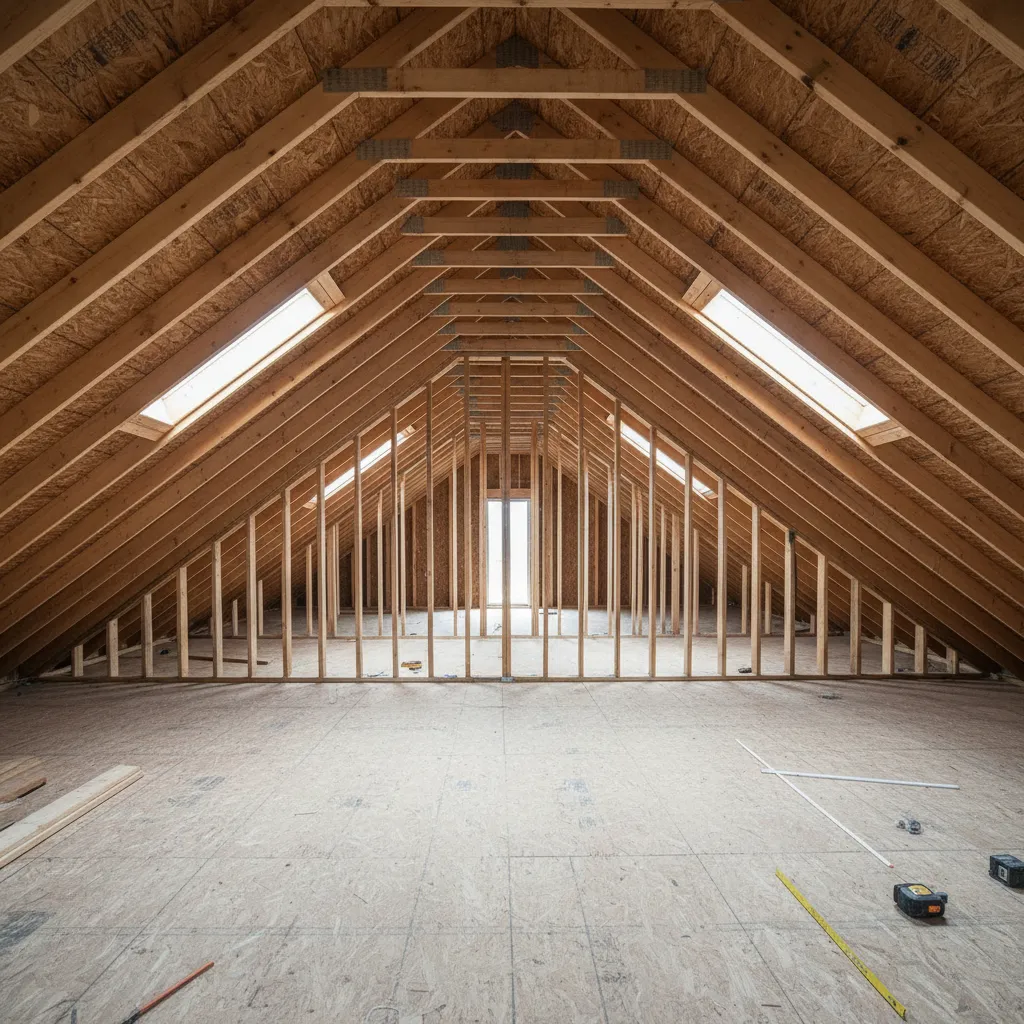

Understanding Roof Rafters and Load Paths

Key Insight: Roof reinforcement decisions only make sense when you understand how weight travels through the rafters, ridge, and supporting walls.

In a typical stick‑framed roof, the load path looks like this:

1. Roof covering transfers weight to sheathing
2. Sheathing transfers weight to rafters
3. Rafters transfer weight to exterior walls or ridge beams
4. Walls transfer loads to the foundation

When a dormer is cut into the roof:

1. Some rafters disappear
2. Loads shift sideways
3. Adjacent rafters carry more weight

This is why reinforcement almost always focuses on the rafters immediately next to the dormer opening. They effectively become "trimmer rafters" supporting new loads.

Modern planning tools make it easier to visualize framing conflicts. I often recommend looking at examples of 3D floor layout visualization for renovation planningbecause seeing how spaces stack structurally helps homeowners understand where roof loads actually travel.

save pin

When You Need Additional Beams or Headers

Key Insight: Dormer openings almost always require headers that transfer roof loads to adjacent reinforced rafters.

Think of a dormer opening like cutting a window into the roof slope. The rafters you remove must be replaced by headers that span across the opening.

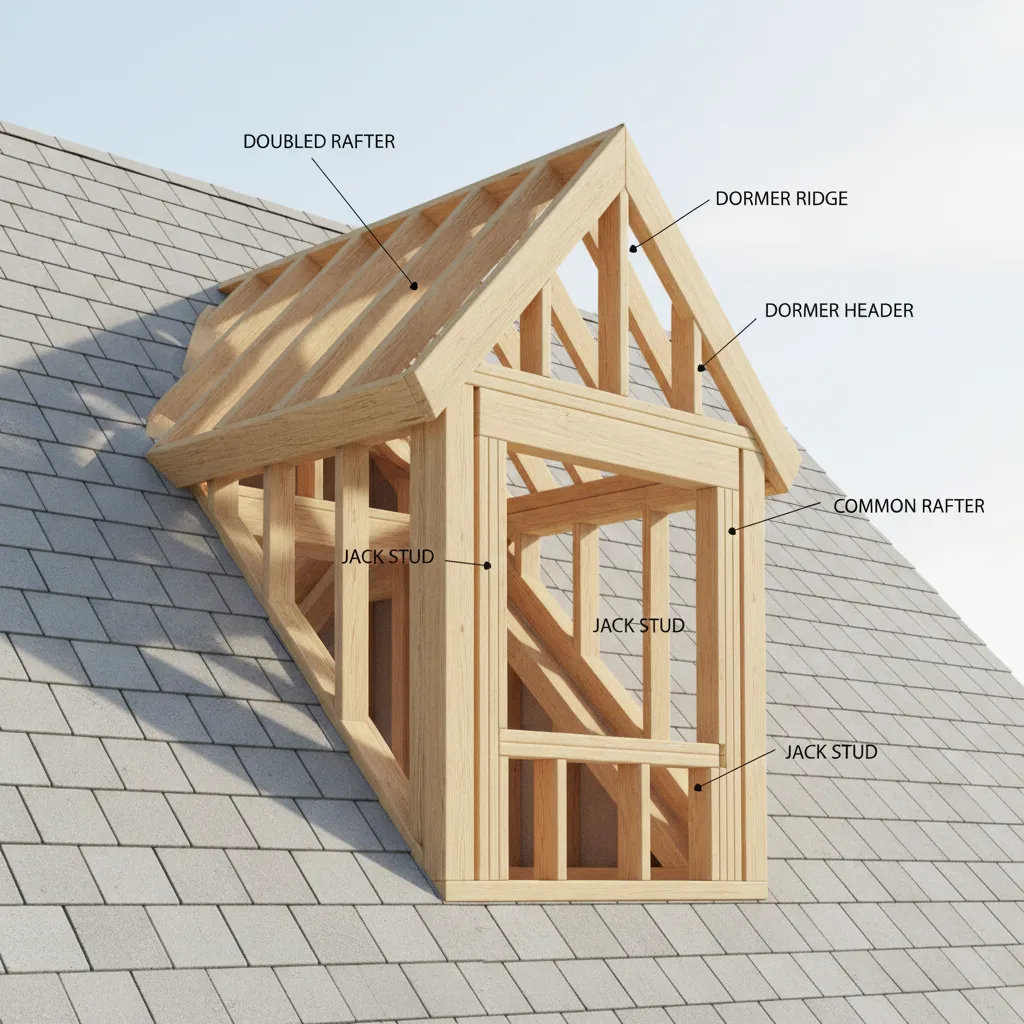

Common dormer structural components include:

1. Headers — horizontal beams at the top and bottom of the dormer opening
2. Trimmer rafters — doubled rafters supporting the headers
3. Cripple rafters — short rafters connecting the header to the ridge

Hidden cost many homeowners overlook: the size of headers increases quickly with wider dormers. A small shed dormer might need engineered lumber such as LVL beams instead of dimensional lumber.

Once the dormer exceeds roughly 6–8 feet wide, many structural engineers recommend beam reinforcement or load transfer posts to prevent roof deflection.

How to Strengthen Roof Framing Safely

Key Insight: The safest dormer reinforcement strategy combines rafter sistering, doubled trimmers, and properly sized headers.

Typical reinforcement steps used by experienced builders:

1. Identify rafters that will be removed for the dormer opening
2. Sister adjacent rafters with matching lumber or engineered framing
3. Install doubled trimmer rafters beside the opening
4. Add headers across the top and bottom of the dormer opening
5. Secure connections with structural fasteners and metal ties

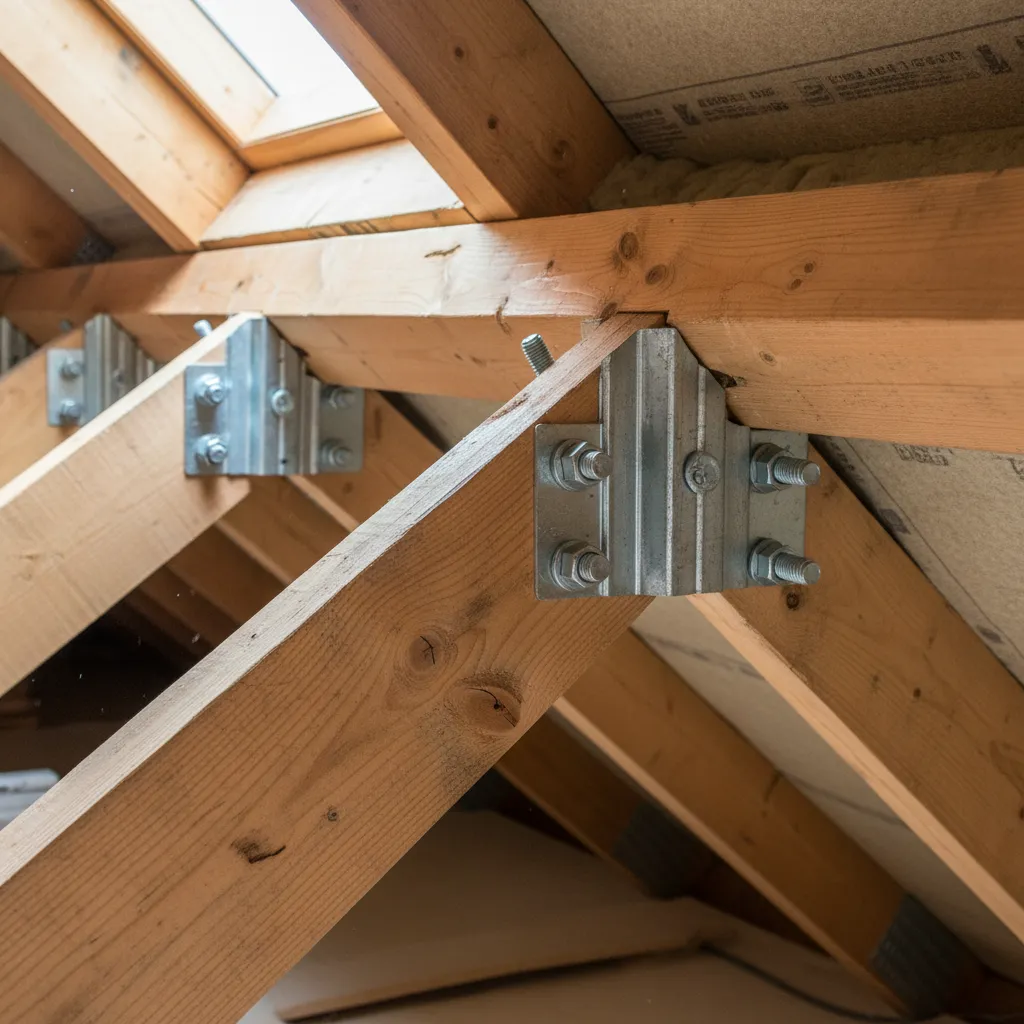

Many structural failures happen at the connection points rather than the lumber itself. Using structural connectors such as Simpson Strong‑Tie brackets dramatically improves load transfer reliability.

save pin

Engineering Considerations for Dormer Additions

Key Insight: Larger dormers often require engineered structural calculations because roof loads vary by snow load, span length, and roof pitch.

Important engineering factors include:

1. Local snow load requirements
2. Existing rafter spacing and lumber size
3. Dormer width and roof pitch
4. Distance to load‑bearing walls
5. Roof age and structural condition

For example, a house in Colorado may experience roof loads several times higher than a similar house in Southern California. That dramatically changes the required header size.

Before committing to construction, many homeowners review spatial layout options with tools that demonstrate how a dormer changes interior light and roof structure in realistic renderings. Seeing the geometry often reveals structural conflicts early.

Signs Your Roof Cannot Support a Dormer

Key Insight: Some roofs require major reconstruction before a dormer can be added safely.

Warning signs include:

1. Undersized rafters such as 2×4 framing
2. Wide rafter spacing over 24 inches
3. Existing roof sagging
4. Old or damaged structural lumber
5. Truss roof systems not designed for modification

Truss roofs are particularly tricky. Cutting trusses without engineered reinforcement can compromise the entire roof structure. In those cases, dormers often require partial roof rebuilding.

save pin

Answer Box

Reinforcing a roof for a dormer typically involves sistering rafters, installing structural headers, and transferring loads to reinforced framing. Because cutting rafters changes the load path, proper reinforcement is essential to prevent roof sagging or structural damage.

Final Summary

1. Dormers require structural reinforcement because rafters are removed.
2. Headers and doubled rafters redirect roof loads safely.
3. Rafter sistering is the most common reinforcement method.
4. Large dormers often require engineered structural design.
5. Weak or truss roofs may require major reconstruction.

FAQ

Can my roof support a dormer without reinforcement?

Rarely. Most roofs require structural reinforcement because dormer openings remove load‑bearing rafters.

What is the most common way to reinforce a roof for a dormer addition?

Sistering rafters and installing headers across the dormer opening are the most common reinforcement methods.

Do all dormers require structural headers?

Yes. Headers replace the structural function of rafters that are removed during dormer construction.

How wide can a dormer be without a beam?

Small dormers under 6 feet wide may only require doubled rafters and headers, but wider dormers often need engineered beams.

Are dormers harder to add on older houses?

Often yes. Older homes may have undersized rafters that need reinforcement before dormer construction.

Can truss roofs support dormers?

They can, but modifying trusses usually requires structural engineering and additional reinforcement framing.

How do builders calculate dormer structural requirements?

They evaluate rafter size, spacing, roof loads, span distances, and dormer width to determine proper header and beam sizing.

Is reinforcing roof framing expensive?

Costs vary widely. Minor rafter reinforcement may be inexpensive, but engineered beams or structural redesign increases costs.
