How to Troubleshoot Office Tower Circulation and Vertical Transportation Issues: Practical methods architects and developers use to reduce elevator congestion and improve vertical flow in high rise offices

Direct Answer

Office tower circulation problems usually come from elevator capacity miscalculations, poorly planned cores, or a lack of zoning strategy. The most effective fixes involve diagnosing peak traffic patterns, reorganizing elevator groups, and improving vertical circulation logic with zoning, sky lobbies, or simulation-based planning.

When elevator demand, floor plate density, and tenant patterns are aligned early in design, most vertical transportation failures can be prevented.

Quick Takeaways

1. Most elevator congestion problems originate from early design assumptions rather than mechanical limitations.
2. Peak morning traffic determines whether a high rise elevator system succeeds or fails.
3. Single centralized cores often create hidden circulation bottlenecks.
4. Zoned elevators and sky lobbies dramatically improve performance in towers above 30 floors.
5. Modern simulation tools reveal vertical circulation failures long before construction begins.

Introduction

After working on multiple high rise office projects over the past decade, I can say that office tower elevator design problems are rarely mechanical failures. They almost always begin with planning decisions made during the early layout phase.

I have seen towers with premium façades and impressive lobbies completely undermined by elevator congestion during the morning rush. Tenants notice it immediately. Waiting five minutes for an elevator on the 24th floor is enough to change how people feel about an entire building.

The surprising part is that many of these vertical transportation issues in high rise buildings are predictable. With proper floor plate planning, circulation analysis, and simulation modeling, most problems can be spotted long before construction begins. When teams visualize movement early using tools that help architects test office circulation layouts during early planning, it becomes much easier to avoid congestion later.

In this guide, I will walk through the most common elevator and circulation failures I see in office towers, how to diagnose them, and the design strategies professionals use to fix them.

save pin

Why Vertical Transportation Fails in Office Tower Design

Key Insight: Most vertical transportation failures happen because designers underestimate peak demand rather than average demand.

In many office towers, elevator systems are sized based on average occupancy instead of peak traffic periods. The morning arrival window between 8:30 and 9:30 AM is the real stress test. If the system cannot move enough people during that hour, congestion becomes unavoidable.

Industry guidelines such as those from the Council on Tall Buildings and Urban Habitat (CTBUH) emphasize that elevator systems should typically move 12–15% of the building population within five minutes. When projects miss this benchmark, complaints begin almost immediately after occupancy.

Common reasons vertical circulation fails:

1. Elevator groups serving too many floors
2. Core locations too far from tenant entrances
3. Insufficient elevator shafts allocated early
4. Poor separation between service and passenger elevators
5. No zoning strategy for tall towers

One hidden mistake I often see is developers shrinking the core late in the design process to increase rentable area. That decision may add square footage on paper but often creates permanent circulation problems.

Common Elevator Capacity Miscalculations

Key Insight: Elevator capacity failures usually come from incorrect assumptions about occupancy density and tenant behavior.

Many early feasibility studies assume an office density of about 150–200 square feet per person. But modern workplaces frequently operate at 100–125 square feet per employee, especially in tech or coworking environments.

That change alone can increase elevator demand by 30–50%.

Typical planning metrics used in high rise elevator design:

1. Handling capacity: percentage of occupants moved in 5 minutes
2. Interval time: average time between elevator arrivals
3. Round trip time: total cycle time of an elevator
4. Passenger loading factor

For example, a 40‑story tower designed for 3,000 occupants may require 12–16 passenger elevators depending on zoning strategy. If early models assume lower densities, the final system may end up undersized.

When teams explore different vertical layouts using tools that help architects visualize multi floor tower core layouts in 3D, it becomes much easier to test how elevator banks affect circulation space and rentable area.

save pin

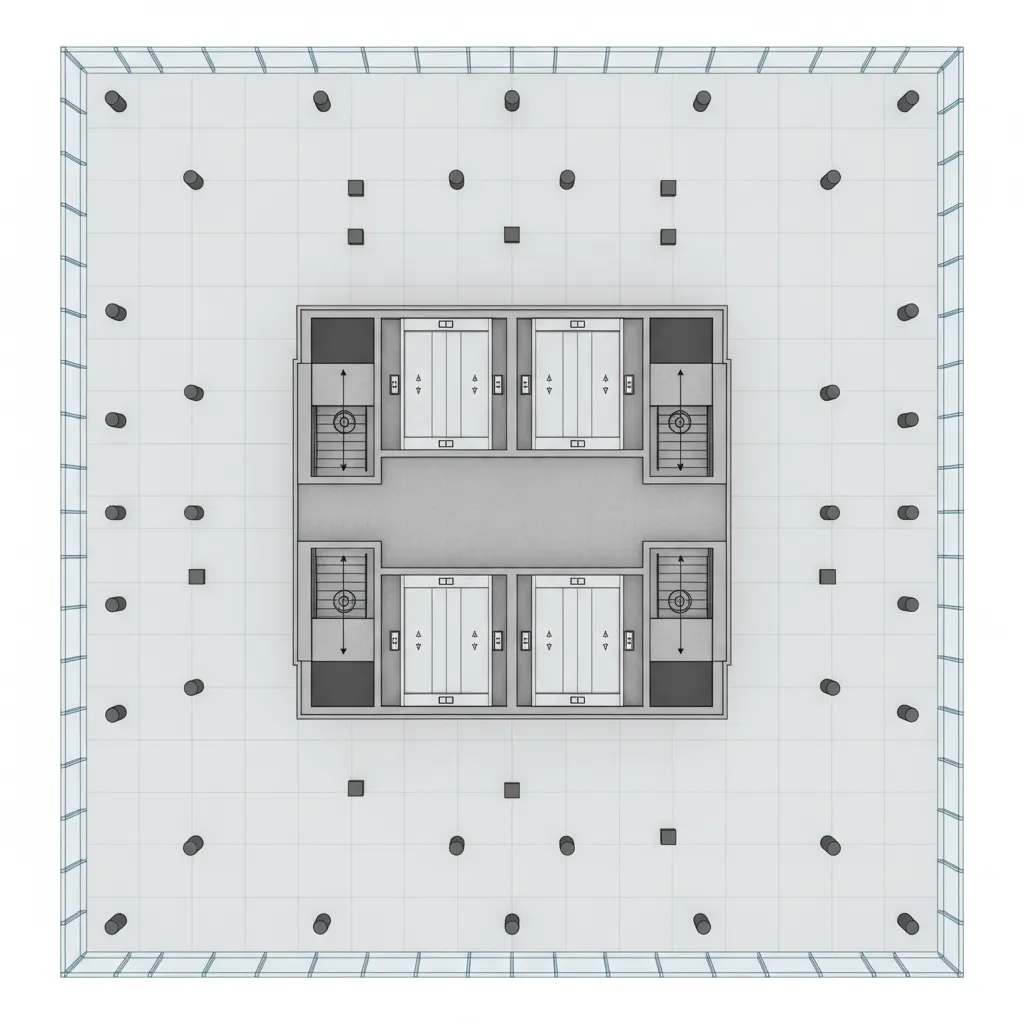

Core Layout Mistakes That Cause Circulation Bottlenecks

Key Insight: Poorly organized cores create horizontal congestion that amplifies elevator delays.

Elevator design is only half of the circulation story. The surrounding core layout determines how efficiently people reach those elevators.

In many office towers, elevator lobbies are undersized or poorly connected to corridors. During peak times, crowds spill into tenant spaces or block security checkpoints.

Typical core layout mistakes include:

1. Narrow elevator lobbies with insufficient waiting space
2. Security gates positioned directly in front of elevator banks
3. Elevators clustered on one side of the floor plate
4. Long corridor distances from entrances to elevators
5. No separation between freight and passenger circulation

Architectural studies from the Urban Land Institute note that well-designed office tower lobbies allocate significantly more space to waiting areas than most developers expect. That extra space reduces visible congestion even when elevator demand is high.

save pin

Answer Box

The fastest way to diagnose office tower elevator congestion is to analyze peak hour traffic patterns, core layout geometry, and elevator zoning strategy together. Fixing only the elevator equipment rarely solves the underlying circulation problem.

How to Diagnose Peak Hour Elevator Congestion

Key Insight: Elevator problems become visible when you map real tenant movement patterns rather than theoretical occupancy.

When a building experiences congestion, the first step is analyzing actual usage patterns.

In several retrofit projects I worked on, elevator performance looked adequate on paper. But once we mapped tenant schedules and arrival peaks, the real problem became obvious.

Steps professionals use to diagnose congestion:

1. Measure average and peak building occupancy.
2. Track elevator wait times during morning arrival.
3. Analyze elevator dispatch patterns and trip duration.
4. Observe lobby crowding and queue formation.
5. Model alternative elevator group configurations.

Today, many architects simulate these patterns digitally. Platforms that allow teams to simulate circulation and floor plate movement scenarios during early planning make it easier to detect traffic issues before construction begins.

Design Fixes for Elevator Zoning and Sky Lobbies

Key Insight: Elevator zoning is the most effective strategy for reducing congestion in tall office towers.

Once towers exceed roughly 25–30 floors, a single elevator group serving every level becomes inefficient. Travel times increase, and cars stop too frequently.

Zoning divides elevators into groups that serve different floor ranges.

Common zoning strategies:

1. Low rise elevators serving floors 1–15
2. Mid rise elevators serving floors 16–30
3. High rise elevators serving upper floors
4. Express elevators connecting to sky lobbies

Sky lobbies function like transfer hubs inside the building. Express elevators bring passengers to the sky lobby, where they transfer to local elevators.

Iconic towers such as the Shanghai Tower and One World Trade Center use this strategy to dramatically improve vertical transportation efficiency.

save pin

Tools and Simulations for Elevator Traffic Planning

Key Insight: Modern simulation tools reveal circulation problems that traditional planning methods often miss.

Historically, elevator planning relied heavily on spreadsheet calculations. While those models still exist, modern design teams increasingly rely on digital simulations that visualize real movement patterns.

Key tools used in elevator traffic analysis:

1. Pedestrian flow simulations
2. Elevator dispatch modeling
3. 3D core layout visualization
4. Occupancy density scenarios
5. Peak hour arrival simulations

These tools allow architects, developers, and engineers to test multiple building configurations before finalizing the structural core. The earlier this testing happens, the easier it is to avoid costly structural changes later.

Final Summary

1. Peak hour demand determines elevator system success.
2. Undersized cores create permanent circulation problems.
3. Elevator zoning significantly improves tall tower efficiency.
4. Core layout design affects elevator performance more than most teams expect.
5. Simulation tools reveal vertical transportation risks early.

FAQ

What causes elevator congestion in office towers?

Elevator congestion usually comes from undersized elevator banks, incorrect occupancy assumptions, or a lack of zoning strategy in tall buildings.

How many elevators does a 40 story office tower need?

Most 40 story office towers require 12–16 passenger elevators depending on occupancy density and zoning configuration.

What are common office tower elevator design problems?

Typical issues include insufficient shafts, oversized floor populations, poor core layouts, and elevators serving too many floors.

What is elevator zoning in high rise buildings?

Zoning divides elevators into groups serving different floor ranges, reducing travel time and improving traffic efficiency.

When should sky lobbies be used?

Sky lobbies are typically used in towers above 30–40 floors where express elevators improve long-distance travel efficiency.

How do engineers test vertical transportation issues in high rise buildings?

Engineers use elevator traffic simulation software, pedestrian flow models, and occupancy studies to predict peak congestion.

Can elevator congestion be fixed after construction?

Minor improvements like dispatch programming can help, but major capacity issues usually require structural changes.

Why do some office towers feel crowded even with many elevators?

Poor lobby design, bad circulation paths, and uneven elevator distribution often create visible congestion.
