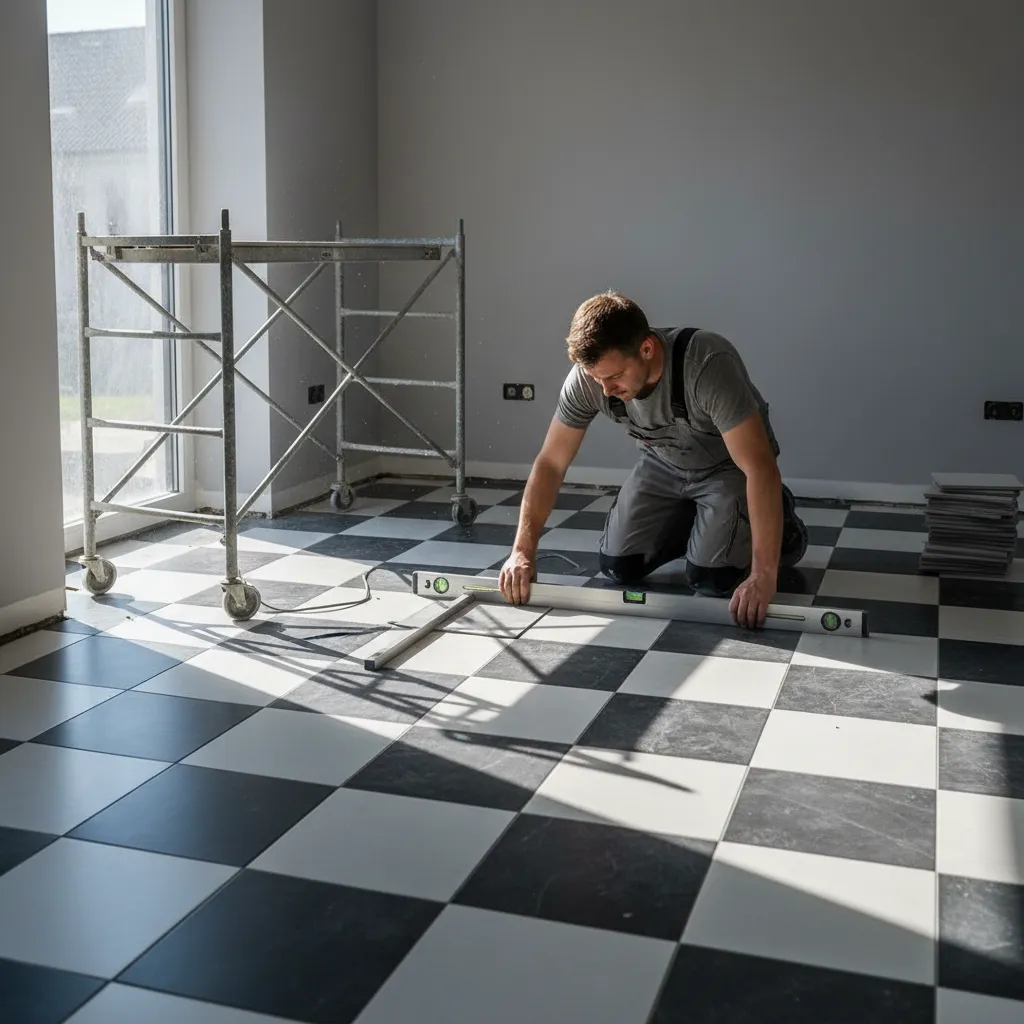

How to Troubleshoot Uneven Chess Floor Tiles After Installation: A practical step‑by‑step guide to diagnosing and fixing uneven checkerboard floor tiles without tearing up your entire installation.

Direct Answer

Uneven chess floor tiles usually happen because of three issues: an unlevel subfloor, inconsistent adhesive thickness, or tile movement during curing. The fastest way to troubleshoot is to first check subfloor flatness, then inspect adhesive bonding, and finally determine whether tiles can be re‑leveled or must be removed.

In many real installations, only a few tiles need correction rather than a full floor replacement.

Quick Takeaways

1. Most uneven checkerboard tiles originate from subfloor inconsistencies, not tile defects.
2. Minor height differences can often be corrected without removing the entire floor.
3. Adhesive coverage problems frequently cause tiles to shift days after installation.
4. Professional installers always verify subfloor flatness before laying checkerboard patterns.
5. Early troubleshooting prevents visible pattern distortion across the floor.

Introduction

Uneven chess floor tiles are one of the most frustrating problems homeowners run into after a checkerboard floor installation. I have worked on dozens of black‑and‑white tile projects over the past decade, and the surprising reality is this: the pattern makes even tiny height differences painfully obvious.

Because the alternating colors create strong visual contrast, a tile that sits just a few millimeters higher can suddenly look like a major construction mistake.

Many homeowners assume the tiles themselves are defective. In practice, the cause is usually hidden underneath the surface—subfloor dips, uneven adhesive spread, or tiles shifting while the mortar cures.

Before jumping into repairs, it helps to visualize how the floor should have been structured. If you're unsure how the layout and base preparation work together, reviewing a step‑by‑step layout planning example for checkerboard floorscan clarify how the tile grid aligns with the room structure.

In this guide, I'll walk through the same diagnostic process I use on real projects to identify why checkerboard tiles become uneven—and what you can realistically do to fix them.

save pin

Why Chess Floor Tiles Become Uneven

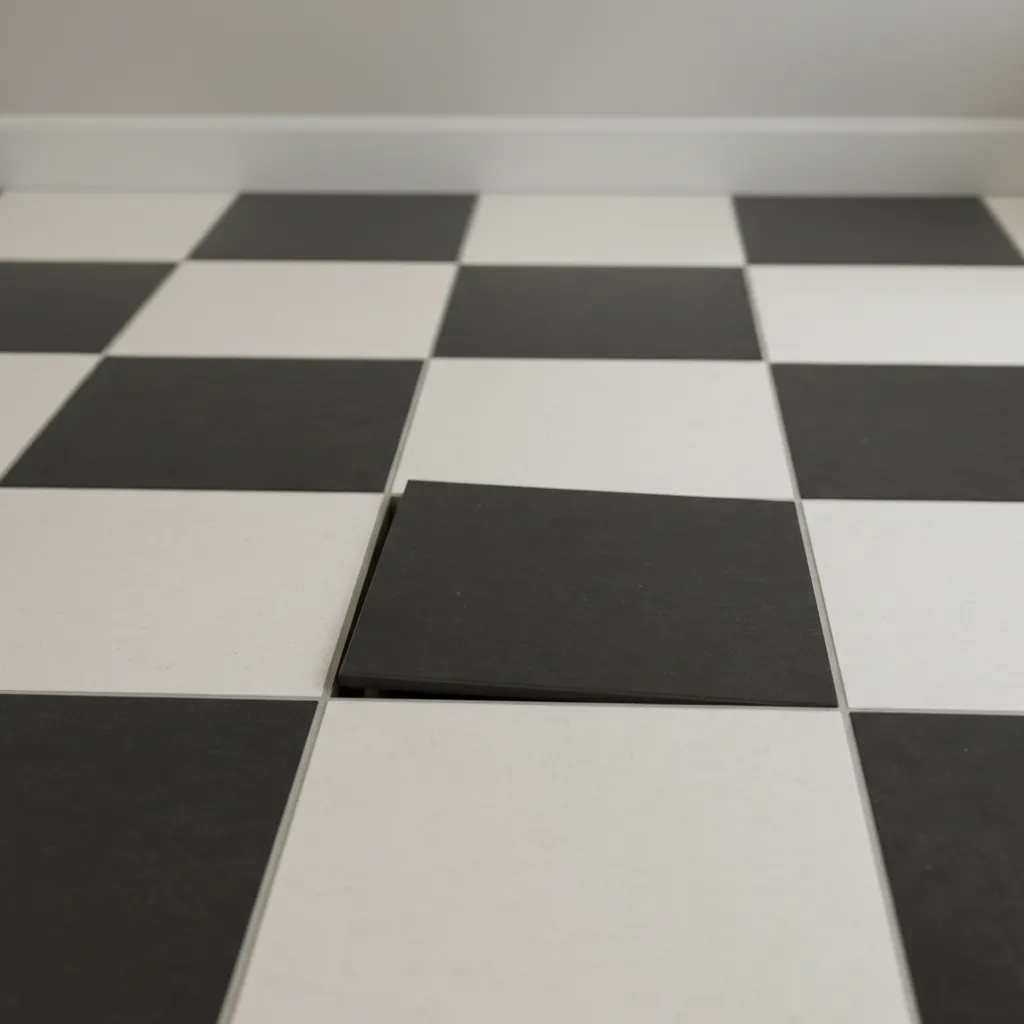

Key Insight: Checkerboard floors exaggerate tiny height differences because the color contrast makes tile edges visually sharper.

In standard stone or ceramic floors, small variations can blend into the surface. With chess floor tiles, the black‑and‑white grid acts like a visual ruler. Any tile that sits slightly higher immediately disrupts the pattern.

From field experience, uneven tiles usually trace back to one of four causes:

1. Subfloor irregularities – dips or humps beneath the tile layer.
2. Inconsistent mortar thickness during installation.
3. Tile warping in certain ceramic batches.
4. Movement before adhesive fully cures.

The Tile Council of North America recommends that subfloors vary no more than 1/4 inch over 10 feet for tile installations. Checkerboard layouts benefit from even tighter tolerances.

This is why experienced installers often map the entire room in advance using tools similar to a visual floor layout planning workflow used before tile installation to spot alignment issues before a single tile is placed.

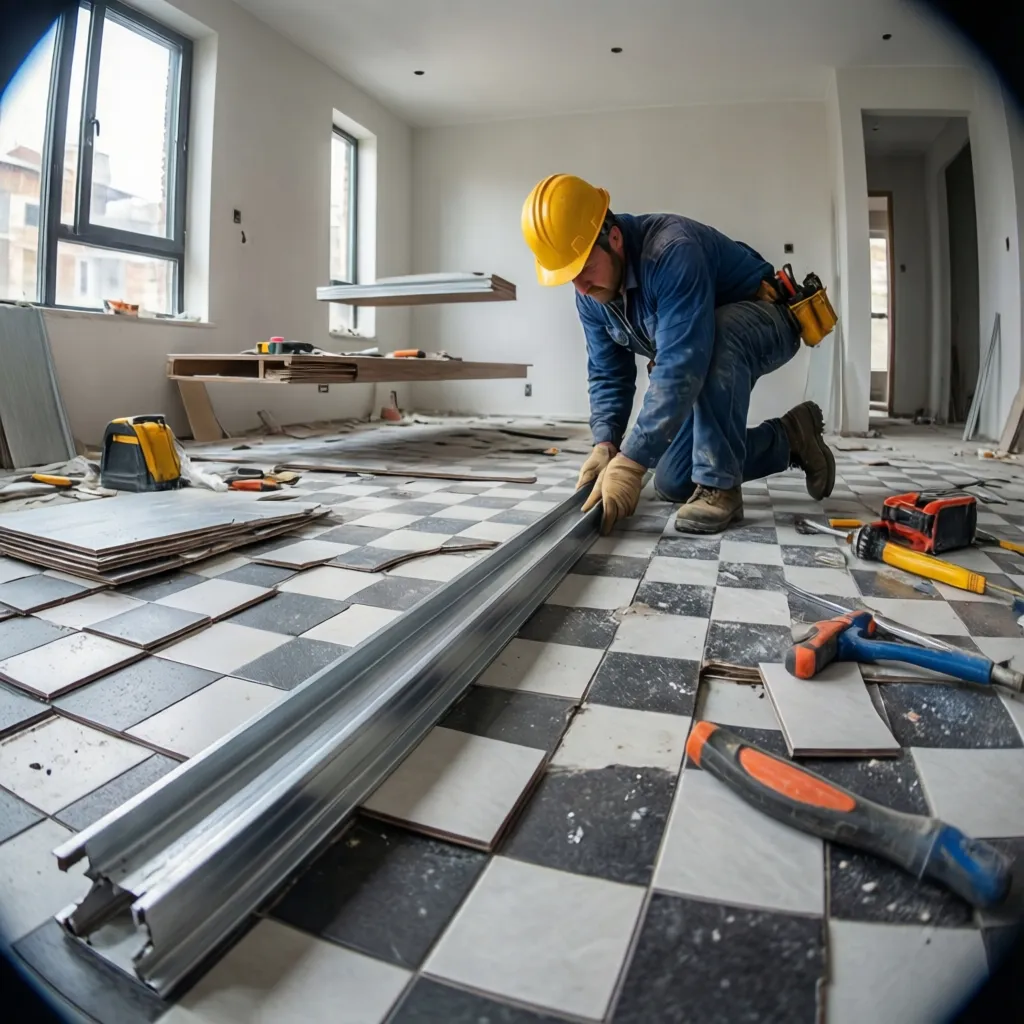

Checking Subfloor Level Before Fixing the Tiles

Key Insight: If the subfloor is uneven, fixing surface tiles alone will only create new alignment problems later.

Before touching the tiles, the first diagnostic step is verifying whether the base layer is level.

Professionals typically check this using:

1. 6–10 foot straightedge
2. Laser level
3. Digital floor level gauge

Inspection process:

1. Place a straightedge across multiple tile rows.
2. Look for gaps underneath indicating floor dips.
3. Measure the height difference between neighboring tiles.
4. Mark areas where multiple uneven tiles appear.

If uneven tiles cluster in one area of the room, the subfloor is often the real culprit.

save pin

Adhesive Failure and Tile Movement

Key Insight: Tiles that feel solid but sit unevenly often indicate uneven adhesive spread rather than structural problems.

One of the most overlooked installation mistakes is inconsistent mortar application. I've inspected projects where installers used spot bonding instead of full trowel coverage.

That approach causes two issues:

1. Tiles sink unevenly during curing
2. Tiles shift slightly when stepped on

Common warning signs:

1. Hollow sound when tapping tiles
2. Edges lifting slightly higher than neighboring tiles
3. Movement within the first week after installation

According to ANSI tile installation standards, adhesive should cover at least 80–95% of the tile underside depending on room type.

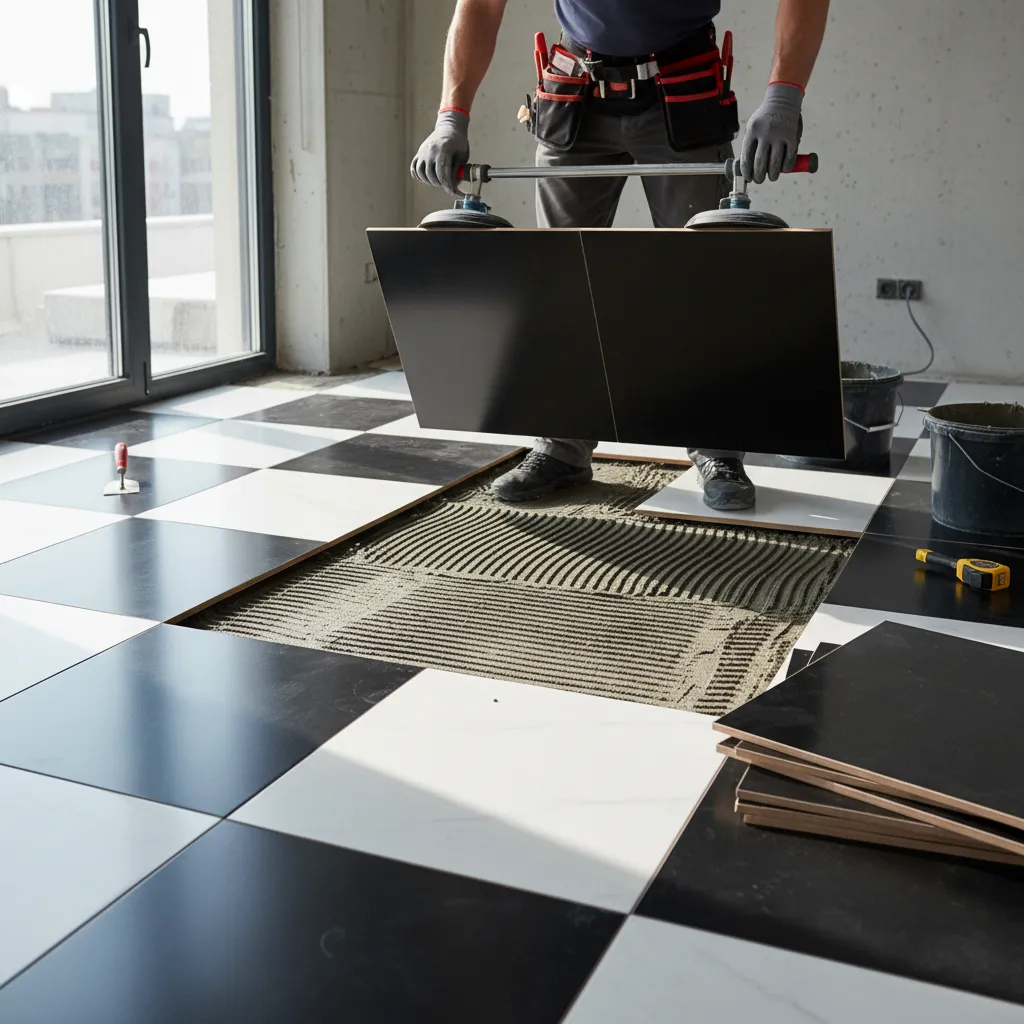

How to Relevel Tiles Without Reinstalling the Entire Floor

Key Insight: Many uneven checkerboard tiles can be corrected individually using localized lifting and adhesive adjustment.

If the adhesive has not fully hardened or the height difference is minor, targeted correction may work.

Typical repair workflow:

1. Score grout lines around the uneven tile.
2. Use a suction cup or tile lifter to gently remove the tile.
3. Scrape uneven mortar ridges.
4. Apply fresh adhesive evenly using a notched trowel.
5. Reset the tile and check level against surrounding tiles.

This method works best when the problem affects fewer than 5–10 tiles.

save pin

Answer Box

The most effective way to fix uneven chess floor tiles is to identify whether the problem comes from the subfloor, adhesive thickness, or tile movement. Many floors can be corrected by resetting a few tiles rather than replacing the entire installation.

When Tile Removal Is the Only Fix

Key Insight: If multiple rows of tiles are uneven, partial repairs often create visible alignment problems in checkerboard patterns.

Because checkerboard layouts rely on precise visual symmetry, large uneven sections are hard to disguise.

Full tile removal becomes necessary when:

1. More than 15–20% of tiles are uneven
2. The subfloor has structural dips
3. Mortar has fully cured and locked tiles in place

In renovation projects I've managed, partial removal sometimes made the pattern look worse because color alignment shifted.

Preventing Uneven Checkerboard Floors in Future Installations

Key Insight: Prevention is far easier than repair because checkerboard floors amplify installation errors.

Professional installers typically follow this preparation checklist:

1. Laser‑level the entire room before installation
2. Use large format straightedges to verify flatness
3. Dry‑lay several rows to confirm pattern alignment
4. Maintain consistent mortar trowel angle

Modern design visualization also helps reduce layout mistakes. Many designers preview tile spacing and alignment through a visual room planning workflow that simulates interior surfaces before the installation begins.

Final Summary

1. Uneven checkerboard tiles usually result from subfloor problems or adhesive inconsistencies.
2. Small tile height differences can often be corrected without full floor replacement.
3. Checkerboard patterns amplify even tiny installation mistakes.
4. Early inspection of the subfloor prevents most uneven tile issues.
5. Accurate layout planning dramatically reduces troubleshooting later.

FAQ

Why are my checkerboard floor tiles uneven after installation?

The most common causes are uneven subfloors, inconsistent adhesive thickness, or tiles shifting before the mortar cures.

Can uneven chess floor tiles be fixed without removing them?

Yes. If only a few tiles are affected, they can often be lifted, re‑leveled, and reset with fresh adhesive.

What causes checkerboard floor tiles to shift?

Tile movement usually happens when adhesive coverage is insufficient or when the floor is walked on before the mortar fully cures.

How much unevenness is acceptable in tile flooring?

Industry guidelines typically allow about 1/32 inch height difference between neighboring tiles, though checkerboard floors require tighter precision.

Do warped tiles cause uneven checkerboard floors?

Sometimes. Lower‑quality ceramic tiles may warp slightly during firing, which can create lippage during installation.

What tool checks tile floor level?

Installers commonly use laser levels, straightedges, and digital floor gauges.

How do you troubleshoot checkerboard tile installation problems?

Start by checking subfloor level, then inspect adhesive bonding and tile alignment across the pattern.

Is repairing uneven chess floor tiles expensive?

Minor corrections involving a few tiles are relatively inexpensive compared with replacing the entire floor.
