You have a PDF floor plan — from a realtor, an architect, or your own CAD export — and you want to see it in 3D without paying for software or hiring someone to model it. This guide covers the full process: preparing the PDF so upload actually works, converting it using a free floor planner, and getting from upload to usable 3D model in one session.

The process has two parts most guides skip the second one: getting the file ready, and then actually doing the conversion. Both matter.

If you’re planning to convert your plan using an online floor planner, getting the file right before uploading can dramatically improve accuracy and save hours of rework.

Below are the 8 most critical checks — each backed by real user cases — to help you avoid common mistakes and ensure a smooth PDF-to-3D conversion process.

If you’ve ever experienced a failed upload or inaccurate model, start with this checklist.

1. Keep the file size between 2–5MB

Large files often fail to upload, slow down your browser, or crash the system.

Real case: Brian uploaded a 28MB architectural PDF and hit upload errors three times. After compressing to 3MB using SmallPDF, the upload and wall detection worked on the first try.

Fix: Use SmallPDF, ILovePDF, or Adobe Acrobat's compress function. Target 2–4MB for most floor plans.

2. Make sure lines are clean, closed, and unbroken

AI wall detection traces connected lines. Broken lines, pencil-light strokes, or gaps at corners cause the system to misread room boundaries or skip walls entirely.

Real case: A student uploaded a hand-drawn floor plan photographed with a phone. The system only recognized half the rooms because wall lines at corners weren't fully connected.

Fix: For hand-drawn plans, scan at 300dpi minimum. Use Adobe Scan or Microsoft Lens — both auto-sharpen and close minor line gaps. For digital PDFs, open in Illustrator or Inkscape and check that all wall paths are closed before exporting.

save pin

3. Remove dimension notes, furniture icons, and electrical layers

The recognition engine reads all lines as potential walls. Dimension tick marks, furniture outlines already on the plan, and electrical circuit lines all get misinterpreted as structural elements.

Real case: Olivia uploaded a detailed architectural PDF with full MEP (mechanical, electrical, plumbing) layers. The AI read circuit runs as room dividers and produced a completely unusable 3D model.

Fix: If the PDF was exported from AutoCAD or Revit, re-export with only the architectural layer (walls, doors, windows) visible. For PDFs you can't re-export, convert to PNG and manually erase annotations before uploading.

save pin

4. Only include one floor per page

Multi-floor PDFs with stacked layouts on a single page confuse the recognition system — it tries to interpret all layouts as one floor and overlaps them.

Real case: A designer submitted a three-floor layout on one page. The platform stacked all three levels on top of each other, making the output unworkable.

Fix: Split multi-floor PDFs by page before uploading. PDF24 and SmallPDF both have free split tools. Upload and convert each floor separately, then build the multi-floor model manually.

save pin

5. Use vector PDFs, not scanned images or raster-based PDFs

Vector PDFs contain geometric data (lines, curves, coordinates) that AI tools can read directly. Scanned PDFs are just pixel images — the system has to guess what's a wall from image contrast alone, which is significantly less accurate.

Real case: Raj uploaded a scanned PDF from his realtor. Wall detection failed completely. He redrew the plan in AutoCAD and exported a vector PDF — the conversion worked perfectly.

Fix: If you only have a scanned PDF, convert it to a high-contrast PNG (600dpi) before uploading. It won't be as accurate as a vector source, but it's more reliable than a low-contrast scan.

save pin

6. Include at least one clear measurement or scale line

Without a scale reference, the tool guesses dimensions — often wildly wrong. A room that's 4m wide might be interpreted as 40cm.

Real case: Sara uploaded a clean, well-structured plan with no dimensions. The AI estimated her kitchen at 80cm wide. She added a "4m × 3m bedroom" annotation to the image and re-uploaded — the scale corrected immediately.

Fix: Before uploading, annotate at least one room or wall with its real dimension. A simple text label in the image is enough for most tools to calibrate.

save pin

7. Avoid encrypted or DWG-exported special PDFs

PDFs with password protection, locked layers, or complex DWG-export metadata often fail to upload or produce corrupted output.

Real case: David's PDF exported from AutoCAD LT had locked layer groups. The platform returned a file error. He re-exported via Adobe Illustrator (File → Save As → PDF, no password) and the upload succeeded.

Fix: If your PDF opens normally but fails to upload, try: File → Print → Save as PDF (on Mac) or print-to-PDF via any PDF printer. This flattens the file and removes layers and encryption.

8. Use ChatGPT to pre-check your floor plan and avoid failure

If you're unsure whether your file is ready, screenshot the floor plan, paste it into ChatGPT, and ask: "Does this floor plan look suitable for AI wall detection? Are there any issues with line clarity, annotations, or layout that could cause recognition problems?"

ChatGPT will flag annotation density, sketch quality issues, and whether the lines look clean enough for auto-detection. It takes 30 seconds and can save a failed upload cycle.

save pin

Part 2: The Conversion — Step by Step

Once the PDF is prepared, the actual conversion in a floor planner takes under 15 minutes for a standard residential layout.

Step 1 — Convert PDF to PNG (if needed)

Vector PDFs can upload directly. For scanned or raster PDFs, convert to PNG first using PDF24, Smallpdf, or Adobe Acrobat. Set resolution to 600dpi for best recognition results.

Step 2 — Upload to Coohom's floor planner

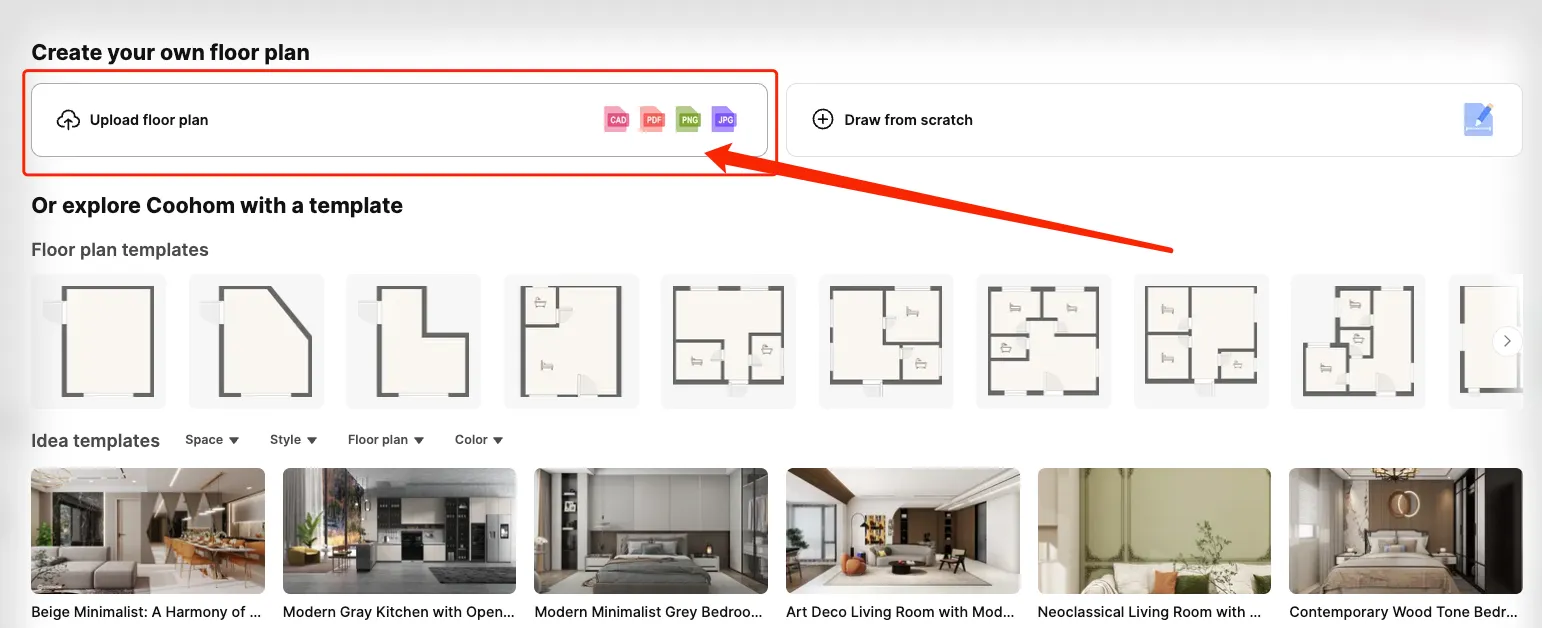

Open Coohom's free floor planner in your browser. Select "Import Floor Plan" and upload the PNG or PDF. The AI recognition pass runs in a few seconds and draws wall lines over your uploaded image.

Step 3 — Verify and correct the 2D structure

This step is where most users lose time by skipping it. Check:

1. Every exterior wall is detected and continuous
2. Door openings are in the right positions (and the swing direction makes sense)
3. Window positions match your plan
4. No phantom walls created from annotations or dimensions

Drag wall endpoints to correct any misread corners. Delete any walls the system created from annotation marks. This takes 5–10 minutes for a standard apartment layout and saves significant rework in 3D.

Step 4 — Set the scale

Click any wall and enter its real-world dimension. The tool rescales the entire plan proportionally. If you skip this, your 3D model will be structurally correct but dimensionally useless for furniture planning or contractor communication.

Step 5 — Add doors, windows, and furniture

Doors and windows are rarely auto-detected with full accuracy — plan to add them manually. Drag from the library and snap to walls. For furniture, either place manually or use the AI auto-layout feature: input room type and style preference, and it places furniture based on proportion and traffic flow.

Step 6 — Switch to 3D and validate

Toggle to 3D view. Check:

1. Room proportions look right (a 4m × 3m bedroom should feel like one, not a corridor or a warehouse)
2. Furniture scale is correct relative to walls
3. Ceiling height is set appropriately per room (default is usually 2.8m)

Step 7 — Export

Free tier export options: PNG screenshot of 3D view, scaled 2D PDF. Photorealistic rendering requires a paid plan. For most homeowner and contractor use cases, the free export is sufficient.

3 Free Platforms to Convert Floor Plans to 3D Online

1. Coohom

The only tool here that handles the full pipeline: PDF upload → AI wall detection → editable 2D floor plan → 3D model → export. No download, no account required to start.

1. Accepts JPG, PNG, PDF — vector or raster
2. AI auto-detects walls, openings, and room boundaries
3. 8M+ furniture library for layout planning
4. Real-time 3D toggle (no processing wait)
5. Free export: PNG screenshots and 2D PDF

Best for: Homeowners, interior designers, real estate professionals, anyone without CAD skills who needs a real output file.

save pin

2.Planner 5D

1. Supports floor plan images (convert PDF to PNG first)
2. Beginner-friendly interface with drag-and-drop modeling
3. Free tier has limited features
4. Best for: students, casual users, renters

3. Floorplanner

1. Allows manual tracing of uploaded plans
2. More accurate but requires more time to build
3. Supports 2D/3D viewing and multi-level layouts
4. Best for: semi-professionals or detailed users

Frequently Asked Questions (FAQ)

Can I use a scanned PDF floor plan?

Yes, but results are less accurate than a vector PDF. Convert the scan to a high-contrast PNG at 600dpi before uploading. Use Adobe Scan or Microsoft Lens to correct perspective and improve contrast. Expect to manually correct some walls after auto-detection.

What if room dimensions are wrong after conversion?

The tool guessed the scale because your plan had no dimension reference. Click any wall, enter its real measurement, and the tool rescales the entire plan. Always include at least one labeled dimension in your source file to avoid this.

Can I export the 3D model as a file (not just an image)?

Coohom exports 2D PDFs and PNG renders on the free tier. Full 3D model export (.obj, .fbx) is available on paid plans. For most use cases — contractor communication, client presentations, furniture planning — PNG and PDF exports are sufficient.

My PDF uploads but the walls are completely wrong. What happened?

Usually one of three causes: (1) the PDF was raster, not vector — try converting to a higher-contrast PNG; (2) the plan had annotation layers that were read as walls — strip them before re-uploading; (3) multiple floors were on one page — split and upload separately.

Do I need an account to convert a PDF to 3D?

Not for Coohom's basic workflow. You can upload, auto-detect, correct walls, switch to 3D, and take screenshots without registering. An account is required to save the project and access PDF export.

How long does the conversion take?

Upload and auto-detection: under 30 seconds. Wall verification and correction: 5–10 minutes for a standard apartment. Adding furniture and switching to 3D: another 10–15 minutes. Total for a one-bedroom apartment: under 30 minutes from PDF to usable 3D view.
