How to understand the floor plan: Symbols, Dimensions & Scale Explained

A floor plan is a document with a specific visual language. Like any specialist language, it's completely clear once you know the conventions and mildly opaque before you do. The symbols, dimension notations, and scale indicators that appear on professional floor plans follow standards that have been consistent for decades — understanding them takes about 20 minutes, and once you do, you can read any floor plan accurately.

This guide covers everything you need: what the symbols mean, how dimensions work, how scale translates to real measurements, and how to use a floor plan to make actual spatial decisions rather than just look at it.

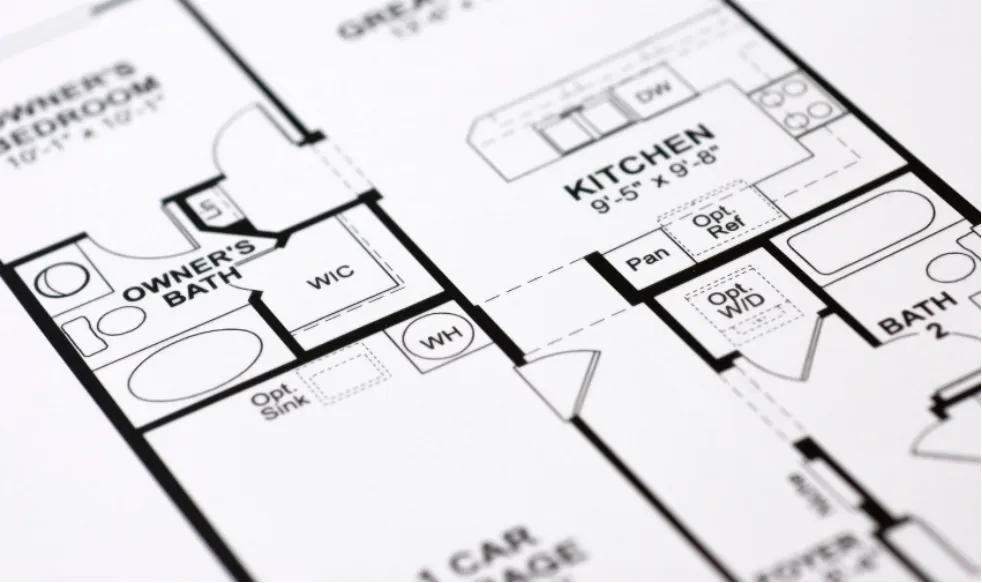

What a Floor Plan Shows (and What It Doesn't)

A floor plan is a view of a room or building as seen from directly above, with the roof or ceiling removed. The standard viewpoint cuts through the walls at approximately 4 feet above the floor — high enough to show windows and doors as they appear at standing height, low enough to show counters, built-in shelving, and other mid-height features.

What a floor plan shows:

1. Wall positions and thicknesses
2. Door locations and swing directions
3. Window positions along each wall
4. Fixed features: stairs, fireplaces, kitchen counters, bathroom fixtures
5. Room labels and dimensions
6. Furniture layout (in design floor plans)

What a floor plan doesn't show:

1. Ceiling height
2. Wall height (except where noted)
3. Features below the cut plane (floor materials, floor-level changes)
4. Features above the cut plane (high-level storage, mezzanines unless shown separately)
5. Electrical, plumbing, or structural details (unless on specialist drawings)

Understanding these limits prevents common misreading errors. A floor plan tells you where things are in the horizontal plane. Vertical information requires sections, elevations, or specific notations.

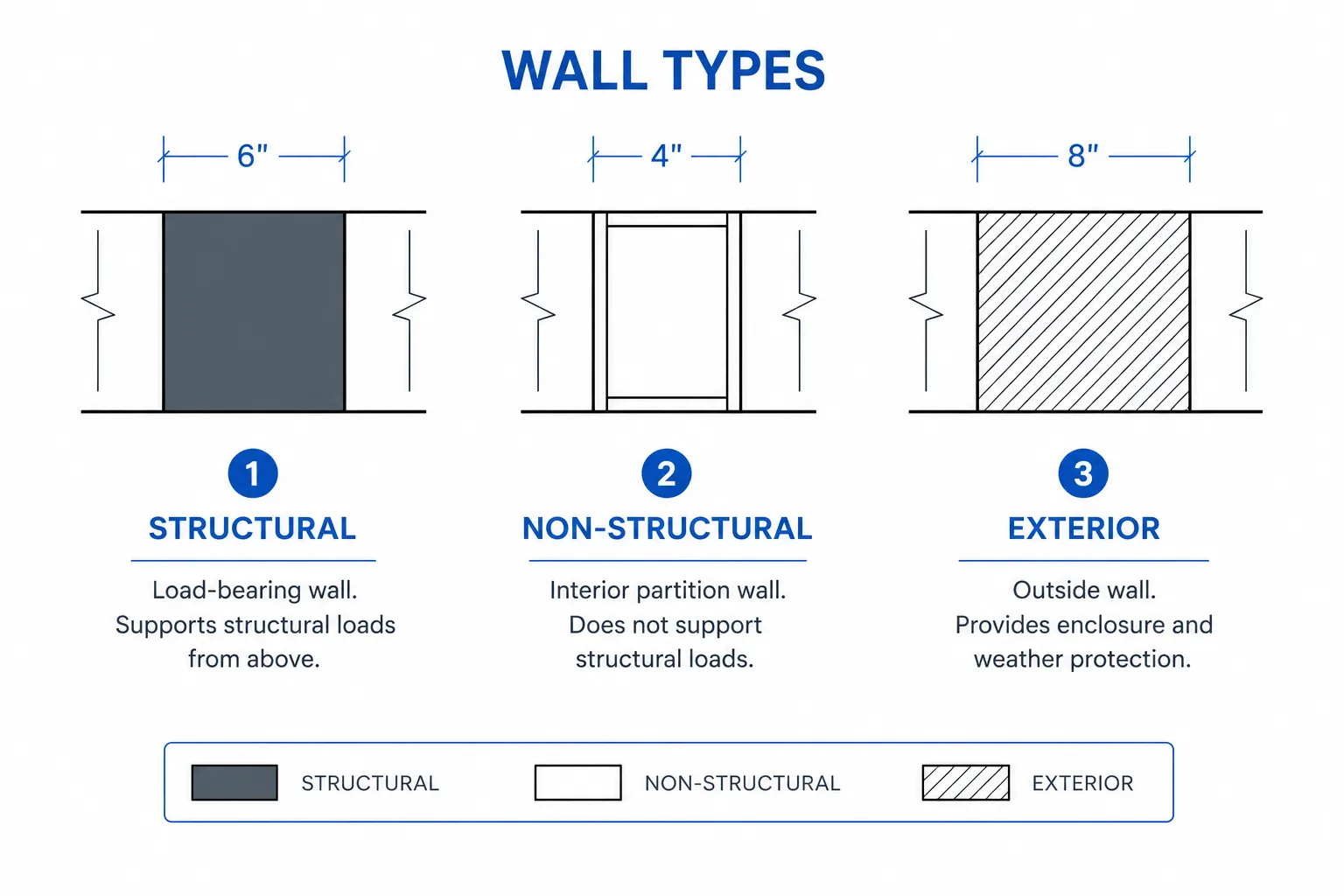

Wall Symbols

Walls are represented as parallel lines on a floor plan. The space between the lines represents the wall's thickness — typically 4 to 6 inches for interior walls and 6 to 12 inches for exterior walls.

Solid filled walls indicate structural or load-bearing walls — the ones that can't be moved without structural engineering work. These are usually shown with a dark fill between the parallel lines.

Hollow walls (two parallel lines without fill) typically indicate non-structural partition walls that can be removed or repositioned.

Hatched walls use a diagonal line pattern between the parallel lines. Different hatch patterns indicate different materials: brick, concrete block, insulation. In residential floor plans, you'll most commonly see this on exterior walls.

The practical implication: When planning a renovation, the distinction between structural and non-structural walls is critical. A floor plan that uses filled vs. hollow wall notation tells you which walls are moveable without that information being stated explicitly.

save pin

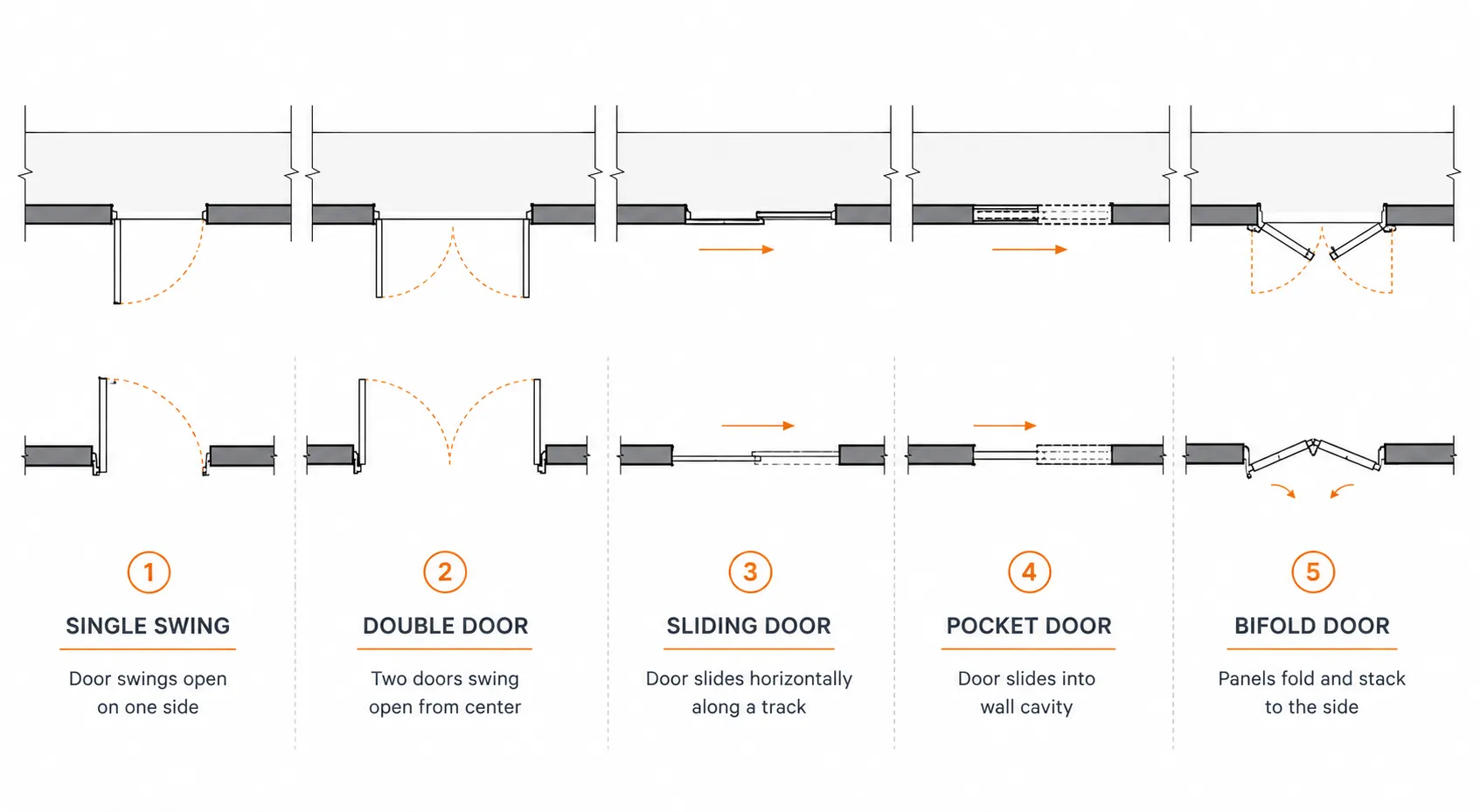

Door Symbols

The door symbol is one of the most distinctive elements in any floor plan. It consists of two components: a thin line showing the door panel itself, and a quarter-circle arc showing the sweep of the door as it opens.

Standard single door: A straight line (the door) attached to a wall opening at one end, with a quarter-circle arc sweeping from the free end of the door to the wall. The arc shows how much floor space the door occupies when fully open — this is the area that must be kept clear of furniture.

Double door: Two door panels meeting in the center of an opening, each with its own arc. Common for wider openings between rooms.

Sliding door: Shown as a rectangle parallel to the wall, often with a dashed line indicating the track. No arc, because the door doesn't swing into the room.

Pocket door: Similar to a sliding door but disappears into the wall cavity. Shown as a thin rectangle partially inside the wall line.

Bifold door: Multiple narrow panels with a partial arc, commonly used for closet doors.

Reading door symbols practically: The arc tells you two things — which way the door opens, and how much clearance you need. A door whose arc swings toward where you want to put a sofa means the sofa can't go there without blocking the door. Always check swing direction before finalizing furniture placement near any door.

save pin

Window Symbols

Windows are shown as an interruption in the wall line, typically with three parallel lines — two representing the wall faces and one representing the glazing. The number of lines varies by convention, but the key element is the break in the wall.

Standard window: Three parallel horizontal lines spanning a gap in the wall.

Bay window: A stepped or angled projection beyond the exterior wall line, shown with three sides.

Casement window: Typically shown with a thin line indicating the opening direction, similar to a door but smaller.

In 3D floor plan tools: Windows appear as openings in the wall rendered at the correct sill height, with glazing visible. This is more intuitive than the 2D symbol and immediately shows which walls bring natural light into the room.

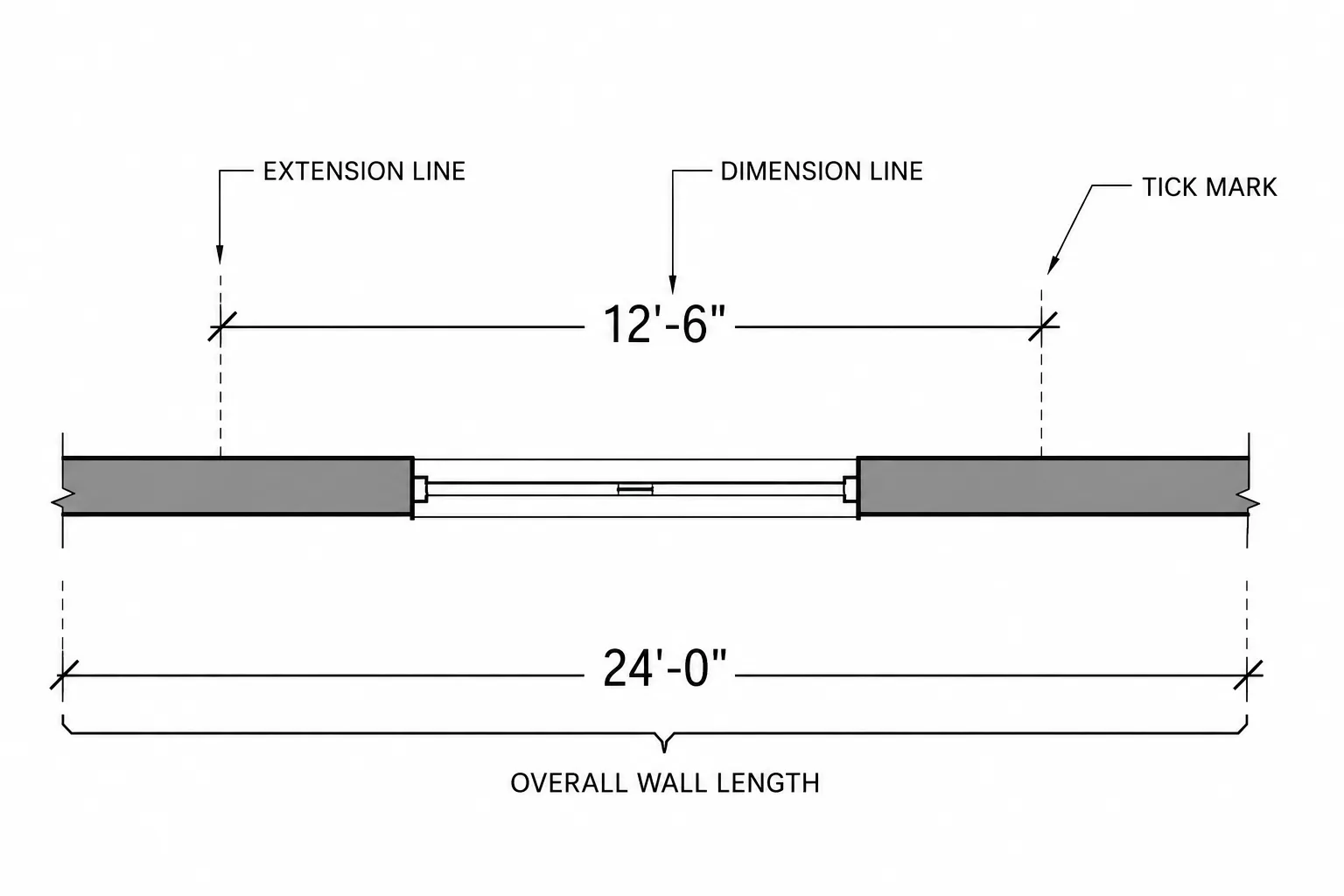

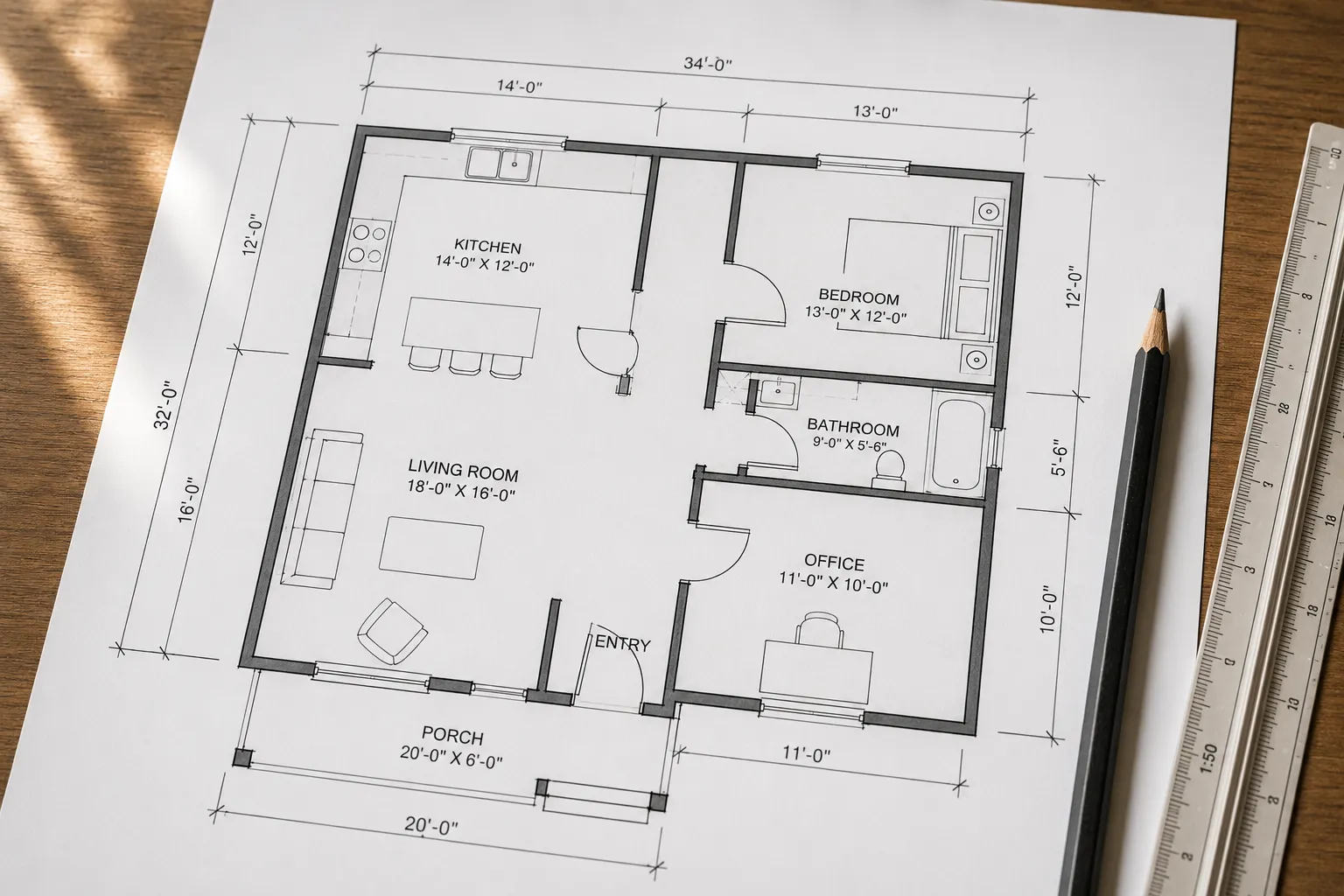

Dimension Notations

Dimensions on floor plans follow conventions that allow you to read measurements quickly without ambiguity.

Extension lines are thin lines that project perpendicular from the feature being measured — a wall face, a door edge, a room boundary.

Dimension lines run parallel to the feature being measured, between the extension lines, with an arrow or tick mark at each end indicating the exact measurement points.

The dimension figure sits above or in the center of the dimension line. In imperial notation: feet and inches (e.g., 12'-6" means 12 feet 6 inches). In metric notation: millimeters (e.g., 3600 means 3600 mm or 3.6 meters) or meters with two decimal places (e.g., 3.60 m).

String dimensions chain multiple measurements along a single line: individual dimensions for each feature (wall section, door width, remaining wall) that add up to the overall room dimension. This lets you verify that the components sum correctly.

Overall dimensions appear as the outermost dimension line, showing the total length of a wall or room without breaking it into components.

What to check: When reading a floor plan, verify that string dimensions add up to the overall dimension. Discrepancies indicate either an error in the drawing or a feature you may have missed (a recess, a thickness change).

save pin

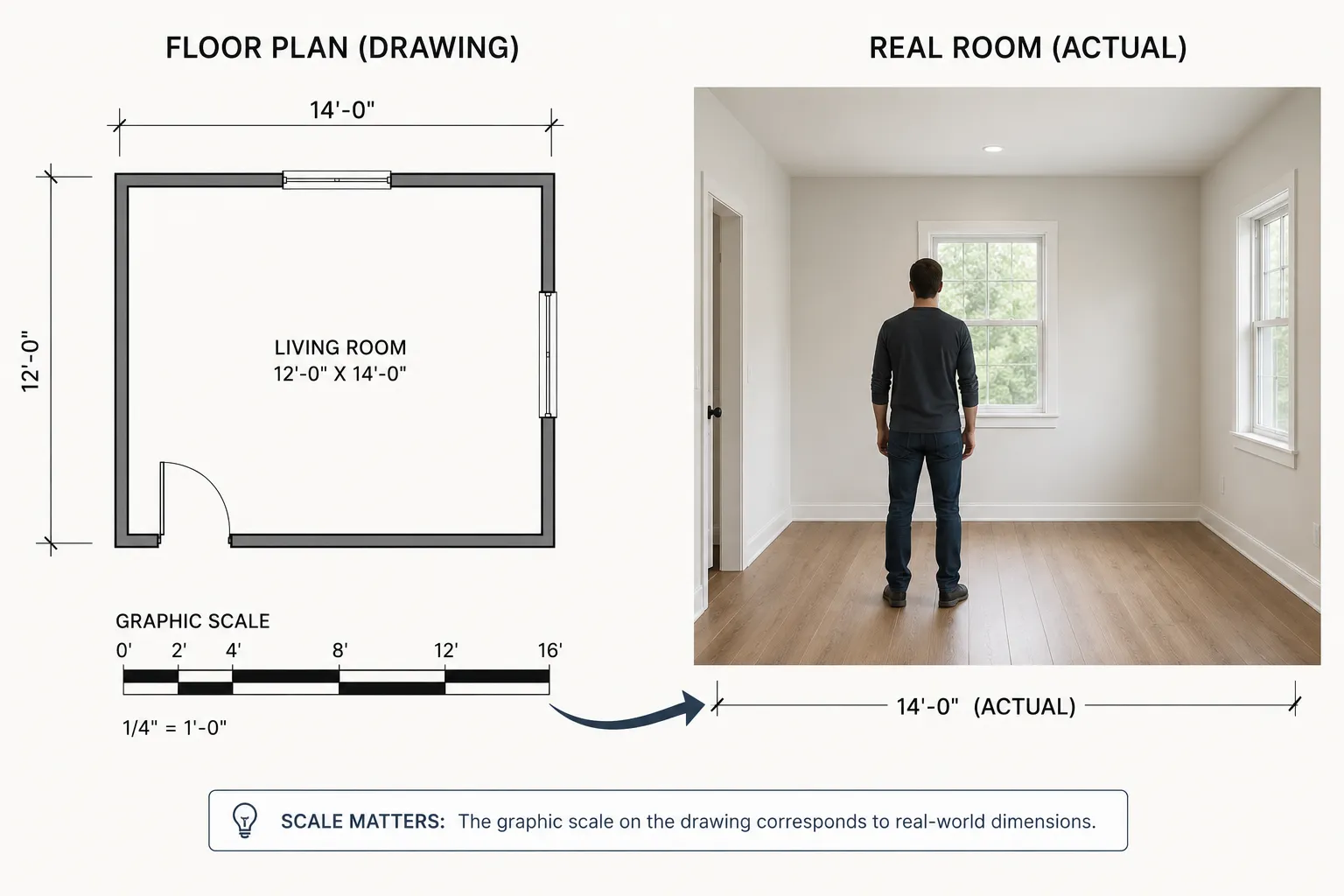

Scale

Scale is the relationship between the drawing and reality. A floor plan drawn at 1:50 scale means every 1 unit on the drawing represents 50 units in real life. A 1 cm line on the drawing represents 50 cm (half a meter) in reality.

Common scales for residential floor plans:

1. 1:50 (metric) / ¼" = 1' (imperial): Standard for individual room plans
2. 1:100 (metric) / ⅛" = 1' (imperial): Standard for full building floor plans
3. 1:20 (metric): Detailed drawings of specific areas (kitchens, bathrooms)

How to use scale to measure:

If you have a printed floor plan with a noted scale, use a scale ruler (or a standard ruler with conversion) to measure any element on the drawing and convert to real dimensions. If the scale is 1:50, a 3 cm measurement on the drawing equals 150 cm (1.5 meters) in reality.

If you have a digital floor plan, most tools display real dimensions directly — either as labeled dimensions or as measurements that appear when you click on a wall or item. You don't need to calculate from scale; the tool does it for you.

Scale bars: Many floor plans include a graphic scale bar — a line with marked intervals showing what distance on the drawing corresponds to what real-world measurement. Scale bars remain accurate even if the drawing is printed at a different size than intended, which makes them more reliable than a stated scale ratio when working with photocopied or resized drawings.

Room Labels and Abbreviations

Room labels on floor plans are typically straightforward: LIVING ROOM, BEDROOM 1, KITCHEN, BATH. Abbreviations appear more commonly on architectural and technical drawings:

1. WC: Water closet (toilet room)
2. DN / UP: Direction of stairs (down / up)
3. CLG HT: Ceiling height
4. FFL: Finished floor level
5. W: Width
6. D: Depth
7. CL or ⊕: Centerline
8. NTS: Not to scale (indicates a detail is schematic rather than dimensional)

save pin

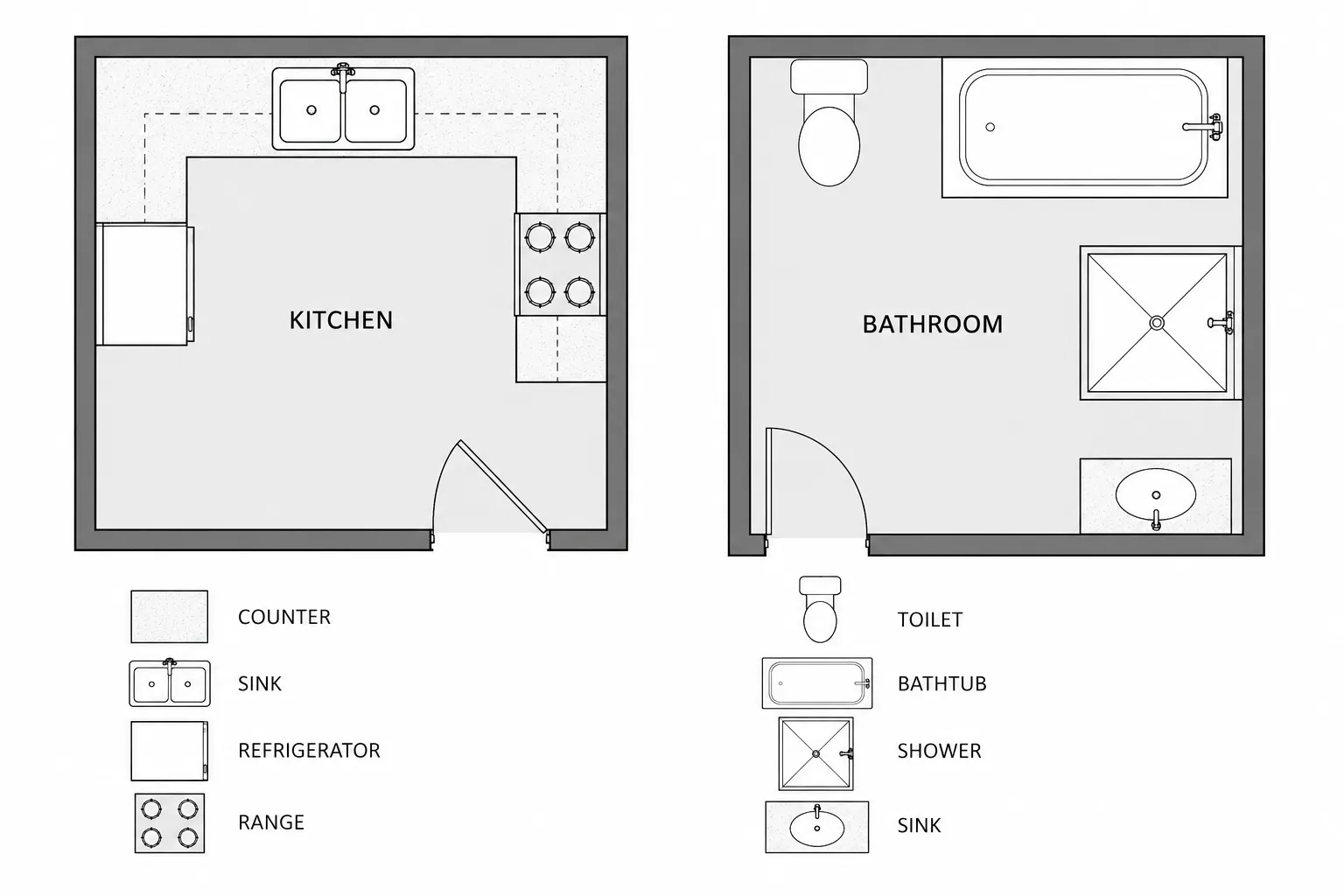

Common Symbols in Kitchens and Bathrooms

Kitchens and bathrooms have standard fixture symbols that appear consistently across floor plans:

Kitchen: Counter shown as a rectangle along the wall; sink shown as a rectangle with a circle or oval inside; dishwasher as a square next to the sink; refrigerator as a large rectangle; range or cooktop as a rectangle with circles indicating burners.

Bathroom: Toilet shown as a rectangle with an oval (the tank and bowl viewed from above); bathtub as a rectangle with a smaller oval (the tub and drain); shower as a square with a corner triangle (the drain); sink as a small rectangle or circle.

These symbols are standardized enough that you can identify fixtures reliably across different floor plans from different architects or tools.

save pin

How to Use a Floor Plan for Real Decisions

Reading a floor plan accurately unlocks its practical value. Here's how to apply what you've learned:

Verifying furniture fit: Use the dimensions to calculate whether a piece of furniture will fit in a space and leave adequate clearance. A 90-inch sofa in a room that's 144 inches wide leaves 54 inches — enough for a circulation path plus a chair opposite.

Checking door clearance: Identify the arc sweep of every door near the area you're furnishing. The arc defines a no-furniture zone.

Planning natural light: Window positions tell you which walls receive direct light at different times of day. North-facing windows (in the northern hemisphere) receive no direct sun; south-facing windows receive the most. This affects furniture placement and room feel.

Identifying structural constraints: Walls shown as solid or with hatching indicate structural elements that define the fixed boundaries of any renovation. Everything else is potentially flexible.

Create and Read Your Own Floor Plan

Understanding floor plan conventions is most useful when you can apply them to your own space. A tool that uses the same symbols and conventions as professional floor plans — walls with correct thickness, door swing arcs, dimensioned windows — produces a drawing you can read and share accurately.

A good floor plan creator to scale handles these conventions automatically: walls drawn to correct thickness, doors with arc notation, windows with standard symbols, and dimensions that display in your preferred unit system. The output follows the same visual language as any professionally produced floor plan.

Reading a floor plan and creating one are two sides of the same skill. Once you can read the conventions, you can verify that any floor plan you create uses them correctly — and communicate your design clearly to anyone else who reads it.
