How to Upload a Floor Plan in Planner 5D: Step-by-step guide to effortlessly upload your designs

Direct Answer

To upload a floor plan in Planner 5D, open your project, choose the floor plan import option, upload an image or blueprint file, scale it to match real measurements, and trace walls over the plan. Once aligned, you can build the full 2D and 3D layout accurately.

This method works with JPG, PNG, or scanned blueprints and is the fastest way to convert an existing layout into a functional Planner 5D project.

Quick Takeaways

1. Planner 5D allows floor plan uploads using image files like PNG or JPG.
2. Always scale the floor plan first to maintain real room dimensions.
3. Tracing walls over the plan produces the most accurate 3D model.
4. High contrast floor plans generate cleaner and faster layouts.
5. Many beginners skip scaling, which causes major layout errors later.

Introduction

In many interior design projects, the fastest way to begin a layout is to upload a floor plan in Planner 5D instead of drawing everything from scratch. After working on dozens of residential layouts and renovation mockups, I can confidently say that starting from a real blueprint saves hours of adjustment later.

Most homeowners already have some form of floor plan: a scanned blueprint, a real estate listing image, or even a phone photo of architectural drawings. Planner 5D lets you import these files and trace over them to create an accurate digital model.

The challenge is that many first-time users upload a plan but skip proper scaling or alignment, which leads to distorted rooms and furniture that never quite fits.

In this guide, I will walk through the exact process I use when uploading and converting a floor plan into a workable Planner 5D layout.

save pin

Why Uploading a Floor Plan Is Better Than Drawing From Scratch

Key Insight: Uploading an existing floor plan dramatically reduces layout mistakes and speeds up the entire design process.

In professional projects, we rarely start with a blank grid. Even rough architectural sketches provide spatial relationships that would otherwise take hours to recreate.

Advantages of uploading a floor plan:

1. Preserves real wall relationships
2. Improves measurement accuracy
3. Speeds up room layout creation
4. Helps furniture planning match reality

According to the National Association of Home Builders, layout planning errors are one of the most common causes of renovation redesign. Using an imported plan reduces that risk significantly.

How to Upload a Floor Plan in Planner 5D Step by Step

Key Insight: The upload process itself takes less than a minute, but correct scaling is the step that determines accuracy.

Follow this workflow:

1. Open Planner 5D and start a new project.

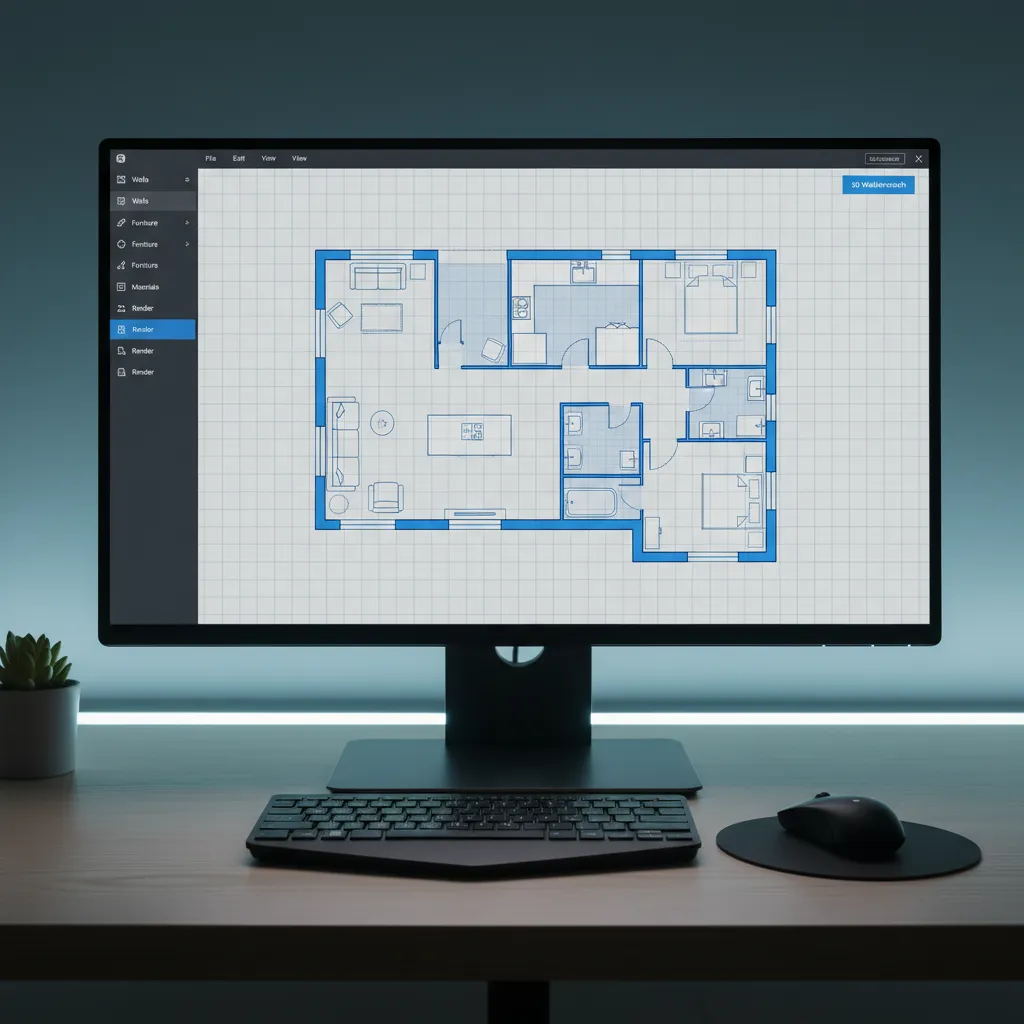

2. Choose the "Import Floor Plan" or "Upload Plan" option.
3. Select an image file such as PNG, JPG, or scanned blueprint.
4. Place the image on the workspace.

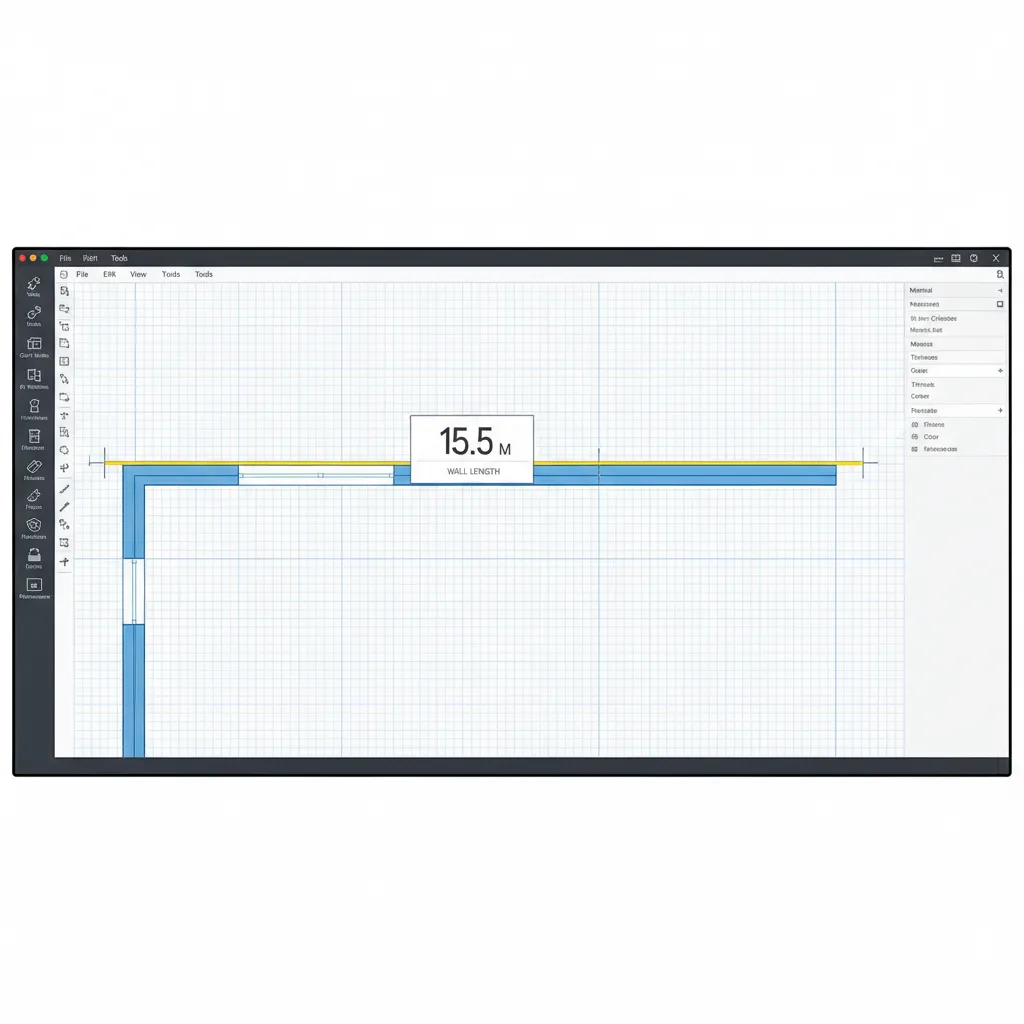

5. Use the scaling tool to match a known measurement (for example a 10 ft wall).
6. Lock the image layer.

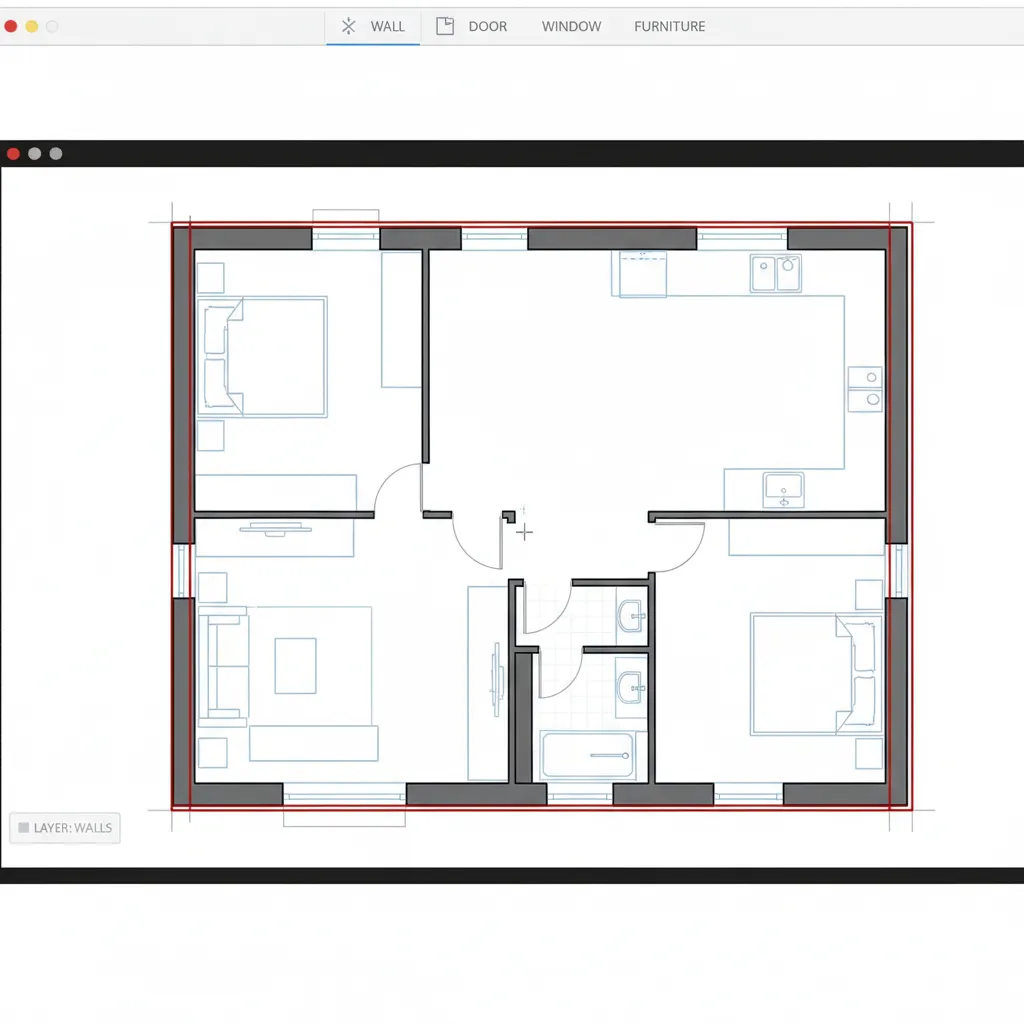

7. Trace walls using the wall drawing tool.

Once tracing is complete, the floor plan becomes the structural foundation for your 2D and 3D model.

save pin

What Types of Floor Plan Files Work Best

Key Insight: High contrast and simple black and white plans produce the most accurate tracing results.

Planner 5D technically supports many image types, but some work far better than others.

Best file types for uploading:

1. PNG blueprint scans
2. JPG architectural drawings
3. PDF converted into image format
4. Real estate listing floor plans

Files that cause problems:

1. Low resolution phone photos
2. Floor plans with heavy shading
3. Plans with distorted camera perspective

When possible, export plans at 1500px or wider resolution. That keeps lines sharp during tracing.

save pin

How to Scale the Uploaded Floor Plan Correctly

Key Insight: Scaling the plan using a known measurement is the most important step in creating an accurate model.

After uploading, the image has no real-world dimensions yet. Everything depends on calibration.

Here is the method I use on almost every project:

1. Find a labeled dimension on the plan (for example 12 ft wall).
2. Draw a temporary wall in Planner 5D.
3. Adjust the image scale until the drawing matches that dimension.
4. Lock the image layer so it cannot move.

This one step prevents the most common beginner problem: rooms that look correct but measure incorrectly.

Common Mistakes When Importing Floor Plans

Key Insight: Most layout issues come from skipping preparation rather than problems with the software itself.

Based on real design workflow experience, these mistakes appear constantly:

1. Uploading tilted photos instead of straight scans
2. Not scaling before tracing
3. Tracing walls that include furniture graphics
4. Using low resolution plans

A hidden issue many people overlook is wall thickness. Architectural plans often show structural thickness that may differ from interior wall thickness used in 3D modeling. Adjusting this early prevents awkward furniture spacing later.

save pin

Answer Box

The easiest way to upload a floor plan in Planner 5D is to import a clear image, scale it using a known measurement, and trace walls over the plan. Proper scaling ensures your digital layout matches real world dimensions.

Can You Upload a Floor Plan From a Phone Photo

Key Insight: Phone photos work, but they require perspective correction before tracing.

If your only available plan is a phone photo, follow these steps:

1. Take the photo directly above the drawing
2. Avoid angled shots
3. Crop the edges
4. Increase contrast before uploading

Apps like Adobe Scan or Microsoft Lens can automatically flatten perspective, making the image far easier to trace in Planner 5D.

Final Summary

1. Uploading a floor plan in Planner 5D saves major layout time.
2. Always scale the image using a real measurement.
3. High resolution plans produce better tracing results.
4. Lock the floor plan layer before building walls.
5. Correct scaling determines the accuracy of the entire design.

FAQ

Can I upload a PDF floor plan to Planner 5D?

Planner 5D works best with image files. Convert the PDF to PNG or JPG before uploading.

Is uploading a floor plan in Planner 5D free?

Basic floor plan uploads are available in the free version, though some advanced features may require a subscription.

What is the best resolution for a floor plan image?

At least 1500 pixels wide is recommended to keep lines clear during tracing.

How long does it take to recreate a floor plan?

Most simple homes can be traced in 10–20 minutes once the floor plan is properly scaled.

Can I upload multiple floors?

Yes. Planner 5D allows multiple levels, and each floor can have its own imported floor plan.

Why does my floor plan look distorted after upload?

This usually happens when the image was photographed at an angle or not scaled correctly.

Do professionals upload floor plans before designing?

Yes. In most interior design workflows, importing a blueprint is the standard starting step.

Does uploading a floor plan help with furniture layout?

Absolutely. An accurate floor plan ensures furniture sizes and walking paths work correctly in the final design.
