How to Use a Free Floor Plan Creator Online: A Complete Beginner’s Guide

Designing a floor plan used to require CAD software and professional training.

But in 2025, things are different — with a free floor plan creator, anyone can plan, visualize, and customize beautiful 2D and 3D layouts in just minutes.

In this guide, we’ll walk you step by step through:

1. How to create a new project
2. Two easy ways to draw rooms
3. How to name and organize spaces
4. Adding doors, windows, and structures
5. Tips to make your design realistic and construction-ready

By the end, you’ll be able to create your own professional-looking floor plan without any CAD experience.

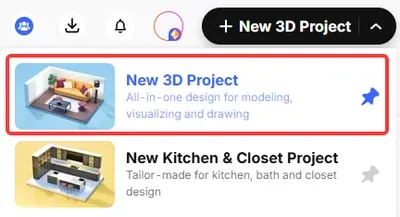

Step 1. Start a New Project

Go to your workspace and click New 3D Project in the top-right corner.

This opens a blank canvas where you can immediately start designing.

save pin

Step 2. Three Ways to Begin Your Design

There are three main ways to get started:

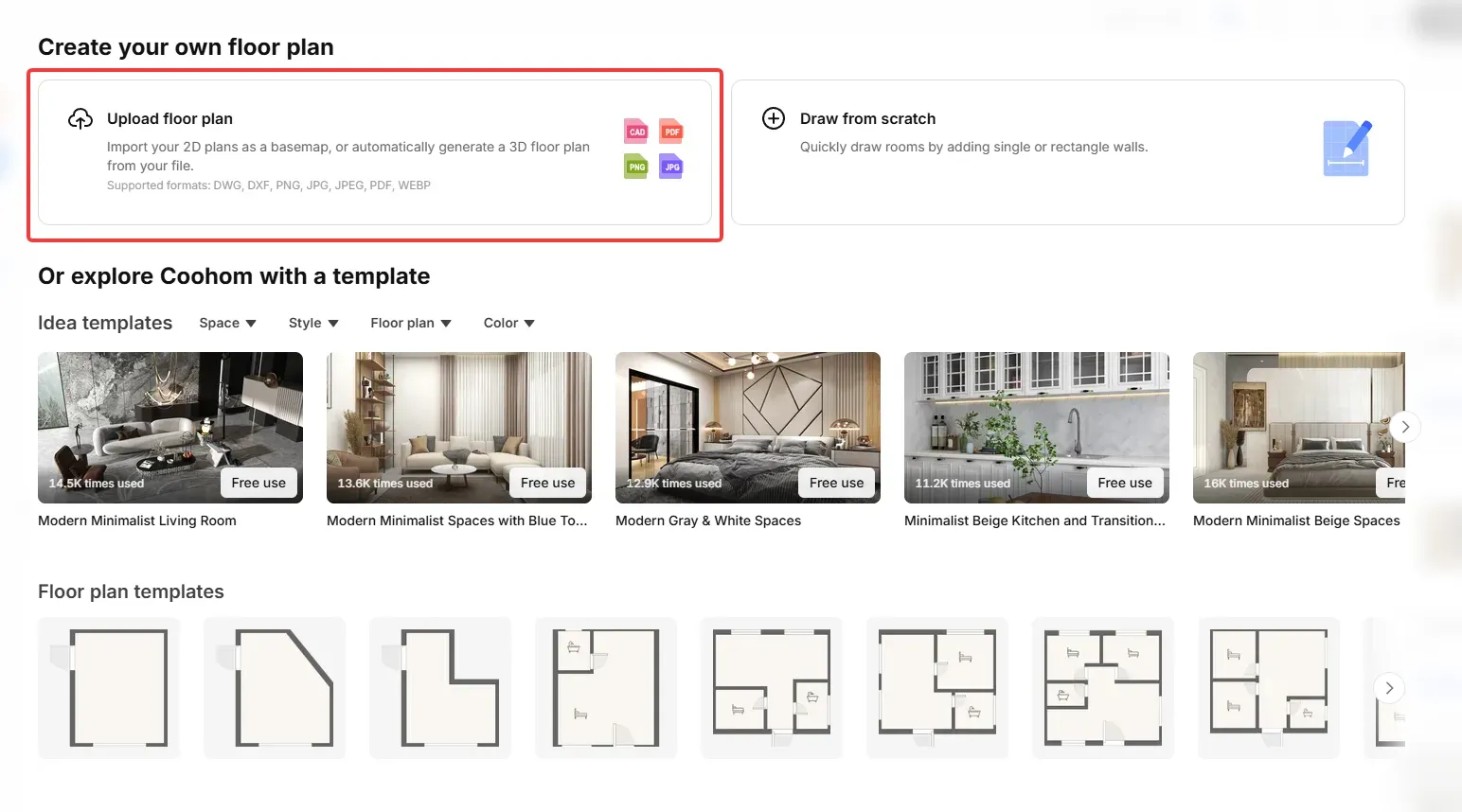

Option 1: Upload an Existing Floor Plan (Best for CAD drawings)

1. Click Upload Floor Plan.
2. Supported formats:
3. CAD (.dwg / .dxf)
4. PDF
5. PNG / JPG
6. You can:
7. Upload a single CAD file
8. Import multiple CAD files
9. Use a CAD file with multiple drawings

💡 Pro Tip: If you already have scanned drawings, upload them directly — the tool converts them into editable plans.

save pin

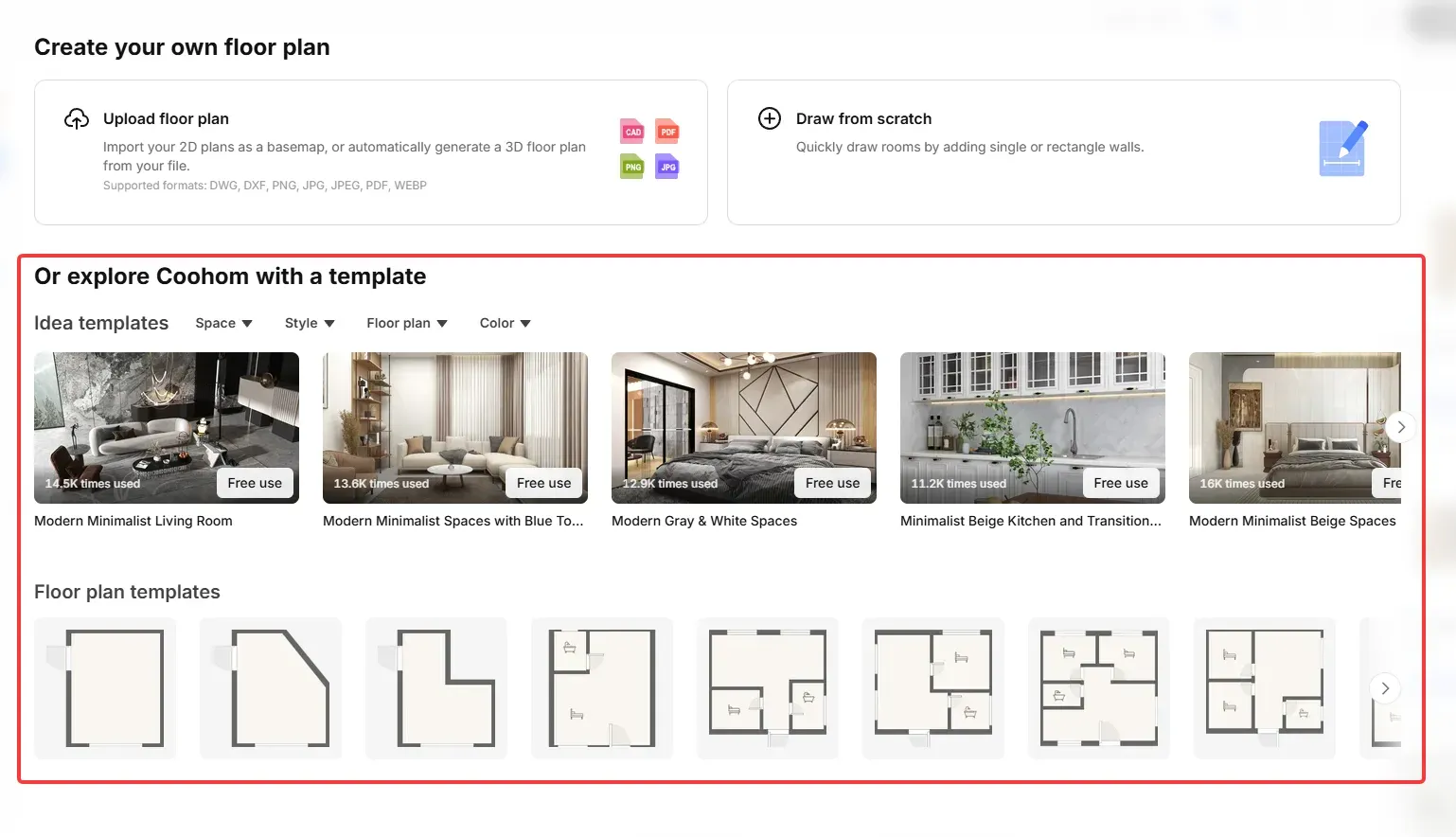

Option 2: Use Ready-Made Templates (Fastest way to start)

1. Choose an Idea Template or Floor Plan Template.
2. Click Apply, and the tool instantly generates a starter layout you can customize.

save pin

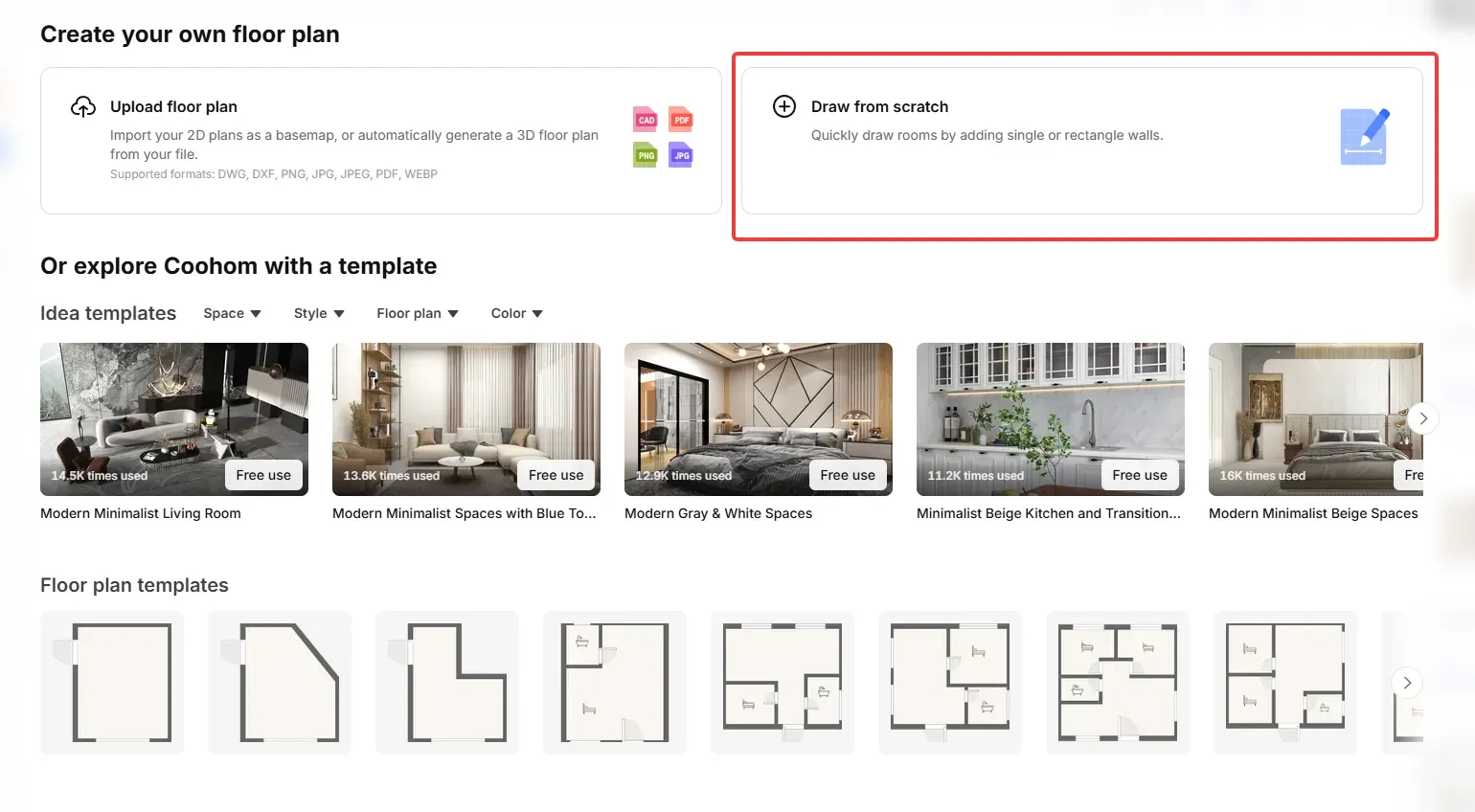

Option 3: Draw from Scratch (For complete customization)

1. Select Draw from Scratch.
2. Enter 3D Design → Floor Plan and manually draw walls.
3. Perfect if you want full creative flexibility.

save pin

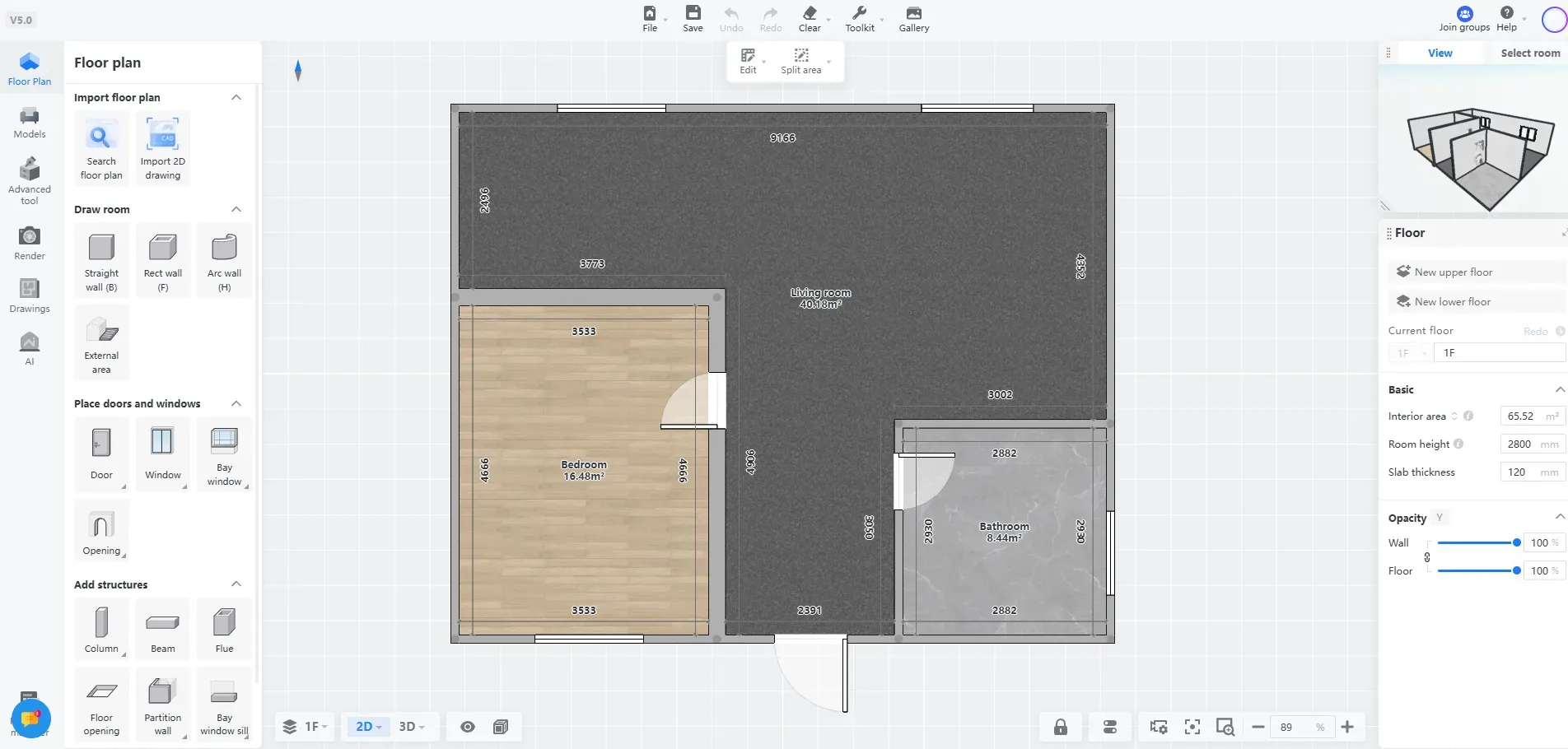

Step 3. Draw Rooms

You have two options to create rooms using the 3D room planner:

Method 1: Use Floor Plan Templates (Automatic & beginner-friendly)

1. Apply a floor plan template.
2. The tool instantly generates the room layout based on the design.
3. Ideal for beginners who want to start fast.

Method 2: Use Wall Tools (Manual & flexible)

1. Go to 3D Design → Floor Plan → Wall Tool.
2. Use the Rect Wall Tool to manually draw walls.
3. Important: Walls must form a closed loop; otherwise, rooms will not generate.

💡 Pro Tip: Turn on Snap-to-Grid for perfect alignment and accurate dimensions.

save pin

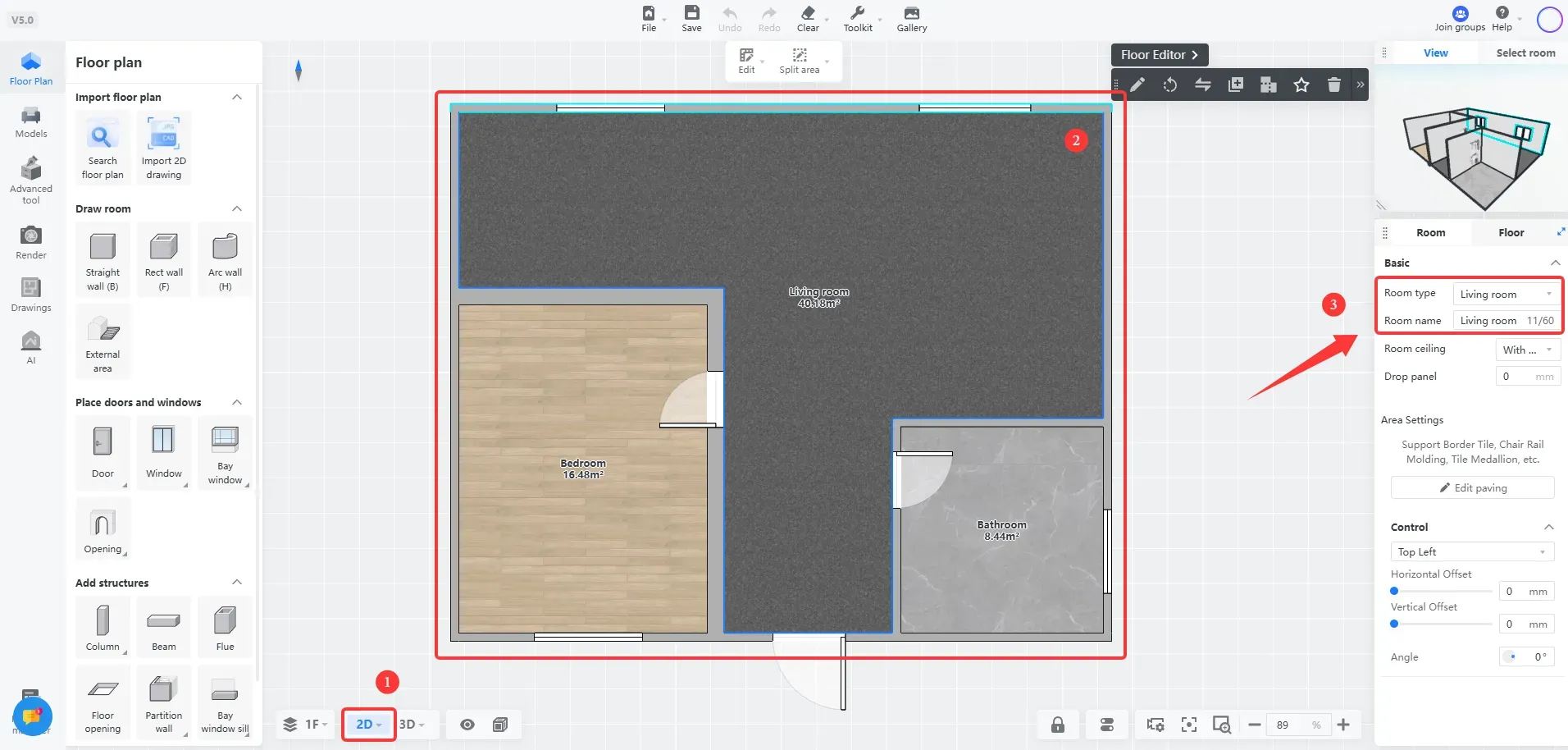

Step 4. Name the Rooms

Naming rooms helps organize your layout for better visual clarity:

1. Switch to 2D Mode.
2. Select the target room.
3. Go to the Basic Parameters panel on the right.
4. Set the Room Type and Room Name.

save pin

Step 5. Add Doors & Windows

To make your floor plan more realistic:

1. Go to the Doors/Windows Library.
2. Choose from four types:
3. Door
4. Window
5. Bay Window
6. Opening
7. Drag and drop them directly into your layout.

📌 Pro Tip: Use floor plan customization tools to optimize natural lighting and improve layouts.

save pin

Step 6. Add Columns, Beams, and Flues

Enhance your design by adding structural details:

1. Available components:
2. Columns
3. Beams
4. Flues
5. Partition Walls
6. Select the structure type and place it directly in your floor plan.

save pin

Using a free floor plan creator online makes it easy to design, customize, and visualize spaces without expensive CAD tools.

Whether you’re renovating a single room or designing an entire home, these tools allow you to:

1. Build layouts in minutes
2. Preview designs in 2D and 3D
3. Export professional drawings to share with clients or contractors

FAQs

Q1. Do I need CAD experience to use a free floor plan creator?

No. The tool is beginner-friendly and requires no technical skills.

Q2. Can I create both 2D and 3D floor plans?

Yes. You can instantly switch between 2D layouts and 3D previews with a single click.

Q3. Is it free to export my designs?

Yes. You can export to PDF, PNG, or JPG without paying extra.
