HVAC Ductwork Design Standards Used by Professionals: Learn how HVAC designers calculate airflow, size ducts, and follow real engineering standards used in residential systems.

Direct Answer

Professional HVAC ductwork design standards are primarily based on ACCA Manual D, which defines how to size ducts, calculate airflow, and control static pressure in residential systems. Contractors combine these standards with building codes, airflow calculations, and practical layout strategies to ensure balanced air delivery throughout the home. When applied correctly, these standards improve comfort, reduce energy waste, and extend equipment lifespan.

Quick Takeaways

1. Most residential duct systems in North America follow ACCA Manual D guidelines.
2. Static pressure limits determine duct size and layout efficiency.
3. Professional layouts prioritize airflow balance, not just shortest duct paths.
4. Duct material choice affects noise, efficiency, and installation cost.
5. Inspection and code compliance ensure safety and long‑term system reliability.

Introduction

When homeowners search for HVAC ductwork design standards, they usually expect a simple rule like “use larger ducts for longer runs.” In reality, professional duct design is far more technical. After working on residential projects for more than a decade, I can say that most comfort problems in homes aren’t caused by the HVAC equipment itself. They come from poorly designed duct systems.

Rooms that never cool properly, loud air noise in hallways, and high energy bills often trace back to airflow imbalance. Professional HVAC designers solve this using calculation-based design methods rather than guesswork.

If you're planning a renovation or building a new home, understanding how experts design residential duct systems can help you avoid expensive mistakes. Many homeowners start by exploring tools that visually simulate airflow and layout options, such as this guide to planning airflow-friendly home layouts in a 3D floor planning environment.

In this article, I’ll walk through the real standards contractors rely on, including Manual D, airflow calculations, duct materials, and inspection requirements used in professional HVAC planning.

save pin

Overview of Professional HVAC Duct Design Standards

Key Insight: Professional HVAC ductwork design standards rely on engineering guidelines that balance airflow, pressure, and system efficiency rather than simple rule‑of‑thumb sizing.

Residential duct design in the United States is largely governed by standards created by the Air Conditioning Contractors of America (ACCA). These manuals provide structured engineering methods for HVAC system planning.

The three most important standards used together are:

1. ACCA Manual J – calculates heating and cooling loads for each room
2. ACCA Manual S – determines proper HVAC equipment sizing
3. ACCA Manual D – defines how ducts must be sized and routed

The critical point many homeowners miss is that duct design always comes after load calculations. Skipping that step often leads to oversized equipment paired with undersized ducts.

Industry organizations like ACCA and ASHRAE emphasize this process because airflow problems are one of the most common causes of HVAC inefficiency.

ACCA Manual D and Residential Duct Design

Key Insight: ACCA Manual D is the core engineering guide professionals use to calculate duct sizes and airflow requirements in residential HVAC systems.

Manual D provides a mathematical method to determine how much air each room needs and how large the duct pathways must be to deliver that airflow.

In a simplified professional workflow, designers typically follow these steps:

1. Perform Manual J room-by-room load calculations.
2. Determine total airflow requirements based on HVAC equipment capacity.
3. Assign airflow targets to each room.
4. Calculate friction rate and allowable static pressure.
5. Size each duct branch accordingly.

A key principle in Manual D is maintaining consistent airflow velocity. If ducts are too small, air becomes noisy and inefficient. If they’re too large, airflow slows and balancing becomes difficult.

This is why professional layouts rarely mirror the simple diagrams often found online.

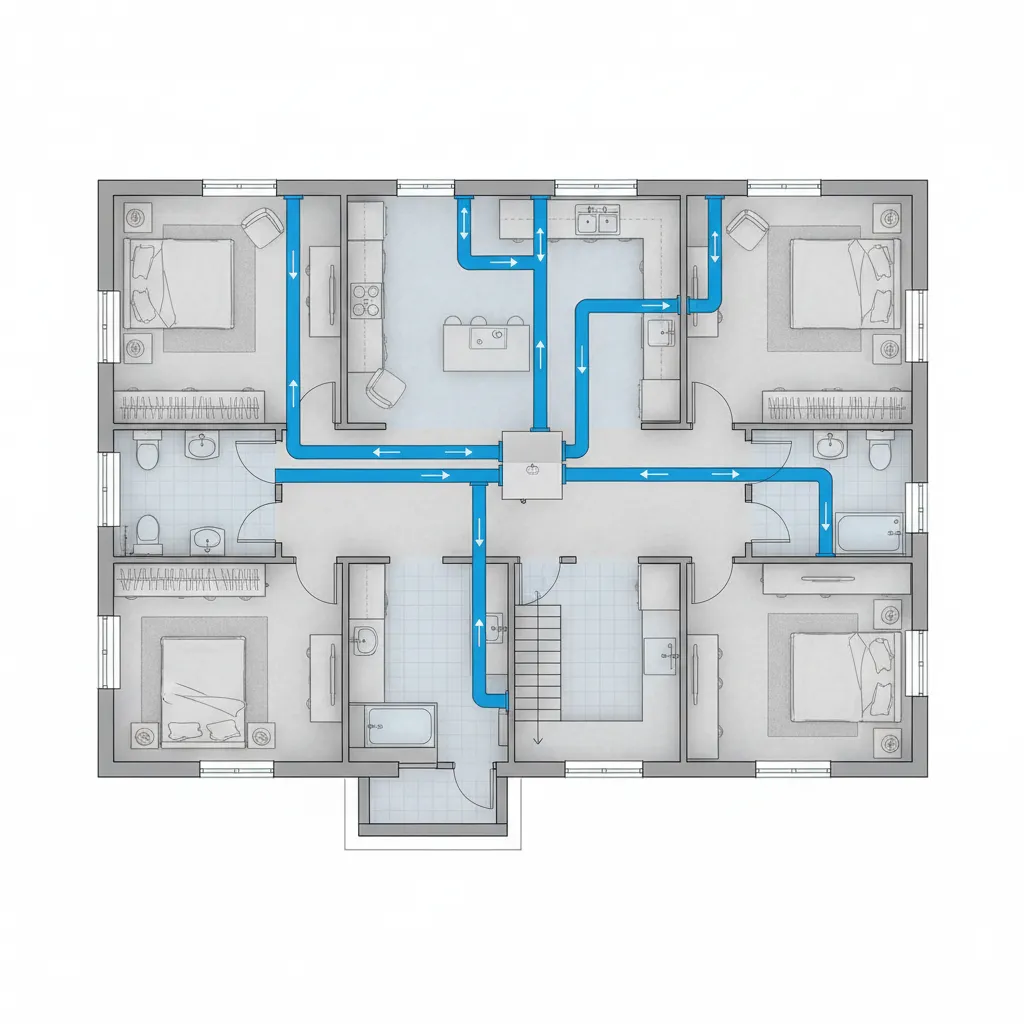

Static Pressure and Airflow Calculation Methods

Key Insight: Static pressure is the hidden variable that determines whether a duct system actually delivers the airflow it was designed for.

Every HVAC fan can only push air against a limited amount of resistance. If duct systems create too much resistance, airflow drops dramatically.

Professionals calculate this using:

1. Total External Static Pressure (TESP)
2. Friction rate per 100 feet of duct
3. Equivalent duct length including fittings

Typical residential systems are designed around static pressure limits between 0.5 and 0.8 inches of water column, depending on equipment specifications.

A common hidden mistake I see in renovation projects is excessive duct turns. Every elbow adds resistance equivalent to several feet of duct length.

Designers often map these routes visually before calculating pressure losses. Many planning workflows start with tools that help visualize mechanical routing alongside walls and structural elements, like this example of creating accurate home floor plans before routing mechanical systems.

save pin

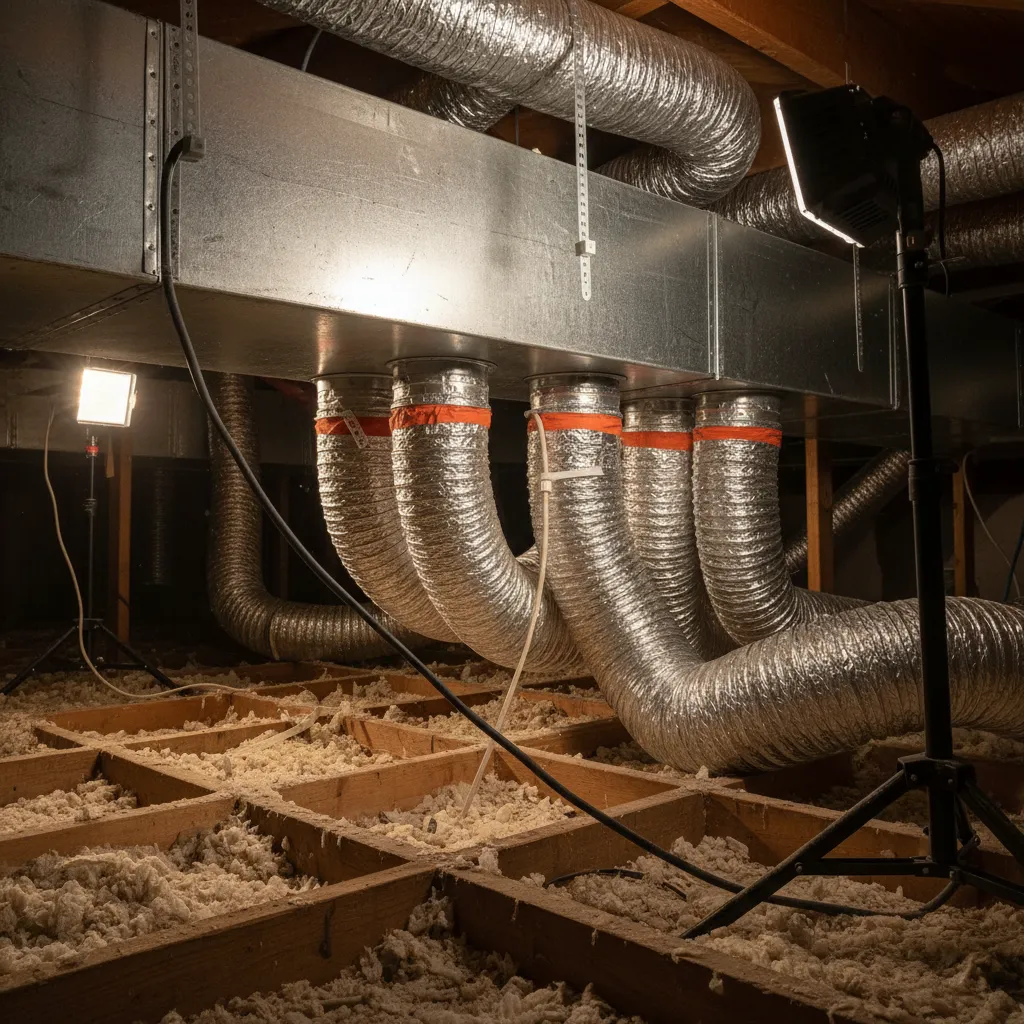

Common Materials Used in Modern Duct Systems

Key Insight: Duct material selection directly affects system efficiency, noise levels, installation cost, and long‑term durability.

Most residential HVAC systems use one of three primary duct materials.

1. Sheet metal ducts – durable, smooth airflow interior, commonly used for main trunks.
2. Flexible ducts – inexpensive and easy to install but prone to airflow restrictions if poorly supported.
3. Fiberboard ducts – insulated and quiet but less durable in humid environments.

In many professional installations, designers combine materials strategically. For example:

1. Metal trunk lines
2. Short flex branches to supply vents
3. Rigid return pathways

The reason is airflow efficiency. Long flex duct runs can reduce airflow by 20–30% if stretched poorly, according to installation guidance from ENERGY STAR HVAC design resources.

save pin

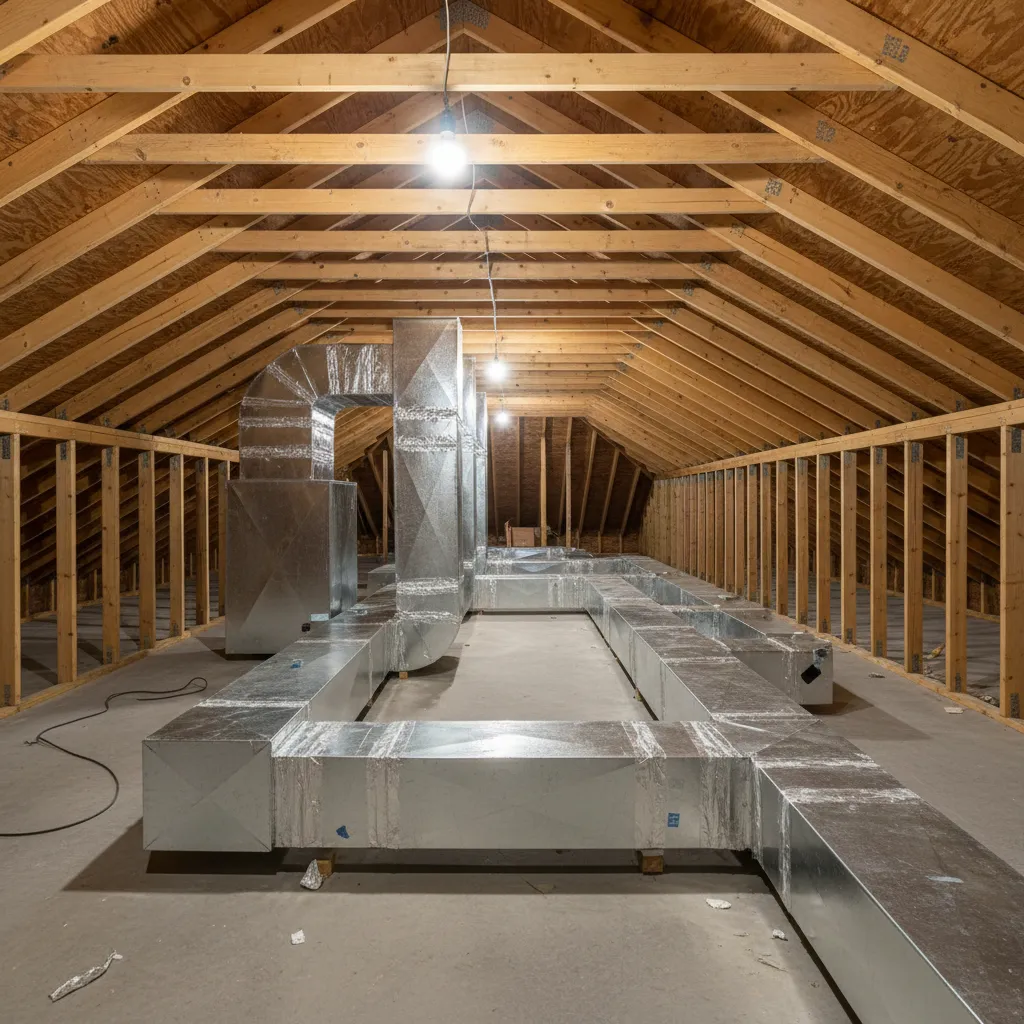

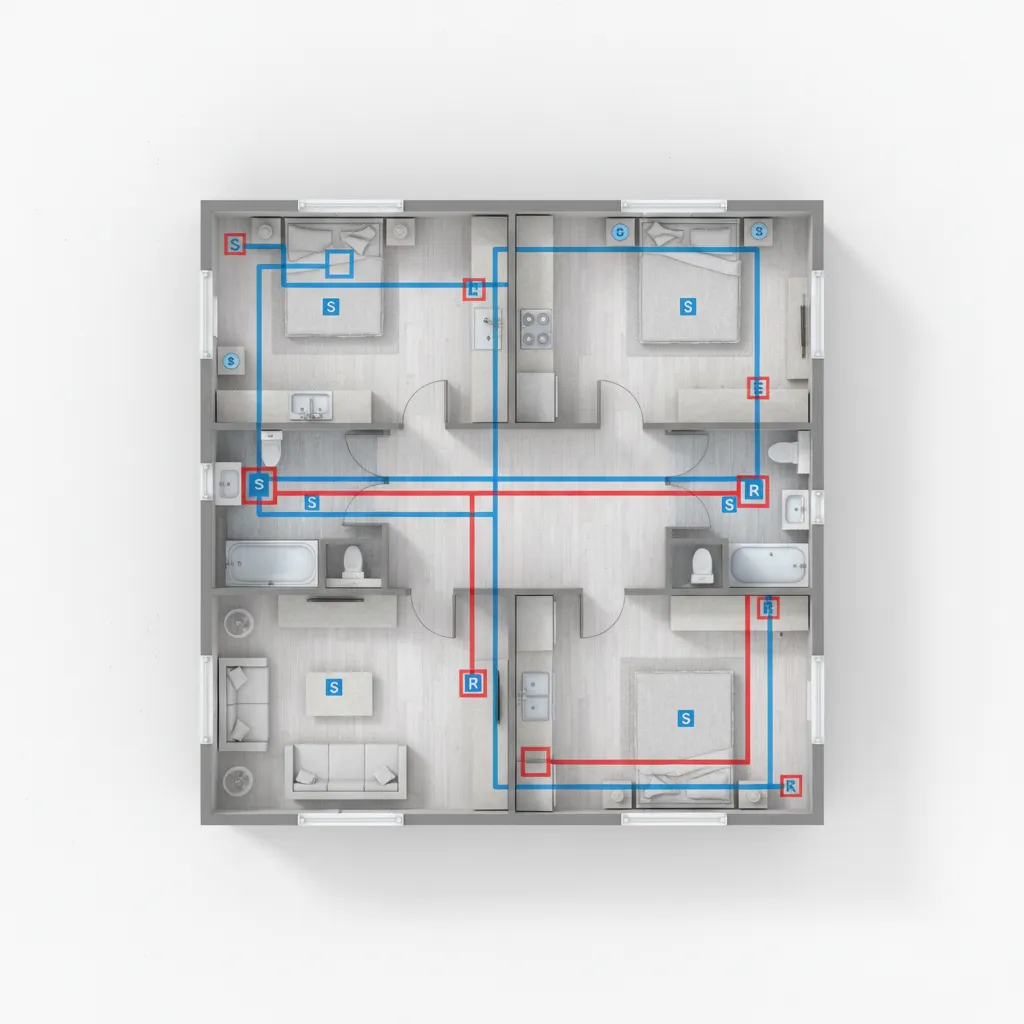

How HVAC Contractors Plan Duct Layouts

Key Insight: The best duct layouts minimize resistance while distributing air evenly across rooms.

Contractors typically choose between several layout strategies depending on the home structure.

1. Trunk and branch systems – a central trunk distributes air through smaller branches.
2. Radial systems – each room receives its own dedicated duct run.
3. Perimeter loop systems – used in some larger homes for balanced airflow.

The decision depends on:

1. Attic or crawlspace accessibility
2. Ceiling framing layout
3. Total system airflow requirements
4. Noise control considerations

Professionals rarely design ductwork in isolation. Instead, they evaluate the entire house layout, supply vent locations, and return air pathways simultaneously. Many design teams now model room airflow while planning interior layouts, similar to workflows used when visualizing room layouts with AI-assisted floor planning.

save pin

Inspection and Code Compliance for Residential Ductwork

Key Insight: Even perfectly designed ducts must meet local mechanical codes and inspection standards to ensure safety and energy efficiency.

Residential duct systems are typically regulated by:

1. International Residential Code (IRC)
2. International Mechanical Code (IMC)
3. Local building authority requirements

Inspectors usually evaluate:

1. Duct insulation levels
2. Sealing of joints and connections
3. Return air pathways
4. Fire blocking and clearance from combustibles
5. Duct leakage testing

Energy codes in many states now require sealed duct systems tested with a duct blower to ensure leakage remains below allowed thresholds.

Answer Box

Professional HVAC ductwork design standards combine ACCA Manual D calculations, static pressure limits, airflow balancing, and building code compliance. Properly designed systems prioritize airflow efficiency and room comfort rather than simple duct sizing rules.

Final Summary

1. ACCA Manual D is the foundation of residential duct design.
2. Static pressure calculations determine whether airflow targets are achievable.
3. Duct layout strategy affects efficiency and comfort across rooms.
4. Material selection influences durability and airflow performance.
5. Code inspections ensure ducts meet safety and energy standards.

FAQ

What are HVAC ductwork design standards?

HVAC ductwork design standards refer to engineering guidelines such as ACCA Manual D that determine duct sizing, airflow distribution, and static pressure limits in residential HVAC systems.

What is ACCA Manual D used for?

ACCA Manual D is used by HVAC professionals to calculate duct sizes and layouts based on airflow requirements and friction losses.

Why is static pressure important in duct design?

Static pressure measures resistance to airflow inside ducts. If pressure exceeds equipment limits, airflow decreases and comfort problems occur.

What duct materials are most common in homes?

Most homes use a combination of sheet metal trunk ducts and flexible branch ducts due to cost, airflow efficiency, and installation flexibility.

Do building codes regulate HVAC ductwork?

Yes. Most jurisdictions follow the International Residential Code and International Mechanical Code for duct insulation, sealing, and safety requirements.

How do professionals calculate residential duct design?

Professionals first perform Manual J load calculations, then use Manual D to size ducts and determine airflow paths.

Can poorly designed ducts reduce HVAC efficiency?

Yes. Undersized or poorly routed ducts can reduce airflow by 20–40%, forcing HVAC systems to run longer and consume more energy.

How do professionals design home duct systems?

They combine load calculations, airflow targets, static pressure analysis, duct material selection, and building code requirements.

References

1. ACCA Manual D Residential Duct Systems
2. ASHRAE Fundamentals Handbook
3. International Residential Code (IRC)
4. ENERGY STAR HVAC Design Guidelines
