HVAC Installation Costs for a 1600 Sq Ft Home: A realistic breakdown of system size, contractor pricing, and hidden installation costs for cooling a mid size home.

Direct Answer

The HVAC installation cost for a 1600 sq ft house typically ranges from $7,000 to $16,000 depending on system type, ductwork condition, labor rates, and efficiency level. Central air systems usually fall between $9,000 and $14,500 installed, while multi‑zone mini split systems can range from $8,000 to $16,000.

The final price depends less on square footage and more on system sizing, existing ductwork, insulation quality, and contractor labor complexity.

Quick Takeaways

1. Most 1600 sq ft homes require a 2.5 to 3 ton HVAC system.
2. Central AC installation usually costs $9,000 to $14,500 including equipment and labor.
3. Mini split systems can cost more upfront but reduce duct installation expenses.
4. Ductwork replacement alone can add $3,000 to $8,000 to installation costs.
5. Proper load calculations matter more than square footage when sizing a system.

Introduction

After working on residential design and renovation projects for more than a decade, one question comes up constantly: what is the real HVAC installation cost for a 1600 sq ft house?

Most homeowners expect a simple price per square foot. Unfortunately, HVAC doesn't work that way. I've seen two nearly identical homes differ by $6,000 in installation cost because one had aging ductwork and the other had proper attic insulation.

Before contractors even talk about equipment, they usually review layout, airflow paths, and mechanical space planning. In fact, many homeowners first map their rooms using tools similar to this interactive floor planning workflow for visualizing room layoutsto understand where ducts, vents, and air handlers might actually fit.

In this guide, I'll walk through the real numbers contractors use, the hidden costs most quotes don't explain well, and how to avoid overspending while still installing a properly sized system.

save pin

Typical HVAC System Sizes for a 1600 Sq Ft Home

Key Insight: Most 1600 sq ft homes need a 2.5 to 3 ton cooling system, but insulation, climate, and ceiling height can change that recommendation.

In HVAC terms, system size refers to cooling capacity rather than the physical size of the unit. One ton equals roughly 12,000 BTUs of cooling power.

Based on typical Manual J load calculations used by contractors, the estimates often look like this:

1. 1,400–1,600 sq ft well insulated home: 2.5 ton system
2. 1,600 sq ft average insulation: 3 ton system
3. Older or hot climate homes: 3–3.5 ton system

A common mistake I see during renovations is oversizing the system. Many installers assume bigger equals better cooling, but oversized HVAC systems short cycle, waste energy, and fail to remove humidity properly.

The Air Conditioning Contractors of America (ACCA) recommends Manual J calculations before selecting equipment, which analyze insulation levels, windows, orientation, and occupancy.

save pin

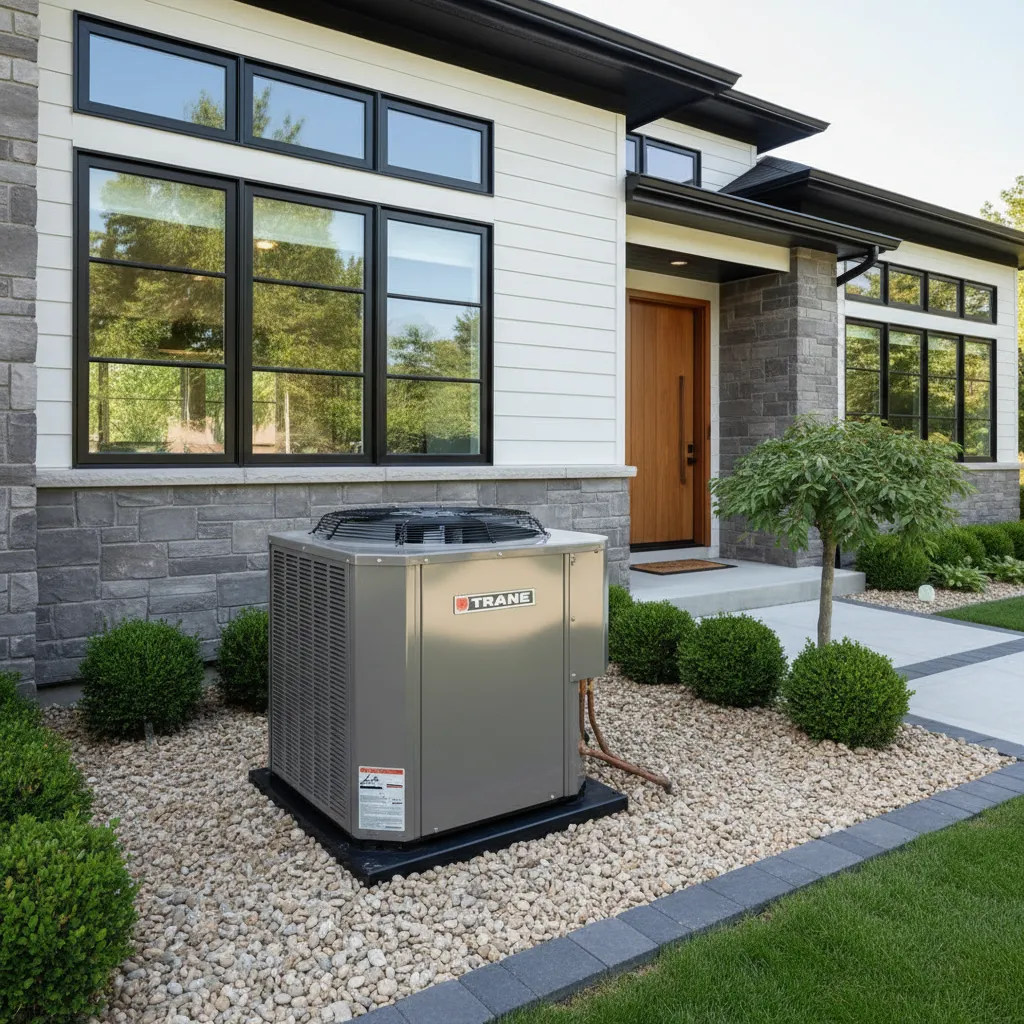

Average Installation Cost for Central AC Systems

Key Insight: Central air conditioning systems for a 1600 sq ft house typically cost $9,000 to $14,500 installed depending on equipment efficiency and duct condition.

Central AC remains the most common solution for mid‑size homes because it integrates with existing duct systems.

Typical price breakdown:

1. AC condenser and coil: $3,500 – $7,000
2. Air handler or furnace integration: $1,500 – $4,000
3. Labor and installation: $2,500 – $5,000
4. Permits and electrical upgrades: $300 – $1,200

Higher efficiency systems with SEER2 ratings above 17 can add $1,500–$3,000 but reduce long‑term operating costs.

According to the U.S. Department of Energy, heating and cooling account for about 50% of home energy use, which is why equipment efficiency plays such a large role in lifetime cost.

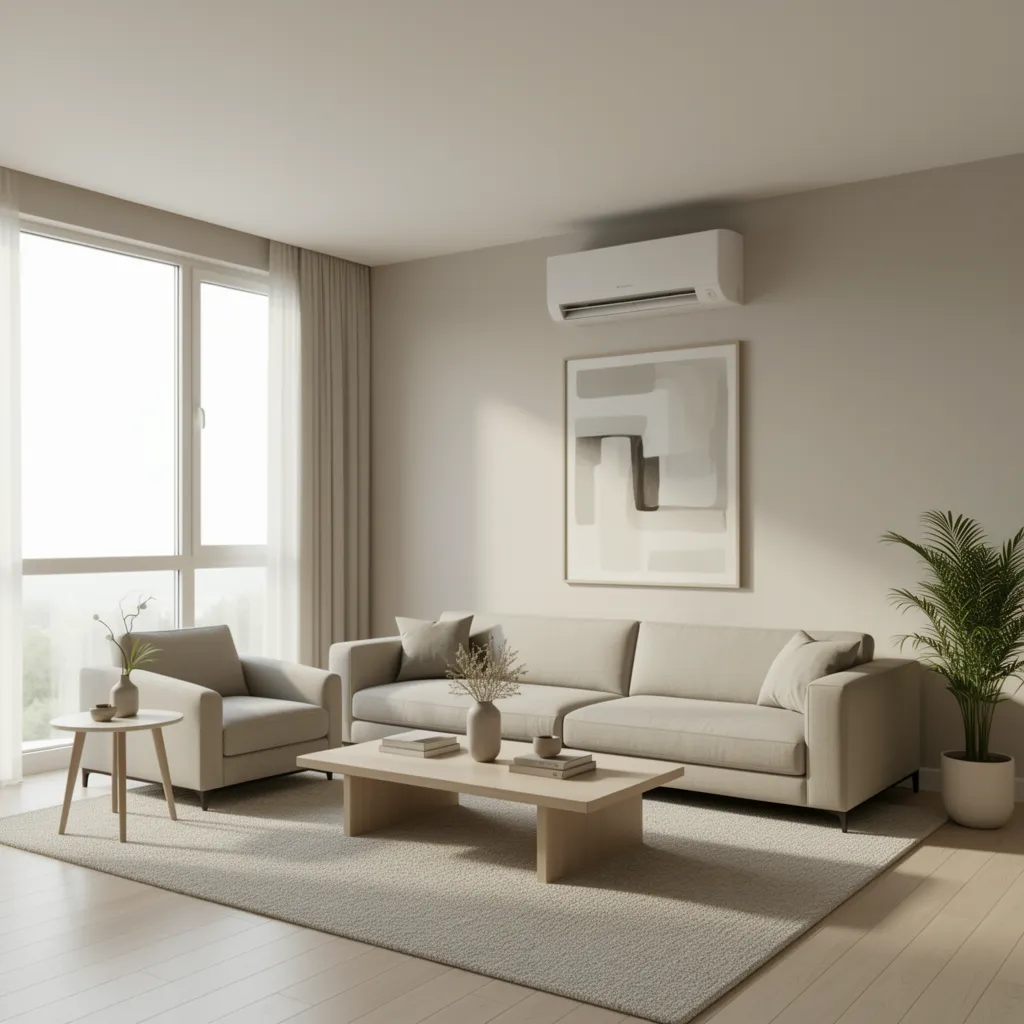

Mini Split Installation Pricing for Medium Homes

Key Insight: Mini split systems often cost similar to central air overall, but the price shifts from ductwork toward multiple indoor units.

For a 1600 sq ft house, contractors usually install three to five indoor air handlers connected to one outdoor compressor.

Typical cost range:

1. Single outdoor condenser: $3,000 – $5,500
2. Indoor wall units: $900 – $1,800 each
3. Installation labor and refrigerant lines: $3,000 – $6,000

Total installation cost often lands between $8,000 and $16,000 depending on zone count.

One overlooked advantage is layout flexibility. During remodeling projects, homeowners often visualize different room zones using tools similar to this interactive room design visualization process for planning layoutsto decide where indoor units can be installed without disrupting furniture placement.

save pin

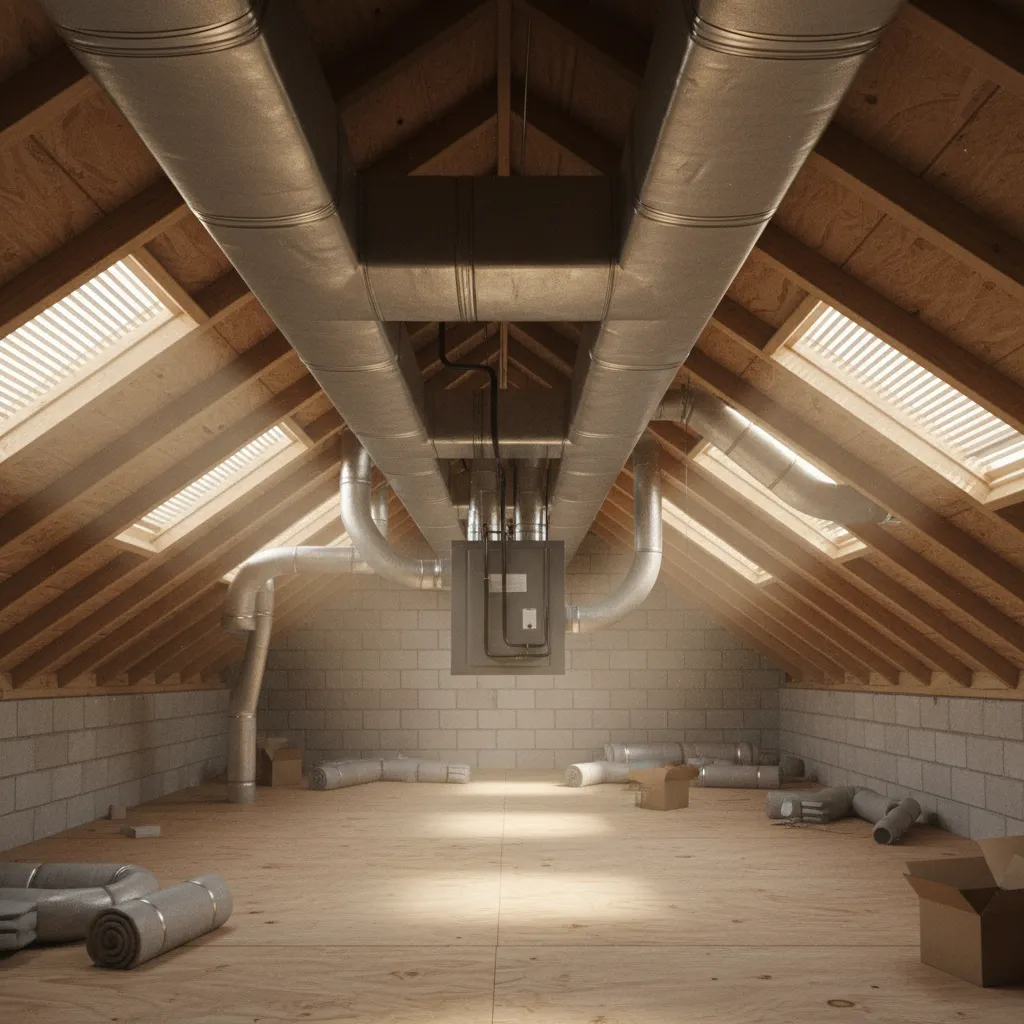

Labor, Ductwork, and Additional Installation Costs

Key Insight: Hidden infrastructure costs often represent 30% to 50% of the total HVAC installation price.

Equipment is only part of the bill. Labor complexity, duct condition, and electrical upgrades frequently determine the final invoice.

Common additional costs include:

1. Duct replacement: $3,000 – $8,000
2. Attic duct insulation: $800 – $2,000
3. Electrical panel upgrade: $1,000 – $3,000
4. Thermostat upgrade: $150 – $600
5. Permit and inspection fees: $200 – $800

In older homes, deteriorated ductwork is the biggest hidden cost. I've seen projects where replacing leaky ducts improved efficiency by nearly 25% according to contractor airflow testing.

How Contractors Calculate HVAC System Requirements

Key Insight: Professional HVAC estimates rely on load calculations, airflow modeling, and duct layout analysis rather than simple square‑foot formulas.

Contractors typically follow this process:

1. Measure total conditioned space
2. Analyze insulation and window efficiency
3. Calculate heat gain using Manual J formulas
4. Determine duct sizing with Manual D guidelines
5. Select system capacity and airflow design

Layout planning plays a surprisingly big role in HVAC efficiency. For example, supply vent placement and return air positioning affect circulation patterns. Many design teams preview this using 3D visualization tools similar to this high quality home rendering workflow for testing room layoutsbefore final mechanical installation.

save pin

Answer Box

The typical HVAC installation cost for a 1600 sq ft house ranges from $7,000 to $16,000 depending on system type, efficiency level, ductwork condition, and labor complexity. Central AC averages $9,000–$14,500 installed, while multi‑zone mini splits often cost $8,000–$16,000.

Ways to Reduce Installation Costs Without Sacrificing Quality

Key Insight: The cheapest HVAC quote is rarely the best value; smart planning usually saves more than choosing the lowest contractor bid.

Based on projects I've reviewed, these strategies consistently reduce costs:

1. Schedule installation during spring or fall off‑season
2. Upgrade insulation before increasing HVAC size
3. Keep existing ducts if airflow tests show they are sealed properly
4. Install programmable or smart thermostats for efficiency
5. Request Manual J load calculations from contractors

A surprisingly common mistake is replacing a system before addressing insulation leaks. Fixing attic insulation often allows homeowners to install a smaller and less expensive HVAC system.

Final Summary

1. A 1600 sq ft home usually needs a 2.5–3 ton HVAC system.
2. Central AC installation averages $9,000–$14,500.
3. Mini split systems typically cost $8,000–$16,000.
4. Ductwork replacement can add $3,000–$8,000.
5. Manual load calculations ensure proper system sizing.

FAQ

How much does HVAC installation cost for a 1600 sq ft house?

Most installations range from $7,000 to $16,000 depending on system type, efficiency level, ductwork condition, and labor complexity.

What size HVAC system is needed for a 1600 sq ft home?

Most homes require a 2.5 to 3 ton system, though insulation quality, ceiling height, and climate zone affect the final recommendation.

Is a mini split cheaper than central air?

Not always. Mini splits avoid duct installation but require multiple indoor units, which can make total costs similar to central AC.

Why do HVAC quotes vary so much?

Contractors factor in ductwork condition, electrical capacity, insulation levels, system efficiency, and installation difficulty.

Can I install HVAC without replacing ducts?

Yes, if the ducts are sealed and properly sized. Contractors usually perform airflow testing before deciding.

How long does HVAC installation take?

Most residential installations take one to three days depending on ductwork changes and system complexity.

Does HVAC efficiency affect installation cost?

Yes. Higher SEER2 systems cost more initially but reduce long‑term energy consumption.

Should I replace my furnace when installing AC?

If the furnace is older than 15 years, many contractors recommend replacing both systems simultaneously.

References

1. U.S. Department of Energy Heating and Cooling Guide
2. Air Conditioning Contractors of America Manual J Standards
3. ENERGY STAR Residential HVAC Efficiency Guidelines
