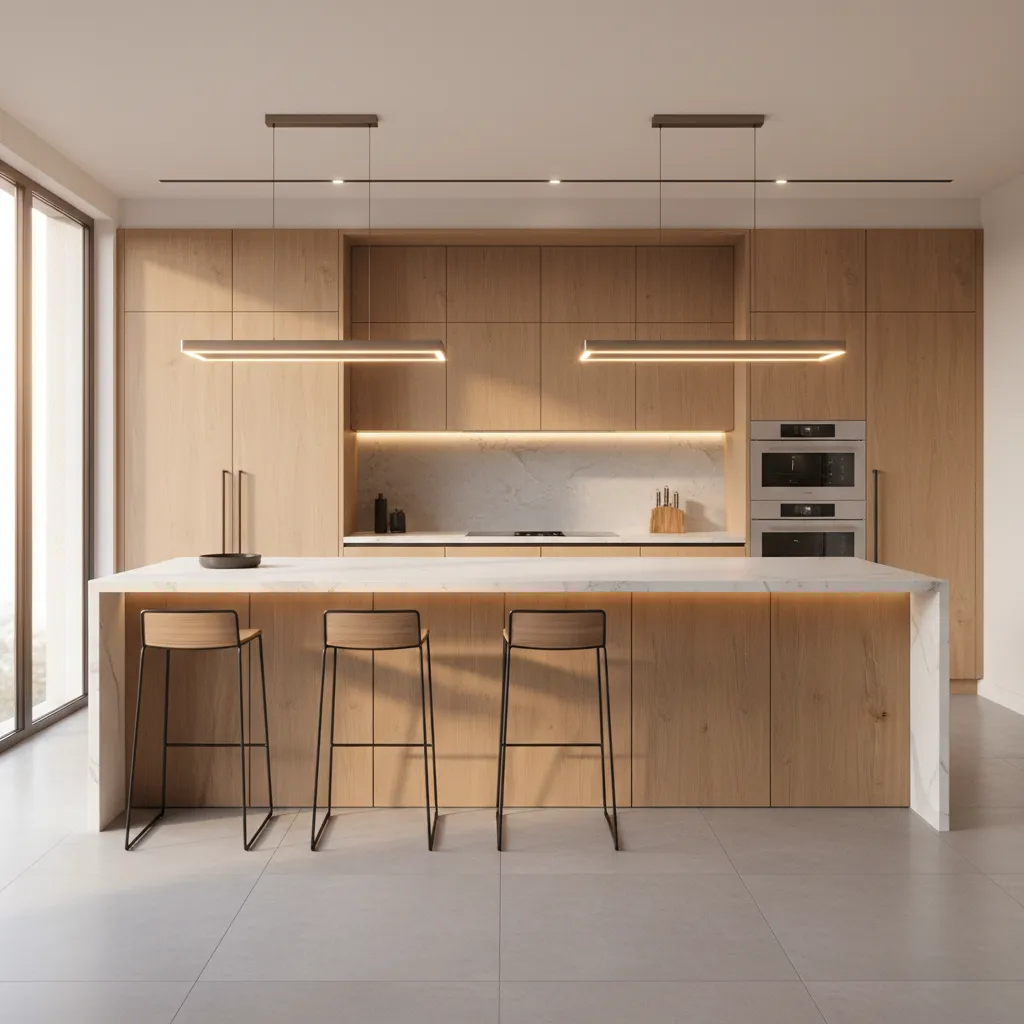

Ideal Dimensions for Kitchen Island End Seating: Practical measurements and layout rules that make kitchen island end seating comfortable and functional

Direct Answer

The ideal kitchen island end seating dimensions typically include a 12–15 inch countertop overhang, about 24 inches of width per seat, and seating height matched to the island height. These measurements allow comfortable legroom, proper stool spacing, and natural movement around the island.

When designed correctly, end seating works well in both large and compact kitchens, but small mistakes in spacing or stool sizing can quickly make the setup uncomfortable.

Quick Takeaways

1. Plan at least 24 inches of width for each seat at the island end.
2. A 12–15 inch countertop overhang is the minimum for comfortable knee space.
3. Leave 6–10 inches between stools to avoid cramped seating.
4. Match stool height to island height for proper posture and usability.
5. Clearance behind stools should be at least 36 inches for traffic flow.

Introduction

After working on dozens of kitchen renovations, I can tell you that getting kitchen island end seating dimensions right is one of those details that separates a beautiful kitchen from one that actually works every day.

Homeowners often assume that if a stool fits under the counter, the design works. In reality, comfort depends on several precise measurements: overhang depth, seat width, stool height, and traffic clearance behind the island.

I've seen expensive kitchens where the seating area looked great but nobody wanted to sit there. Knees hit cabinets, stools bump into each other, or the walkway behind the island becomes a traffic jam.

If you're planning an island layout, it helps to visualize the entire kitchen first. Many designers use tools that allow you to experiment with different kitchen layouts before building, which quickly reveals whether seating will actually work in the available space.

In this guide I'll walk through the measurements professionals use, common mistakes people overlook, and how to adjust dimensions for smaller kitchens.

save pin

Standard Height for Kitchen Island Seating

Key Insight: The most comfortable island seating happens when stool height is matched precisely to the island counter height.

Most kitchen islands follow one of three standard heights. The seat height must align with the counter so that users have roughly 10–12 inches between the seat and countertop.

1. 36 inch island (counter height): 24–26 inch stool height
2. 42 inch island (bar height): 28–30 inch stool height
3. 30 inch island (table height): 18 inch chair height

In my projects, counter-height islands at 36 inches remain the most practical because they integrate seamlessly with surrounding counters. Bar-height islands used to be popular, but many homeowners now prefer one continuous surface for prep work.

The National Kitchen and Bath Association (NKBA) also recommends maintaining roughly a 12 inch difference between seat height and countertop height for ergonomic comfort.

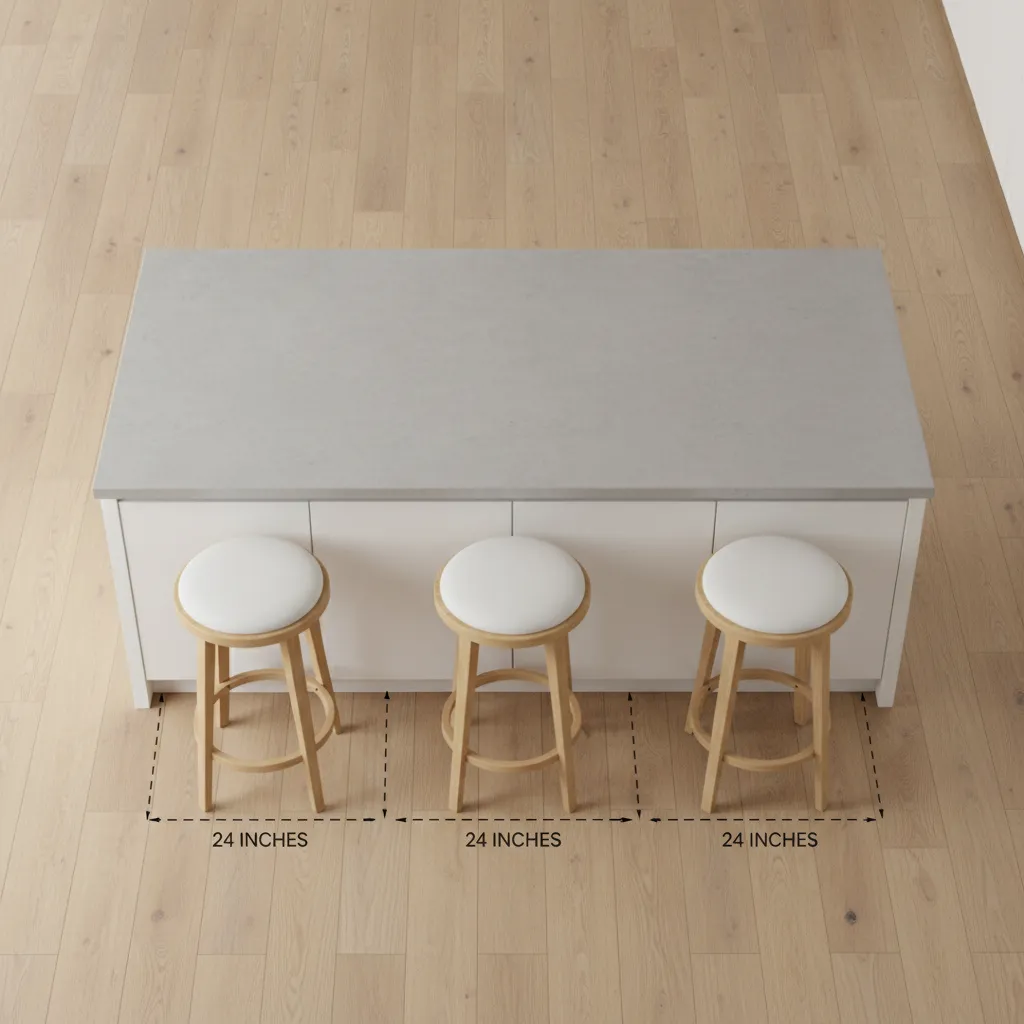

Recommended Width Per Seat

Key Insight: Each person needs about 24 inches of width to sit comfortably at the island end.

This measurement is one of the most commonly ignored design rules. When seating looks cramped in finished kitchens, it’s usually because the designer squeezed in too many stools.

Typical spacing guidelines:

1. Minimum width per stool: 24 inches
2. Comfortable width: 26–30 inches
3. Family seating areas: closer to 30 inches per seat

For example:

1. 48 inch island end → 2 seats maximum
2. 60 inch island end → 2 comfortable seats or 3 tight seats
3. 72 inch island end → 3 comfortable seats

A useful trick I recommend during planning is to physically mark these widths with tape on the floor. Clients are often surprised how much space each person actually needs.

save pin

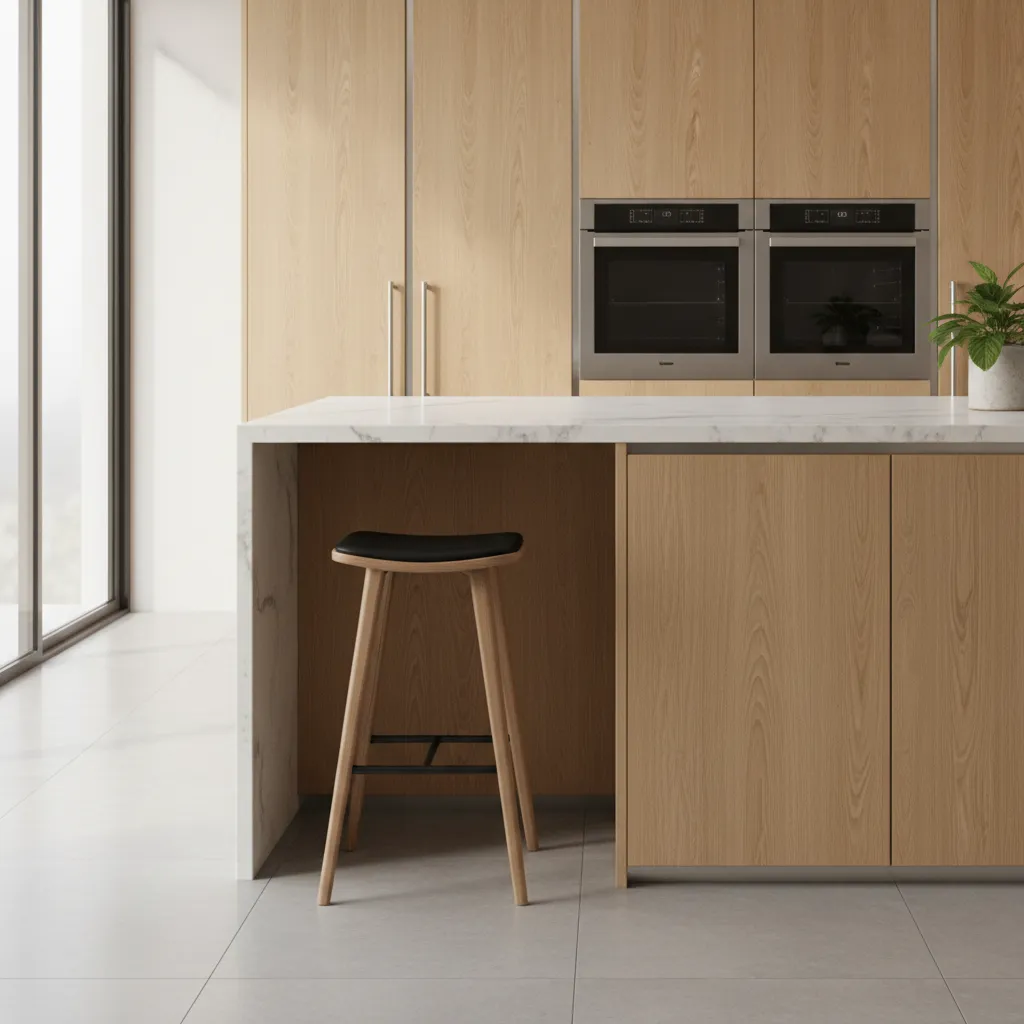

Overhang Requirements for Comfortable Seating

Key Insight: Without enough overhang, even perfectly spaced stools will feel awkward because there’s nowhere for knees to go.

The countertop must extend beyond the cabinet base to create knee clearance. This is one of the most critical dimensions for kitchen island end seating.

1. 12 inches: absolute minimum
2. 15 inches: comfortable seating depth
3. 18 inches: best for long seating sessions

However, deeper overhangs usually require structural support such as brackets or concealed steel supports inside the countertop.

According to NKBA guidelines, once an overhang exceeds 12 inches, support brackets are typically recommended to prevent sagging over time.

One hidden mistake I see frequently is installing thick waterfall countertops without planning the seating clearance first. Beautiful stone edges can unintentionally eliminate knee space.

Stool Size and Spacing Considerations

Key Insight: Stool dimensions often determine the real seating capacity more than the island width itself.

Many homeowners pick stools after the island is built, which can create spacing problems. Instead, I recommend choosing stool dimensions during the planning phase.

Typical stool measurements:

1. Seat width: 16–20 inches
2. Seat depth: 15–18 inches
3. Backrest depth: adds 2–4 inches

Spacing recommendations:

1. Leave 6–10 inches between stools
2. Allow 12 inches behind seated users for movement
3. Maintain 36–44 inches walkway clearance behind stools

If you're testing layouts digitally, it helps to visualize stool spacing in a realistic 3D floor plan. This reveals traffic flow issues before construction begins.

save pin

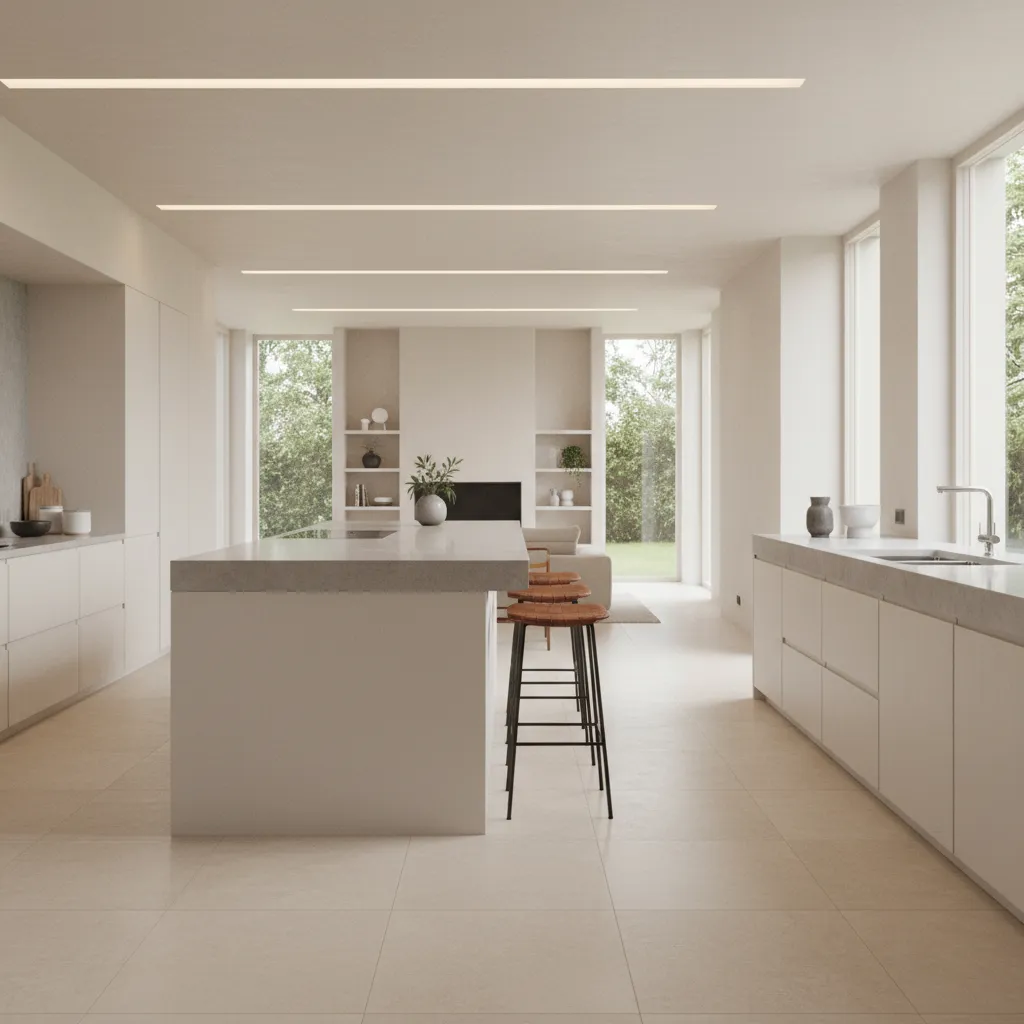

How Much Clearance Is Needed Behind Island Seating

Key Insight: Traffic clearance behind stools matters just as much as the seating dimensions themselves.

Even a perfectly sized island becomes frustrating if people cannot walk behind seated guests.

Recommended clearance guidelines:

1. 36 inches: minimum walkway
2. 42 inches: comfortable circulation
3. 48 inches: ideal in busy family kitchens

In open‑plan homes where the island faces a living area, I usually aim for at least 42 inches. This allows someone to pass behind a seated person without awkward sidestepping.

This spacing also prevents one of the most overlooked issues in kitchen design: the "traffic trap," where people cutting through the kitchen constantly bump into seated guests.

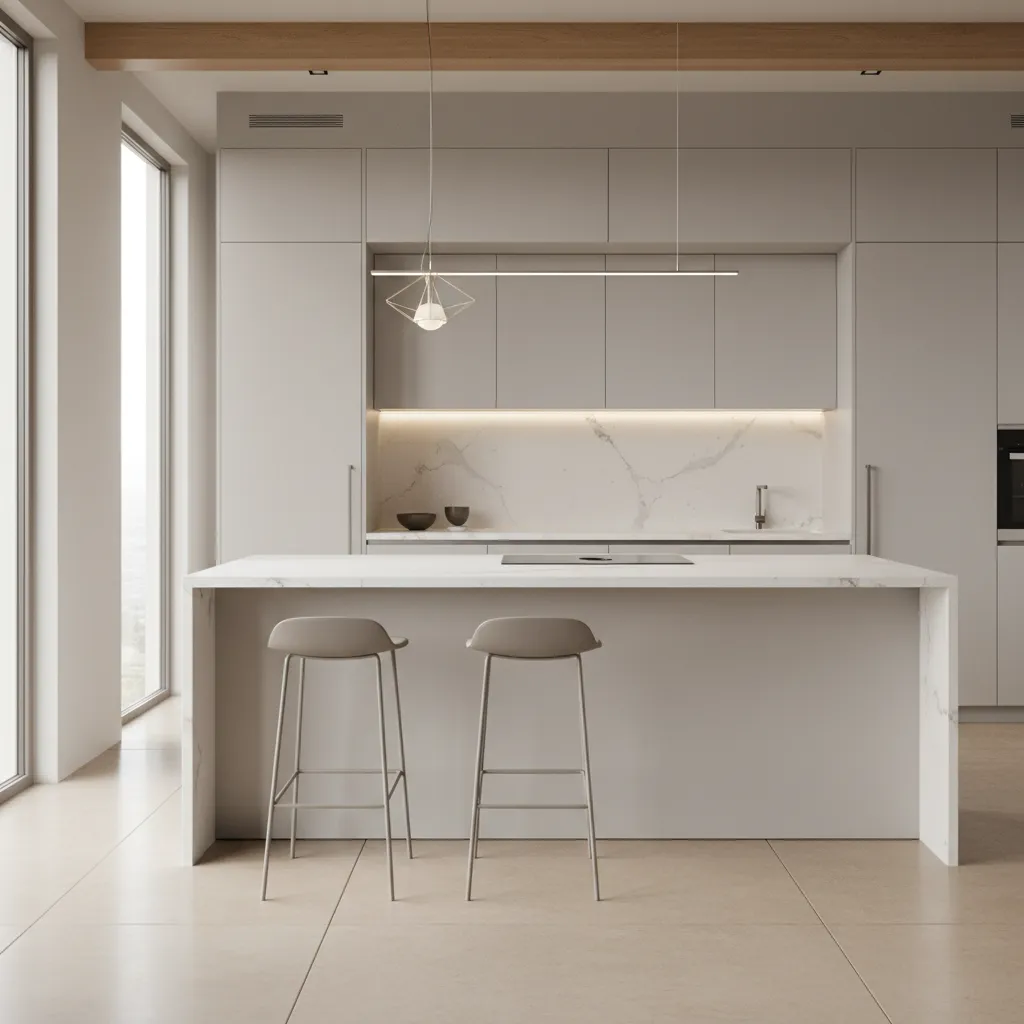

Adjusting Dimensions for Small Kitchens

Key Insight: In compact kitchens, reducing seat count often creates a better layout than shrinking seating dimensions.

Trying to squeeze three seats into a small island usually backfires. Instead, a two-seat layout with proper spacing feels dramatically better.

Smart adjustments for smaller kitchens include:

1. Use backless stools that slide fully under the counter
2. Choose 12 inch overhang rather than deeper extensions
3. Limit seating to two stools when island width is under 60 inches
4. Position seating at the island end rather than along the side

If you're unsure whether seating will work in a tight kitchen footprint, it's helpful to test multiple kitchen island layouts before committing. Even small layout adjustments can free up valuable circulation space.

save pin

Answer Box

The most comfortable kitchen island end seating uses 24 inches of width per seat, 12–15 inches of countertop overhang, and stools sized correctly for the island height. Adequate walkway clearance behind the stools—at least 36 inches—is equally important for usability.

Final Summary

1. Plan 24 inches of seating width per person.
2. Allow 12–15 inches of countertop overhang for knee space.
3. Match stool height carefully to island height.
4. Maintain at least 36 inches clearance behind seating.
5. In small kitchens, fewer seats usually create better comfort.

FAQ

What are standard kitchen island end seating dimensions?

Most layouts allow 24 inches of width per seat and 12–15 inches of countertop overhang with stools sized for a 36 inch counter.

How much overhang do you need for island seating?

A minimum of 12 inches is required, but 15 inches is typically more comfortable for knees and seated posture.

Can two stools fit on a 48 inch island?

Yes. A 48 inch island end usually fits two stools comfortably if each seat receives about 24 inches of space.

How far apart should kitchen island stools be?

Leave 6–10 inches between stools to avoid bumping elbows while seated.

What height stools work for a 36 inch island?

Counter stools around 24–26 inches high provide proper seating clearance.

Is end seating better than side seating?

End seating often works better in smaller kitchens because it keeps walkways clear along the island sides.

How much clearance should be behind island stools?

At least 36 inches is recommended, though 42 inches is more comfortable in busy kitchens.

What is the ideal width for kitchen island seating?

The ideal width for kitchen island seating is about 24–30 inches per person depending on comfort preference.

References

1. National Kitchen and Bath Association Kitchen Planning Guidelines
2. Architectural Graphic Standards Interior Layout Recommendations
3. American Society of Interior Designers Residential Design Practices
