Import Floor Plan into Design Tool for Free: A Step-by-Step Guide to Using Floor Plans in Design Tools

Direct Answer

You can import a floor plan into a design tool for free by uploading an image or PDF into platforms like Floorplanner, Planner 5D, Roomstyler, or SketchUp Free. Most tools allow you to scale the drawing, trace walls, and convert the plan into a fully editable digital layout within minutes.

The key step is using the floor plan as a background reference, setting the correct scale, and tracing the structural elements such as walls, doors, and windows.

Quick Takeaways

1. Most free design tools support JPG, PNG, or PDF floor plan uploads.
2. Setting the correct scale is the most important step after uploading.
3. Tracing walls manually usually produces more accurate layouts than auto‑conversion.
4. Clean floor plan images import faster and reduce alignment errors.
5. Even free tools can generate professional 2D layouts and basic 3D previews.

Introduction

Over the past decade working as an interior designer, one of the most common requests I hear from homeowners and DIY renovators is surprisingly simple: how do you import a floor plan into a design tool for free?

People usually already have something—a scanned blueprint, a real estate floor plan, or even a photo of a sketch. But turning that into a digital layout they can edit is where things get confusing.

In professional studios we use advanced CAD software, but for most homeowners that level of software is unnecessary and expensive. The good news is that modern browser‑based tools make it easy to upload a floor plan, trace it, and start designing almost immediately.

After helping dozens of clients recreate their homes digitally, I’ve noticed a few techniques that dramatically improve accuracy and save hours of frustration. I’ll walk through those here.

save pin

How Do Free Design Tools Accept Floor Plans?

Key Insight: Most free interior design tools import floor plans as background images rather than editable drawings.

This is a detail many tutorials miss. When you import a floor plan into a design tool for free, the software typically does not automatically convert walls and doors into objects. Instead, the plan becomes a reference layer that you trace.

From my experience, this manual tracing step actually produces more accurate results than auto‑conversion tools, which often misread walls or ignore structural thickness.

Common supported formats:

1. JPG or PNG images
2. PDF architectural plans
3. Scanned blueprints
4. Photos of hand‑drawn layouts

Typical import workflow:

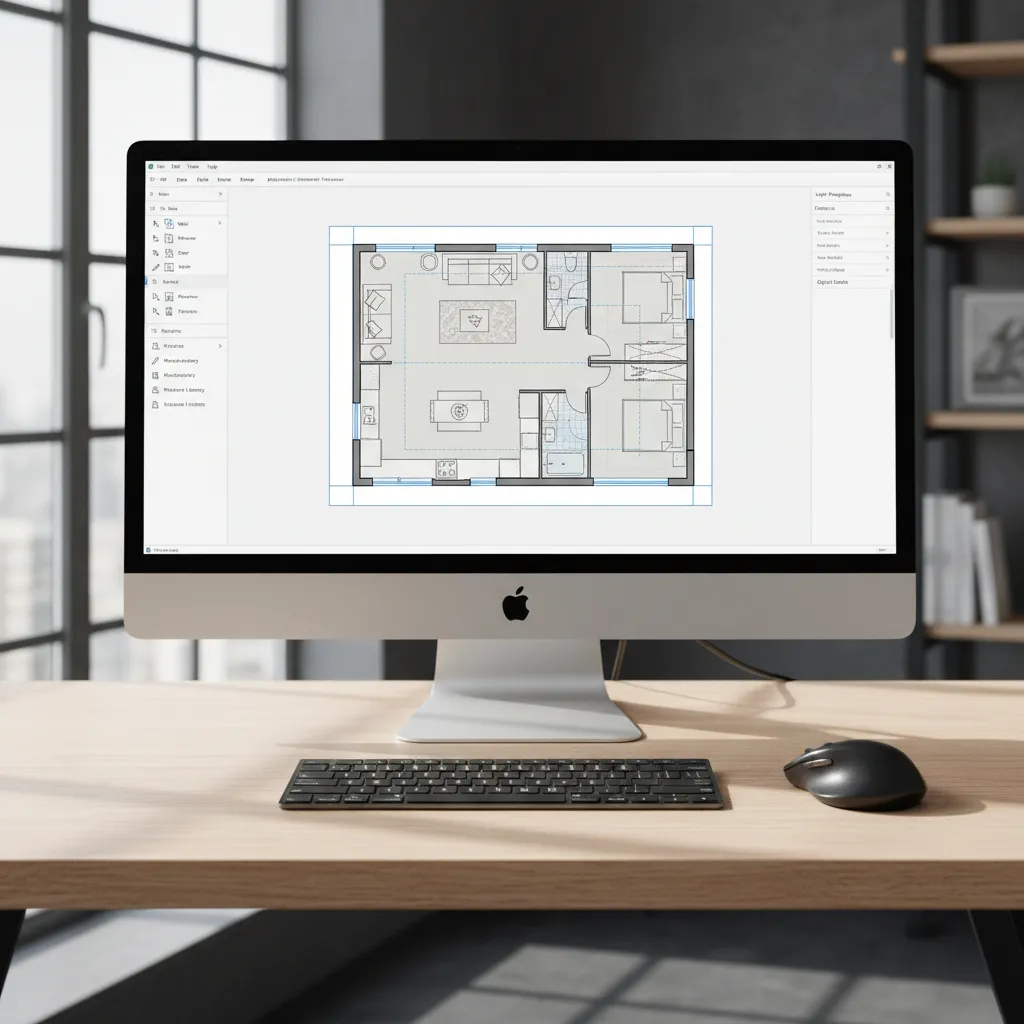

1. Upload the floor plan image.
2. Place it on the canvas as a background layer.
3. Set a real‑world scale using a known wall measurement.
4. Trace walls and structural elements.
5. Hide or lower the opacity of the original plan.

Tools that support this workflow include Planner 5D, Floorplanner, SketchUp Free, and Roomstyler.

Which Free Tools Work Best for Importing Floor Plans?

Key Insight: The best free design tools balance easy uploads, accurate scaling, and simple wall tracing.

After testing many tools with clients, a few consistently perform well for importing floor plans.

Recommended options:

1. Floorplanner – extremely beginner‑friendly and excellent for quick layouts.
2. Planner 5D – great for visualizing furniture and simple 3D scenes.
3. SketchUp Free – more powerful modeling once the plan is traced.
4. Roomstyler – ideal for quick room concepts.

Industry trend: browser‑based design platforms have improved dramatically. According to SketchUp’s public product documentation, their web‑based modeler now handles most basic layout tasks without installing software.

save pin

How to Import a Floor Plan Into a Design Tool Step by Step

Key Insight: The accuracy of your digital layout depends almost entirely on correct scaling during import.

Here is the workflow I typically recommend to homeowners recreating their house digitally.

Step‑by‑step process:

1. Prepare a clean floor plan image.
2. Upload the image into your chosen design tool.
3. Set a scale reference using a known dimension.

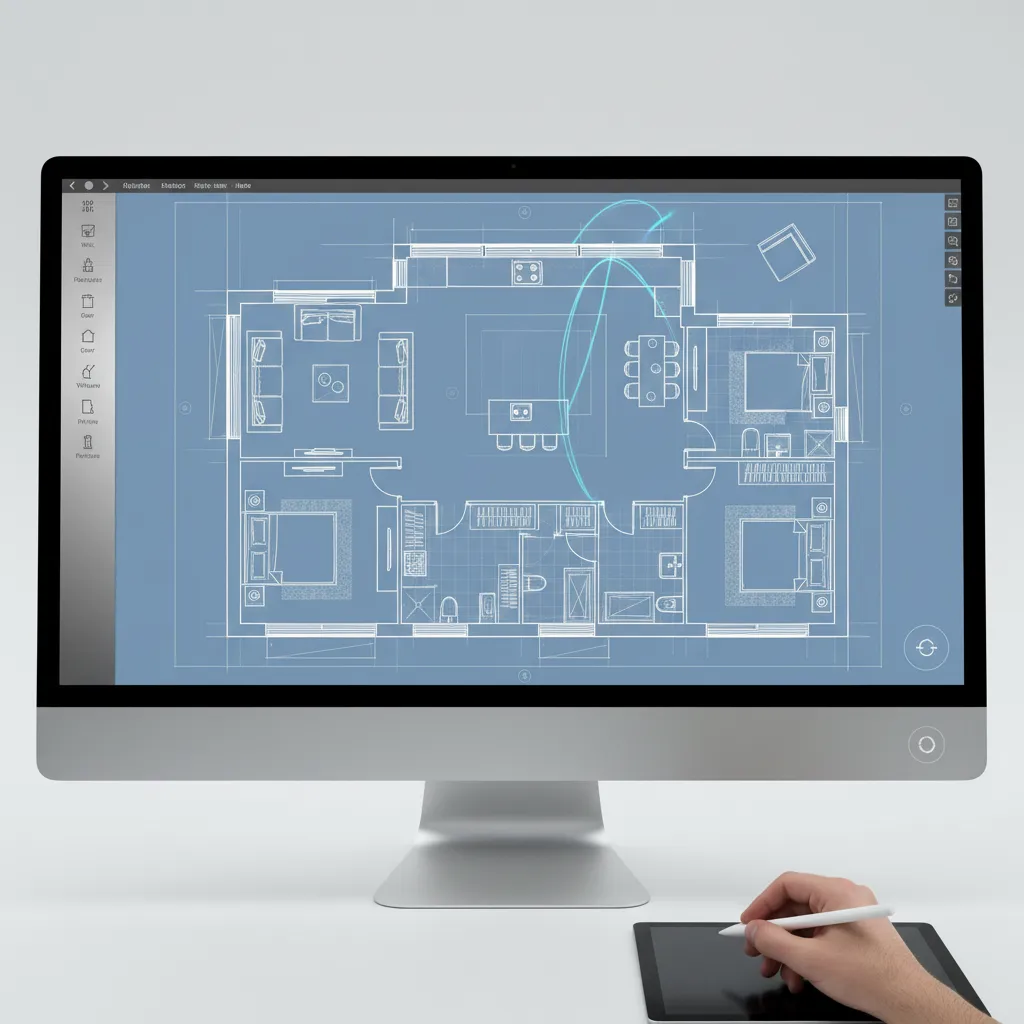

4. Trace the perimeter walls first.
5. Add interior walls, doors, and windows.
6. Place furniture after the structure is complete.

Pro tip from real projects: always trace the exterior walls first. If the outer structure is wrong, every interior measurement will compound the error.

save pin

Why Scaling Errors Ruin Most Imported Floor Plans

Key Insight: Incorrect scale settings are the most common mistake when importing a floor plan.

Even a small scaling mistake can distort the entire layout. I have seen homeowners spend hours designing a room only to realize the sofa doesn’t actually fit.

Typical causes of scaling problems:

1. Using approximate measurements
2. Floor plan images stretched during scanning
3. Incorrect reference wall length
4. Low‑resolution images

Quick fix checklist:

1. Choose a long wall as your scale reference
2. Verify dimensions twice
3. Use architectural plans when available
4. Avoid compressed or blurry images

Architectural drafting standards from organizations like the American Institute of Architects emphasize consistent scaling because even small deviations distort planning decisions.

What Type of Floor Plan Image Works Best?

Key Insight: Clean, high‑contrast floor plans dramatically improve import accuracy.

Before uploading, spend a few minutes cleaning the image if necessary.

Best image characteristics:

1. High resolution (at least 1500px wide)
2. Clear wall lines
3. Minimal background shading
4. Orthographic top‑down view

If the only thing you have is a photo from a real estate listing, consider quickly editing it in a basic image editor to increase contrast. This small step can save significant tracing time.

Hidden Limitations of Free Floor Plan Import Tools

Key Insight: Free design tools work well for layout planning but often limit export quality and advanced modeling.

This is something many beginners discover late in the process.

Common limitations:

1. Limited high‑resolution exports
2. Restricted 3D rendering features
3. Object libraries behind paywalls
4. Project count limits

That said, for early planning and layout experimentation, free tools are more than capable. Many professional designers—including myself during quick concept stages—still use lightweight web tools because they are simply faster.

Answer Box

The easiest way to import a floor plan into a design tool for free is to upload the plan as an image, set an accurate scale using a known wall length, and trace the layout with wall tools. Clean images and correct scaling make the biggest difference in accuracy.

Final Summary

1. Importing a floor plan usually means tracing over a background image.
2. Accurate scaling is the most critical step.
3. Clean, high‑resolution plans improve tracing speed.
4. Free tools work well for layout design and early planning.
5. Most limitations appear only during exporting or advanced rendering.

FAQ

Can I import a floor plan into a design tool for free?

Yes. Many design platforms allow free uploads of JPG, PNG, or PDF floor plans that you can trace and convert into editable layouts.

What file types work best when importing floor plans?

JPG, PNG, and PDF are the most widely supported formats across online interior design tools.

Do free tools automatically convert floor plans into walls?

Usually no. Most platforms use the plan as a reference layer that you trace manually.

What is the easiest tool to import a floor plan?

Floorplanner and Planner 5D are among the easiest platforms for beginners.

How do I scale a floor plan correctly?

Choose a known wall length in the drawing and set that measurement as the scale reference in the tool.

Can I import a hand drawn floor plan?

Yes. As long as the image is clear and proportional, you can trace over it inside the design software.

Why does my digital layout look inaccurate?

Most inaccuracies come from incorrect scaling or distorted floor plan images.

Is it possible to design a full house layout using free tools?

Yes. Many users successfully recreate entire homes using free online design tools before renovation or furniture planning.
