Indian Courtroom Images: Visual Guide for Authentic Legal Spaces: 1 Minute to Spot Key Elements of Indian Courtroom Images

I’ve spent more than a decade designing public interiors and institutional spaces, and courtrooms sit at a unique intersection of authority, accessibility, and ritual. When building a visual library of Indian courtroom images—or planning sets and real spaces—the goal is not just aesthetic accuracy but behavioral fidelity: the room must channel order, clarity, and respect. In practical terms, that means documenting proportional relationships between dais, counsel tables, public seating, and circulation paths, while managing light, acoustics, and material cues that signal gravitas.

Two data points reinforce how environmental control affects perceived legitimacy and performance. WELL v2 recommends task illuminance around 300–500 lux for general administrative functions, with higher levels for detailed tasks; that range informs reading comfort for judges, stenographers, and clerks (wellcertified.com). Steelcase research has shown that workplace performance is positively impacted by environments that manage glare and provide visual comfort, noting that lighting quality significantly shapes cognitive load and sustained attention (steelcase.com/research). These references guide what an authentic courtroom should feel like—calm, visually legible, and glare-free.

From a color psychology standpoint, neutral palettes with warm undertones can reduce stress and maintain attentional focus. Verywell Mind’s overview on color psychology reports that blues often support concentration while muted greens reduce anxiety, a useful lens when balancing wall tones behind the judge’s bench with darker timber elements that convey permanence (verywellmind.com/color-psychology). In my own projects, I keep saturation modest; the emphasis is on tonal coherence so photographic captures look consistent across varying daylight levels and artificial sources.

Core Spatial Anatomy of an Indian Courtroom

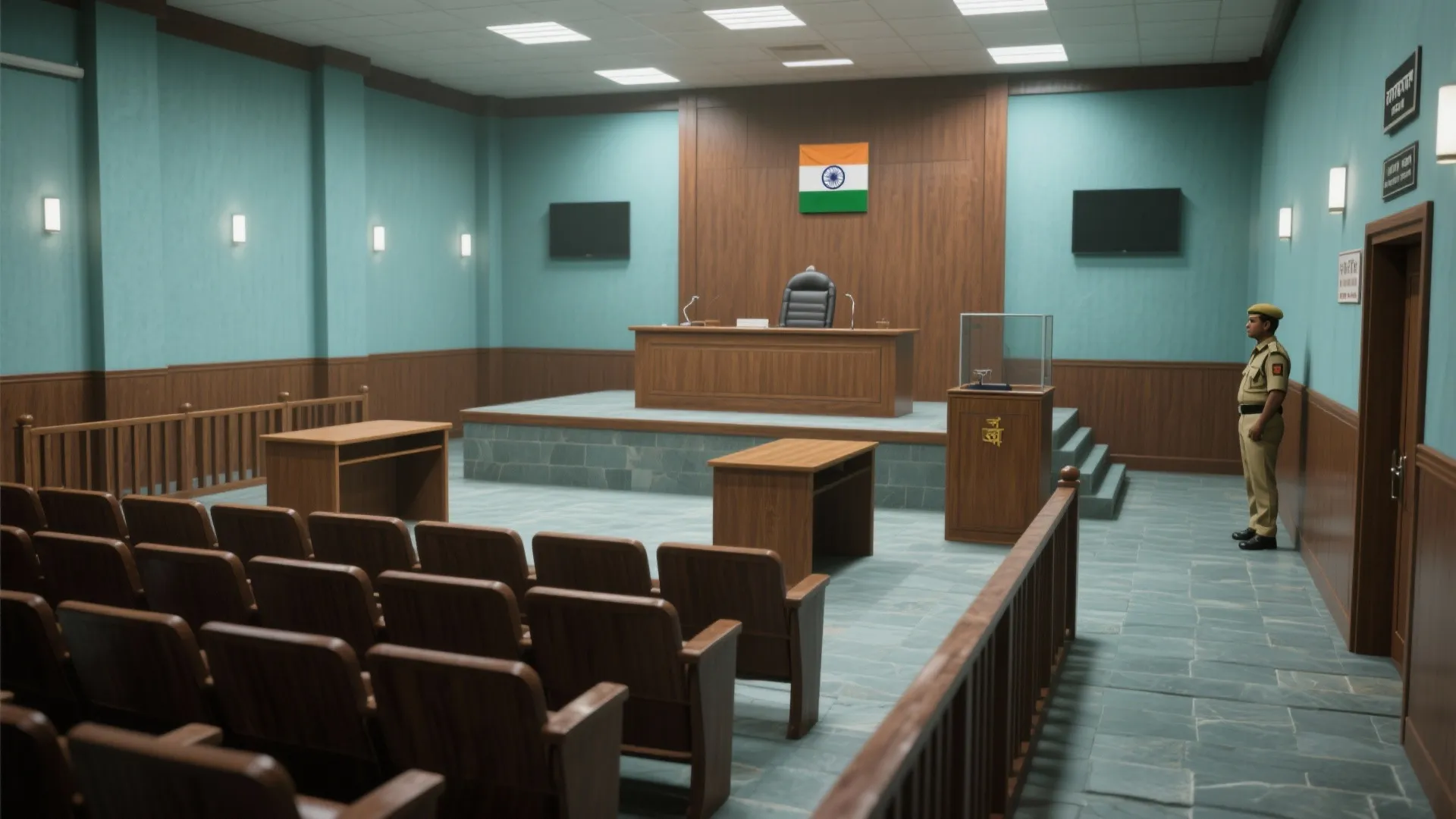

An Indian courtroom’s visual hierarchy typically centers on the judge’s bench raised on a modest platform, flanked by the national emblem and sometimes the flag or crest. Counsel tables sit below, with clear sightlines to the bench and to witnesses. Public seating is arranged in rows, separated by railings; security takes a discrete position near entries and at the sides. Circulation routes must remain unobstructed for court officers and witnesses; any visual guide should capture these paths from multiple angles to show flow, queuing, and procedure.

Proportions, Sightlines, and Layout Cues

Proportional balance matters. Bench elevation should allow authoritative visibility without imposing theatrical height—typically a platform of 300–600 mm is sufficient in most civic buildings. The witness box is set at a height that aligns with direct eye contact to the bench, and counsel tables should not occlude the witness box’s visibility. When planning set photography or digital mockups, I use an interior layout planner to validate distances between seating, aisles, and dais, ensuring accessible routes and emergency egress remain clear. If you’re mapping these zones for film blocking or visitor wayfinding, a room layout tool can help test angles, camera positions, and audience sightlines: room layout tool.

Material Language: Timber, Stone, and Fabric

Material choice communicates credibility. Indian courtrooms often feature hardwood panelling at the bench and backdrop—teak, walnut, or stained oak—paired with stone flooring that stands up to heavy traffic. Acoustic carpeting or runners in aisles can reduce footfall noise, while plush but durable upholstery on public seating balances comfort with longevity. Glare control is non-negotiable; matte finishes on desktops and witness stands prevent reflective hotspots that interfere with reading documents and filming.

Lighting Strategy for Clear Records

I design layered lighting: uniform ambient lighting around 300–500 lux for the general floor; localized task lighting at counsel tables; and carefully shielded downlights near the bench to avoid face-shadowing. LED sources with high color rendering (CRI 90+) keep skin tones and wood grain truthful in photos and video. To control glare, uplighting or indirect coves soften bright contrasts, and window treatments (sheer + blackout combinations) stabilize daytime shoots. Referencing IES recommendations for glare control and illuminance ranges ensures compliance with best practice (ies.org/standards).

Acoustic Comfort and Recording Clarity

Court transcripts, witness testimonies, and legal arguments demand acoustic intelligibility around 0.6–0.8 seconds of reverberation time in midsized rooms. I achieve this by blending absorptive panels behind public seating, soft finishes on aisles, and diffusive millwork around the bench. Microphone placement should be coordinated with ceiling reflectors or overhead clouds to reduce comb filtering; images should document these fixtures discreetly so they don’t distract from ceremonial elements.

Color Psychology and Visual Balance

Colors shape behavior. I lean on desaturated blues or smoky greens for wall fields, with warm timber to ground the scene. The public gallery benefits from lighter tones to keep the space welcoming, while the area behind the bench can be deeper to anchor the focal point. High-contrast schemes are avoided; legal reading and lip-reading both prefer mid-contrast environments free from harsh transitions.

Wayfinding, Security, and Accessibility

Authentic images should include subtle wayfinding: clear entry signage, courtroom number placards, and ADA-compliant ramps or rail heights. Security elements—metal detectors, bag checks, or officer stations—are typically positioned outside the courtroom or near vestibules. Inside, show discrete camera placements, panic buttons, or secure doors without foregrounding them. Accessibility is core: aisles must accommodate wheelchair turning radii, and witness boxes should provide an alternate platform or ramp.

Photographic Angles and Shot List

I assemble shot lists that cover ceremony and function. Start with a wide establishing shot from the public entry showing the bench, witness box, and counsel tables. Capture the bench frontal at eye level; then a three-quarter angle to show depth. Include a side profile of the witness box, overhead ceiling detail for lighting diffusion, and a close-up of nameplates, microphones, and evidence tables. Document circulation with an aisle shot toward exits and a view of security railings. For sets, include behind-the-scenes images of acoustic panels and cable management for authenticity.

Ergonomics for Judges, Counsel, and Clerks

Ergonomic layouts reduce fatigue and errors. Bench desktops set between 740–760 mm height allow comfortable writing posture. Adjustable task chairs for counsel and clerks should support lumbar curvature and dynamic movement; armrests must clear the desk without collision. Monitors for e-filing are angled to minimize neck strain, and cable runs are tucked within millwork to keep surfaces clean for documentation and filming.

Regional Nuances Across India

Expect variation by state and building era. Historic high courts may feature lofty ceilings, ornate mouldings, and grand timber benches. District courts often employ simpler finishes, tiled floors, and pragmatic lighting grids. Some regions incorporate local stone or wood species and bilingual signage. Your visual guide should respect these differences: catalog emblem styles, language panels, and traditional ceiling fans alongside modern HVAC diffusers.

Ethical and Procedural Authenticity

Photographing courtrooms requires sensitivity. Avoid capturing identifiable faces without permission, especially during proceedings. Focus on spatial storytelling: the solemnity of the bench, public seating order, circulation that respects hierarchy, and details that suggest due process—evidence trays, docket screens, and oath texts—without revealing confidential material. When staging sets, emulate procedural flow: witness entry from side doors, counsel approach paths, and security positions.

Building a Reusable Image Library

A robust library groups images by function: Bench & backdrop, Witness & evidence, Counsel & clerks, Public gallery, Circulation & security, Lighting & acoustic details, Materials & signage. Tag each photo with finish schedules, light specs, and acoustic treatments so filmmakers, educators, and designers can filter by need. For layout-dependent shots or set iterations, an interior layout planner can streamline camera tests and actor blocking: interior layout planner.

2024–2025 Design Considerations

Recent trends include human-centered lighting with tunable white for long hearings, discreet assistive listening systems, and acoustically enhanced millwork that doubles as evidence storage. Sustainability is rising: low-VOC coatings on timber, high-CRI LED arrays with smart controls, and regionally sourced stone to reduce embodied carbon. Digital integration—document cameras, e-filing screens—should be visually quiet and ergonomically placed to preserve the courtroom’s ceremonial character.

FAQ

How bright should a courtroom be for readable documents and filming?

Target ambient lighting around 300–500 lux, with task lighting at counsel tables and the bench. Keep glare low and maintain CRI 90+ for accurate color capture.

What colors help maintain focus without feeling oppressive?

Muted blues and greens support concentration and reduce stress; pair them with warm timber to balance authority and comfort.

Which materials convey authenticity for Indian courtrooms?

Hardwood panelling at the bench, stone or ceramic flooring for durability, and matte finishes on desktops to avoid reflections. Add acoustic treatments discretely.

How do I organize a shot list for a courtroom visual guide?

Include establishing wide shots, bench frontal and three-quarter views, witness box profiles, ceiling lighting details, circulation aisles, and close-ups of legal apparatus.

What acoustic targets should I consider?

A mid-size courtroom benefits from 0.6–0.8 seconds RT60, achieved through a mix of absorptive panels, carpeting, and diffusive millwork near the bench.

How can I ensure accessibility in images and sets?

Show wheelchair-friendly aisles, ramps for the witness box, readable signage, and clear floor pathways unobstructed by furniture or cables.

Are there typical layout proportions I should respect?

Maintain a modest bench platform (about 300–600 mm), unobstructed sightlines from counsel tables to the bench and witness box, and defined circulation rails.

What authority references can validate lighting and comfort choices?

WELL v2 provides guidance on illuminance and glare management, while Steelcase research connects visual comfort to cognitive performance.

How do regional differences appear in Indian courtroom images?

Historic courts feature ornate timber and high ceilings; district courts lean simpler with tiled floors. Capture emblem styles, bilingual signage, and local materials.

What ergonomic details matter for judges and clerks?

Desk heights around 740–760 mm, adjustable chairs with lumbar support, monitor angles that reduce neck strain, and hidden cable management.

How should digital integrations be photographed?

Keep document cameras and e-filing screens minimal and aligned with sightlines; avoid screen glare and cable clutter in foreground shots.

Is it acceptable to include security elements in visual guides?

Yes, but position them discreetly: entries, vestibules, and side stations. Avoid close-ups that compromise privacy or security protocols.
