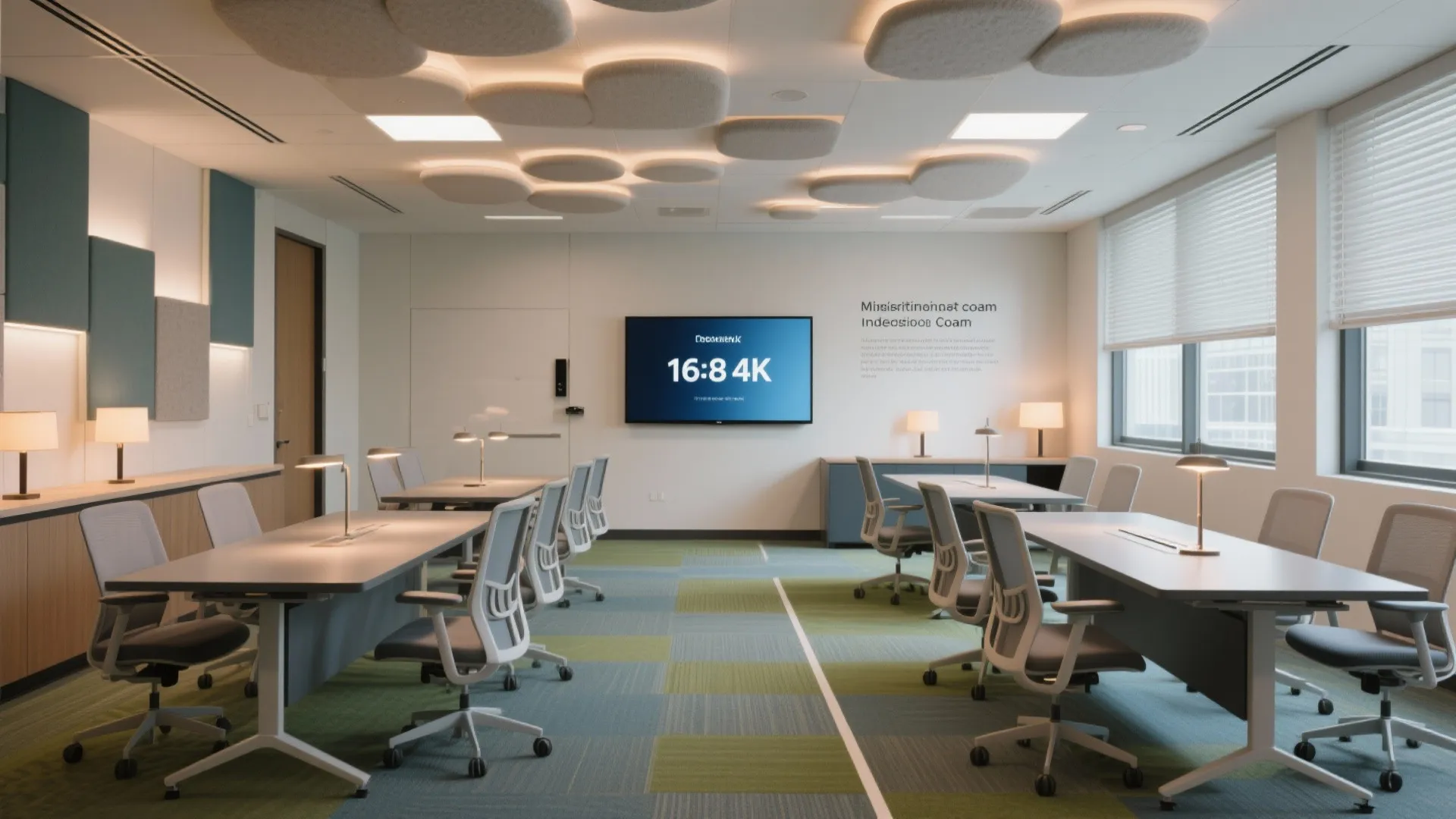

Induction Room Design: Maximizing Efficiency and Comfort: 1 Minute to a User-Friendly Induction Room Setup

Induction rooms carry a heavier load than most people realize: they set expectations, communicate culture, and shape first-day performance. In my projects, the best-performing spaces combine ergonomic comfort, intuitive flow, and sensory calm. This is more than taste—it’s measurable. WELL v2 recommends 300–500 lux ambient lighting for typical work zones with controlled glare, and task lighting can rise to 500–750 lux depending on activity (WELL Light concept; IES office standards). Steelcase research also shows that spaces balancing choice, posture variability, and reduced cognitive load contribute to higher engagement and task effectiveness—key outcomes for onboarding sessions.

Onboarding impressions form quickly. Gensler’s workplace research highlights that well-designed environments influence performance and experience through acoustic control, daylight access, and layout simplicity. From my observations, when we keep reverberation times in the speech range around 0.5–0.7 seconds and aim for A-weighted background noise near 35–40 dBA, participants retain more and ask better questions—an early signal of trust and psychological safety. For lighting, I target 350–450 lux ambient at 4000K to stay neutral and alert, and provide dimmable task accents for content reading without glare. For deeper reading on evidence-based environments, see resources from Gensler Research and WELL v2’s Light and Mind concepts at v2.wellcertified.com.

Define the Purpose and Experience

Start by deciding the primary use: single-session orientation, multi-hour compliance training, or mixed-format onboarding with breakout discussions. Each scenario drives capacity, acoustic zoning, and AV. I frame the space as a journey: arrival (decompression), orientation (clarity), interaction (engagement), and wrap-up (confidence). That sequence informs sightlines, signage, and even furniture mobility so the room adapts from presentation to small-group collaboration without friction.

Right-Size the Room and Circulation

Spatial ratios matter. For small groups (8–12 people), I use 30–35 sq ft per person to accommodate chairs-on-casters, a presenter zone, and AV without congestion. For 20–30 people, I raise allocation to 35–40 sq ft per person to protect circulation lanes (minimum 36 in clear) and maintain ADA-compliant access. Keep the presenter at a comfortable 1.5–2 screen heights away from the first row for legibility. If you’re testing different seating plans or traffic flows, a room layout tool can quickly visualize reach, aisle clearances, and sightlines: room layout tool.

Seating, Ergonomics, and Posture Variety

Induction often combines listening with short activities. Mix ergonomic chairs with a few standing perches or height-adjustable counters along the perimeter. I aim for chairs with lumbar support and seat height adjustability (16–21 in) and tables at 28–29 in. For sessions beyond 60 minutes, posture change is not a luxury—it reduces fatigue and sustains attention. A few soft lounge pieces near the back support informal Q&A without encouraging slouching during presentations.

Lighting That Keeps People Alert—Not On Edge

Layer ambient, task, and focal light. Ambient: 350–450 lux at 4000K for a neutral, alert feel with UGR < 19 to limit glare on screens. Task: 500–600 lux at tables for handouts and note-taking, preferably dimmable. Focal: 3000–3500K warm accents on brand elements or wayfinding to create depth. Integrate daylight with automated shades to stabilize luminance ratios across the field of view, minimizing eye strain when slides are projected. This balance keeps the room bright enough for energy yet soft enough for comfortable reading.

Acoustic Comfort and Speech Intelligibility

Onboarding is heavy on speech. Target an STI (Speech Transmission Index) of ≥ 0.6 for clarity. Use a mix of ceiling clouds (NRC 0.8+), wall panels in the first reflection zones, and carpet with felt underlay to manage mid–high frequencies. Seal door perimeters and add soft furnishings to reduce peak reflections. If the space is divisible, introduce operable partitions with high STC ratings and flank them with absorptive finishes to avoid flutter echoes. Provide a handheld or lapel mic and ceiling speakers zoned for even coverage.

Color Psychology for Calm Confidence

Color can nudge behavior. Muted greens and soft blues tend to reduce anxiety and support focus, while desaturated warm neutrals keep the room approachable. Reserve high-saturation brand colors for focal walls or graphics to avoid visual fatigue. Very strong reds near screens can raise perceived stress and clash with skin tones on camera; keep them minimal. If your brand palette is bold, use it in wayfinding and accents, not in the largest fields of view.

Technology and AV That Don’t Complicate the First Day

Keep the stack simple and reliable. A 98–120 in projection or a 100–136 in LED/LCD wall works for 20–30 participants, with 16:9 aspect and 4K for crisp typography. Provide front-of-room USB-C/HDMI, a wireless presentation bridge, ceiling array mic for hybrid calls, and discreet cable management along table undersides. Put a confidence monitor at the back wall for facilitators to keep eye contact forward. Preprogram three scenes: Presentation, Discussion, and Video Call—each tied to lighting, shades, and audio presets.

Brand Story Without Overstimulation

Subtle storytelling beats billboard branding. I like tactile wayfinding, one strong mission statement wall, and a material palette that echoes company values—responsible timber, low-VOC paints, and recycled acoustic felt. This keeps cognitive load low and lets people absorb messaging without distraction.

Air Quality, Thermal Comfort, and Wellbeing

Thermal neutrality prevents attention drift. Aim for 22–24°C with the ability to adjust ±1°C locally. Provide CO₂ monitoring with visual feedback; fresh air rates aligned with code plus demand-controlled ventilation help during full sessions. Place diffusers to avoid drafts on the neck and maintain humidity around 40–50% to protect voice comfort and reduce dry-eye under AV lighting.

Flexible Layouts for Different Induction Formats

- Presentation-first: fan-shaped rows with 6–8° toe-in toward the screen; widest aisles near exits.

- Workshop mode: clusters of 4–6 with casters, keeping 48 in cross-aisles for facilitators.

- Hybrid induction: camera framed to the presenter zone and the first two seating rows; rear acoustic treatment to prevent slap-back into mics.

If you need to test variants quickly, use an interior layout planner to simulate seating counts, camera angles, and traffic pinch points with a layout simulation tool: interior layout planner.

Finishes, Materials, and Sustainability

Choose matte surfaces around displays to reduce reflections. Prioritize low-VOC paints, FSC-certified wood, and high-NRC recycled acoustic panels. For flooring, solution-dyed carpet tiles handle heavy traffic and allow selective replacement. Keep touchpoints durable—powder-coated metals, high-pressure laminate edges, and performance upholstery with bleach-cleanable specs for high turnover.

Signage, Wayfinding, and Accessibility

First-day anxiety fades when navigation is effortless. Use consistent typographic hierarchy (minimum 18–24 pt at typical viewing distance), high contrast, tactile indicators near door hardware, and clear door numbering tied to digital invites. Ensure all controls are mounted within accessible reach ranges (typically 15–48 in AFF), and provide wheelchair turning radii (60 in) at key nodes.

Operations: The Playbook Behind the Space

Spaces succeed when operations are baked in. I specify a 10-minute preflight checklist: lights to Presentation scene, shades to 50%, AV input verified, handouts staged, water stations filled, HVAC setpoint confirmed. After sessions, flip to Recovery scene, air flush for 15 minutes, and reset furniture to baseline. Post-occupancy feedback uncovers small tweaks—like relocating a charging station or adding a coat hook near the entrance—that compound into smoother experiences.

Common Pitfalls I Avoid

- Oversized screens without controlled ambient light, causing washout.

- Narrow aisles that make late entrants conspicuous.

- Branding overload competing with content.

- Fixed furniture that resists format changes.

- Echo-prone hard surfaces that sabotage speech clarity.

- Underpowered HVAC during peak occupancy.

FAQ

How much space per person should I plan for an induction room?

Plan for 30–35 sq ft per person for small groups and 35–40 sq ft for larger cohorts to maintain circulation, ADA clearances, and AV sightlines.

What lighting levels work best for orientation sessions?

Target 350–450 lux ambient at 4000K with glare control, and 500–600 lux task lighting for documents. These align with WELL v2 guidance and IES office benchmarks for visual comfort.

How do I improve speech clarity without making the room feel dead?

Combine ceiling clouds (NRC 0.8+), selective wall absorption at first reflection points, and soft flooring. Aim for an STI ≥ 0.6 and reverberation around 0.5–0.7 seconds in the speech band.

What seating works for multi-hour onboarding?

Ergonomic, adjustable task chairs with lumbar support, plus a few standing perches or height-adjustable counters to encourage posture changes every 45–60 minutes.

Which colors reduce first-day anxiety?

Muted greens, soft blues, and warm neutrals support calm and focus. Reserve saturated brand colors for accents to avoid visual fatigue and distraction.

How should I plan AV for hybrid induction?

Use a front camera focused on the presenter and near rows, ceiling array microphones, even speaker coverage, and a confidence monitor. Preprogram scenes for Presentation, Discussion, and Video Call.

What temperature setpoint keeps participants comfortable?

Start at 22–24°C with local adjustability of about ±1°C, maintain 40–50% RH, and use demand-controlled ventilation to stabilize CO₂ during full sessions.

Can I make the space flexible without feeling temporary?

Yes—choose castered tables with locking mechanisms, modular power distribution, and movable acoustic panels, then define a clean baseline layout so the room still feels intentional.

How do I prevent glare on screens?

Specify matte finishes near displays, control daylight with automated shades, keep luminance ratios balanced, and aim for UGR < 19 for fixtures facing the screen wall.

What’s an efficient arrival sequence?

Clear door numbering, immediate coat/umbrella storage, a decompression zone with seating, then a direct visual path to the presenter wall. Keep check-in off the main circulation to avoid bottlenecks.

Is there a preferred table shape?

Slim rectangles or soft-rectangular tables with radius corners maximize density and comfort. Avoid deep tables that push the first row too close to screens.

How do I plan for future tech updates?

Provide conduit and spare power/data runs, use standardized mounting patterns, and leave 15–20% rack capacity. Cable trays under tables keep upgrades painless.
