Industry Standards for Basement Parking in Residential and Commercial Buildings: Understand the professional rules, dimensions, and planning logic architects use when designing efficient and compliant basement parking

Direct Answer

Basement parking design standards define how parking spaces, circulation lanes, ramps, and safety systems must be planned in residential and commercial buildings. These standards typically specify minimum parking dimensions, turning radii, accessibility provisions, ventilation requirements, and structural constraints to ensure safe, efficient vehicle movement.

While exact regulations vary by country and city, most professional basement parking layouts follow similar global guidelines for stall size, aisle width, ramp slope, accessibility, and fire safety.

Quick Takeaways

1. Basement parking design standards control space size, vehicle circulation, safety systems, and accessibility.
2. Residential garages prioritize efficiency and density, while commercial garages prioritize turnover and navigation clarity.
3. Most international codes recommend parking spaces between 8.5–9 ft wide and 18–20 ft long.
4. Ramp slopes, column spacing, and turning radii strongly influence usable parking capacity.
5. Future ready garages now integrate EV charging infrastructure and flexible circulation zones.

Introduction

Basement parking design standards may look straightforward on paper, but after working on dozens of residential towers and mixed use developments, I can say the real challenge isn't the dimensions. It's how those standards interact with structure, ramps, circulation, and driver behavior.

Many projects technically meet parking garage design guidelines but still feel tight, confusing, or inefficient once built. I've seen garages lose 15–20 percent of potential capacity simply because column grids or ramp positioning were decided too early in the architectural process.

This is why professional parking planning often starts with spatial modeling rather than flat drawings. When teams simulate vehicle movement using tools like a visual 3D parking layout planning workflow used by architects, conflicts between columns, ramps, and turning paths become obvious much earlier.

In this guide I'll break down the real world basement parking regulations, dimensional standards, and planning principles used in residential and commercial projects—and the hidden design tradeoffs that most surface level guides never explain.

save pin

Why Parking Design Standards Matter in Building Projects

Key Insight: Parking standards are not just regulatory requirements; they directly affect construction cost, usable capacity, and long term building usability.

Developers sometimes view basement parking regulations as simple compliance checklists, but in reality they shape the entire building footprint. Column grids, ramp placement, ventilation shafts, and fire escape routes all intersect with parking layout.

From a design perspective, three mistakes appear frequently:

1. Oversized structural columns reducing usable stall count
2. Poor ramp placement creating dead circulation zones
3. Ignoring turning radii which leads to unusable corner spaces

The National Parking Association and Urban Land Institute both emphasize that early parking layout planning can reduce structural redesign and construction changes later in the project lifecycle.

In large residential projects I often test multiple grid configurations before finalizing the structure. A column shift of even two feet can unlock an entire additional row of parking spaces.

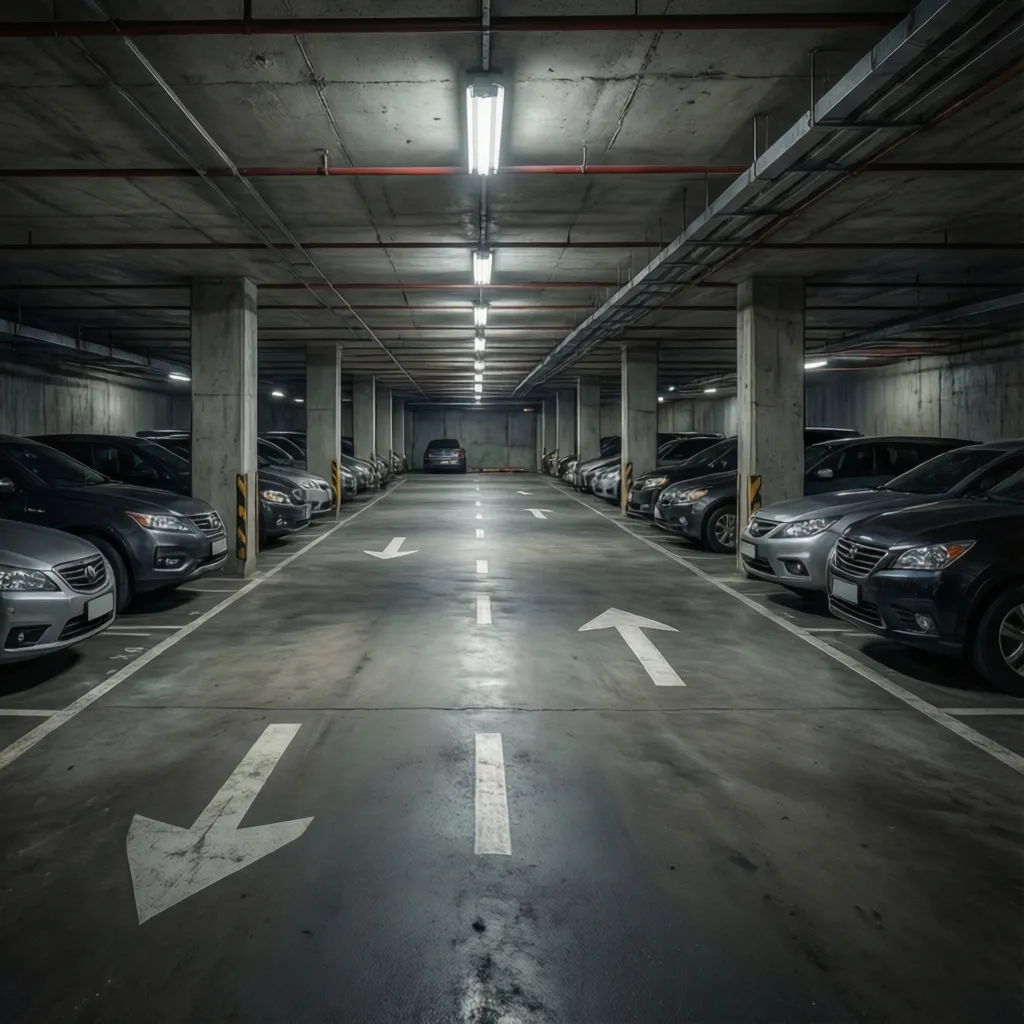

Typical Basement Parking Requirements for Residential Buildings

Key Insight: Residential basement parking prioritizes density and predictability because the same users access the space daily.

Residential basement parking requirements typically follow standardized dimensions to accommodate sedans, SUVs, and occasional larger vehicles.

Common residential parking dimensions used in many building codes include:

1. Standard stall width: 8.5–9 feet
2. Standard stall length: 18–20 feet
3. Compact car spaces: 7.5–8 feet wide
4. Two way drive aisle: 20–24 feet
5. Ramp slope: typically 12–15 percent maximum

However, dimensions alone do not guarantee usability. Column placement is the hidden constraint most developers underestimate.

For example, if structural columns sit inside parking bays instead of between them, drivers lose door clearance and the space becomes functionally unusable even though it meets code.

To prevent this, many architects now simulate layouts earlier using tools that help generate and test parking floor plans before structural decisions are finalized.

save pin

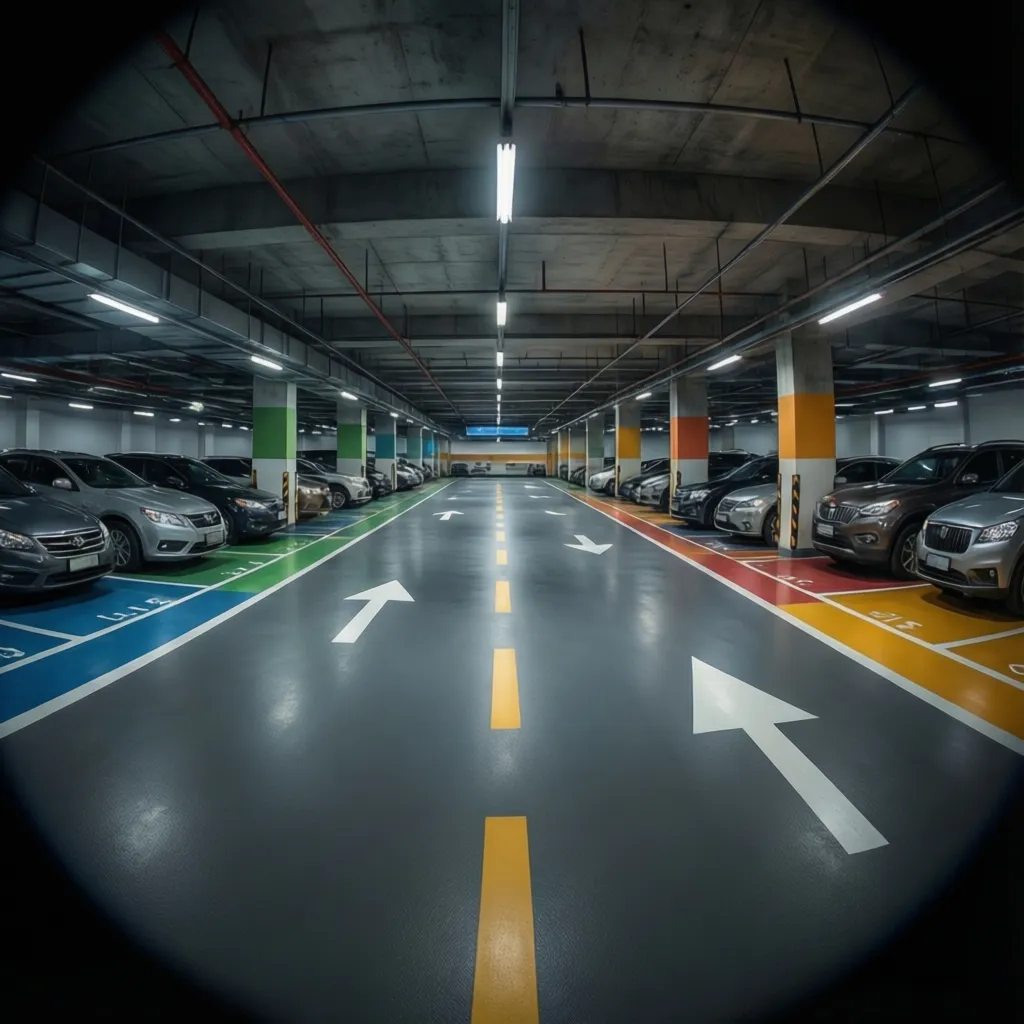

Commercial and Retail Parking Design Considerations

Key Insight: Commercial parking garages prioritize circulation clarity and vehicle turnover rather than maximum density.

Unlike residential buildings, commercial parking spaces must serve unfamiliar drivers who navigate the garage only once. That changes the design priorities significantly.

Key commercial parking layout standards include:

1. Wider aisles for easier navigation
2. Clear visual sightlines at intersections
3. Higher ceiling clearances for delivery vehicles
4. Dedicated entry and exit circulation paths

Retail and office developments also frequently incorporate directional signage and color coded zones to help drivers quickly locate exits or elevators.

The International Parking & Mobility Institute notes that driver confusion is one of the most common causes of accidents in structured parking environments, especially where circulation paths intersect.

save pin

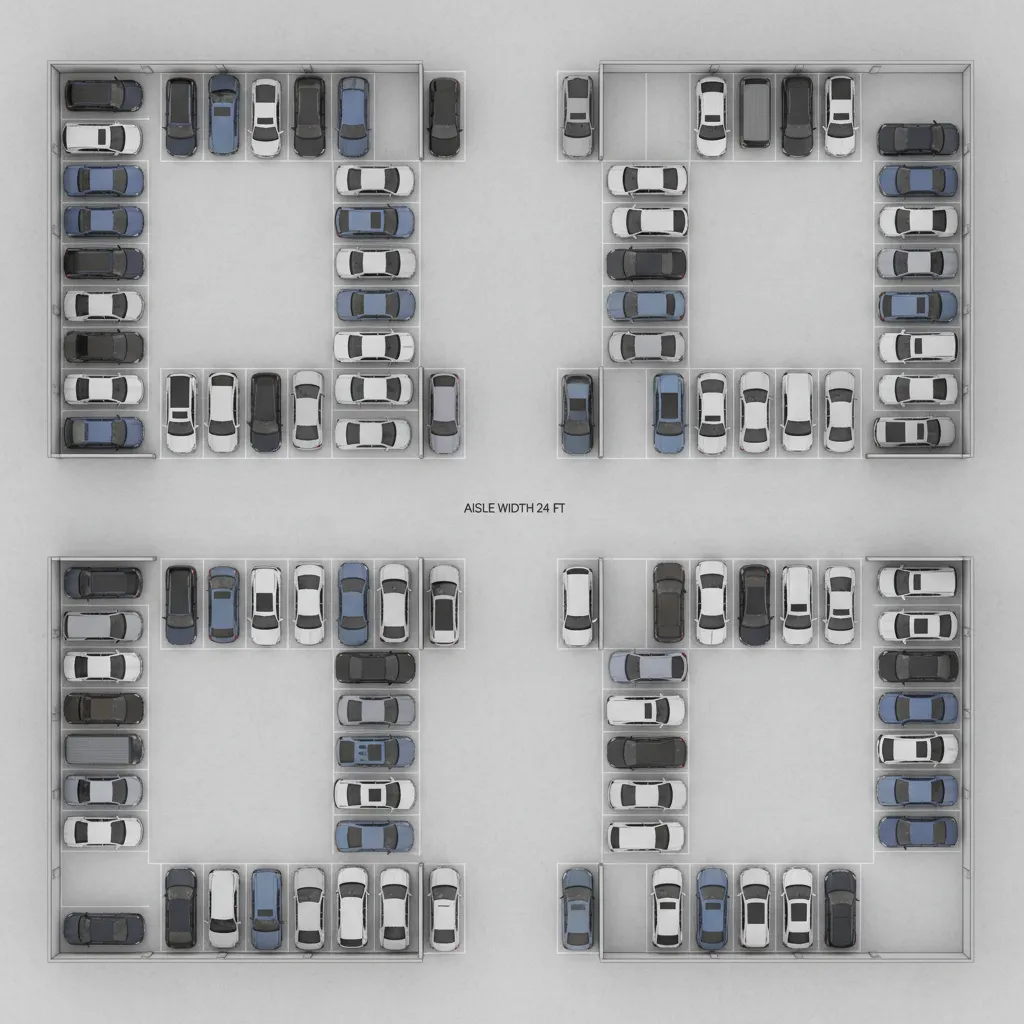

International Guidelines for Parking Dimensions and Circulation

Key Insight: While exact building codes differ globally, most parking garage design guidelines follow very similar spatial principles.

Across North America, Europe, and many Asian markets, parking layout standards typically align around similar dimensional ranges.

Typical global recommendations:

1. Parking stall width: 2.6–2.75 meters
2. Parking stall length: 5.4–6 meters
3. Two way drive aisle: 6–7.3 meters
4. Turning radius: 5.5–7 meters
5. Ramp slope: 12–15 percent maximum

However, the biggest variation internationally is vehicle size assumptions. In regions with higher SUV ownership, wider stalls are increasingly recommended.

Answer Box

Effective basement parking design balances regulatory compliance with real driver behavior. Proper stall dimensions, aisle widths, and ramp slopes must work together with structural grids and circulation planning to create a functional garage.

Accessibility Requirements and ADA Considerations

Key Insight: Accessibility standards affect not only parking stall size but also circulation, signage, and vertical access points.

In the United States, ADA parking standards require accessible parking spaces near building entrances and elevators.

Typical ADA requirements include:

1. Accessible parking width: 8 feet with adjacent 5 foot access aisle
2. Van accessible spaces: 11 feet with 5 foot aisle or 8 feet with 8 foot aisle
3. Clear vertical height: at least 98 inches for van access
4. Direct route to elevators or building entry

One commonly overlooked issue is ceiling clearance near ramps. Mechanical systems often reduce headroom in basement garages, which can unintentionally violate accessibility height requirements.

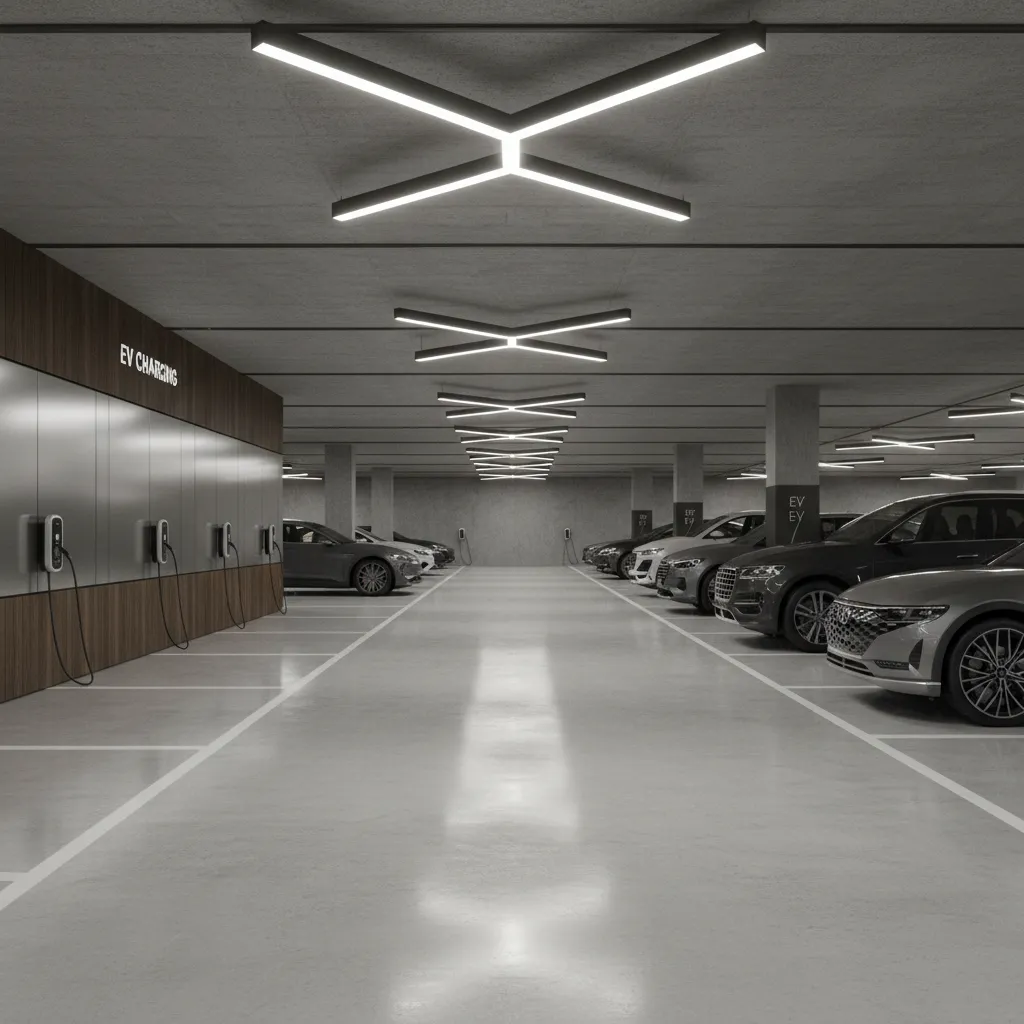

Integrating EV Charging and Future Mobility Infrastructure

Key Insight: The newest basement parking regulations increasingly require infrastructure for electric vehicles and future mobility systems.

Many cities now require a percentage of parking spaces to support EV charging either immediately or through pre installed conduit.

Forward thinking parking design strategies include:

1. Dedicated EV charging zones
2. Electrical conduit for future charger installation
3. Smart load management systems
4. Wider bays for charging cable access

In larger commercial buildings, planners also evaluate how parking structures may adapt to autonomous vehicles or shared mobility fleets.

Teams planning complex circulation layouts often test scenarios with tools used for planning large scale parking and circulation layoutsto understand how traffic flow changes under different mobility assumptions.

save pin

Final Summary

1. Basement parking standards control stall size, circulation width, ramp slope, and safety systems.
2. Residential garages focus on maximizing density within structural constraints.
3. Commercial garages prioritize clear navigation and traffic flow.
4. Accessibility rules significantly influence stall placement and vertical clearance.
5. Future ready garages integrate EV infrastructure and adaptable circulation planning.

FAQ

What are standard basement parking space dimensions?

Most basement parking design standards recommend spaces about 8.5–9 feet wide and 18–20 feet long for standard vehicles.

What is the minimum aisle width in parking garages?

Two way drive aisles typically require 20–24 feet of width to allow vehicles to pass and maneuver safely.

What ramp slope is allowed in basement parking?

Most basement parking regulations limit ramp slopes to 12–15 percent depending on local building codes.

How many accessible parking spaces are required?

ADA guidelines require a percentage of total parking spaces to be accessible, based on total stall count.

Are EV charging spaces required in new parking garages?

Many modern building codes now require at least conduit infrastructure for future EV charging installation.

Do parking standards differ between residential and commercial garages?

Yes. Residential garages focus on efficiency, while commercial parking layout standards emphasize navigation clarity and wider circulation zones.

What is the biggest design mistake in basement parking layouts?

Poor column placement is one of the most common issues, often reducing usable parking capacity.

Why are turning radii important in parking garage design guidelines?

Turning radii ensure vehicles can enter and exit parking spaces without complex multi point maneuvers.
