Industry Standards for Hatching in Architectural and Engineering Drawings: A practical guide to professional hatch conventions used in architecture, construction, and engineering documentation

Direct Answer

Industry standards for hatching in architectural and engineering drawings define how materials, sections, and surfaces are represented in technical documentation. These conventions—often based on ISO and ANSI guidelines—ensure that architects, engineers, and contractors interpret drawings consistently across projects.

Standardized hatch patterns communicate material type, section cuts, and construction elements quickly without relying on lengthy notes.

Quick Takeaways

1. Standard hatch patterns allow teams to identify materials instantly in technical drawings.
2. Most professional drawings follow ANSI or ISO hatch conventions.
3. Consistency across sheets prevents misinterpretation during construction.
4. Overly dense or decorative hatches reduce drawing readability.
5. Material hatches must remain legible at printed scale.

Introduction

In professional documentation, hatch patterns aren't decoration—they're a language. After working on residential renovations, commercial office layouts, and multi‑disciplinary construction sets, I've learned that poorly chosen hatch patterns can create real confusion on site.

When contractors review architectural or engineering drawings, they expect hatch patterns to follow recognizable industry conventions. If a concrete section suddenly uses a random pattern, someone will question it—and that slows everything down.

One reason modern drafting workflows emphasize clarity is that drawings often move between different tools and visualization environments. Teams may develop layout studies using digital planning tools before producing final documentation, similar to workflows used when teams visualize spatial layouts using a professional 3D floor planning workflow.

Understanding construction drawing hatch standards helps ensure your drawings communicate clearly, whether they’re reviewed by architects, engineers, or contractors on a job site.

save pin

Why Hatch Standards Matter in Technical Drawings

Key Insight: Standardized hatch patterns reduce ambiguity and allow construction teams to interpret drawings quickly and accurately.

Technical drawings often contain hundreds of graphical elements. Without a consistent system for representing materials and sections, drawings become difficult to read.

In my experience reviewing construction sets, the biggest problems appear when teams invent custom hatch patterns without documenting them clearly. Contractors may assume a pattern means one material when it actually represents another.

What hatch standards help accomplish:

1. Instant material recognition
2. Clear differentiation between cut and surface elements
3. Reduced annotation clutter
4. Consistency across multi‑sheet drawing sets

Organizations such as the American Institute of Architects (AIA) and the National CAD Standard emphasize uniform graphic conventions because inconsistent drafting increases coordination errors during construction.

Common Architectural Hatch Conventions

Key Insight: Architectural hatch conventions primarily communicate building materials in section views.

In architectural drawings, hatch patterns are most frequently used in sections, details, and wall assemblies. They indicate what material a component is made from after it has been cut through.

Typical architectural hatch meanings:

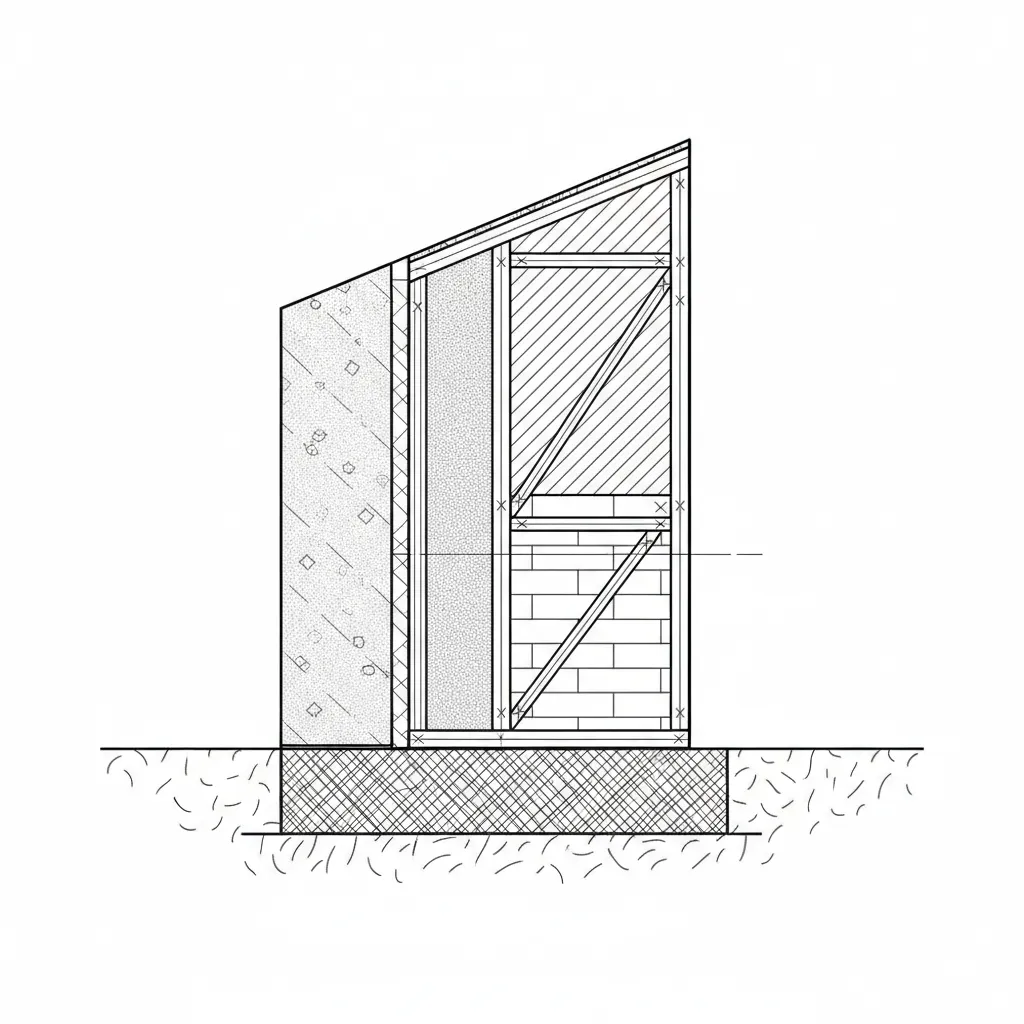

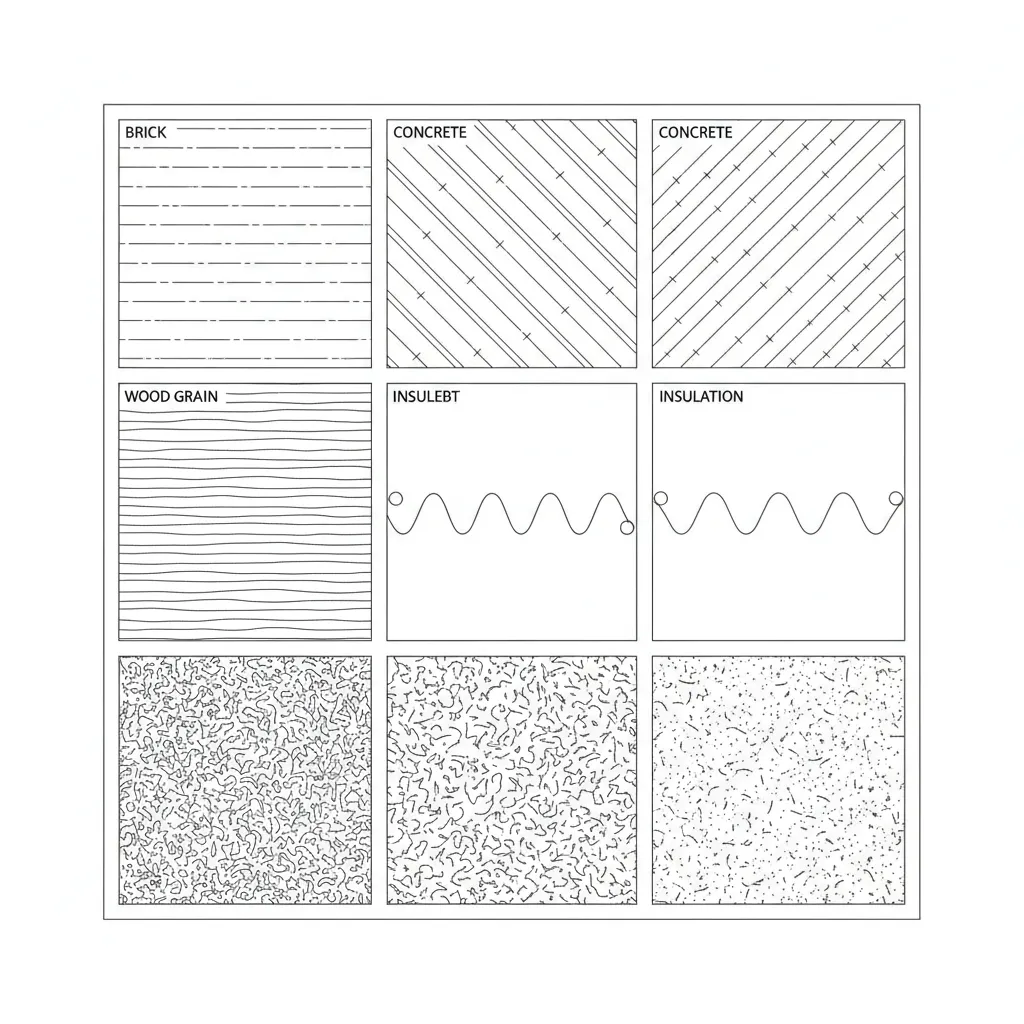

1. Concrete – diagonal cross hatch
2. Brick or masonry – staggered rectangular pattern
3. Wood – grain or parallel line pattern
4. Insulation – zigzag or batt pattern
5. Earth/soil – irregular dots or short lines

A common mistake I see in junior drafting work is using overly dense patterns. When drawings are printed at smaller scales, those patterns turn into solid gray blocks.

This becomes especially problematic when architectural drawings are later used in visualization workflows, such as when designers experiment with AI‑assisted interior layout concepts during early design phases. Clean drafting makes downstream visualization far easier.

save pin

Engineering Material Hatch Patterns

Key Insight: Engineering hatch patterns emphasize material identification and structural clarity rather than aesthetics.

Engineering drawings—particularly structural and mechanical documents—use hatch patterns to indicate material composition and cross‑sections.

Unlike architectural drawings, engineering hatches tend to be simpler and more standardized.

Common engineering hatch patterns include:

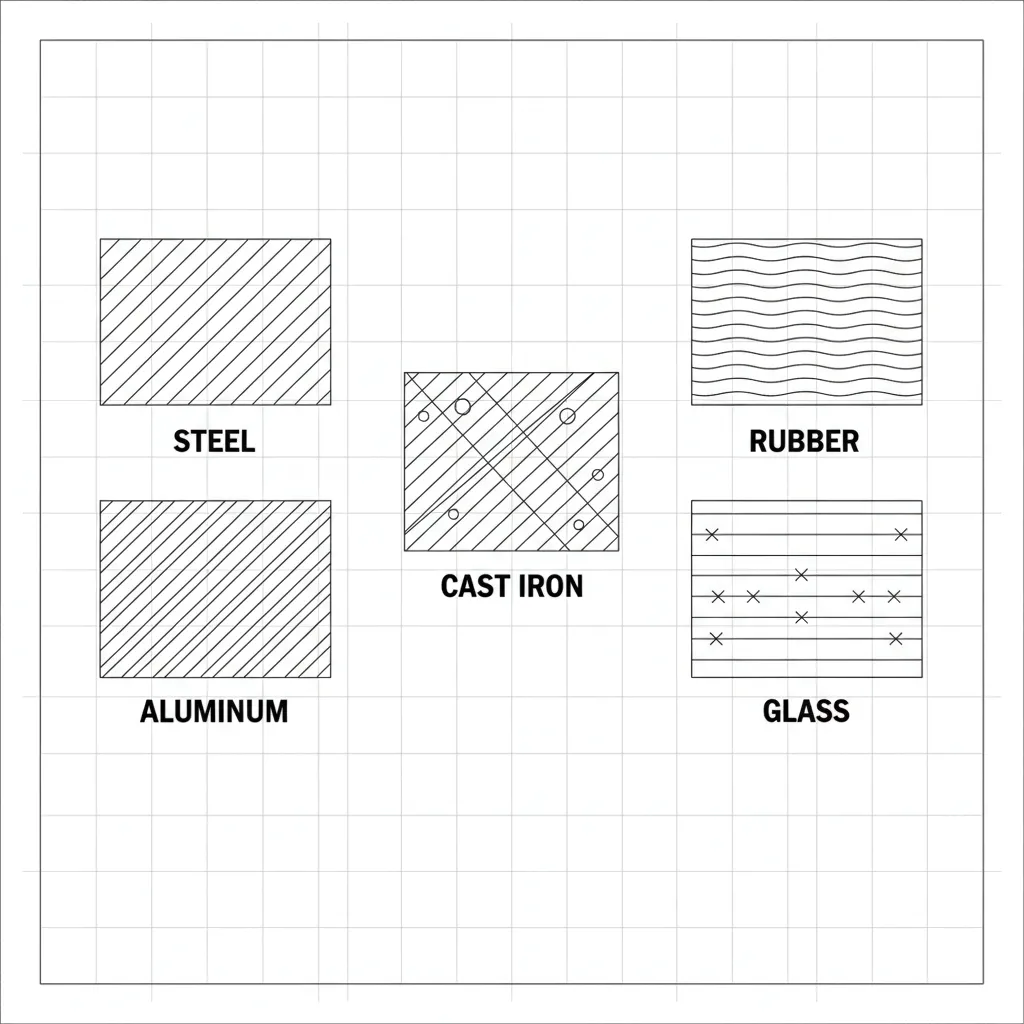

1. Steel – evenly spaced diagonal lines
2. Cast iron – double diagonal hatch
3. Aluminum – alternating diagonal pattern
4. Rubber – grid or dotted fill
5. Glass – parallel thin lines

These conventions appear frequently in mechanical part drawings and structural sections.

The American National Standards Institute (ANSI) publishes widely referenced drafting standards that define these material hatch conventions.

save pin

ISO and ANSI Hatch Pattern Guidelines

Key Insight: Most professional hatch standards originate from ISO 128 and ANSI Y14 drafting guidelines.

Two major systems guide hatch usage internationally.

ISO Standards

1. ISO 128 focuses on technical drawing presentation
2. Emphasizes consistent line weight and hatch spacing
3. Encourages simplified patterns to maintain readability

ANSI Standards

1. ANSI Y14 series defines engineering drawing conventions
2. Specifies standardized material hatch patterns
3. Widely used in North American engineering documentation

One interesting shift over the last decade is that digital drawing environments encourage lighter hatch density than traditional manual drafting. Screens and PDFs handle spacing differently than printed Mylar drawings once did.

Maintaining Consistency Across Project Drawings

Key Insight: Consistency in hatch usage across an entire drawing set is more important than the specific pattern chosen.

Large construction projects can contain hundreds of sheets produced by multiple consultants. If each discipline uses slightly different hatch styles, confusion spreads quickly.

Best practices I recommend on large projects:

1. Create a hatch standard sheet at the start of the project
2. Limit the number of patterns used
3. Maintain consistent scale factors
4. Use annotation legends where needed

Many teams also reference digital layout studies during coordination. For example, early spatial planning workflows often start with tools that allow designers to generate clean floor plans for space planning and layout testingbefore drafting detailed construction documents.

save pin

Examples of Industry-Standard Hatch Usage

Key Insight: The clearest drawings use hatch patterns sparingly and only where material information is necessary.

In professional practice, hatch patterns typically appear in specific drawing types:

1. Wall section details
2. Structural connection drawings

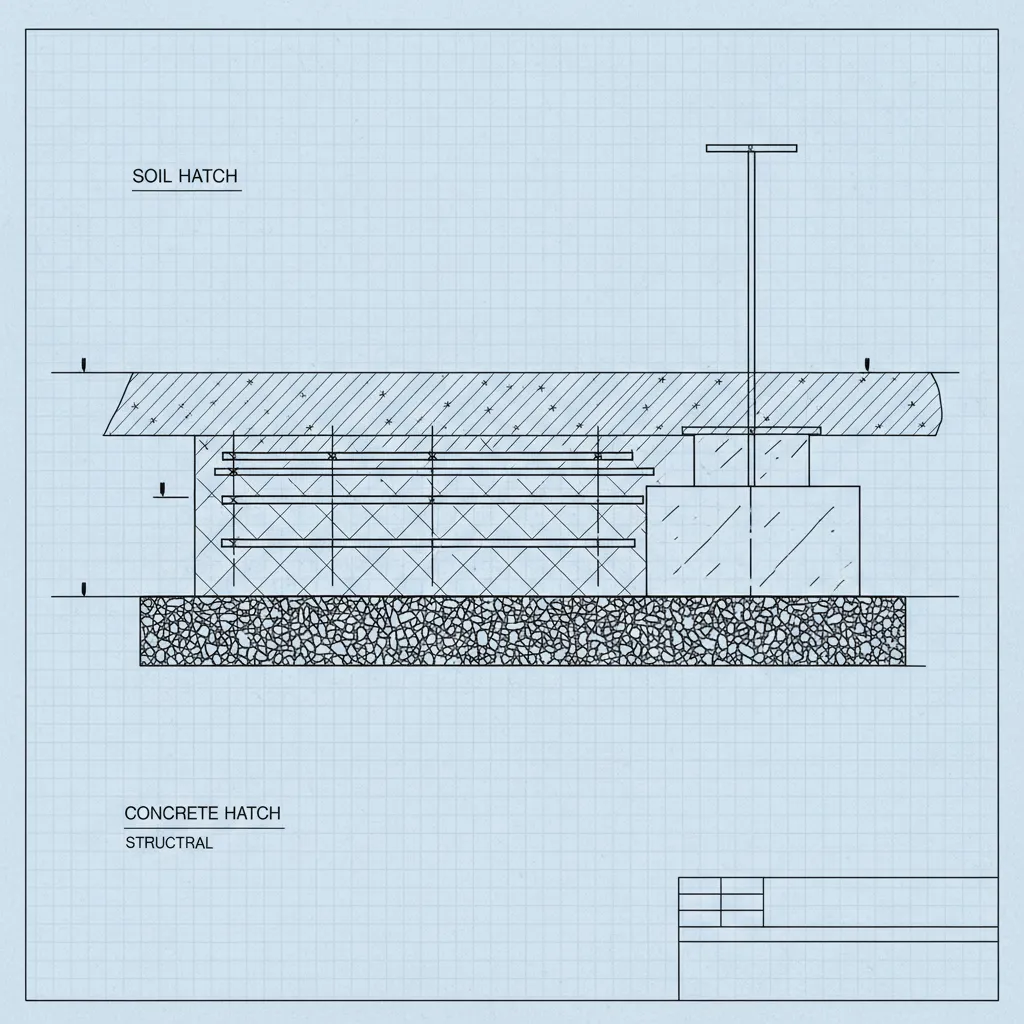

3. Foundation sections
4. Mechanical part sections
5. Site grading or soil sections

A subtle but important technique is adjusting hatch scale depending on drawing scale. A pattern that looks perfect in a 1:20 detail might appear completely black at 1:100.

The most readable drawings prioritize hierarchy: structure first, material second, pattern third.

Answer Box

Architectural and engineering hatch standards ensure materials and sections are interpreted consistently across drawings. Most professionals follow ISO 128 or ANSI Y14 guidelines and prioritize simple, legible patterns that remain clear when printed at scale.

Final Summary

1. Hatch patterns are a visual language for communicating materials in technical drawings.
2. Most industry standards derive from ISO 128 and ANSI Y14 guidelines.
3. Overly dense or decorative hatches reduce readability.
4. Consistency across sheets matters more than specific pattern choice.
5. Professional drawings use hatch patterns selectively.

FAQ

What are architectural hatch standards in AutoCAD?

Architectural hatch standards in AutoCAD follow common drafting conventions for materials like concrete, brick, wood, and insulation. These patterns align with widely used ANSI and ISO drafting guidelines.

Why are hatch patterns used in technical drawings?

Hatch patterns identify materials and distinguish section cuts from surfaces. They help architects and engineers communicate construction information quickly.

What does a concrete hatch pattern look like?

Concrete is typically represented by diagonal cross‑hatching or a random aggregate pattern in architectural section drawings.

Are engineering hatch patterns standardized?

Yes. Engineering hatch patterns often follow ANSI Y14 standards, which define common patterns for materials such as steel, aluminum, cast iron, and rubber.

Do ISO hatch patterns work the same in AutoCAD?

Yes. Many AutoCAD hatch libraries include patterns aligned with ISO hatch standards, allowing users to apply internationally recognized technical drawing hatch conventions.

How many hatch patterns should be used in a drawing set?

Ideally only a limited number. Too many patterns reduce readability and increase the chance of misinterpretation.

What scale should hatch patterns use?

Hatch scale should match the drawing scale. Patterns must remain readable when printed, especially in small‑scale drawings.

Can custom hatch patterns be used?

Yes, but they should be documented clearly in a legend. Otherwise contractors may misinterpret the material.
