Interactive Floor Plan Editor in Java: Tools and Frameworks: A practical guide for developers building drag‑and‑drop architectural layout editors with Java and JavaFX

Direct Answer

The most practical way to build an interactive floor plan editor in Java is by combining JavaFX for the UI, a scene‑graph based object model for rooms and walls, and custom interaction layers for drag‑and‑drop editing, zooming, and snapping. JavaFX provides the rendering pipeline and event system needed for responsive layout editing tools.

Most production‑grade Java floor plan editors use node‑based scene graphs, grid snapping, and structured JSON data models so layouts can be edited visually and saved reliably.

Quick Takeaways

1. JavaFX is the most practical framework for building a Java interactive floor plan editor.
2. Scene graphs map naturally to rooms, walls, furniture, and layout objects.
3. Zoom, pan, and grid snapping are essential for professional layout editing.
4. Structured data models make saving and loading floor plans reliable.
5. Performance depends heavily on efficient node grouping and rendering.

Introduction

Over the last decade, I've worked on several internal tools for architecture studios and real‑estate visualization teams. One recurring request is the same: build an interactive floor plan editor in Java that allows designers to quickly sketch layouts, drag walls, and experiment with room configurations.

At first glance this sounds simple. In practice, most developers underestimate how many systems are required: object modeling, UI interaction, snapping logic, rendering performance, and data serialization.

Many developers start with basic drawing APIs and quickly hit limitations. The moment you add drag‑and‑drop editing, zoom, and object selection, you need a proper architecture.

If you want a reference for how interactive layout tools behave in modern design platforms, studying a visual example of interactive home layout planning workflowshelps clarify the interaction patterns users expect today.

In this guide I'll walk through the frameworks, design patterns, and engineering decisions that make Java floor plan editors usable and scalable.

save pin

Key Requirements for Interactive Floor Plan Editors

Key Insight: Successful floor plan editors behave more like lightweight CAD systems than simple drawing apps.

Most failed implementations I’ve reviewed made the same mistake: treating walls and rooms as static shapes instead of editable objects.

A professional floor plan editor requires several core capabilities:

1. Precise coordinate system
2. Drag‑and‑drop object manipulation
3. Snapping and alignment guides
4. Layered object hierarchy
5. Undo/redo command history
6. Persistent layout data model

Industry design tools—from architectural CAD to web‑based planners—use object models rather than pixel rendering. Each wall, door, and furniture element exists as a structured entity.

In my experience, this shift from "drawing" to "object modeling" is the turning point that makes an editor scalable.

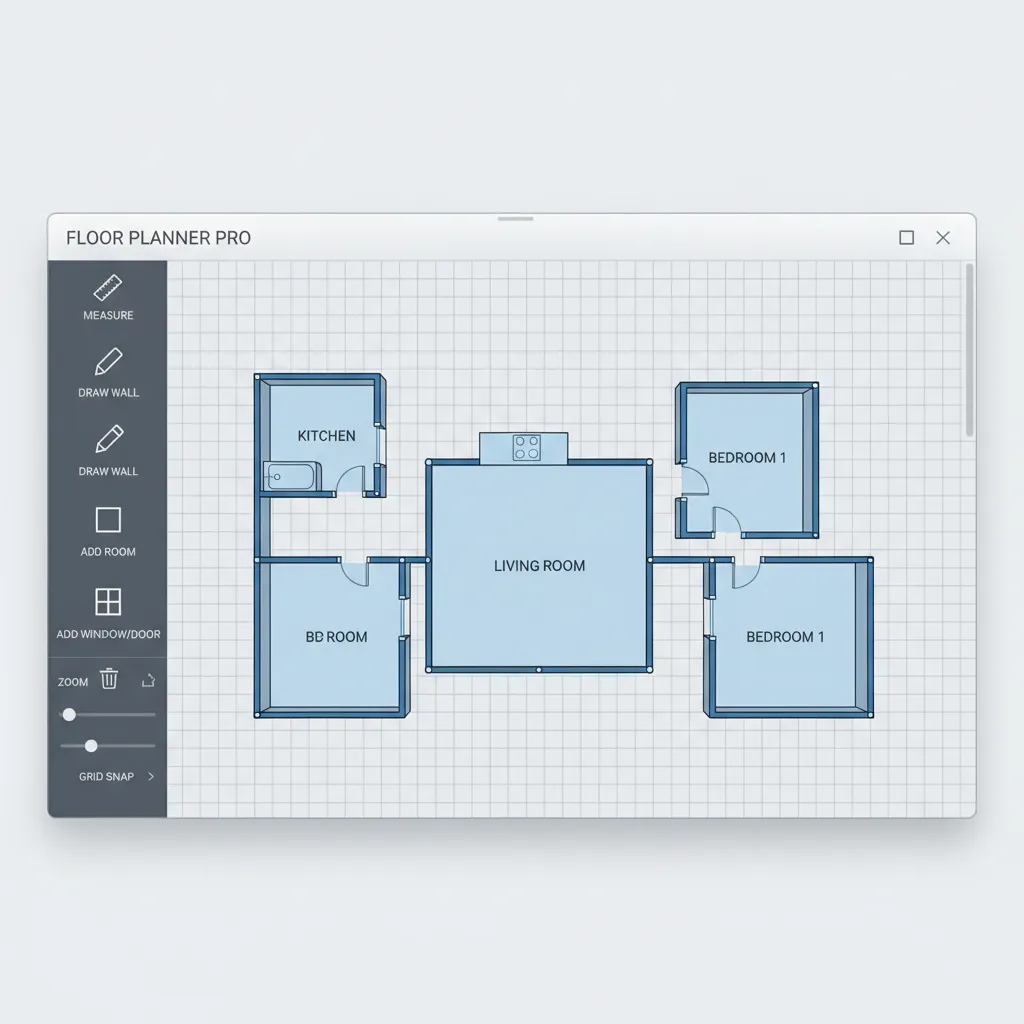

How Can JavaFX Support Drag‑and‑Drop Layout Editing?

Key Insight: JavaFX already provides most interaction primitives required for a Java interactive floor plan editor.

JavaFX's scene graph architecture is extremely useful for layout editing because every UI element is a Node with transform and event support.

For floor plan editing, typical UI components include:

1. Pane or Group as the drawing canvas
2. Rectangle and Line for walls and room boundaries
3. Custom nodes representing furniture or fixtures
4. MouseEvent handlers for drag interactions

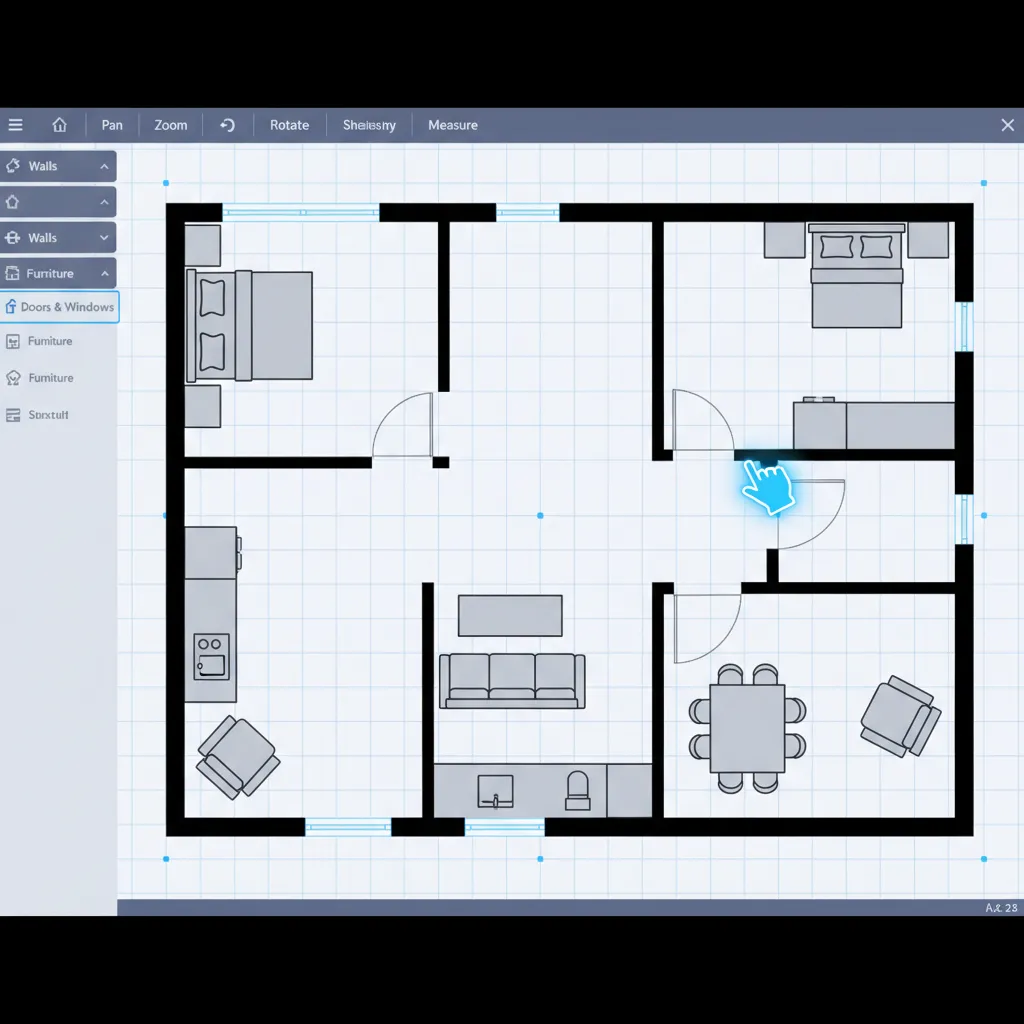

Typical drag implementation flow:

1. User clicks object
2. Mouse press stores original coordinates
3. Mouse drag updates node translation
4. Snap logic adjusts final position

The benefit of JavaFX here is performance: hardware acceleration allows smooth manipulation even with dozens of layout elements.

save pin

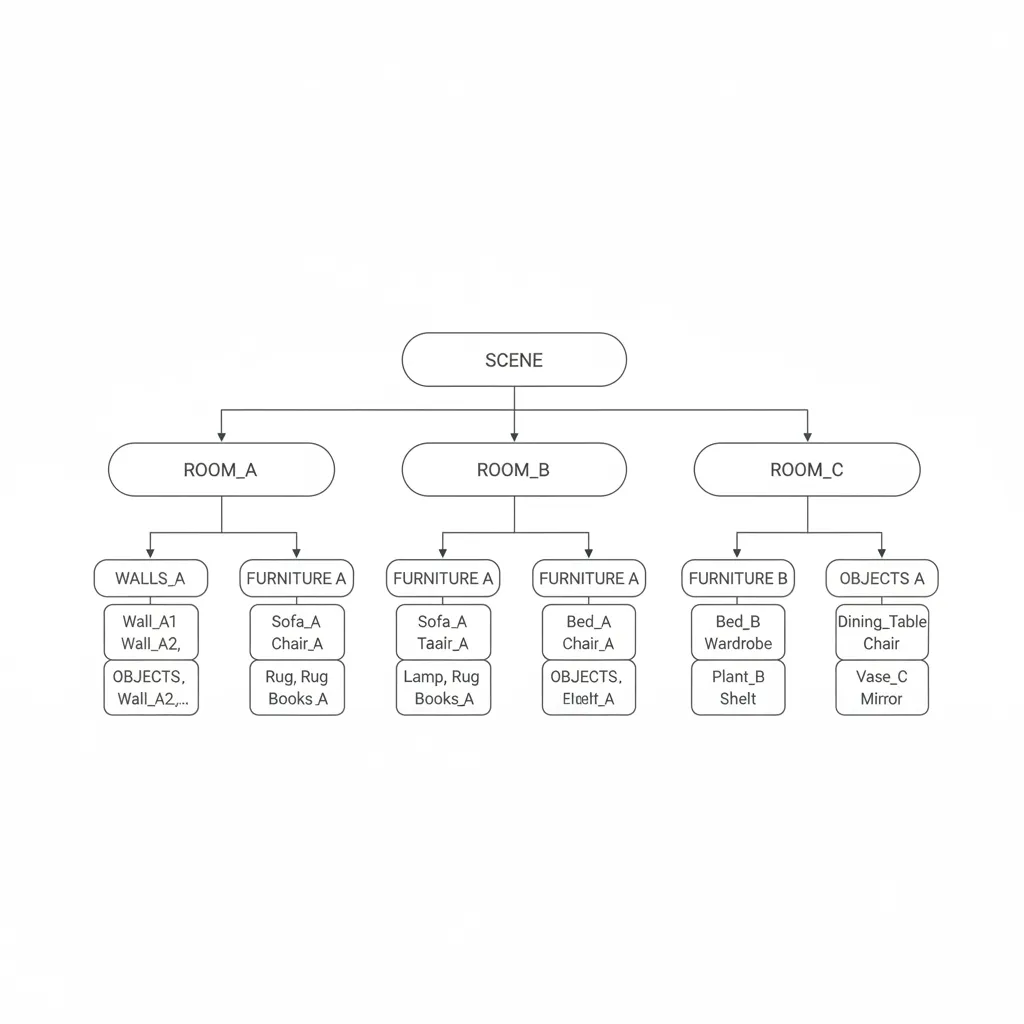

Why Scene Graphs Work Perfectly for Floor Plan Layouts

Key Insight: Scene graphs mirror the hierarchical structure of buildings and rooms.

In most layout editors I design, the data model mirrors this hierarchy:

1. FloorPlan
2. Rooms
3. Walls
4. Openings (doors/windows)
5. Furniture

Each level maps cleanly to JavaFX nodes.

For example:

1. FloorPlan → Root Group
2. Room → Group containing walls
3. Wall → Line or custom node
4. Furniture → Node with drag handlers

This architecture simplifies rendering and interaction. If a room moves, its children move automatically.

If you want to see how modern layout tools visualize these relationships, looking at a complete interactive 3D floor planning workflowillustrates how objects are grouped and manipulated.

save pin

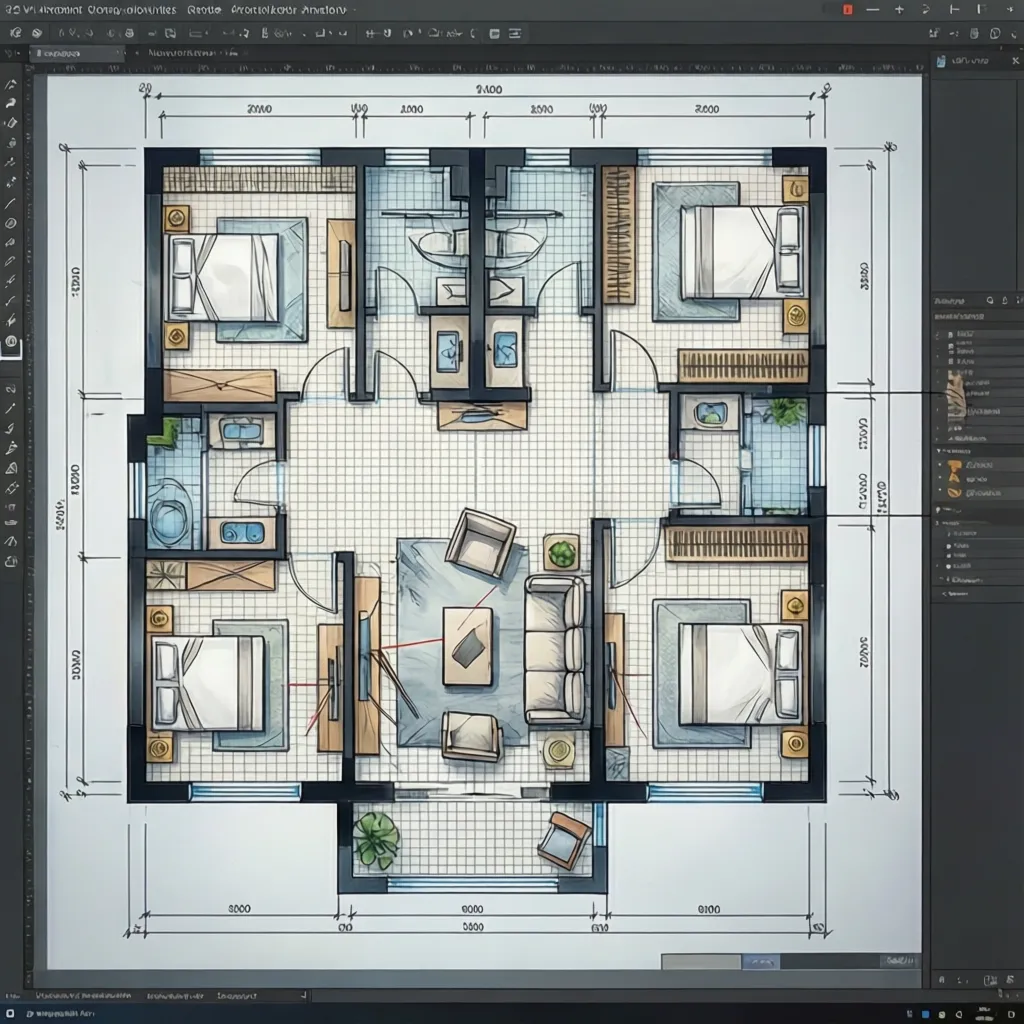

How Do You Implement Zoom, Pan, and Grid Systems?

Key Insight: Zoom and grid snapping dramatically improve usability and precision.

Professional layout tools rarely operate at a single zoom level. Designers constantly zoom to inspect wall alignment or adjust furniture.

Typical implementation uses transforms on the root canvas node.

Basic approach:

1. Wrap drawing canvas in a Group
2. Apply Scale transform for zoom
3. Apply Translate transform for panning
4. Render grid as background layer

Grid snapping logic typically rounds coordinates to grid increments:

1. 5 cm for architectural layouts
2. 10 cm for conceptual sketches
3. 50 cm for room blocks

From usability tests I've run, snapping improves editing speed by more than half because users spend less time manually aligning walls.

Adding Interactive Wall and Room Editing Tools

Key Insight: Wall editing tools are the hardest part of building a floor plan editor.

Most tutorials stop at drawing rectangles. Real editors require walls to stretch, join, and update room boundaries dynamically.

Essential wall editing tools include:

1. Wall drawing tool
2. Corner drag handles
3. Automatic wall joining
4. Room detection
5. Wall thickness adjustments

A reliable approach is representing walls as line segments with connection nodes at endpoints.

When a corner moves, all connected segments update automatically.

Many commercial planners rely on similar logic used in professional interactive room layout design environments, where walls, doors, and furniture all behave as parametric objects.

save pin

Saving and Loading Floor Plan Data Structures

Key Insight: Floor plan editors must separate visual rendering from the persistent data model.

The UI representation should never be the source of truth.

Instead, store layouts in structured formats such as:

1. JSON
2. XML
3. Custom binary formats for large projects

Typical data schema includes:

1. Room boundaries
2. Wall coordinates
3. Door/window openings
4. Furniture positions
5. Scale information

During loading:

1. Parse layout file
2. Rebuild object model
3. Generate scene graph nodes
4. Attach interaction handlers

This separation keeps the editor maintainable as the project grows.

Answer Box

The best architecture for a Java interactive floor plan editor combines JavaFX rendering, scene‑graph based object models, and structured layout data storage. Treat rooms, walls, and furniture as editable objects rather than static drawings to achieve professional editing behavior.

Final Summary

1. JavaFX is the most practical framework for Java layout editors.
2. Scene graphs naturally represent architectural hierarchies.
3. Zoom, pan, and snapping dramatically improve usability.
4. Wall editing logic is the most complex system to implement.
5. Separate UI rendering from persistent layout data models.

FAQ

What is the best framework for a Java interactive floor plan editor?

JavaFX is generally the best choice because it offers hardware‑accelerated rendering, event handling, and a scene graph architecture ideal for layout editing.

Can you build a floor plan editor using Swing?

Yes, but Swing lacks modern graphics performance and built‑in transformations, making zoom and drag interactions harder to implement.

How do you represent rooms in a Java floor plan editor?

Rooms are typically stored as polygon boundaries or groups of connected wall segments within the scene graph.

What data format should store floor plan layouts?

JSON is the most common format because it is easy to serialize, version, and integrate with other systems.

How complex is it to build a Java interactive floor plan editor?

A minimal editor can be built quickly, but professional tools require complex interaction systems such as snapping, wall joining, and undo history.

How do drag and drop systems work in JavaFX?

They rely on MouseEvent listeners that track press, drag, and release events while updating node transformations.

Can Java render large architectural layouts efficiently?

Yes. JavaFX hardware acceleration allows smooth rendering if nodes are grouped efficiently.

Do floor plan editors require scene graphs?

They are not mandatory, but scene graphs make interaction logic far easier to manage.
