Interventional Radiology Room Layout Requirements Across Medical Specialties: How IR suite layouts change for neuro, vascular, oncology, and pediatric procedures—and what designers often overlook

Direct Answer

Interventional radiology room layout requirements vary significantly across medical specialties because each procedure type demands different imaging equipment, staff workflows, sterility zones, and patient monitoring needs. Neurointerventional suites prioritize ultra‑high imaging precision and anesthesia space, vascular labs focus on device storage and circulation space, oncology IR rooms emphasize thermal safety and CT integration, while pediatric suites require adaptable equipment and family-centered safety considerations.

Quick Takeaways

1. IR suite layouts must match procedural workflow, not just equipment size.
2. Neurointerventional rooms prioritize imaging accuracy and anesthesia access.
3. Vascular suites require extensive device storage and catheter workflow zones.
4. Oncology IR rooms often integrate CT imaging and ablation safety clearances.
5. Pediatric IR rooms require flexible equipment scaling and caregiver space.

Introduction

After working on several hospital imaging renovations, one pattern becomes clear: the biggest mistake in interventional radiology planning is assuming every IR suite can follow the same layout template. In reality, the interventional radiology room layout must be tailored to the types of procedures performed. A neurointerventional thrombectomy suite operates very differently from an oncology tumor ablation lab or a vascular intervention room.

Yet many hospital planners still start with generic room dimensions and try to fit specialized workflows afterward. That usually leads to circulation bottlenecks, poor equipment access, and compromised staff ergonomics.

If you’re planning or evaluating an IR suite, understanding the fundamentals of procedure-driven design is critical. A good starting point is reviewing the step-by-step process designers use to visualize medical room layouts in 3D, which helps teams test equipment positioning before construction begins.

In this article, I’ll break down how interventional radiology suites change across specialties and highlight the layout details that are most commonly overlooked in real hospital projects.

save pin

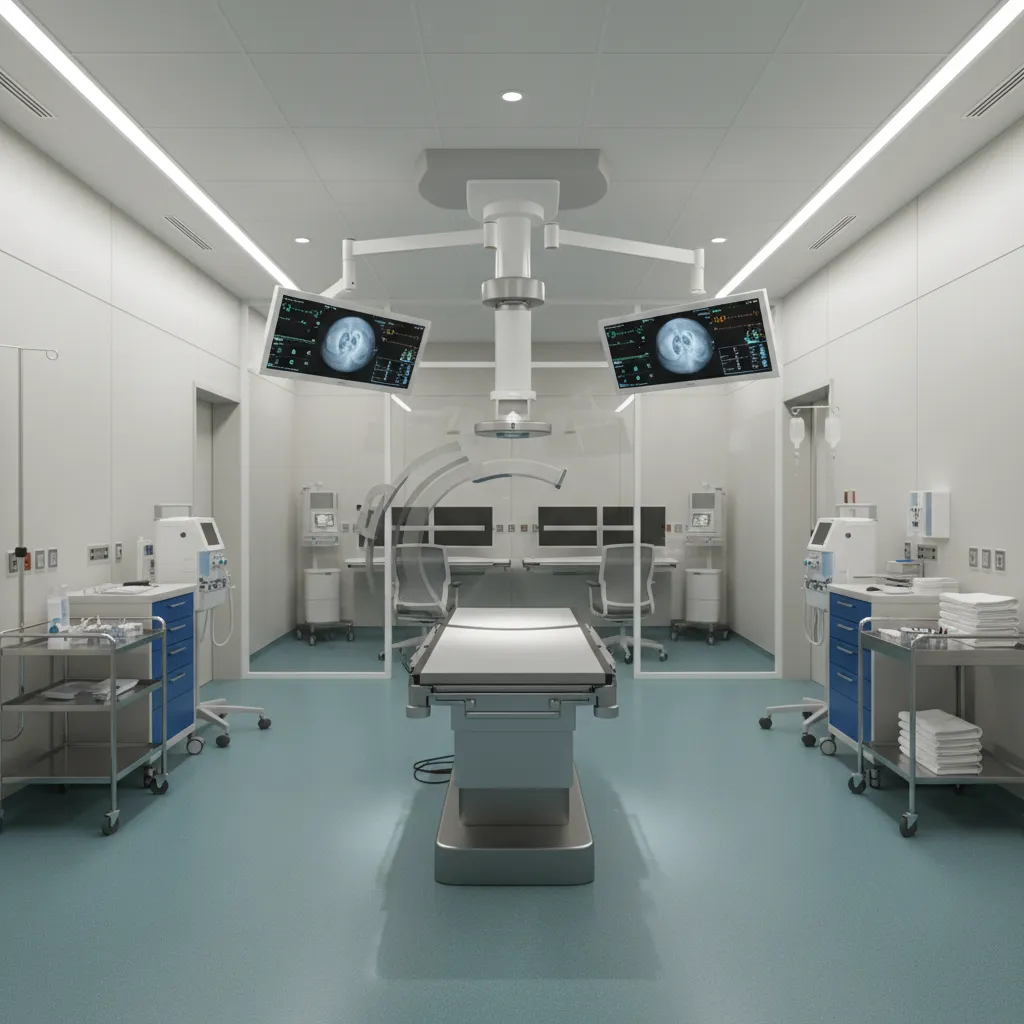

General Interventional Radiology Suite Layout Standards

Key Insight: Every specialty-specific IR room still follows a shared structural framework built around imaging access, sterile workflow, and equipment circulation.

Regardless of specialty, most interventional radiology rooms follow a core spatial logic that supports safe imaging and efficient procedural flow. Over the past decade, hospitals have gradually shifted toward larger hybrid-ready IR suites to accommodate evolving technologies.

Typical baseline layout components include:

1. Procedure table centered under the imaging gantry
2. Ceiling-mounted monitors and imaging arms
3. Control room with lead shielding and direct sightline
4. Anesthesia zone near the patient head
5. Equipment parking areas for ultrasound or CT guidance
6. Circulation space for nurses and technologists

Most modern guidelines recommend a procedural room between 600–800 square feet for advanced IR procedures. However, the real challenge is not square footage—it’s how equipment movement and staff workflow intersect.

One issue I frequently see is imaging equipment colliding with anesthesia carts or ultrasound systems during procedures. Early digital layout testing helps avoid these conflicts.

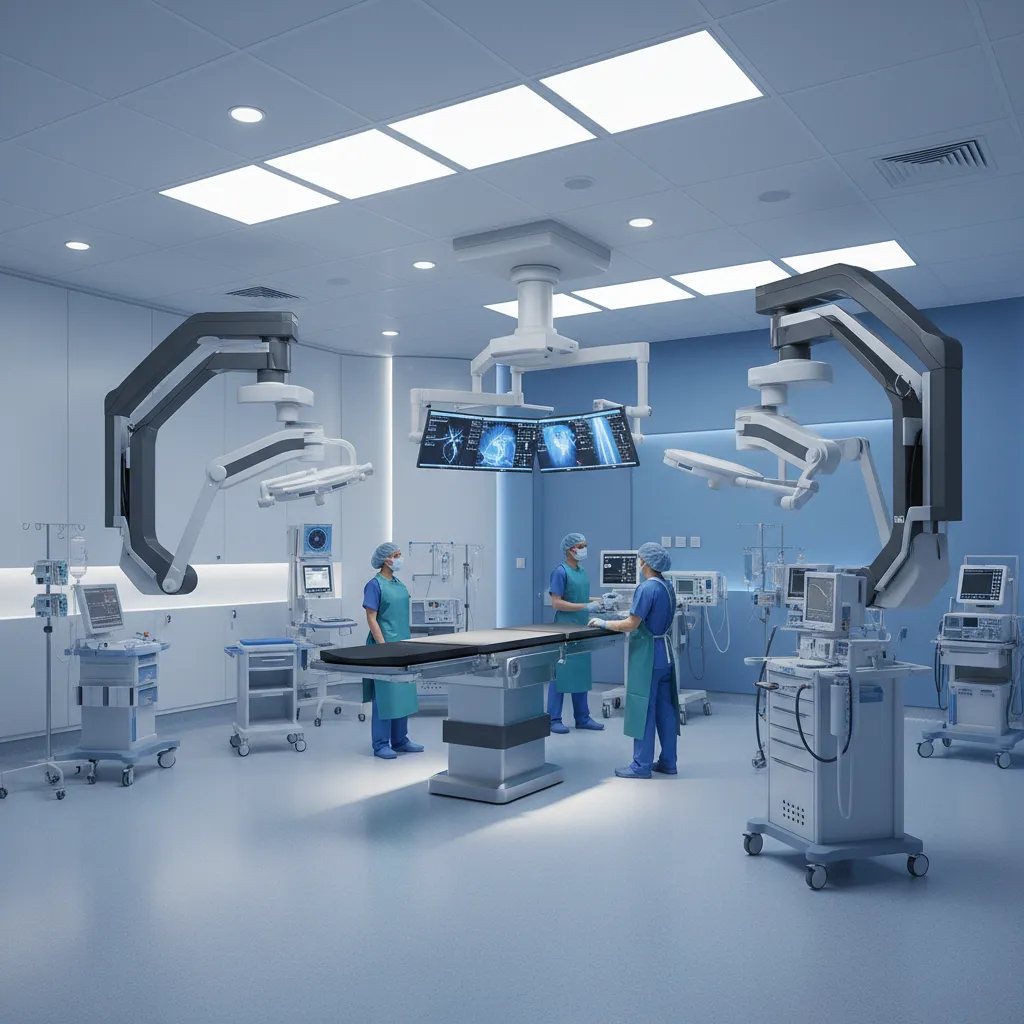

Neurointerventional Procedure Room Requirements

Key Insight: Neurointerventional radiology suites require the highest imaging precision and the most anesthesia integration of any IR specialty.

Stroke thrombectomy and cerebral aneurysm treatments rely heavily on biplane angiography systems. These imaging systems require significantly more spatial clearance than standard single-plane IR equipment.

Key design priorities include:

1. Biplane angiography equipment clearance zones
2. Dedicated anesthesia workspace at the head of the table
3. Large multi-display monitor arrays
4. Advanced radiation shielding
5. Emergency rapid-access entry points

In practice, neurointerventional suites often exceed 800 square feet because both imaging arms must move freely around the patient without interfering with staff.

A common oversight is forgetting the space required for emergency stroke teams. During thrombectomy procedures, neurologists, anesthesiologists, and IR specialists may all be present simultaneously.

save pin

Vascular Interventional Radiology Suite Design Needs

Key Insight: Vascular IR suites prioritize device logistics and catheter workflow more than imaging complexity.

Peripheral vascular interventions, angioplasty, and stent placements rely on large inventories of catheters, wires, and sheaths. As a result, storage and preparation zones play a much larger role in vascular IR layout planning.

Typical design features include:

1. Extensive sterile supply cabinets
2. Wire and catheter preparation tables
3. Large circulation space for device carts
4. Multiple monitor displays for angiographic guidance
5. Ultrasound positioning near the access site

In many hospitals I’ve worked with, vascular suites also double as hybrid surgical environments. This means layouts must support both catheter-based procedures and potential surgical conversions.

Using tools that allow teams to experiment with procedural equipment placement during early floor plan planning can significantly reduce costly redesigns later in construction.

Oncology and Tumor Ablation Procedure Layout Considerations

Key Insight: Oncology IR rooms often require multi‑modality imaging integration and extra thermal safety clearance.

Tumor ablation procedures—including microwave, cryoablation, and radiofrequency treatments—introduce equipment that standard IR rooms were not originally designed to accommodate.

These rooms frequently require:

1. CT imaging integration with angiography
2. Ablation generator equipment stations
3. Additional equipment cooling and ventilation
4. Clear sterile zones for probe insertion
5. Expanded monitor visualization for image fusion

Another overlooked factor is cable management. Ablation systems often introduce multiple cables that can easily interfere with sterile workflow if not carefully routed.

save pin

Pediatric Interventional Radiology Room Modifications

Key Insight: Pediatric IR suites prioritize flexibility, safety, and emotional comfort more than pure equipment density.

Pediatric procedures involve smaller anatomy, lower radiation doses, and different sedation protocols. As a result, equipment positioning and room atmosphere often change significantly.

Important pediatric design considerations include:

1. Adjustable-height procedure tables
2. Radiation dose monitoring equipment
3. Compact device storage
4. Family waiting and consultation areas nearby
5. Child-friendly lighting and visual elements

Many pediatric hospitals also design IR suites with flexible equipment mounts so the same room can support different procedure types throughout the day.

Answer Box

Specialty-driven design is the most important factor in interventional radiology room layout planning. Neuro, vascular, oncology, and pediatric procedures all require different equipment clearances, workflow patterns, and safety zones. Hospitals that design IR suites around real clinical workflows avoid costly renovations later.

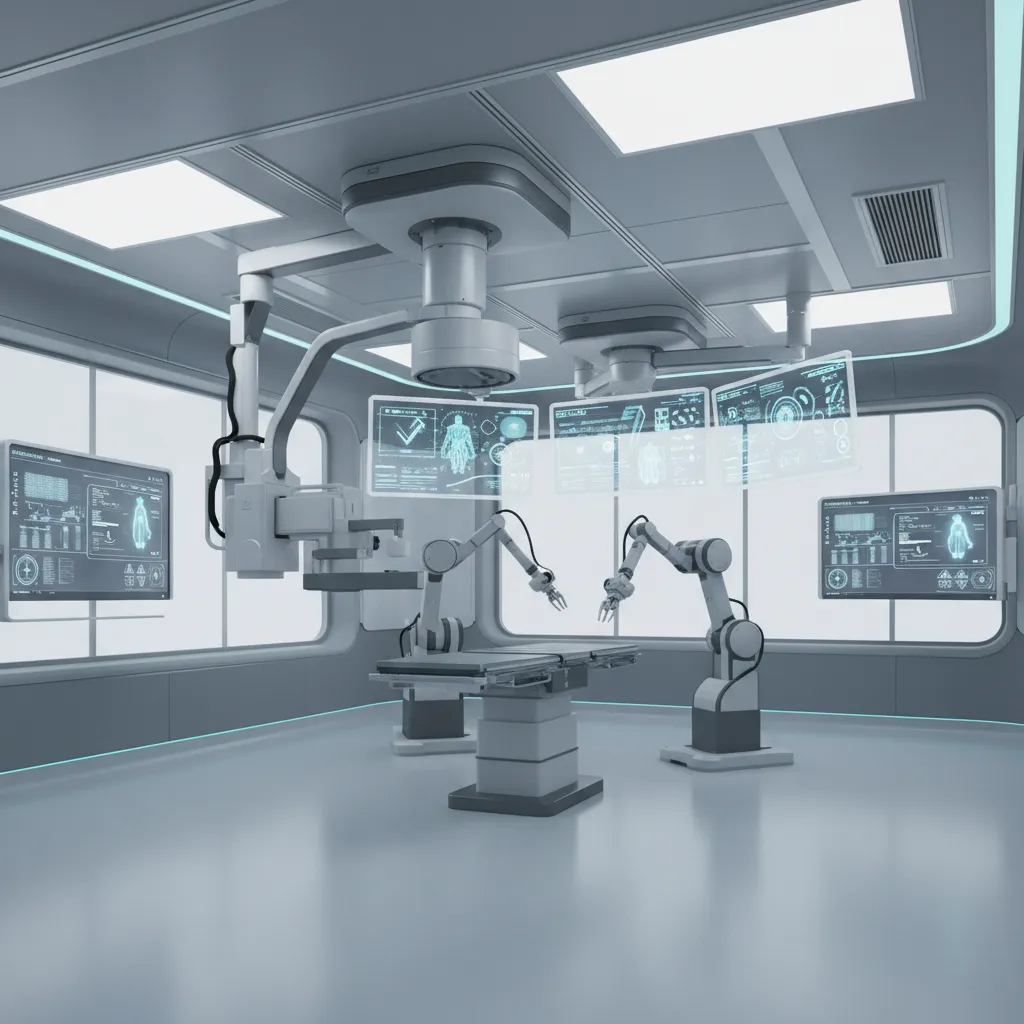

Future Trends in Specialty-Specific IR Suite Design

Key Insight: The next generation of IR suites is moving toward hybrid imaging environments that support multiple specialties in a single adaptable room.

Hospitals are increasingly designing "universal" interventional rooms that can accommodate neuro, vascular, and oncology procedures through modular equipment configurations.

Emerging design trends include:

1. Ceiling-mounted modular imaging systems
2. Hybrid CT-angiography rooms
3. Robotic catheter navigation equipment
4. Integrated real-time 3D visualization displays
5. Flexible equipment docking stations

Planning these complex rooms often requires early digital simulation so teams can evaluate staff movement and equipment access. Many designers now rely on tools that allow teams to test complex medical suite layouts with AI-assisted floor planningbefore finalizing construction drawings.

save pin

Final Summary

1. IR suite layouts must be designed around clinical workflows.
2. Neurointerventional rooms require the most imaging clearance.
3. Vascular suites prioritize device storage and catheter prep zones.
4. Oncology IR rooms must integrate ablation equipment and CT imaging.
5. Pediatric suites require adaptable equipment and patient-centered design.

FAQ

1. What is the standard size for an interventional radiology room?

Most advanced IR suites range from 600–800 square feet, though neurointerventional rooms often require more space for biplane imaging systems.

2. Why do neurointerventional suites need larger layouts?

They use biplane angiography systems that require more movement clearance and additional anesthesia space.

3. What equipment defines a vascular interventional radiology suite?

Catheter storage systems, angiography imaging, ultrasound units, and multiple monitor arrays are standard components.

4. Do oncology IR rooms require CT scanners?

Many oncology interventional radiology labs integrate CT imaging for accurate tumor targeting during ablation procedures.

5. How does pediatric interventional radiology room design differ?

Pediatric IR rooms use smaller equipment, adjustable tables, lower radiation protocols, and family-centered safety considerations.

6. Can one IR suite support multiple specialties?

Yes. Many hospitals now design hybrid interventional rooms that support neuro, vascular, and oncology procedures with modular equipment.

7. What is the biggest mistake in IR suite layout planning?

Designing rooms around equipment first instead of procedure workflow.

8. How early should interventional radiology room layout planning begin?

Ideally during the early hospital planning phase so equipment clearances and shielding requirements are incorporated into architecture.
