Jali Design Materials Comparison for Building Elevations: Understand how different jali materials affect durability cost and visual impact before choosing a facade design

Direct Answer

The best material for a jali elevation depends on climate, building type, and maintenance expectations. Stone and concrete offer durability for exterior facades, metal provides modern precision and airflow control, while wood and MDF are better suited for protected decorative applications.

Quick Takeaways

1. Stone jali panels provide the longest lifespan but require skilled installation.
2. Metal jali facades balance durability, precision patterns, and modern aesthetics.
3. Concrete jali blocks are cost efficient and work well for large exterior screens.
4. Wood and MDF jali are visually warm but need protection from moisture and sun.
5. Material choice should match the building scale, climate, and maintenance budget.

Introduction

After working on residential villas, boutique hotels, and commercial facades for more than a decade, I’ve noticed one recurring question from clients exploring jali elevation design materials: which material actually performs best over time?

Most people initially focus on pattern aesthetics. But once a project moves into construction drawings, the real discussion becomes durability, weather resistance, fabrication complexity, and cost.

I’ve seen beautiful facade screens fail within a few monsoon seasons simply because the material choice didn’t match the climate or building use. On the other hand, the right jali material can dramatically improve ventilation, shading, and facade character for decades.

When planning early concepts, many designers start by experimenting with layout and screen density using tools that help visualize facade layouts and spatial planning before construction. That early exploration often reveals which materials will actually work at scale.

In this guide, I’ll compare the most common materials used in modern jali facades and explain where each one performs best based on real project experience.

save pin

Why Material Choice Matters in Jali Elevation Design

Key Insight: The success of a jali facade depends more on material behavior than on pattern design.

Jali screens function as architectural filters. They regulate sunlight, airflow, privacy, and heat gain. Because of that, the material must tolerate structural stress, temperature shifts, and long exposure to outdoor conditions.

From a design perspective, the material directly affects:

1. Pattern precision
2. Panel size limitations
3. Installation methods
4. Long term maintenance
5. Structural load on the facade

For example, traditional sandstone jali panels seen in historic Indian architecture were carved thick to maintain structural integrity. Modern metal laser cutting allows far thinner patterns while maintaining strength.

Architectural research from the Aga Khan Trust for Culture highlights that historic stone jali structures survived centuries largely because the material thickness matched structural loads and climate conditions.

The lesson is simple: the wrong material choice can undermine even the most beautiful design.

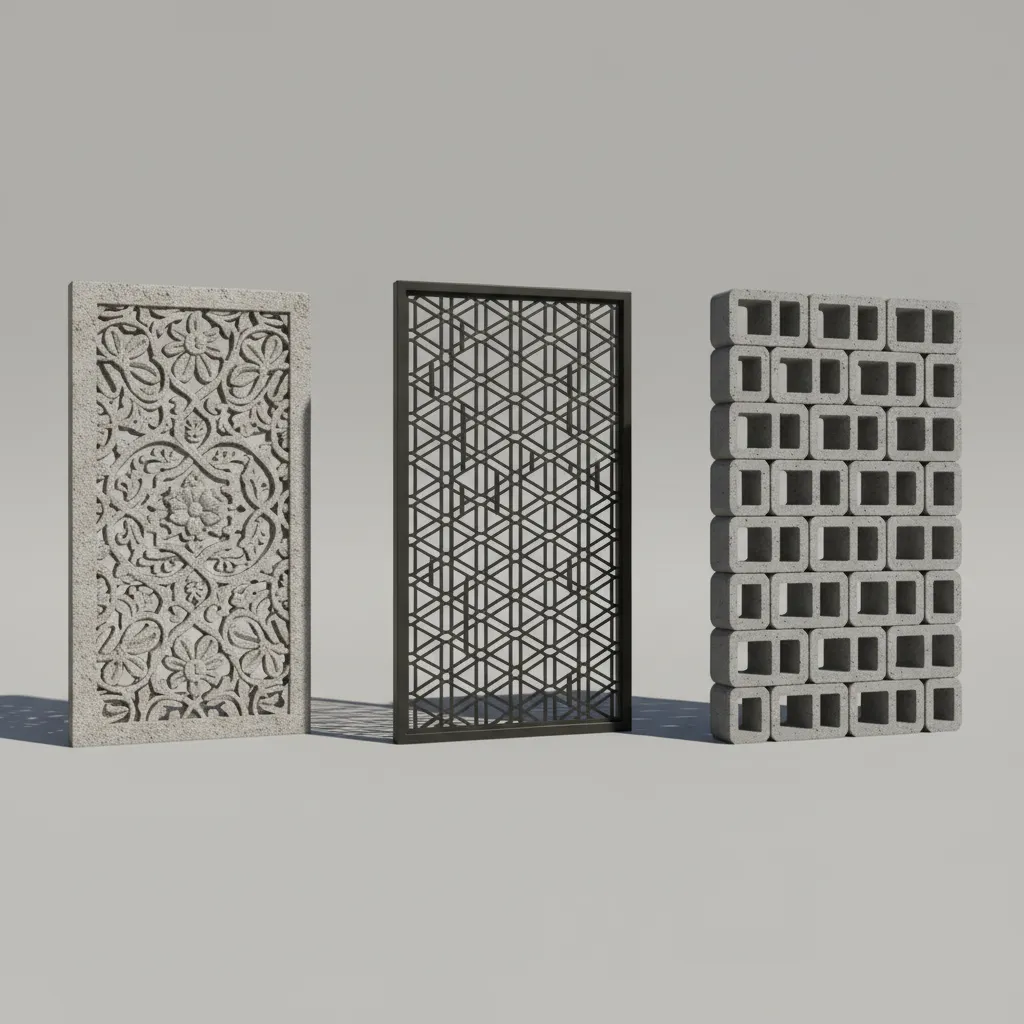

Stone Jali vs Metal Jali vs Concrete Jali

Key Insight: Stone prioritizes longevity, metal prioritizes precision, and concrete prioritizes affordability for large scale facade screens.

These three materials dominate exterior jali applications because they balance durability and structural performance.

Stone Jali

1. Traditional aesthetic with handcrafted detail
2. Extremely durable when properly installed
3. Works well for heritage style architecture
4. Heavier structural load

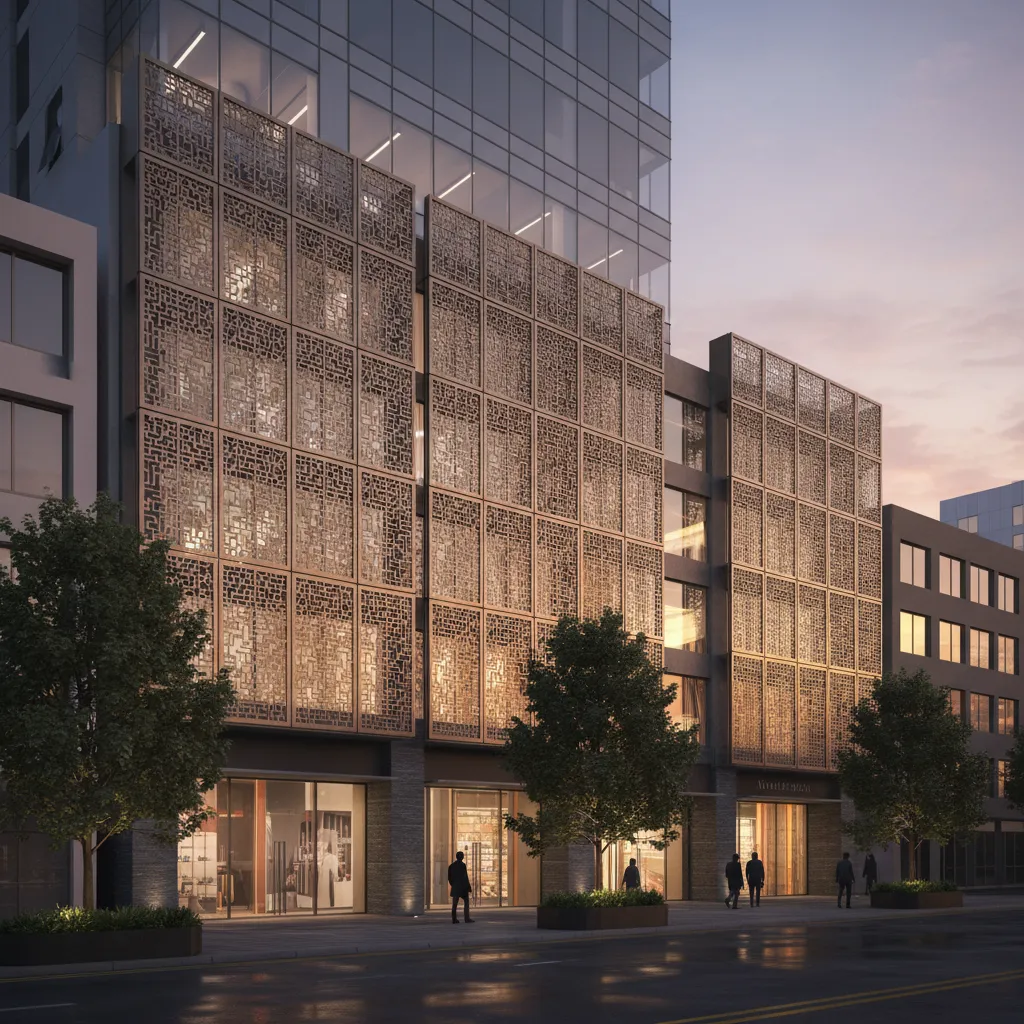

Metal Jali

1. Laser cut patterns allow intricate modern geometry
2. Aluminum and corten steel resist corrosion
3. Lightweight panels simplify installation
4. Works well for commercial and contemporary buildings

Concrete Jali

1. Affordable modular blocks
2. Common in tropical and hot climates
3. Strong shading performance
4. Patterns typically less detailed

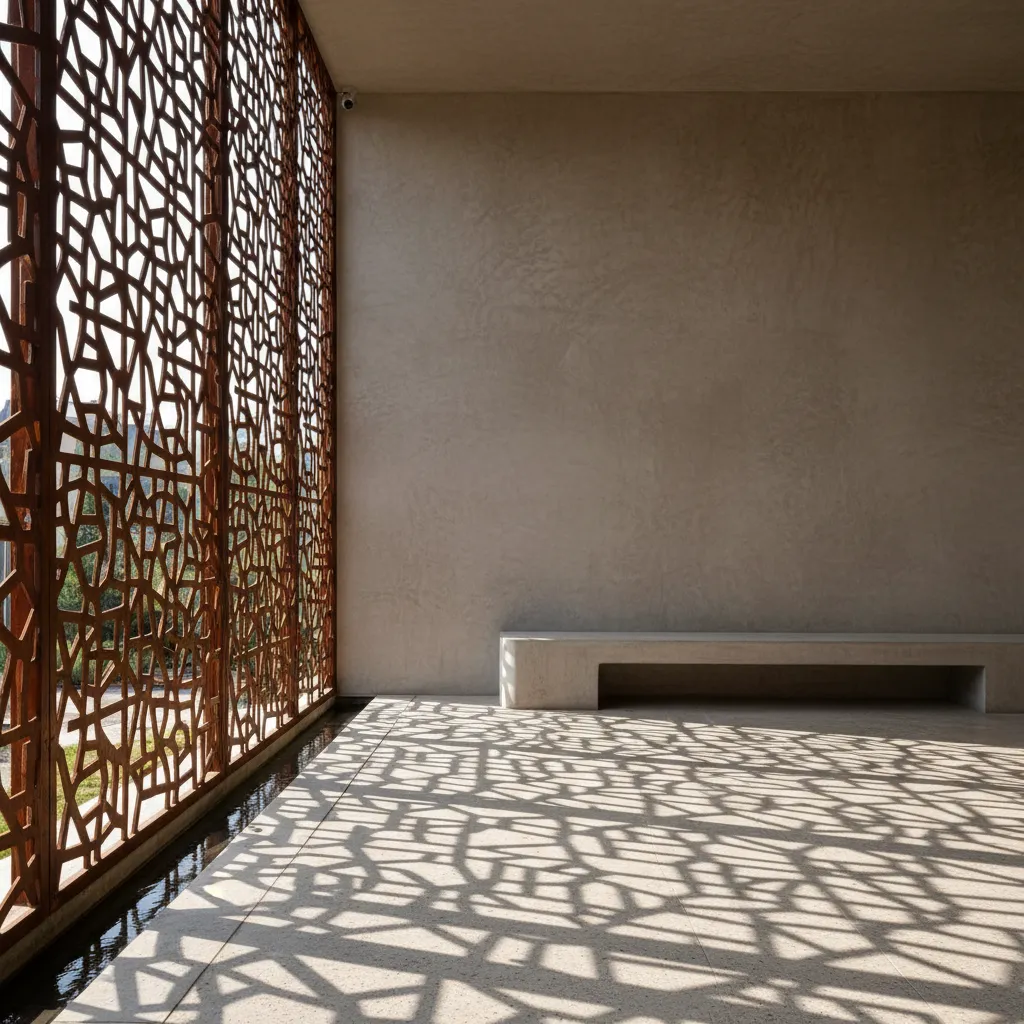

Many contemporary projects combine metal screens with 3D visualization workflows to preview facade lighting and shadow behavior before construction. This step helps verify pattern density and material appearance.

save pin

Wood and MDF Jali for Modern Facades

Key Insight: Wood based jali panels work best in semi outdoor spaces rather than exposed building facades.

Wood brings warmth and craftsmanship that metal or concrete often lack. However, it introduces serious maintenance considerations.

In projects where clients requested wooden screens for exterior elevations, we often redesigned the placement to avoid direct rain exposure.

Typical applications include:

1. Balcony privacy screens
2. Covered verandas
3. Interior courtyard partitions
4. Lobby feature walls

MDF panels are sometimes used because they are inexpensive and easy to CNC cut. But they should almost never be used outdoors unless fully sealed and protected.

Hidden mistake many homeowners make: choosing MDF because it looks identical in renders, only to see swelling or surface damage within a year.

Durability and Weather Resistance Comparison

Key Insight: Climate exposure determines whether a jali facade lasts five years or fifty.

Durability is where material selection becomes critical. In coastal, humid, or monsoon climates, poor material choices fail quickly.

1. Stone – Extremely durable but requires proper anchoring systems.
2. Aluminum – Corrosion resistant and lightweight.
3. Corten steel – Weathering steel that develops protective rust.
4. Concrete – Durable but can stain over time.
5. Wood – Requires periodic sealing and protection.

In one mixed use project I worked on in Southern California, powder coated aluminum screens were chosen because coastal air accelerates corrosion in untreated metals.

save pin

Answer Box

The most durable jali materials for exterior elevations are stone, aluminum, and concrete. Wood and MDF are better suited for protected or interior applications due to moisture sensitivity.

Cost Comparison of Popular Jali Materials

Key Insight: Installation complexity often costs more than the material itself.

Many clients assume stone is automatically the most expensive option. In reality, labor and installation methods drive the final price.

1. Concrete jali blocks – Lowest cost and fastest installation.
2. Laser cut aluminum panels – Moderate cost with precise results.
3. Natural stone carving – Higher cost due to craftsmanship.
4. Wood CNC panels – Moderate cost but higher maintenance.

Another overlooked cost factor is facade coordination. Early planning tools that help experiment with facade pattern concepts and spatial flowoften prevent expensive redesign during construction.

save pin

Which Jali Material Works Best for Different Building Types

Key Insight: The ideal jali material changes depending on building scale and architectural intent.

From my experience designing both residential and commercial facades, different materials naturally align with different project types.

1. Luxury villas – Stone or wood for craftsmanship and texture.

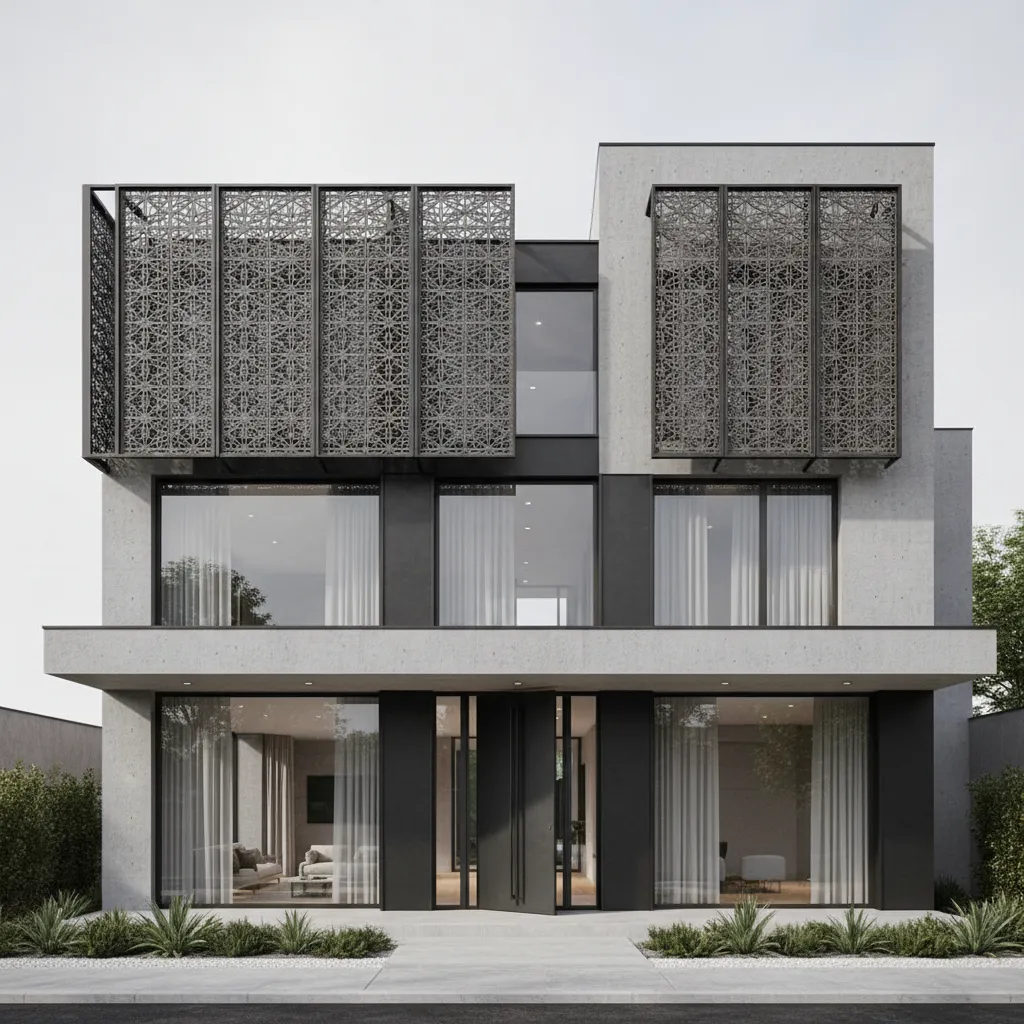

2. Modern residences – Aluminum panels for minimal aesthetics.
3. Commercial offices – Metal screens for durability and scale.
4. Tropical housing – Concrete blocks for airflow and shading.
5. Hospitality buildings – Mixed materials for layered facade depth.

The biggest design mistake I see is selecting a material purely from reference images. What works for a boutique hotel facade might be completely impractical for a residential elevation.

Final Summary

1. Stone jali offers timeless durability and traditional aesthetics.
2. Metal jali provides precision patterns and modern facade flexibility.
3. Concrete jali is the most cost efficient large scale solution.
4. Wood and MDF panels require protected environments.
5. Climate and installation method matter more than pattern style.

FAQ

What is the best material for jali elevation design?

Stone, aluminum, and concrete are the most reliable materials for exterior jali elevation design because they handle weather exposure and structural loads effectively.

Which jali material lasts the longest outdoors?

Natural stone and powder coated aluminum typically last the longest with minimal maintenance when properly installed.

Is metal jali better than stone jali?

Metal jali offers lighter weight and more precise patterns, while stone jali offers traditional aesthetics and exceptional longevity.

Are MDF jali panels suitable for exterior facades?

MDF panels are generally not recommended for exterior use because moisture and sunlight can quickly degrade the material.

Which jali material is cheapest?

Concrete jali blocks are usually the most affordable option for large facade screens.

Can jali panels improve ventilation in buildings?

Yes. Properly designed jali screens filter sunlight while allowing natural airflow through the building envelope.

How thick should stone jali panels be?

Most stone jali panels range from 30 mm to 75 mm depending on panel size and structural load.

Which jali material is best for modern architecture?

Laser cut aluminum or steel panels are widely used in contemporary jali facade design because they support complex geometric patterns.

References

1. Aga Khan Trust for Culture architectural conservation studies
2. American Institute of Architects facade material guidelines
3. Architectural Digest facade design case studies
