Key Mistakes to Avoid Before Finalizing a Patio Design in 3D Tools: Practical checks that prevent expensive patio construction errors after digital design planning

Direct Answer

The biggest patio design mistakes happen when digital plans ignore real‑world conditions like drainage, scale, and movement space. Before finalizing a patio in 3D tools, verify measurements, test multiple layouts, and confirm materials and slope match the actual site.

Most costly patio construction problems start with small assumptions made during the digital planning stage.

Quick Takeaways

1. Accurate site measurements matter more than visual design accuracy.
2. Ignoring drainage and slope is the fastest way to ruin a finished patio.
3. 3D layouts often underestimate furniture and walking clearance.
4. Testing multiple patio layout scenarios reveals hidden planning risks.
5. Material choices in software may not reflect real installation limits.

Introduction

I have reviewed hundreds of DIY patio plans over the years, and one pattern shows up again and again: the digital design looks perfect, but the built patio creates problems within months.

This is why understanding patio design mistakes to avoid is just as important as learning how to design the space itself. 3D planning tools make layouts easier to visualize, but they also create a false sense of accuracy. The software shows clean geometry, ideal lighting, and perfectly placed furniture. Real outdoor environments are rarely that cooperative.

Homeowners usually run into the same issues: water pooling after rain, walkways that feel cramped, furniture that doesn't actually fit, or materials that were unrealistic for the site conditions.

Before committing to construction, I always recommend running your layout through a realistic planning workflow. Many homeowners start by creating a detailed outdoor layout plan that reflects real site dimensions, which immediately exposes spacing problems that a quick visual sketch might hide.

The sections below walk through the most common patio planning errors I see when people finalize designs in 3D tools—and how to catch them before construction begins.

save pin

Why Digital Patio Designs Can Still Lead to Real World Mistakes

Key Insight: A visually accurate patio design can still fail if the model ignores environmental constraints.

3D tools are excellent for visualization, but they often simplify conditions that matter in outdoor construction. Terrain irregularities, soil conditions, and sun exposure rarely appear clearly in digital layouts.

In many projects I've reviewed, the patio itself looked well designed—but its relationship to the yard wasn't considered.

Common hidden gaps between digital plans and real conditions include:

1. Uneven ground levels
2. Drainage flow during heavy rain
3. Nearby trees or root systems
4. Foundation clearance from the house
5. Sun exposure and shade patterns

According to guidance from the American Society of Landscape Architects, site analysis should always precede hardscape installation planning because drainage and soil movement directly affect durability.

A digital layout should be treated as a visualization tool—not a substitute for site analysis.

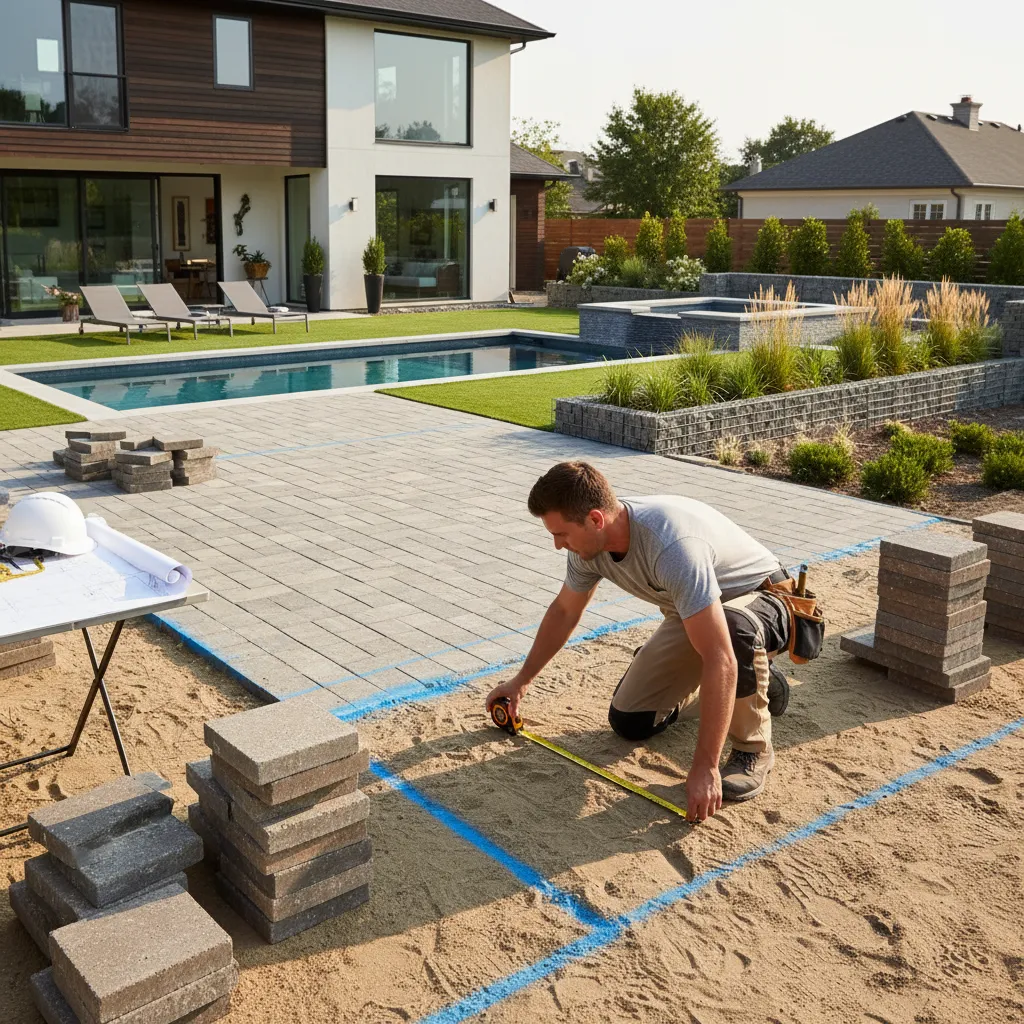

Ignoring Accurate Measurements and Site Conditions

Key Insight: Measurement errors are the most common DIY patio planning mistake.

Many homeowners design patios using estimated dimensions rather than verified site measurements. Even a 6–8 inch difference can break furniture placement or walkway clearances.

Typical measurement mistakes include:

1. Not measuring from the house foundation
2. Ignoring fence or property line offsets
3. Overlooking steps, slopes, or retaining edges
4. Forgetting the thickness of pavers or decking layers

Professional designers usually double‑verify layouts using both tape measurements and scaled planning models. If you want to stress‑test your layout, many designers recommend mapping outdoor furniture placement and walking paths inside a realistic room scale planner. This quickly reveals whether dining tables, seating, and circulation space actually work together.

save pin

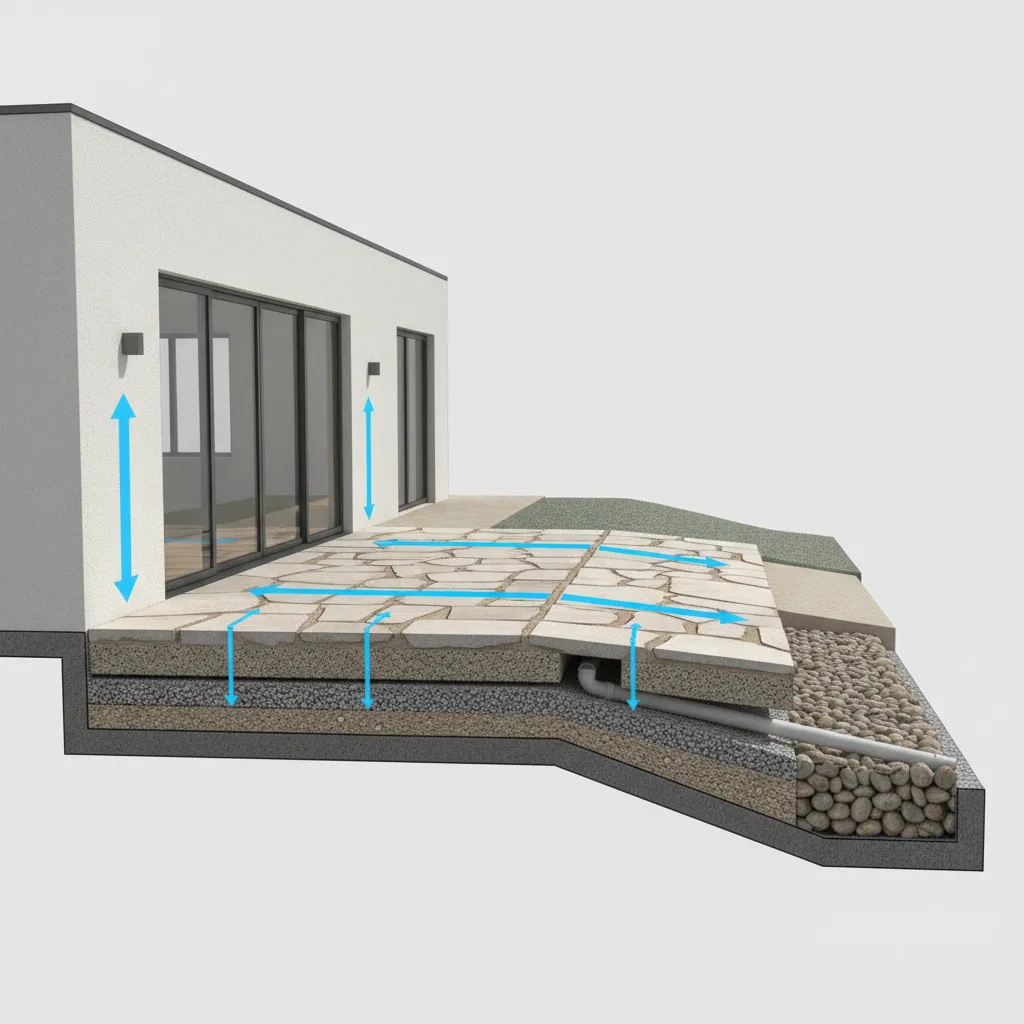

Overlooking Drainage and Ground Slope

Key Insight: Poor drainage destroys patios faster than bad aesthetics.

Water management is one of the most overlooked patio layout planning risks in DIY designs.

A patio should almost never be perfectly flat. Most outdoor hardscapes require a slight slope—typically about 1/4 inch per foot—to move water away from the house.

If drainage is ignored, several problems appear quickly:

1. Standing water after rainfall
2. Moss or algae growth on pavers
3. Foundation moisture issues
4. Paver shifting during freeze‑thaw cycles

Landscape contractors consistently rank drainage issues among the top reasons patios require early repair.

save pin

Choosing Unrealistic Materials or Layouts

Key Insight: Not every material that looks good in software works in the real environment.

3D libraries make it easy to experiment with stone, wood, concrete, and tile finishes. But materials behave differently depending on climate, maintenance requirements, and installation conditions.

Some examples I see often:

1. Large stone slabs chosen for small patios
2. Wood decking placed in constantly damp areas
3. Smooth tile surfaces used in rainy climates
4. Complex shapes that dramatically increase installation cost

Contractors frequently recommend simpler layouts because irregular shapes increase cutting waste and labor hours.

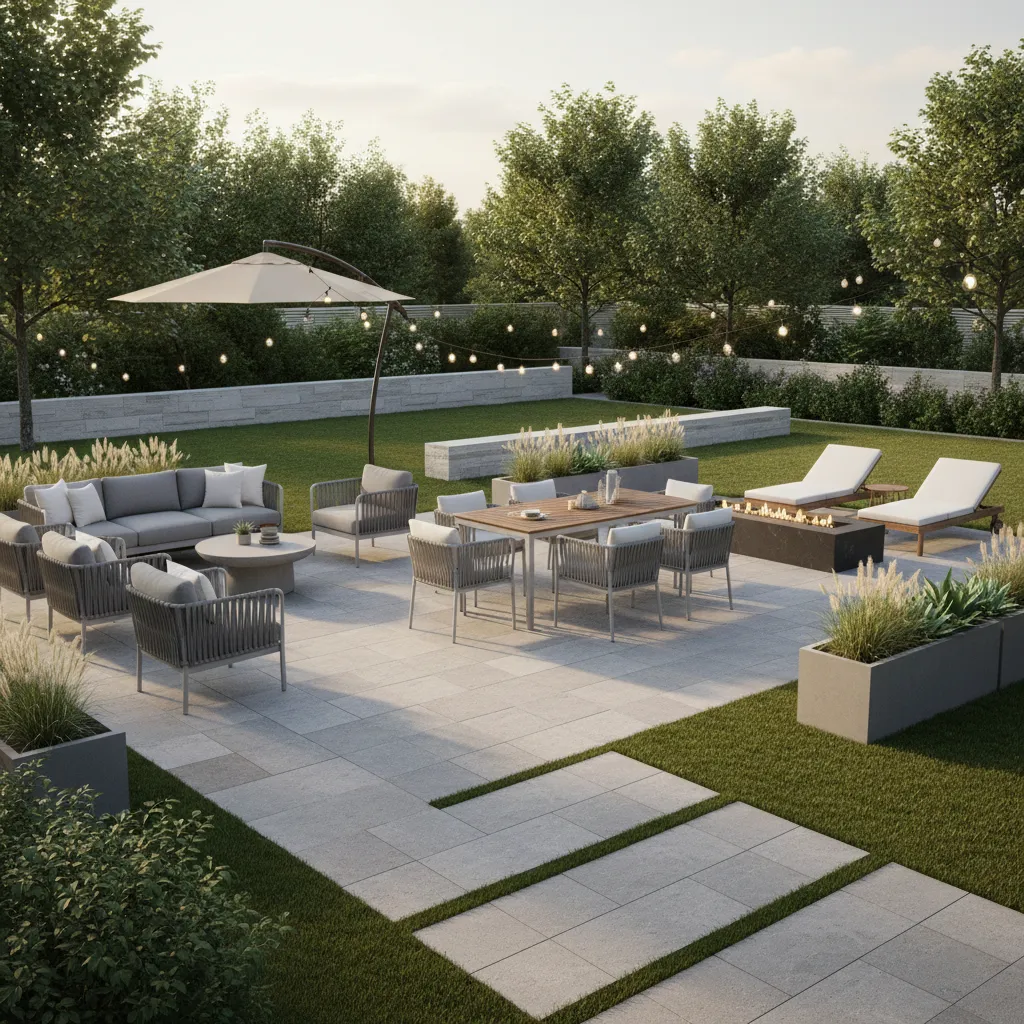

Forgetting Accessibility and Movement Space

Key Insight: A patio that looks spacious in 3D can feel crowded in real life.

One subtle issue with digital patio planning is scale perception. Furniture models often appear smaller on screen than they are in reality.

Minimum clearance guidelines used by landscape designers typically include:

1. 36 inches for primary walking paths
2. 48 inches around dining tables
3. 18–24 inches behind seating areas
4. 36 inches between grill zones and seating

Testing layouts in multiple views helps expose these spacing issues. Some homeowners even generate a realistic preview by producing a full outdoor scene rendering to evaluate furniture scale and circulation space.

save pin

Answer Box

The safest way to avoid patio planning errors is to validate three things before construction: accurate measurements, proper drainage slope, and realistic space for furniture movement.

If those three elements work in the design, most major patio failures are prevented.

Not Testing Multiple Patio Design Scenarios

Key Insight: The first patio layout is rarely the best one.

Professional designers rarely commit to the first concept. Instead, we test several variations before choosing the final layout.

Scenario testing often includes:

1. Dining‑focused layout
2. Lounge‑focused layout
3. Entertainment layout with fire pit
4. Compact layout maximizing yard space

Comparing these variations often reveals that the "obvious" design isn't actually the most functional.

Final Design Checks Before Construction Starts

Key Insight: A final review stage prevents most DIY patio construction regrets.

Before approving a patio build, I recommend a simple verification checklist.

Pre‑construction patio checklist:

1. Confirm all site measurements
2. Validate drainage slope direction
3. Recheck furniture spacing
4. Confirm material availability and cost
5. Verify local building or setback requirements

Running through this checklist only takes about 30 minutes, but it can prevent thousands of dollars in corrections later.

Final Summary

1. Most patio failures start during the digital planning stage.
2. Accurate measurements and drainage planning are essential.
3. Furniture spacing often looks larger in 3D than reality.
4. Testing multiple layout options improves functionality.
5. A final design checklist prevents expensive construction changes.

FAQ

What are the most common patio design mistakes to avoid?

The most common mistakes include poor drainage planning, inaccurate measurements, overcrowded furniture layouts, and choosing unrealistic materials for the climate.

Can 3D patio design tools cause planning errors?

Yes. 3D tools improve visualization but can hide issues like slope, spacing, and construction limitations.

How much slope should a patio have for drainage?

Most patios should slope about 1/4 inch per foot away from the house to prevent standing water.

What spacing should I leave around patio furniture?

Plan at least 36 inches for walking paths and about 48 inches around dining tables for comfortable movement.

Should I test multiple patio layouts before building?

Yes. Testing multiple configurations helps identify circulation problems and improves functionality.

Are DIY patio design tools reliable?

They are useful for planning and visualization but should always be verified with real measurements and site analysis.

What should I check before building a patio?

Verify measurements, slope, drainage direction, furniture spacing, and local building requirements.

Why do some DIY patios fail early?

Most early failures happen due to water drainage problems or unstable base preparation.

References

1. American Society of Landscape Architects Hardscape Planning Guidance
2. National Association of Landscape Professionals Outdoor Design Standards
3. Landscape Architecture Foundation Site Planning Principles
