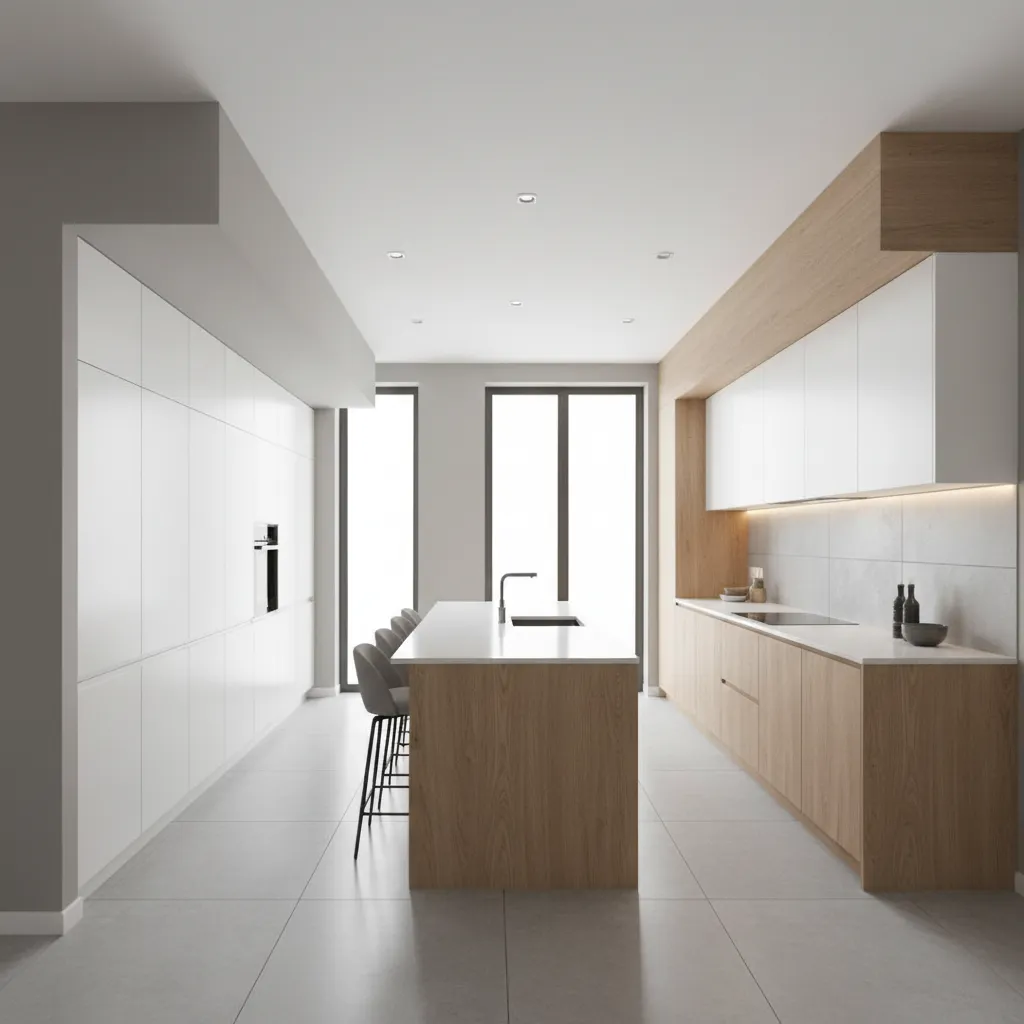

Kitchen Bulkhead vs Ceiling Soffit Design Function and Cost Differences: Understand how bulkheads and soffits affect kitchen layout, cabinet design, and renovation cost before choosing a ceiling structure.

Direct Answer

The difference between a kitchen bulkhead vs soffit mainly comes down to structure and design purpose. A bulkhead is usually a larger boxed structure built below the ceiling to conceal ducts, pipes, or structural beams, while a soffit is typically a narrower enclosure installed above cabinets or along the ceiling edge to hide wiring, ventilation, or lighting.

In modern kitchens, bulkheads are often structural or mechanical necessities, while soffits are more frequently used as design elements around cabinetry.

Quick Takeaways

1. Bulkheads are usually larger structural enclosures that drop lower from the ceiling.
2. Soffits are smaller ceiling enclosures often used above cabinets.
3. Both conceal mechanical systems like ducts, plumbing, and wiring.
4. Bulkheads are harder and more expensive to remove during renovation.
5. Soffits can sometimes be redesigned to add lighting or storage.

Introduction

In more than a decade of residential kitchen projects, one surprisingly common source of confusion is the difference between a kitchen bulkhead vs soffit. Homeowners often use the terms interchangeably, but from a design and construction perspective they are not exactly the same.

I see this issue most often during remodel planning. A client wants taller cabinets, better lighting, or a cleaner ceiling line, but there's a mysterious boxed structure running along the ceiling. Is it removable? Structural? Just decorative?

The answer depends on whether you're looking at a bulkhead or a soffit.

Understanding the distinction matters because it directly affects renovation cost, cabinet layout, lighting options, and even airflow design. If you're currently planning a kitchen layout, exploring tools like a visual kitchen layout planning workflow for cabinets and ceiling clearancescan help reveal where bulkheads or soffits may appear.

Below I'll break down how each structure works, when designers use them intentionally, and the hidden tradeoffs most renovation guides never mention.

save pin

What Is a Kitchen Bulkhead

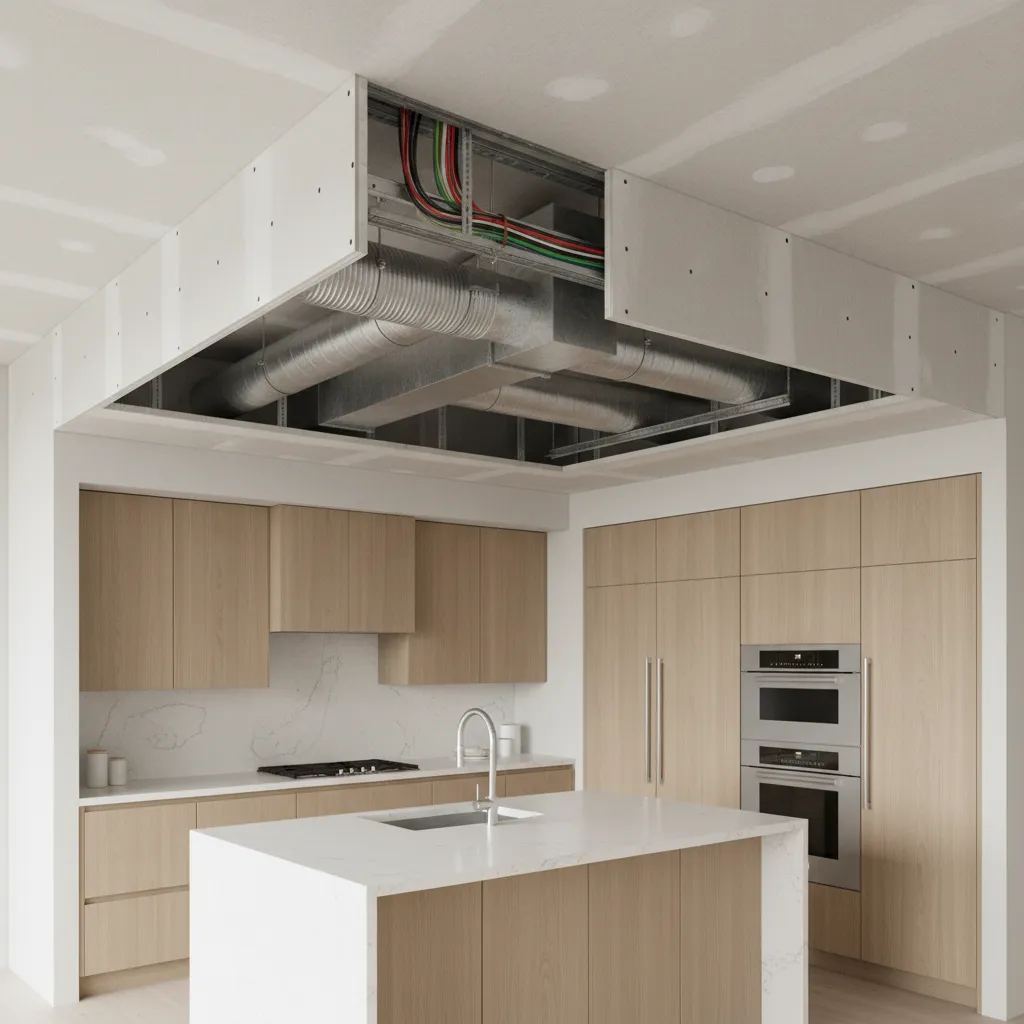

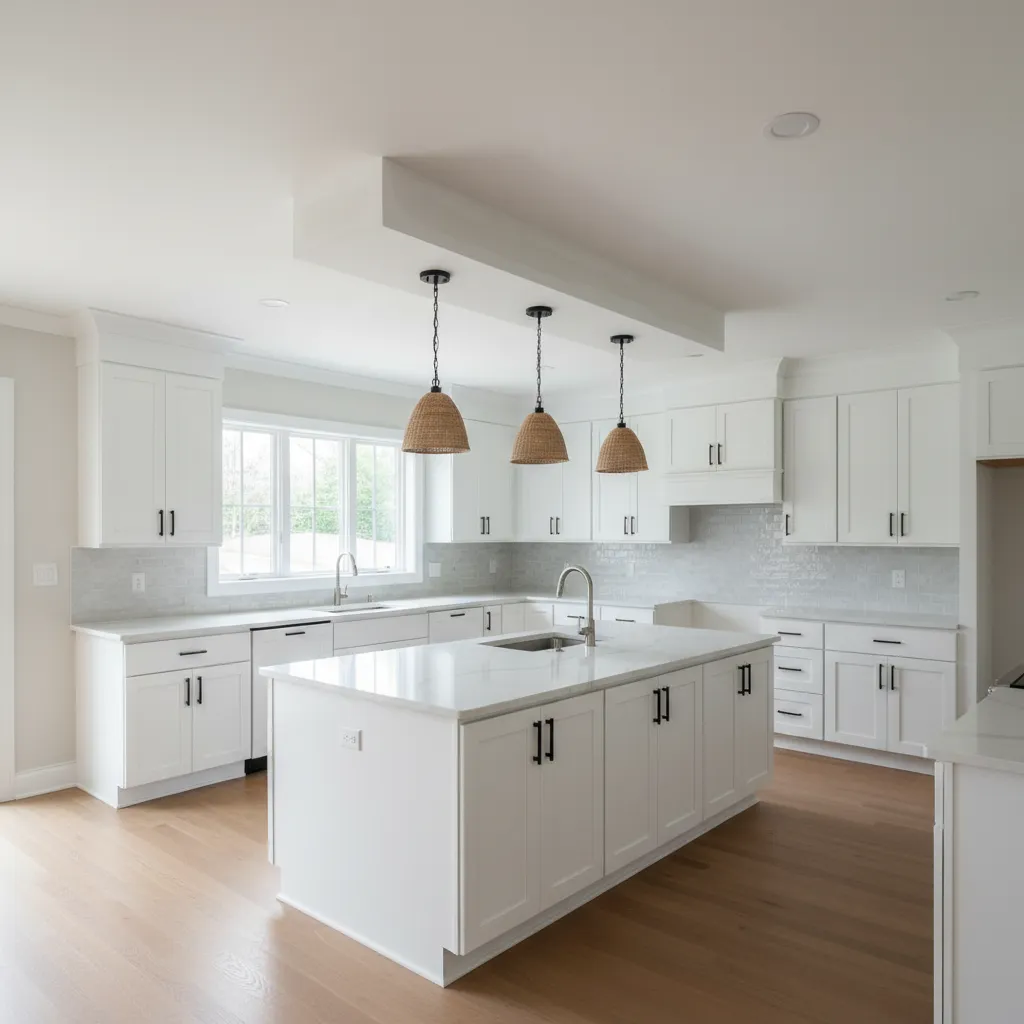

Key Insight: A kitchen bulkhead is a large boxed structure that drops below the ceiling to conceal structural or mechanical systems.

In many homes built between the 1970s and early 2000s, bulkheads were almost unavoidable. HVAC ductwork, plumbing stacks, or structural beams often ran across the kitchen ceiling, and the easiest way to hide them was to frame a drywall enclosure around the obstruction.

Unlike decorative ceiling features, bulkheads usually exist because something important is hidden inside.

Common things hidden inside bulkheads

1. HVAC ductwork running between rooms
2. Structural beams supporting upper floors
3. Plumbing vent stacks
4. Electrical conduit bundles
5. Fire sprinkler lines in multifamily buildings

From a design perspective, bulkheads create visual weight at the top of a kitchen. That can make ceilings feel lower, which is why many modern renovations try to remove them when possible.

However, removal is not always realistic. Structural beams and major duct trunks cannot simply disappear without significant reconstruction.

According to guidance from the National Kitchen and Bath Association (NKBA), structural ceiling elements are one of the most common constraints affecting cabinet height and appliance placement.

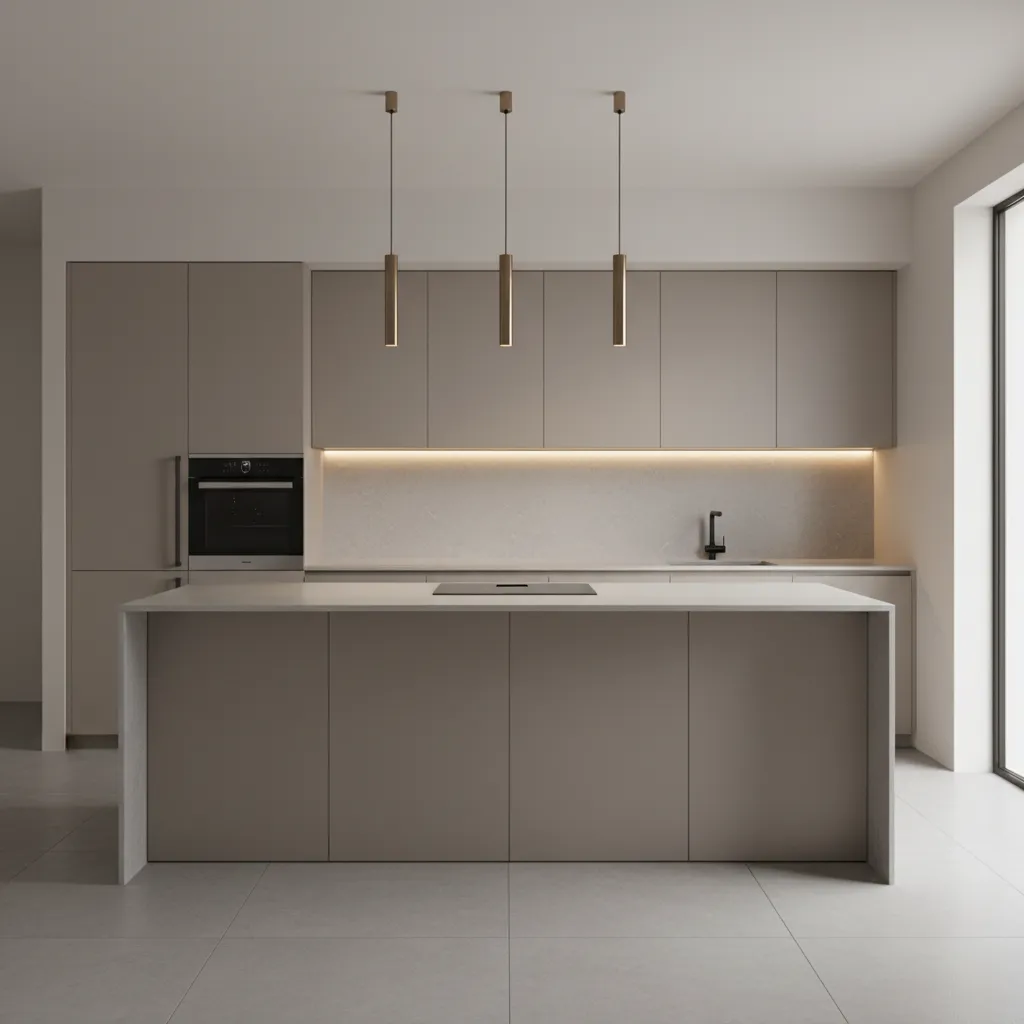

What Is a Ceiling Soffit in Kitchen Design

Key Insight:A kitchen soffit is typically a smaller enclosure above cabinets that hides wiring, duct transitions, or lighting infrastructure.

Soffits are often confused with bulkheads because both appear as boxed ceiling sections. The difference is scale and intention.

Soffits usually sit directly above cabinets and are often integrated into cabinetry planning.

save pin

Typical soffit uses in kitchen design

1. Closing the gap above upper cabinets
2. Hiding small ventilation ducts
3. Concealing under-cabinet lighting transformers
4. Housing recessed or strip lighting
5. Framing ceiling transitions in open kitchens

In newer homes, soffits sometimes exist purely for aesthetics. Designers use them to create layered ceiling profiles or integrate indirect lighting.

In several of my projects, we've intentionally added soffits above islands to hide lighting drivers and maintain a clean ceiling plane.

Key Design Differences Between Bulkheads and Soffits

Key Insight: Bulkheads are usually structural necessities, while soffits are often design choices integrated with cabinetry.

When comparing soffit vs bulkhead kitchen ceiling structures, the most noticeable differences appear in size, placement, and flexibility.

Design comparison

1. Bulkhead height: Often drops 12–24 inches from ceiling
2. Soffit height: Usually 6–12 inches
3. Bulkhead location: Anywhere structural systems run
4. Soffit location: Typically above cabinets or islands
5. Bulkhead flexibility: Difficult to modify
6. Soffit flexibility: Can often be redesigned

A mistake I frequently see in remodels is assuming both can be removed easily. In reality, bulkheads often contain critical building systems.

Before planning demolition, I usually recommend creating a simple spatial model or layout test. Something like a 3D kitchen floor layout preview for cabinet and ceiling alignment can reveal how cabinet heights interact with these ceiling elements.

Functional Uses Concealing Ducts Wiring and Cabinets

Key Insight:Both bulkheads and soffits primarily exist to hide building systems that cannot run inside standard walls.

Kitchens contain more mechanical systems than most homeowners realize.

When those systems cannot run inside floor joists or wall cavities, ceiling enclosures become the easiest solution.

save pin

Typical systems hidden inside these structures

1. Range hood ventilation ducts
2. Refrigerant lines for HVAC
3. Electrical runs feeding island outlets
4. Smart lighting control wiring
5. Fire suppression systems in condos

In many condo renovations I've worked on in Los Angeles, soffits above cabinets actually contained fire sprinkler lines. Removing them would have required full building permits and system relocation.

This is one of those hidden renovation costs most kitchen guides never mention.

Cost and Installation Complexity Comparison

Key Insight: Bulkhead removal or modification is typically far more expensive than altering a soffit.

The cost difference comes from what lives inside the structure.

Typical renovation cost ranges

1. Soffit modification: $300 to $1,500 depending on drywall and wiring
2. Bulkhead modification: $1,500 to $6,000 if ducts or beams are involved
3. Bulkhead relocation: $5,000+ if HVAC rerouting is required

According to Remodeling Magazine cost analysis reports, mechanical relocation is one of the fastest ways to increase kitchen renovation budgets.

This is why I usually advise clients to redesign around bulkheads instead of fighting them.

Answer Box

A kitchen bulkhead is usually a large structural enclosure hiding ducts or beams, while a soffit is a smaller ceiling enclosure often integrated above cabinets. Bulkheads are harder to remove and costlier to modify.

Which Option Works Best for Different Kitchen Layouts

Key Insight: Whether a bulkhead or soffit works better depends on ceiling height, cabinet design, and ventilation requirements.

Over the years I've found certain kitchen layouts naturally favor one approach.

Layout scenarios

1. Low ceiling kitchens: Removing soffits can dramatically increase visual height.
2. Open concept kitchens: Soffits can define zones above islands.
3. Older homes with ducts: Bulkheads are often unavoidable.
4. Modern cabinet designs: Full height cabinets usually replace soffits.

When testing design ideas, creating a photorealistic preview using a realistic kitchen visualization before renovation decisions helps homeowners see how ceiling structures impact the final look.

Sometimes what feels like a design problem actually becomes a feature once lighting and cabinetry are integrated properly.

Final Summary

1. Bulkheads are larger structural ceiling enclosures.
2. Soffits are smaller cabinet level ceiling structures.
3. Bulkheads usually hide ducts or beams.
4. Soffits often hide wiring or lighting infrastructure.
5. Bulkheads are more expensive to remove or relocate.

FAQ

What is the main difference in kitchen bulkhead vs soffit?

A bulkhead usually hides structural or HVAC systems, while a soffit is typically a smaller enclosure above cabinets used for wiring, duct transitions, or lighting.

Can you remove a kitchen soffit?

Often yes. Many soffits only contain wiring or empty framing. However, inspection is necessary to confirm that ducts or plumbing are not inside.

Can a kitchen bulkhead be removed?

Sometimes, but it depends on what it contains. If it hides structural beams or major HVAC ducts, removal may require significant reconstruction.

Is a soffit necessary above kitchen cabinets?

No. Many modern kitchens extend cabinets to the ceiling instead of using soffits, which creates a taller and cleaner visual line.

Does removing a bulkhead increase home value?

It can improve visual space and ceiling height perception, but the cost of structural or duct relocation should be evaluated first.

What is the typical cost difference between soffit vs bulkhead kitchen ceiling changes?

Soffit modifications are usually inexpensive drywall work, while bulkhead modifications may involve HVAC relocation costing several thousand dollars.

Why do older kitchens have soffits?

Older cabinet systems often left space above cabinets, and soffits were installed to close that gap while hiding wiring or small ducts.

Can soffits be used for lighting?

Yes. Designers often integrate LED strips or recessed lights into soffits to create indirect lighting and layered ceiling design.

References

National Kitchen and Bath Association Kitchen Planning Guidelines

Remodeling Magazine Cost vs Value Reports
