Kitchen Island Plumbing Codes and Industry Standards for Sink and Dishwasher Installations: Understand the plumbing, venting, electrical, and permit rules professionals follow when installing a kitchen island sink and dishwasher.

Direct Answer

Installing a sink and dishwasher in a kitchen island requires compliance with plumbing codes covering drain venting, trap placement, dishwasher air gaps, electrical protection, and inspection permits. Most jurisdictions follow versions of the International Residential Code (IRC) and Uniform Plumbing Code (UPC), which require proper island venting methods, GFCI-protected electrical circuits, and approved drainage configurations.

If these standards are ignored, the most common results are slow drainage, sewer gas leaks, failed inspections, and unsafe electrical exposure near water fixtures.

Quick Takeaways

1. Island sinks require special venting methods such as loop vents or air admittance valves.
2. Dishwashers must connect with approved air gaps or high-loop drain lines.
3. Electrical outlets within 6 feet of the sink require GFCI protection.
4. Most municipalities require permits before modifying plumbing lines in an island.
5. Improper island drainage design is one of the most common kitchen inspection failures.

Introduction

Kitchen island plumbing looks simple on the surface. A sink, a dishwasher, maybe a trash pullout nearby. But in more than a decade of residential design projects, I can say the plumbing behind an island is one of the most misunderstood parts of a kitchen renovation.

The reason is structural. Unlike wall cabinets, an island has no wall cavity to hide vent pipes or drainage stacks. That changes everything about how plumbing must be designed.

When homeowners research kitchen island sink plumbing code, they're usually trying to answer a few practical questions: Can a dishwasher drain into the island sink line? How do you vent the drain? Do you need special electrical outlets near water?

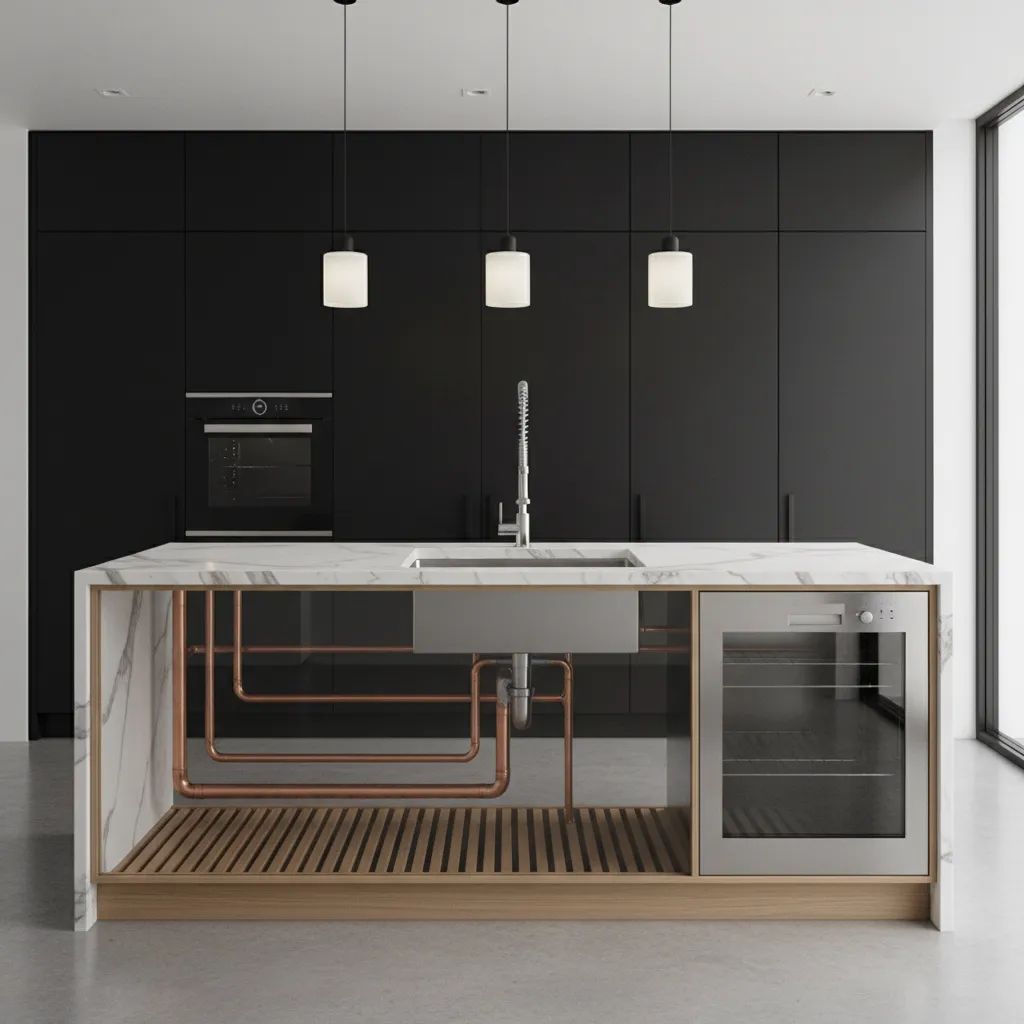

Before getting into those answers, it helps to visualize how the plumbing layout fits inside the island cabinet structure. If you're planning a renovation layout, this interactive guide for planning a kitchen island layout with appliancesshows how sinks, dishwashers, and cabinets actually fit inside a working island footprint.

In this guide, I'll walk through the professional standards contractors follow so your island sink and dishwasher installation passes inspection and works reliably for years.

save pin

Basic Plumbing Code Requirements for Island Sinks

Key Insight: Island sinks must follow the same drainage rules as wall sinks, but require specialized venting and trap configurations due to the lack of vertical vent walls.

Most building departments reference either the International Residential Code (IRC) or the Uniform Plumbing Code (UPC). Both allow island sinks but require an approved venting solution.

The key requirements typically include:

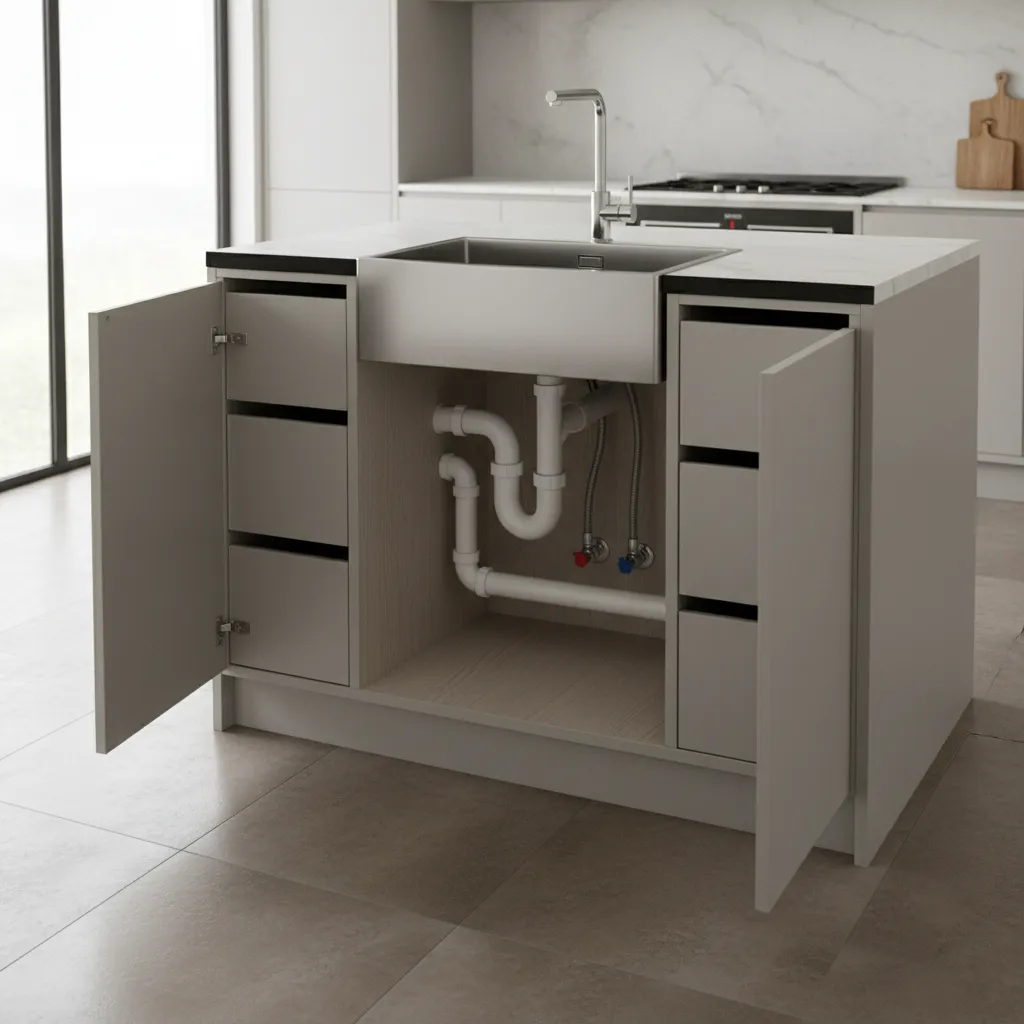

1. P-trap located directly below the sink
2. Minimum 1½–2 inch drain pipe diameter
3. Proper slope (¼ inch per foot)
4. Approved island vent method
5. Accessible cleanout where required

One mistake I still see during renovations is installers trying to run a standard wall-style vent horizontally under the floor. That violates code in most regions because vent pipes must rise vertically before turning horizontal.

Instead, island sinks typically use one of these approved solutions:

1. Loop vent (traditional island vent)
2. Air admittance valve (AAV) where allowed
3. Dedicated island vent tied to a nearby wall vent

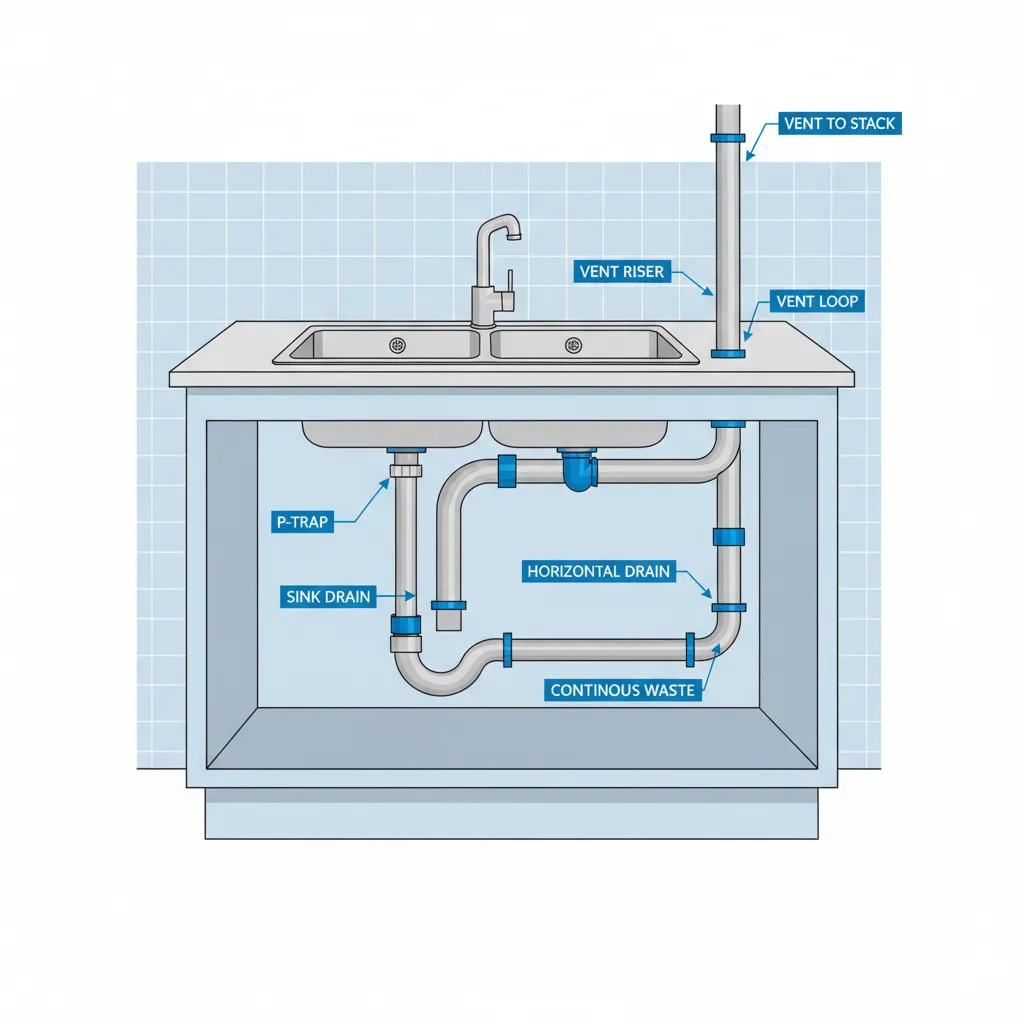

The loop vent is the classic solution. It routes the vent pipe up inside the island cabinet before looping downward and connecting under the floor.

The IRC Section P3112 specifically describes this configuration.

save pin

Dishwasher Connection Standards and Safety Rules

Key Insight: Dishwashers installed in islands must prevent contaminated water from flowing back into the appliance, which is why air gaps or high-loop drains are required.

The dishwasher typically connects to the same drain system as the island sink, but codes regulate how this connection happens.

Most jurisdictions require one of two configurations:

1. Countertop air gap device
2. High-loop drain hose secured above sink level

The air gap method is considered the safest. It creates a physical break in the drain line that prevents wastewater from siphoning back into the dishwasher.

However, many modern kitchens skip the visible air gap and use a high-loop instead. This works by securing the dishwasher drain hose to the highest point under the countertop before it connects to the disposal or sink drain.

Typical dishwasher installation requirements include:

1. Dedicated electrical circuit (often 15–20 amps)
2. Accessible shutoff valve
3. Anti-backflow drain configuration
4. Proper mounting clearance

When planning appliance placement, it helps to visualize spacing first. This guide for mapping kitchen renovation floor plans with appliance clearances is useful for ensuring the sink, dishwasher, and cabinet widths actually fit together.

Ventilation Requirements for Island Drain Systems

Key Insight: Without proper venting, island drains create vacuum pressure that slows drainage and pulls water out of traps, allowing sewer gas into the kitchen.

This is why venting rules for island sink plumbing are stricter than many homeowners expect.

The three most common venting options include:

1. Loop vent system
2. Air admittance valve (AAV)
3. Remote vent connected to nearby wall stack

Each has trade-offs.

Loop Vent

1. Most traditional solution
2. Always code compliant
3. Requires extra piping inside island

Air Admittance Valve

1. Easier installation
2. Not allowed in all jurisdictions
3. Must remain accessible for replacement

Remote Vent

1. Connects to nearby wall vent
2. Requires careful pipe routing under floor

In practice, loop vents remain the most inspection-proof option. Many inspectors are cautious about AAVs unless local codes explicitly approve them.

Answer Box

The most reliable kitchen island plumbing setup uses a loop vent for the sink, a high-loop or air gap for the dishwasher drain, and GFCI-protected electrical outlets near water fixtures.

Following IRC or UPC standards ensures safe drainage, prevents sewer gas leaks, and avoids costly inspection failures during renovation.

Electrical Safety Around Water Fixtures

Key Insight: Electrical outlets near an island sink must be protected with Ground Fault Circuit Interrupter (GFCI) devices to prevent shock hazards.

Water and electricity share the same space in an island, which is why electrical codes add extra protection requirements.

Typical code standards include:

1. GFCI protection for outlets within 6 feet of a sink
2. Dedicated dishwasher circuit
3. Tamper-resistant outlets
4. Accessible shutoff or disconnect

Modern codes increasingly require both GFCI and AFCI protection for kitchen circuits.

Another overlooked detail is outlet placement. Many islands now integrate outlets into the side panels rather than the countertop to maintain a clean surface.

Proper layout planning helps avoid awkward electrical placement later. This visualization tool for previewing a full kitchen island layout in 3Dhelps designers check appliance spacing, outlet placement, and circulation paths before construction begins.

save pin

Inspection and Permit Considerations for Kitchen Islands

Key Insight: Any modification to drain lines, vent pipes, or dishwasher plumbing typically requires a permit and inspection.

This is where many DIY renovations run into trouble.

Permits are usually required when a project includes:

1. Moving sink plumbing
2. Adding dishwasher drain connections
3. Installing new vent pipes
4. Modifying electrical circuits

During inspections, plumbers and inspectors typically check:

1. Proper pipe slope
2. Approved vent method
3. Leak-free connections
4. GFCI protection
5. Dishwasher backflow prevention

One hidden cost many homeowners discover too late is failed inspection rework. If venting or drain routing is incorrect, the entire island cabinet may need partial removal to access pipes.

That's why experienced contractors always design the plumbing system before finalizing cabinet installation.

Final Summary

1. Island sinks require specialized venting such as loop vents or approved AAV systems.
2. Dishwashers must include air gap or high-loop drain protection.
3. Electrical outlets near sinks require GFCI protection.
4. Most kitchen island plumbing changes require permits and inspection.
5. Proper planning prevents drainage failures and inspection issues.

FAQ

Does a kitchen island sink need a vent?

Yes. All sinks require venting to balance air pressure in the drain system. Island sinks typically use loop vents or air admittance valves depending on local code.

What is the plumbing code for kitchen island sinks?

Most areas follow IRC or UPC rules requiring a P-trap, proper drain slope, and approved venting method such as a loop vent or AAV.

Can a dishwasher drain into an island sink line?

Yes. Dishwashers commonly connect to the sink drain or garbage disposal, but must include an air gap or high-loop drain configuration.

Are air admittance valves allowed for island sinks?

Some jurisdictions allow them, but others require traditional loop vents. Always confirm local plumbing code before installation.

Do kitchen island outlets need GFCI protection?

Yes. Electrical outlets within six feet of a sink must be protected by a GFCI device to reduce shock risk.

How far can a dishwasher be from the sink in an island?

Most installers keep the dishwasher directly next to the sink to simplify plumbing and meet standard drain hose length limits.

Do you need a permit to add an island sink?

In most municipalities, yes. Plumbing modifications involving drainage or venting require permits and inspections.

What is the most reliable venting method for island plumbing?

Professional plumbers usually prefer loop vents because they are universally accepted by plumbing codes and inspectors.

References

1. International Residential Code (IRC) Section P3112 Island Fixture Venting
2. Uniform Plumbing Code (UPC) Island Vent Regulations
3. National Electrical Code (NEC) GFCI Requirements
4. NKBA Kitchen Planning Guidelines
