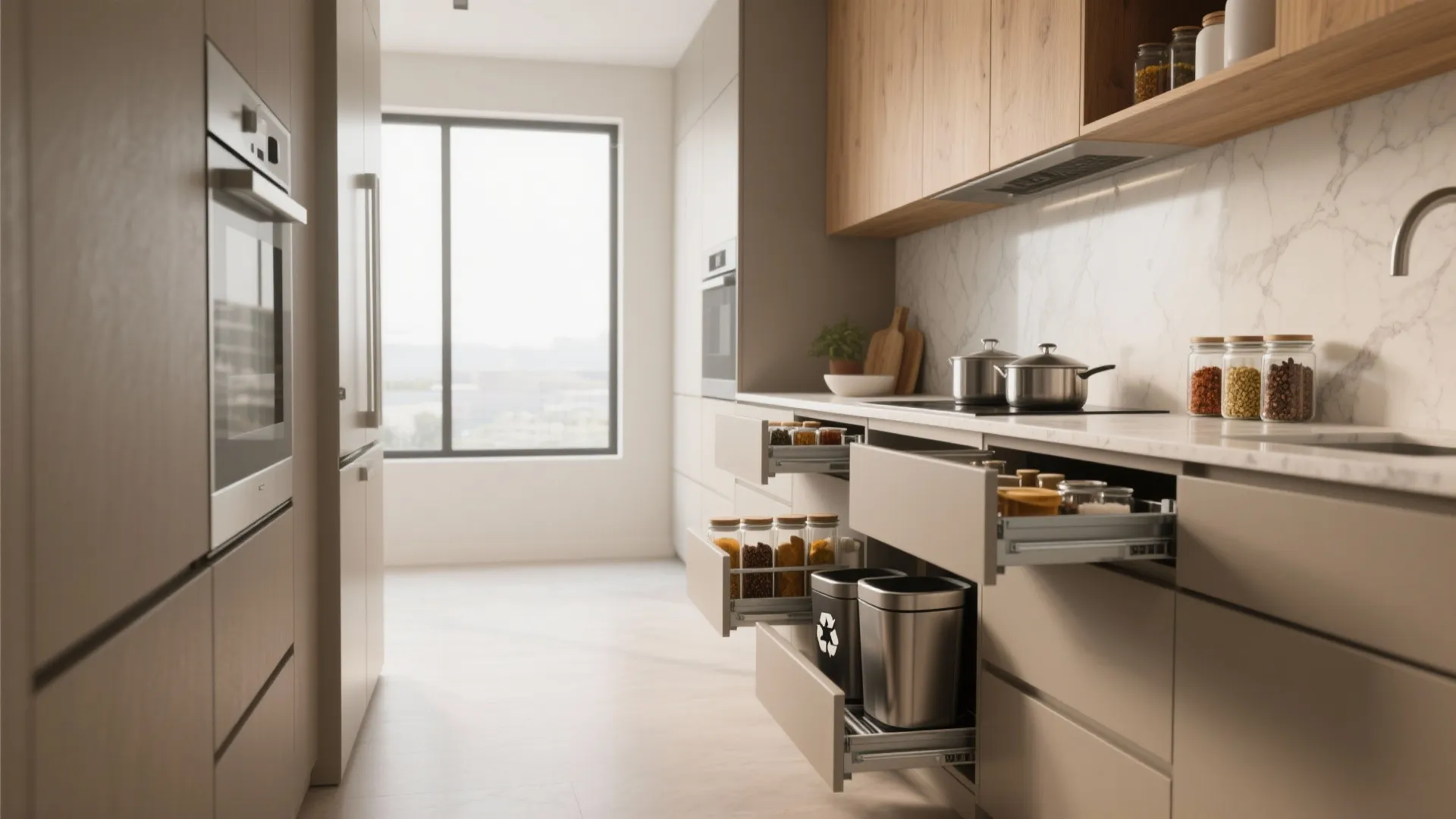

Kitchen Pull Out Size: My Honest Guide to Smart Storage: 1 Minute to Find the Perfect Kitchen Pull Out Size and Save Space Instantly

I’ve planned and built more than a hundred kitchens, and pull-outs are always the quiet heroes: they compress awkward zones into tidy, reach-friendly storage. The trick is getting the size right—width, depth, height, and internal clearance—all calibrated to what you store and how you move. Too narrow and you lose capacity. Too wide and you fight racking drawers and wasted space. The sweet spot is measurable.

Let’s ground this in facts. The National Kitchen & Bath Association (NKBA) recommends a minimum 36-inch clear aisle for one-cook kitchens and 42–48 inches for multi-cook zones—your pull-outs must open fully within those clearances without clipping opposing appliances. WELL v2 nudges daily-reach items into the 24–48 inch vertical band to reduce strain; store heavy pots and pantry bins in that ergonomic zone so pull-outs do the heavy lifting instead of your back (see WELL v2 movement and ergonomics guidance at wellcertified.com). For workflow, Gensler’s research highlights adjacency and reduced motion as drivers of efficiency; pull-outs that place prep goods near the sink-cooktop line trim steps and boost actual cooking speed (gensler.com/research).

Start with Cabinet Framework: Depth and Clearance

Most base cabinets are 24 inches deep (box depth ~23.75 inches). Allow 3/4–1 inch behind slides for plumbing/electrical and a 1-inch face frame/door thickness in front. A full-extension slide typically yields 21–22 inches of usable drawer depth. If you’re planning recycling pull-outs, check bin depth first; many 35-quart bins need 14–16 inches; 50-quart bins want closer to 18–20 inches.

Vertical clearance matters as much as depth. Typical toe-kick height is 4 inches; avoid pull-out bottoms sitting flush with the floor or they’ll scrape on rugs. Target the first pull-out bottom 2–2.5 inches above the cabinet bottom to clear screw heads and allow easy cleaning.

Recommended Widths: The Real-World Ranges

I size pull-outs around what they hold and the slide rating available. Here’s a field-tested guide:

1. Spice pull-out (base): 9–12 inches wide; 2.5–3 inch adjustable rails between tiers. Tall bottles? Reserve a 10–12 inch wide unit with 10–12 inches vertical between shelves.
2. Baking sheet organizer: 12–15 inches with vertical dividers; internal height 12–16 inches.
3. Pantry pull-out (full height): 15–24 inches. At 24 inches, use high-quality, synchronized slides to prevent sway.
4. Trash/recycling: 15 inches for a single 35-quart, 18 inches for dual 35-quart, 21 inches for dual 50-quart. Check bin manufacturer specs first.
5. Pot and pan deep pull-out: 24–36 inches. Over 30 inches, upgrade to 100 lb+ rated slides and consider middle dividers to prevent racking.

Ergonomics: Heights and the Golden Reach Zone

WELL v2 suggests keeping frequently used items within 24–48 inches from the floor to minimize strain; that’s where your most-used pull-outs belong. For heavy cookware, place the top of the bin around 28–34 inches above the floor for safe lift-out. Spices and oils sit best between 44–54 inches when side-mounted, so labels are visible without neck crane. Align handles between 34–44 inches to meet comfort ranges similar to common lever placement bands.

Slide Hardware: Load, Extension, and Feel

Pick slides before final widths. Standard undermounts are 75–90 lb dynamic load; go 100–150 lb for wide pots/pantry. Full-extension is non-negotiable; over-travel slides help clear thick doors and reveal back rows. Soft-close dampers prevent bounce with glass jars. Taller pull-outs need lateral stability—look for synchronized side frames or top guides in tall larder units.

Face Frame vs. Frameless: Internal Space Reality

Frameless cabinets (Euro-style) gain roughly 3/4–1 inch internal width compared to face-frame. On a 15-inch nominal cabinet, that can decide whether a second bin fits. If you’re mixing stock and custom, always measure the internal opening, not the door size.

Interior Dividers and Container Logic

Loose items make pull-outs maddening. I lay out dividers after listing actual contents: oil bottles, spice jars, sheet pans, cutting boards, food storage. Use 3–4 inch spacing for spices; 2 inch slots for lids; 6–8 inch bays for skillet stacking. For pantry pull-outs, low-friction mats and 3–4 inch high rails keep cans from toppling. Label the front edge; it cuts search time dramatically, a small nod to interaction design principles around cognitive load (interaction-design.org).

Ventilation, Heat, and Safety Zones

Keep oil/spice pull-outs at least 9–12 inches away from a high-heat oven flank or range side to avoid heat degrading oils. If you must place near heat, specify metal sides and heat-resistant liners. Knives in a pull-out? Use a slotted wood block with a positive stop; tips should never face the user. Child zones benefit from 2-step locks on chemical pull-outs.

Lighting the Interior

Integrated LED strips at 2700–3000K keep color natural for food. Follow Illuminating Engineering Society task ranges of roughly 300–500 lux on prep; even for storage, internal lighting should reach about 200–300 lux when open for easy identification (ies.org/standards). Motion sensors that trigger on slide movement are worth the minimal cost.

Counterpart: Tall Pantry Pull-Outs

Tall larder units shine when the kitchen footprint is tight. I like 18–21 inches wide with 5–6 baskets. Keep the heaviest bins between 24–42 inches off the floor. Specify anti-sway side rails or a top track, and make sure the bottom basket clears any threshold transitions.

Workflow Placement That Saves Steps

Map your triangle—sink, cooktop, refrigerator—and place pull-outs along the prep path: cutting boards and knives between sink and cooktop; oils and spices near the cooktop but out of heat splash; baking supplies near the oven zone. If you’re experimenting with different positions, run a quick layout simulation with a room layout tool to validate clearances and door-swing conflicts: room layout tool.

Material Choices and Sustainability

Powder-coated steel frames handle spills better than raw wire. Solid maple or beech sides with UV finish resist warping. For a greener spec, look for low-VOC finishes and FSC-certified plywood boxes. Bins made from recycled polypropylene are durable and easy to sanitize.

Acoustics and Quiet Close

In open-plan homes, clatter travels. Soft-close hardware and felt bumpers reduce closing noise. Rubber feet under metal bins dampen vibrations. If the kitchen shares space with a living area, keep heavy pull-outs away from party walls to reduce structure-borne noise.

Common Size Pitfalls and Fixes

1. Door swing crash: Stagger pull-out locations so adjacent handles don’t collide; use over-travel slides.
2. Can’t fit liners: Plan bin height for the exact liner ring you use; many add 1–1.5 inches.
3. Racking on wide drawers: Add a center divider or upgrade slides.
4. Hidden plumbing: Deduct 2–3 inches behind sink base pull-outs to avoid P-trap interference.

Field-Tested Size Cheatsheet

Use these as starting points, always verifying appliance and hardware specs:

1. Base spice pull-out: 9–12 W x 21–22 D x 24–30 H (two tiers)
2. Oil/bottle pull-out: 10–12 W x 21–22 D; 12–14 H clearance per tier
3. Tray divider pull-out: 12–15 W x 21–22 D x 12–16 H
4. Trash/recycling: 18 W (dual 35-qt), 21 W (dual 50-qt), 24 W (dual + compost)
5. Pots/pans deep: 24–30 W x 21–22 D; 10–12 H sides
6. Tall pantry: 18–21 W x 21–22 D; 5–6 baskets spaced 8–10 inches

FAQ

Q1: What’s the narrowest useful pull-out size?

A 9-inch base pull-out works for spices and oils. Any narrower and hardware/clearance eat capacity.

Q2: How wide is too wide for a pots-and-pans pull-out?

Beyond 30 inches, racking increases. If you need 33–36 inches, choose 100–150 lb slides and add a center divider.

Q3: How deep should pull-outs be in a standard base cabinet?

Plan for 21–22 inches usable depth with full-extension slides in a 24-inch deep cabinet.

Q4: What’s the best height for heavy items?

Keep heavy cookware between 24–34 inches from the floor so you lift close to your core, aligning with ergonomic comfort bands reflected in WELL v2 guidance.

Q5: Can I put a pull-out next to the range?

Yes, but keep at least 9–12 inches from high-heat sides, specify heat-tolerant materials, and store oils/spices away from direct heat.

Q6: Which slides should I use for tall pantry units?

Use synchronized, full-extension slides with anti-sway guides. Spec 100 lb+ dynamic rating if baskets carry liquids or canned goods.

Q7: How do I stop items from tipping?

Use 3–4 inch rails, non-slip mats, and sized dividers. For cans, shallow bins with tight spacing prevent toppling.

Q8: Do frameless cabinets really give me more space?

Yes—often 3/4–1 inch more internal width on the same nominal cabinet, which can be the difference between single and dual bins.

Q9: What lighting temperature is best inside pull-outs?

Use 2700–3000K for natural food color and 200–300 lux inside the pull-out. Reference IES task lighting ranges for kitchen tasks.

Q10: How do I plan for trash liners?

Measure the liner ring height and add 1–1.5 inches clearance above the bin to avoid scraping and tearing.

Q11: Are over-travel slides worth it?

Yes—especially for deeper bins and face-frame cabinets. They reveal the back row and clear thick doors.

Q12: Where should I place baking sheets?

In a 12–15 inch pull-out with vertical dividers near the oven zone, keeping the heaviest trays in the 24–36 inch reach band.
