Laundry Room Electrical Planning Used by Professional Contractors: How electricians and builders determine outlet height, spacing, and wiring layout in modern laundry rooms

Direct Answer

Professional contractors plan laundry room outlet height based on appliance specifications, building codes, and long‑term accessibility. In most new construction projects, washer outlets are placed 42–48 inches above the floor, while dryer outlets are positioned based on whether the dryer is gas or electric and whether the units are stacked or side‑by‑side.

Electricians also coordinate with plumbers and cabinet installers to ensure outlets remain accessible, protected from moisture, and compliant with code requirements.

Quick Takeaways

1. Most contractors install washer outlets 42–48 inches above finished floor level.
2. Dryer outlet placement depends on appliance type and ventilation layout.
3. Electrical planning usually happens alongside plumbing rough‑in.
4. Accessibility and maintenance clearance influence outlet height decisions.
5. Modern projects often design electrical layouts digitally before construction.

Introduction

In new construction projects, laundry room electrical planning is rarely improvised. After working on dozens of residential layouts, I’ve noticed that electricians approach laundry outlets with the same discipline used in kitchens and bathrooms. The goal isn’t just powering appliances—it’s ensuring safety, accessibility, and serviceability for the next 15–20 years.

Many homeowners assume outlet height is arbitrary. In reality, the contractor standard laundry room outlet height is the result of appliance clearance, water line placement, vent routing, and building code constraints. A poorly positioned outlet can make future repairs difficult or even require removing the washer entirely.

Today, many builders start the process digitally before framing begins. Using tools similar to a visual workflow for mapping appliance zones in a laundry room, contractors can simulate washer depth, dryer vents, and cabinet placement to determine the safest outlet positions.

This article walks through how electricians actually plan laundry electrical layouts in new construction—from outlet height logic to coordination with plumbing trades and long‑term maintenance considerations.

save pin

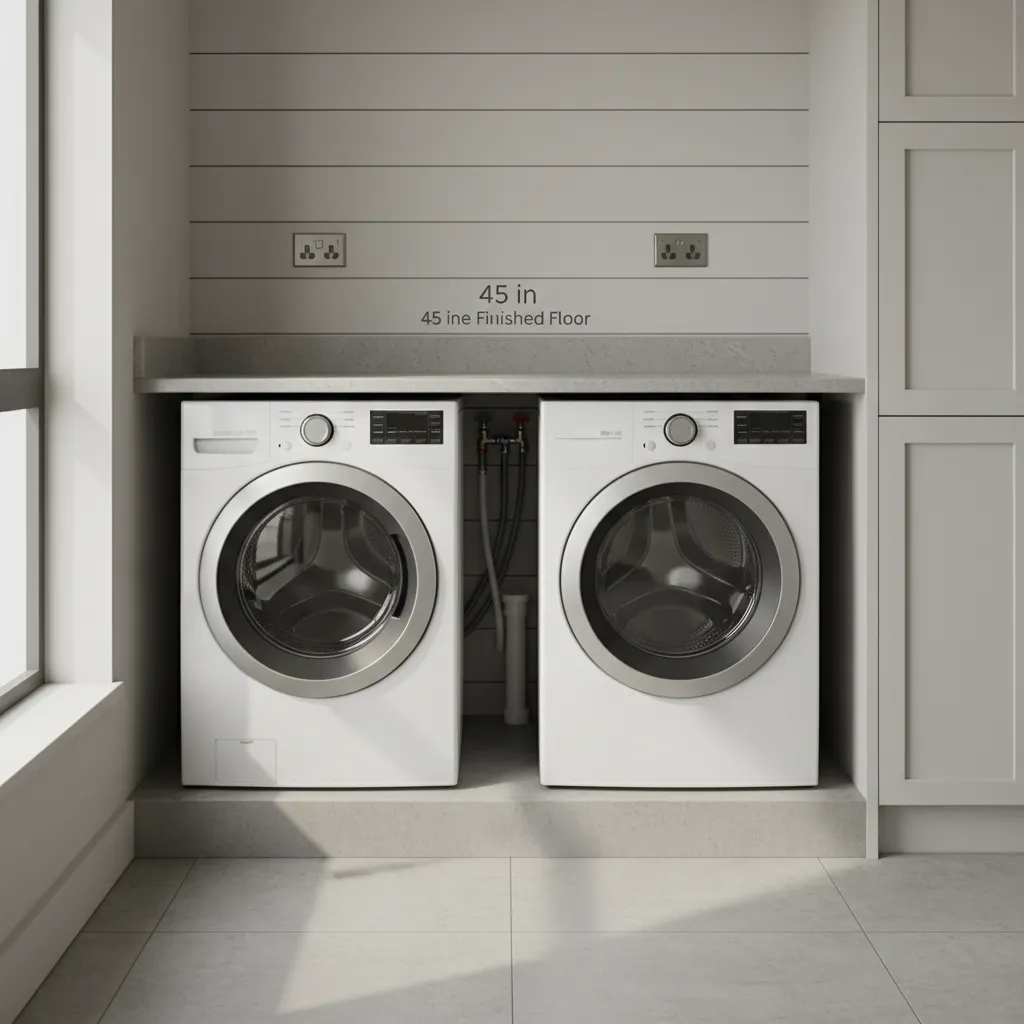

How Electricians Determine Laundry Outlet Height

Key Insight: Electricians determine outlet height primarily from appliance dimensions and service accessibility rather than aesthetics.

In professional installations, outlet placement starts with manufacturer specifications. Most washer manufacturers recommend leaving clearance for hoses, valves, and vibration movement. If an outlet sits too low, the washer may press against the plug when pushed back.

After reviewing dozens of construction drawings, the most common contractor standards look like this:

1. Washer outlet height: 42–48 inches above finished floor
2. Electric dryer outlet height: 30–36 inches depending on vent location
3. GFCI outlet for general use: 48 inches above floor near countertop
4. Stacked laundry units: outlets often raised to 48–60 inches

The reasoning is simple: outlets should remain accessible without pulling out heavy appliances. Service electricians frequently mention that inaccessible outlets are one of the most frustrating design mistakes in residential construction.

According to the National Electrical Contractors Association (NECA), accessibility and service clearance are among the top priorities when designing utility spaces.

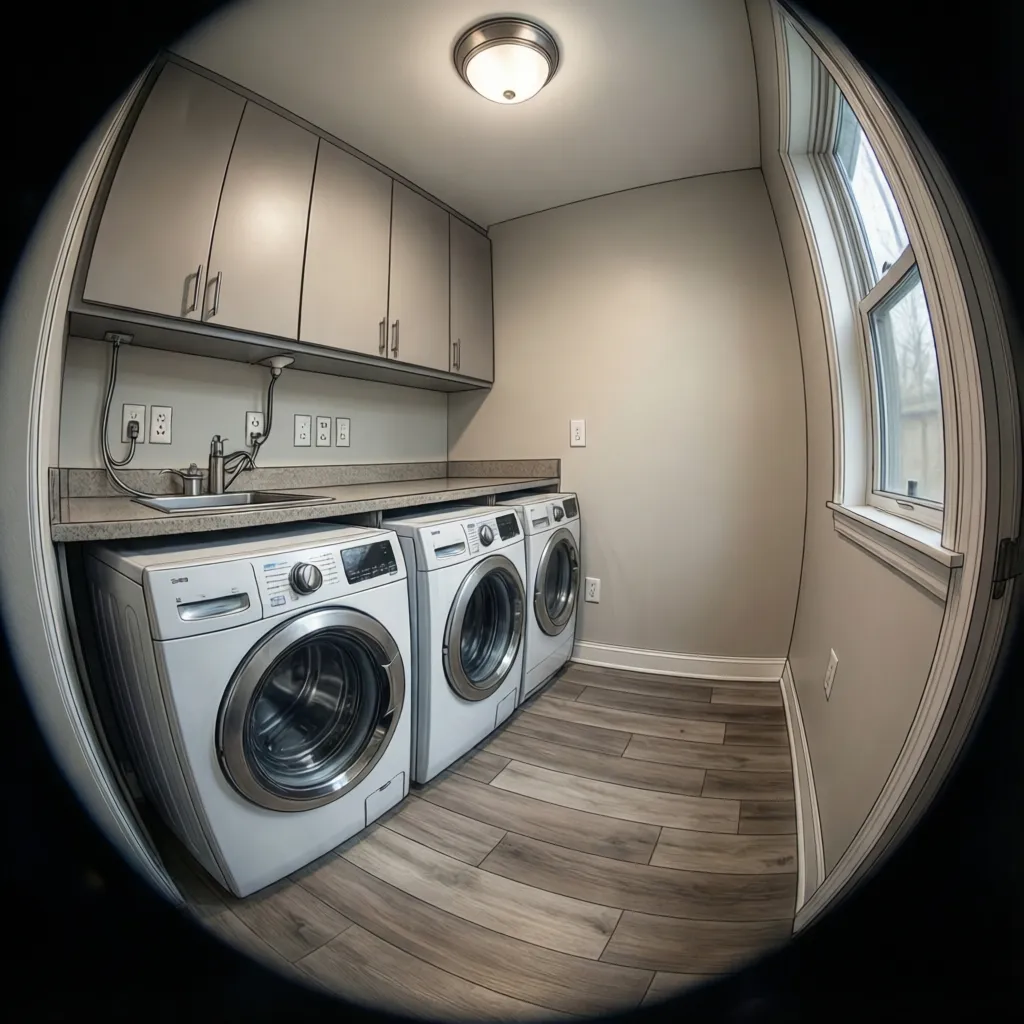

Typical Electrical Layout in New Construction Laundry Rooms

Key Insight: A professional laundry room electrical layout separates appliance circuits, utility outlets, and lighting circuits for safety and reliability.

Contractors typically divide the laundry room into functional electrical zones. This prevents overloading circuits and ensures appliances run safely.

Typical layout components include:

1. Dedicated 120V circuit for the washing machine
2. Dedicated 240V circuit for electric dryers
3. GFCI protected general outlet
4. Lighting circuit for overhead fixtures
5. Optional outlet for ironing station or utility sink area

In many modern homes, the laundry room shares planning principles with kitchens: dedicated circuits and predictable appliance zones.

Builders increasingly visualize this arrangement using digital layouts similar to a 3D planning approach that maps appliance clearances before installation. This helps avoid conflicts between cabinets, vent ducts, and electrical boxes.

save pin

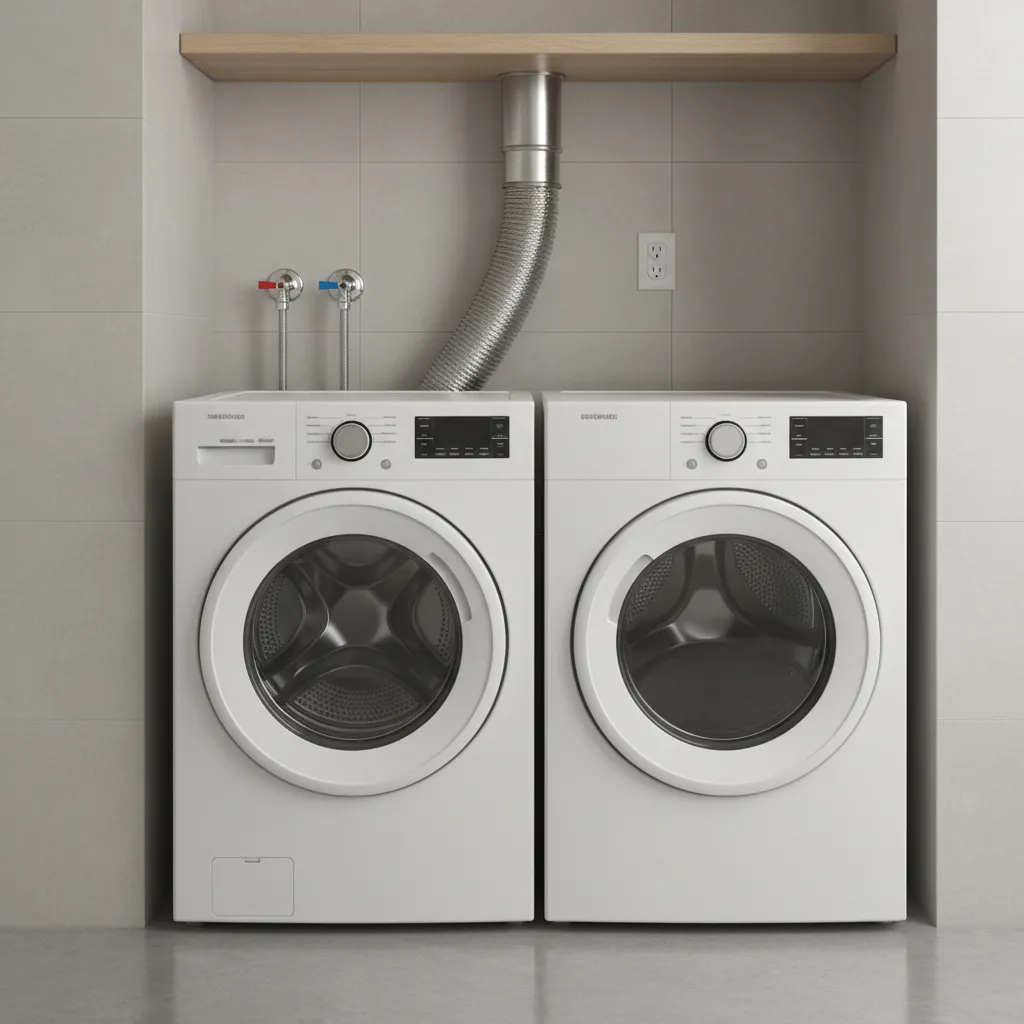

Contractor Guidelines for Washer and Dryer Outlet Placement

Key Insight: The safest outlet position is usually above and slightly offset from the appliance connection zone.

Professional installers rarely place outlets directly behind appliances anymore. That approach can trap plugs and create stress on cords.

Instead, contractors typically follow this placement logic:

1. Outlets positioned above washer water valves
2. Dryer outlets offset to the side of the exhaust duct
3. Electrical boxes recessed slightly into the wall
4. Minimum 6–12 inches horizontal clearance from plumbing valves

One overlooked issue is vibration. Washers generate significant movement during spin cycles. Placing outlets slightly above the connection zone reduces the chance of cables loosening over time.

Experienced electricians also avoid placing outlets where hoses might leak directly onto them.

save pin

Building Code Considerations in Laundry Electrical Design

Key Insight: Code compliance is the backbone of professional laundry room electrical planning.

Most jurisdictions in the United States follow the National Electrical Code (NEC), which includes several requirements for laundry spaces.

Common NEC rules affecting laundry outlet placement include:

1. Dedicated 20‑amp circuit for laundry receptacles
2. GFCI protection for outlets near water sources
3. Proper grounding and outlet box depth
4. Correct breaker sizing for dryers

Some municipalities also enforce local amendments requiring arc‑fault protection or stricter spacing requirements.

Ignoring these rules can create serious issues during inspection. In fact, failed electrical inspections in laundry areas are often due to missing dedicated circuits or improper outlet protection.

Coordination Between Plumbers and Electricians in Laundry Rooms

Key Insight: The best laundry electrical layouts are designed collaboratively between trades during the rough‑in phase.

One mistake I often see in renovation projects is that plumbing and electrical work were designed separately. That leads to outlets being blocked by valves or vent ducts.

Professional builders prevent this by coordinating the rough‑in sequence.

Typical coordination process:

1. Architect defines appliance location
2. Plumber installs supply valves and drain
3. Electrician places outlet boxes above plumbing zone
4. HVAC installs dryer vent path
5. Cabinet installer confirms final clearances

This layered approach ensures every system fits within the same wall cavity without interference.

Answer Box

Professional contractors typically place washer outlets 42–48 inches above the floor to keep them accessible and protected from vibration and moisture. The exact placement depends on appliance dimensions, plumbing locations, and local electrical codes.

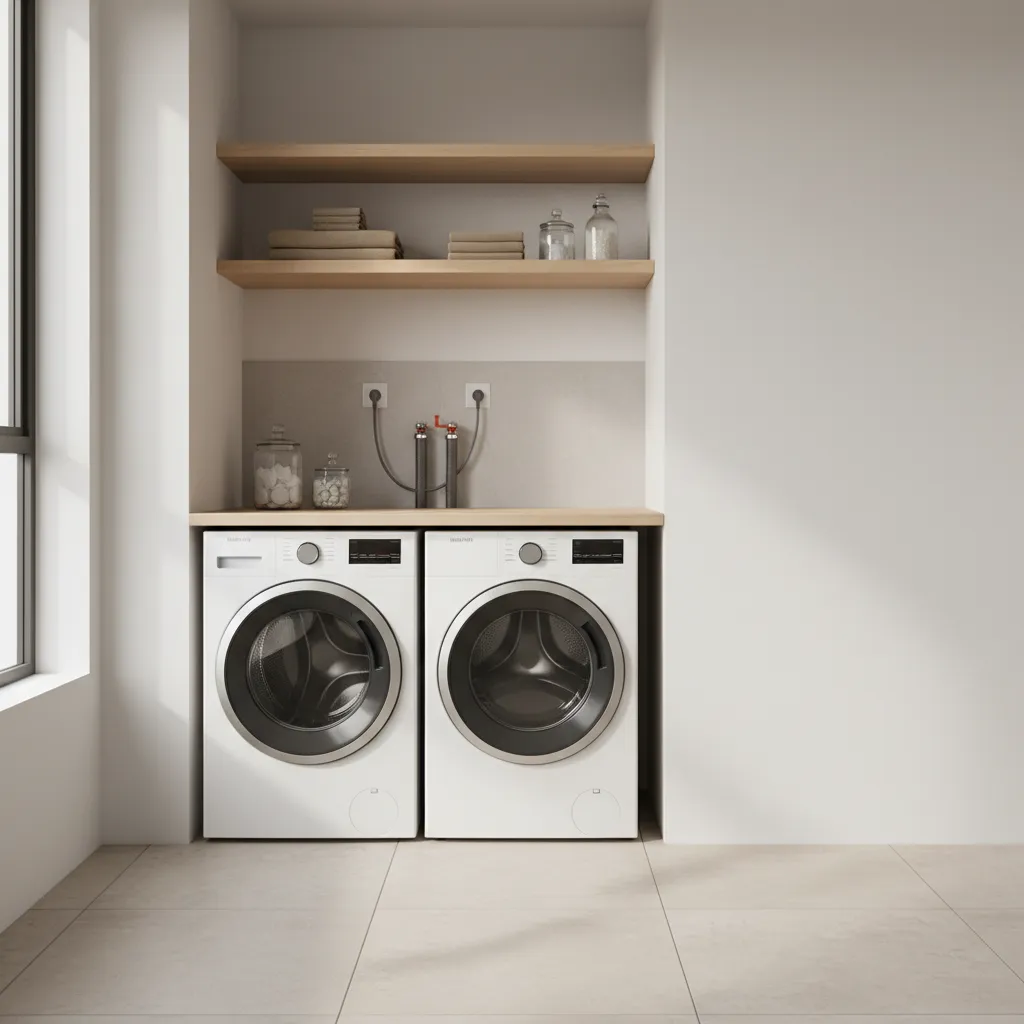

Professional Tips for Long Term Maintenance Access

Key Insight: Easy service access often matters more than perfect visual symmetry.

Experienced electricians often design laundry outlets with future repairs in mind. Appliances will eventually be replaced, and technicians need space to disconnect power safely.

Best practices contractors follow:

1. Leave at least 4 inches clearance behind appliances
2. Install recessed outlet boxes when space is tight
3. Keep shut‑off valves visible above the washer
4. Avoid placing outlets directly behind dryer drums

During planning stages, designers frequently simulate appliance placement using a layout tool that visualizes washer and dryer service clearances. This small step can prevent costly wall modifications later.

save pin

Final Summary

1. Contractors usually install washer outlets 42–48 inches above the floor.
2. Laundry electrical layouts prioritize accessibility and service clearance.
3. Dedicated circuits and GFCI protection are standard code requirements.
4. Plumbing and electrical trades coordinate during rough‑in.
5. Digital planning tools help prevent installation conflicts.

FAQ

What is the contractor standard laundry room outlet height?

Most contractors install washer outlets 42–48 inches above the finished floor. This height keeps the outlet accessible while avoiding interference with hoses and appliance vibration.

Where should a washing machine outlet be placed?

Typically above the water supply valves and slightly offset from the washer body. This allows technicians to unplug the machine without moving it.

Do washers need a dedicated electrical circuit?

Yes. The NEC generally requires a dedicated 20‑amp circuit for laundry receptacles to prevent overloads.

What height should an electric dryer outlet be?

Dryer outlets are often placed 30–36 inches above the floor, depending on vent placement and appliance size.

Can washer and dryer share the same outlet?

No. Washers and dryers should have separate circuits because dryers require significantly higher electrical loads.

Is GFCI protection required for laundry outlets?

Yes. In most jurisdictions, outlets near washing machines must include GFCI protection due to moisture risk.

Does stacked laundry change outlet height?

Yes. When units are stacked, electricians often raise outlets to around 48–60 inches for accessibility.

How do electricians plan a laundry room electrical layout?

They review appliance specifications, follow NEC code requirements, coordinate with plumbing rough‑ins, and determine the safest contractor standard laundry room outlet height.

References

1. National Electrical Code (NEC)
2. National Electrical Contractors Association (NECA)
3. International Residential Code (IRC)
