Living Wall Systems Compared for Bangalore Buildings: Understand modular, felt, and panel living wall systems to choose the most durable vertical garden solution for Bangalore’s climate.

Direct Answer

For most Bangalore buildings, modular living wall systems tend to perform best because they manage irrigation, root space, and structural stability more reliably in humid tropical climates. Felt pocket systems are cheaper but degrade faster outdoors, while panel-based systems offer durability but require more structural planning.

Quick Takeaways

1. Modular systems usually last the longest in humid climates like Bangalore.
2. Felt pocket systems are inexpensive but often deteriorate within a few years outdoors.
3. Panel systems offer structural strength but require precise installation.
4. Irrigation design matters more than plant choice in long-term wall performance.
5. Commercial buildings typically benefit from modular systems due to easier maintenance.

Introduction

After working on vertical garden installations across warm coastal and tropical cities, I’ve noticed a pattern: most failures don’t happen because of plant selection. They happen because the wrong living wall system was chosen from the start.

When property owners in Bangalore ask about living wall systems, they usually focus on aesthetics first. But the real decision is structural and environmental. Bangalore’s climate brings a mix of heavy monsoon rain, warm temperatures year‑round, and long periods of humidity. That combination exposes weaknesses in poorly designed vertical garden systems.

If you're planning a residential or commercial green wall, the system behind the plants matters more than the plants themselves. I've seen beautiful installations collapse within two years simply because drainage or root containment was poorly designed.

Before choosing plants or layouts, it's often helpful to visualize how greenery integrates with building design. Many architects start by exploring spatial concepts using tools that help visualize green wall concepts inside modern interiorsso structural placement and lighting can be planned early.

In this guide, I'll break down the three main living wall technologies used in India today—modular, felt pocket, and panel systems—and explain which ones actually survive Bangalore conditions.

save pin

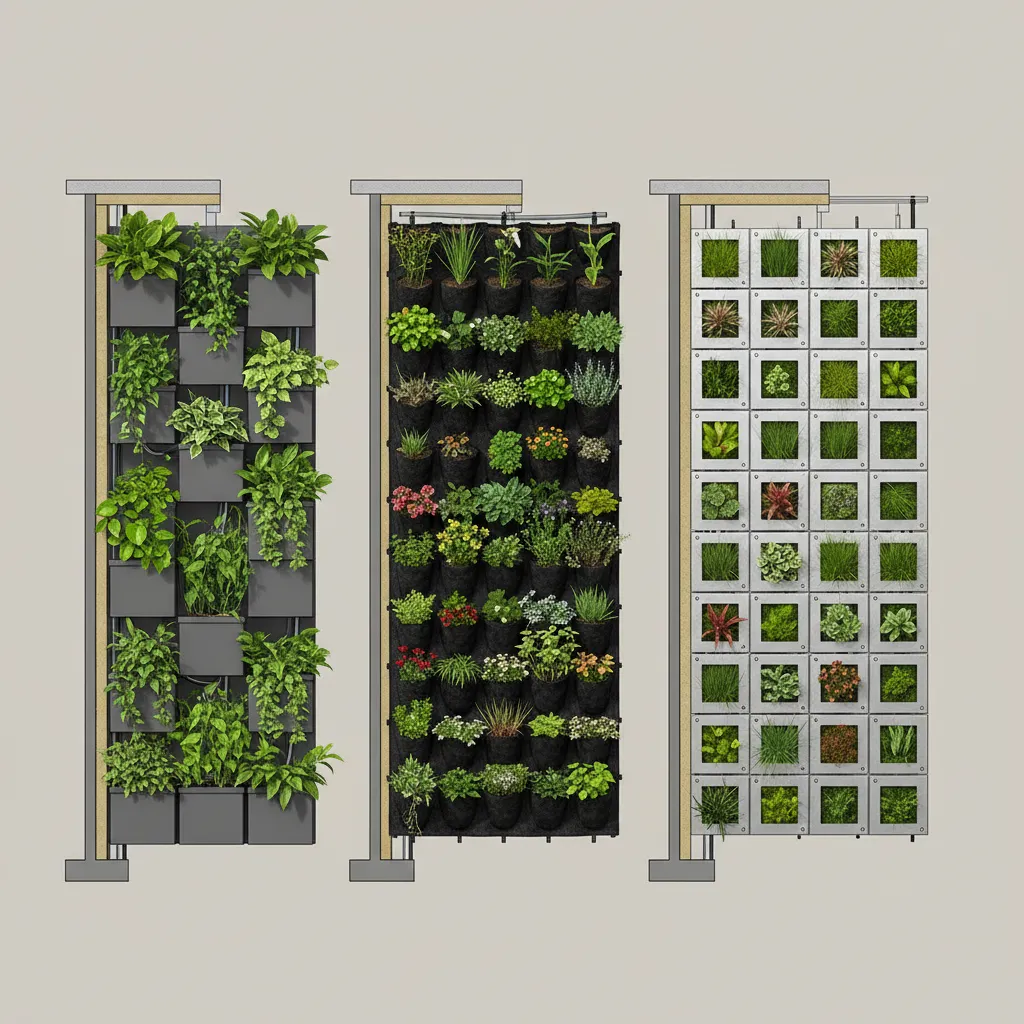

What Are the Main Types of Living Wall Systems

Key Insight: Nearly all modern vertical gardens fall into three engineering categories: modular container systems, felt pocket systems, and rigid panel systems.

While they may look similar once plants grow in, the structural approach behind each system is very different. These differences determine water distribution, plant health, maintenance difficulty, and lifespan.

1. Modular Systems – individual plant containers assembled into a wall grid
2. Felt Pocket Systems – fabric layers with pockets that hold plant roots
3. Panel Systems – rigid structural panels that support plants and irrigation

In international green architecture projects, modular systems dominate commercial buildings because they allow plant replacement without dismantling the entire wall. Felt systems, however, gained popularity through early French vertical garden experiments pioneered by botanist Patrick Blanc.

Each system has strengths—but climate compatibility is where the real difference shows up.

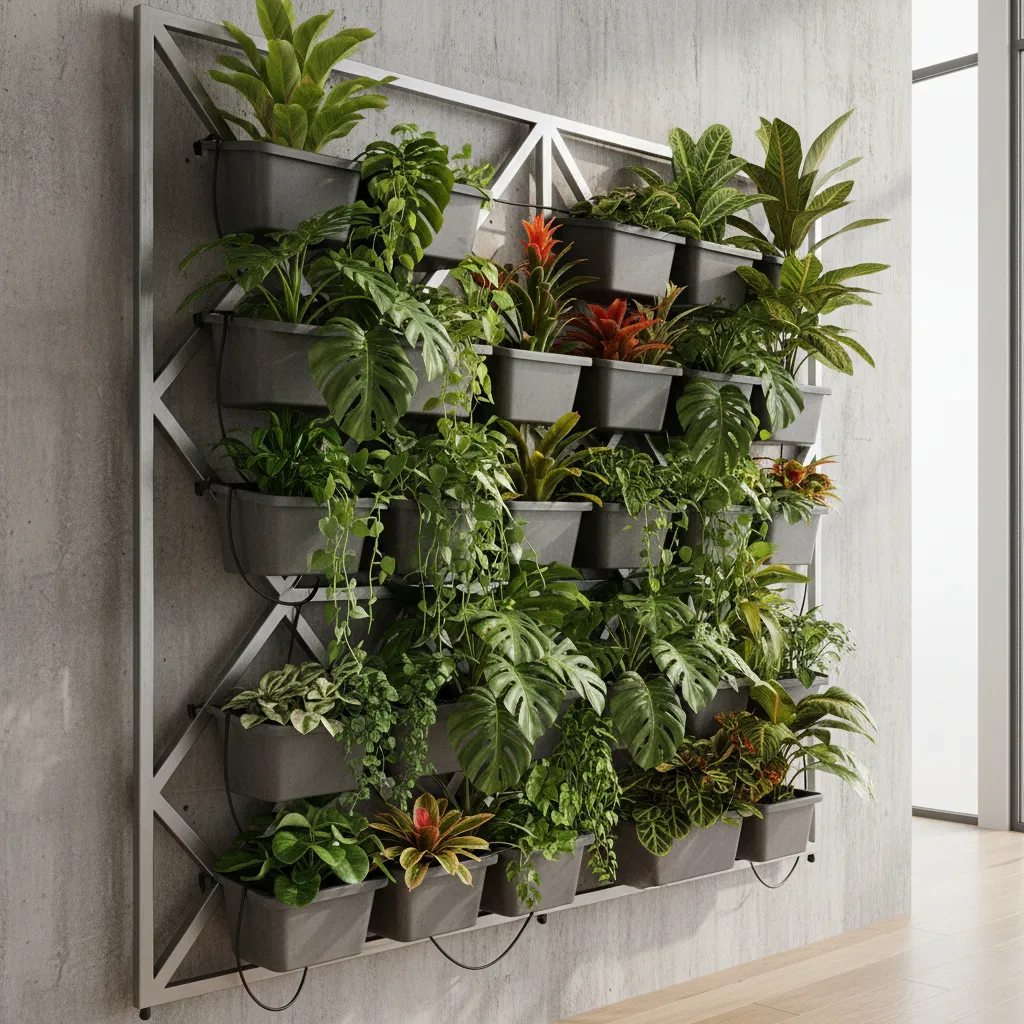

Modular Living Wall Systems Explained

Key Insight: Modular living wall systems offer the best balance of durability, irrigation control, and maintenance flexibility for urban buildings.

A modular system works like a set of interlocking plant containers mounted onto a structural frame. Each module holds its own growing medium and connects to a drip irrigation network.

From a designer's perspective, this system solves one of the biggest problems in vertical gardens: root overcrowding.

Typical components include:

1. Reinforced wall frame or mounting rail
2. Individual planting modules
3. Integrated irrigation tubing
4. Drainage channels
5. Replaceable plant containers

Advantages:

1. Plants can be replaced individually
2. Root zones remain separated
3. Water distribution is consistent
4. Structural stability is higher

Hidden drawback most guides skip: modular systems are heavier. Structural load must be considered during planning.

When designers map these installations, they usually plan structural distribution first using layout visualizations similar to how architects map building walls and spatial layout before installation.

This extra planning step prevents wall overload—something that becomes critical in older Bangalore apartment buildings.

save pin

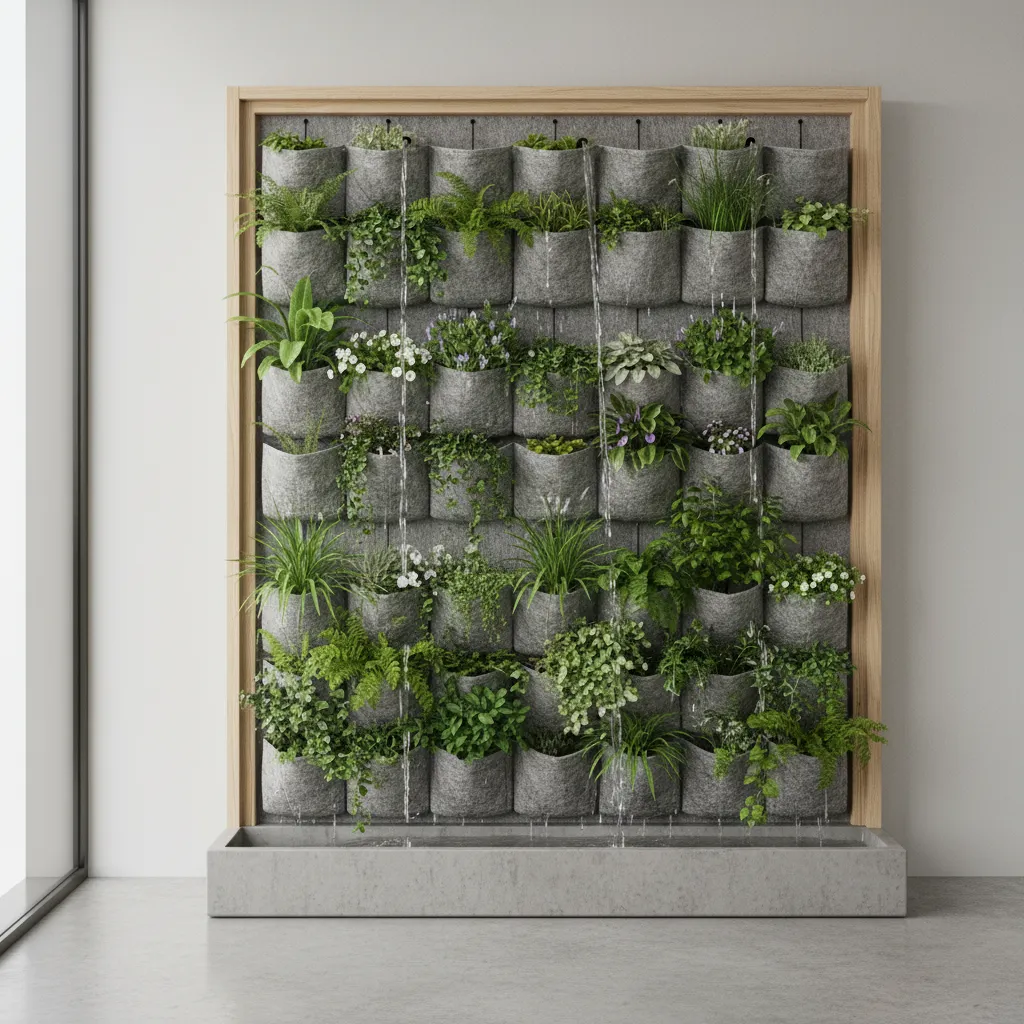

Felt Pocket Living Walls Pros and Limitations

Key Insight: Felt pocket systems are affordable but often struggle with longevity in hot, humid climates.

Felt systems use layered synthetic fabric sheets attached to a backing board. Plants are inserted into stitched pockets, and irrigation water flows down through the fabric.

This approach became popular because it mimics natural cliff ecosystems and allows dense plant coverage.

However, real-world installations reveal several weaknesses:

1. Fabric slowly degrades under UV exposure
2. Roots compete aggressively in shared layers
3. Water distribution becomes uneven over time
4. Pockets tear as plants mature

In Bangalore specifically, humidity accelerates microbial breakdown in fabric materials. I've inspected installations that looked great during the first year but required full replacement by year three.

Felt systems are still useful in certain conditions:

1. Indoor living walls
2. Short‑term installations
3. Low‑budget decorative projects

For permanent outdoor facades, though, the lifespan tradeoff is significant.

save pin

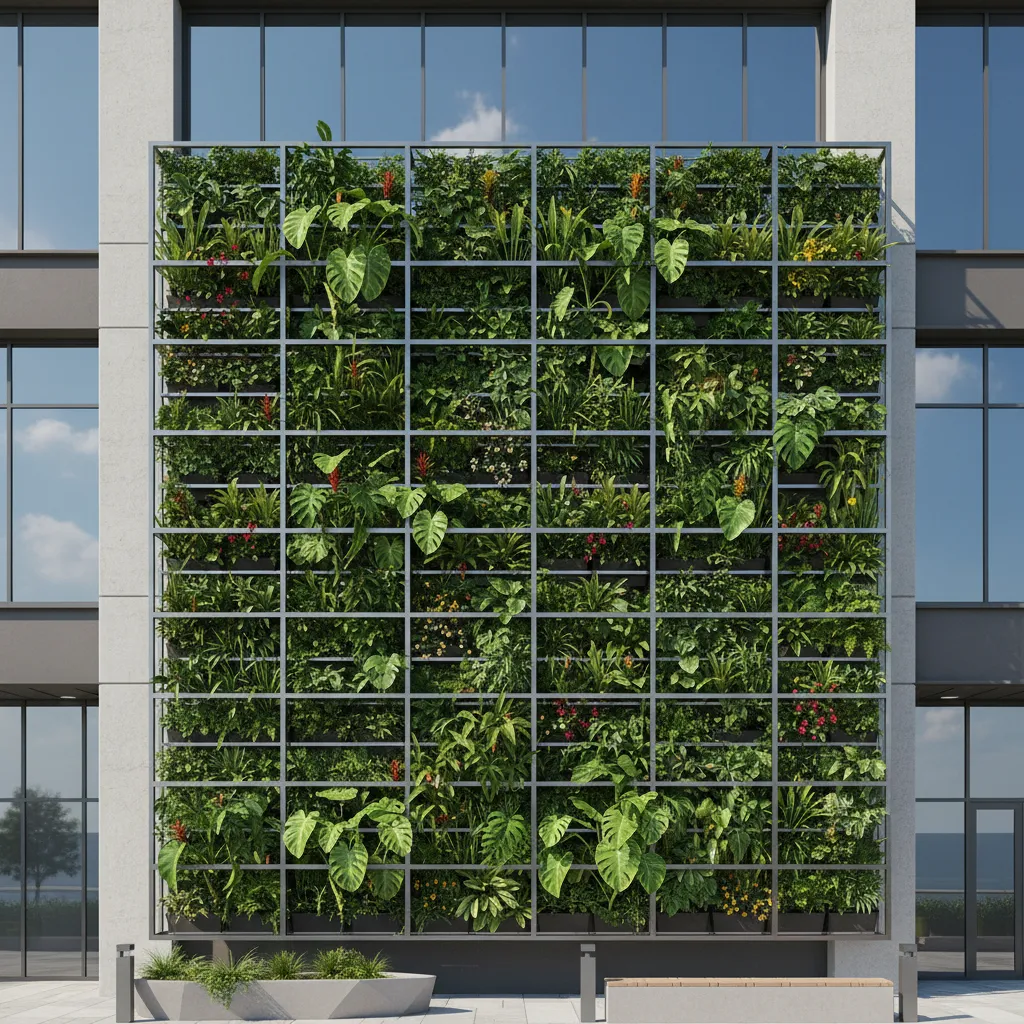

Panel Based Living Wall Structures

Key Insight: Panel-based systems provide strong structural support but require careful engineering and higher installation costs.

Panel systems use rigid boards made from materials like recycled plastic, aluminum frames, or engineered composite structures.

Instead of flexible pockets, plants grow in cavities or mounted containers integrated into these panels.

Typical structure:

1. Metal or composite backing panel
2. Integrated irrigation grid
3. Growing medium containers
4. Drainage layer behind panels

Benefits include:

1. High durability
2. Excellent structural stability
3. Good for tall installations

But there are two overlooked tradeoffs:

1. Repairing individual sections is harder
2. Installation requires professional structural alignment

Panel systems are most common in large commercial developments such as office complexes and malls where longevity matters more than initial cost.

Answer Box

The most reliable living wall system for Bangalore is typically a modular container system because it balances durability, plant health, and maintenance flexibility. Felt systems are cheaper but degrade faster outdoors, while panel systems work best for large commercial structures with proper engineering.

Which System Works Best in Bangalore Climate

Key Insight: Bangalore’s humidity and monsoon cycles favor systems that control water drainage and root separation.

Based on installations I've reviewed across South Indian projects, the climate creates three main challenges:

1. Heavy rainfall during monsoon season
2. Year‑round humidity
3. Warm temperatures that accelerate root growth

System performance comparison in Bangalore:

1. Modular systems – strong performance and longest lifespan
2. Panel systems – durable but expensive
3. Felt systems – best suited for indoor environments

Another factor many designers overlook is wall orientation. West‑facing walls in Bangalore receive intense afternoon sun, which dries irrigation channels quickly.

Planning plant placement and irrigation zones early—often during spatial layout design stages like those used when designers experiment with room and wall layouts for architectural planning—helps prevent uneven plant growth later.

save pin

Cost Maintenance and Longevity Comparison

Key Insight: The cheapest living wall system upfront often becomes the most expensive to maintain.

Here is a practical comparison based on installation projects and industry reports.

1. Modular systems
2. Moderate installation cost
3. Easy maintenance
4. Lifespan often 10–15 years
5. Felt pocket systems
6. Lowest installation cost
7. High maintenance
8. Lifespan often 3–5 years outdoors
9. Panel systems
10. Highest installation cost
11. Moderate maintenance
12. Lifespan often 15+ years

The hidden cost in living walls is usually irrigation repairs, not plant replacement. Systems with poorly designed drainage end up damaging building facades or causing root rot.

That’s why many commercial developers in Bangalore now prioritize engineered modular systems even if the initial investment is higher.

Final Summary

1. Modular systems offer the best balance of durability and maintenance.
2. Felt pocket walls are affordable but degrade faster outdoors.
3. Panel systems provide strength for large commercial installations.
4. Bangalore climate favors systems with strong drainage control.
5. Irrigation design matters more than plant selection.

FAQ

What is the best living wall system for Bangalore climate?

Modular container systems typically perform best because they manage irrigation and root zones effectively in humid tropical environments.

How long does a living wall last outdoors?

Depending on the system, outdoor living walls usually last between 5 and 15 years with proper maintenance.

Are felt living walls suitable for India?

Felt systems work better indoors. Outdoor humidity and sun exposure in India can degrade the fabric quickly.

Which living wall system requires the least maintenance?

Modular systems typically require the least maintenance because individual plants can be replaced without disturbing the whole wall.

Is a modular vs felt living wall comparison important before installation?

Yes. Choosing the wrong system can lead to irrigation failures, plant death, and expensive wall repairs.

Do vertical garden systems damage building walls?

Properly installed systems include waterproof membranes and drainage layers to protect the wall structure.

Which living wall system lasts longer?

Panel systems and modular systems usually last significantly longer than felt pocket installations.

Are living walls expensive to maintain?

Maintenance costs mainly depend on irrigation design and accessibility for plant replacement.
