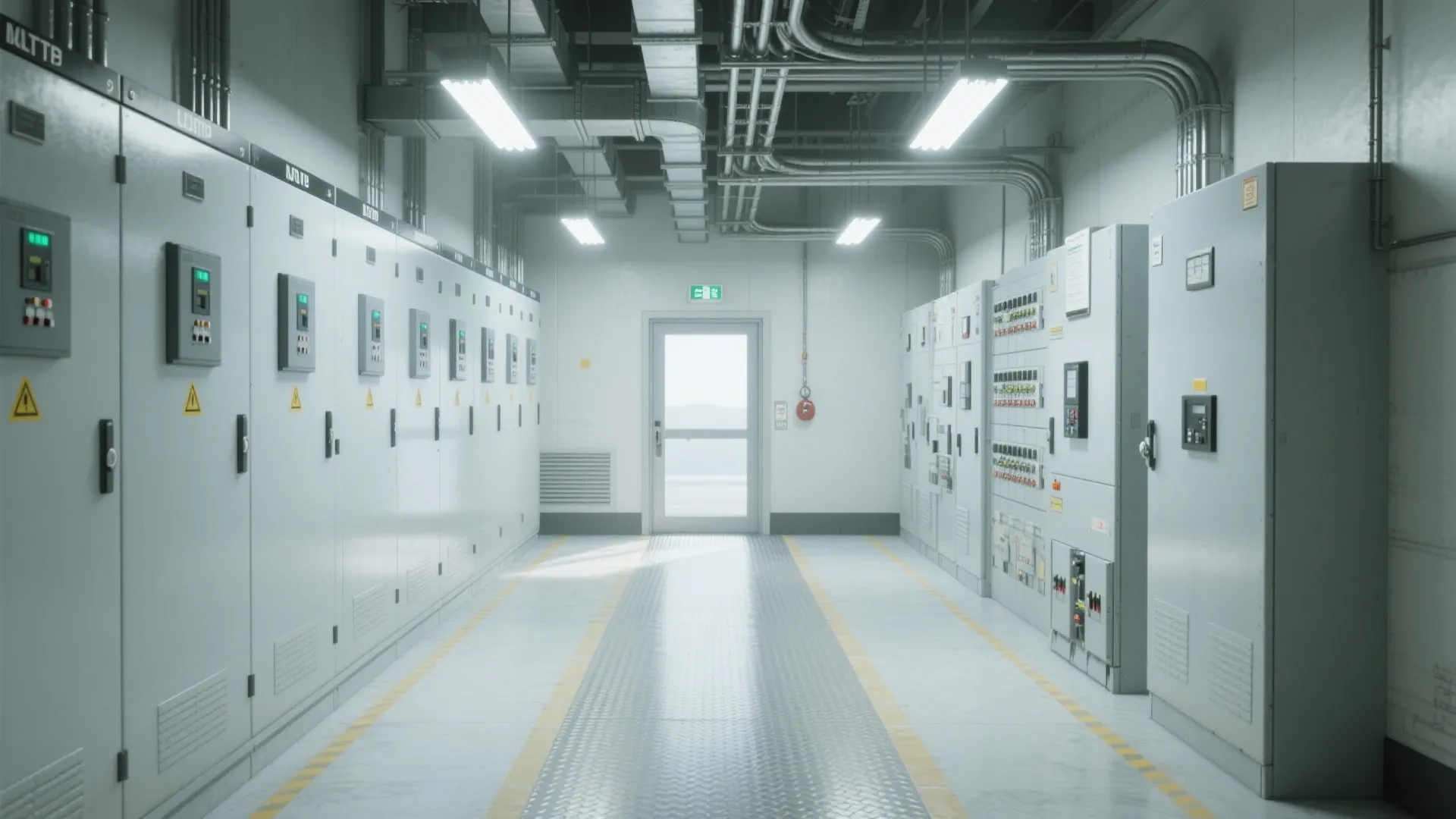

LT Room Full Form: Understanding LT Electrical Room Meaning: Fast-Track Guide to LT Room Definition & Uses in 1 Minute

An LT Room, short for Low Tension Room, is the dedicated space that houses low-voltage electrical distribution equipment in a building—typically below 1 kV. In my projects, the LT Room is the nerve center for power distribution to lighting, small power circuits, and mechanical auxiliaries. Getting its size, layout, ventilation, and safety right has direct implications on uptime and occupant safety. According to IFMA, electrical issues are among the top causes of unplanned facility downtime, reinforcing the need for clear standards and disciplined design in these rooms. WELL v2 also highlights the importance of thermal comfort and noise management around building systems, which is often overlooked when locating or detailing LT Rooms.

From a measurement and compliance standpoint, lighting and visual clarity inside LT Rooms are non-negotiable. The Illuminating Engineering Society (IES) recommends task illuminance levels in the range of 300–500 lux for technical spaces to ensure safe inspection and switching. I’ve found 400–500 lux with 4000–5000K neutral-white LED fixtures provides balanced contrast without glare. Noise should be kept below 55 dBA where possible; WELL v2 guidance on acoustic comfort is a helpful reference when specifying enclosures and room separation. Even modest improvements—better cable management, non-slip flooring, and clear labeling—significantly reduce operational errors.

What makes an LT Room different from other electrical spaces? In short: voltage class, function, and equipment type. LT Rooms typically hold main LT panels (MLTP), distribution boards (DBs), automatic transfer switches (ATS), capacitor banks for power-factor correction, metering panels, and control wiring. By contrast, HT (High Tension) or MV (Medium Voltage) rooms handle incoming power at higher voltages and require specialized switchgear, insulation clearances, and arc-flash mitigation. Separating LT and HT areas improves safety, simplifies maintenance workflows, and reduces noise transmission to occupied zones.

Core Functions of an LT Electrical Room

The LT Room collects incoming power (often post-transformer), conditions it via protective devices, and distributes it through feeders to floors and zones. Key functions include:

1. Protection: MCCBs/ACBs for overcurrent, short-circuit, and earth fault.
2. Switching & isolation: ATS for generator changeover; manual/automatic isolation.
3. Power quality: Capacitor banks for power factor correction and harmonic filters when needed.
4. Monitoring: Energy meters, demand controllers, and BMS interfaces.
5. Segregation: Dedicated sections for lighting, small power, and critical loads.

Space Planning, Clearances, and Access

Safe clearances around live fronts and switchgear are essential. As a rule of thumb in my practice, maintain at least 1.0–1.2 m of working clearance in front of panels and 0.8–1.0 m along the sides for access. Doors should open outwards with panic hardware; corridors must support equipment removal pathways. When planning layout, a simple room layout tool helps visualize panel runs, cable trays, and aisle widths early—avoiding costly rework later. Prioritize linear panel walls for intuitive maintenance and keep emergency shutoff locations visible from the entry.

Lighting, Color, and Visual Ergonomics

Lighting must be uniform with minimal shadowing on terminations. I specify CRI ≥80 and color temperature around 4000K for accurate label reading and wire color identification. IES task lighting guidance supports 300–500 lux; 400–500 lux works well for detailed inspection. Color psychology plays a subtle role: neutral wall finishes reduce visual fatigue and enhance legibility of safety signage, while high-contrast floor markings guide egress routes and demarcate danger zones. Glare control via diffusers or indirect fixtures reduces eye strain during prolonged maintenance.

Thermal Management and Ventilation

LT Rooms collect heat from transformers (if co-located), capacitor banks, and switchgear. Provide dedicated ventilation or conditioned air to keep ambient temperatures within equipment specs—commonly 0–40°C. I’ve used thermostatically controlled exhausts and louvered intakes to stabilize smaller rooms; in larger spaces, calculate heat loads from panel losses and transformer ratings. Keep intake air free of dust and corrosive agents; filtration significantly extends equipment life. Avoid placing LT Rooms adjacent to high-moisture areas without proper vapor barriers.

Acoustic Comfort and Vibration

Capacitor banks, contactors, and cooling fans generate hum. To keep adjacent workspaces comfortable, isolate the LT Room through solid-core doors, sealed frames, and resilient floor mounts for heavy gear. WELL v2 acoustic strategies—limiting transmission paths and improving seals—are practical starting points. For rooms near offices, consider composite wall construction or staggered studs to improve STC.

Cable Management, Labeling, and Safety Signage

Good cable discipline prevents overheating and makes fault tracing faster. Use metal cable trays with segregated routes for power and control wiring; maintain bend radii for larger cables. Label every feeder, bus section, and protective device; apply color-coded arc-flash hazard labels at eye level. Provide lockout/tagout points and keep insulated mats in front of live fronts. Fire-rated enclosures and smoke detection are essential; clean-agent extinguishers (non-conductive) should be readily accessible.

Material Selection and Durability

Resilient, anti-static flooring and non-porous wall finishes withstand traffic and cleaning. Panels should be rated for the local environment—consider IP ratings where dust or moisture are present. Stainless hardware and powder-coated enclosures resist corrosion. Sustainability matters: LED lighting with occupancy sensors reduces energy use; well-sealed rooms prevent particulate ingress, extending component life and reducing waste.

Typical Equipment in an LT Room

1. Main LT Panel (MLTP) with ACB/MCCB
2. Distribution Boards (lighting, power, critical loads)
3. Automatic Transfer Switch (ATS) for genset
4. Capacitor bank for power-factor correction
5. Harmonic filters (as required)
6. Energy meters and BMS gateways
7. UPS input/output panels (for critical systems)

Layout Principles I Rely On

I arrange panels along one or two long walls to maintain clear sightlines and service aisles. Transformers, if nearby, sit in a separate ventilated bay or room. Keep cable entries consistent—top or bottom—across a line-up to streamline tray routing. For complex projects, a quick pass with an interior layout planner helps test aisle widths, door swings, and equipment removal paths before committing to construction.

Safety, Compliance, and Operations

Coordinate with electrical engineers on protective device settings and discrimination. Provide rubber mats, insulated tools, and PPE storage. Install emergency lighting and illuminated exit signage. Access should be controlled; post single-line diagrams and emergency contacts at entry. Routine thermography and tightening schedules reduce downtime—IFMA’s emphasis on proactive maintenance is a timely reminder to budget for inspections.

LT vs. HT/MV: Quick Distinctions

1. Voltage: LT < 1 kV; MV often 1–33 kV; HT above that.
2. Equipment: LT uses MCCBs/ACBs; MV/HT uses vacuum or SF6 switchgear.
3. Clearances: LT rooms have smaller work clearances; MV/HT require greater isolation and arc-flash protection.
4. Risk profile: LT faults generally lower incident energy but still hazardous; proper PPE and procedures remain essential.

When and Where to Place the LT Room

Locate near risers and main vertical distribution, away from moisture and high-traffic public areas. Provide direct access from service corridors, not through occupied rooms. Keep adjacency to critical spaces minimal to reduce noise transfer; ensure floor loading can handle panel weight and future expansions.

FAQ

What does LT stand for in electrical rooms?

LT stands for Low Tension, referring to low-voltage electrical distribution (typically below 1 kV) that feeds lighting and small power circuits.

How bright should an LT Room be?

Target 300–500 lux per IES task lighting guidance; I usually specify 400–500 lux at 4000–5000K with glare control for safe inspection and labeling.

Is an LT Room the same as an HT or MV Room?

No. HT/MV rooms handle higher voltage incoming power and require specialized switchgear and larger clearances. LT Rooms focus on low-voltage distribution and protection.

What equipment is typically installed in an LT Room?

Main LT panels, distribution boards, ATS, capacitor banks, harmonic filters (as needed), metering, and BMS interfaces are common.

How much clearance is required in front of panels?

Maintain at least 1.0–1.2 m working clearance in front of panels, with 0.8–1.0 m on sides where feasible, to enable safe operation and maintenance.

How do I manage heat and ventilation in LT Rooms?

Provide dedicated ventilation or conditioned air. Keep ambient temperature within equipment specs (often 0–40°C) and filter intake air to reduce dust.

What about acoustic control?

Seal doors and frames, use resilient mounts, and consider composite walls to limit transmission. WELL v2’s acoustic comfort strategies are helpful references.

Why is labeling and cable management critical?

Clear labeling and segregated cable trays speed fault finding, reduce overheating, and improve safety during live work and maintenance.

Should LT Rooms be accessible to everyone?

No. Restrict access to trained personnel, install signage, and keep PPE and insulated tools on hand. Post single-line diagrams and emergency contacts at entry.

Do color choices matter in an LT Room?

Neutral finishes improve legibility and reduce visual fatigue. High-contrast floor and wall markings enhance hazard awareness and egress clarity.

Where should the LT Room be located in a building?

Place near vertical risers and service corridors, away from moisture-prone areas and high-traffic public spaces. Ensure structural capacity for equipment.

How does power factor correction fit in?

Capacitor banks in the LT Room improve power factor, reducing losses and potential utility penalties. They must be ventilated and properly protected.
