Magnetic vs Electronic Stud Finders for Exterior Walls: Which stud finder technology actually works through insulation, sheathing, and thicker exterior wall assemblies

Direct Answer

Electronic stud finders generally work better on exterior walls because they can detect density changes through drywall, insulation, and sheathing. Magnetic stud finders only locate screws or nails and may struggle when fasteners are deeply embedded or spaced irregularly.

However, in real construction scenarios, many professionals keep both tools. Magnetic models excel at confirming fastener lines, while electronic scanners help locate stud edges behind thicker wall assemblies.

Quick Takeaways

1. Electronic stud finders detect density changes and usually perform better on insulated exterior walls.
2. Magnetic stud finders locate metal fasteners and can confirm stud locations reliably once fasteners are found.
3. Exterior walls are harder to scan because of insulation, sheathing layers, and irregular fastener spacing.
4. Using both technologies together often produces the most accurate stud location.
5. Thick sheathing or siding can reduce electronic scanner accuracy without proper calibration.

Introduction

After working on dozens of remodels and exterior mounting projects, I can say one thing confidently: finding studs in exterior walls is a very different challenge than scanning interior drywall. The debate around magnetic vs electronic stud finders for exterior walls usually comes down to how those walls are built.

Exterior assemblies often include drywall, vapor barriers, insulation, structural sheathing, and sometimes siding layers. That stack of materials can confuse sensors or hide fasteners deeper than expected.

When I'm planning wall-mounted shelving, outdoor lighting, or structural brackets, I almost always test multiple detection methods. If you're trying to locate framing behind thicker wall systems, understanding how each technology works makes a big difference. You can also visualize framing layouts with tools used for mapping wall structure and framing positions in a digital floor plan, which helps anticipate stud spacing before scanning.

save pin

Why Exterior Walls Are Harder to Scan for Studs

Key Insight: Exterior walls create detection challenges because multiple material layers interfere with stud finder signals.

Interior drywall walls are simple: drywall over wood studs. Exterior walls are rarely that straightforward.

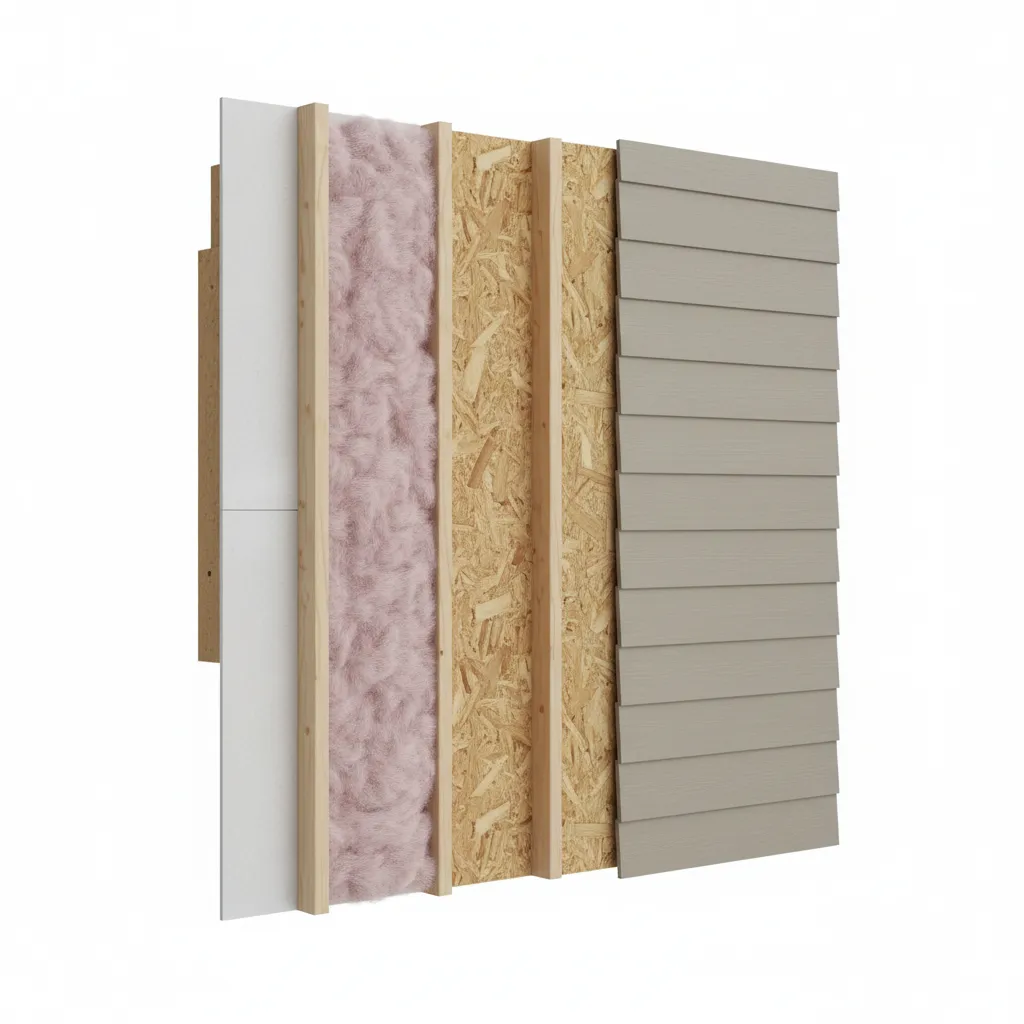

Typical exterior wall layers include:

1. Interior drywall
2. Vapor barrier or air barrier
3. Fiberglass or spray foam insulation
4. OSB or plywood sheathing
5. Exterior siding or cladding

Each layer changes how sensors behave. Electronic scanners rely on density shifts, but thick insulation can blur those differences. Magnetic finders rely on fasteners, but those screws may sit deeper inside the wall assembly.

In renovation projects I've worked on, exterior drywall is also more likely to have extra screws or irregular spacing because contractors reinforce areas near windows and doors. That makes stud patterns less predictable.

How Magnetic Stud Finders Work

Key Insight: Magnetic stud finders locate metal fasteners rather than the stud itself.

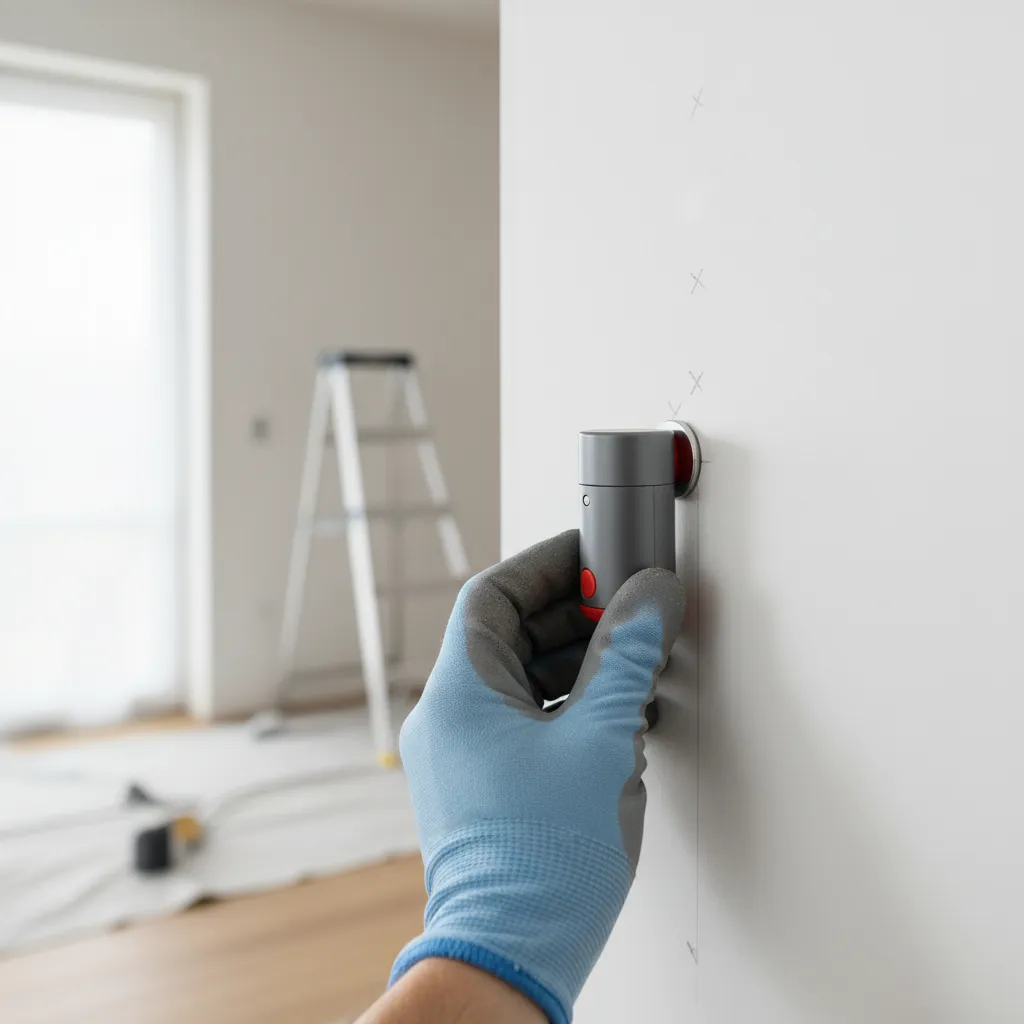

Magnetic stud finders contain strong rare-earth magnets. When the magnet passes over a screw or nail in the drywall, it sticks slightly or creates noticeable resistance.

Once you locate several fasteners in a vertical line, you can infer the stud location behind them.

How the detection process works:

1. Magnet scans across the drywall surface
2. Magnet reacts to drywall screws or nails
3. Multiple fasteners reveal a vertical framing line

Advantages of this method:

1. No calibration required
2. Works regardless of wall thickness
3. Very reliable once fasteners are located

The limitation is obvious: if screws are deeply buried or spaced far apart, detection becomes slower. On insulated exterior walls, screws can sit slightly deeper due to thicker drywall assemblies.

How Electronic Stud Finders Detect Studs

Key Insight: Electronic stud finders detect density differences between studs and empty wall cavities.

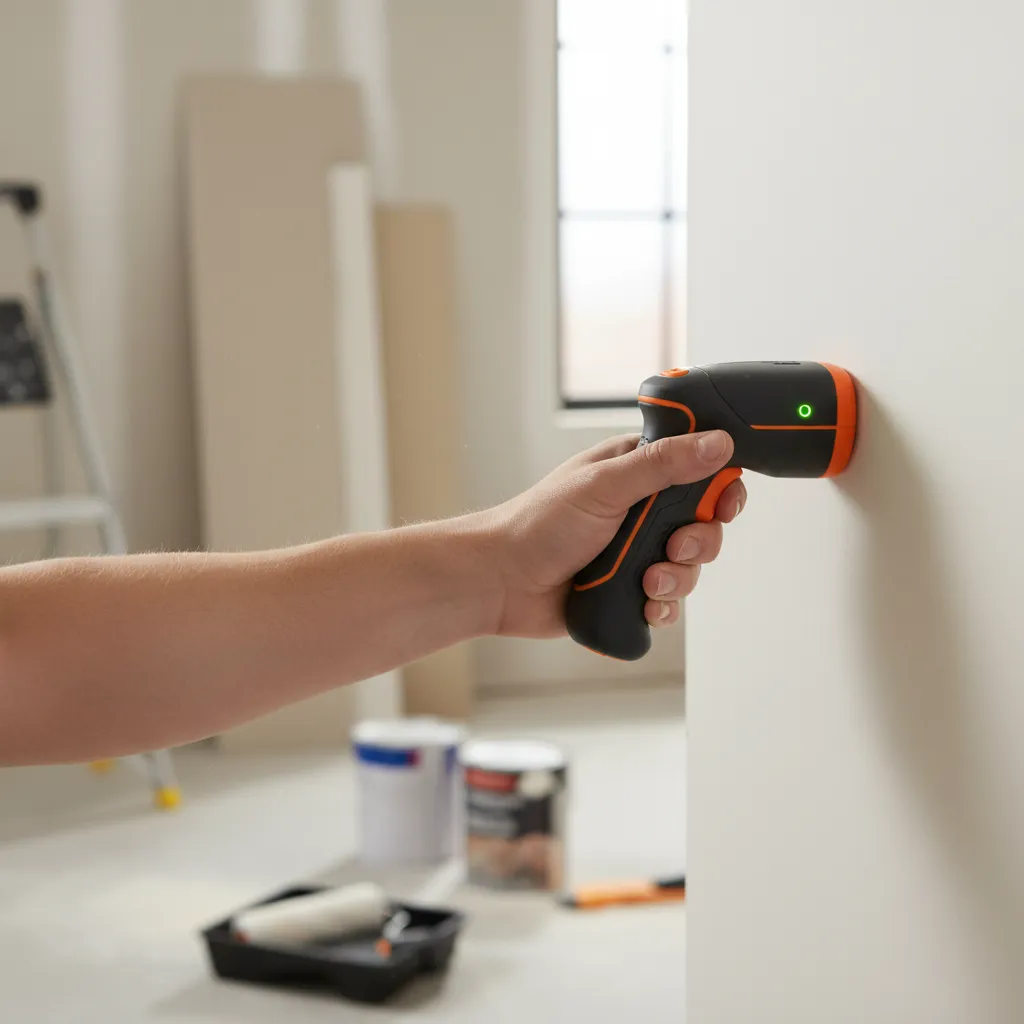

Electronic models use sensors that measure capacitance or dielectric changes inside the wall. Wood studs are denser than insulation or hollow cavities, so the device identifies the transition from empty space to framing.

Typical scanning workflow:

1. Place scanner flat on the wall.
2. Calibrate on a hollow section.
3. Move slowly across the wall surface.
4. Sensor indicates stud edges.

In my experience designing wall-mounted storage systems, electronic scanners are much faster when walls are standard drywall thickness. They can identify both stud edges, letting you find the center precisely.

But exterior insulation can reduce accuracy because the sensor reads gradual density changes rather than a sharp transition.

save pin

Accuracy Differences on Insulated Exterior Walls

Key Insight: Electronic scanners often struggle with dense insulation, while magnetic finders struggle with deep fasteners.

Exterior walls introduce a trade-off between the two technologies.

Common performance differences:

1. Fiberglass insulation can blur electronic sensor readings.
2. Spray foam often improves density detection.
3. Deep drywall screws weaken magnetic response.
4. Metal siding fasteners may create false positives.

On one residential project in Santa Monica, we had exterior drywall over spray foam insulation. Electronic scanners worked surprisingly well because the foam created a clear density contrast. On another project with loose fiberglass batts, the scanner readings were inconsistent.

For planning heavy wall-mounted elements such as shelving or cabinets, I often reference layout tools for visualizing furniture placement against structural wall framing. Knowing expected stud spacing helps confirm whether scanner results make sense.

Pros and Cons of Each Technology

Key Insight: Neither technology is universally better; each solves a different detection problem.

Magnetic Stud Finder

1. Very simple to use
2. No batteries required
3. Reliable confirmation once fasteners are located
4. Slower for scanning large wall areas
5. Dependent on screw placement

Electronic Stud Finder

1. Fast scanning across wide surfaces
2. Detects stud edges and centers
3. Helpful for mapping multiple studs
4. Requires calibration
5. Accuracy affected by insulation or uneven drywall

Many contractors actually carry both tools because they complement each other rather than compete.

Answer Box

For most exterior walls, electronic stud finders are faster and better at identifying stud edges through drywall. Magnetic stud finders remain the most reliable way to confirm stud positions by locating fastener lines. Using both methods together delivers the most accurate results.

Which Type Works Best for Exterior Siding and Sheathing

Key Insight: When scanning from the interior side, electronic scanners usually work best; when scanning through exterior siding, magnetic detection may be more reliable.

Performance varies depending on where you're scanning from.

Interior-side scanning (drywall side):

1. Electronic scanners usually perform better.
2. Stud edges can be mapped quickly.

Exterior-side scanning (through siding):

1. Magnetic finders may detect siding fasteners.
2. Electronic scanners often struggle with dense cladding.

If you're installing heavy outdoor fixtures, it's helpful to review framing layouts beforehand using tools designed for creating accurate structural wall layouts before mounting installations. Knowing where studs should exist dramatically speeds up detection.

save pin

Final Summary

1. Electronic stud finders generally perform better on insulated interior-facing exterior walls.
2. Magnetic stud finders reliably confirm stud lines by detecting fasteners.
3. Exterior wall layers make stud detection more complex than interior walls.
4. Using both technologies together often produces the most accurate result.
5. Understanding wall construction improves detection accuracy dramatically.

FAQ

Do magnetic stud finders work on exterior walls?

Yes. Magnetic stud finders can work on exterior walls if drywall screws or nails are detectable. However, deep fasteners may weaken the magnetic pull.

Are electronic stud finders accurate on insulated walls?

Electronic stud finders can work on insulated walls, but fiberglass insulation sometimes reduces detection accuracy.

Which stud finder works through exterior sheathing?

Neither type works perfectly through thick sheathing. Magnetic models may detect fasteners, while electronic scanners struggle with dense materials.

What is the best stud finder technology for thick walls?

For thick walls, electronic scanners usually locate stud edges faster, but confirming results with a magnetic finder improves reliability.

Why does my stud finder fail on exterior walls?

Insulation density, thick drywall, vapor barriers, and irregular fastener spacing can confuse both magnetic and electronic stud finders.

Can metal siding affect stud finder accuracy?

Yes. Metal siding or flashing can trigger false readings on electronic scanners and magnetic detectors.

How do professionals locate studs in difficult exterior walls?

Many professionals combine electronic scanners, magnetic finders, and knowledge of standard stud spacing to verify locations.

Is magnetic vs electronic stud finder exterior wall detection very different?

Yes. Magnetic models detect fasteners, while electronic scanners detect density changes in wall materials.
