Metal Roof Insulation for Barns Garages and Industrial Buildings: Practical insulation strategies that reduce condensation, stabilize temperatures, and cut energy costs in large metal structures.

Direct Answer

Metal roof insulation for barns, garages, and industrial buildings requires systems designed for large spans, condensation control, and durable installation. The most effective solutions usually combine reflective barriers, rigid board insulation, or spray foam to control heat transfer and moisture. The right approach depends on building use, ventilation, and structural framing.

Quick Takeaways

1. Large metal structures require insulation that controls both temperature and condensation.
2. Spray foam and rigid board insulation perform best in irregular or wide-span metal roofs.
3. A vapor barrier is often more important than insulation thickness in barns.
4. Industrial buildings need insulation systems that scale efficiently across large roof surfaces.
5. Improper installation often leads to hidden condensation damage.

Introduction

Metal roof insulation for barns, garages, and industrial buildings is very different from insulating a typical house. I learned that the hard way early in my career while consulting on a workshop conversion project. The owner installed fiberglass between roof purlins, thinking it would behave like attic insulation. Within one winter, condensation soaked the insulation and rust began forming on the underside of the panels.

Large metal structures behave differently because steel transfers heat extremely fast. When warm air meets a cold roof panel, condensation forms almost instantly. That is why insulation strategies used in residential attics often fail in agricultural or industrial buildings.

Another challenge is scale. A warehouse roof might span thousands of square feet, and even a small insulation mistake becomes expensive quickly. Many designers now visualize airflow paths and interior layouts before choosing insulation systems. Tools that help planners visualize large building layouts before constructionoften reveal where ventilation and insulation layers should be placed.

After working on barns, workshops, and light industrial renovations, I have noticed that successful projects focus on three things: moisture control, durable installation, and long-term energy performance. The sections below break down how those priorities translate into real insulation systems.

save pin

Why Metal Buildings Need Specialized Roof Insulation

Key Insight: Metal buildings require insulation systems that manage condensation first and temperature second.

Unlike wood-framed homes, metal roofs rapidly change temperature. When exterior temperatures drop, the metal panels cool immediately. If warm interior air touches that cold surface, condensation forms. Over time, that moisture damages insulation and accelerates corrosion.

Common insulation goals in metal structures include:

1. Condensation prevention
2. Thermal stability
3. Noise reduction during rain
4. Energy efficiency

Industry guidance from the Metal Building Manufacturers Association consistently emphasizes vapor control layers when insulating steel structures. Without them, even thick insulation can fail.

A mistake I see frequently is focusing only on R‑value. In large buildings, airflow management and vapor barriers often matter more than raw insulation thickness.

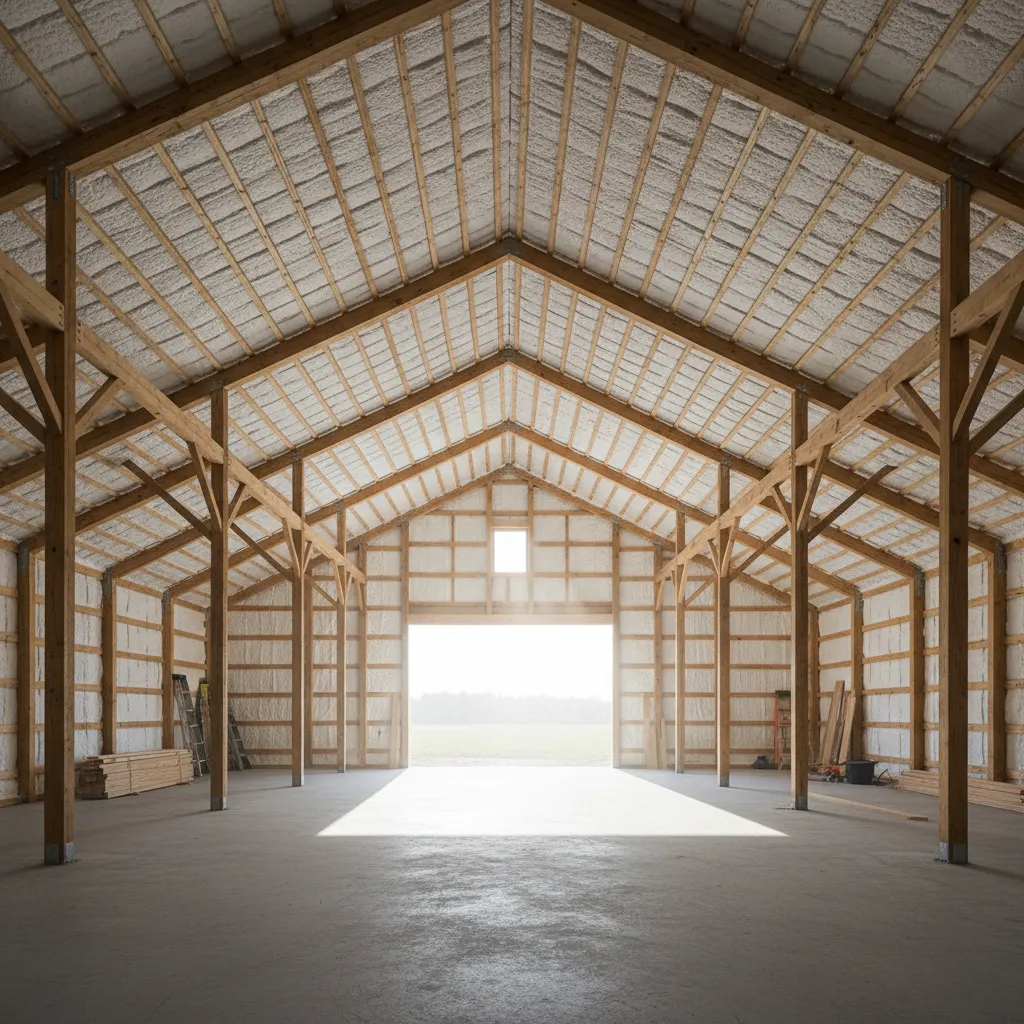

Insulating Metal Roofs in Barns and Agricultural Buildings

Key Insight: Agricultural buildings require insulation that tolerates humidity, dust, and large temperature swings.

Barns are unique because livestock, hay storage, and open ventilation create very humid conditions. That moisture makes condensation problems worse.

The most common barn roof insulation methods include:

1. Spray foam insulation – creates an air seal and moisture barrier directly on metal panels.
2. Reflective radiant barriers – reduce solar heat gain in hot climates.
3. Rigid foam boards – installed between framing members.

For pole barns specifically, spray foam has become increasingly popular because it adheres directly to metal roofing. Many contractors recommend it when insulating metal roof in pole barn structures where airflow gaps are difficult to seal.

A less-discussed issue is pest resistance. Fiberglass batts often attract rodents in agricultural buildings. Closed‑cell foam avoids that problem while also strengthening the roof structure.

save pin

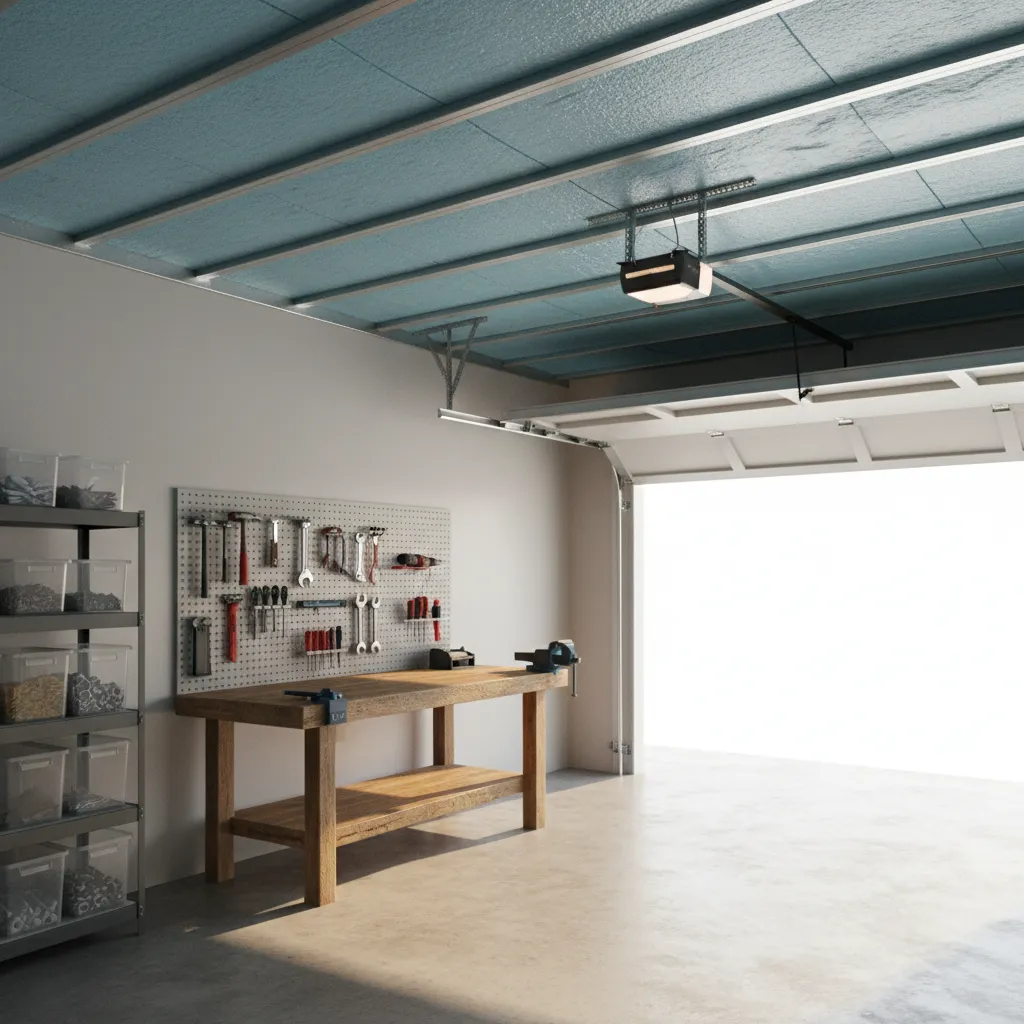

Garage and Workshop Metal Roof Insulation Methods

Key Insight: Workshops and garages benefit most from insulation systems that improve comfort without reducing ceiling height.

Many homeowners insulating garages want a quick solution that works from inside the building. The challenge is balancing performance with limited space.

Effective options include:

1. Rigid foam boards installed between rafters
2. Spray foam applied directly to roof panels
3. Foil-faced bubble insulation combined with ventilation

When planning a workshop layout, insulation placement should align with lighting, storage, and ceiling clearance. I often recommend using tools that help experiment with workshop layout and storage zonesbefore installing insulation systems.

Garage metal roof insulation from inside the building is usually easiest with spray foam because it fills gaps around fasteners and seams. That reduces drafts and eliminates many condensation points.

save pin

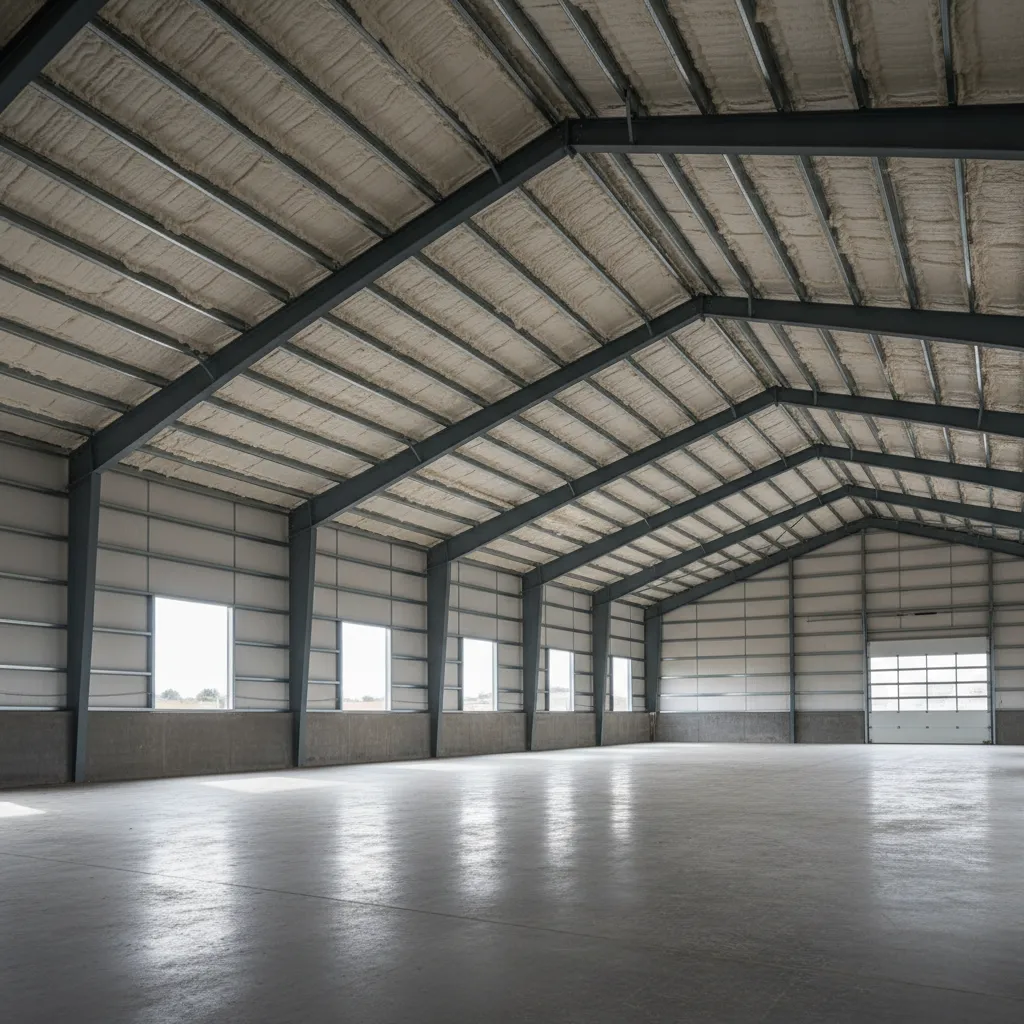

Large Warehouse Insulation Strategies

Key Insight: Warehouses require scalable insulation systems that can cover massive roof areas efficiently.

Industrial buildings introduce a completely different set of constraints. Roof heights are larger, spans are wider, and installation must remain cost‑efficient.

Common warehouse metal roof insulation methods include:

1. Long-span fiberglass blanket systems
2. Rigid polyisocyanurate insulation boards
3. Spray foam for air sealing

Blanket insulation remains common in large facilities because it installs quickly across steel framing. However, many modern warehouses now combine rigid boards with reflective barriers to improve energy efficiency.

Another overlooked factor is lighting and roof penetrations. Skylights, ventilation fans, and ductwork create thermal weak points. Before finalizing insulation plans, many facility planners model equipment layouts using tools that help map large workspace layouts and circulation zones.

Condensation Control in Industrial Metal Roofs

Key Insight: Condensation management is the single most important design factor in metal roof insulation.

Even well-insulated buildings can develop moisture problems if vapor control is poorly designed.

Effective condensation control strategies include:

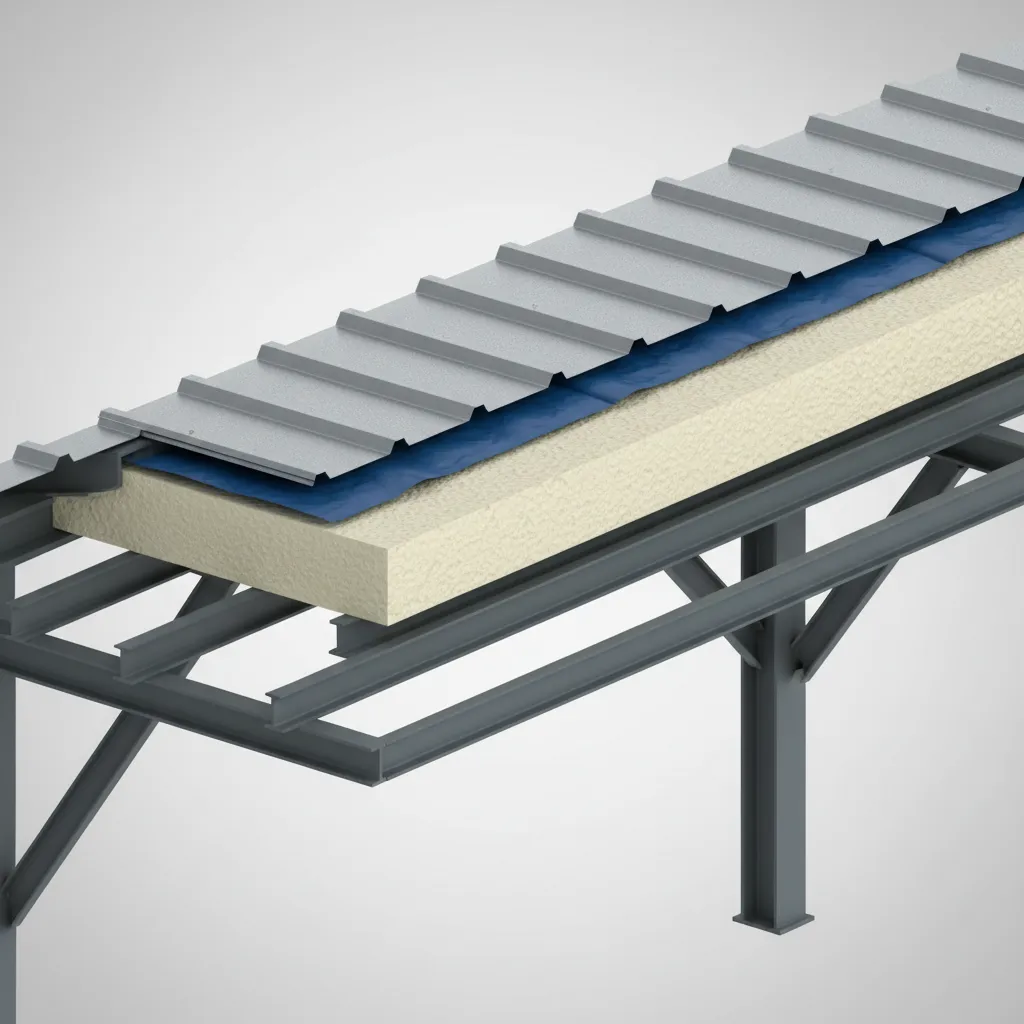

1. Installing vapor barriers beneath insulation layers
2. Maintaining continuous ventilation channels
3. Using closed-cell spray foam for air sealing
4. Adding reflective radiant barriers in hot climates

A common hidden mistake is leaving small gaps where insulation meets structural beams. Those gaps allow warm air to reach cold metal panels, which quickly creates condensation.

Answer Box

The best metal roof insulation for barns, garages, and warehouses combines moisture control with thermal protection. Spray foam, rigid foam boards, and blanket insulation systems remain the most reliable options depending on building size and humidity levels.

Cost Considerations for Large Metal Structures

Key Insight: Installation efficiency matters more than material price when insulating large metal roofs.

For small buildings, insulation cost differences may seem minor. In large barns or warehouses, those differences multiply quickly.

Typical cost factors include:

1. Roof area and structural spacing
2. Labor complexity
3. Required vapor barriers
4. Interior finishing requirements

Approximate cost comparison:

1. Fiberglass blanket systems – lowest upfront cost
2. Rigid foam boards – moderate cost with strong performance
3. Spray foam – highest cost but superior sealing and durability

In many projects I have reviewed, owners initially choose the cheapest insulation only to spend more later fixing condensation damage. Long‑term durability almost always outweighs the lowest initial price.

Final Summary

1. Metal buildings require insulation systems designed for condensation control.
2. Spray foam works well in barns and garages with irregular framing.
3. Warehouse insulation must scale efficiently across large roof spans.
4. Vapor barriers are essential in humid agricultural environments.
5. Choosing the cheapest insulation often leads to higher repair costs later.

FAQ

What is the best insulation for a metal barn roof?

Closed‑cell spray foam is often considered the best insulation for metal barn roofs because it seals air gaps and prevents condensation.

Can you insulate a metal roof from the inside?

Yes. Spray foam, rigid foam boards, and reflective insulation can all be installed from inside a building.

How do you prevent condensation in a metal roof?

Use vapor barriers, proper ventilation, and insulation that creates an air seal.

Is fiberglass insulation good for metal roofs?

It can work in warehouses using blanket systems, but it requires proper vapor barriers to prevent moisture buildup.

How thick should metal roof insulation be?

Thickness depends on climate and building use, but most commercial systems range from R‑19 to R‑30.

What is the best way to insulate a garage metal roof?

Spray foam or rigid foam boards installed from inside the garage are common solutions.

Do agricultural buildings need roof insulation?

Yes. Insulation reduces condensation and stabilizes temperature for equipment and livestock.

What insulation works best for large warehouses?

Blanket fiberglass systems and rigid foam boards are commonly used in warehouse metal roof insulation methods.
