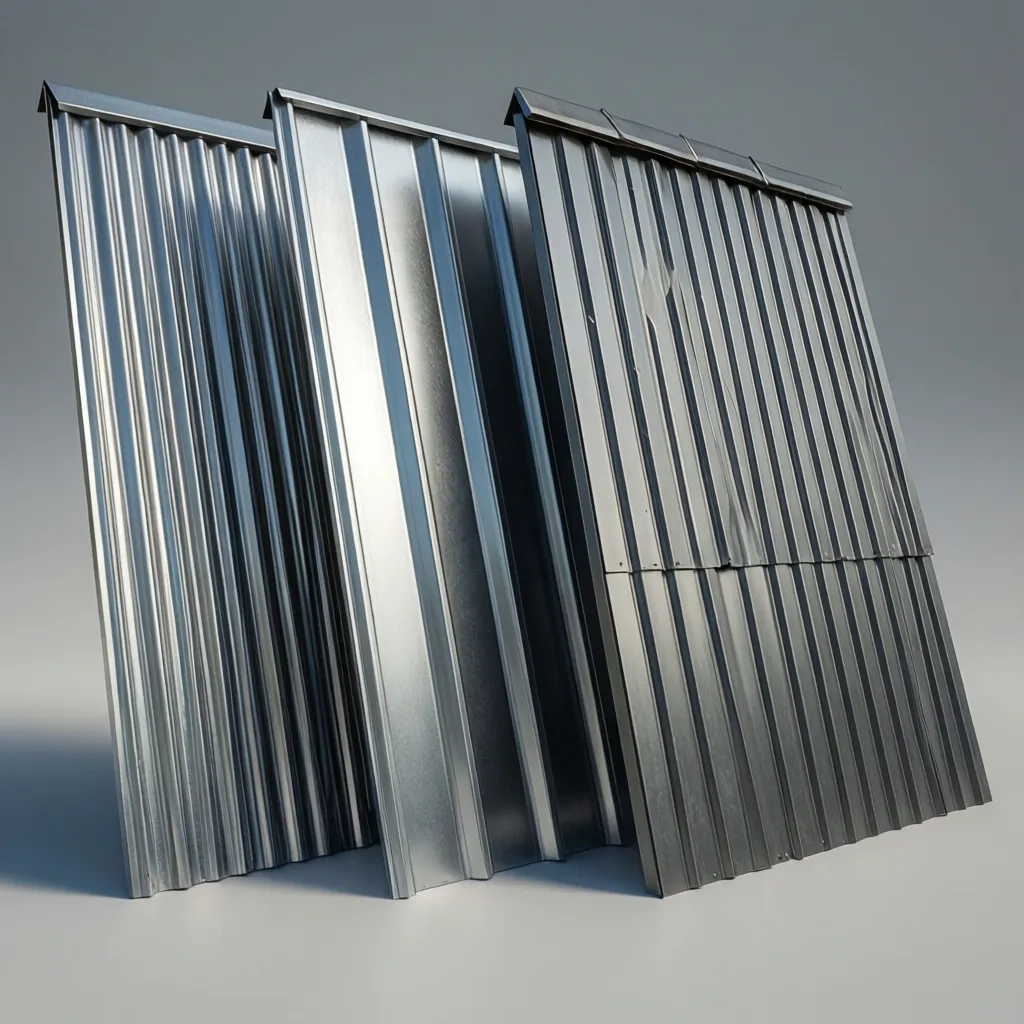

Metal Roof Panel Coverage Comparison: Corrugated vs Standing Seam vs R Panels: Understand how corrugated, standing seam, and R panels change real coverage width and total panel quantity before ordering materials.

Direct Answer

A metal roof panel coverage comparison shows that panel type directly changes how many panels you need because each design has a different effective coverage width. Corrugated panels overlap more, standing seam panels hide fasteners and lock together, and R panels use wider structural ribs. The result is that two roofs with identical square footage can require very different panel counts depending on the panel profile.

Quick Takeaways

1. Panel profile determines effective coverage width, not the sheet's full width.
2. Corrugated panels usually cover less width because of deeper overlaps.
3. Standing seam panels often require more panels but provide cleaner lines and better waterproofing.
4. R panels typically cover wider areas and reduce total panel count.
5. Misunderstanding coverage width is one of the most common roofing estimation mistakes.

Introduction

In real-world roofing projects, the biggest surprise homeowners face isn’t the roof size—it’s the panel count. A proper metal roof panel coverage comparison quickly shows why. Two roofs with identical square footage can require dozens more panels simply because the panel profile is different.

After working with roofing contractors and reviewing many residential layout plans, I’ve noticed the same mistake repeated over and over: people calculate roofing materials using the panel’s total width instead of its effective coverage width. That small misunderstanding can inflate costs, delay projects, or leave installers short on materials.

If you're still figuring out the basic math behind roof material estimation, it's worth reviewing a practical breakdown of how to estimate roof material quantities from a measured layout plan. Once the roof dimensions are clear, panel coverage becomes the next critical variable.

In this guide, I’ll break down how corrugated panels, standing seam panels, and R panels differ in coverage, why manufacturers list two widths for every panel, and which systems typically require more or fewer panels.

save pin

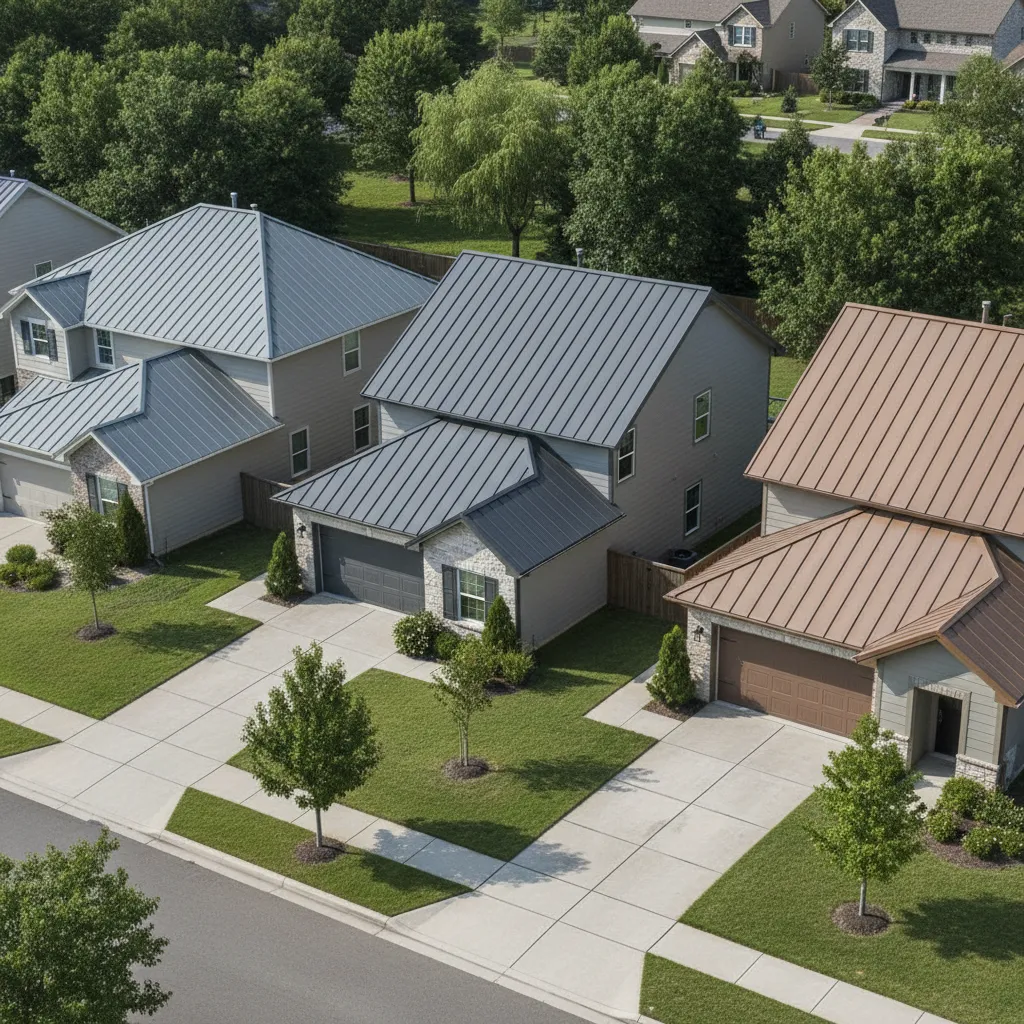

Why Panel Type Changes Metal Roof Panel Count

Key Insight: Metal roofing panel profiles determine how much overlap is required, which directly reduces usable coverage width.

Many people assume a "36‑inch panel" covers 36 inches on the roof. In reality, most metal panels overlap with adjacent panels to prevent water intrusion and provide structural strength. That overlap reduces the effective coverage width.

For example:

1. A corrugated panel may measure 36 inches wide but only cover about 32–34 inches.
2. A standing seam panel may measure 18 inches wide but cover 16 inches.
3. An R panel typically measures 36 inches and covers roughly 36 inches due to minimal side overlap.

This difference becomes significant on large roofs. A 2,000 sq ft roof can vary by 20–40 panels depending on the profile used.

Industry installation guides from manufacturers like McElroy Metal and Metal Sales consistently emphasize coverage width rather than sheet width when calculating quantities.

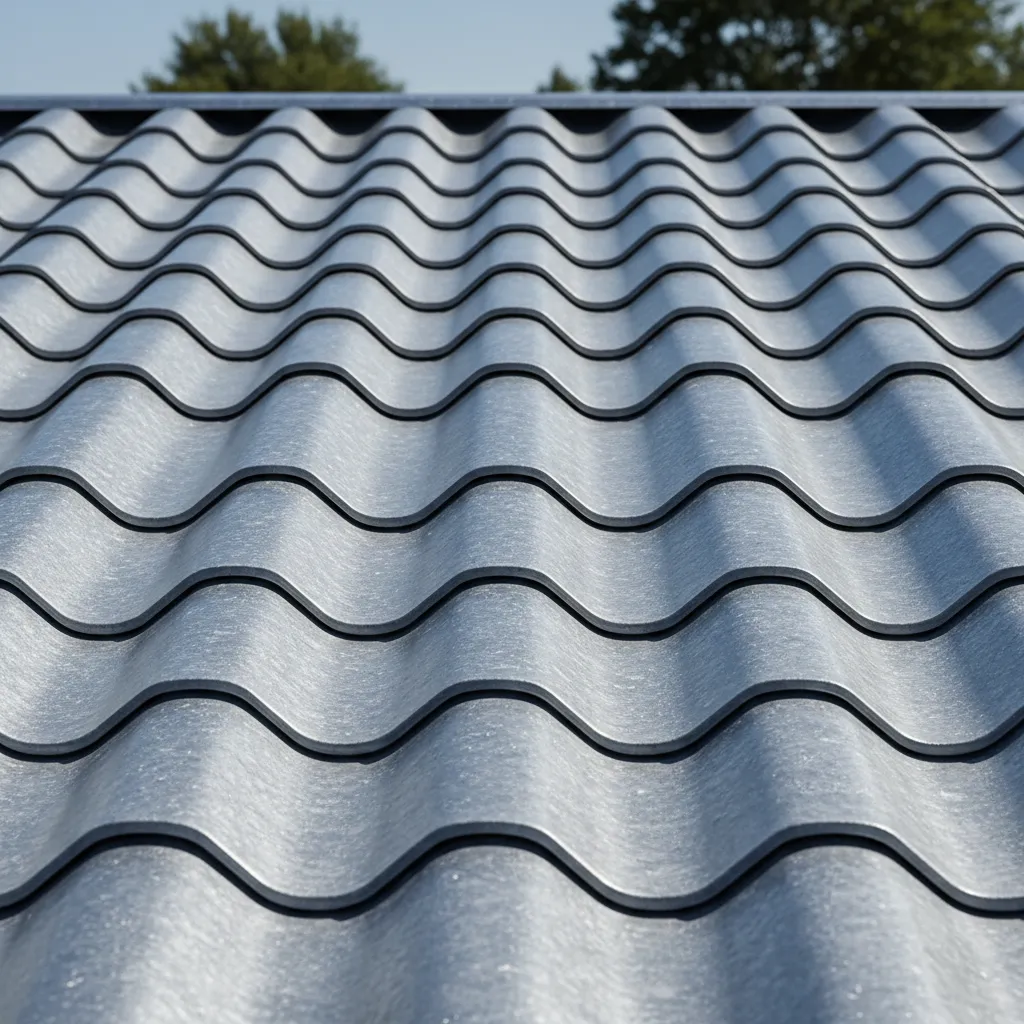

Corrugated Metal Panels and Their Effective Coverage

Key Insight: Corrugated panels generally require more sheets because their wave profile creates deeper overlap zones.

Corrugated roofing is one of the oldest and most recognizable metal panel designs. Its repeating wave pattern provides strength, but it also requires overlapping ridges to maintain weather resistance.

Typical corrugated specifications:

1. Total sheet width: ~36 inches
2. Effective coverage width: 24–34 inches depending on profile
3. Fastener type: exposed screws

Common corrugated panel profiles:

1. 2.5" corrugated panels
2. 7/8" corrugated panels
3. 1/2" corrugated panels

Because these panels overlap by one or more waves, the usable width shrinks. Installers also sometimes add extra overlap in areas with heavy rain or wind exposure.

This means corrugated roofs often require more panels than homeowners expect.

save pin

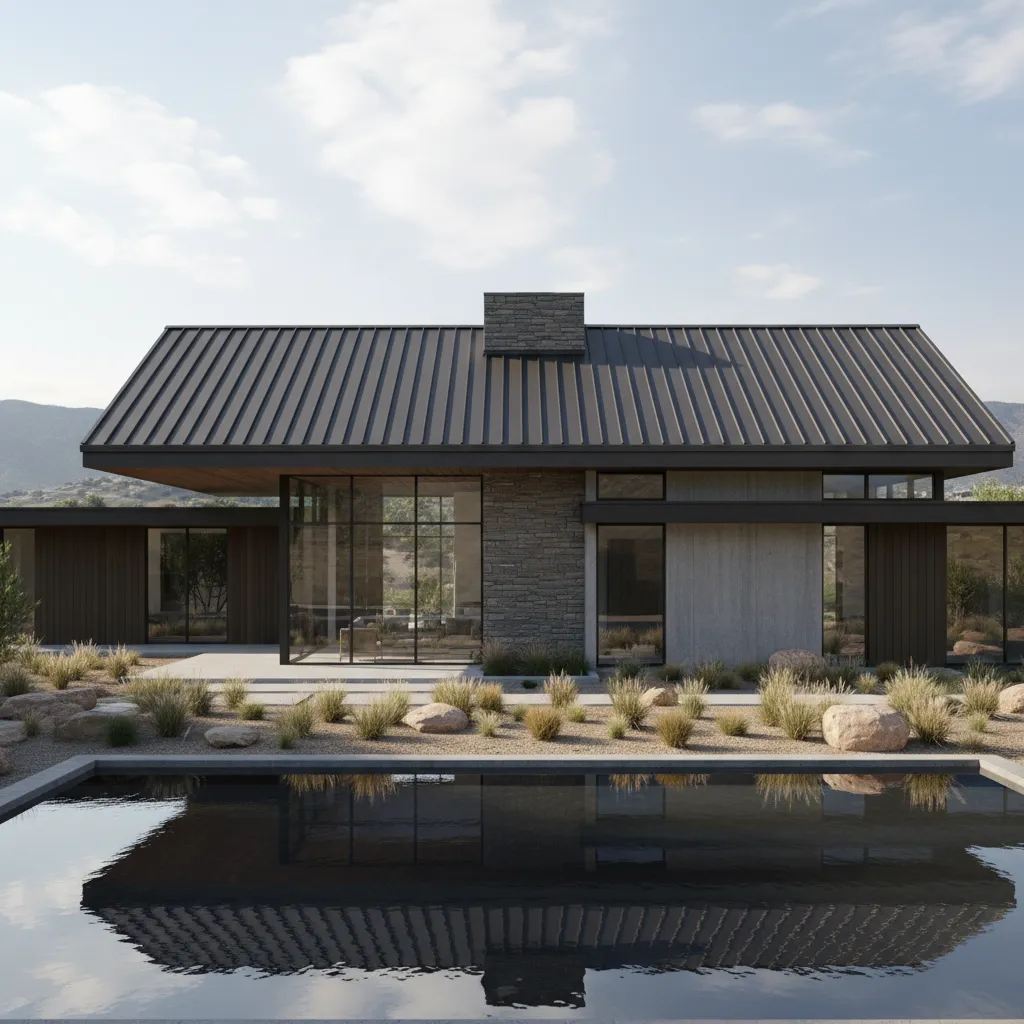

Standing Seam Panels and Hidden Fastener Coverage Width

Key Insight: Standing seam systems typically have narrower coverage widths but provide superior weather protection and cleaner aesthetics.

Standing seam panels lock together with raised seams that hide the fasteners. This design dramatically improves durability and leak resistance, which is why it’s common in high‑end residential projects.

However, the locking seams reduce usable width.

Typical standing seam specifications:

1. Total panel width: 18–20 inches
2. Coverage width: 12–18 inches depending on seam type
3. Fasteners: concealed clips

Because of these narrower panels, standing seam roofs often require significantly more individual panels than R panel systems.

From a design standpoint, though, the vertical rhythm created by narrower seams can actually enhance architectural proportions—something I’ve seen repeatedly when reviewing residential roof visualizations generated through detailed 3D building layout planning tools used to preview roof structures.

So while the panel count may increase, the visual result is often worth it.

save pin

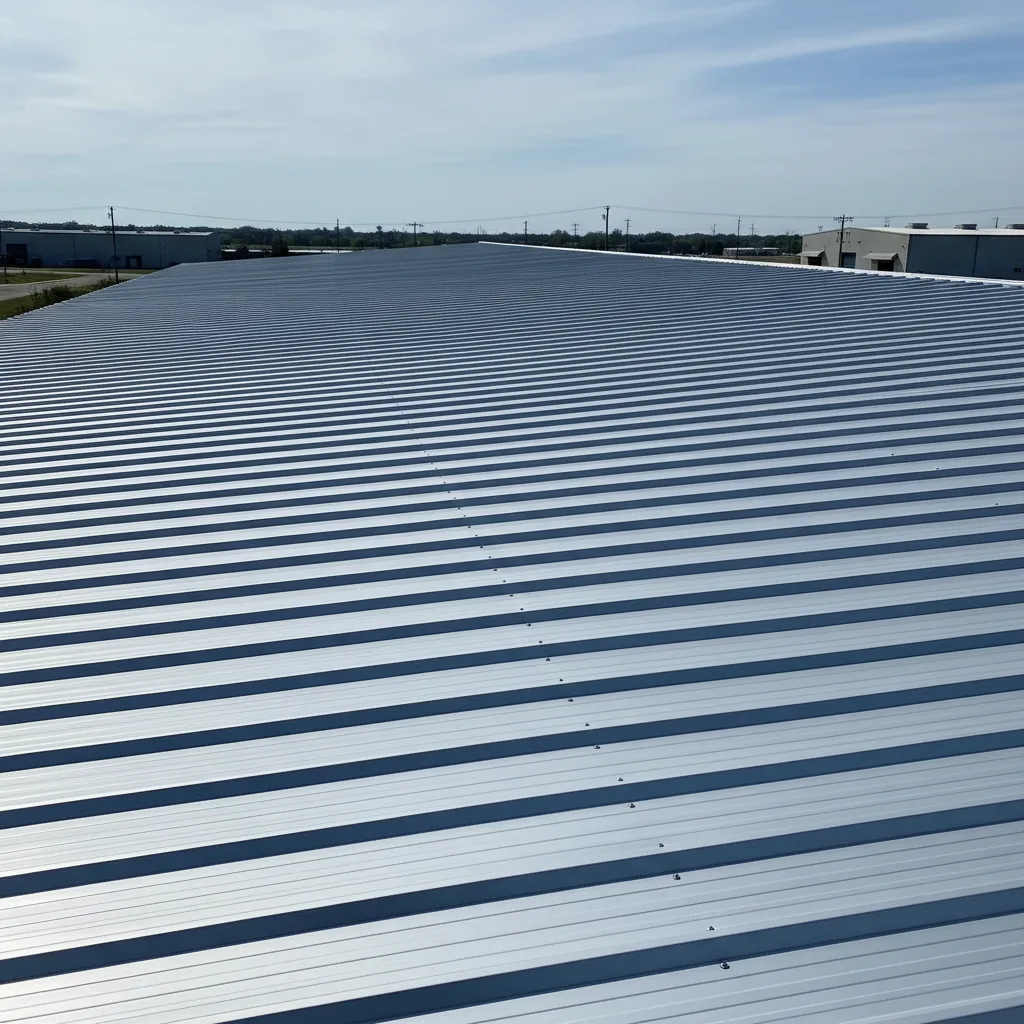

R Panel and PBR Panel Coverage Differences

Key Insight: R panels usually provide the widest effective coverage among common metal roofing systems.

R panels and PBR panels are widely used in agricultural, industrial, and increasingly residential metal roofs.

The defining feature is their structural rib pattern, which allows panels to maintain strength while covering larger widths.

Typical R panel coverage:

1. Total width: 36 inches
2. Coverage width: 36 inches
3. Rib height: ~1.25 inches

PBR panels add an extended purlin bearing leg, which improves support when installed over structural framing.

Because R panels use minimal side overlap, they often require fewer panels compared to corrugated or standing seam systems.

That’s why many contractors choose them for large roof areas where installation speed matters.

Coverage Width vs Actual Panel Width Explained

Key Insight: The most expensive estimating mistake is confusing total panel width with effective coverage width.

Manufacturers typically list two different measurements for metal panels.

Here’s how they differ:

1. Total Width – The full width of the sheet from edge to edge.
2. Coverage Width – The width remaining after overlaps during installation.

Example comparison:

1. Corrugated: 36" sheet → ~32" coverage
2. Standing seam: 18" sheet → ~16" coverage
3. R panel: 36" sheet → 36" coverage

When estimating materials, calculations must always use coverage width.

Even professional installers frequently double‑check layouts using digital floor‑planning diagrams or roof layouts similar to those created with a visual room‑to‑roof layout planning workflowto verify panel orientation and spacing before ordering materials.

save pin

Which Panel Type Requires More or Fewer Panels?

Key Insight: Standing seam usually requires the most panels, R panels require the fewest, and corrugated panels fall somewhere in between.

Approximate comparison for a 2,000 sq ft roof:

1. Standing seam panels: highest panel count
2. Corrugated panels: moderate panel count
3. R panels: lowest panel count

However, panel quantity should never be the only deciding factor.

Important trade‑offs include:

1. Water resistance
2. Wind performance
3. Installation speed
4. Visual style
5. Long‑term maintenance

In high‑end residential design, standing seam systems often win despite requiring more panels because they dramatically reduce leak risks and create cleaner roof lines.

Answer Box

Panel type dramatically changes metal roof panel quantities because each profile has a different coverage width. Corrugated panels lose width through overlaps, standing seam panels narrow due to locking seams, and R panels usually maintain full 36‑inch coverage. Accurate calculations must always use effective coverage width.

Final Summary

1. Panel profile determines effective roof coverage.
2. Corrugated panels require overlap that reduces usable width.
3. Standing seam panels use narrower locking seams.
4. R panels usually cover the widest area.
5. Always calculate quantities using coverage width.

FAQ

What is the coverage width of a metal roof panel?

Coverage width is the usable width after overlaps between adjacent panels during installation.

Why do corrugated panels cover less area?

The wave pattern requires side overlaps to maintain water resistance, which reduces usable width.

Do standing seam panels require more panels?

Yes. Because standing seam panels are narrower, they typically increase the total panel count.

What is the standard coverage width for R panels?

Most R panels provide about 36 inches of coverage width.

How does panel type affect roof panel quantity?

Panel type determines overlap and seam width, which directly affects how many panels are needed for a given roof size.

Is a metal roof panel coverage comparison necessary before ordering materials?

Yes. A proper metal roof panel coverage comparison prevents ordering too many or too few panels.

Are wider panels always better?

Not necessarily. Wider panels reduce installation time but may offer less aesthetic detail or weather resistance.

What causes the most mistakes in metal roof calculations?

The most common error is using panel sheet width instead of effective coverage width.
