MLS Floor Plan Creator: How to Add a Floor Plan to Your Listing

Listings with floor plans receive significantly more buyer inquiries than those without — some agents report up to 30% more click-throughs on MLS portals when a floor plan is included. Yet floor plans remain one of the most skipped listing assets, usually because agents assume they're expensive or time-consuming to produce. They're not — tools like Coohom's free floor plan creator let you produce a print-ready, dimensioned plan in an afternoon without hiring a draftsperson. This guide covers everything you need to know: what an MLS-ready floor plan requires, what buyers actually want to see, and how to create one from scratch.

Why Buyers Expect a Floor Plan on MLS

Photos show how a home looks. A floor plan shows how it works. Buyers scrolling MLS listings are making a preliminary shortlist before they ever book a showing. A floor plan answers the questions photos can't:

1. Do the bedrooms share a wall with the living room or garage?
2. Is the primary suite actually separated from the kids' rooms?
3. Where does natural light enter — and at what time of day?
4. Will the buyer's existing furniture fit, and can they picture the traffic flow?

For remote buyers — relocating employees, investors, overseas purchasers — a floor plan is often the deciding factor in whether they book a flight to view the property at all. Leaving it out of your listing means competing on photos alone against every comparable property that does include one.

save pin

What Makes a Floor Plan "MLS-Ready"

Most MLS systems do not mandate floor plans, but when you include one, it needs to meet a basic standard to be useful rather than misleading. An MLS-ready floor plan typically includes:

1. Room labels — each space identified by function (Primary Bedroom, Kitchen, Laundry, etc.).
2. Approximate dimensions — at minimum, room length × width. Wall-to-wall is preferred; furniture-to-furniture dimensions are not acceptable.
3. Total square footage — matching the figure in your listing data. Discrepancies between a floor plan and the listed square footage are a red flag for buyers and can create legal exposure.
4. Scale indicator or scale bar — confirms the plan is proportionate, not a sketch.
5. North arrow or compass rose — lets buyers orient the home relative to sun path and street.
6. Exterior walls distinguished from interior partitions — typically by line weight or fill.

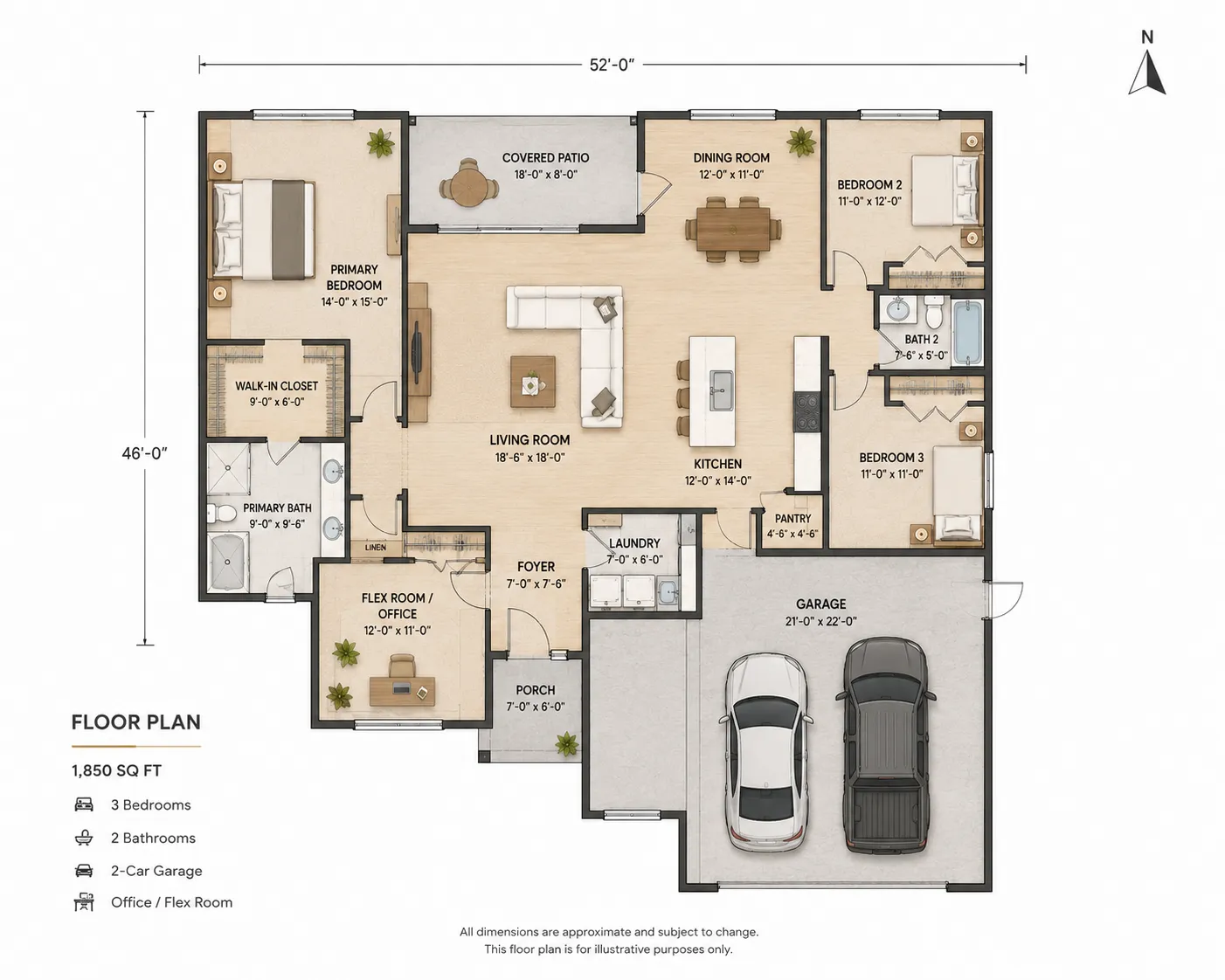

A 3D floor plan (an axonometric or bird's-eye rendered view) is increasingly popular on premium listings. It combines the spatial accuracy of a 2D plan with the visual appeal of a render, making it easier for non-technical buyers to interpret. Check your local MLS image guidelines — most accept floor plan images in standard JPG or PDF format under the "Additional Photos" or "Virtual Tour" upload categories.

The Best Free Tool for Creating MLS Floor Plans

Coohom is built for exactly this use case. It outputs professional 2D plans with labeled rooms, dimension annotations, and a scale bar — everything an MLS submission needs — and it exports a print-ready PDF or high-resolution JPG in one click. No CAD experience required.

What sets it apart from basic sketch tools:

1. True-to-scale modeling — every wall, door, and window is drawn to exact measurements you enter, so the exported square footage is accurate.
2. 8-million-item 3D library — furnish the plan to show room scale and function, then toggle furniture off for a clean structural export if preferred.
3. One-click 3D upgrade — the same plan renders as a photorealistic 3D bird's-eye view, usable as a premium listing visual without a separate tool or workflow.
4. Shareable link — send buyers an interactive 3D walkthrough URL that works in any browser, useful for out-of-town or international buyers.

For agents managing multiple listings, Coohom's project dashboard keeps every floor plan organized by address, with version history so you can update a plan when a room is repainted or staging changes without starting over.

How to Create a Floor Plan for an MLS Listing in Coohom

1. Measure the property

Walk the property with a laser measure (a Bosch GLM 50 or similar runs under $60 and saves significant time vs. a tape measure). Record room dimensions, ceiling heights, door and window positions, and any structural anomalies — bump-outs, angled walls, sunken areas. Note total heated square footage from the tax record to cross-check your measurements.

2. Set up your Coohom project

Create a free account at coohom.com, start a new project, and set your unit to imperial or metric to match your measurements. Use the property address as the project name for easy retrieval later.

3. Draw the floor plan

Use Coohom's wall tool to trace the exterior perimeter first, entering exact dimensions. Add interior walls, then place doors and windows from the building elements library. Coohom auto-detects enclosed rooms and lets you label each one in a single click. Enable the dimension overlay in the export settings to display room sizes directly on the plan.

4. Add a north arrow and scale bar

In the 2D annotation layer, add a compass rose oriented to the property's actual north direction (check Google Maps satellite view if you don't have a compass reading on site). The scale bar is included automatically in Coohom's PDF export.

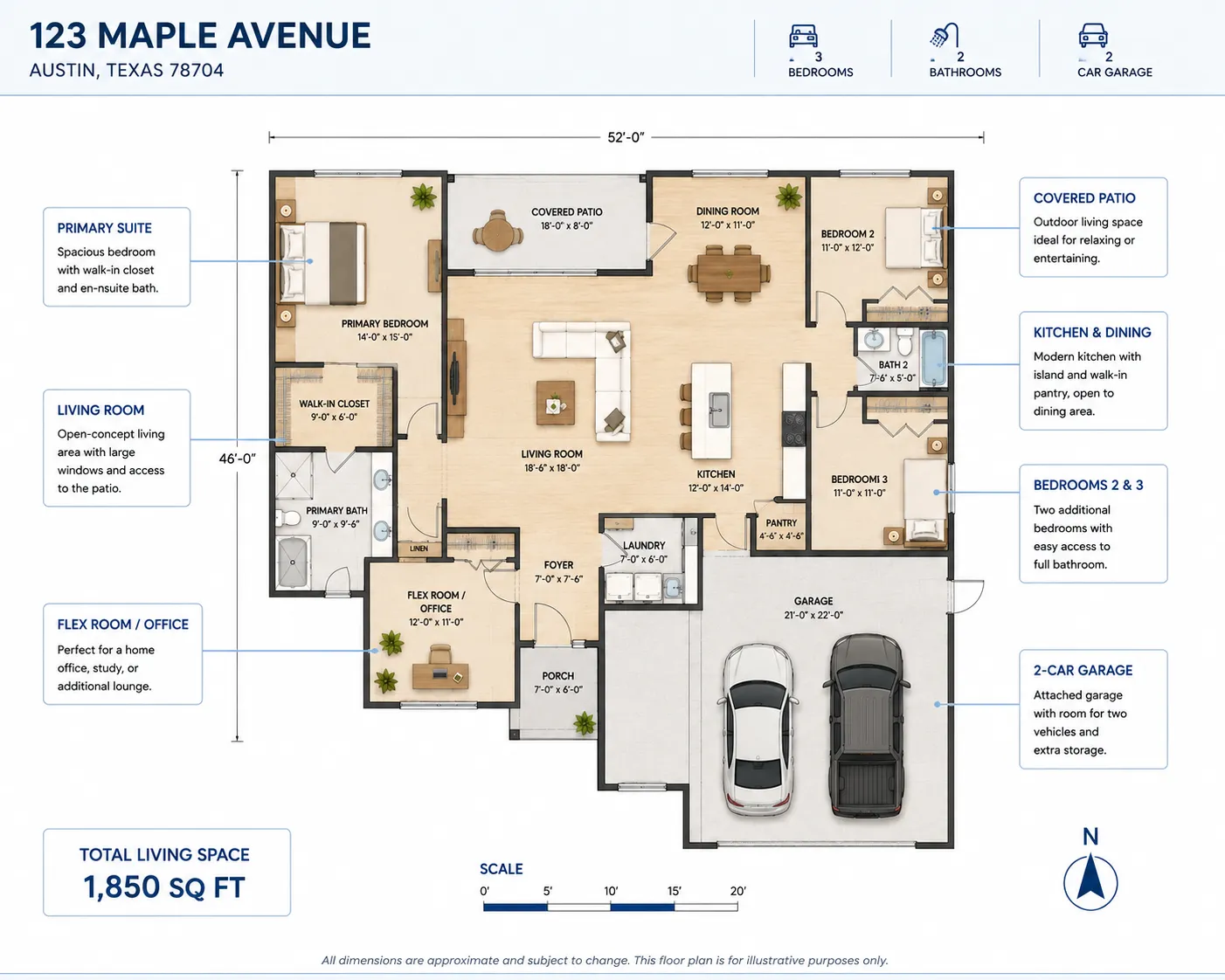

5. Export for MLS upload

Click Export → Floor Plan and choose PDF (for print and document attachments) or PNG/JPG (for the MLS photo gallery). For a 3D bird's-eye render, click Render from the 3D view — cloud rendering typically completes in 1–3 minutes. Upload both the 2D plan and the 3D render as separate listing images for maximum buyer engagement.

save pin

Tips for Agents: Getting More from Your Floor Plan

1. Include the floor plan as image #2 or #3 in your photo sequence, not buried at the end. Buyers who see it early stay on the listing longer.
2. Match room labels to your listing description — if you call it a "home office" in the text, label it the same on the plan. Inconsistency confuses buyers.
3. Show square footage per room on premium listings — it's a filter many buyers use mentally even when MLS doesn't surface it automatically.
4. Reuse the 3D render in marketing collateral — social posts, email campaigns, printed flyers. One Coohom render covers multiple channels.
5. Stage the 3D version for vacant listings — a furnished 3D floor plan helps buyers visualize livability in empty homes where photography often falls flat.

Frequently Asked Questions

Is a floor plan required to list on MLS?

In most U.S. markets, no — floor plans are optional. However, some premium MLS tiers and certain regional boards are beginning to encourage them as a standard listing element. Regardless of requirements, listings with floor plans consistently outperform those without.

Can I create the floor plan myself, or do I need a professional?

For most residential listings, a self-created plan using an accurate tool like Coohom is sufficient. Complex properties — large estates, multi-unit buildings, commercial conversions — may benefit from a professional measurement service to ensure legal accuracy.

What if the property has been modified from its original build?

Always measure the current state of the property, not what's on file with the county or in an old listing. If renovations removed a wall or added a room, your floor plan should reflect the actual configuration buyers will see at the showing.

How do I handle multi-story properties?

Create a separate floor plan for each level in Coohom — ground floor, upper floor, basement. Export them as individual images and upload all levels to the MLS. Label each plan clearly (e.g., "Main Level," "Upper Level") so buyers can orient themselves.

Your next listing doesn't need a draftsperson or a four-figure floor plan service. Create an MLS-ready floor plan free with Coohom — measure once, draw once, export a print-ready PDF and a 3D render in the same session.
