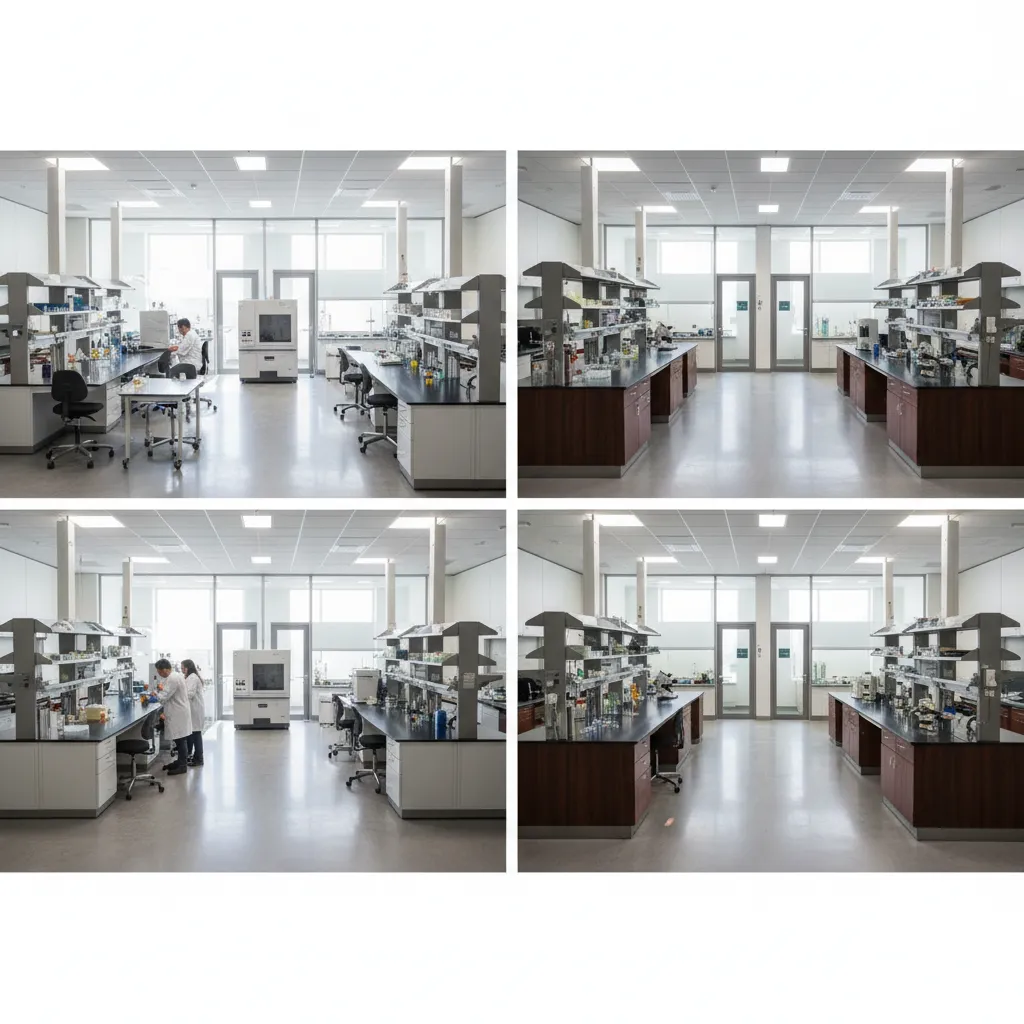

Modern Laboratory Floor Plan Layout vs Traditional Lab Layout: Understand how modern laboratory planning improves workflow, flexibility, and research efficiency compared with traditional lab design models

Direct Answer

A modern laboratory floor plan layout prioritizes flexibility, modular work zones, and shared resources, while traditional lab layouts rely on fixed benches and permanent room divisions. For most contemporary research environments, modern layouts improve workflow efficiency, adaptability, and space utilization.

Traditional designs still work for highly controlled or single‑purpose laboratories, but modern layouts better support interdisciplinary research and evolving equipment needs.

Quick Takeaways

1. Modern laboratory layouts emphasize modular workstations and shared equipment zones.
2. Traditional labs rely on fixed benches and rigid room structures.
3. Flexible layouts improve workflow efficiency and collaboration.
4. Modern labs adapt more easily to changing research technology.
5. Traditional layouts may still suit specialized or regulated research environments.

Introduction

In more than a decade of working on research facilities, I’ve seen one question come up repeatedly during early planning meetings: should we stick with a traditional laboratory layout or move to a modern laboratory floor plan layout?

The answer matters more than most teams expect. The wrong layout can slow down workflows, create bottlenecks around equipment, and make future upgrades painfully expensive.

When I redesigned a mid‑size biotech lab in San Diego a few years ago, the client initially insisted on a classic corridor lab configuration with permanent bench rows. After mapping their actual workflow, we realized the layout would limit collaboration and make new instrument integration difficult. We rebuilt the concept using modular zones instead.

Before construction even started, the team used a visual planning workflow to map laboratory zones in 3D, which quickly revealed inefficiencies that a traditional blueprint would have missed.

The result was a lab that handled twice the project load without increasing square footage.

This guide breaks down the real differences between modern and traditional laboratory layouts, including workflow efficiency, flexibility, and long‑term costs—factors that rarely get discussed clearly in typical design guides.

save pin

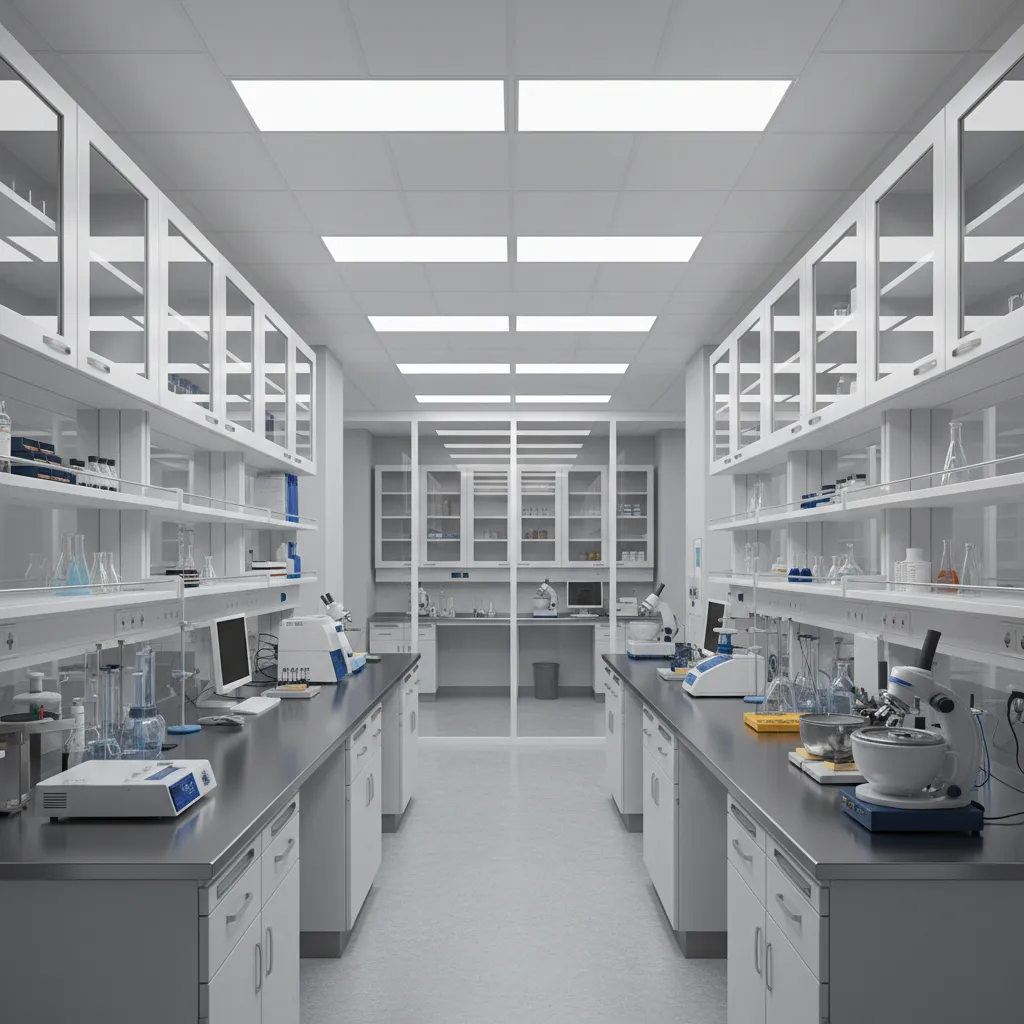

What Defines a Traditional Laboratory Layout

Key Insight: Traditional laboratory layouts are built around fixed bench rows and permanently assigned work areas.

Most laboratories built before the 2000s follow a predictable structure: long bench runs, fixed utilities, and separate rooms dedicated to specific functions. These designs were created when research processes were stable and equipment rarely changed.

The model worked well for decades because experiments followed consistent protocols and instruments remained in the same location for years.

Typical characteristics of traditional lab layouts:

1. Permanent bench rows aligned along walls or corridors
2. Dedicated rooms for specific research activities
3. Fixed plumbing and gas connections
4. Minimal shared equipment zones
5. Clear separation between research teams

However, the downside becomes obvious once research needs evolve. Moving a single instrument may require plumbing relocation, electrical changes, or even wall demolition.

According to guidance from the National Institutes of Health Design Requirements Manual, many legacy research buildings struggle to accommodate modern interdisciplinary workflows because their infrastructure was designed for single‑discipline use.

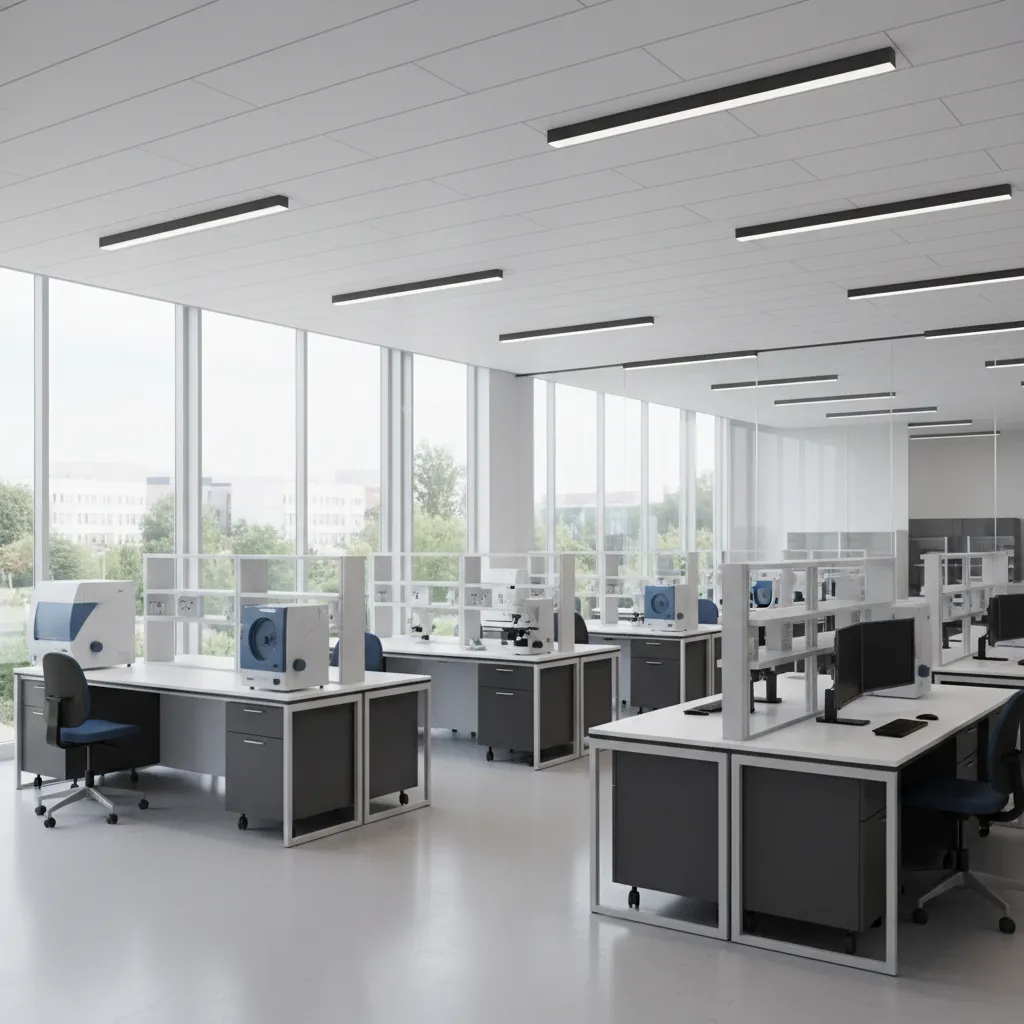

Key Characteristics of Modern Laboratory Floor Plans

Key Insight: A modern laboratory floor plan layout focuses on modularity, shared infrastructure, and adaptable work zones.

Modern research environments are constantly evolving. Equipment changes quickly, research teams collaborate across disciplines, and space must adapt without major renovations.

That’s why contemporary lab planning shifts away from fixed rooms toward flexible research zones.

Common features in modern laboratory design:

1. Modular laboratory benches
2. Shared equipment hubs
3. Flexible utility distribution systems
4. Open collaboration spaces
5. Movable storage and workstations

Instead of dedicating entire rooms to single experiments, modern labs cluster activities around equipment access and workflow efficiency.

In practice, this means research teams can reconfigure spaces in hours rather than weeks.

save pin

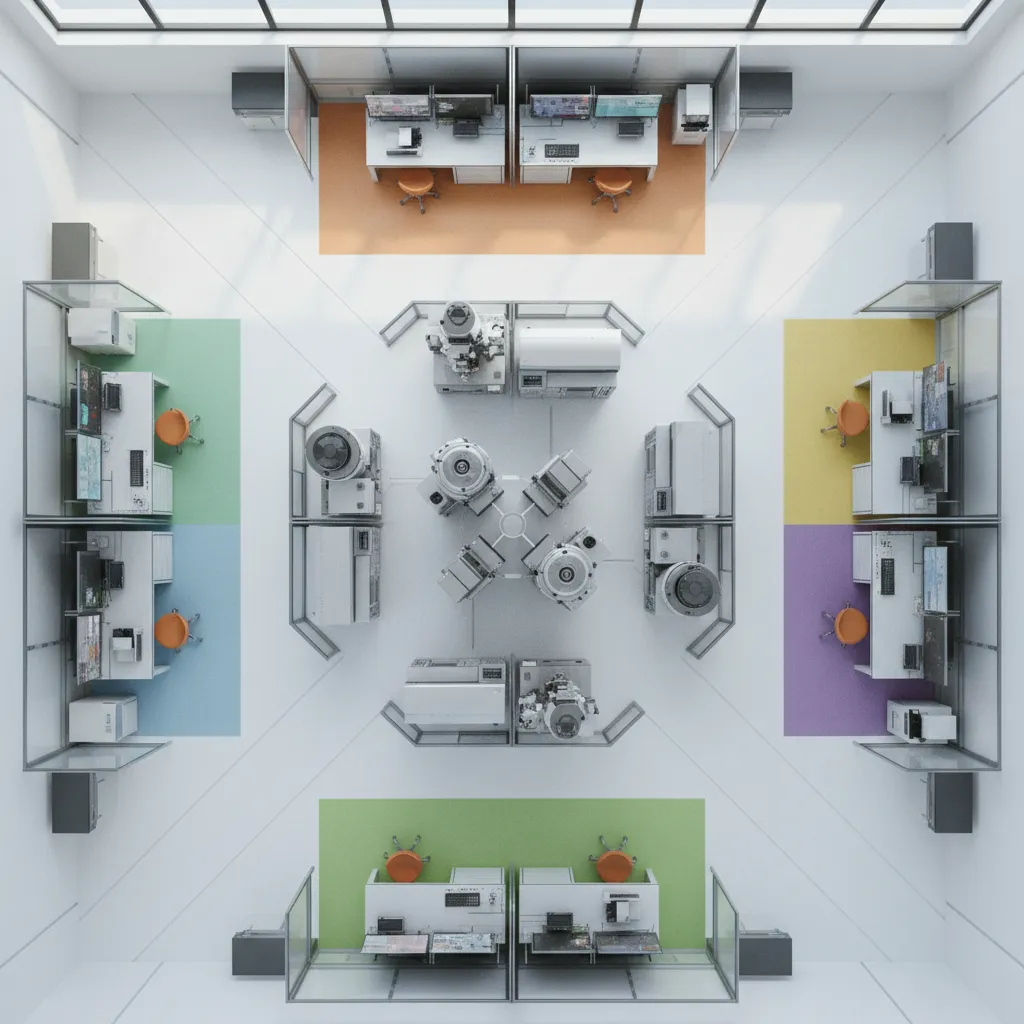

Workflow Efficiency Comparison Between Layout Models

Key Insight: Modern layouts significantly reduce researcher movement and equipment bottlenecks.

When I audit laboratory workflows, the biggest inefficiency usually isn't equipment—it’s movement. Researchers walking across the lab repeatedly to access instruments can lose hours every week.

Traditional layouts often separate functions into different rooms, which increases travel time.

Typical workflow differences:

1. Traditional labs: sequential workflow across multiple rooms
2. Modern labs: clustered workflows around shared equipment
3. Traditional labs: equipment duplication between teams
4. Modern labs: centralized instrument zones

In several university lab redesigns I’ve worked on, reorganizing instrument placement reduced average movement distances by nearly half.

Many teams test layout efficiency early by using interactive floor planning simulations for laboratory workflow testing, which makes it easier to visualize circulation patterns before construction begins.

Space Utilization and Flexibility Differences

Key Insight: Modern layouts use laboratory space more efficiently because zones can serve multiple research functions.

One hidden problem with traditional lab design is underused space. Dedicated rooms often sit idle when experiments pause or teams change projects.

Modern labs address this through shared spaces and flexible zoning.

Examples of flexible lab zones:

1. Shared sample preparation stations
2. Centralized cold storage areas
3. Multi‑purpose analytical equipment rooms
4. Modular write‑up spaces

The design approach comes from research facility planning trends documented by the International Institute for Sustainable Laboratories, which emphasize adaptability and shared infrastructure.

save pin

Answer Box

Modern laboratory floor plan layouts outperform traditional lab designs in flexibility, workflow efficiency, and space utilization. Traditional layouts remain useful for specialized environments but are less adaptable to evolving research technologies.

Cost and Scalability Considerations

Key Insight: Modern laboratory layouts often cost slightly more upfront but significantly reduce long‑term renovation expenses.

This is where many organizations hesitate. Modular infrastructure, flexible utilities, and movable benches can increase the initial design cost.

But here’s the trade‑off most teams underestimate: renovation costs.

Traditional labs require structural changes when research evolves. Modern labs can reconfigure space quickly.

Cost comparison factors:

1. Initial infrastructure cost
2. Renovation frequency
3. Equipment relocation complexity
4. Operational downtime

In several pharmaceutical labs I’ve consulted on, modular layouts paid for themselves within five years simply by avoiding major reconstruction.

When to Choose Modern vs Traditional Lab Layouts

Key Insight: The best layout depends on research stability and equipment turnover.

Despite the advantages of modern planning, traditional layouts still work well for certain environments.

Choose a traditional laboratory layout when:

1. Research processes rarely change
2. Equipment locations must remain fixed
3. Strict containment or regulatory separation is required

Choose a modern laboratory floor plan layout when:

1. Research teams collaborate across disciplines
2. Equipment upgrades occur frequently
3. Space must adapt to new research programs

During early planning phases, many teams experiment with layout mockups that simulate different laboratory workspace configurations to test how each model affects workflow and equipment placement.

Final Summary

1. Modern laboratory layouts emphasize flexibility and shared infrastructure.
2. Traditional layouts rely on fixed benches and room separation.
3. Modern labs improve workflow efficiency and collaboration.
4. Traditional labs may suit specialized or regulated environments.
5. Flexible layouts reduce long‑term renovation costs.

FAQ

What is the main difference between modern and traditional laboratory layouts?

Modern laboratory floor plan layouts use modular zones and shared equipment, while traditional labs rely on fixed benches and separate rooms.

Why are modern laboratory floor plans becoming more popular?

Modern designs support collaboration, flexible equipment placement, and faster adaptation to new research technologies.

Are traditional laboratory layouts outdated?

Not entirely. They still work well for highly specialized labs or regulated environments requiring strict separation.

Do modern labs require more space?

Not necessarily. Flexible zoning often improves space efficiency and allows multiple research activities within the same area.

What industries benefit most from modern lab layouts?

Biotechnology, pharmaceutical research, university laboratories, and interdisciplinary research facilities benefit the most.

Can existing laboratories be converted into modern layouts?

Yes. Many labs retrofit modular benches, shared equipment zones, and flexible utilities without rebuilding the entire facility.

How does a modern laboratory floor plan layout improve workflow?

By reducing movement between workstations and centralizing equipment access.

Is modern laboratory design more expensive?

Initial costs may be slightly higher, but long‑term operational and renovation costs are usually lower.

References

National Institutes of Health Design Requirements Manual

International Institute for Sustainable Laboratories Planning Guidelines
