Moisture and Ventilation Risks in Home Insulation Systems: Understand how moisture, condensation, and ventilation mistakes can quietly damage insulation and how to prevent long term structural problems

Direct Answer

Moisture and ventilation problems are among the most common reasons insulation systems fail. When humid air becomes trapped inside walls, ceilings, or attics, it can lead to condensation, mold growth, reduced insulation performance, and even structural damage. Proper ventilation, vapor barriers, and thoughtful insulation design are essential to keeping a home dry, efficient, and durable.

Quick Takeaways

1. Moisture trapped in insulation dramatically reduces its thermal performance.
2. Poor attic ventilation often causes condensation and mold around insulation.
3. Vapor barriers control indoor humidity migration into insulated assemblies.
4. Small ventilation design mistakes can lead to major long‑term structural damage.
5. Early signs like musty smells or damp insulation should never be ignored.

Introduction

After working on residential interior projects for more than a decade, I've noticed that insulation failures rarely start with the insulation itself. The real culprit is usually moisture. Moisture and ventilation risks in home insulation systems quietly build up behind walls or above ceilings, where homeowners never see the damage until it becomes expensive.

In several renovation projects I've managed, we opened attic cavities expecting to upgrade insulation, only to find wet fiberglass, mold patches, and rotted roof sheathing. The insulation was installed correctly — but the ventilation strategy was wrong.

Before planning insulation upgrades, it helps to visualize airflow paths and roof structures. Tools that help homeowners visualize room and attic layouts during home planningoften reveal ventilation conflicts long before construction begins.

This article explains where moisture actually comes from, how insulation interacts with ventilation systems, and what design decisions prevent long‑term damage.

save pin

How Moisture Affects Home Insulation Performance

Key Insight: Even small amounts of moisture can cut insulation efficiency dramatically and accelerate material degradation.

Insulation works by trapping air pockets that slow heat transfer. When those air pockets fill with water vapor or condensation, the insulating value drops quickly. In fiberglass insulation, moisture compresses fibers and reduces R‑value. In cellulose insulation, moisture can cause clumping and long‑term deterioration.

Moisture typically enters insulation from three sources:

1. Indoor humidity migrating through ceilings and walls
2. Roof leaks or flashing failures
3. Poor ventilation trapping humid air in attics

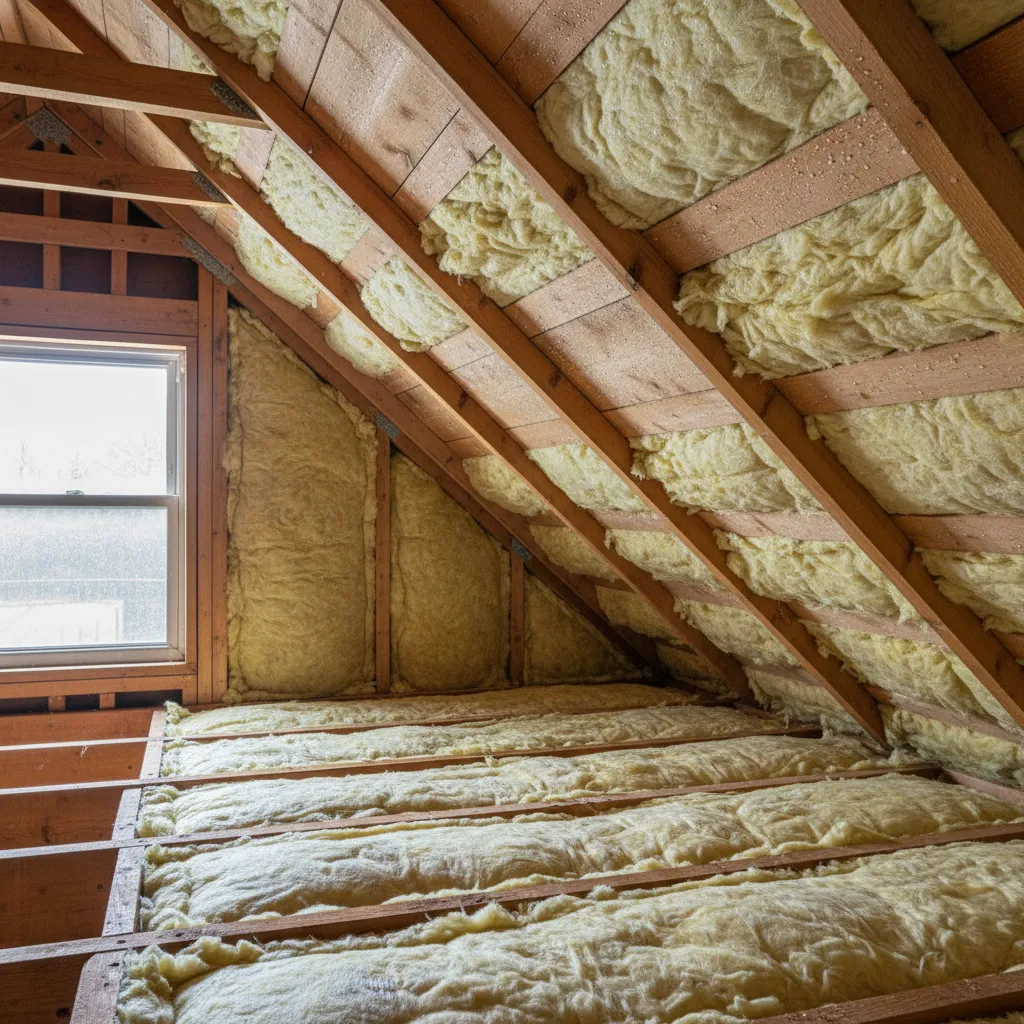

One overlooked issue is winter condensation. Warm indoor air rises into the attic. If it hits cold roof decking, condensation forms and drips onto insulation below.

According to the U.S. Department of Energy, insulation performs best when kept completely dry. Once wet, many insulation types lose a large portion of their thermal resistance.

Common Ventilation Problems in Insulated Homes

Key Insight: Insulation upgrades often fail because ventilation systems were never designed to handle modern airtight homes.

Older homes were naturally leaky, which accidentally solved many ventilation issues. Modern insulation and sealing techniques make homes more airtight, which improves efficiency but increases moisture risk.

Common ventilation mistakes include:

1. Blocked soffit vents after adding attic insulation
2. Insufficient ridge or roof vents
3. Bathroom fans exhausting into attic spaces
4. Improper airflow channels above insulation

When designing or renovating spaces, it helps to evaluate structural layout early. Some homeowners use visualization tools that allow them to experiment with structural floor plans before renovation, which makes ventilation routes easier to plan.

The Building Science Corporation emphasizes that balanced intake and exhaust ventilation is critical for maintaining dry attic conditions.

save pin

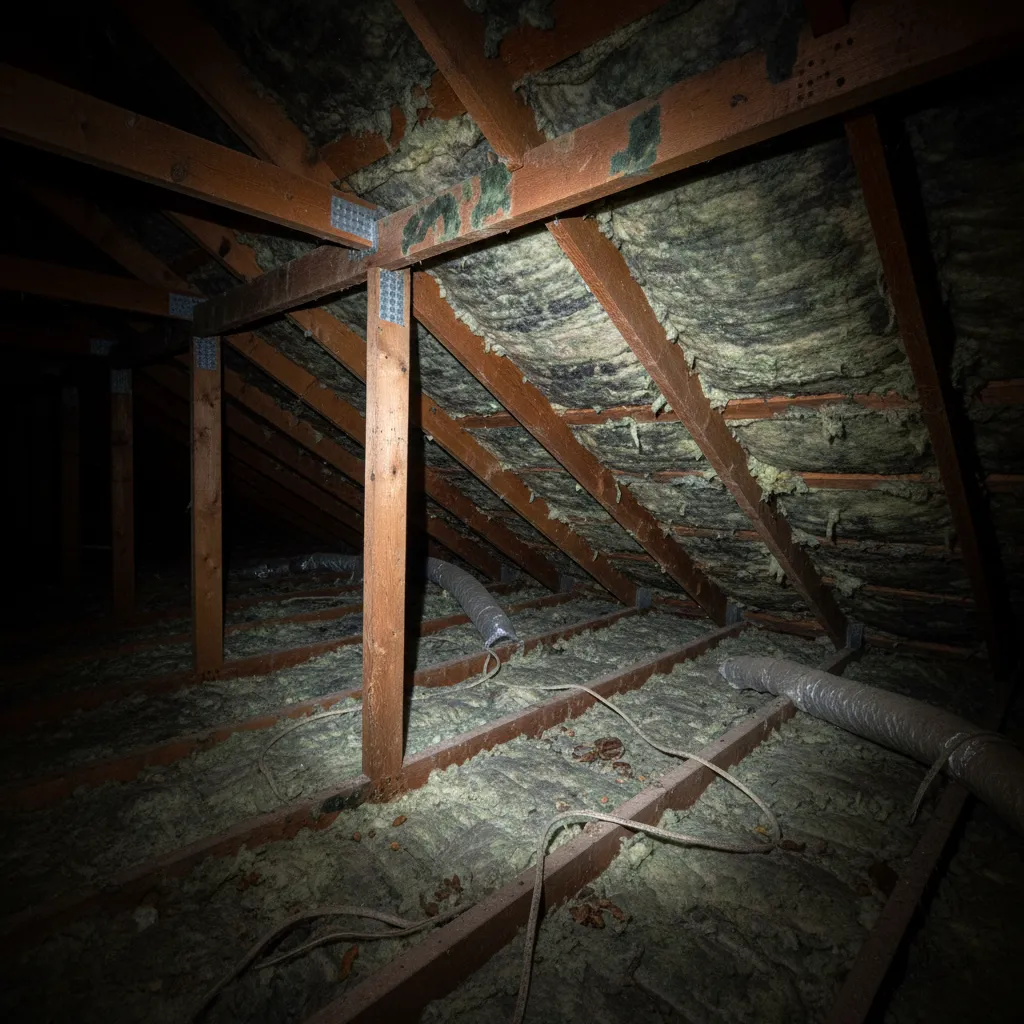

Signs of Mold or Condensation in Insulation

Key Insight: Most insulation moisture problems reveal themselves through subtle early warning signs long before structural damage appears.

Homeowners often assume insulation problems are invisible. In reality, many symptoms appear gradually.

Common warning signs include:

1. Musty or damp smell in upper floors
2. Water stains on ceilings
3. Visible mold around attic framing
4. Damp or compressed insulation material
5. Condensation on attic nails or roof decking

During a California attic renovation I worked on, rusted roofing nails were the first clue. Moisture was condensing every winter because the attic had almost no airflow.

By the time mold appears on insulation, moisture has usually been present for months.

save pin

How Vapor Barriers Protect Insulation Systems

Key Insight: Vapor barriers control where moisture moves through a building envelope, preventing condensation inside insulation layers.

A vapor barrier is a material layer that slows moisture diffusion through walls or ceilings. It is typically installed on the warm side of insulation in colder climates.

Common vapor barrier materials include:

1. Polyethylene sheets
2. Kraft‑faced fiberglass insulation
3. Specialized vapor‑retarder paint

However, vapor barriers must be used carefully. Installing them incorrectly can trap moisture rather than prevent it.

In humid climates, some building scientists now recommend "vapor‑open" wall assemblies that allow materials to dry naturally rather than trapping moisture inside.

This trade‑off between moisture control and drying potential is rarely discussed in basic insulation guides.

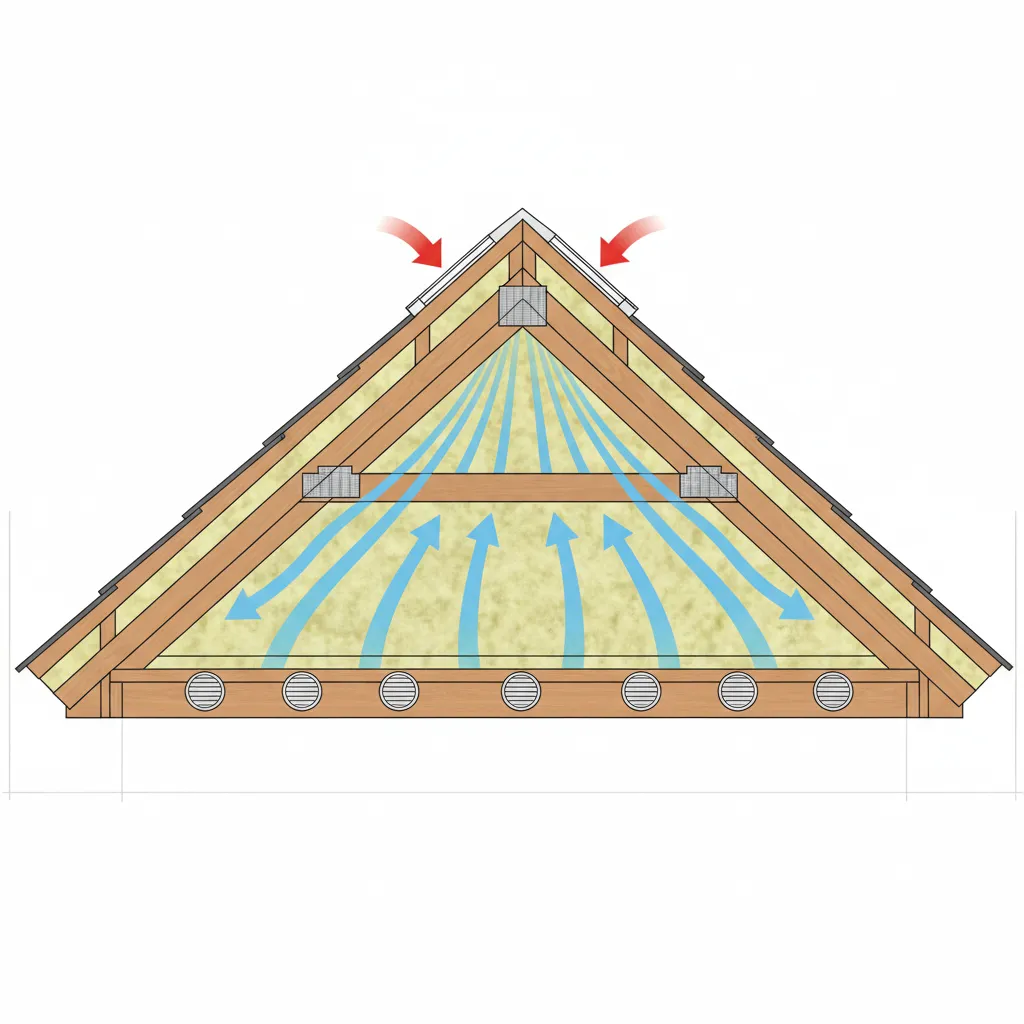

Attic Ventilation and Moisture Control Strategies

Key Insight: Effective attic ventilation requires balanced airflow between intake vents and exhaust vents.

Attics should allow cool air to enter at the eaves and exit near the roof ridge. Without this continuous airflow, humid air becomes trapped above insulation.

Effective ventilation strategies include:

1. Soffit vents for fresh air intake
2. Ridge vents for exhaust airflow

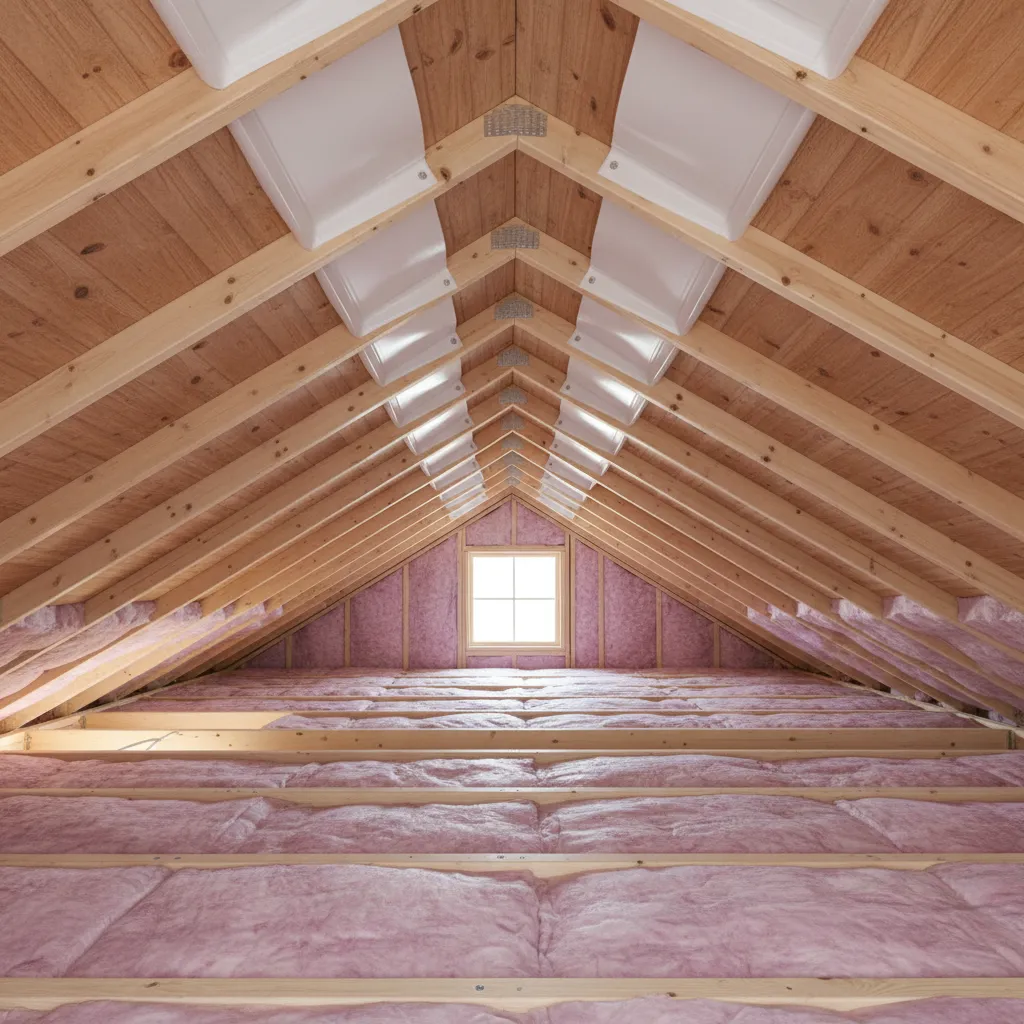

3. Baffles that keep insulation from blocking vents
4. Sealing ceiling air leaks below insulation

During home design visualization, many homeowners like seeing how ventilation interacts with structural framing. Some advanced rendering tools allow you to visualize full structural sections and attic space in 3D, which helps identify airflow restrictions before construction.

save pin

Answer Box

The biggest insulation risks rarely come from insulation materials themselves. Moisture, trapped humidity, and poor ventilation design are the main causes of insulation failure, mold growth, and reduced energy efficiency.

Preventing Long Term Damage from Poor Insulation Design

Key Insight: The best insulation systems are designed as complete moisture‑control assemblies, not just layers of thermal material.

Preventing insulation damage requires a holistic design approach.

Best practices include:

1. Air sealing before installing insulation
2. Installing proper vapor control layers
3. Maintaining clear attic ventilation pathways
4. Inspecting roof and flashing for leaks
5. Choosing insulation types suited for climate zones

One hidden cost many homeowners overlook is repair difficulty. Once insulation becomes saturated with moisture or mold, replacement often requires removing drywall or roof decking.

Preventive design is far cheaper than repairing hidden moisture damage later.

Final Summary

1. Moisture is the primary cause of insulation failure.
2. Ventilation mistakes often appear after insulation upgrades.
3. Vapor barriers must match the home's climate and structure.
4. Early mold or condensation signs should never be ignored.
5. Proper airflow design protects insulation long term.

FAQ

1. Can insulation cause moisture problems in homes?

Insulation itself does not create moisture, but poor ventilation and air sealing around insulation can trap humidity and cause condensation problems.

2. What happens if attic insulation gets wet?

Wet insulation loses its R‑value, compresses, and may support mold growth. In many cases it must be replaced.

3. How do I prevent mold in attic insulation?

Ensure proper soffit and ridge ventilation, seal ceiling air leaks, and control indoor humidity levels.

4. Do all homes need vapor barriers?

Not always. Vapor barrier requirements depend on climate zone, wall construction, and building code guidelines.

5. What are insulation condensation problems?

Condensation occurs when warm humid air meets cold surfaces inside insulated cavities, creating water droplets that soak insulation.

6. How can I tell if insulation has mold?

Look for musty smells, dark spotting on insulation, or damp compressed material during attic inspections.

7. Can poor ventilation reduce insulation efficiency?

Yes. Ventilation issues caused by insulation or blocked vents can trap humid air, reducing thermal performance.

8. How do I protect insulation from moisture damage?

Use proper vapor control layers, maintain attic ventilation, and fix roof leaks immediately.

References

1. U.S. Department of Energy — Insulation and Air Sealing Guidelines
2. Building Science Corporation — Moisture Control in Residential Buildings
3. EPA Indoor Air Quality and Mold Prevention Guidance
