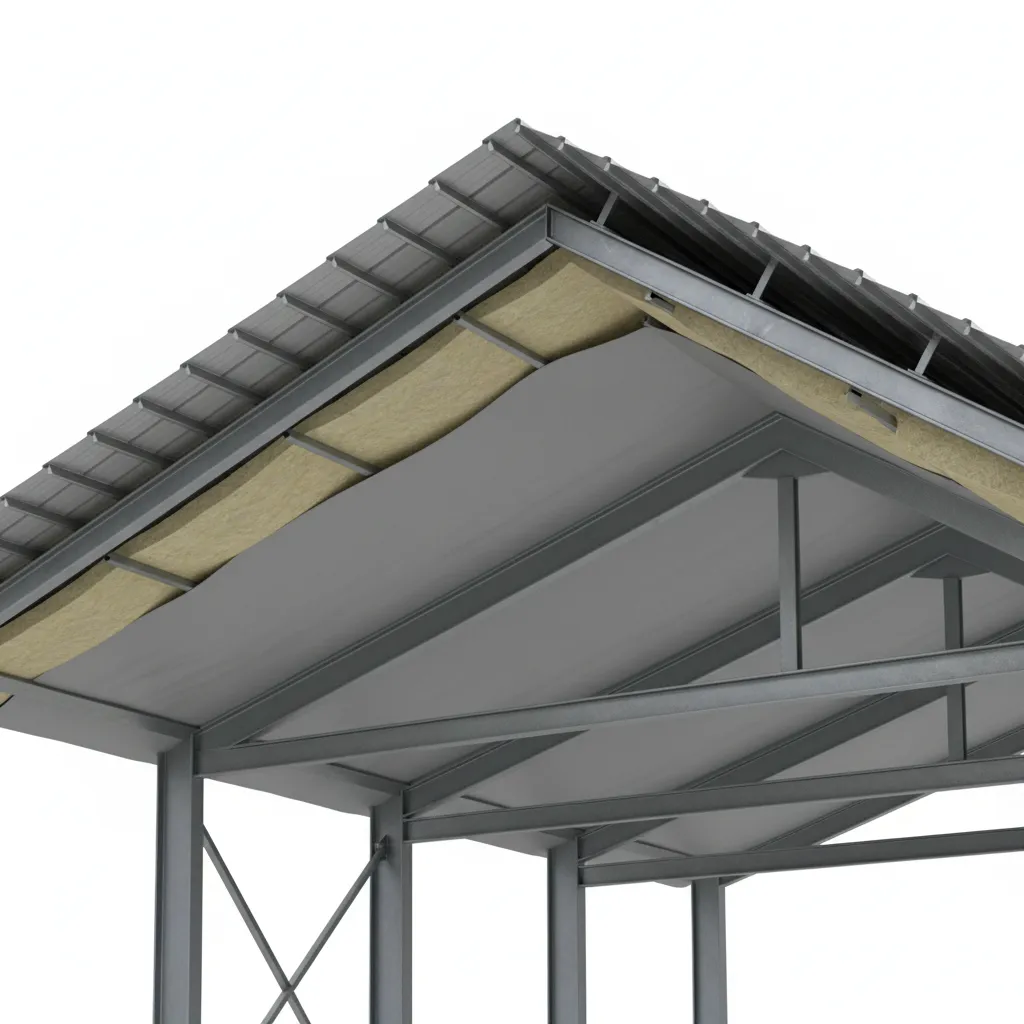

Moisture Control and Vapor Barriers for Metal Roof Insulation: A practical guide to preventing condensation, mold, and corrosion when insulating metal roofs

Direct Answer

Moisture control and a properly placed vapor barrier are essential when installing metal roof insulation because metal surfaces cool quickly and create condensation. A vapor barrier slows indoor moisture from reaching cold roof panels, preventing mold, insulation damage, and long‑term corrosion. Correct placement depends on climate, roof assembly, and the insulation type used.

Quick Takeaways

1. Metal roofs condense moisture faster than most roofing materials.
2. A vapor barrier should usually be installed on the warm side of insulation.
3. Poor sealing around seams and penetrations causes most moisture failures.
4. Material choice matters because permeability levels vary widely.
5. Long‑term moisture control protects both insulation performance and roof structure.

Introduction

After working on dozens of metal roof insulation retrofits over the past decade, one issue shows up again and again: moisture. People often focus on R‑value, but the real failure point is usually condensation. Without proper moisture control and a vapor barrier for metal roof insulation, warm indoor air hits the cold metal surface and water forms almost instantly.

That moisture doesn't just disappear. It saturates insulation, stains ceilings, and eventually causes corrosion under the roof panels. In large buildings like workshops or warehouses, I've seen insulation lose half its performance simply because vapor control was ignored.

If you're planning insulation work, it helps to first visualize how the roof assembly will function. Many homeowners actually start by experimenting with layout tools such as a visual planning tool that helps map roof and interior structure before renovation, which makes it easier to see where insulation layers and air barriers belong.

In this guide I'll break down how vapor barriers work, where they should go in interior metal roof insulation systems, and the most common installation mistakes that lead to condensation problems.

save pin

Why Moisture Control Is Critical for Metal Roof Insulation

Key Insight: Metal roofs cool and heat rapidly, which makes them extremely vulnerable to condensation when insulation lacks proper vapor control.

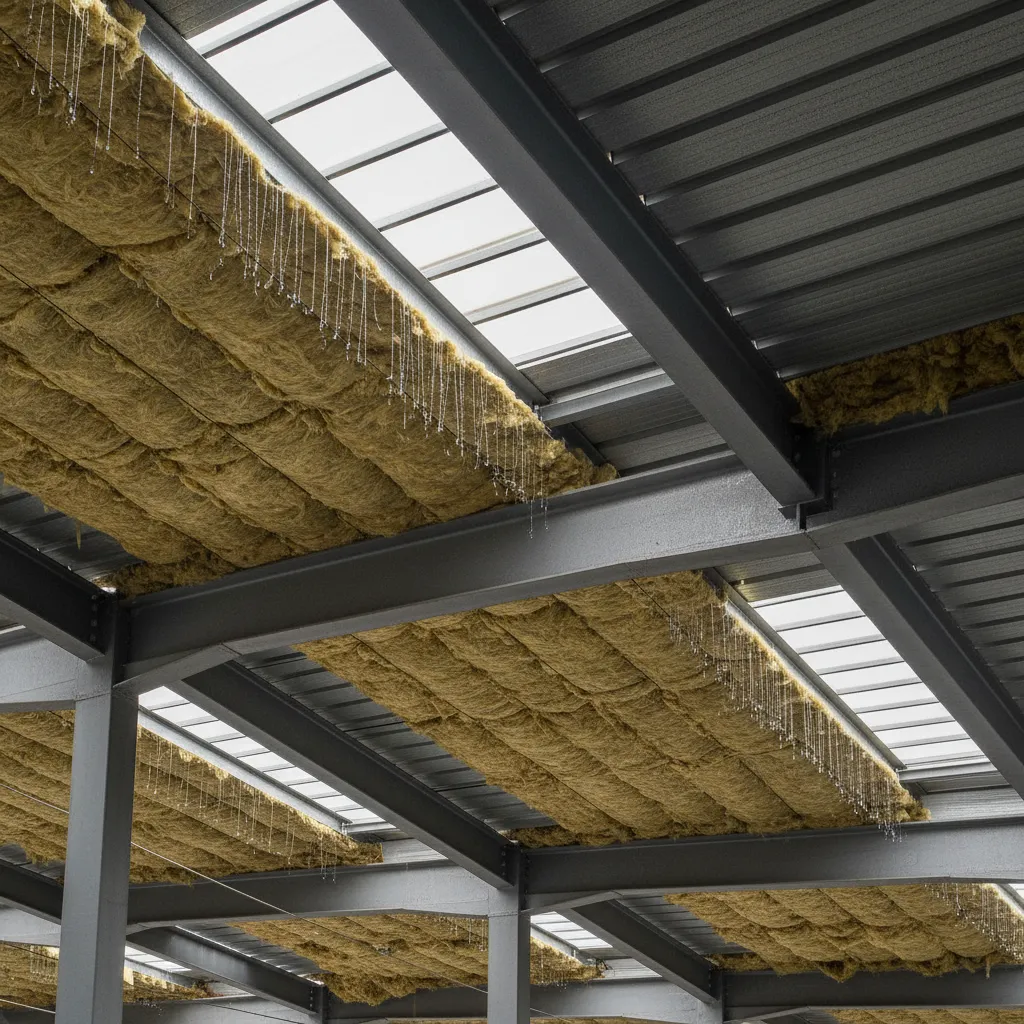

Unlike asphalt shingles or tile, metal panels respond almost instantly to outside temperature changes. On cold mornings, the underside of the panel can drop below the dew point while warm indoor air is still rising upward.

That temperature difference causes condensation, similar to water forming on a cold drink.

Common consequences include:

1. Wet insulation losing thermal performance
2. Mold growth in roof cavities
3. Rust forming on metal panels and fasteners
4. Dripping moisture damaging ceilings or equipment

The U.S. Department of Energy consistently emphasizes that moisture control is as important as insulation thickness in roof assemblies. In metal buildings especially, condensation can appear even in moderate climates because the material conducts heat so efficiently.

save pin

How Vapor Barriers Work in Roof Systems

Key Insight: A vapor barrier works by slowing the movement of moisture vapor through building materials, preventing it from reaching cold surfaces where condensation forms.

Water vapor naturally moves from warm areas toward cooler ones. During winter, that means indoor air pushes upward into the roof assembly.

Vapor barriers limit that movement.

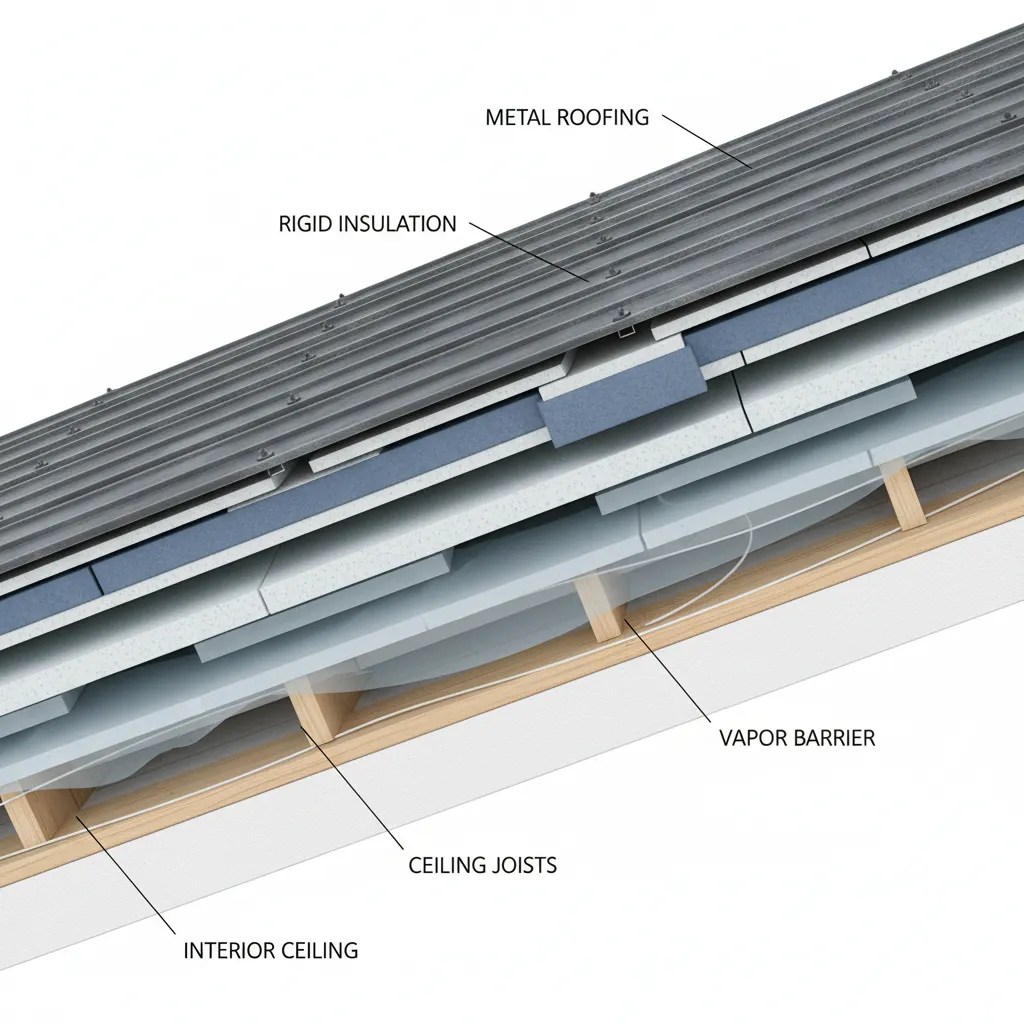

Typical roof assembly layers include:

1. Interior ceiling surface
2. Vapor barrier or vapor retarder
3. Insulation layer
4. Roof deck or structure
5. Metal roofing panels

Different materials slow vapor at different rates. This is measured in "perms," which indicate how easily moisture passes through a material.

Common vapor barrier perm ratings:

1. Polyethylene sheet: near zero permeability
2. Kraft-faced insulation: moderate permeability
3. Specialized vapor-retarding membranes: controlled permeability

Professional installers often combine vapor barriers with careful structural planning. For example, many renovation projects begin by modeling the building envelope with tools similar to a digital layout planner that helps visualize structural layers and renovation planning before insulation is installed.

Where to Install Vapor Barriers in Interior Roof Insulation

Key Insight: In most climates, vapor barriers belong on the warm interior side of metal roof insulation.

This placement prevents warm indoor air from entering the insulation cavity and condensing on cold roof panels.

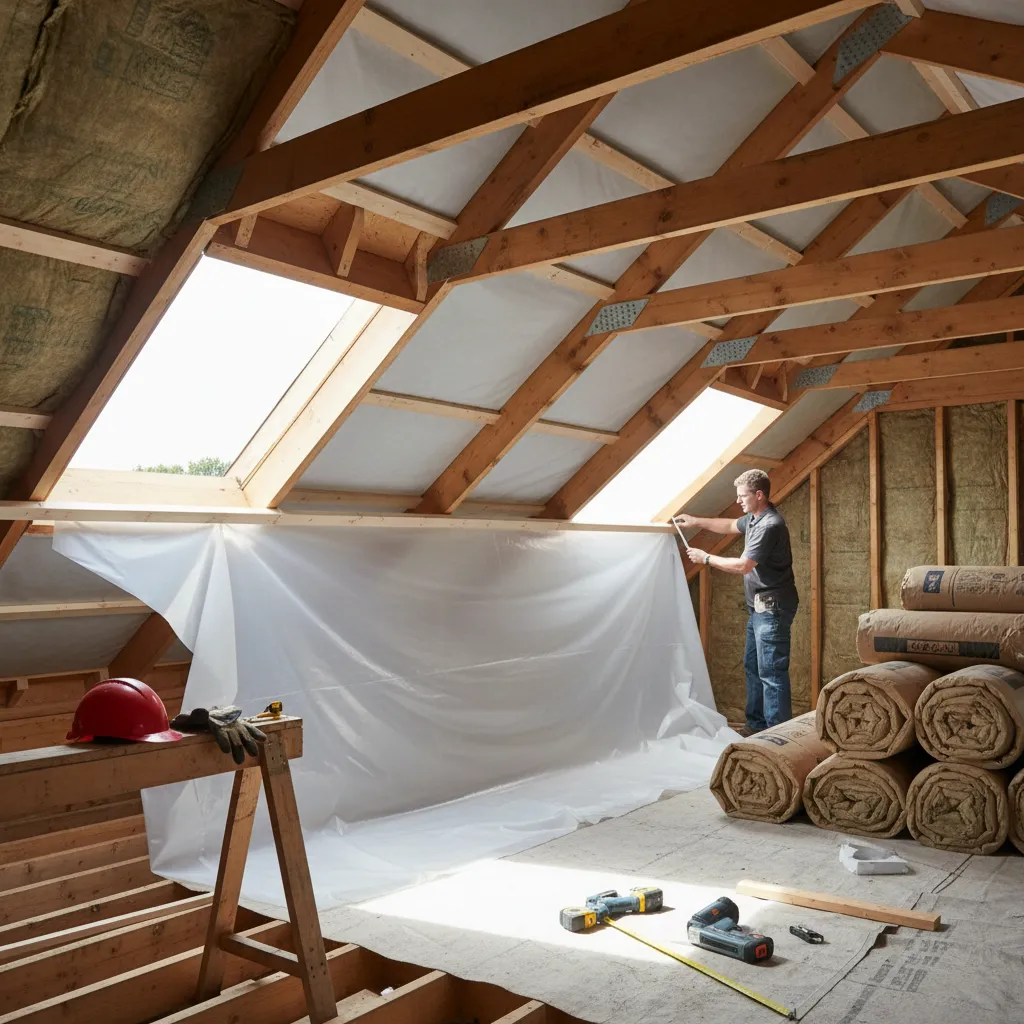

Typical installation sequence for interior metal roof insulation:

1. Interior ceiling material
2. Continuous vapor barrier layer
3. Insulation between rafters or framing
4. Ventilation gap if required
5. Metal roof panel

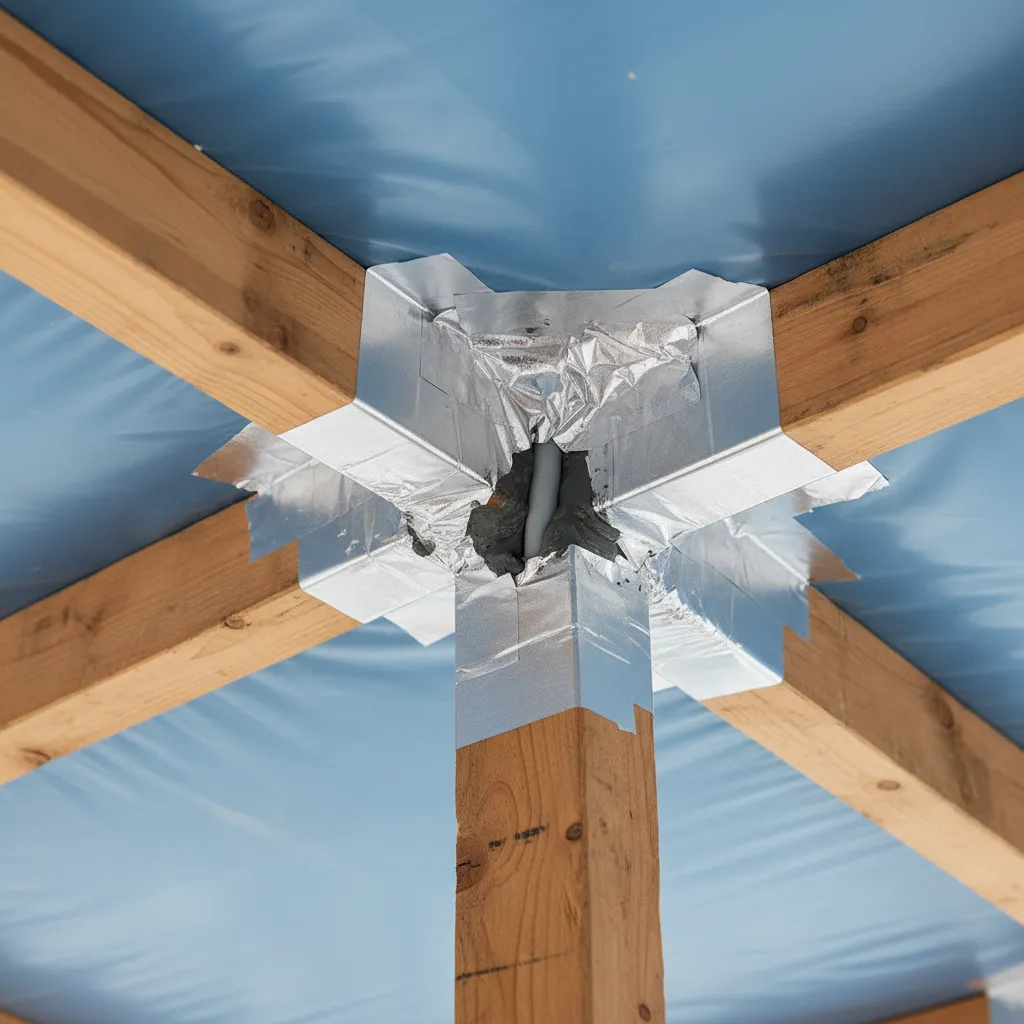

Important installation details:

1. Seams must be taped or sealed
2. Electrical penetrations must be sealed
3. Edges must connect continuously to walls
4. Mechanical vents require sealed collars

One overlooked factor is continuity. In several projects I've reviewed, the vapor barrier was technically installed—but small gaps around lighting fixtures allowed enough air leakage to cause condensation inside the roof cavity.

save pin

Common Moisture Control Mistakes

Key Insight: Most condensation problems come from installation mistakes rather than the wrong insulation type.

Over the years, I’ve noticed the same failures repeated in both DIY and professional installations.

Frequent moisture control mistakes include:

1. Installing the vapor barrier on the cold side of insulation
2. Leaving seams unsealed
3. Ignoring roof ventilation requirements
4. Mixing incompatible insulation layers
5. Using highly permeable materials in humid climates

A particularly common mistake is double vapor barriers. If moisture becomes trapped between two impermeable layers, it can’t escape and condensation becomes worse rather than better.

Choosing the Right Vapor Barrier Material

Key Insight: The best vapor barrier material depends on climate, roof design, and insulation type.

Different materials offer different permeability levels and durability.

Common vapor barrier options:

1. Polyethylene sheets
2. Kraft‑faced fiberglass insulation
3. Foil‑faced rigid boards
4. Smart vapor retarders

Smart vapor retarders are becoming more common in modern construction. These materials adjust permeability depending on humidity levels, allowing assemblies to dry if moisture becomes trapped.

In complex renovation projects where multiple insulation layers are used, designers often rely on spatial planning tools like a room planning workflow used to test interior renovation layoutsto visualize ceiling assemblies before installation begins.

save pin

Answer Box

The most reliable way to prevent condensation in metal roof insulation is installing a continuous vapor barrier on the interior warm side of the insulation and sealing all penetrations. Moisture problems typically occur when vapor barriers are misplaced, discontinuous, or paired with poorly ventilated roof assemblies.

Long Term Protection Against Mold and Rust

Key Insight: Long‑term moisture protection requires a combination of vapor control, ventilation, and durable insulation materials.

A vapor barrier alone does not solve every moisture problem. Sustainable roof performance requires a full moisture management strategy.

Long‑term protection strategies include:

1. Continuous vapor barrier installation
2. Proper attic or roof ventilation
3. Closed‑cell spray foam in high humidity zones
4. Corrosion‑resistant fasteners and coatings
5. Regular roof inspections

When these elements work together, insulated metal roofs can perform reliably for decades without condensation damage.

Final Summary

1. Metal roofs require careful moisture control because condensation forms quickly.
2. A vapor barrier should typically be installed on the warm interior side.
3. Sealing seams and penetrations is critical for vapor barrier performance.
4. Material selection should match climate and insulation design.
5. Ventilation and vapor control must work together for long‑term protection.

FAQ

Do metal roofs always need a vapor barrier?

Most insulated metal roofs require a vapor barrier to prevent indoor moisture from reaching cold roof panels.

What is the best vapor barrier for metal roof insulation?

Polyethylene sheeting and smart vapor retarders are common choices depending on climate and roof design.

Can insulation stop condensation without a vapor barrier?

Usually not. Insulation slows heat transfer but does not prevent moisture vapor from moving through the assembly.

Where should a vapor barrier be installed?

For most climates, it should be placed on the warm interior side of metal roof insulation.

Does spray foam need a vapor barrier?

Closed‑cell spray foam often acts as its own vapor retarder depending on thickness.

How do I prevent condensation in metal roof insulation?

Use a continuous vapor barrier for metal roof insulation, seal all seams, and ensure adequate roof ventilation.

Can vapor barriers cause moisture problems?

Yes. Incorrect placement or double vapor barriers can trap moisture inside the roof assembly.

Is ventilation still needed with a vapor barrier?

Yes. Ventilation helps remove trapped moisture and improves long‑term roof durability.

References

U.S. Department of Energy Building Science Resources

Building Science Corporation Moisture Control Guides

ASHRAE Handbook Fundamentals Moisture Management
