Moisture, Stability, and Building Code Risks With Bathroom Pony Walls: What homeowners and designers often overlook about waterproofing, structure, and compliance when adding a bathroom pony wall.

Direct Answer

Bathroom pony walls can create serious moisture, stability, and building code risks if they are not properly waterproofed and reinforced. Because half walls often sit near showers, plumbing, and wet zones, they require careful framing, sealing, and structural anchoring to prevent mold, water damage, and long‑term movement.

When designed correctly—with reinforced framing, waterproof membranes, and code‑compliant height and support—pony walls can remain durable for decades.

Quick Takeaways

1. Pony walls near showers must be waterproofed just like full shower walls.
2. Most failures happen at the wall cap where water quietly seeps into framing.
3. Structural reinforcement is critical because half walls lack top bracing.
4. Incorrect pony wall height or placement can violate local building codes.
5. Moisture‑resistant materials dramatically reduce long‑term maintenance.

Introduction

Bathroom pony walls look simple, but in practice they introduce some of the trickiest durability problems I see in residential projects. Over the last decade working on bathroom renovations and new builds, I've seen beautifully designed half walls fail within a few years because moisture protection and structural anchoring were treated as afterthoughts.

The biggest misconception is that a pony wall is "just a short partition." In reality, it sits in one of the wettest environments in the home, often next to showers or tubs where water vapor, splashing, and condensation constantly attack the materials.

When homeowners start planning layouts—especially while experimenting with tools that let them visualize a bathroom layout with flexible partitions and walk‑in showers—pony walls often appear like a clean and modern space divider. But without proper waterproofing layers, framing reinforcement, and code awareness, that same design decision can create mold growth, tile cracking, or even structural movement.

In this guide I'll break down the real risks behind bathroom pony walls, why certain failures keep repeating in renovations, and the design practices that prevent them.

save pin

Do Pony Walls Affect Bathroom Waterproofing?

Key Insight: Any pony wall inside a wet zone must be waterproofed exactly like a shower wall—or moisture will eventually penetrate the framing.

Half walls often sit directly next to showers or act as shower enclosures. The problem is that many installers treat them as regular drywall partitions instead of wet‑area assemblies.

Water almost always enters through the horizontal top surface of the pony wall. Unlike vertical walls, the cap collects splashes and condensation.

Critical waterproofing layers:

1. Continuous waterproof membrane over the entire wall surface
2. Sealed wall cap using quartz, stone, or solid surface
3. Waterproof backer board instead of drywall
4. Waterproof seam tape at all joints
5. Proper slope on the cap to shed water

According to guidance from the Tile Council of North America (TCNA), horizontal surfaces in shower areas must be fully waterproofed because they are considered "direct water exposure zones." Pony wall caps fall directly into this category.

I’ve inspected several remodels where the tile looked perfect but water had already penetrated the plywood cap underneath. By year three, the framing had swollen enough to crack grout lines.

Common Moisture Problems Around Half Walls

Key Insight: Most pony wall moisture problems originate at hidden transition points rather than visible tile surfaces.

In field inspections, four failure points show up repeatedly.

Frequent moisture trouble spots:

1. Unsealed wall caps where water pools
2. Improper waterproof membrane termination
3. Glass shower panels mounted directly into unsealed caps
4. Drywall used inside wet zones

Another issue rarely discussed in design blogs is vapor movement. Even if water never directly hits the wall, warm humid air can condense inside poorly ventilated bathroom walls.

Research from the U.S. Environmental Protection Agency notes that bathrooms with poor ventilation can exceed humidity levels that allow mold growth within 24–48 hours.

This is why pony walls near showers should be treated like shower structures—not decorative partitions.

save pin

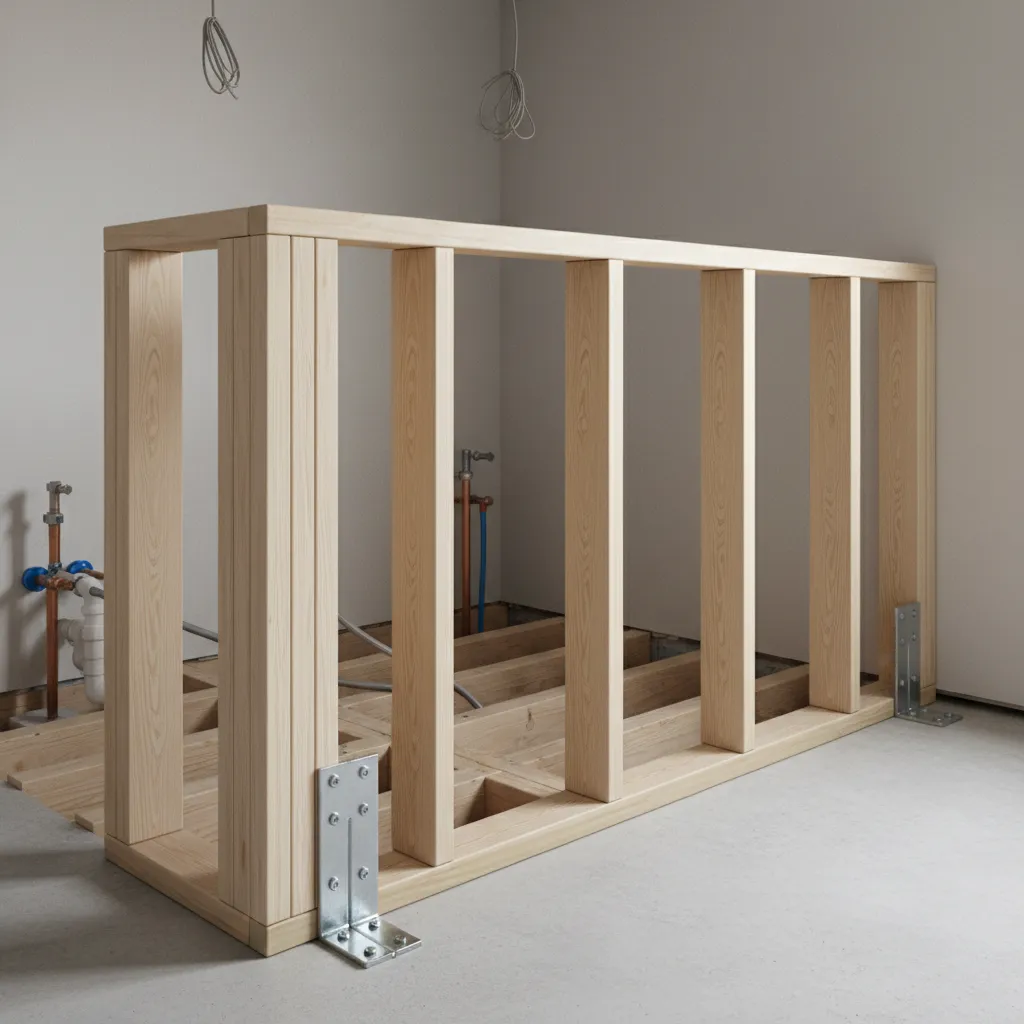

Structural Stability and Reinforcement Methods

Key Insight: Pony walls are structurally weaker than full-height walls because they lack top plate bracing.

A normal wall connects to both the floor and ceiling. A pony wall only anchors to the floor, making it more vulnerable to movement—especially if glass panels or heavy stone caps are mounted on top.

Reliable reinforcement methods used by contractors:

1. Steel brackets embedded into floor joists
2. Double stud framing inside the wall
3. Blocking anchored between floor joists
4. Metal reinforcement plates under the wall cap

In shower installations with glass panels, movement tolerance is extremely small. Even a few millimeters of wall flex can crack tile or loosen glass mounts.

When designers test bathroom layouts digitally—especially when trying to experiment with different bathroom wall placements in a detailed 3D floor layout—the structural aspect often gets overlooked. But in construction drawings, reinforcement details should always be specified.

Building Code Considerations for Pony Walls

Key Insight: Building codes rarely mention pony walls directly, but several regulations indirectly affect them.

Local codes typically regulate bathroom construction through requirements tied to structure, moisture protection, and safety.

Common code areas affecting pony walls:

1. Minimum shower enclosure dimensions
2. Glass panel safety requirements
3. Waterproofing requirements in wet areas
4. Structural anchoring for partitions
5. Accessibility requirements in some jurisdictions

For example, the International Residential Code (IRC) requires shower compartments to have a minimum finished interior of 30 by 30 inches. Installing a pony wall incorrectly can unintentionally reduce usable shower space below code limits.

Glass panels mounted on pony walls must also meet tempered glass safety standards.

Answer Box

Pony walls in bathrooms fail most often due to three factors: insufficient waterproofing, weak structural anchoring, and poor sealing around the wall cap. Treating the pony wall like part of the shower assembly—not just a decorative divider—prevents most long‑term damage.

Preventing Mold and Water Damage

Key Insight: Mold prevention around pony walls depends more on hidden construction layers than visible finishes.

Even perfectly installed tile cannot stop moisture if the underlying assembly isn't protected.

Practical prevention checklist:

1. Use cement board or foam backer board
2. Install full waterproof membranes
3. Slope wall caps slightly toward the shower
4. Seal glass panel mounts with waterproof gaskets
5. Maintain strong bathroom ventilation

In my projects, adding a subtle slope to the wall cap is one of the simplest but most effective fixes. Water should never sit flat on horizontal surfaces in a wet area.

save pin

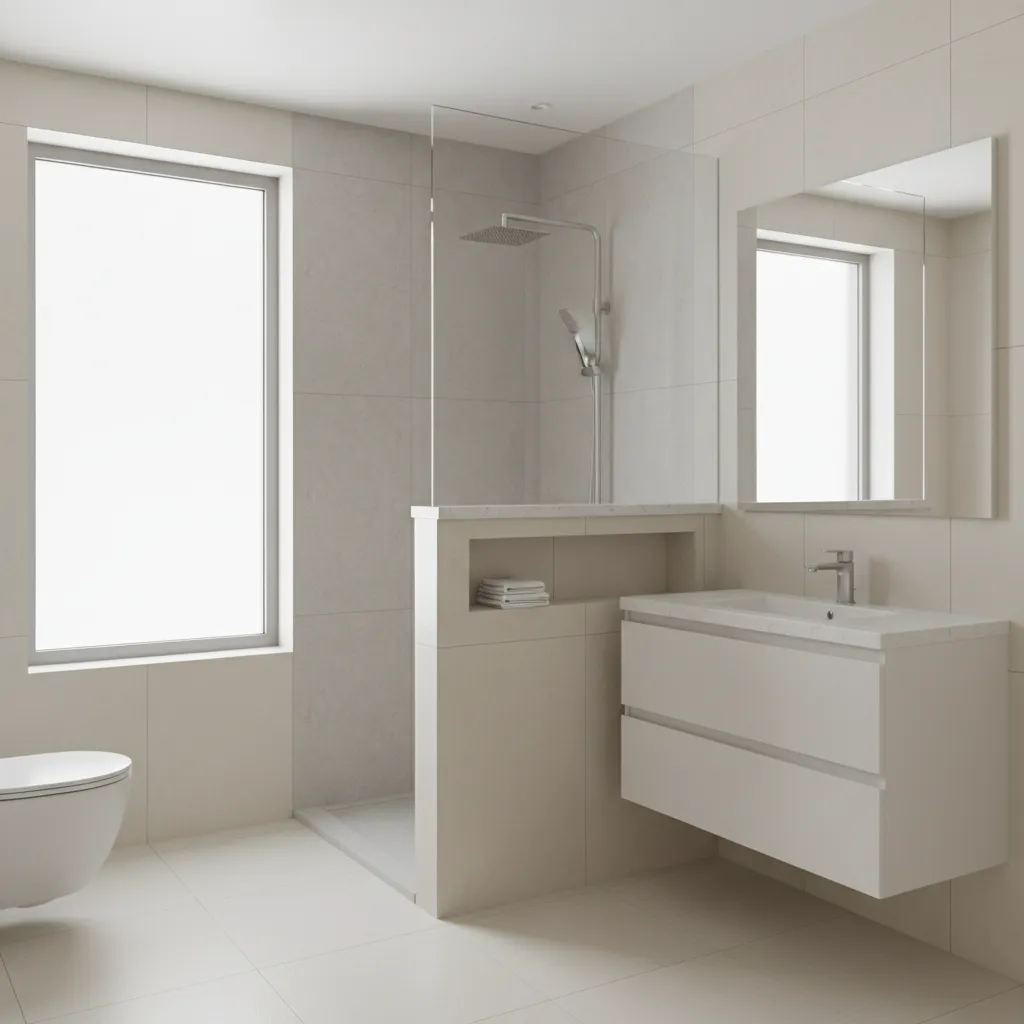

Best Materials for Durable Pony Walls

Key Insight: The materials used inside the wall matter more than the tile on the surface.

Choosing moisture‑resistant materials dramatically increases durability.

Recommended material combinations:

1. Foam tile backer board with waterproof coating
2. Cement board with liquid waterproof membrane
3. Solid quartz or stone wall caps
4. Pressure‑treated bottom plates when appropriate

A mistake I still see too often is using MDF trim or standard drywall on pony walls near showers. Those materials absorb moisture quickly and deteriorate over time.

save pin

Inspection Checklist Before and After Installation

Key Insight: Most pony wall failures could be avoided with a simple inspection checklist during construction.

Pre‑installation checks:

1. Verify reinforcement anchoring into floor structure
2. Confirm waterproof backer board specification
3. Ensure proper wall cap slope design

Post‑installation checks:

1. Inspect membrane continuity
2. Confirm sealed glass mounting hardware
3. Test for wall movement before tile installation

Homeowners who want to visualize safer layouts before construction often find it helpful to explore bathroom design concepts with AI‑assisted interior planning so wall placement, circulation, and wet zones are considered earlier in the process.

Final Summary

1. Pony walls require full waterproofing when placed near showers.
2. The wall cap is the most common water entry point.
3. Structural reinforcement prevents tile cracks and glass instability.
4. Code compliance depends on shower size and safety glazing.
5. Durable materials dramatically reduce mold risk.

FAQ

Are pony walls waterproof by default?

No. Pony walls must be intentionally waterproofed using membranes and moisture‑resistant backer boards.

What is the biggest pony wall bathroom waterproofing mistake?

The most common mistake is leaving the wall cap unsealed or flat, allowing water to pool and penetrate the structure.

Can a pony wall support a glass shower panel?

Yes, but only if the wall is reinforced with structural brackets or anchored blocking inside the framing.

Do pony walls cause mold problems?

They can if waterproofing and ventilation are inadequate. Moisture trapped inside framing encourages mold growth.

Is a pony wall allowed in shower design?

Yes. Most building codes allow them as long as the shower maintains required interior dimensions.

What is the best material for a bathroom pony wall?

Cement board or foam tile backer boards with waterproof membranes are the most durable materials.

How thick should a bathroom pony wall be?

Most are framed using 2x4 studs, resulting in a finished thickness around 4.5–5 inches.

Can pony walls be installed in small bathrooms?

Yes, but layout planning is essential to maintain proper clearance and shower space.

References

Tile Council of North America (TCNA) Handbook for Ceramic, Glass, and Stone Tile Installation

International Residential Code (IRC) Bathroom and Plumbing Sections

U.S. Environmental Protection Agency – Mold and Moisture Guidance
