Multi Floor Planner Inter Floor Height: Understanding Inter Floor Heights in Multi Floor Planning

Direct Answer

Inter floor height in a multi floor planner is the vertical distance between one finished floor and the next. It typically includes ceiling thickness, structural slabs, and the usable room height. In most residential designs, this measurement ranges from about 9 to 12 feet depending on the structure and architectural style.

Quick Takeaways

1. Inter floor height includes structural slabs, ceiling space, and usable room height.
2. Most modern homes use 9 to 10 feet floor to floor height.
3. Luxury homes often increase inter floor height to 11 or 12 feet.
4. Incorrect inter floor height causes unrealistic stair design in planners.
5. Always design stairs, ceilings, and HVAC space together.

Introduction

When people start designing a house in a multi floor planner, one setting causes more confusion than almost anything else: inter floor height. I have seen clients design beautiful layouts only to realize later that the stairs do not work or the ceilings feel strangely low in the 3D view.

After more than a decade working on residential projects, I can tell you that inter floor height is not just a technical setting. It shapes how a home feels, how natural light moves through the space, and even how realistic your digital floor plan becomes.

In this guide I will explain how inter floor height actually works, what most planners get wrong, and how to choose realistic measurements when using a multi floor planner.

save pin

What Is Inter Floor Height In A Multi Floor Planner

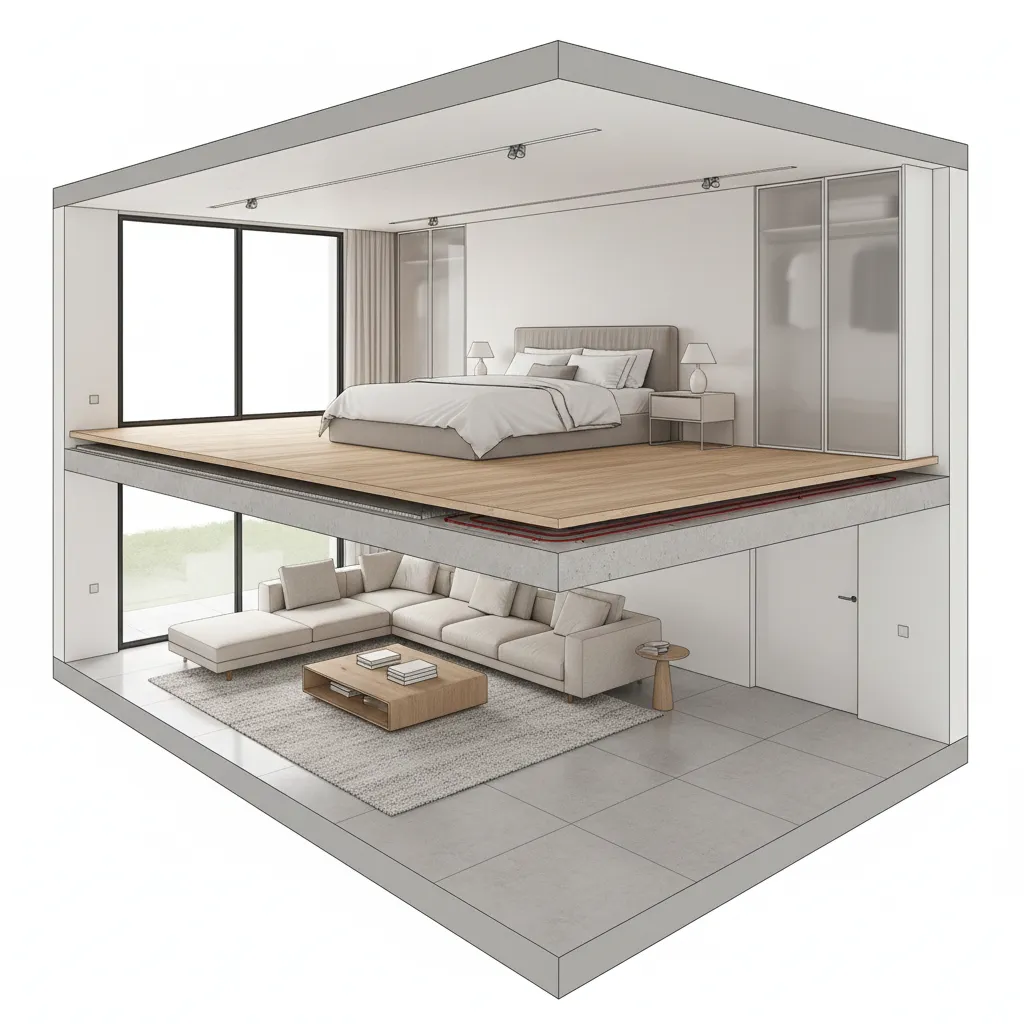

Key Insight: Inter floor height represents the full structural distance from one finished floor surface to the next floor above.

Many beginners assume inter floor height only refers to ceiling height. In reality, it includes several structural layers that exist between floors.

In real construction, the vertical stack typically includes:

1. Finished ceiling height
2. Structural floor slab
3. Subfloor layers
4. Mechanical space for HVAC or wiring

For example, if a home has a 9 foot ceiling, the total floor to floor measurement might actually be closer to 10 feet once structure and systems are included.

Professional architecture software reflects this same logic, and most multi floor planners try to simulate that structure so the 3D model behaves realistically.

Why Does Inter Floor Height Matter For Multi Level Floor Plans

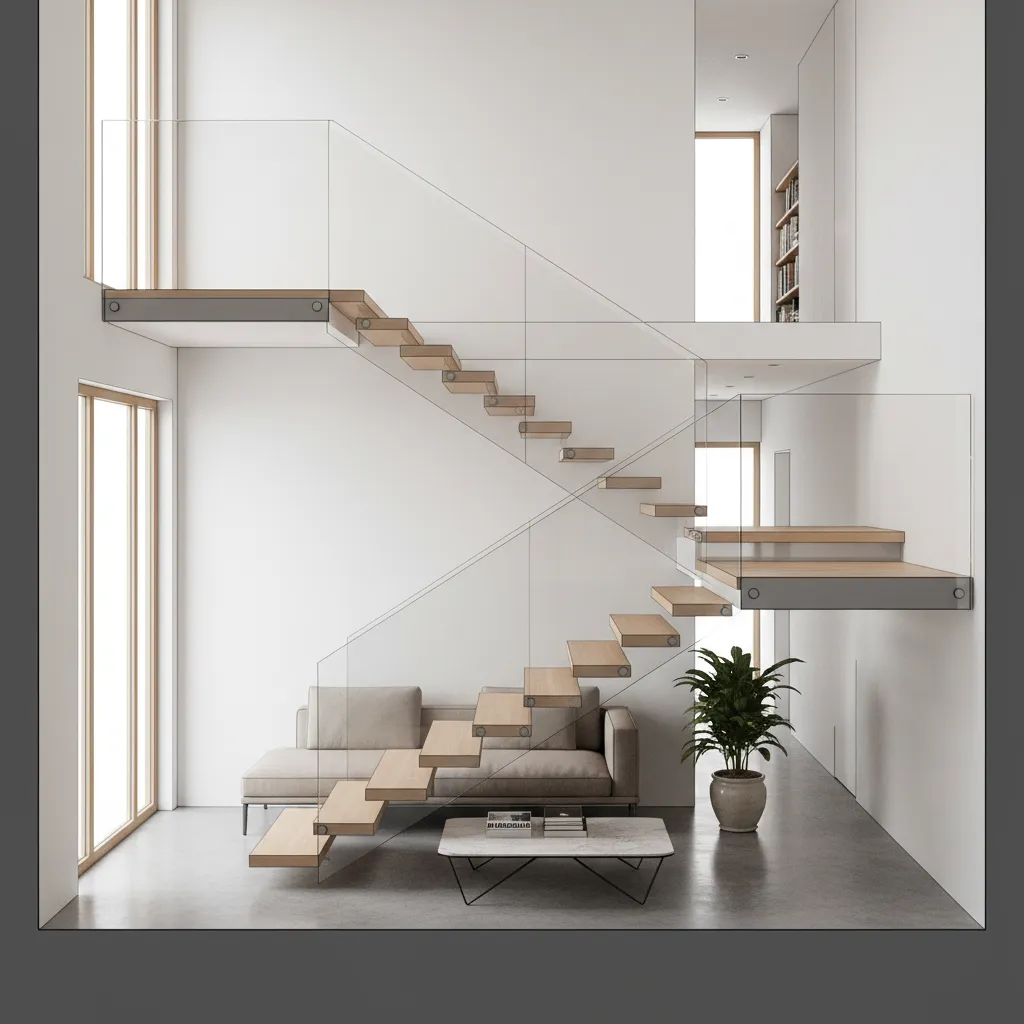

Key Insight: Incorrect inter floor height breaks stairs, windows, and vertical proportions in digital house models.

One hidden problem I frequently see in online planning tools is unrealistic vertical proportions. If the inter floor height is too small, stairs become impossibly steep. If it is too large, the house suddenly looks like a commercial building.

Three areas are directly affected:

1. Stair geometry – stair rise and run must match the total height
2. Window placement – windows may appear too high or too low
3. Exterior proportions – walls can look stretched or compressed

Architects often calculate staircases first because they reveal whether the vertical dimensions are realistic.

save pin

What Is The Ideal Inter Floor Height For Residential Homes

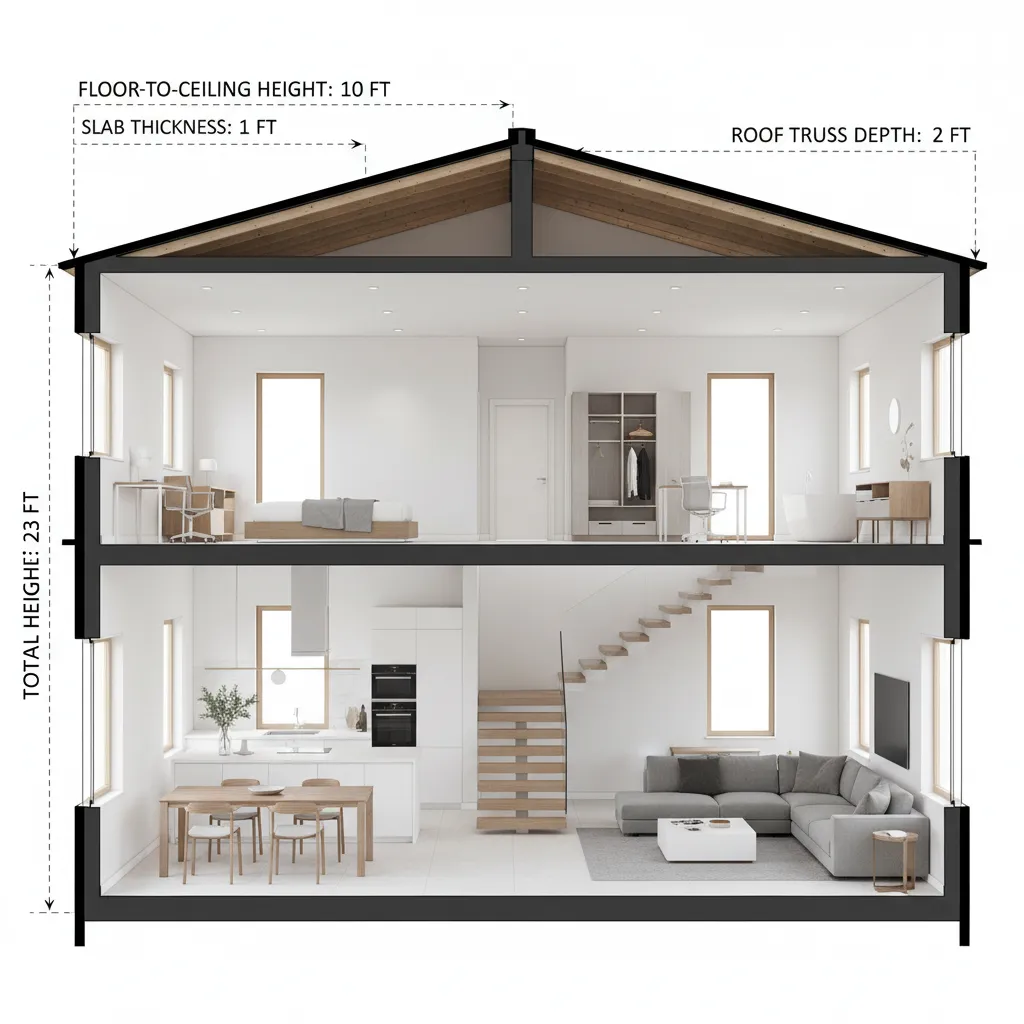

Key Insight: The ideal inter floor height depends on ceiling goals, structure type, and mechanical space.

In most residential projects I design, we start from the desired ceiling height and then add structural allowances.

Typical residential ranges look like this:

1. Standard homes: 9 to 10 feet floor to floor
2. Modern homes: 10 to 11 feet floor to floor
3. Luxury homes: 11 to 12 feet floor to floor

Here is a simplified breakdown:

1. 9 foot ceiling
2. 12 inch structural floor assembly
3. Total floor to floor height about 10 feet

Designers often add extra height when they expect recessed lighting, HVAC ducts, or radiant heating systems.

save pin

Common Mistakes When Setting Inter Floor Height

Key Insight: The biggest mistake is ignoring hidden structural layers between floors.

After reviewing hundreds of amateur floor plans online, several patterns appear again and again.

Most common mistakes include:

1. Setting floor to floor height equal to ceiling height
2. Forgetting stair clearance requirements
3. Ignoring ductwork and mechanical zones
4. Using the same height for every floor

In reality, floors often differ. For example:

1. Main floor may be 10 to 11 feet
2. Upper bedrooms may be 9 to 10 feet
3. Basements may vary widely depending on foundation depth

These subtle variations make a house feel intentional rather than computer generated.

How To Set Inter Floor Height In A Multi Floor Planner

Key Insight: The most reliable approach is to work backward from ceiling height and stair requirements.

When I set up a digital house model, I usually follow a simple workflow.

Step by step approach:

1. Choose your target ceiling height
2. Add 10 to 16 inches for structure
3. Test the stair layout between floors
4. Adjust until stair rise feels natural

A comfortable stair usually has:

1. Riser height around 7 to 7.5 inches
2. Tread depth around 10 to 11 inches

If the stair suddenly requires too many steps, the inter floor height is probably unrealistic.

Why Many Online Floor Planners Show Unrealistic Heights

Key Insight: Many planning tools simplify structural layers, which can create misleading proportions.

This is something most tutorials never mention. Many beginner friendly planners hide structural assemblies to keep the interface simple.

That leads to two common issues:

1. Ceilings appear higher than they would be in real construction
2. Stairs auto adjust in unrealistic ways

Professional architectural software like Revit or Archicad separates floor slabs, structural layers, and ceiling systems. Simpler tools often merge these layers into a single height value.

Once you understand this limitation, it becomes much easier to produce realistic multi floor layouts even in basic planners.

Answer Box

Inter floor height in a multi floor planner is the total vertical distance between two finished floors, including structure and ceiling systems. For most residential designs, a realistic value falls between 9 and 11 feet depending on ceiling height and structural thickness.

Final Summary

1. Inter floor height includes both usable ceiling space and structural floor layers.
2. Most homes use 9 to 10 feet floor to floor height.
3. Incorrect height settings often break stair geometry.
4. Always test stairs when designing multi level layouts.
5. Realistic vertical dimensions make digital floor plans far more believable.

FAQ

What does inter floor height mean in a multi floor planner

It is the vertical distance from one finished floor level to the next. It includes ceiling space, structural slabs, and mechanical systems between floors.

Is inter floor height the same as ceiling height

No. Ceiling height is only the usable interior space. Inter floor height also includes the structural floor system above the ceiling.

What is a good inter floor height for houses

Most residential homes use about 10 feet floor to floor. This usually produces a comfortable 9 foot ceiling.

Why do my stairs look wrong in a floor planner

Incorrect inter floor height often causes stair problems. The stair rise must match the total vertical distance between floors.

Can different floors have different heights

Yes. Many homes use taller ceilings on the main floor and slightly lower ceilings in bedrooms or upper levels.

Do luxury homes use taller inter floor heights

Yes. Luxury homes often use 11 to 12 feet floor to floor height to create 10 foot or higher ceilings.

Does HVAC affect inter floor height

Yes. Ductwork and mechanical systems require extra space between floors, which increases the total floor to floor height.

Why do some planners automatically change floor height

Some multi floor planners automatically adjust structural layers or stairs to keep models stable, which can change the visible height values.
