New Construction Floor Plan: How to Design Your Build Before Breaking Ground (2026)

A new construction floor plan is the most consequential document in any home build. Every decision made on paper — room sizes, wall positions, door swings, window placements — becomes concrete and steel once construction begins. Changes made during design cost nothing. Changes made during framing cost thousands. Changes made after drywall cost tens of thousands. The floor plan is where you spend the time that prevents those costs, and Coohom's free floor plan creator lets you do that design work in a browser, without CAD skills, before you've committed to a single structural decision.

This guide covers the full process: how to think about new construction floor plan design, what decisions to resolve at the plan stage, how to evaluate your layout for livability before it's built, and how to coordinate with architects, builders, and contractors using your floor plan as the reference document.

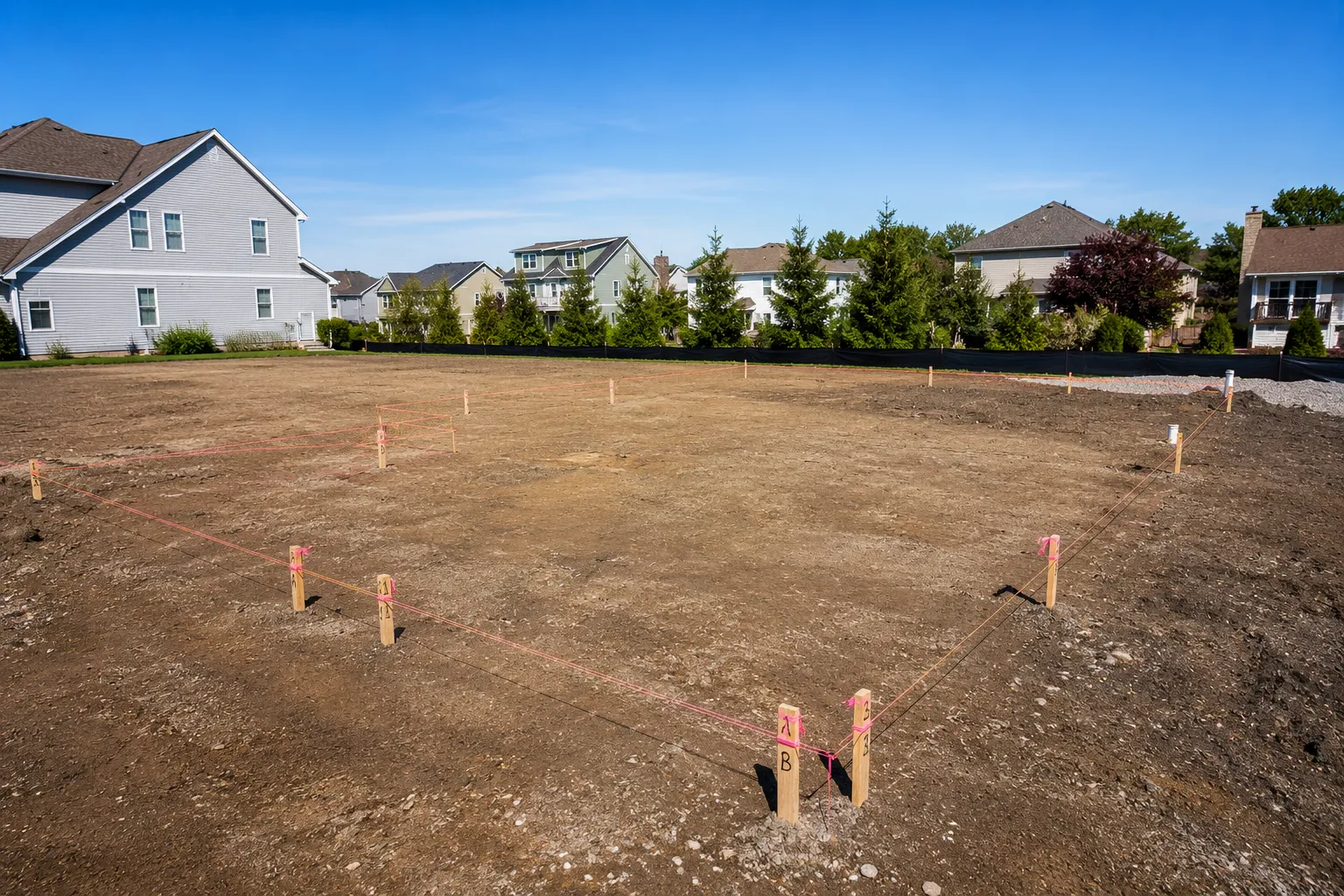

New Construction Floor Plans vs. Renovation Plans: Why the Process Differs

A renovation floor plan works within constraints — existing walls, wet wall positions, structural elements that can't move without significant cost. A new construction floor plan starts from a blank lot. That freedom is an advantage, but it also means every mistake is self-inflicted. There are no pre-existing walls to blame for an awkward layout, no inherited plumbing positions to explain why the bathroom is in the wrong place.

The blank-canvas nature of new construction means the floor plan stage carries more weight than in any other context. You're not working around constraints — you're creating them. Every wall you place on the plan will become a physical wall that shapes how the home functions for decades. This is why new construction floor plans reward more time in design iteration than any other use case.

It also means the floor plan needs to do more work at the coordination stage. Architects, structural engineers, plumbers, electricians, and HVAC contractors all work from the floor plan. Any ambiguity in the plan becomes a field decision made by a tradesperson under time pressure — which is consistently the source of the "that's not what I wanted" moments that haunt new builds.

save pin

Before You Draw: Resolve These Decisions First

The most common new construction floor plan mistake is starting to draw before the fundamental lifestyle questions are answered. A floor plan that's drawn before the owners have agreed on how they actually live produces a beautiful drawing that doesn't work in practice. Answer these before opening any design tool:

1. How many people will live in the home, and what are their specific space needs? A couple working from home full-time has different needs than a family with three children. "Three bedrooms" is not a sufficient answer — what size, what adjacencies, what storage?
2. How do you actually use your living spaces? Do you eat in the kitchen or at a dining table? Do you entertain large groups or small ones? Is the living room for family TV viewing or for adult conversation? The answers determine whether an open plan works for you or whether defined rooms serve you better.
3. What's the relationship between indoor and outdoor? Where do you want direct outdoor access — from the kitchen, the primary bedroom, the living room? Door positions in a new build are free choices; decide them based on how you want to live, not as an afterthought.
4. Where does the sun rise and set relative to your lot? Orienting the primary bedroom to the east (morning light) and the living room to the west (evening light) is a floor plan decision with zero construction cost and significant quality-of- life impact. It cannot be corrected after framing.
5. What are your must-have storage requirements? Pantry size, mudroom, linen closets, garage storage, workshop space. Storage is consistently under-designed in new construction because it doesn't photograph well — but it determines daily livability more than any other feature.
6. Do you have accessibility requirements now or in the foreseeable future? Wider doorways (36 inches vs. 32 inches), no-threshold showers, single-story living, and blocking in bathroom walls for future grab bars are all zero-cost to add at the floor plan stage and expensive to retrofit later.

save pin

Site Orientation: The Floor Plan Decision That Can't Be Changed

Of all the decisions made on a new construction floor plan, site orientation — how the home sits on the lot relative to compass direction, street, neighbors, and views — is the one with the longest-lasting consequences and the fewest opportunities for correction. A wall can be moved during framing. A window can be repositioned before the glass order. The orientation of the entire structure relative to the sun cannot be changed at all.

Key orientation principles for new construction floor plans:

1. North-facing lots (in the northern hemisphere). Primary living spaces — kitchen, living room, dining room — should face south to maximize natural light. Bedrooms can face east for morning light. Garages, utility rooms, and storage can face north, where they act as a thermal buffer.
2. South-facing lots. The street frontage faces south; most rooms get direct light. Focus orientation decisions on views and privacy — windows facing neighbors need careful positioning.
3. Views. If the lot has a view — water, mountain, garden — the rooms where you spend the most time should face it. This sounds obvious but is frequently violated when the builder's standard plan is used without adjustment.
4. Prevailing wind. Cross-ventilation is free if you plan for it. Place operable windows on opposite sides of the home aligned with the prevailing summer breeze direction for your region.
5. Privacy from neighbors and street. Mark neighboring structures and street positions on your lot plan before finalizing window placements. A master bathroom window that faces directly into a neighbor's kitchen window is a floor plan problem, not a window-dressing problem.

Room Relationships and Adjacencies

A new construction floor plan is as much about what's next to what as it is about individual room sizes. Adjacency decisions determine daily convenience:

1. Kitchen to dining. Direct access without a corridor between them. Open plan or connected rooms — but never a full wall separation that requires carrying food through a doorway.
2. Mudroom to kitchen. Groceries enter the house from the garage or back door. The path should go mudroom → kitchen without crossing the living room.
3. Primary bedroom separation. In a family home, the primary bedroom should not share a wall with a child's bedroom. A bathroom, closet, or hallway as a sound buffer is a floor plan adjacency decision.
4. Home office acoustics. A home office placed adjacent to a family room or playroom is unusable during school hours. Separate it with a bathroom, a storage room, or place it at the opposite end of the house.
5. Laundry location. The most convenient laundry location is adjacent to the bedrooms, where the clothes actually originate — not in the basement or garage. This is a free choice in new construction that's expensive to change later.
6. Guest bathroom access. A guest bathroom should be accessible from the main living areas without passing through private spaces. Mark the path from the living room to the guest bathroom on your floor plan.

Room Sizing: Minimum Dimensions That Actually Work

New construction floor plans frequently contain rooms that meet building code minimums but fail livability tests. The following are working minimums — not code minimums — for rooms that function well in daily use:

1. Primary bedroom: 12 × 14 ft minimum for a queen bed with nightstands and a dresser with comfortable clearances. 14 × 16 ft for a king bed. Anything smaller requires careful furniture planning to verify it works — test it in the floor plan before committing.
2. Secondary bedroom: 10 × 10 ft minimum for a full bed. 10 × 12 ft for a queen. Below 10 × 10 ft, the room is functionally a study or nursery, not a bedroom — label it accordingly on the plan.
3. Primary bathroom: 5 × 8 ft minimum for a separate shower and tub. 6 × 10 ft for a double vanity, separate shower, and soaking tub with comfortable circulation. Below 5 × 8 ft, you're making fixture tradeoffs.
4. Kitchen: 10 × 10 ft minimum for a galley layout with adequate counter run. 12 × 14 ft for an island kitchen. The kitchen work triangle (sink to stove to refrigerator) should total under 26 ft.
5. Living room: 14 × 18 ft minimum for a sofa, coffee table, and two accent chairs with comfortable traffic lanes. Below this, an open-plan connection to the dining area is usually necessary to avoid the room feeling cramped.
6. Two-car garage: 20 × 20 ft minimum to park two standard vehicles. 24 × 24 ft if you need any workshop space or storage alongside the cars.
7. Corridors and hallways: 36 inches minimum clear width; 42 inches preferred for comfortable two-person passage. Hallways below 36 inches feel institutional, not residential.

How to Use Coohom to Design Your New Construction Floor Plan

Coohom's free floor plan creator is built for the iterative design process that new construction requires. You draw walls by entering exact dimensions, test different room configurations in minutes, furnish each room with true-to-scale models to verify livability, and render the whole design in 3D to catch proportion and light problems before they're built.

The new construction workflow in Coohom:

1. Start with the lot boundary and orientation. Draw the site perimeter and mark compass north. This gives you the orientation context for every window and door placement decision.
2. Block out room areas before drawing walls. Use rectangles to test room sizes and adjacencies at a macro level before committing to specific wall positions. It's faster to iterate at this stage than after walls are drawn.
3. Draw walls at exact dimensions. Enter each wall length as you draw. Coohom snaps wall junctions and detects enclosed rooms automatically — label each room as you close it.
4. Place doors and windows at planned positions. Drag from the building elements library. Set door swing directions and window sill heights. Check every door swing arc for conflicts.
5. Furnish every room to verify livability. Add furniture from the model library at manufacturer-accurate dimensions. If a bedroom can't fit a king bed with 24-inch clearances, you know now — not after framing.
6. Switch to 3D to evaluate light and proportion. Set compass orientation and time of day in the lighting panel to simulate natural light at different times of year. Check ceiling height proportions. Verify that windows are positioned where they'll actually illuminate the spaces they serve.
7. Export for design review and contractor coordination. Dimensioned 2D PDF for the architect, structural engineer, and builder. 3D walkthrough link for family decision-makers who aren't fluent in plan reading.

Duplicate the project file for each design iteration — don't overwrite. New construction floor plan design typically goes through 3–7 significant iterations before reaching a final layout. Version history matters when the client (or co-owner) wants to revisit an option from two weeks ago.

Using Your Floor Plan When Working with an Architect or Builder

For new construction requiring permits — which is most new construction — you will work with a licensed architect or engineer who produces the certified drawings. Your Coohom floor plan is not a substitute for those drawings. It is, however, an extremely effective input to the architect and a tool for reviewing their output.

Three ways to use your Coohom floor plan in the professional design process:

1. As a design brief for the architect. Arriving at the first architect meeting with a floor plan that shows your intended room sizes, adjacencies, and orientation gives the architect a specific starting point rather than a blank brief. This typically reduces the number of design rounds required and keeps the design closer to your actual needs.
2. As a review tool for the architect's drawings. When the architect delivers preliminary drawings, import them into Coohom as a reference image and trace the layout. Furnishing the architect's plan in Coohom often reveals livability issues — a bedroom that's technically adequate but can't fit a king bed with nightstands, a bathroom where the door conflicts with the shower door — that aren't visible until the plan is furnished.
3. As a communication tool for builder selections. Builder-grade new construction often involves choosing from a catalog of standard floor plans. Use Coohom to furnish the builder's plan and evaluate whether the standard layout actually meets your needs, or whether a modification is worth paying for.

The 7 Most Common New Construction Floor Plan Mistakes

1. Optimizing for square footage over function. A larger house with poor room relationships is harder to live in than a smaller house with well-planned adjacencies. Total square footage is not a proxy for quality of life.
2. Ignoring natural light in orientation decisions. The most expensive window treatment cannot compensate for a living room that faces north on a northern hemisphere lot. Orientation is a zero-cost decision at the plan stage.
3. Under-sizing storage relative to room sizes. New construction plans consistently feature large, photogenic rooms with inadequate storage. Walk-in closets, pantries, mudrooms, and linen closets don't appear in architectural renders but determine daily livability.
4. Forgetting to furnish the plan before approving it. A room that passes all dimension minimums can still fail when you try to furnish it. Add the actual furniture you plan to own before finalizing any room size.
5. Treating traffic flow as secondary. How people move through the home daily — from bedroom to kitchen in the morning, from garage to kitchen with groceries, from living room to bathroom — should be drawn as explicit paths on the plan and verified before approving the layout.
6. Not planning for flexible use. A home built for two that can't accommodate a guest room, a home office, or a growing family forces expensive modifications within five years. New construction is the right time to build in flex space.
7. Locking in the plan too early. New construction floor plan design rewards iteration. Three to seven design versions is normal and appropriate. A plan locked after two iterations because "it looks fine" consistently produces regret.

Frequently Asked Questions

Do I need an architect to create a new construction floor plan?

For permitted new construction — which includes virtually all new residential builds in the US — certified architectural drawings are required and must be produced by a licensed professional. Your Coohom floor plan is a design tool and a communication document, not a permitted construction document. Use it to develop your design intent, then work with an architect to produce the certified drawings.

How detailed should a new construction floor plan be at the design stage?

At the early design stage, room sizes, adjacencies, and orientation are the priority — exact wall thickness and structural specifications come later. As the design matures, door positions, window placements, and built-in features should be resolved before handing off to the architect. The more resolved your floor plan is when you engage the architect, the fewer design rounds — and fees — the process requires.

Can I use a new construction floor plan for a custom build vs. a production build?

Yes, with different emphasis. For a custom build, the floor plan is developed from scratch around your specific needs — the process in this guide applies fully. For a production build (a builder's catalog of standard plans), your floor plan is primarily a tool for evaluating which standard plan best fits your needs, and for identifying which modifications, if any, are worth paying for.

How do I account for structural elements in a new construction floor plan?

At the design stage, you don't need to specify structural solutions — that's the architect's and engineer's job. What you do need to do is flag spans that require structural support: open-plan spaces wider than 14–16 feet typically require a beam, which has depth implications for ceiling height. Note these spans on your floor plan and discuss them with the structural engineer before finalizing room sizes.

What scale should I use for a new construction floor plan?

When drawing digitally in Coohom, no manual scale selection is needed — you enter exact dimensions and the tool handles scale automatically. For hand sketches, use 1/4 inch = 1 foot (1:48) for a standard residential plan, or 1/8 inch = 1 foot for larger homes or multi-story plans where a smaller scale helps everything fit on one page.

Your build starts on paper. Design your new build floor plan online with Coohom — test room sizes, check adjacencies, furnish every space, and render a photorealistic 3D walkthrough before you've committed to a single wall, all free in one browser session.
