Oil-Based vs Water-Based Stain: How Drying Affects Final Color: Understand why stain color changes while drying and how formula type determines the final wood tone.

Direct Answer

Oil-based and water-based wood stains develop color differently as they dry. Oil-based stains usually dry deeper and slightly darker because oils penetrate wood fibers more slowly, while water-based stains dry faster and often appear lighter or clearer once moisture evaporates.

The difference comes from solvent behavior, pigment suspension, and how each formula interacts with wood grain during evaporation.

Quick Takeaways

1. Oil-based stains usually deepen in tone as oils cure inside the wood.
2. Water-based stains dry quickly and often look lighter after evaporation.
3. Drying speed directly affects how pigments settle into wood grain.
4. Testing stains on scrap wood prevents unexpected final color shifts.
5. Lighting and wood species influence perceived drying color.

Introduction

One of the most common surprises homeowners run into is how dramatically a stain can change between application and the final dry stage. The debate around oil-based vs water-based stain usually focuses on durability or odor, but from a design standpoint the real question is color stability.

After working on dozens of residential renovation projects, I’ve seen more disappointment caused by unexpected stain color than by almost any other finishing detail. A floor that looked warm and walnut-toned when wet suddenly dries two shades darker. A cabinet stain that appeared rich becomes slightly muted after drying.

The reason usually isn’t poor craftsmanship. It’s chemistry.

Different stain formulas suspend pigments differently, penetrate wood at different speeds, and evaporate at different rates. Those factors control how the final color settles into the grain. When designers visualize interiors using realistic rendering tools like see how lighting and materials interact in a realistic home rendering, we can often predict these shifts before the first brush touches the wood.

In this guide, I’ll break down how oil-based and water-based stains actually behave during drying, why their color develops differently, and how to choose the formula that gives you the most predictable final result.

save pin

How Wood Stain Color Develops During Drying

Key Insight: The color you see immediately after applying stain is rarely the final color because solvents temporarily intensify pigment saturation.

When stain is first brushed onto wood, the liquid carrier (oil or water) saturates the surface. This temporarily deepens the appearance of pigments. As the solvent evaporates and pigments settle into the grain, the color stabilizes.

Three physical changes occur during drying:

1. Solvent evaporation
2. Pigment absorption into wood fibers
3. Binder curing or setting

These stages determine how the final tone develops.

Why drying changes color

1. Wet stain reflects light differently due to surface moisture.
2. Pigments redistribute as the carrier evaporates.
3. Wood grain absorbs pigments unevenly.

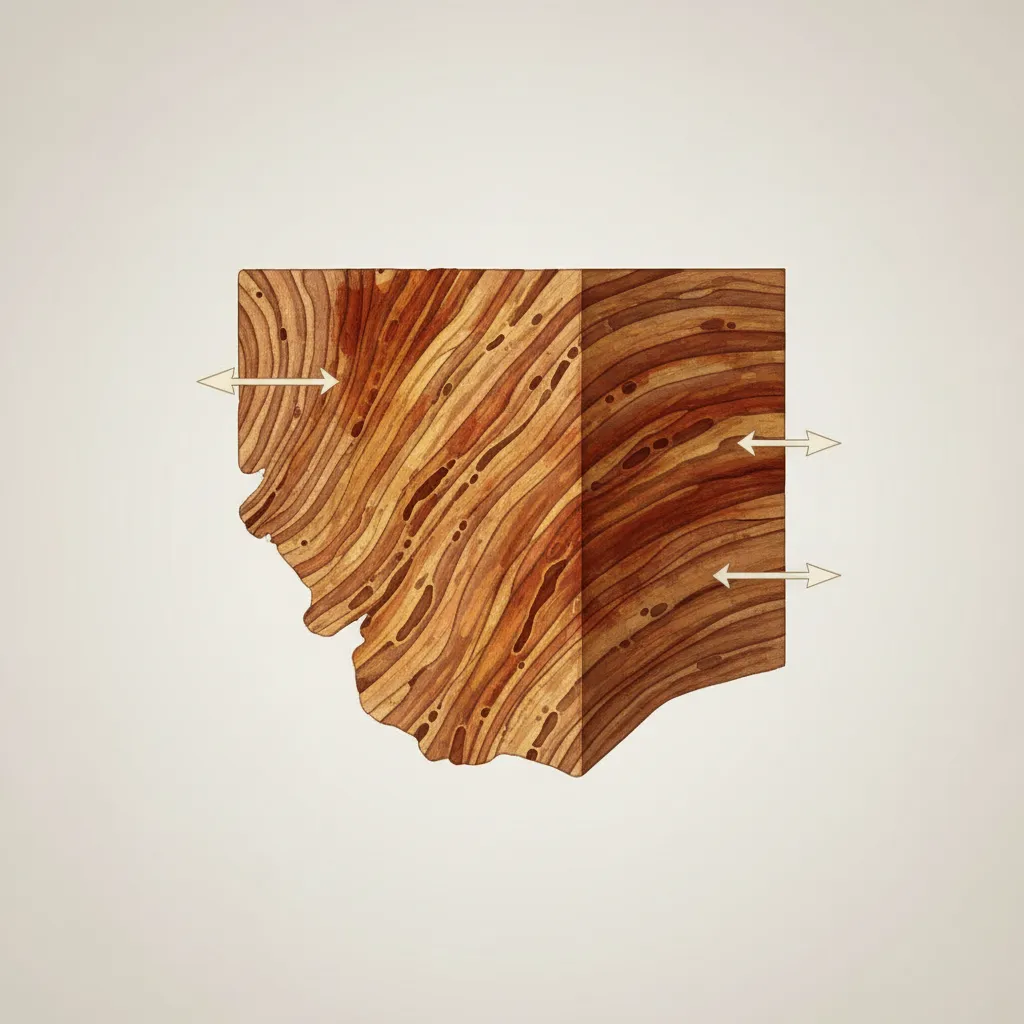

According to finishing research from the Forest Products Laboratory, wood absorbs pigments primarily along earlywood pores. That means the final tone becomes more defined once the liquid carrier leaves the surface.

save pin

Oil-Based Stains and Their Color Stabilization Process

Key Insight: Oil-based stains typically produce richer and slightly darker final tones because the slower drying time allows deeper pigment penetration.

Oil-based formulas suspend pigments in mineral spirits or natural oils. These carriers evaporate gradually, giving pigments more time to move into wood pores.

This slower process changes how the color develops.

Typical drying stages for oil stains

1. Initial application: color appears glossy and darker.
2. 10–30 minutes: pigments begin settling into grain.
3. 1–4 hours: solvent evaporates and tone deepens.
4. 24 hours: final stabilized color appears.

Why oil stains often look darker

1. Greater penetration into open grain.
2. Longer pigment absorption window.
3. Natural oil ambering effect.

In older hardwood homes I’ve renovated—especially with oak or ash floors—oil stains tend to enhance grain contrast significantly. That’s why many professional floor refinishers still prefer them when clients want dramatic texture.

save pin

Water-Based Stains and Rapid Drying Effects

Key Insight: Water-based stains dry quickly, which limits pigment penetration and often results in a clearer, slightly lighter final color.

Water evaporates much faster than oil solvents. Because of that, pigments have less time to migrate into deeper wood pores.

This changes the visual outcome.

Characteristics of water-based stain drying

1. Dry-to-touch in 15–60 minutes.
2. Minimal ambering effect.
3. Cleaner, more neutral tone.
4. Less grain contrast compared with oil stains.

Many modern cabinet manufacturers now prefer water-based stains because they produce consistent color across large batches.

When planning cabinetry or built-in furniture, designers sometimes preview finishes using tools that allow you to experiment with material palettes and room finishes in a virtual interior conceptbefore committing to a stain formula.

save pin

Side-by-Side Color Shift Comparison

Key Insight: Oil-based stains generally darken slightly during drying, while water-based stains often lighten as moisture evaporates.

Here is how the two formulas typically behave during the drying process:

1. Oil-Based StainSlower drying time
2. Deeper penetration
3. Slightly darker final tone
4. Warmer color shift
5. Water-Based StainFast drying time
6. Surface-level absorption
7. Often lighter final appearance
8. Cleaner, cooler tone

A mistake I see frequently is evaluating stain color too soon. With oil-based finishes especially, the color you see in the first hour is rarely the final one.

Answer Box

Oil-based stains usually dry slightly darker because pigments penetrate deeper during slower evaporation. Water-based stains dry faster and often appear lighter once moisture evaporates and pigments remain closer to the surface.

Choosing the Right Stain for Predictable Results

Key Insight: Predictable stain color depends less on brand and more on matching stain formula to wood species and drying conditions.

After years of residential design projects, I’ve found that clients care about one thing above all: consistency. Unexpected color shifts can ruin otherwise excellent craftsmanship.

Practical steps for predictable results

1. Always test stains on the same wood species.
2. Let samples dry at least 24 hours.
3. Evaluate under the same lighting conditions as the final space.
4. Compare oil and water versions side by side.

Another overlooked factor is how lighting affects perception. A stain that looks perfect under workshop lighting can appear dramatically different once installed in a finished interior.

Before committing to a stain palette, many designers preview finishes while planning layouts and materials together using tools that help map out room layouts while planning finishes and materials. Seeing the stain alongside flooring, cabinetry, and lighting prevents mismatched tones later.

Final Summary

1. Oil-based stains typically dry deeper and slightly darker.
2. Water-based stains dry faster and often appear lighter.
3. Drying time directly affects pigment penetration.
4. Testing on real wood samples prevents color surprises.
5. Lighting conditions influence perceived final stain color.

FAQ

Does oil-based stain dry darker than water-based stain?

Often yes. Oil-based stains penetrate deeper and can appear slightly darker once fully cured.

Why does wood stain look different after drying?

Solvents evaporate during drying, changing how pigments settle into wood grain and how light reflects from the surface.

Does water based stain lighten as it dries?

Yes, many water-based stains appear lighter after drying because water evaporation reduces surface saturation.

Which stain has the most stable drying color?

Water-based stains generally provide more predictable color because they dry quickly and have minimal ambering.

Do different wood species affect stain drying color?

Absolutely. Oak, maple, pine, and walnut absorb pigments differently, which can dramatically change the final tone.

How long should stain dry before judging the final color?

At least 24 hours for most stains. Oil-based formulas may take longer to fully stabilize.

Can lighting change how stain color appears after drying?

Yes. Warm lighting can make stains appear richer while cool LED lighting may make them look slightly gray.

Should I choose oil or water stain for cabinets?

Water-based stains are commonly used for cabinets because they dry quickly and provide consistent color across panels.

References

US Forest Products Laboratory – Wood Finishing Guidelines

American Wood Finishing Institute – Professional Stain Application Standards
