Optimal Pillar Spacing for Large and Small Halls: Learn how proper pillar spacing creates safer structures while preserving open and flexible hall layouts

Direct Answer

Optimal pillar spacing for hall design typically ranges between 12 and 25 feet depending on building type, beam depth, and slab system. Small residential halls usually work best with 12–16 foot column spacing, while large open halls often extend to 20–25 feet using reinforced beams or advanced slab systems.

The goal is balancing structural safety with usable open space. Wider spacing improves visual openness but requires stronger beams and slabs to support the load.

Quick Takeaways

1. Residential halls typically use 12–16 foot pillar spacing for structural efficiency.
2. Large halls can reach 20–25 feet spacing with reinforced beam systems.
3. Wider column spacing increases beam depth and construction cost.
4. Smart column placement improves circulation and furniture layout.
5. Structural planning should always coordinate with architectural layout early.

Introduction

After working on residential interiors and structural coordination for more than a decade, one question comes up constantly during planning: what is the optimal pillar spacing for a hall? Homeowners want large open rooms without columns interrupting the view, while engineers focus on structural safety and load distribution.

The tension between these two goals defines good hall design. Push columns too far apart and the structure becomes expensive or unstable. Place them too close and the room feels cramped even if the square footage is large.

In several of my recent projects, we used digital layout testing to experiment with different structural grids before construction began. Tools that allow designers to test structural layouts before building beginsoften reveal problems with column placement that aren't obvious on paper.

In this guide, I'll walk through realistic pillar spacing ranges, explain how spacing changes between small and large halls, and share a few design mistakes that many architects and homeowners overlook.

save pin

Why Pillar Spacing Matters in Hall Design

Key Insight: Pillar spacing directly controls structural load paths, furniture flexibility, and how visually open a hall feels.

Most people think of columns as purely structural elements, but from a design perspective they shape how a space functions. Poorly spaced pillars can divide a room into awkward zones, block circulation paths, or limit furniture placement.

In residential projects I've worked on, the most common mistake is aligning columns only with structural logic while ignoring interior layout. The result is a pillar sitting exactly where the sofa, dining table, or TV wall should be.

Good pillar spacing supports both structure and daily living patterns.

1. Defines clear movement paths
2. Supports roof and floor loads safely
3. Preserves visual openness
4. Allows flexible furniture placement
5. Improves long-term renovation options

According to structural engineering standards used in residential reinforced concrete construction, most homes follow a structural grid between 3.5 and 5 meters (roughly 11–16 feet). This range balances material efficiency with structural stability.

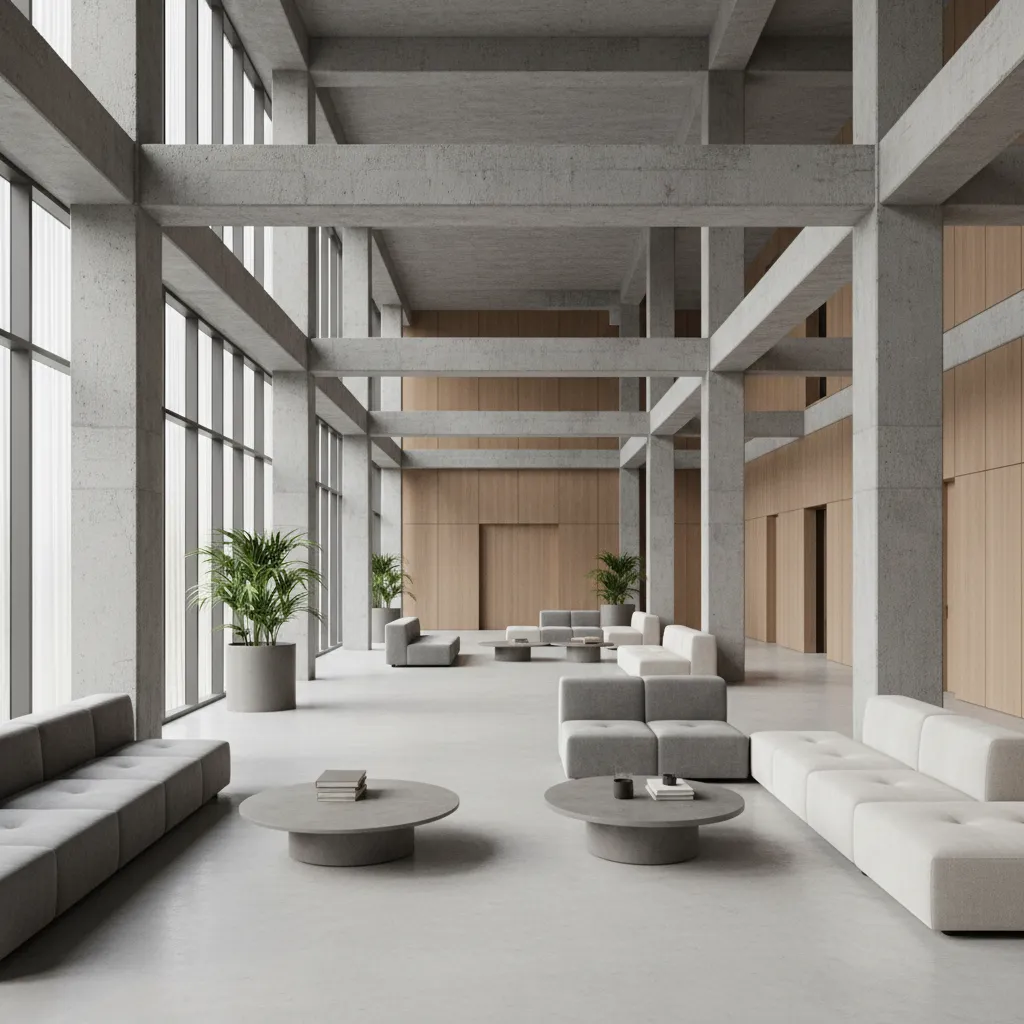

Standard Structural Spacing Guidelines

Key Insight: Most residential column grids fall between 12 and 16 feet, while commercial or large halls often extend to 20–25 feet with stronger beams.

Structural spacing depends heavily on the type of slab system used. Reinforced concrete slabs, flat slabs, and post-tension slabs all allow different span lengths.

Typical spacing ranges used in practice:

1. Small residential buildings: 10–14 ft
2. Standard homes and villas: 12–16 ft
3. Large living halls: 16–20 ft
4. Banquet halls or open venues: 20–25 ft

However, wider spacing increases structural demands. When columns move farther apart, engineers must increase:

1. Beam depth
2. Steel reinforcement
3. Slab thickness
4. Foundation strength

This is where design trade-offs appear. Clients often ask for column-free halls without realizing the hidden structural costs involved.

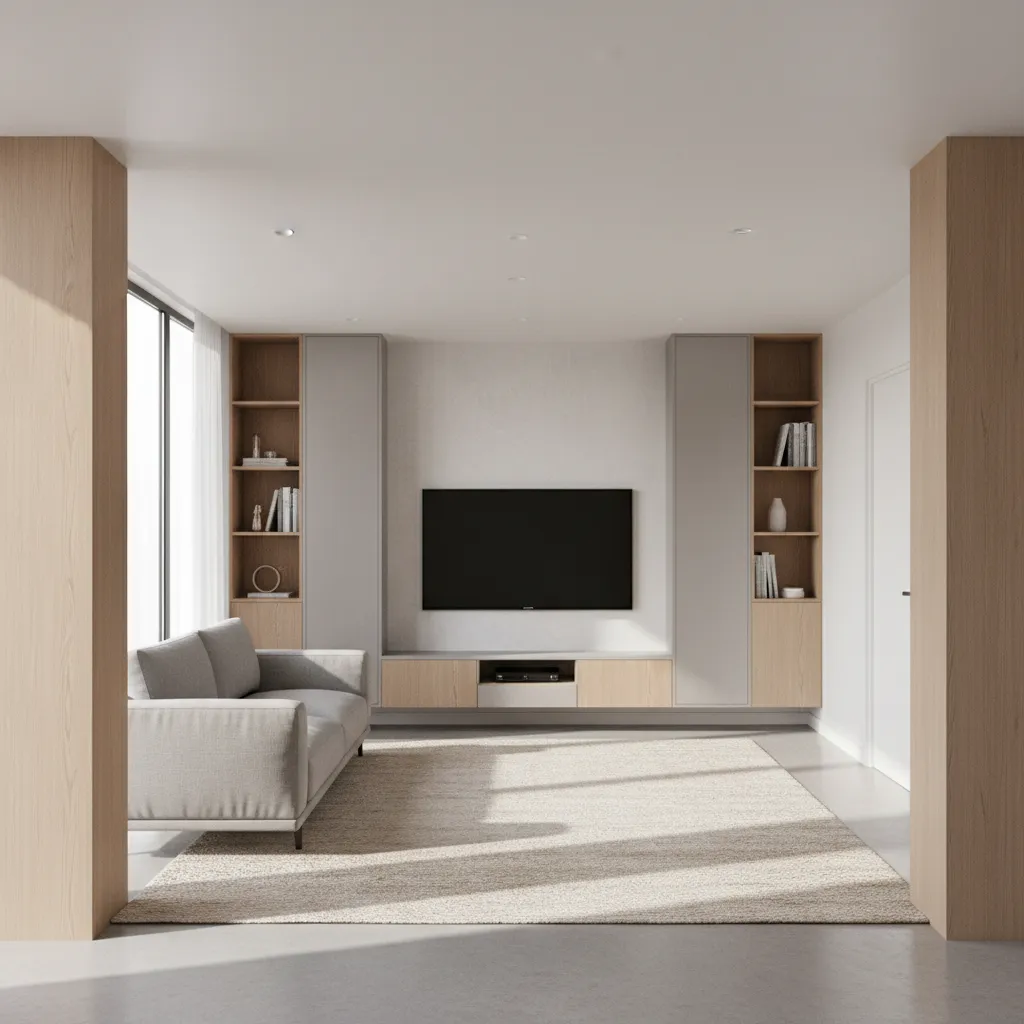

Spacing Strategies for Small Residential Halls

Key Insight:Small halls benefit from tighter structural grids that hide pillars within walls or furniture zones.

In compact homes, pillars shouldn't sit randomly in the room. The smartest approach is aligning them with architectural elements so they visually disappear.

Three strategies I frequently use:

save pin

1. Embed columns into partition walls
2. Align pillars with staircase edges
3. Integrate columns into storage units or TV walls

Typical spacing for small halls:

1. 12–14 ft grid works well for most homes
2. 14–16 ft if using stronger beams
3. Below 12 ft often feels over-structured

During layout testing, many designers now use digital planning tools that help visualize column placement within a 3D floor plan. This helps avoid the classic problem of discovering an awkward pillar only after construction begins.

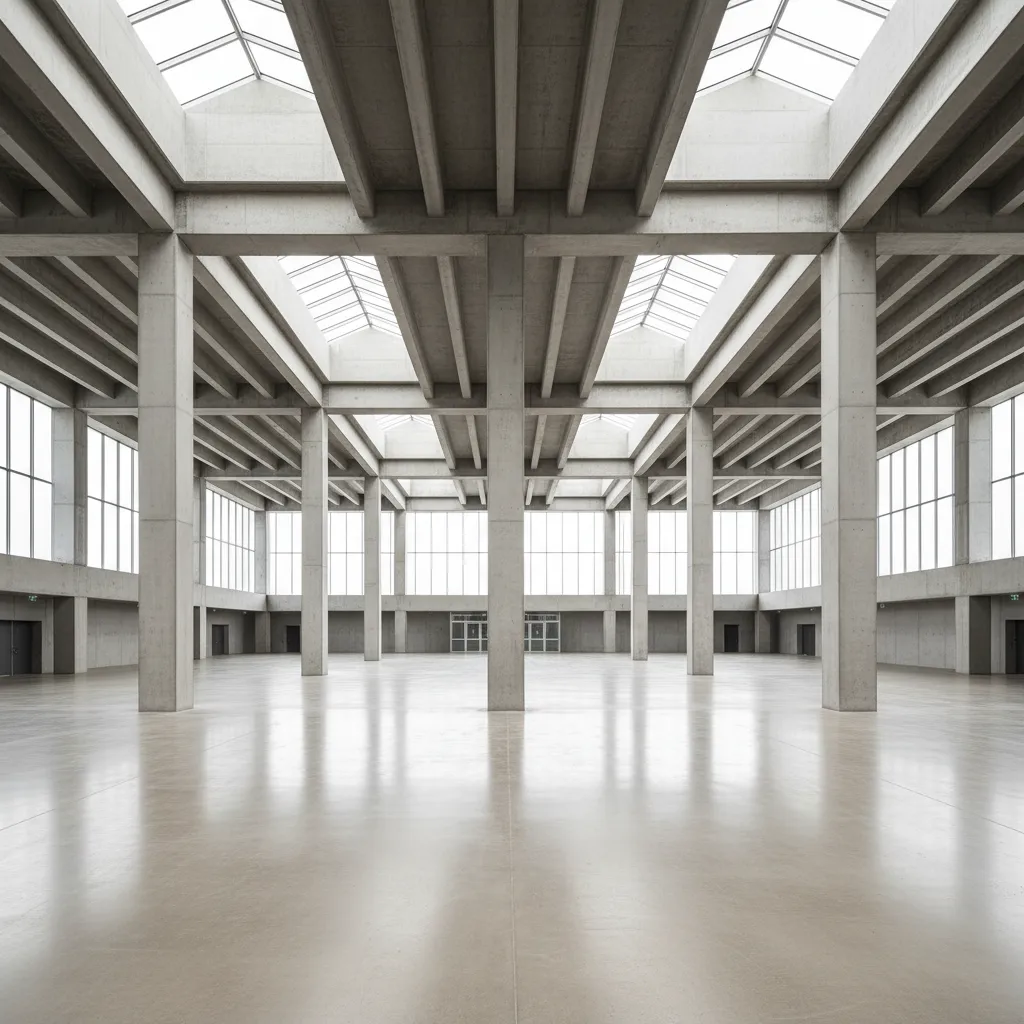

Pillar Layout for Large Open Halls

Key Insight:Large halls require a structural grid designed around span efficiency rather than simple symmetry.

Large living halls, wedding venues, and community halls aim for maximum openness. But increasing pillar spacing dramatically changes structural behavior.

Instead of evenly spacing pillars everywhere, engineers often use perimeter columns and longer interior spans.

Common layout strategies:

save pin

1. Perimeter column grid with central open span
2. Two-column central span with deep beams
3. Beam grid supporting wider slab spans

Typical large hall spacing:

1. 18–20 ft for reinforced concrete systems
2. 20–25 ft with deeper beam structures
3. 25+ ft usually requires steel framing or post-tension systems

Engineering guidelines from organizations such as the American Concrete Institute emphasize designing spans based on load calculations rather than aesthetic preference alone.

Balancing Structural Strength and Visual Openness

Key Insight:The best pillar spacing balances structural efficiency with how people actually use the hall.

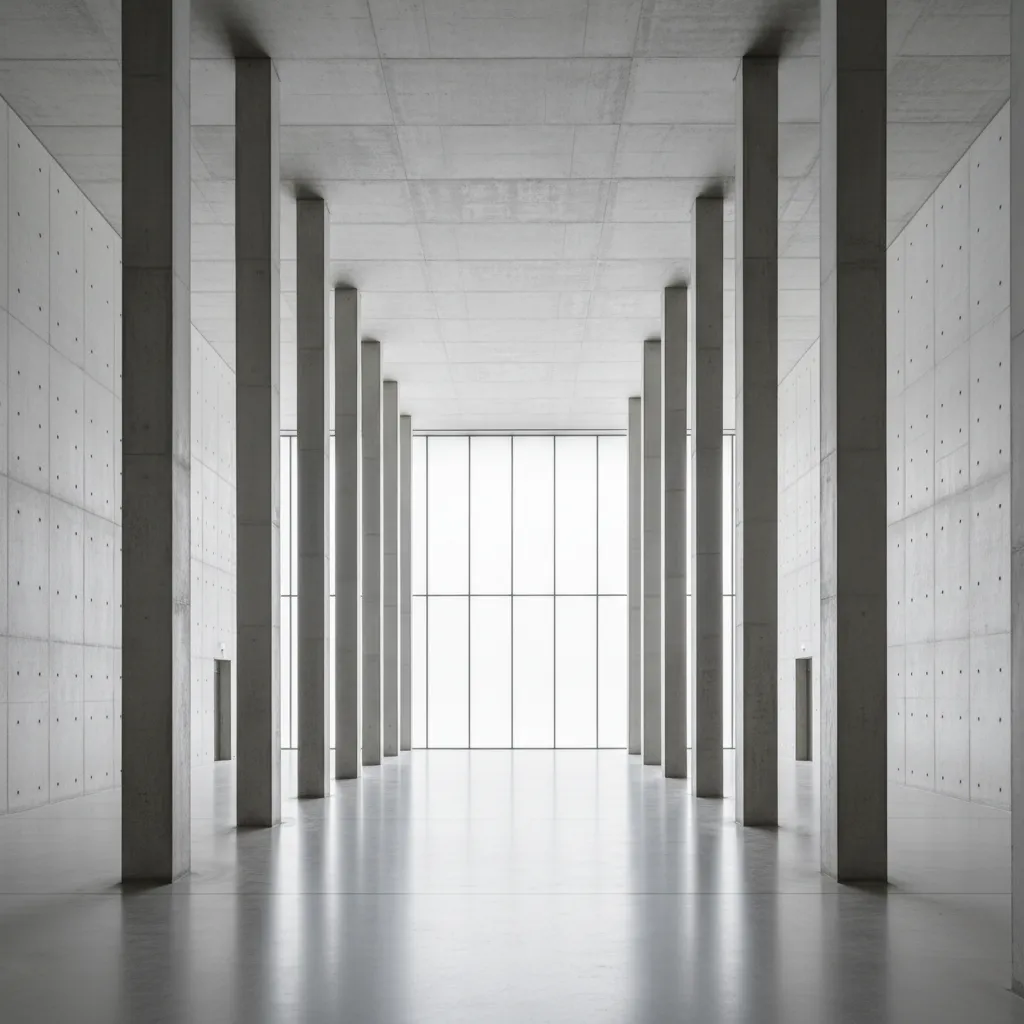

One overlooked design issue is visual rhythm. Columns placed randomly create awkward visual breaks even if structurally correct.

When planning hall structures, I recommend evaluating three layers together:

save pin

1. Structural grid
2. Furniture layout
3. Circulation pathways

In practice, optimal pillar spacing often emerges from adjusting the structural grid slightly to match the interior design layout.

For example:

1. Columns aligned with dining areas feel intentional.
2. Pillars near walls feel invisible.
3. Columns in the center of circulation paths feel intrusive.

Answer Box

The optimal pillar spacing for hall design typically ranges between 12 and 16 feet for residential spaces and up to 20–25 feet for large open halls. Wider spans require stronger beams, thicker slabs, or advanced structural systems.

Using Beams and Slabs to Increase Span

Key Insight: Beam design and slab systems ultimately determine how far apart pillars can safely be placed.

Instead of simply removing columns, engineers usually modify structural components to support longer spans.

Common span-enhancing solutions:

1. Deeper reinforced concrete beams
2. Post-tension slab systems
3. Steel beam reinforcement
4. Flat slab construction

Each approach increases cost but expands usable space.

During concept design, I often run multiple layout simulations to experiment with different hall column grids and spatial layouts. Seeing structural grids visually helps homeowners understand the real impact of column spacing decisions.

Final Summary

1. Optimal pillar spacing for hall design typically ranges from 12 to 25 feet.
2. Residential halls perform best with a 12–16 foot column grid.
3. Large open halls may extend spans to 20–25 feet with stronger beams.
4. Column placement should align with furniture zones and circulation paths.
5. Beam and slab systems determine how wide column spacing can safely go.

FAQ

What is the standard pillar spacing for a residential hall?

Most residential halls use pillar spacing between 12 and 16 feet. This range balances structural stability, material efficiency, and flexible interior layout.

How far apart should pillars be in a hall?

Typical pillar spacing for hall design ranges from 12–16 feet in homes and 18–25 feet in larger halls depending on beam strength and slab system.

Can a hall be built without pillars?

Yes, but large pillar-free halls usually require steel framing, trusses, or post‑tension concrete systems to support the roof or floor loads.

What affects column spacing in house construction?

Key factors include beam depth, slab thickness, building loads, foundation strength, and construction material such as reinforced concrete or steel.

Is wider pillar spacing always better?

Not always. Wider spacing increases beam size and construction cost. The best solution balances openness with structural efficiency.

What is the optimal column layout for large halls?

Large halls often use perimeter columns with longer interior spans to maximize open floor space while maintaining structural safety.

Do pillars affect interior design?

Yes. Poorly positioned columns can block furniture placement, interrupt circulation paths, and reduce usable space.

Can column spacing be changed after construction starts?

It is extremely difficult. Structural grids are part of the foundation design, so spacing should be finalized during early planning stages.
